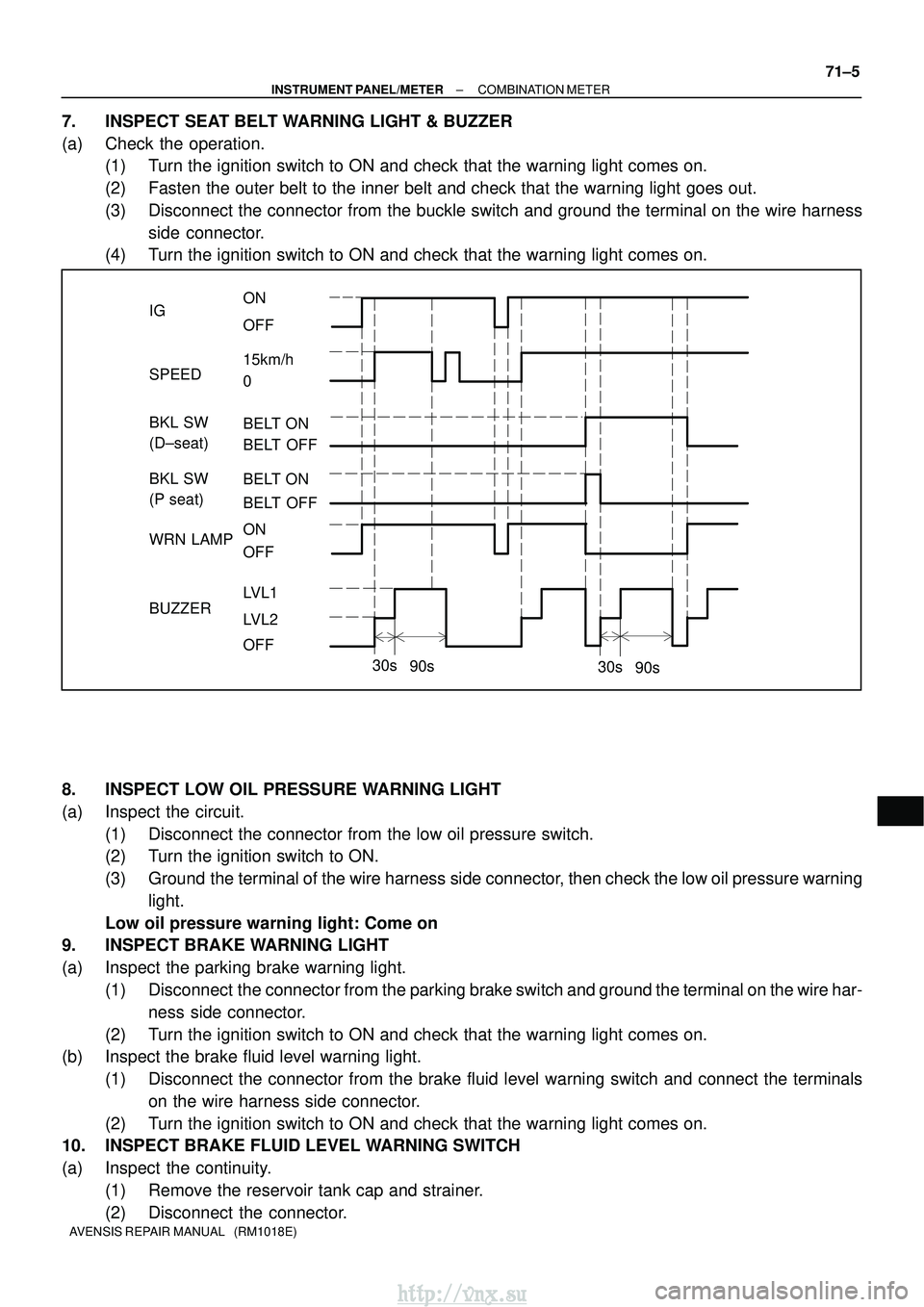

7. INSPECT SEAT BELT WARNING LIGHT & BUZZER
(a) Check the operation.
(1) Turn the ignition switch to ON and check that the warning light comes on.\
(2) Fasten the outer belt to the inner belt and check that the warning light\
goes out.
(3) Disconnect the connector from the buckle switch and ground the terminal \
on the wire harness
side connector.
(4) Turn the ignition switch to ON and check that the warning light comes on.\
8. INSPECT LOW OIL PRESSURE WARNING LIGHT
(a) Inspect the circuit. (1) Disconnect the connector from the low oil pressure switch.
(2) Turn the ignition switch to ON.
(3) Ground the terminal of the wire harness side connector, then check the low oil pressure warninglight.
Low oil pressure warning light: Come on
9. INSPECT BRAKE WARNING LIGHT
(a) Inspect the parking brake warning light.
(1) Disconnect the connector from the parking brake switch and ground the terminal on the wire har-ness side connector.
(2) Turn the ignition switch to ON and check that the warning light comes on.\
(b) Inspect the brake fluid level warning light.
(1) Disconnect the connector from the brake fluid level warning switch and c\
onnect the terminalson the wire harness side connector.
(2) Turn the ignition switch to ON and check that the warning light comes on.\
10. INSPECT BRAKE FLUID LEVEL WARNING SWITCH
(a) Inspect the continuity.
(1) Remove the reservoir tank cap and strainer.
(2) Disconnect the connector.
http://vnx.su
Page 1658 of 2234
71±6
±
INSTRUMENT PANEL/METERCOMBINATION METER
AVENSIS REPAIR MANUAL (RM1018E)

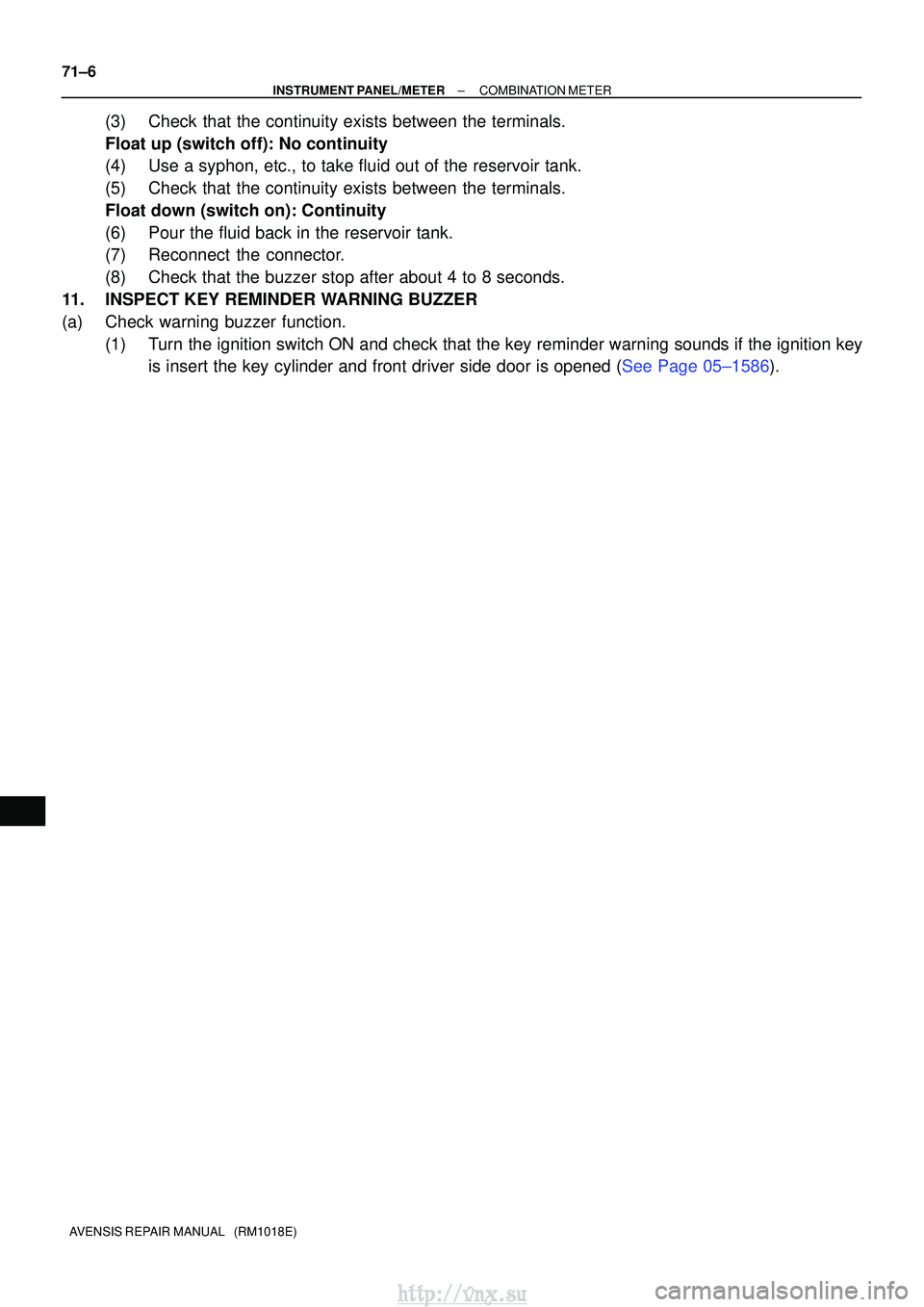

(3)Check that the continuity exists between the terminals.
Float up (switch off): No continuity
(4)Use a syphon, etc., to take fluid out of the reservoir tank.
(5)Check that the continuity exists between the terminals.
Float down (switch on): Continuity
(6)Pour the fluid back in the reservoir tank.
(7)Reconnect the connector.
(8)Check that the buzzer stop after about 4 to 8 seconds.
11.INSPECT KEY REMINDER WARNING BUZZER
(a)Check warning buzzer function. (1)Turn the ignition switch ON and check that the key reminder warning sounds i\
f the ignition keyis insert the key cylinder and front driver side door is opened (See Page 05±1586).
http://vnx.su
Page 1659 of 2234
710G0±01
B660342 Clips
B660407 Claws
±
INSTRUMENT PANEL/METERCOMBINATION METER ASSY
71±21
AVENSIS REPAIR MANUAL (RM1018E)

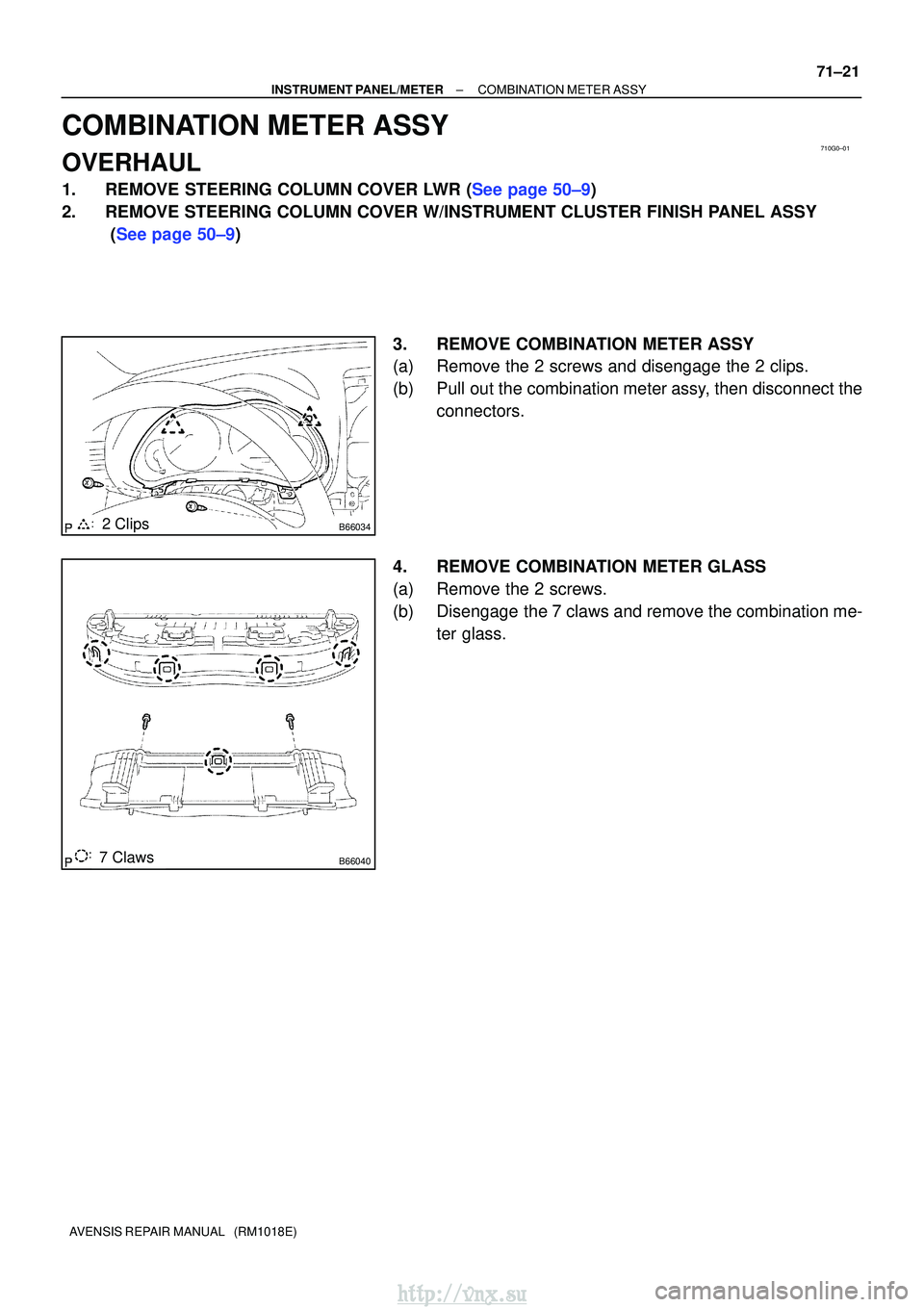

COMBINATION METER ASSY
OVERHAUL
1.REMOVE STEERING COLUMN COVER LWR (See page 50±9)
2.REMOVE STEERING COLUMN COVER W/INSTRUMENT CLUSTER FINISH PANEL ASSY
(See page 50±9)
3. REMOVE COMBINATION METER ASSY
(a) Remove the 2 screws and disengage the 2 clips.
(b) Pull out the combination meter assy, then disconnect theconnectors.
4. REMOVE COMBINATION METER GLASS
(a) Remove the 2 screws.
(b) Disengage the 7 claws and remove the combination me- ter glass.
http://vnx.su
Page 1660 of 2234
710G2±01
B66037
Front Pillar Garnish LHFront Pillar Garnish RH
Instrument Panel Register
Assy No.2
Instrument Panel Register
Assy No.1
Steering Column Cover
w/ Instrument Cluster Finish Panel Assy Combination Meter Assy
Glove Compartment
Door AssyGlove Compartment
Door Stopper Sub±assy
w/ Multi±Display: w/ Box:
w/ Navi:
Instrument Panel Register Assy CTRInstrument Cluster Finish
Panel Garnish No.2
Steering
Column Cover LWR
Instrument Cluster Finish
Panel Garnish No.1
Combination Meter Glass
N´m (kgf´cm, ft´lbf) : Specified torque
A
G
H
H
HHHHHH
20 (200, 14)
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL/METER
71±7
AVENSIS REPAIR MANUAL (RM1018E)

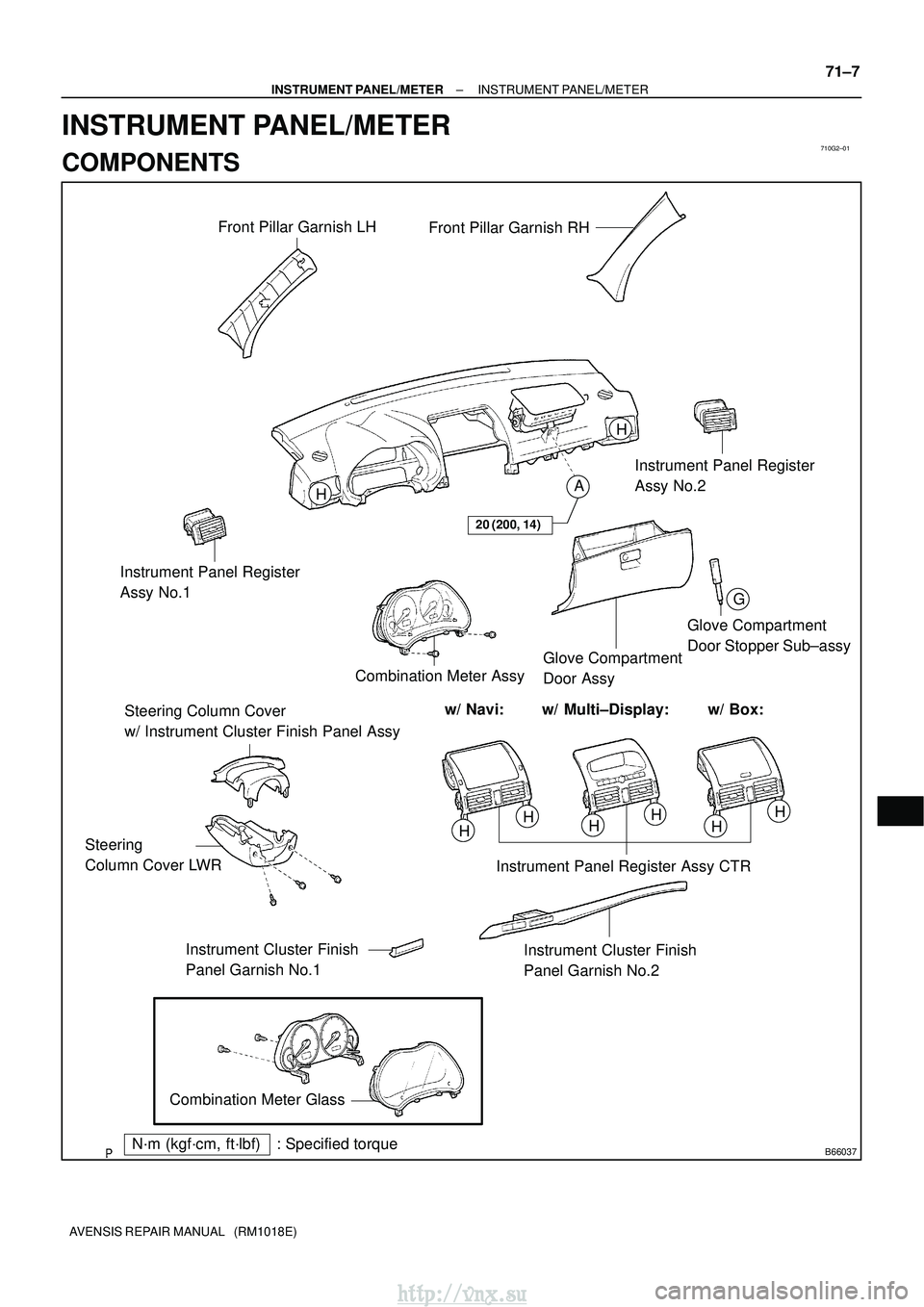

INSTRUMENT PANEL/METER

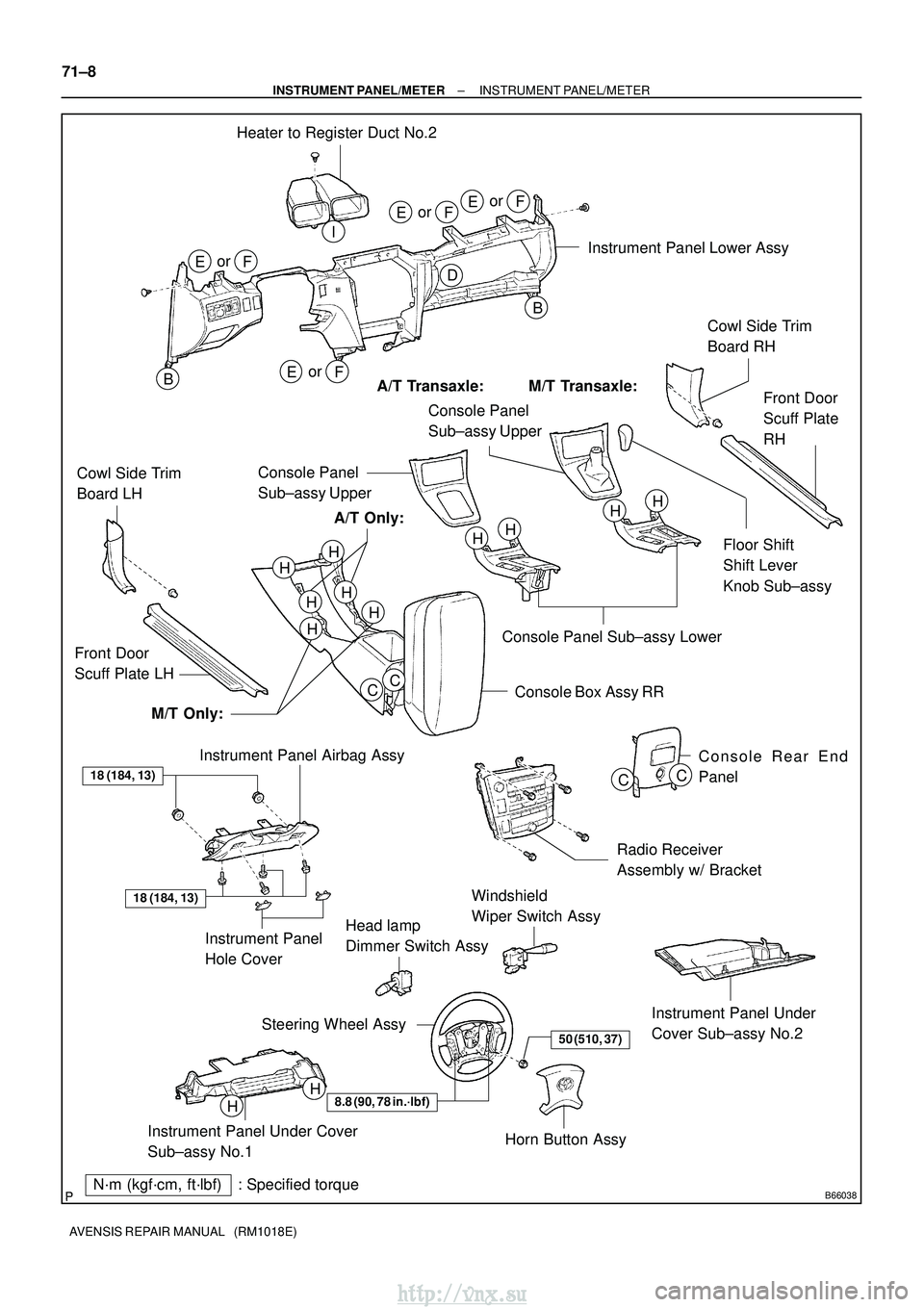

COMPONENTS
http://vnx.su
Page 1661 of 2234
B66038
Heater to Register Duct No.2Instrument Panel Lower AssyCowl Side Trim
Board RHFront Door
Scuff Plate
RH
Floor Shift
Shift Lever
Knob Sub±assy
Console Panel
Sub±assy Upper
Console Panel Sub±assy LowerConsole Box Assy RR
Front Door
Scuff Plate LH Cowl Side Trim
Board LH
Instrument Panel Airbag Assy Console Rear End
Panel
Radio Receiver
Assembly w/ Bracket
Windshield
Wiper Switch Assy
Instrument Panel
Hole Cover Head lamp
Dimmer Switch Assy
Instrument Panel Under
Cover Sub±assy No.2
Horn Button Assy
Steering Wheel Assy
Instrument Panel Under Cover
Sub±assy No.1
H
N´m (kgf´cm, ft´lbf) : Specified torque M/T Transaxle:
A/T Transaxle:
A/T Only:
M/T Only:
50 (510, 37)
8.8 (90, 78 in.´lbf)
orEF
D
B
B or
EF
I
or
EF
or
EF
H
HH
H
H
HH
H
H
CC
CC
H
H Console Panel
Sub±assy Upper
18 (184, 13)
18 (184, 13)
71±8
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL/METER
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su
Page 1662 of 2234

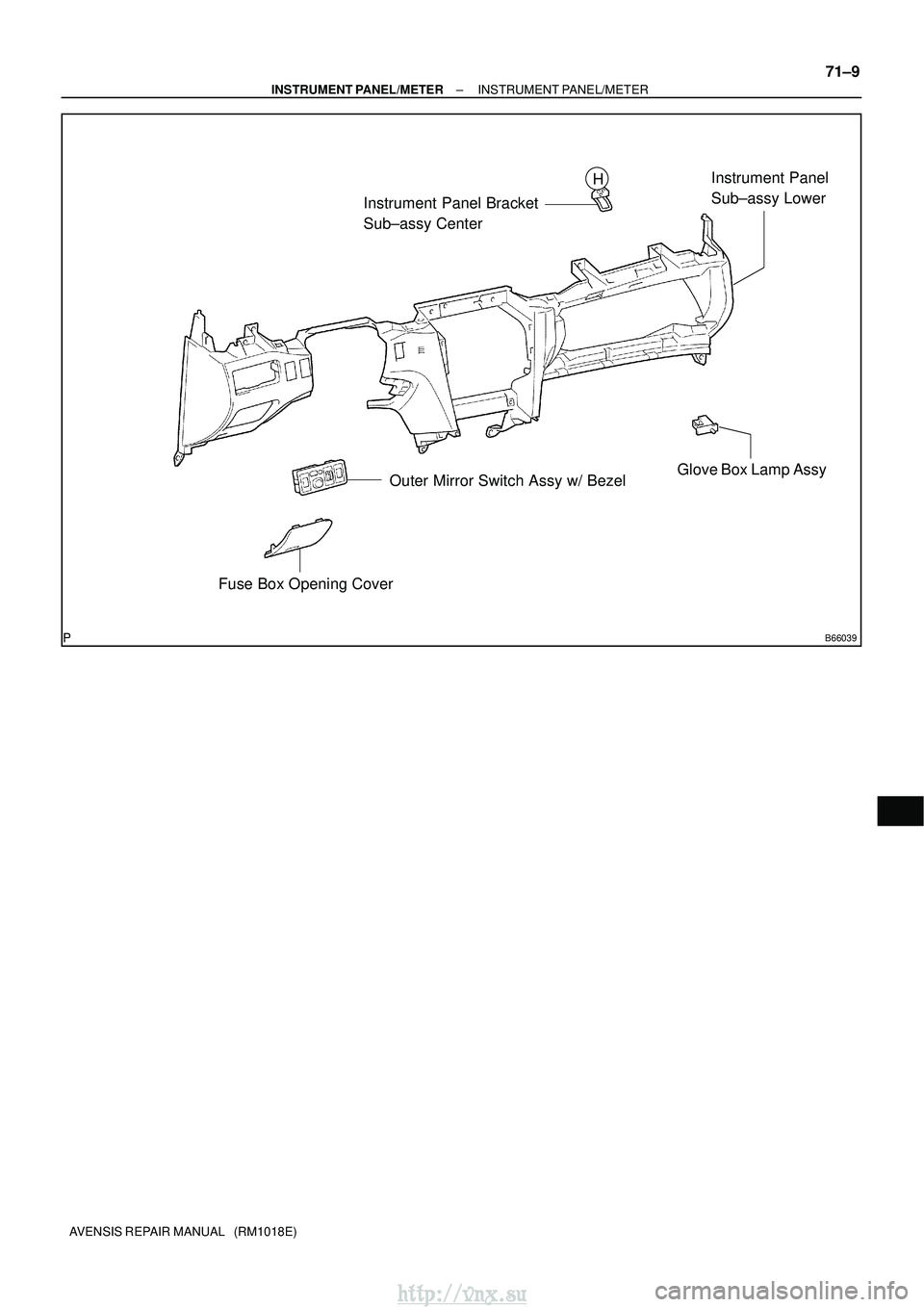

B66039
Instrument Panel Bracket
Sub±assy CenterInstrument Panel
Sub±assy Lower
Glove Box Lamp Assy
Outer Mirror Switch Assy w/ Bezel
Fuse Box Opening Cover
H
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL/METER
71±9
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su
Page 1663 of 2234
710FY±01
71±10
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)

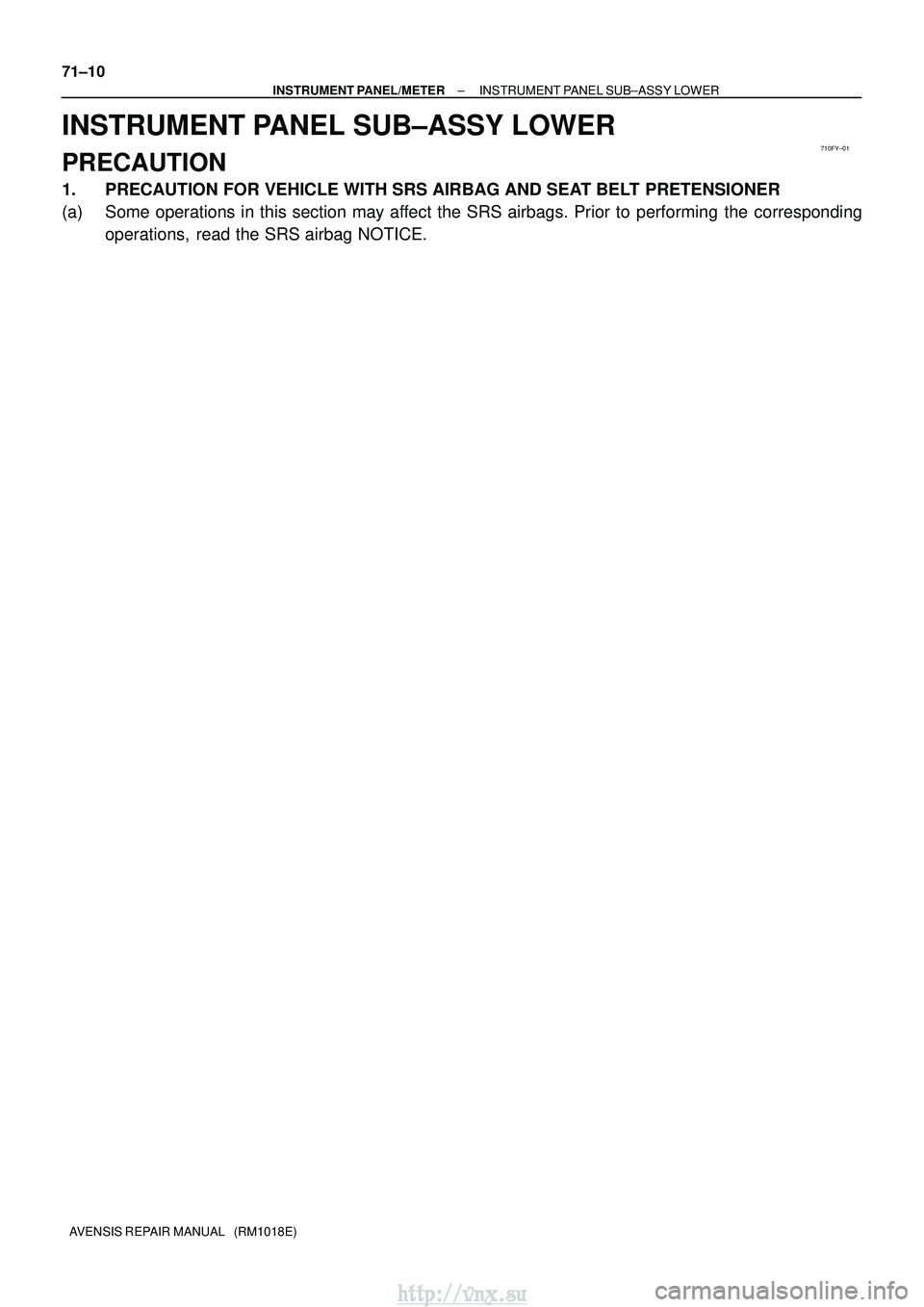

INSTRUMENT PANEL SUB±ASSY LOWER
PRECAUTION
1. PRECAUTION FOR VEHICLE WITH SRS AIRBAG AND SEAT BELT PRETENSIONER
(a) Some operations in this section may affect the SRS airbags. Prior to performing the corresponding operations, read the SRS airbag NOTICE.
http://vnx.su
Page 1664 of 2234
710G1±01
B66021
71±22
±
INSTRUMENT PANEL/METER MULTI±DISPLAY (CRT DISPLAY) DISPLAY
AVENSIS REPAIR MANUAL (RM1018E)

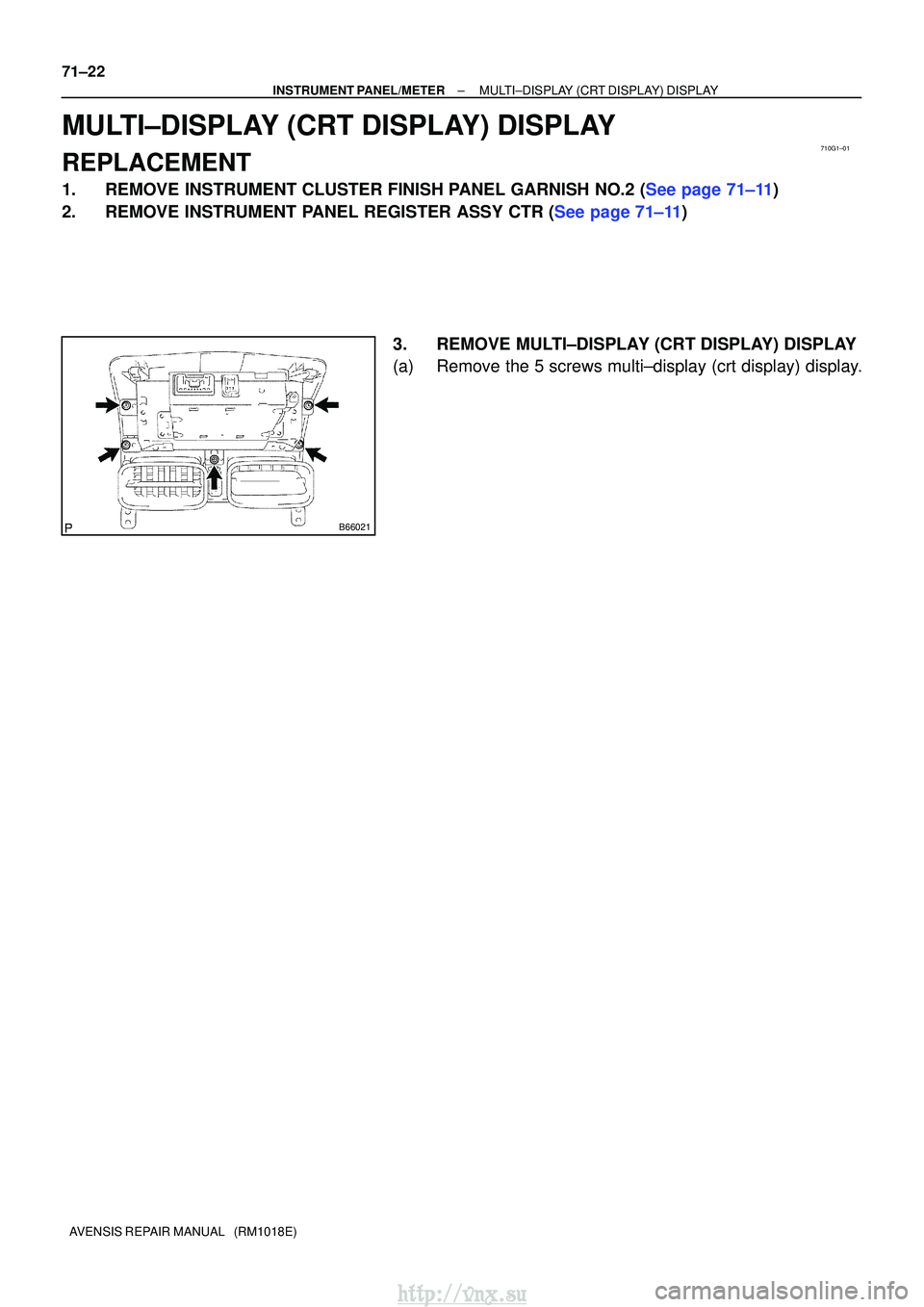

MULTI±DISPLAY (CRT DISPLAY) DISPLAY
REPLACEMENT
1.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (See page 71±11)
2.REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (See page 71±11) 3. REMOVE MULTI±DISPLAY (CRT DISPLAY) DISPLAY
(a) Remove the 5 screws multi±display (crt display) display.
