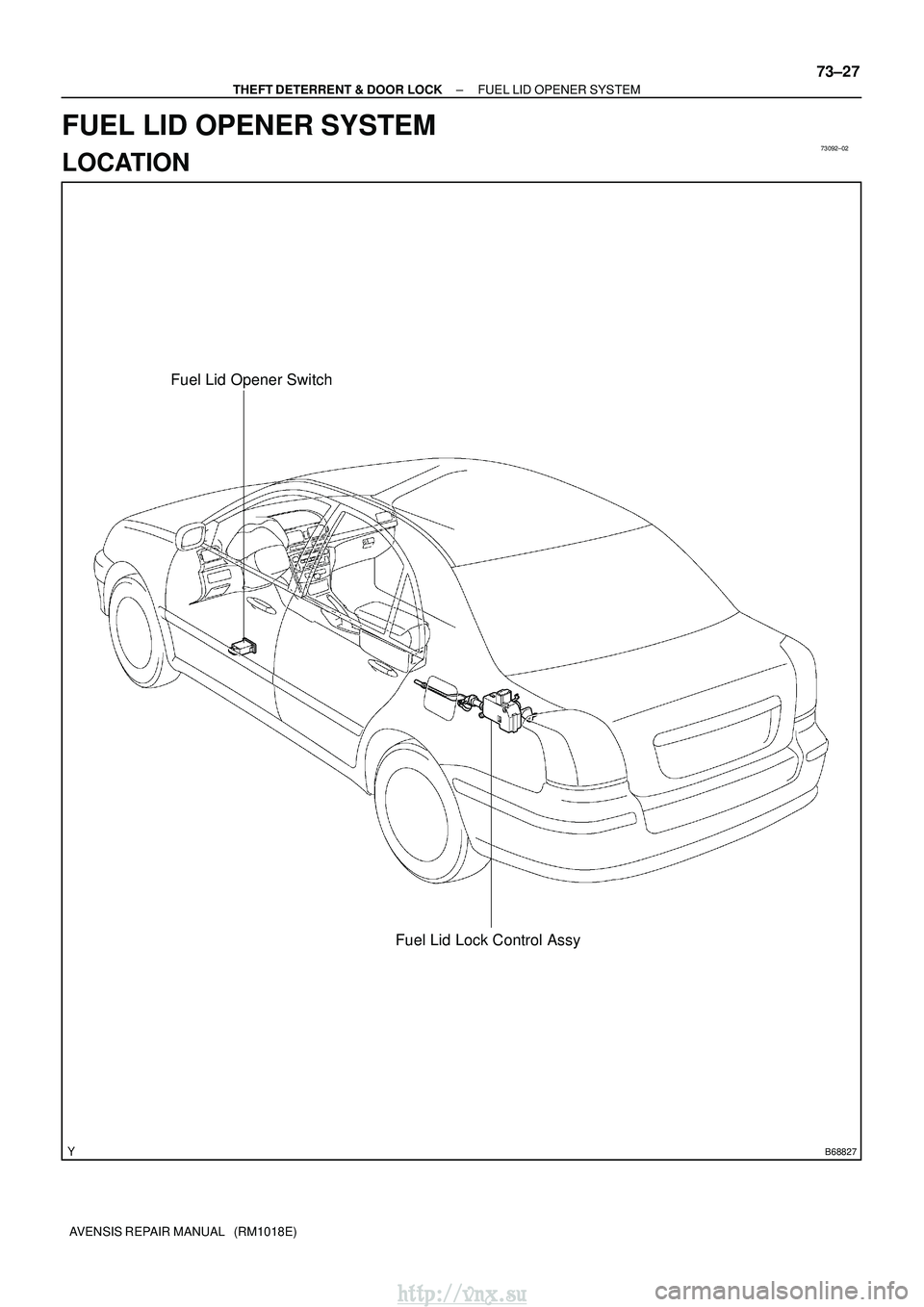

Page 1705 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 73092±02
B68827
Fuel Lid Lock Control Assy
Fuel Lid Opener Switch
±
THEFT DETERRENT & DOOR LOCK FUEL LID OPENER SYSTEM
73±27
AVENSIS REPAIR MANUAL (RM1018E)
FUEL LID OPENER SYSTEM
LOCATION
http:/

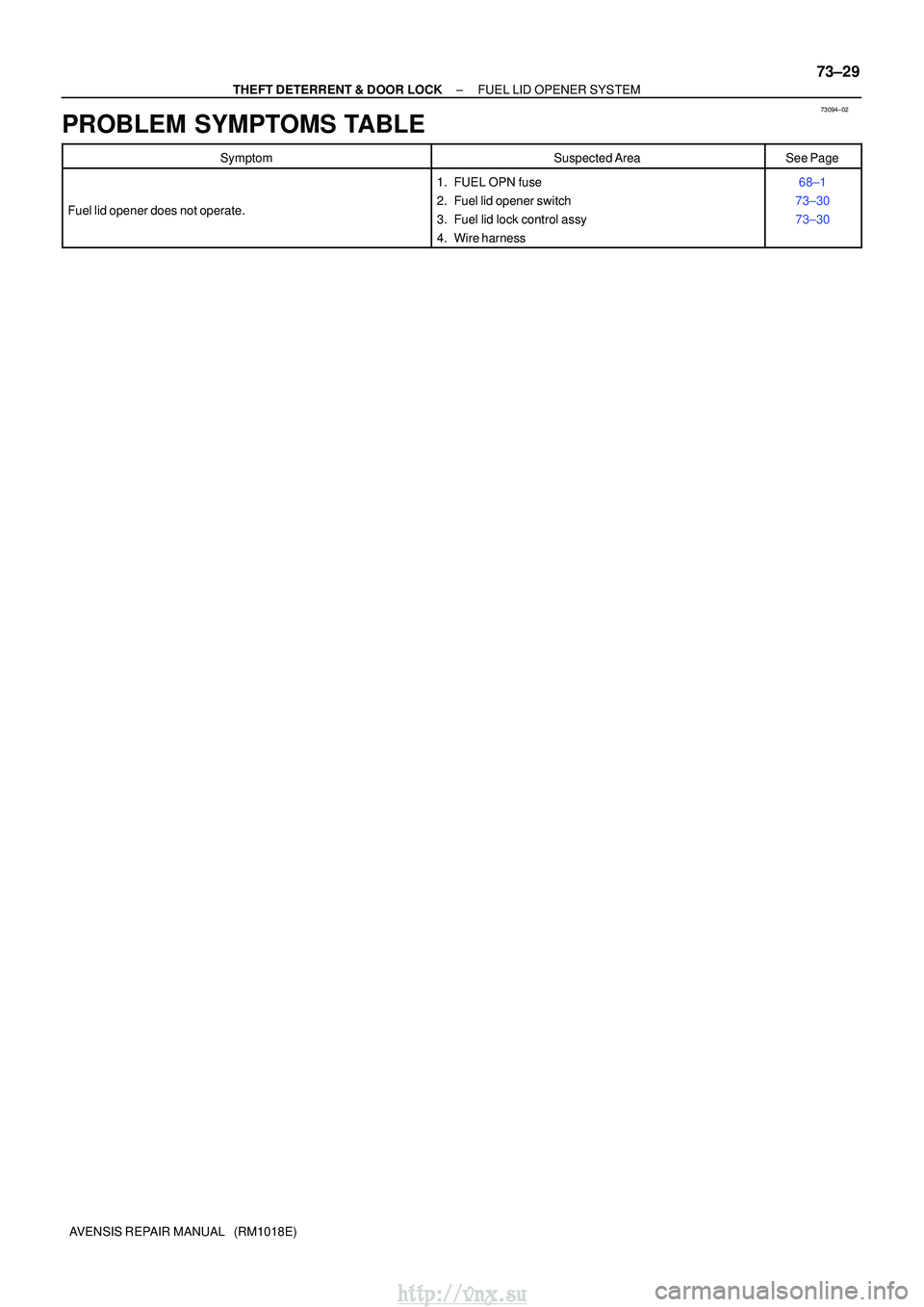

Page 1706 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 73094±02
±
THEFT DETERRENT & DOOR LOCKFUEL LID OPENER SYSTEM
73±29
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
Fuel lid opener does not operate.
1. FUEL O

Page 1707 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 73095±02
B68828
Fuel Lid Opener Switch
B68829
Shaft StrokesOpen
73±30
±
THEFT DETERRENT & DOOR LOCK FUEL LID OPENER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1. INSPECT FUEL LID OPENER SW

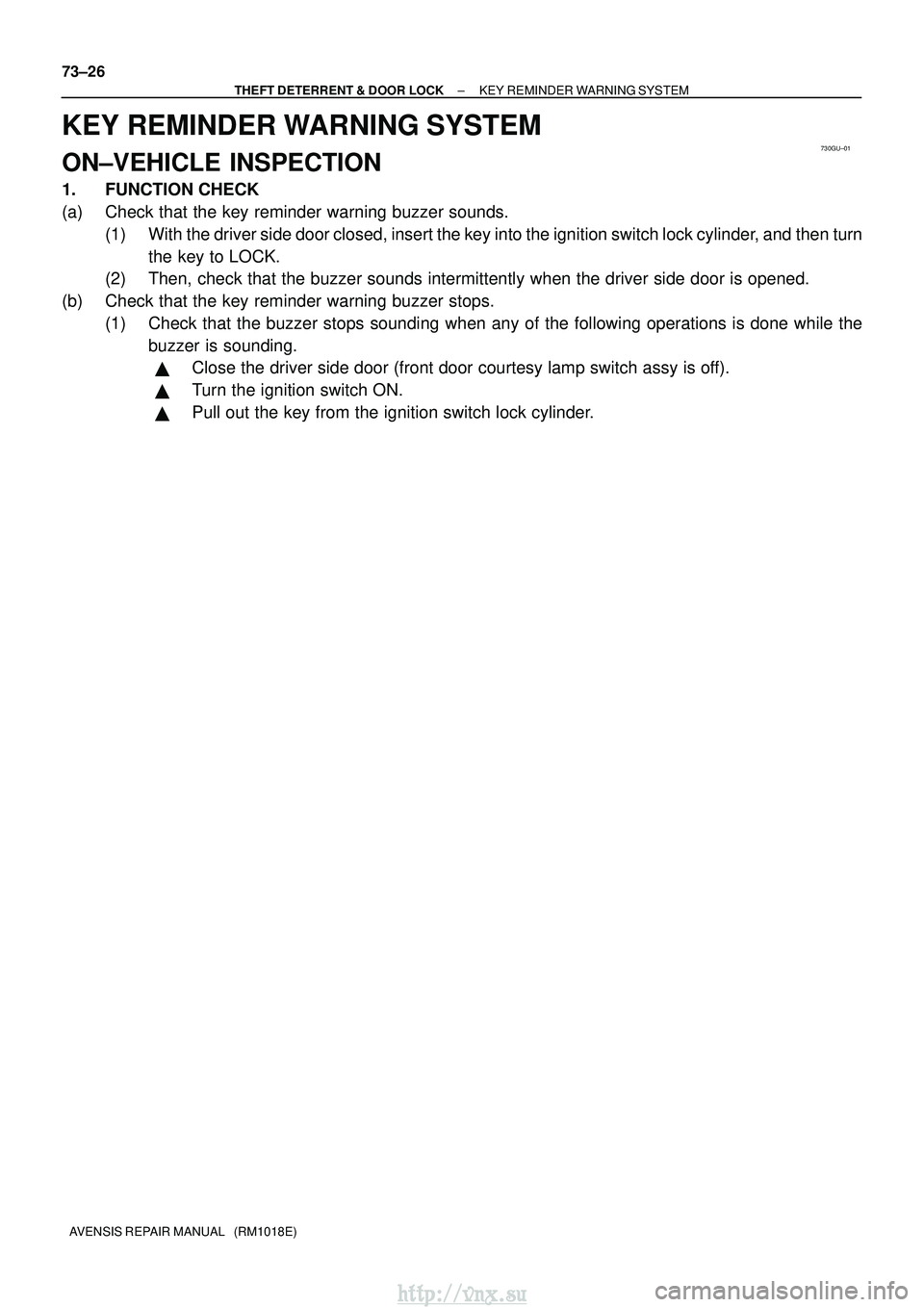

Page 1708 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 730GU±01
73±26
±
THEFT DETERRENT & DOOR LOCK KEY REMINDER WARNING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
KEY REMINDER WARNING SYSTEM
ON±VEHICLE INSPECTION
1. FUNCTION CHECK
(a) Check that the ke

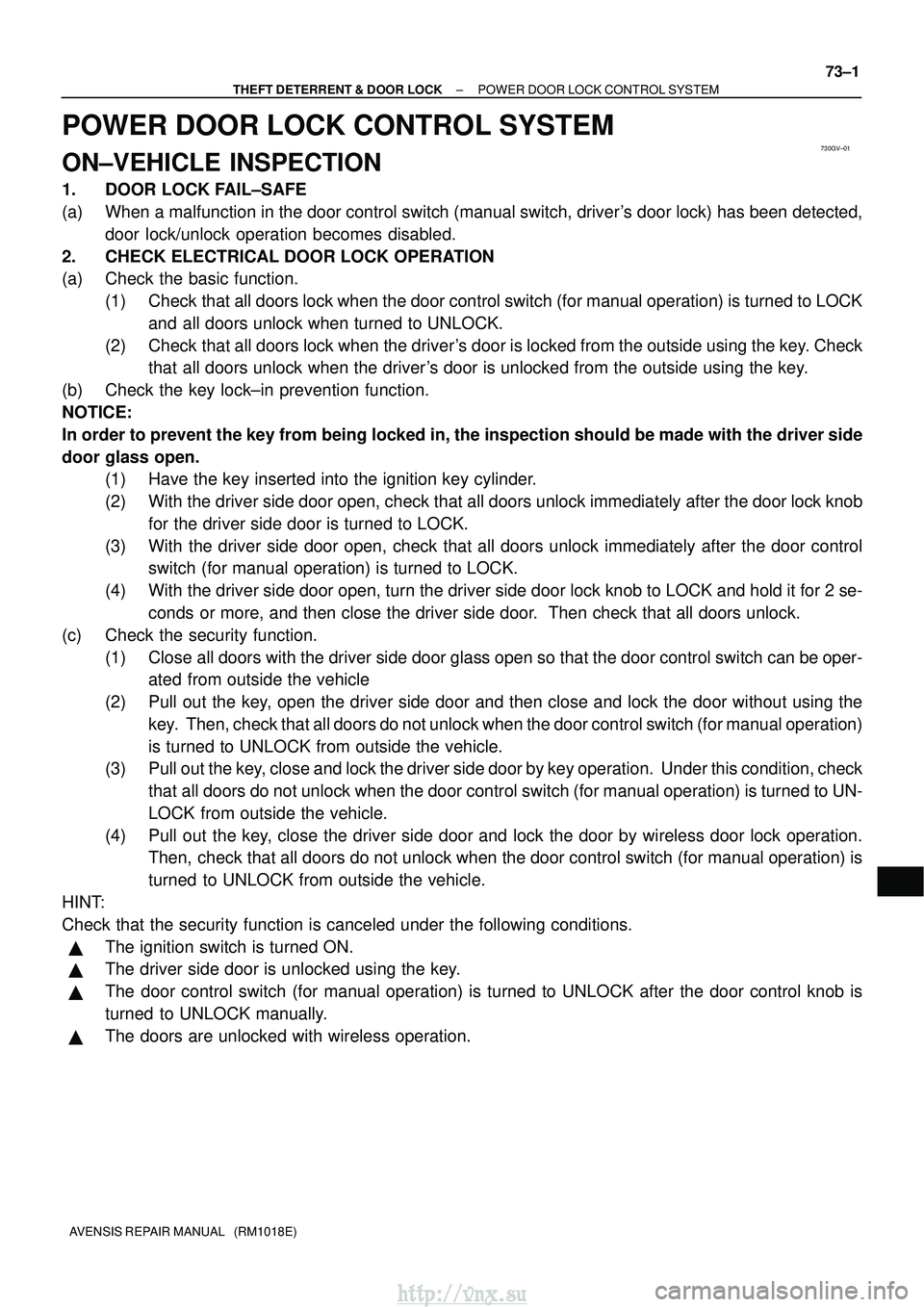

Page 1709 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 730GV±01
±
THEFT DETERRENT & DOOR LOCK POWER DOOR LOCK CONTROL SYSTEM
73±1
AVENSIS REPAIR MANUAL (RM1018E)
POWER DOOR LOCK CONTROL SYSTEM
ON±VEHICLE INSPECTION
1. DOOR LOCK FAIL±SAFE
(a) When a

730GV±01
±
THEFT DETERRENT & DOOR LOCK POWER DOOR LOCK CONTROL SYSTEM
73±1
AVENSIS REPAIR MANUAL (RM1018E)
POWER DOOR LOCK CONTROL SYSTEM
ON±VEHICLE INSPECTION
1. DOOR LOCK FAIL±SAFE
(a) When a malfunction in the door control switch (manual switch, driver's door lock) has been detected,
door lock/unlock operation becomes disabled.
2. CHECK ELECTRICAL DOOR LOCK OPERATION
(a) Check the basic function. (1) Check that all doors lock when the door control switch (for manual operation\
) is turned to LOCKand all doors unlock when turned to UNLOCK.
(2) Check that all doors lock when the driver's door is locked from the outside using the key. Check that all doors unlock when the driver's door is unlocked from the outside using the key.
(b) Check the key lock±in prevention function.
NOTICE:
In order to prevent the key from being locked in, the inspection should be\
made with the driver side
door glass open. (1) Have the key inserted into the ignition key cylinder.
(2) With the driver side door open, check that all doors unlock immediately afte\
r the door lock knob
for the driver side door is turned to LOCK.
(3) With the driver side door open, check that all doors unlock immediately afte\
r the door control switch (for manual operation) is turned to LOCK.
(4) With the driver side door open, turn the driver side door lock knob to LOCK a\
nd hold it for 2 se- conds or more, and then close the driver side door. Then check that all doors unlock.
(c) Check the security function. (1) Close all doors with the driver side door glass open so that the door control\
switch can be oper-ated from outside the vehicle
(2) Pull out the key, open the driver side door and then close and lock the door without usi\
ng the key. Then, check that all doors do not unlock when the door control switch \
(for manual operation)
is turned to UNLOCK from outside the vehicle.
(3) Pull out the key, close and lock the driver side door by key operation. Under this condition, c\
heck
that all doors do not unlock when the door control switch (for manual opera\
tion) is turned to UN-
LOCK from outside the vehicle.
(4) Pull out the key, close the driver side door and lock the door by wireless door lock ope\
ration. Then, check that all doors do not unlock when the door control switch (for manual operation) is
turned to UNLOCK from outside the vehicle.
HINT:
Check that the security function is canceled under the following conditi\
ons.
The ignition switch is turned ON.
The driver side door is unlocked using the key.
The door control switch (for manual operation) is turned to UNLOCK after \
the door control knob is
turned to UNLOCK manually.
The doors are unlocked with wireless operation.
http://vnx.su

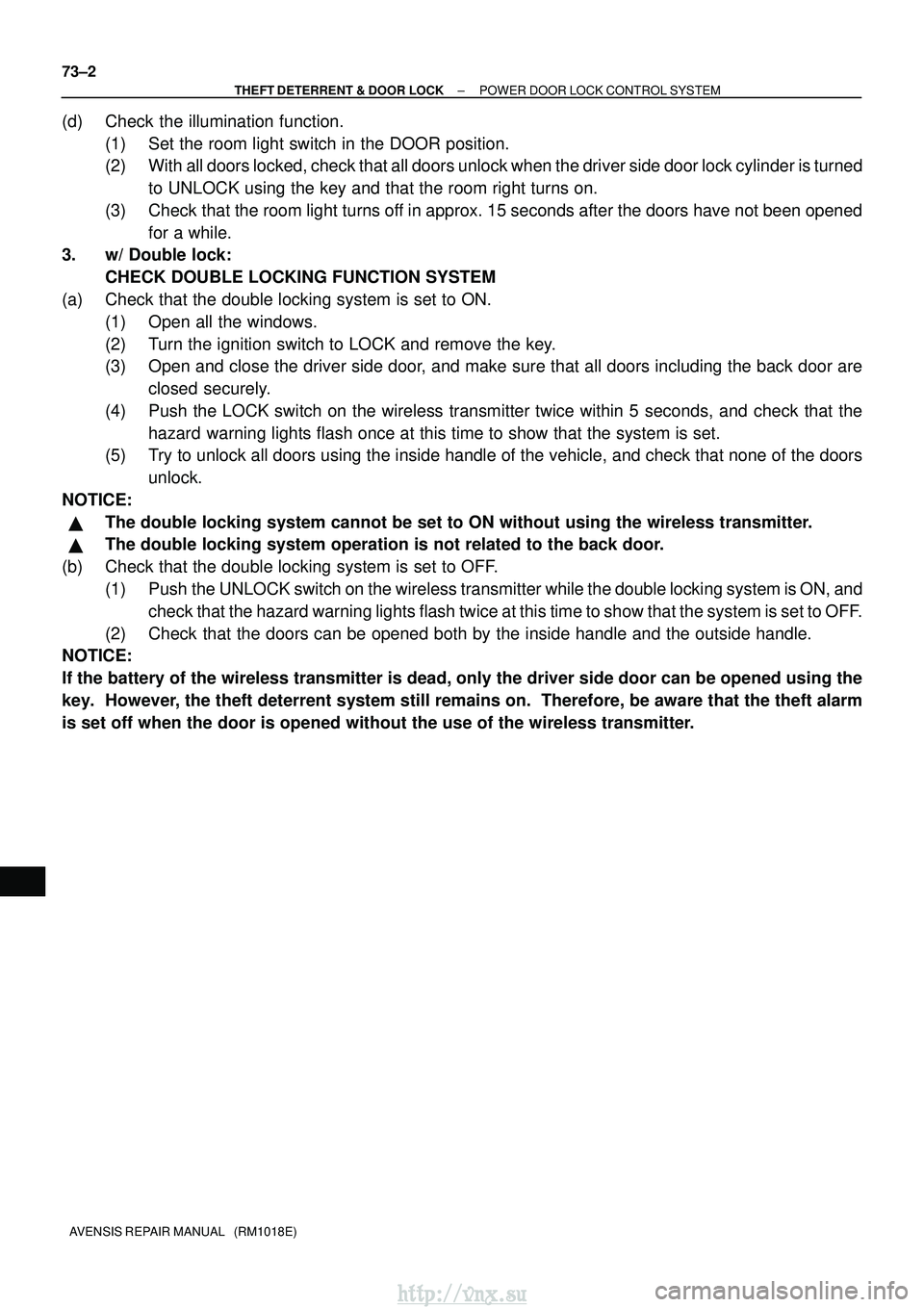

Page 1710 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 73±2
±
THEFT DETERRENT & DOOR LOCK POWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
(d) Check the illumination function. (1) Set the room light switch in the DOOR position.
(2) With

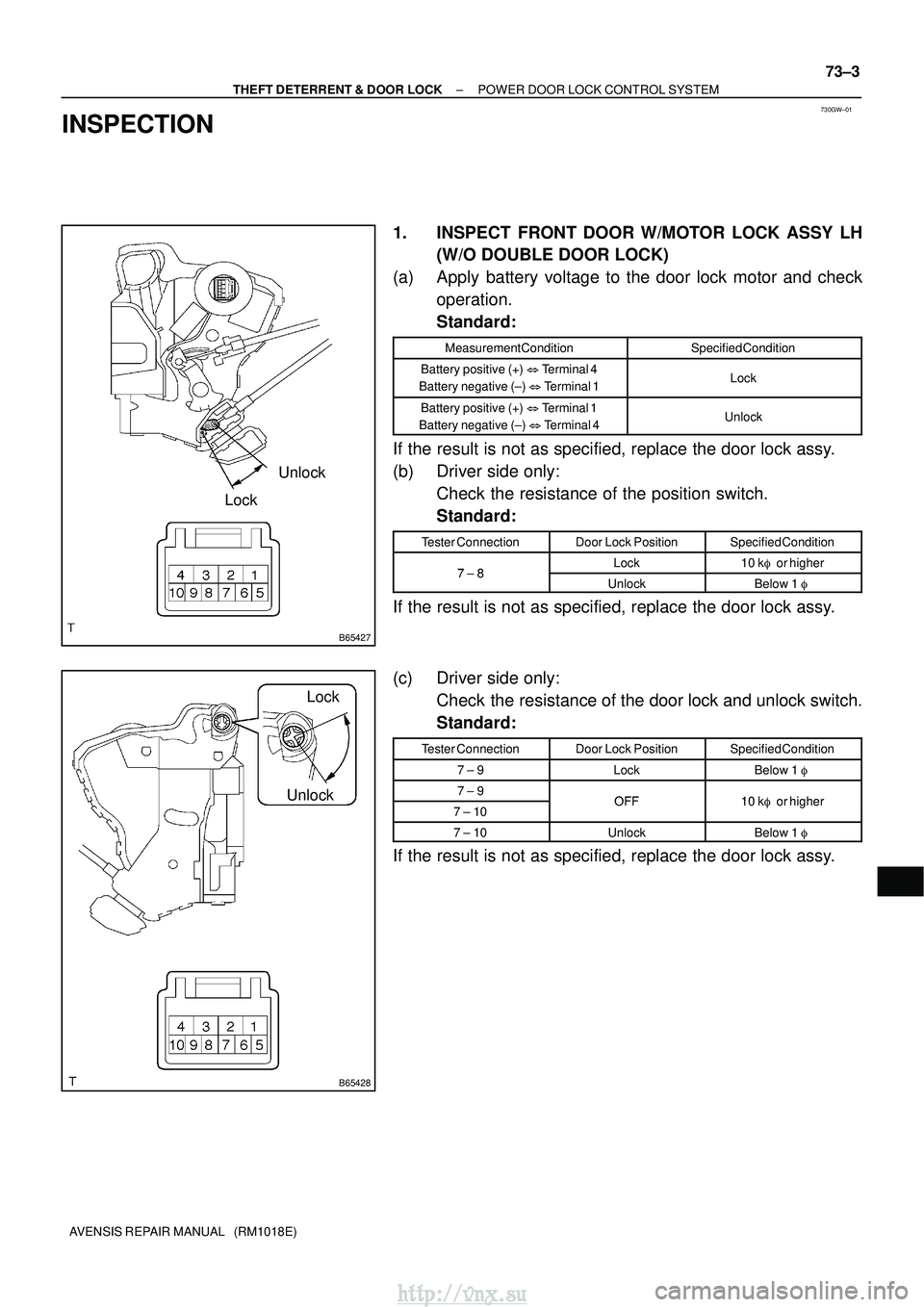

Page 1711 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 730GW±01
B65427
Unlock
Lock
B65428
UnlockLock
±
THEFT DETERRENT & DOOR LOCK POWER DOOR LOCK CONTROL SYSTEM
73±3
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1. INSPECT FRONT DOOR W/MOTOR LOCK ASSY

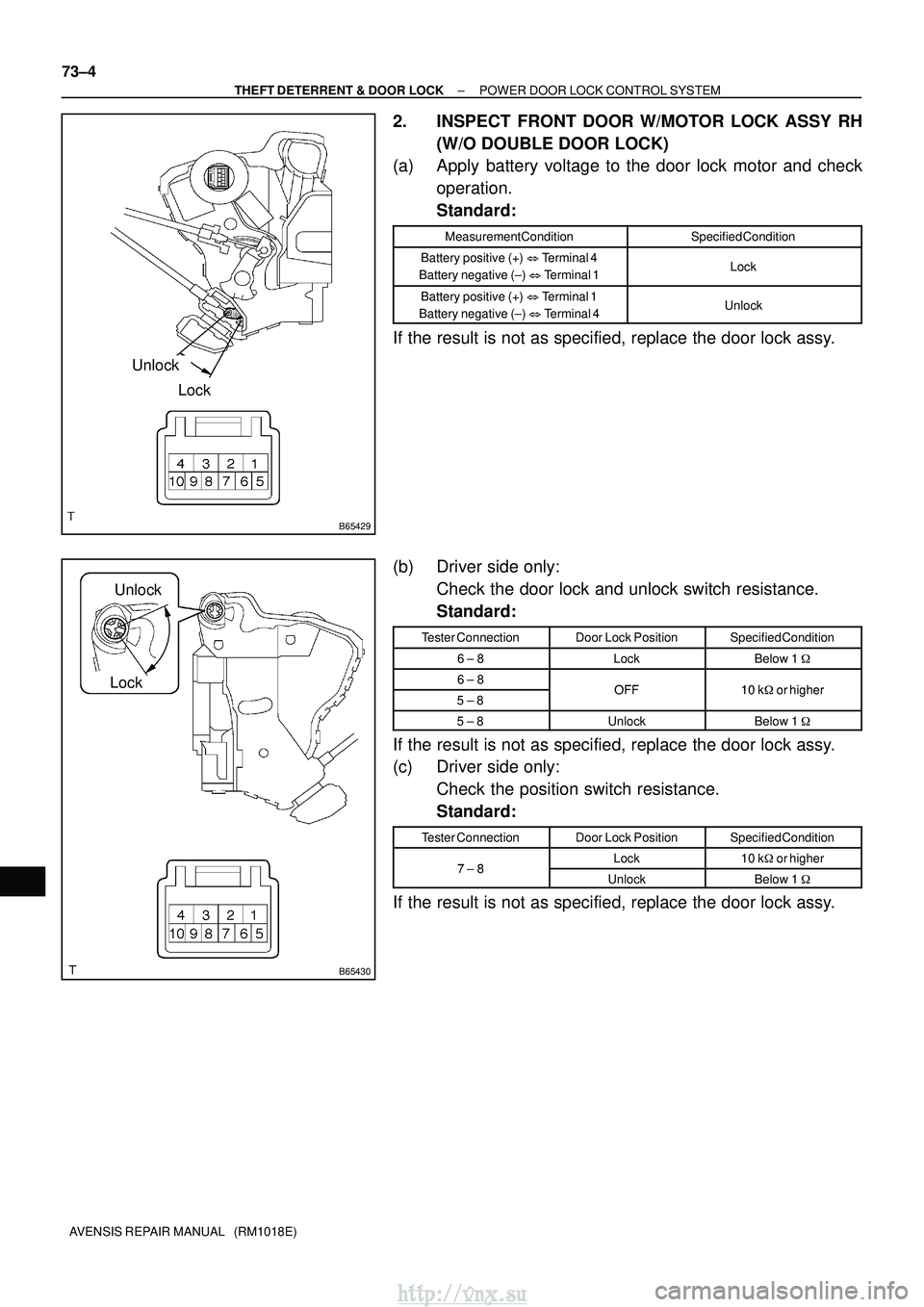

Page 1712 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B65429
Unlock
Lock
B65430
Unlock
Lock
73±4
±
THEFT DETERRENT & DOOR LOCK POWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
2. INSPECT FRONT DOOR W/MOTOR LOCK ASSY RH (W/O DOUBLE DOOR
