Page 1369 of 2234

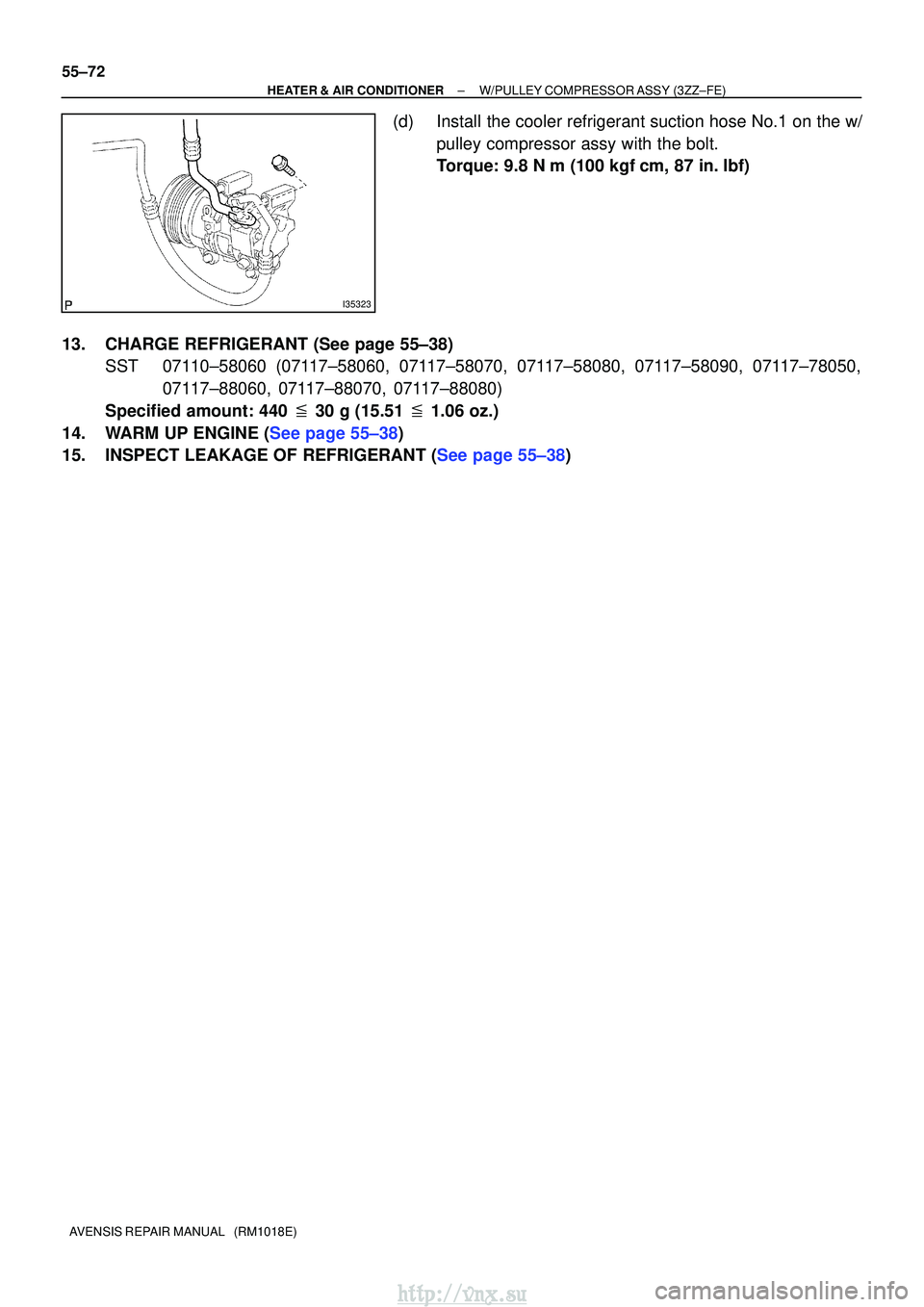

TOYOTA AVENSIS 2003 Service Repair Manual I35323 55±72 ± HEATER & AIR CONDITIONER W/PULLEY COMPRESSOR ASSY (3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) (d) Install the cooler refrigerant suction hose No.1 on the w/ pulley compressor assy wit

Page 1370 of 2234

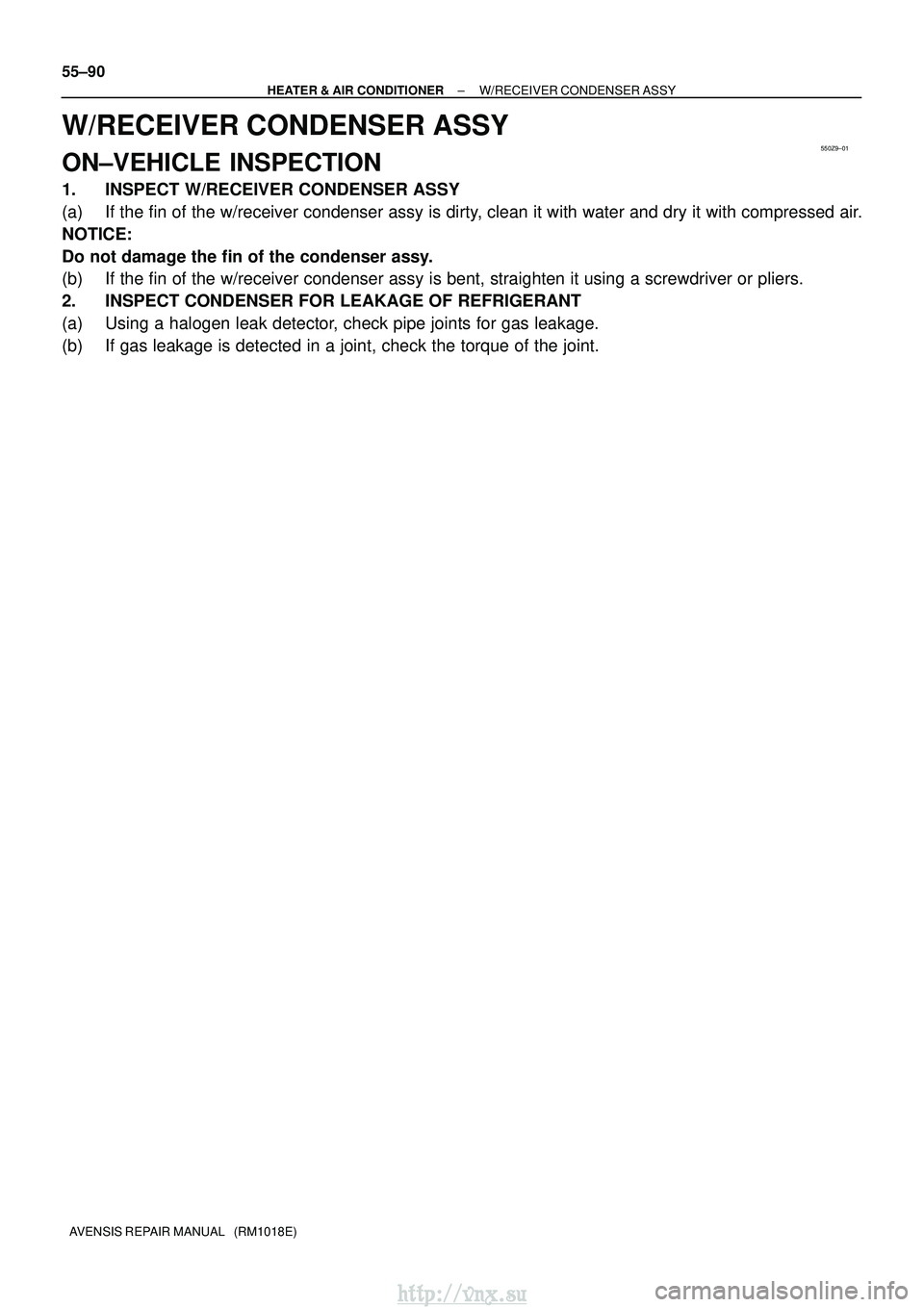

TOYOTA AVENSIS 2003 Service Repair Manual 550Z9±01 55±90 ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY AVENSIS REPAIR MANUAL (RM1018E) W/RECEIVER CONDENSER ASSY ON±VEHICLE INSPECTION 1. INSPECT W/RECEIVER CONDENSER ASSY (a) If th

Page 1371 of 2234

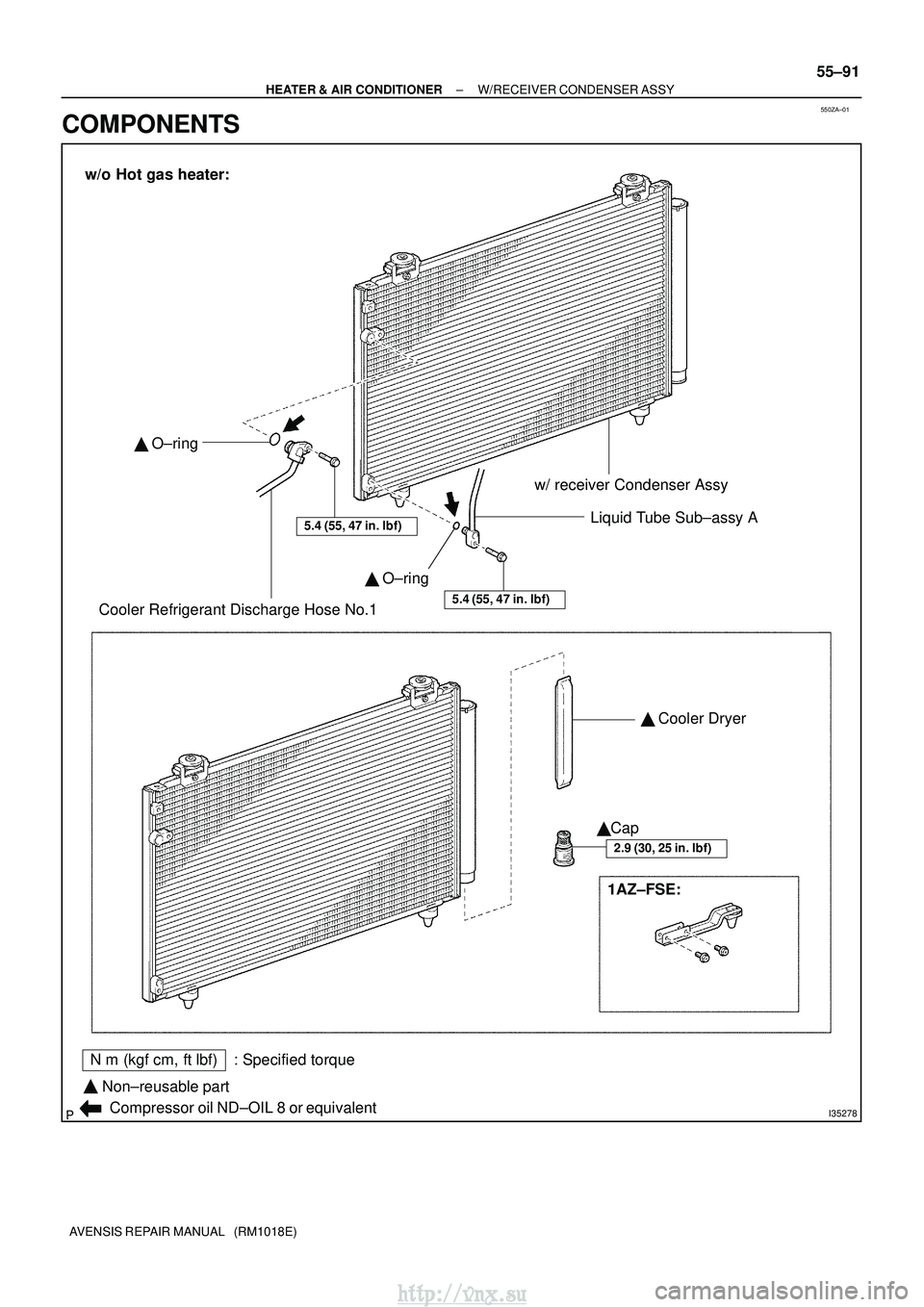

TOYOTA AVENSIS 2003 Service Repair Manual 550ZA±01 I35278 Nm (kgf cm, ftlbf) : Specified torque Non±reusable part  Compressor oil ND±OIL 8 or equivalent w/ receiver Condenser Assy Liquid Tube Sub±assy A Cooler Refrigerant Discharge Ho

Page 1372 of 2234

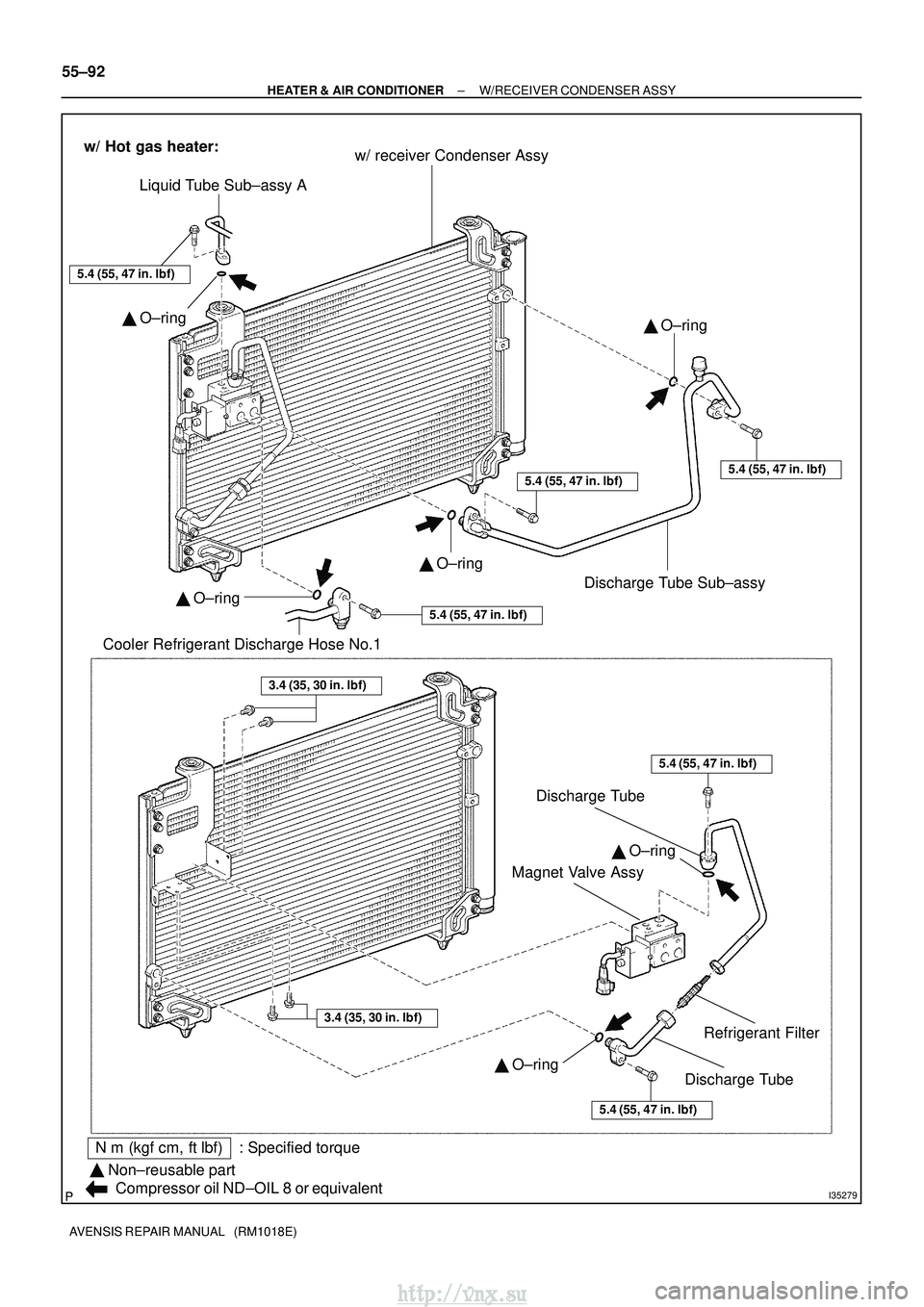

TOYOTA AVENSIS 2003 Service Repair Manual I35279 Nm (kgf cm, ftlbf) : Specified torque Non±reusable part  Compressor oil ND±OIL 8 or equivalent w/ receiver Condenser Assy Liquid Tube Sub±assy A Cooler Refrigerant Discharge Hose No.1 O

Page 1373 of 2234

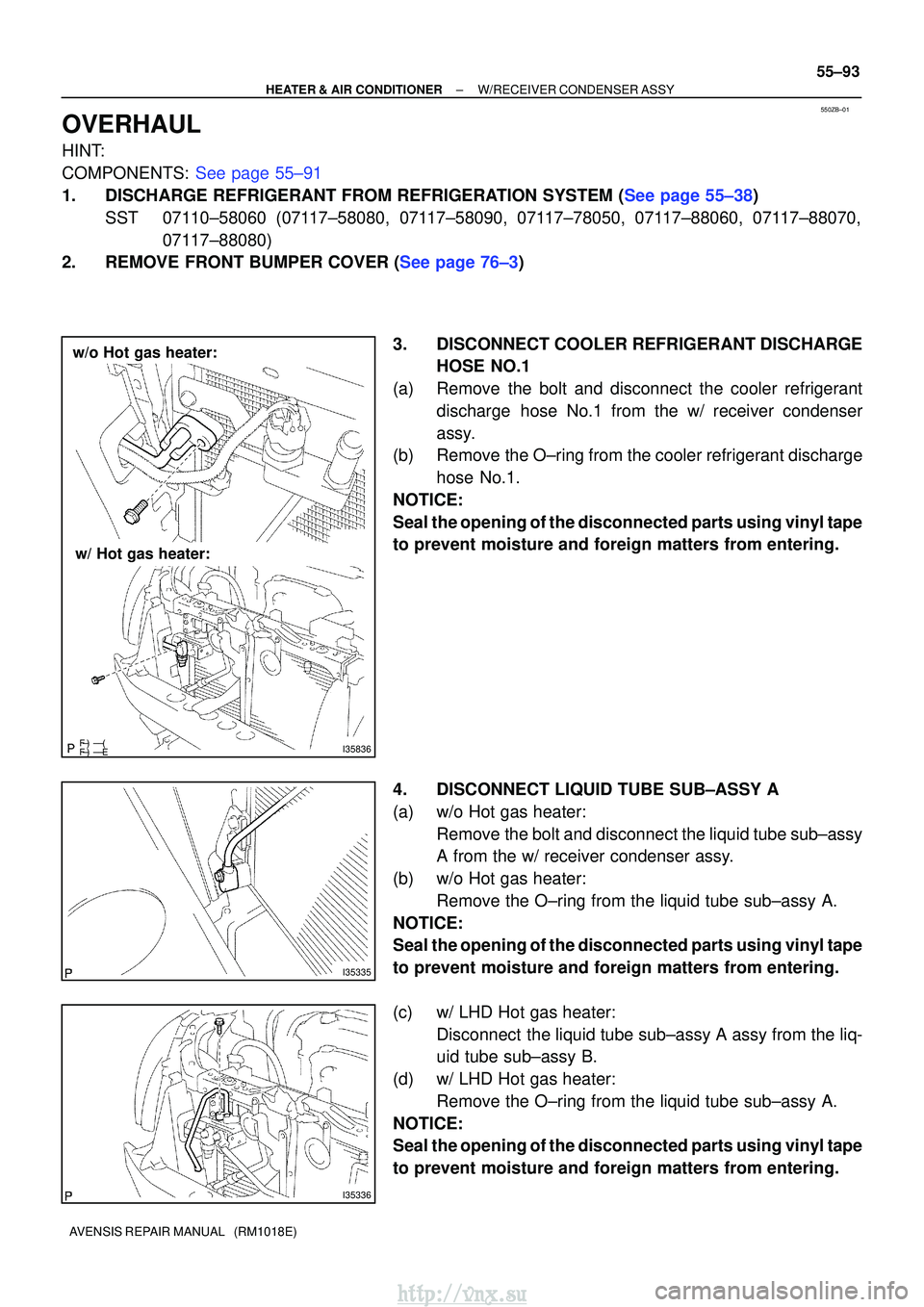

TOYOTA AVENSIS 2003 Service Repair Manual 550ZB±01 I35836 w/o Hot gas heater: w/ Hot gas heater: I35335 I35336 ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY 55±93 AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL HINT: COMPONEN

Page 1374 of 2234

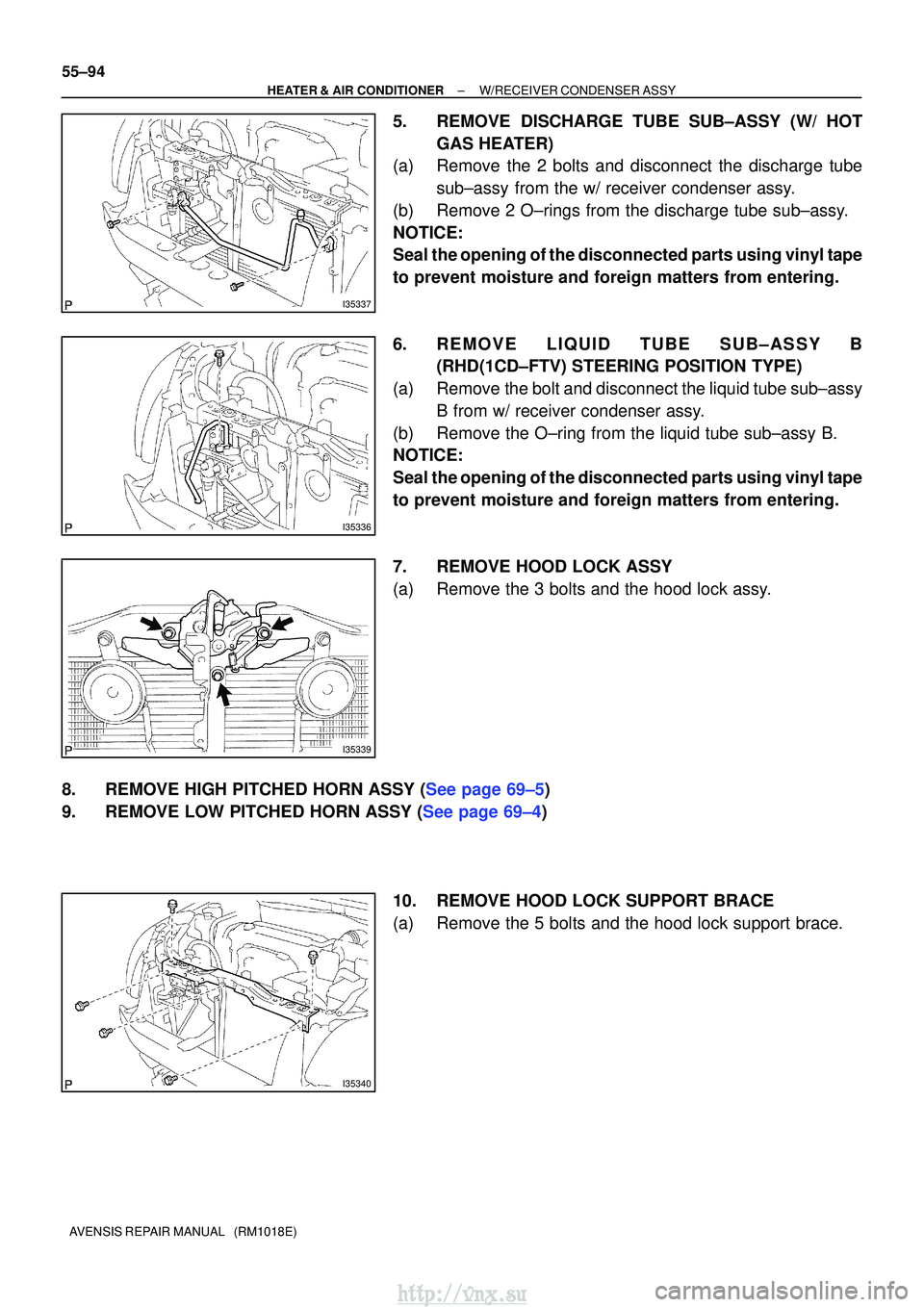

TOYOTA AVENSIS 2003 Service Repair Manual I35337 I35336 I35339 I35340 55±94 ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY AVENSIS REPAIR MANUAL (RM1018E) 5. REMOVE DISCHARGE TUBE SUB±ASSY (W/ HOT GAS HEATER) (a) Remove the 2 bolts

Page 1375 of 2234

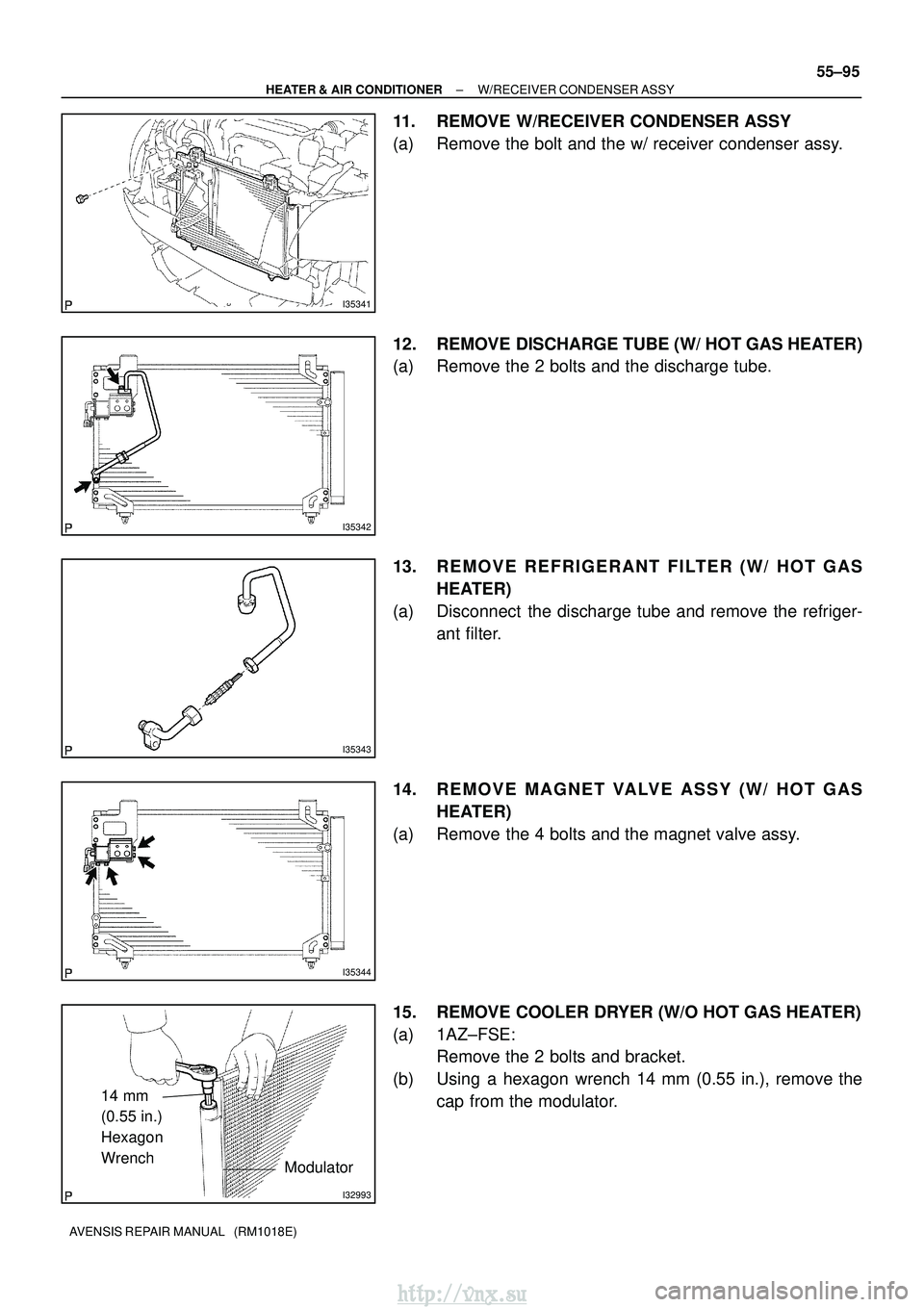

TOYOTA AVENSIS 2003 Service Repair Manual I35341 I35342 I35343 I35344 I32993 14 mm (0.55 in.) Hexagon WrenchModulator ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY 55±95 AVENSIS REPAIR MANUAL (RM1018E) 11. REMOVE W/RECEIVER CONDENS

Page 1376 of 2234

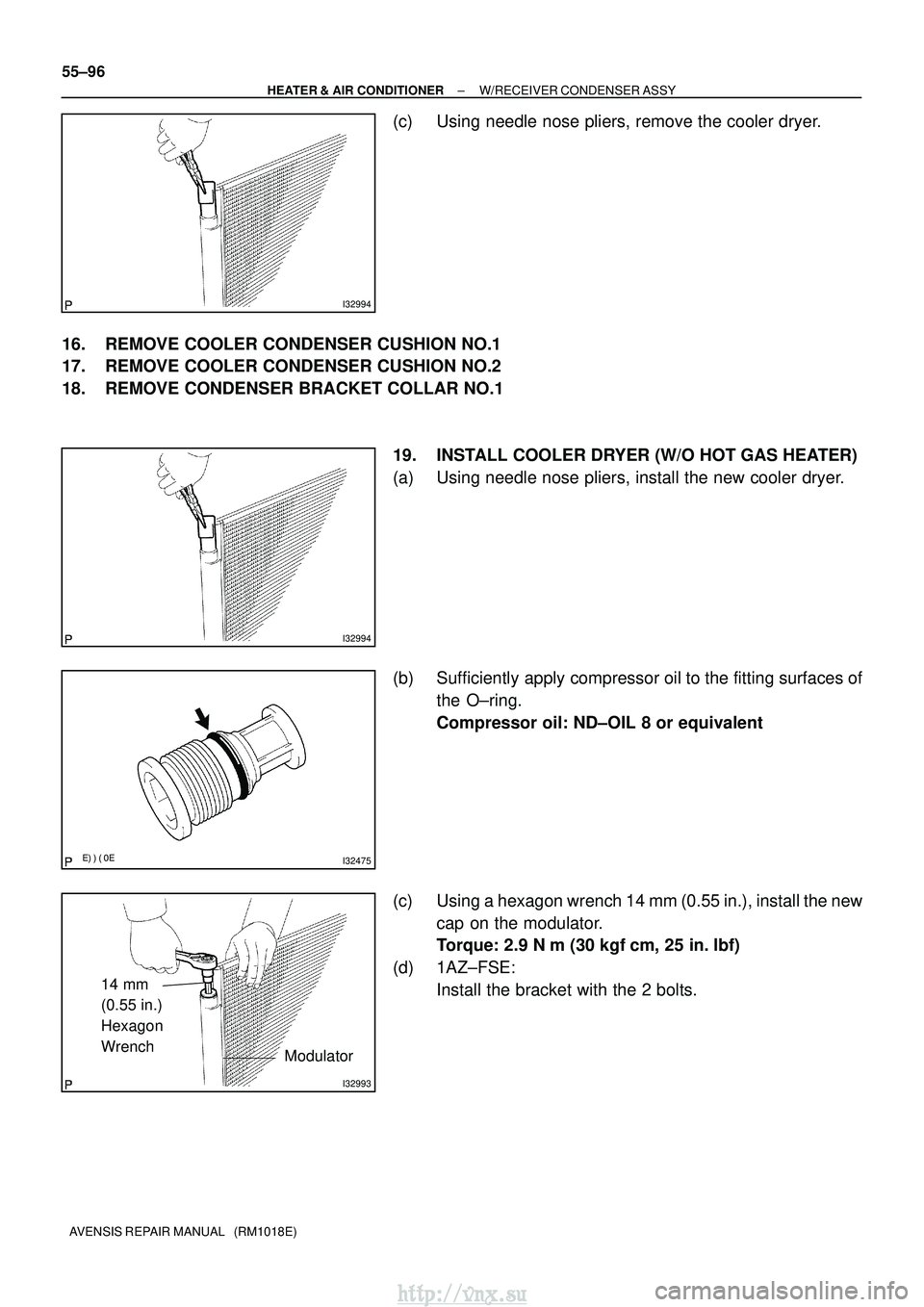

TOYOTA AVENSIS 2003 Service Repair Manual I32994 I32994 I32475 I32993 14 mm (0.55 in.) Hexagon WrenchModulator 55±96 ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY AVENSIS REPAIR MANUAL (RM1018E) (c) Using needle nose pliers,
