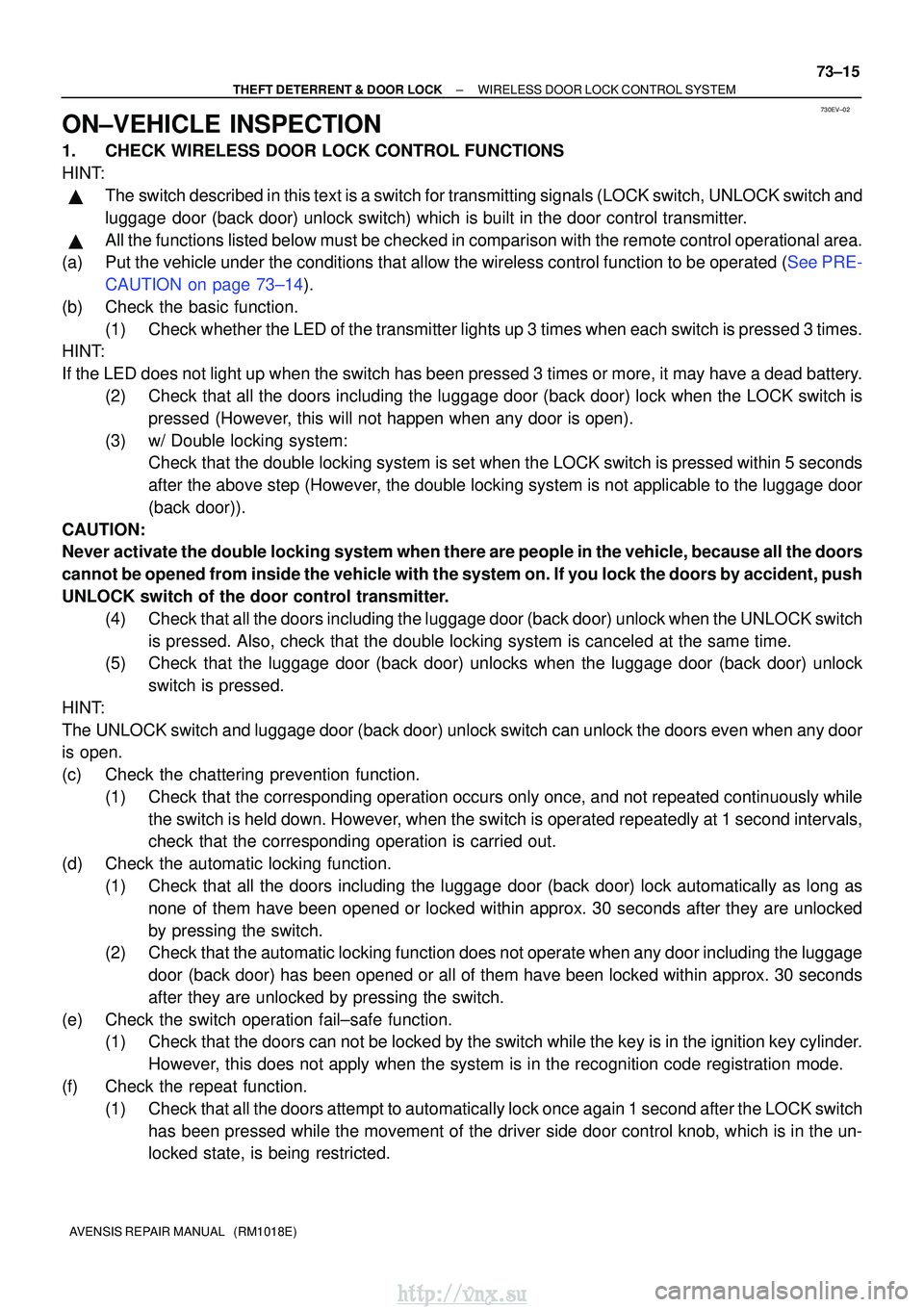

TOYOTA AVENSIS 2003 Service Repair Manual 730EV±02
±
THEFT DETERRENT & DOOR LOCKWIRELESS DOOR LOCK CONTROL SYSTEM
73±15
AVENSIS REPAIR MANUAL (RM1018E)
ON±VEHICLE INSPECTION
1.CHECK WIRELESS DOOR LOCK CONTROL FUNCTIONS
HINT:
The switch

730EV±02
±
THEFT DETERRENT & DOOR LOCKWIRELESS DOOR LOCK CONTROL SYSTEM
73±15
AVENSIS REPAIR MANUAL (RM1018E)
ON±VEHICLE INSPECTION
1.CHECK WIRELESS DOOR LOCK CONTROL FUNCTIONS
HINT:
The switch described in this text is a switch for transmitting signals (LO\
CK switch, UNLOCK switch and
luggage door (back door) unlock switch) which is built in the door control t\
ransmitter.
All the functions listed below must be checked in comparison with the re\
mote control operational area.
(a)Put the vehicle under the conditions that allow the wireless control fun\
ction to be operated (See PRE-
CAUTION on page 73±14).
(b) Check the basic function. (1) Check whether the LED of the transmitter lights up 3 times when each switch i\
s pressed 3 times.
HINT:
If the LED does not light up when the switch has been pressed 3 times or more, it may have a dead bat\
tery.
(2) Check that all the doors including the luggage door (back door) lock when t\
he LOCK switch ispressed (However, this will not happen when any door is open).
(3) w/ Double locking system: Check that the double locking system is set when the LOCK switch is pressed within 5 seconds
after the above step (However, the double locking system is not applicable to the luggage door
(back door)).
CAUTION:
Never activate the double locking system when there are people in the vehicle, because all the doors
cannot be opened from inside the vehicle with the system on. If you lock\
the doors by accident, push
UNLOCK switch of the door control transmitter. (4) Check that all the doors including the luggage door (back door) unlock when\
the UNLOCK switchis pressed. Also, check that the double locking system is canceled at th\
e same time.
(5) Check that the luggage door (back door) unlocks when the luggage door (bac\
k door) unlock
switch is pressed.
HINT:
The UNLOCK switch and luggage door (back door) unlock switch can unlock t\
he doors even when any door
is open.
(c) Check the chattering prevention function. (1) Check that the corresponding operation occurs only once, and not repeated continuously whilethe switch is held down. However, when the switch is operated repeatedly at 1 second intervals,
check that the corresponding operation is carried out.
(d) Check the automatic locking function. (1) Check that all the doors including the luggage door (back door) lock automatically as long asnone of them have been opened or locked within approx. 30 seconds after they\
are unlocked
by pressing the switch.
(2) Check that the automatic locking function does not operate when any door incl\
uding the luggage
door (back door) has been opened or all of them have been locked within ap\
prox. 30 seconds
after they are unlocked by pressing the switch.
(e) Check the switch operation fail±safe function. (1) Check that the doors can not be locked by the switch while the key is in the \
ignition key cylinder.
However, this does not apply when the system is in the recognition code registra\
tion mode.
(f) Check the repeat function. (1) Check that all the doors attempt to automatically lock once again 1 second af\
ter the LOCK switchhas been pressed while the movement of the driver side door control knob, which is in the un-
locked state, is being restricted.
http://vnx.su

Page 1738 of 2234

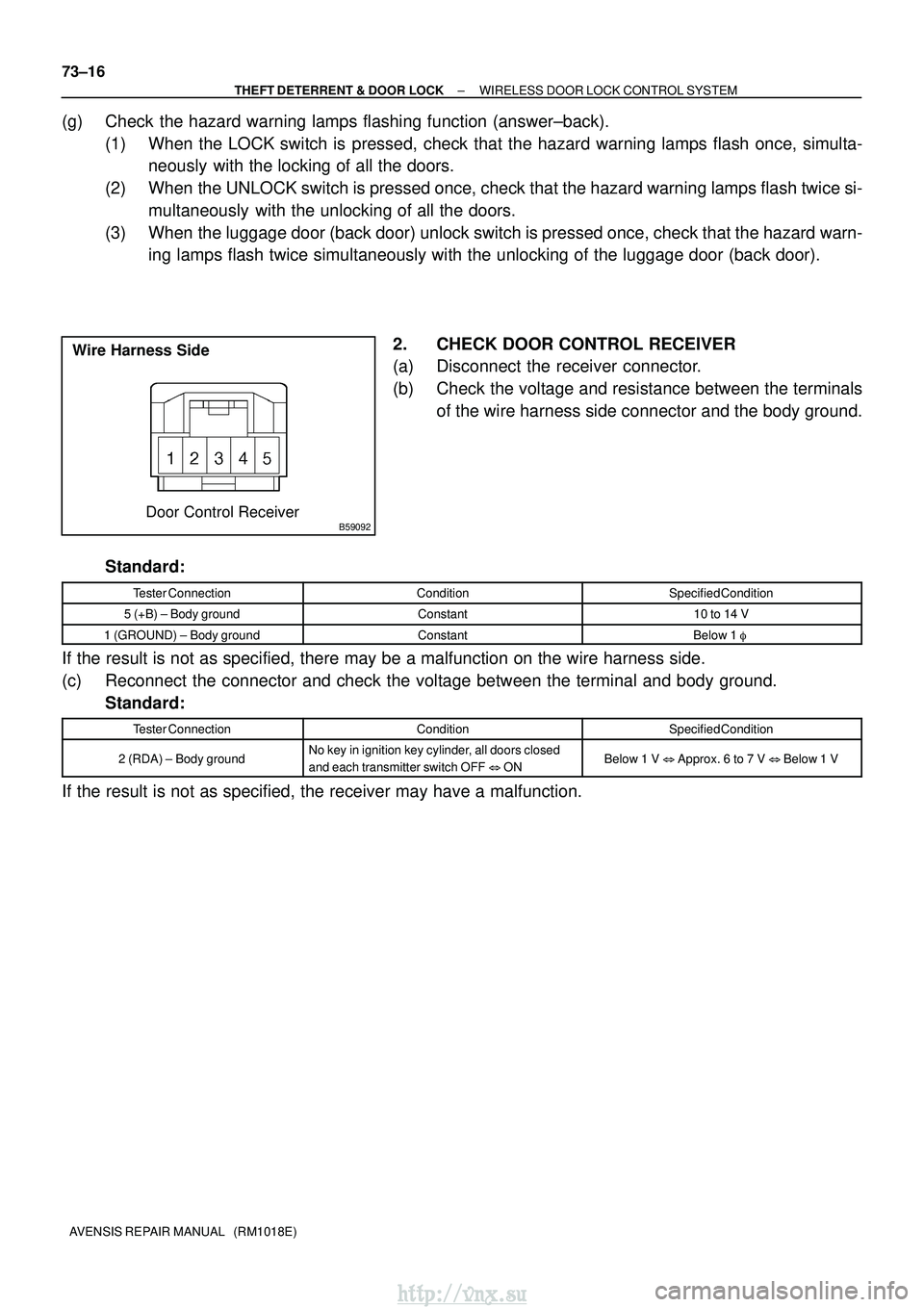

TOYOTA AVENSIS 2003 Service Repair Manual B59092
Wire Harness SideDoor Control Receiver
73±16
±
THEFT DETERRENT & DOOR LOCK WIRELESS DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
(g) Check the hazard warning lamps flashing func

Page 1739 of 2234

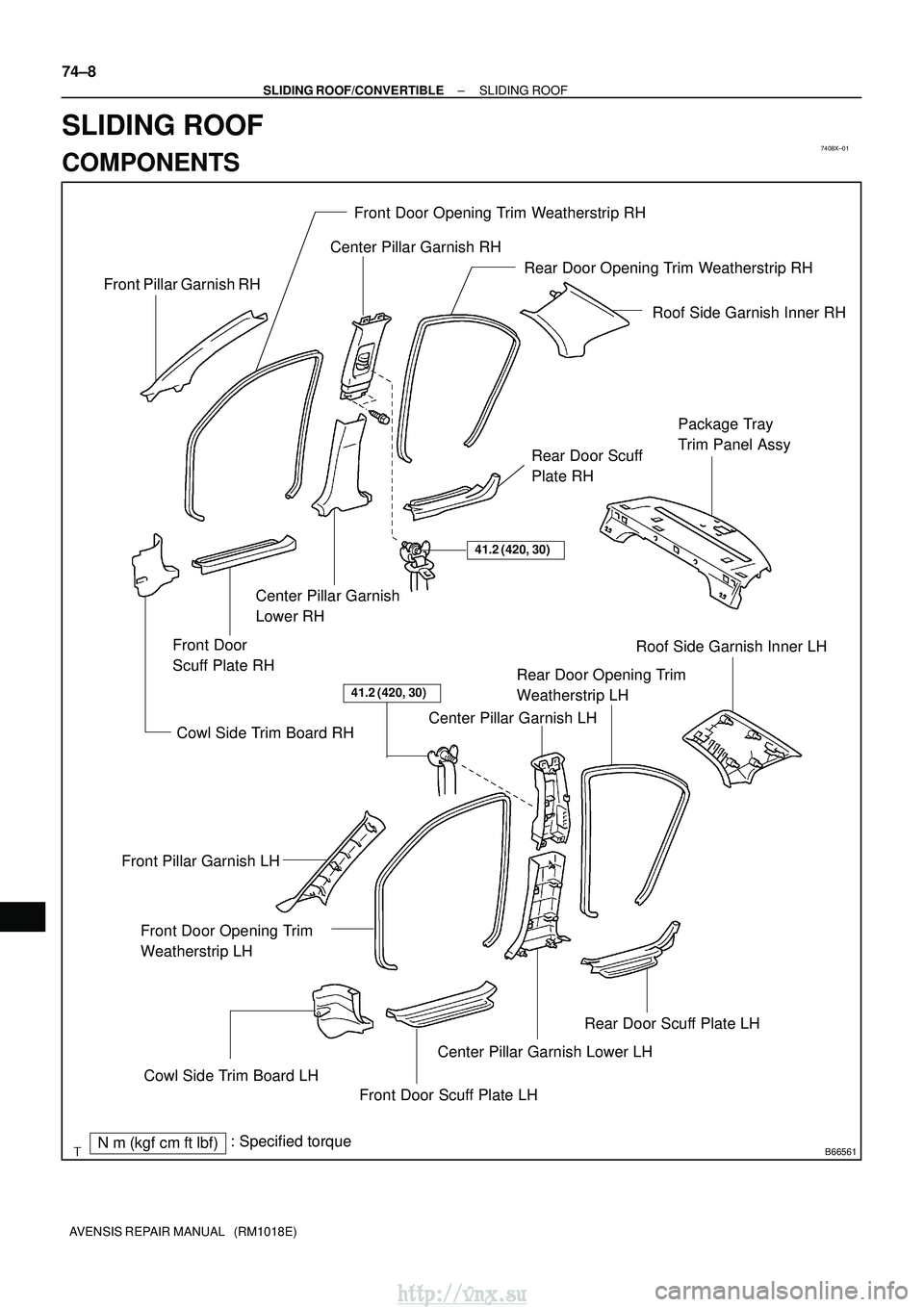

TOYOTA AVENSIS 2003 Service Repair Manual 7408X±01
B66561
Roof Side Garnish Inner RH
Front Pillar Garnish RH
Front Door Opening Trim Weatherstrip RH
Center Pillar Garnish RH
Rear Door Opening Trim Weatherstrip RH
Front Door
Scuff Plate RH
Re

Page 1740 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B66562
LH Visor Assy
Visor Holder Roof Headlining Assy
RH Visor Assy
Map Lamp Assy
Room Lamp Assy No. 2
Lens Cover
Assist Grip
Sub±assy
Lens Cover Assist Grip Sub±assy
Assist Grip Sub±assy
Assist

Page 1741 of 2234

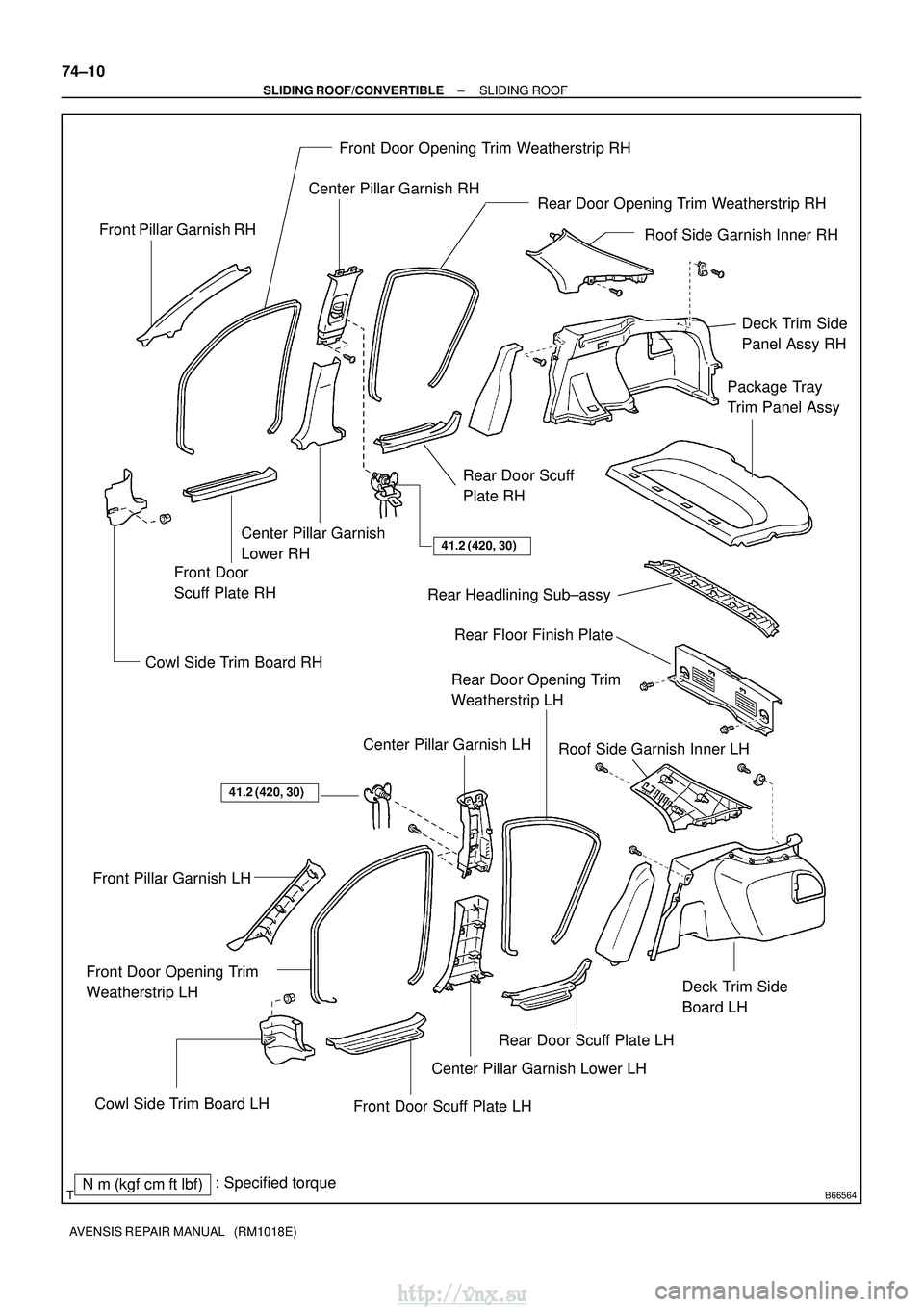

TOYOTA AVENSIS 2003 Service Repair Manual B66564
Roof Side Garnish Inner RHFront Pillar Garnish RH
Front Door Opening Trim Weatherstrip RH
Center Pillar Garnish RHRear Door Opening Trim Weatherstrip RH
Front Door
Scuff Plate RH
Rear Door Scuf

Page 1742 of 2234

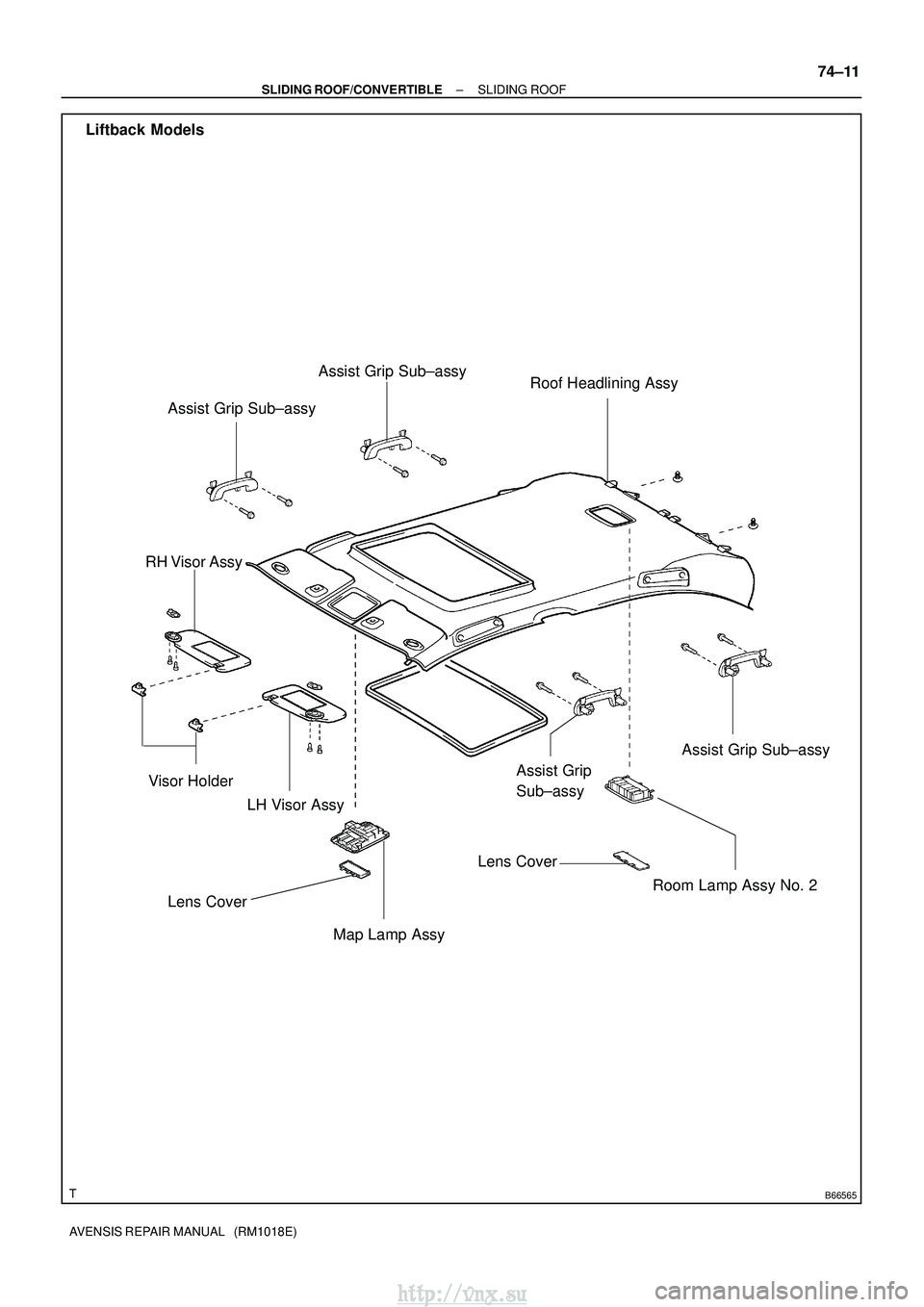

TOYOTA AVENSIS 2003 Service Repair Manual B66565
LH Visor Assy
Visor Holder Roof Headlining Assy
RH Visor Assy
Map Lamp Assy
Room Lamp Assy No. 2
Lens Cover
Assist Grip
Sub±assy
Lens Cover Assist Grip Sub±assy
Assist Grip Sub±assy
Assist

Page 1743 of 2234

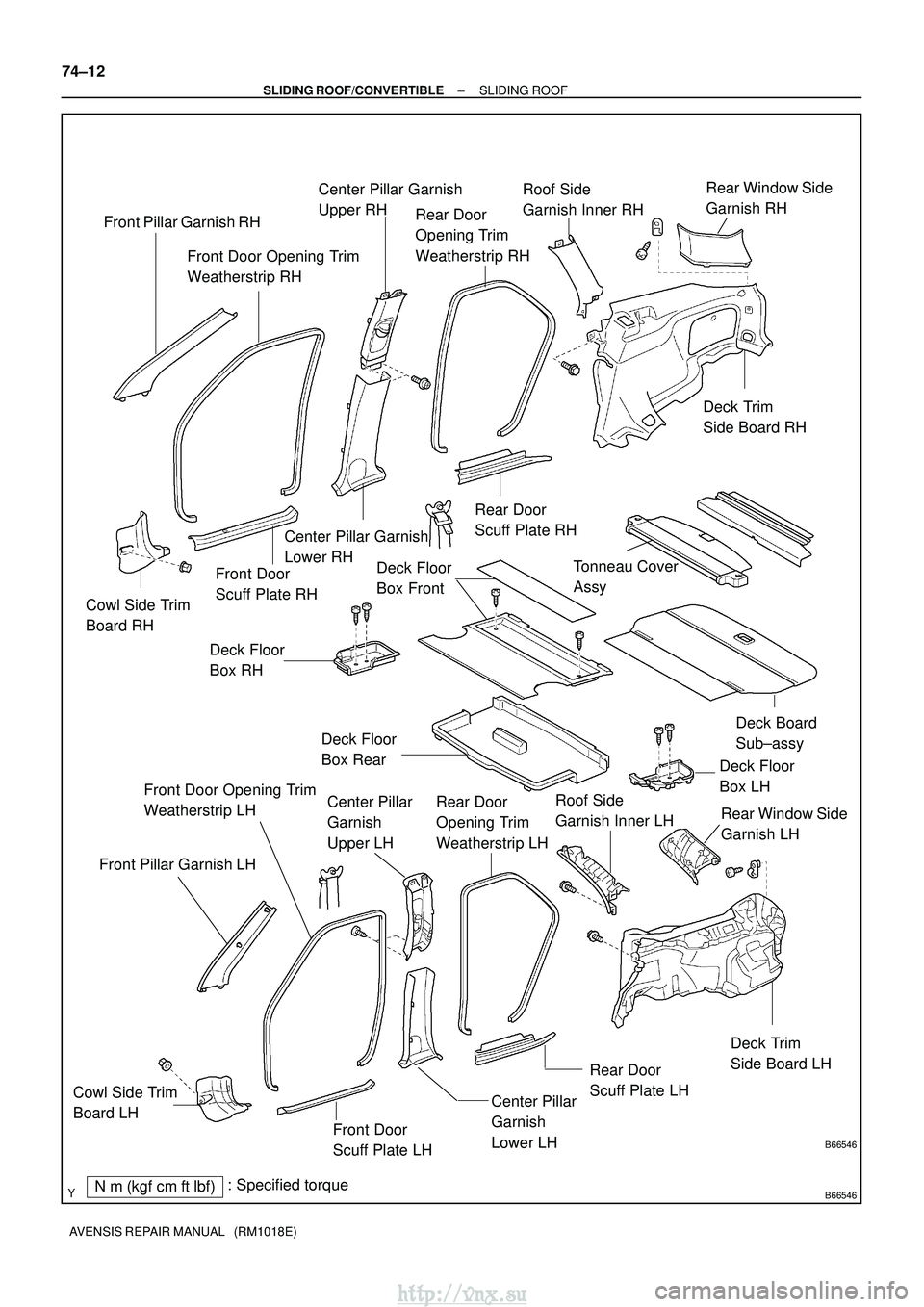

TOYOTA AVENSIS 2003 Service Repair Manual B66546 B66546
Front Pillar Garnish RH
Cowl Side Trim
Board RH
Front Door Opening Trim
Weatherstrip RH
Front Door
Scuff Plate RH
Center Pillar Garnish
Lower RH
Center Pillar Garnish
Upper RH
Rear Door

Page 1744 of 2234

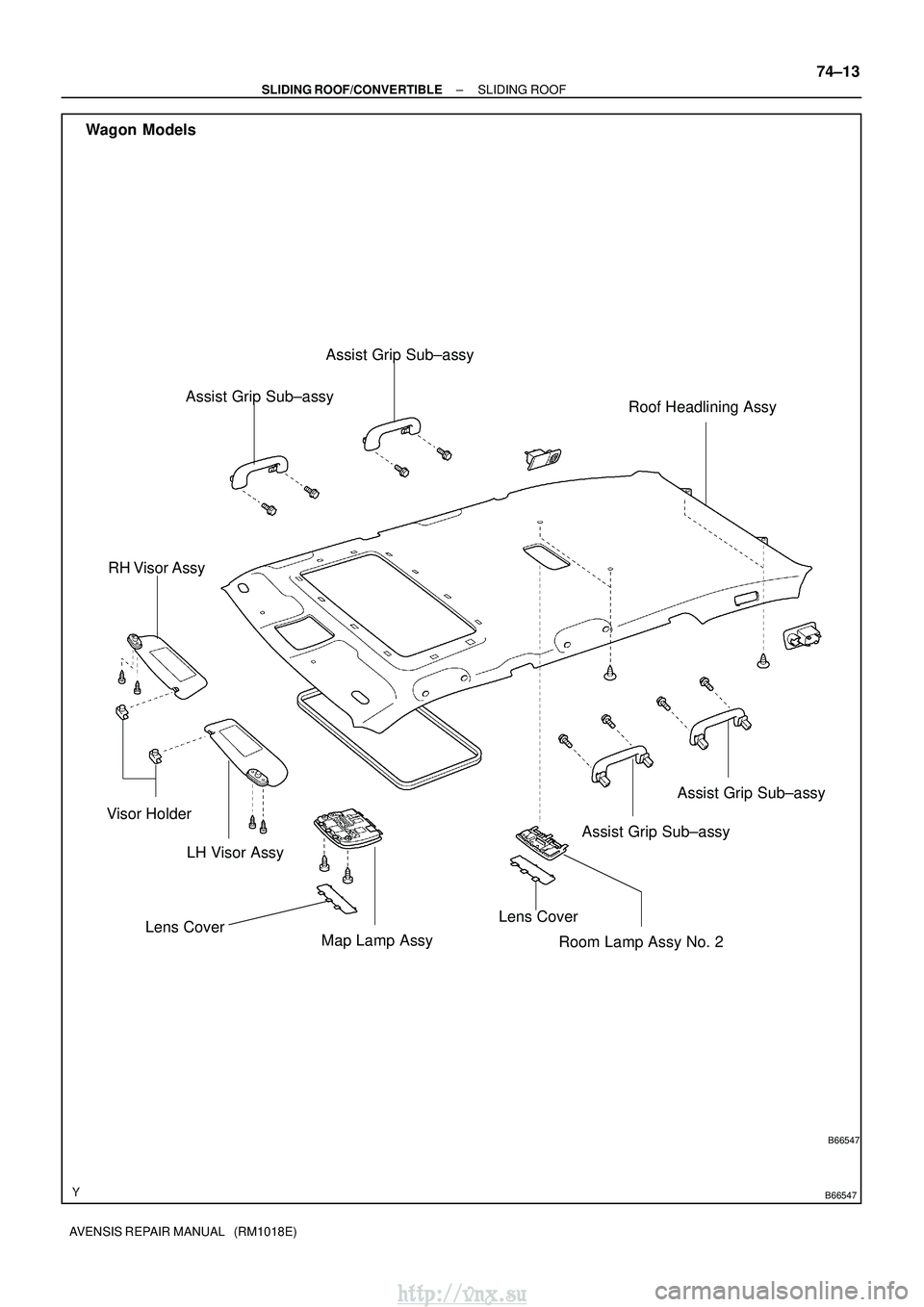

TOYOTA AVENSIS 2003 Service Repair Manual B66547B66547
LH Visor Assy
Visor Holder Roof Headlining Assy
RH Visor Assy
Map Lamp Assy
Room Lamp Assy No. 2Lens Cover
Assist Grip Sub±assy
Lens Cover
Assist Grip Sub±assy
Assist Grip Sub±assy
Ass
