Page 1577 of 2234

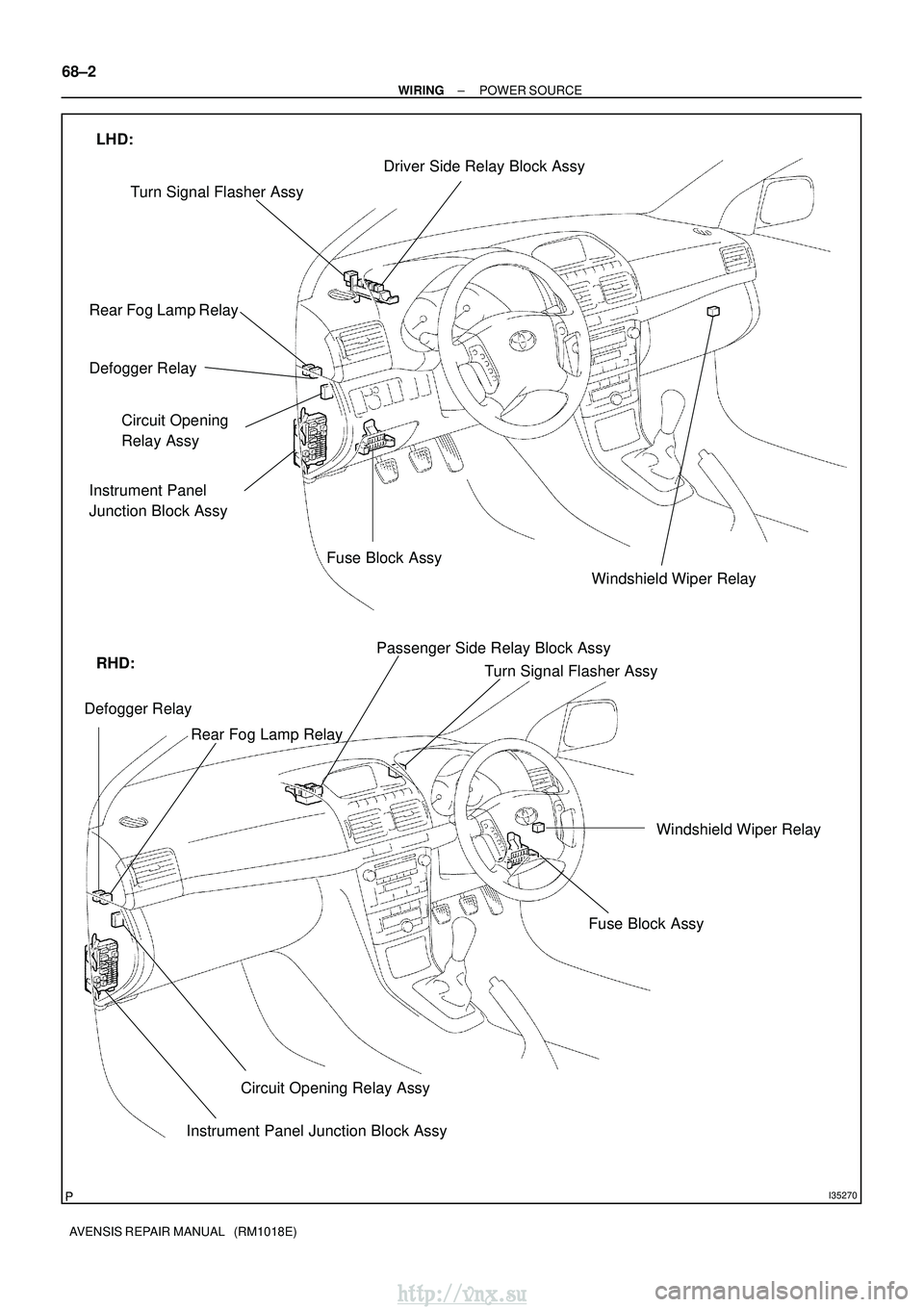

TOYOTA AVENSIS 2003 Service Repair Manual I35270 Windshield Wiper Relay Driver Side Relay Block Assy Turn Signal Flasher Assy Rear Fog Lamp Relay Defogger Relay Circuit Opening Relay Assy Instrument Panel Junction Block Assy Fuse Block Assy

Page 1578 of 2234

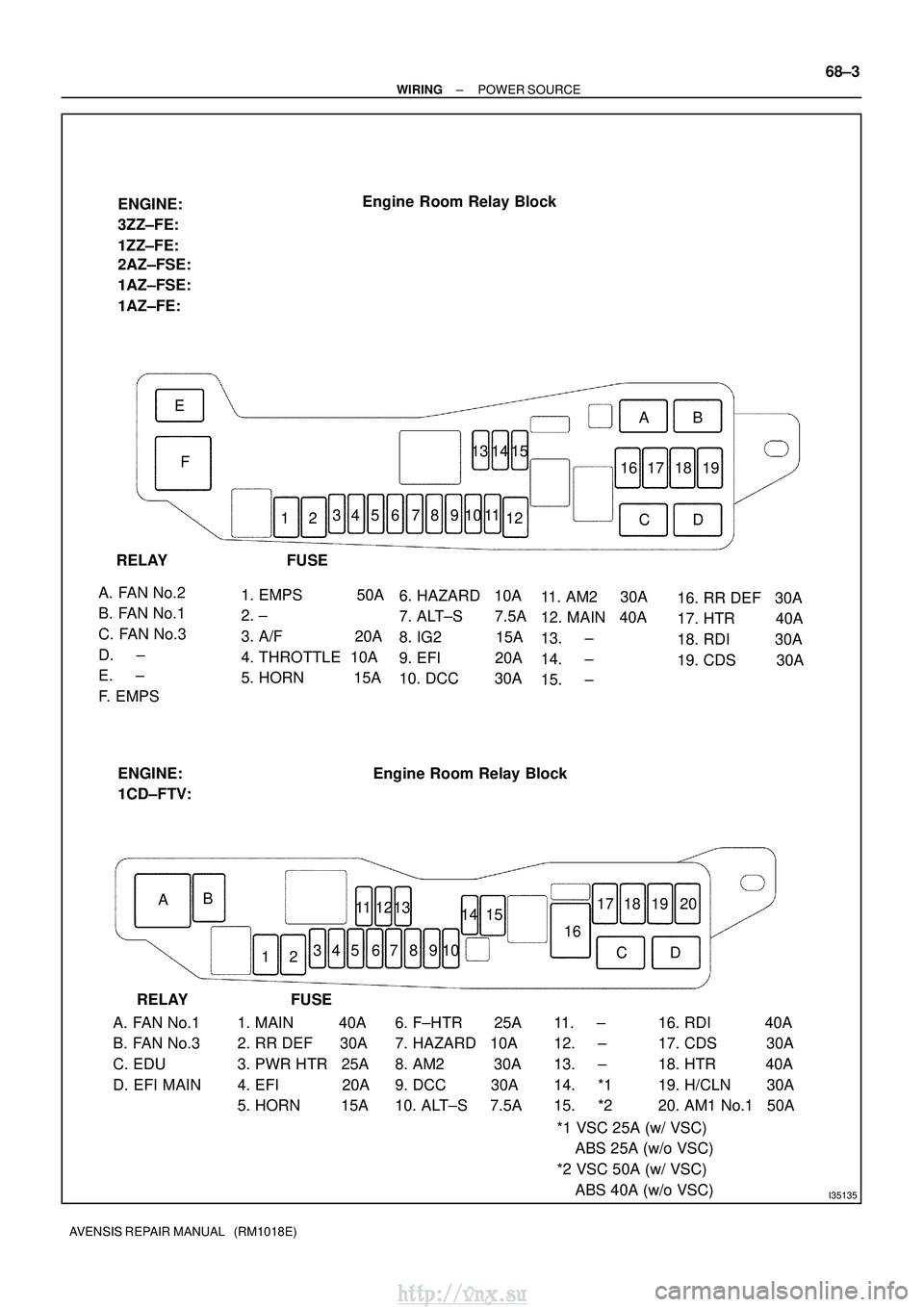

TOYOTA AVENSIS 2003 Service Repair Manual I35135 Engine Room Relay Block FUSE RELAY 1. EMPS 50A 2. ± 3. A/F 20A 4. THROTTLE 10A 5. HORN 15A 6. HAZARD 10A 7. ALT±S 7.5A 8. IG2 15A 9. EF

Page 1579 of 2234

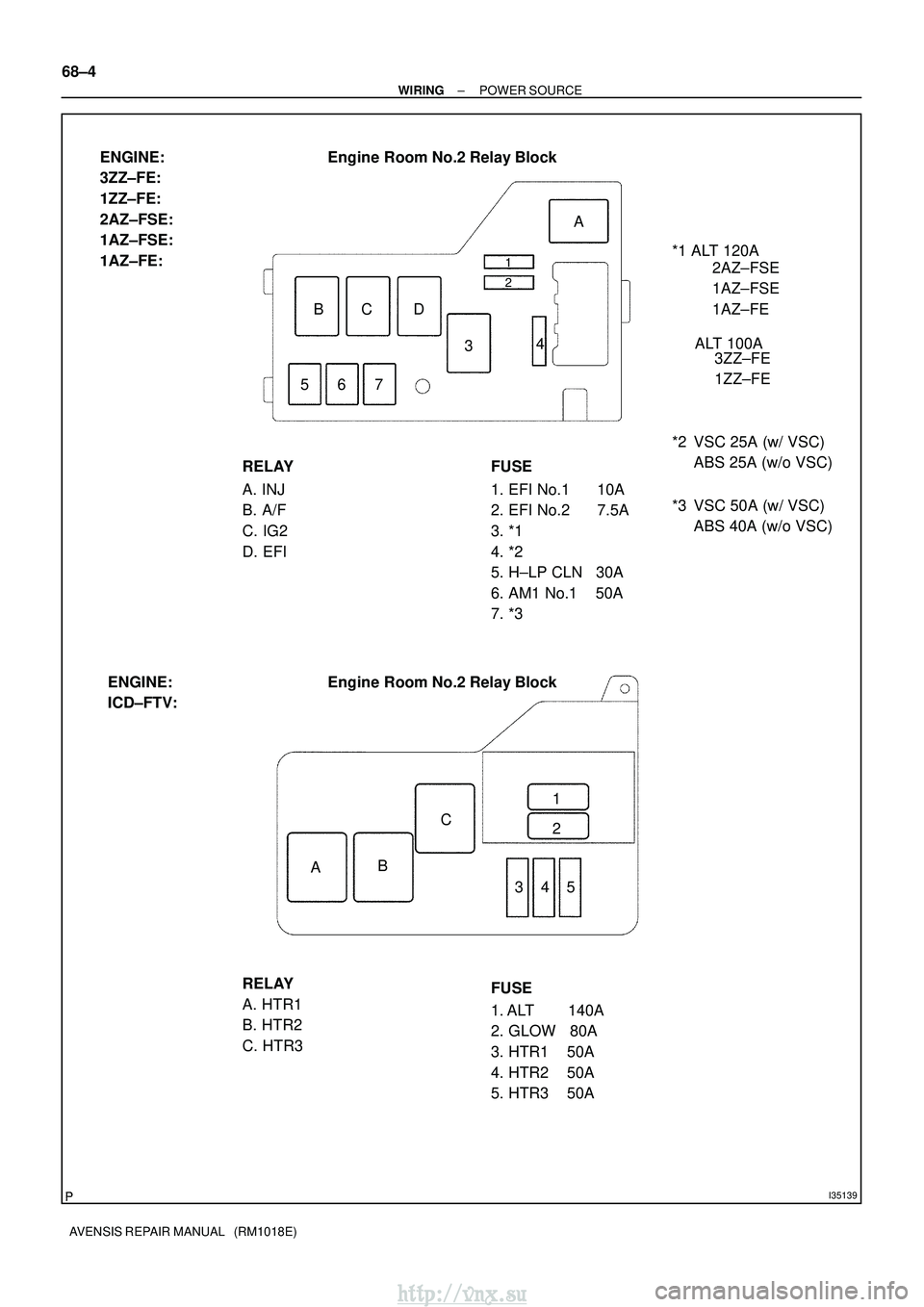

TOYOTA AVENSIS 2003 Service Repair Manual I35139 Engine Room No.2 Relay Block RELAY A. INJ B. A/F C. IG2 D. EFI FUSE 1. EFI No.1 10A 2. EFI No.2 7.5A 3. *1 4. *2 5. H±LP CLN 30A 6. AM1 No.1 50A 7. *3 ENGINE: 3ZZ±FE: 1ZZ±FE:

Page 1580 of 2234

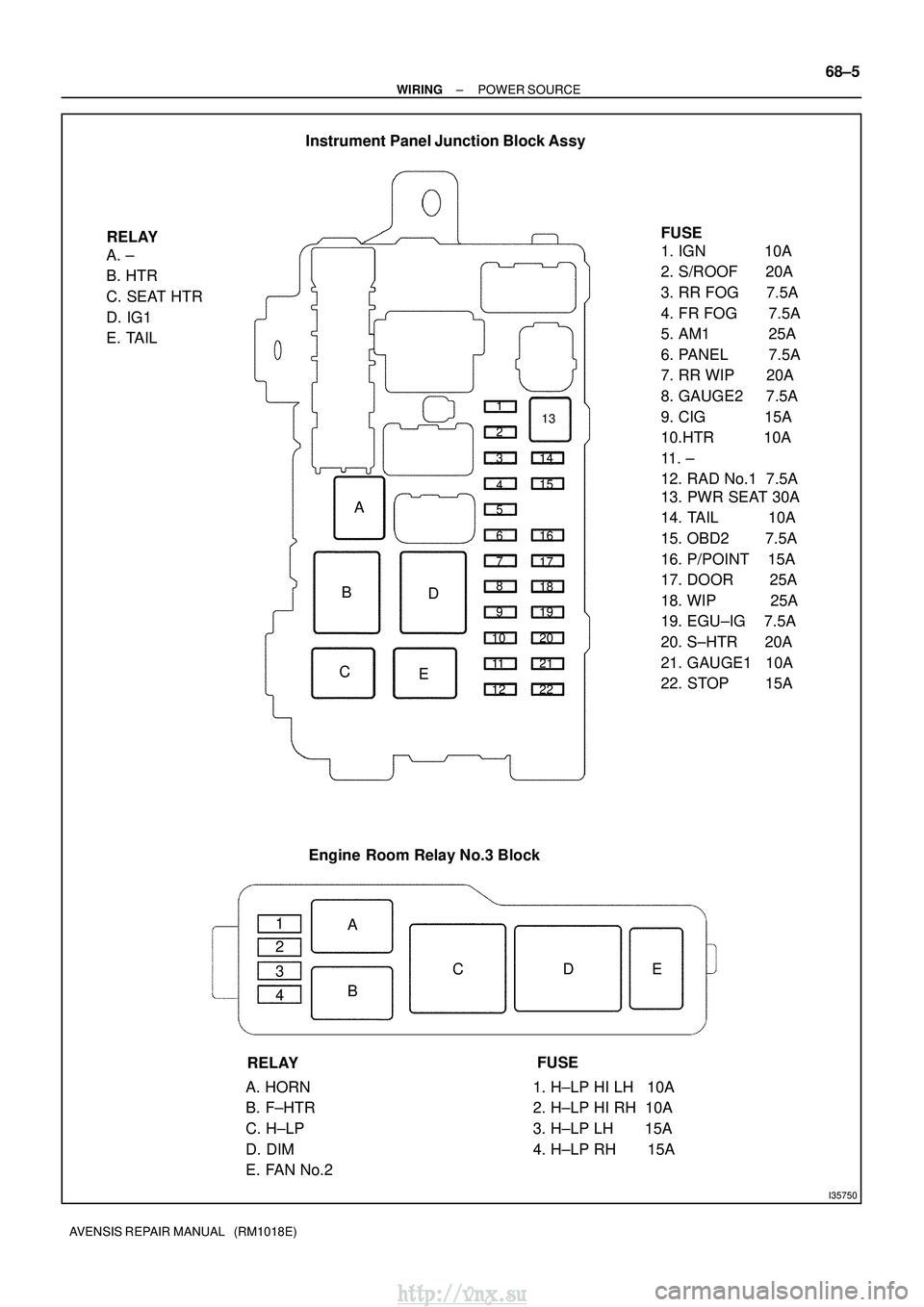

TOYOTA AVENSIS 2003 Service Repair Manual I35750 RELAY A. ± B. HTR C. SEAT HTR D. IG1 E. TAIL FUSE 1. IGN 10A 2. S/ROOF 20A 3. RR FOG 7.5A 4. FR FOG 7.5A 5. AM1 25A 6. PANEL 7.5A 7. RR WIP

Page 1581 of 2234

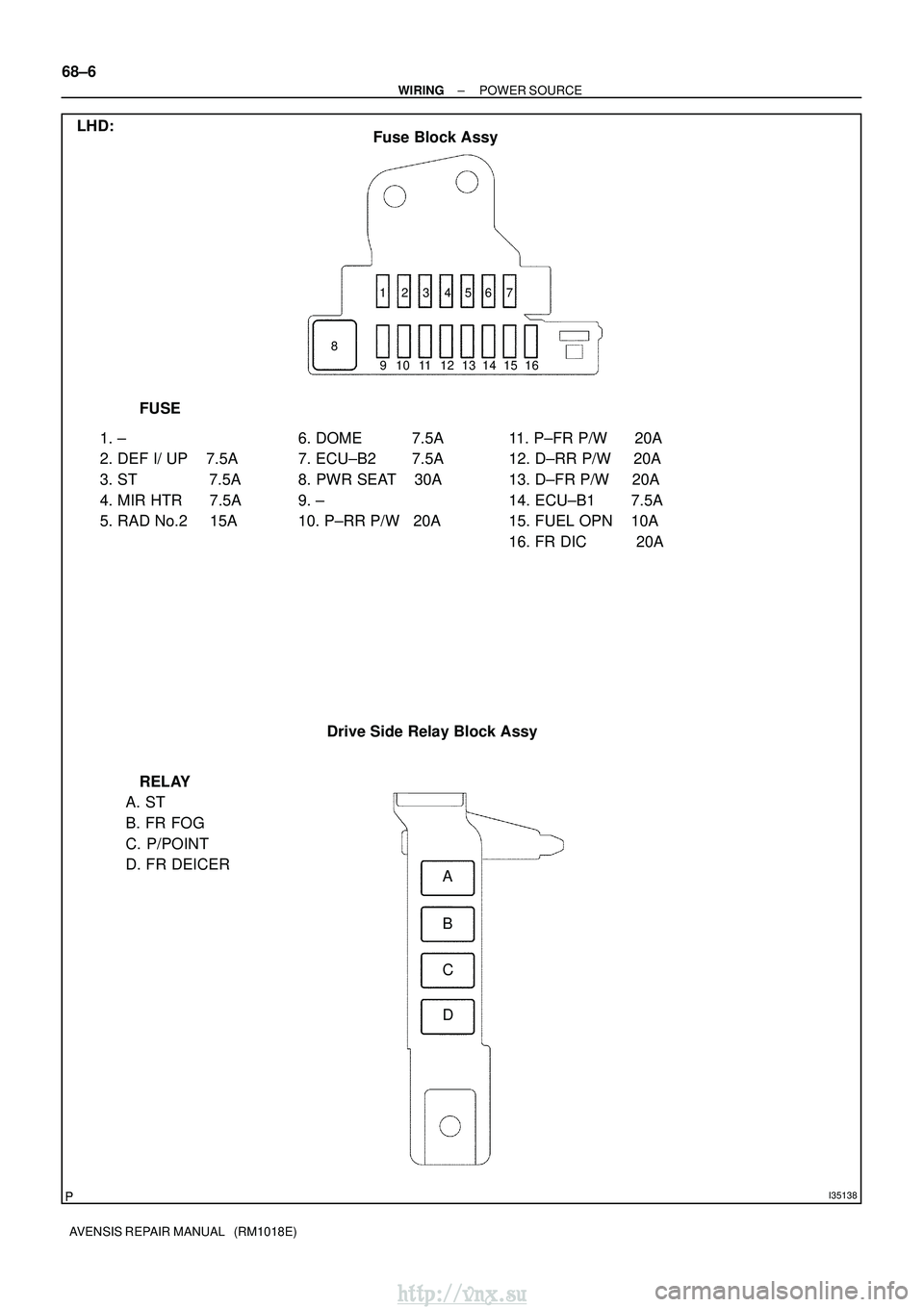

TOYOTA AVENSIS 2003 Service Repair Manual I35138 LHD:FUSE 1. ± 2. DEF I/ UP 7.5A 3. ST 7.5A 4. MIR HTR 7.5A 5. RAD No.2 15A 6. DOME 7.5A 7. ECU±B2 7.5A 8. PWR SEAT 30A 9. ± 10. P±RR P/W 20A

Page 1582 of 2234

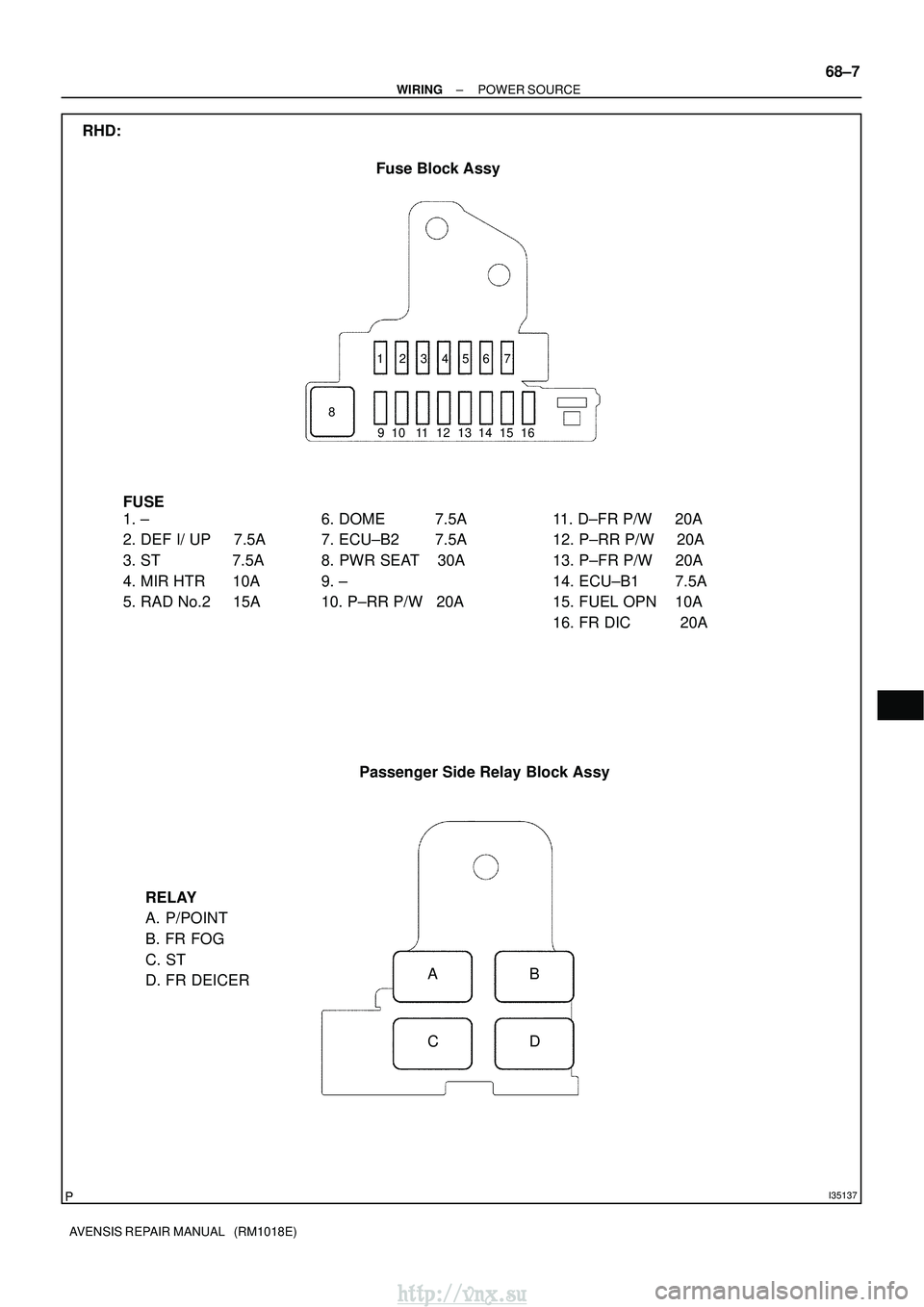

TOYOTA AVENSIS 2003 Service Repair Manual I35137 AB CD 13 14 15 9 3 456 7 8 16 10 12 11 12 RHD: Fuse Block Assy FUSE 1. ± 2. DEF I/ UP 7.5A 3. ST 7.5A 4. MIR HTR 10A 5. RAD No.2 15A 6. DOME 7.5A 7. ECU±

Page 1583 of 2234

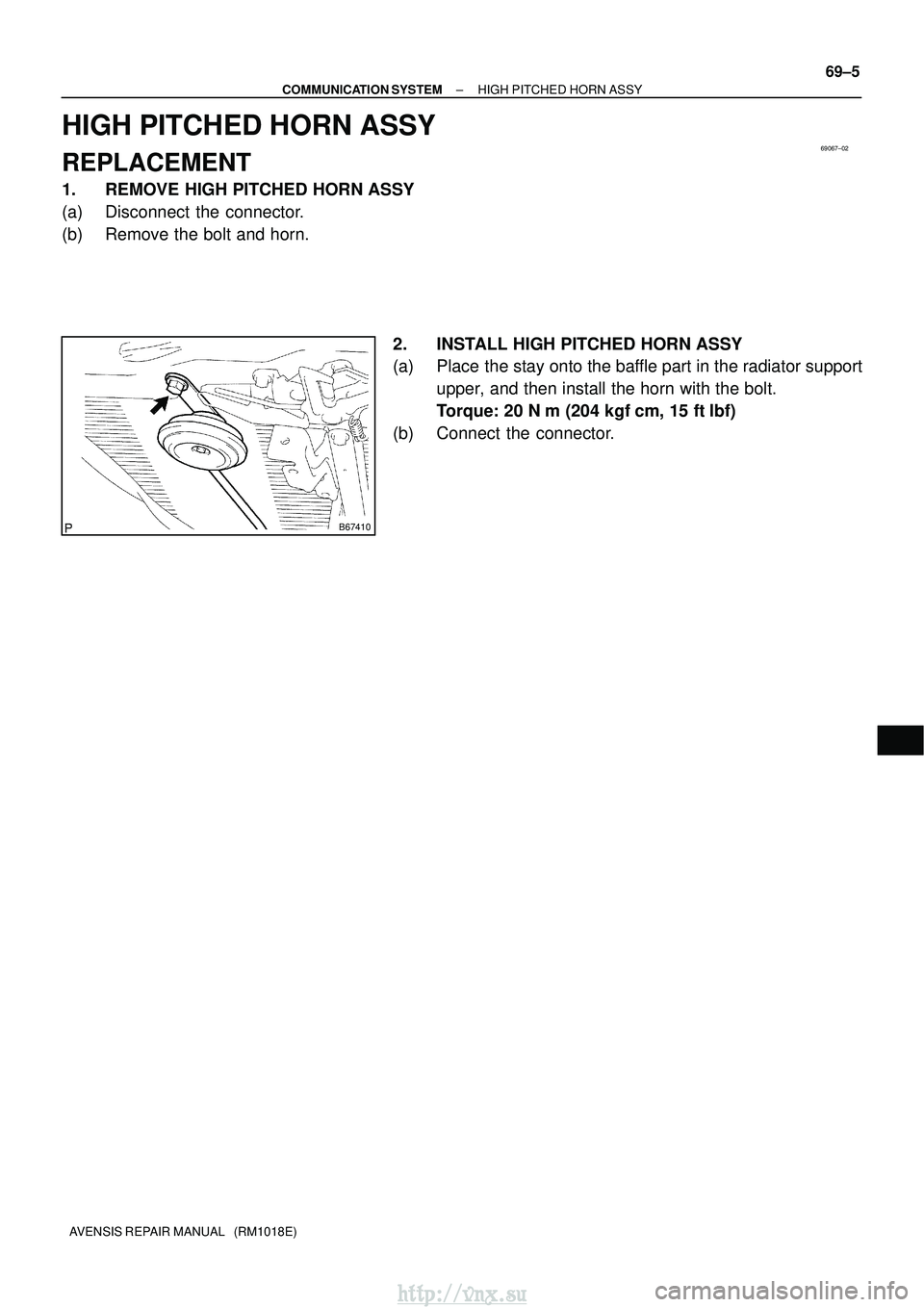

TOYOTA AVENSIS 2003 Service Repair Manual 69067±02 B67410 ± COMMUNICATION SYSTEM HIGH PITCHED HORN ASSY 69±5 AVENSIS REPAIR MANUAL (RM1018E) HIGH PITCHED HORN ASSY REPLACEMENT 1. REMOVE HIGH PITCHED HORN ASSY (a) Disconnect the connector

Page 1584 of 2234

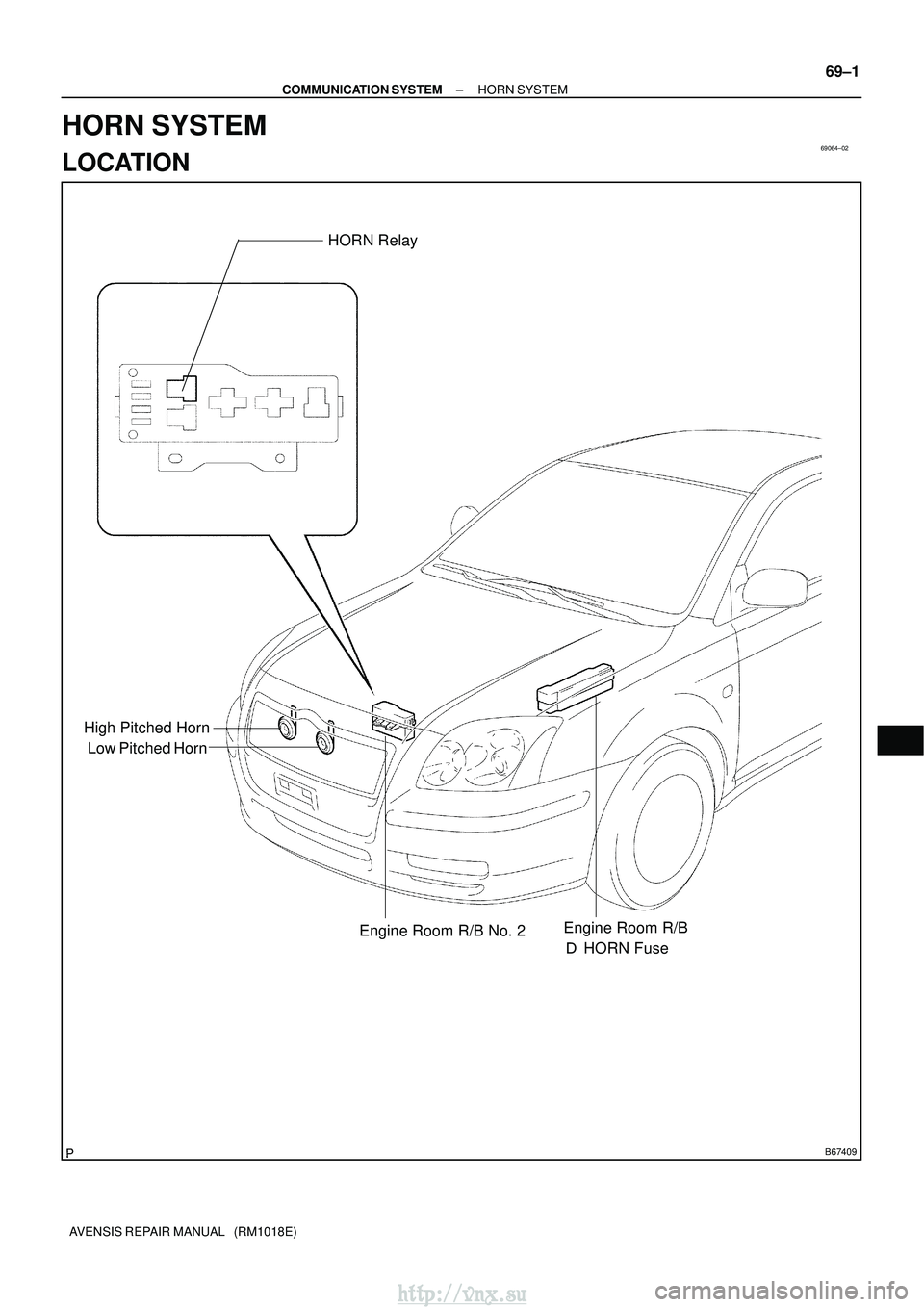

TOYOTA AVENSIS 2003 Service Repair Manual 69064±02 B67409 Low Pitched HornHORN Relay High Pitched Horn Engine Room R/B No. 2Engine Room R/B  HORN Fuse ± COMMUNICATION SYSTEM HORN SYSTEM 69±1 AVENSIS REPAIR MANUAL (RM1018E) HORN SYSTEM
