Page 1609 of 2234

700TE±01
B54715
Switch
Position(A) (B)
Retract ed
Position Driving
Position
B54716
Switch
Position
(A) (B)
Forward
Position
Retract ed
Position
(3)
Retracted
PositionDriving
Position
(4)
B54717
Switch
Position
(A) (B)
Retract ed
Position Driving
Position
Retract ed
Position
(1)
(3)
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER MIRROR CONTROL SYSTEM
70±55
AVENSIS REPAIR MANUAL (RM1018E)
POWER MIRROR CONTROL SYSTEM
ON±VEHICLE INSPECTION

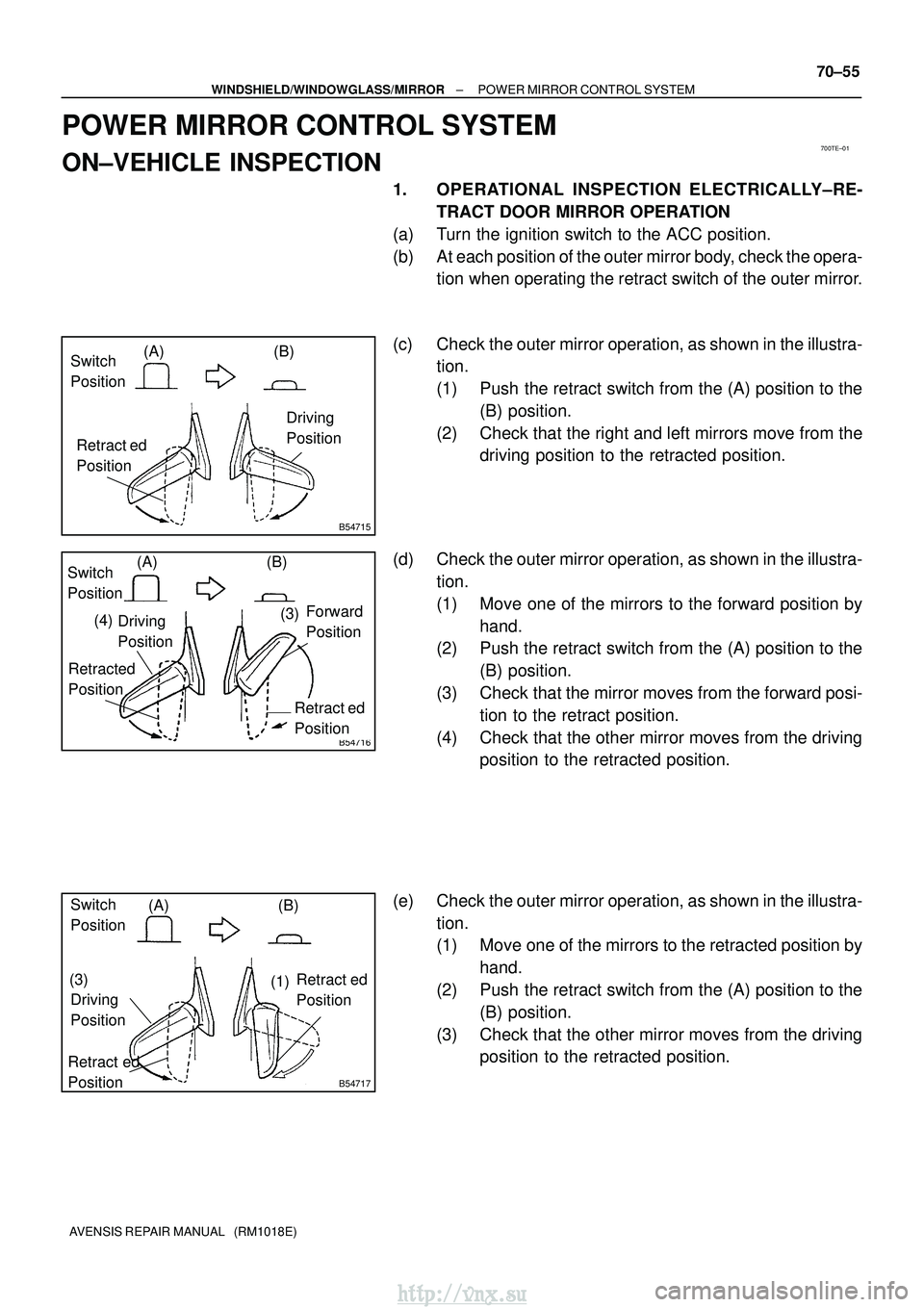

1. OPERATIONAL INSPECTION ELECTRICALLY±RE-
TRACT DOOR MIRROR OPERATION
(a) Turn the ignition switch to the ACC position.
(b) At each position of the outer mirror body, check the opera- tion when operating the retract switch of the outer mirror.
(c) Check the outer mirror operation, as shown in the illustra- tion.
(1) Push the retract switch from the (A) position to the
(B) position.
(2) Check that the right and left mirrors move from the driving position to the retracted position.
(d) Check the outer mirror operation, as shown in the illustra- tion.
(1) Move one of the mirrors to the forward position byhand.
(2) Push the retract switch from the (A) position to the
(B) position.
(3) Check that the mirror moves from the forward posi- tion to the retract position.
(4) Check that the other mirror moves from the driving position to the retracted position.
(e) Check the outer mirror operation, as shown in the illustra- tion.
(1) Move one of the mirrors to the retracted position byhand.
(2) Push the retract switch from the (A) position to the (B) position.
(3) Check that the other mirror moves from the driving position to the retracted position.
http://vnx.su
Page 1610 of 2234

B54718
Switch
Position(A)
(B)
Retract ed
Position
Driving
Position
B54719
Switch
Position
(A)
(B)
Retracted
Position Driving
Position
Driving
Position
(3)
(1)
70±56
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER MIRROR CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

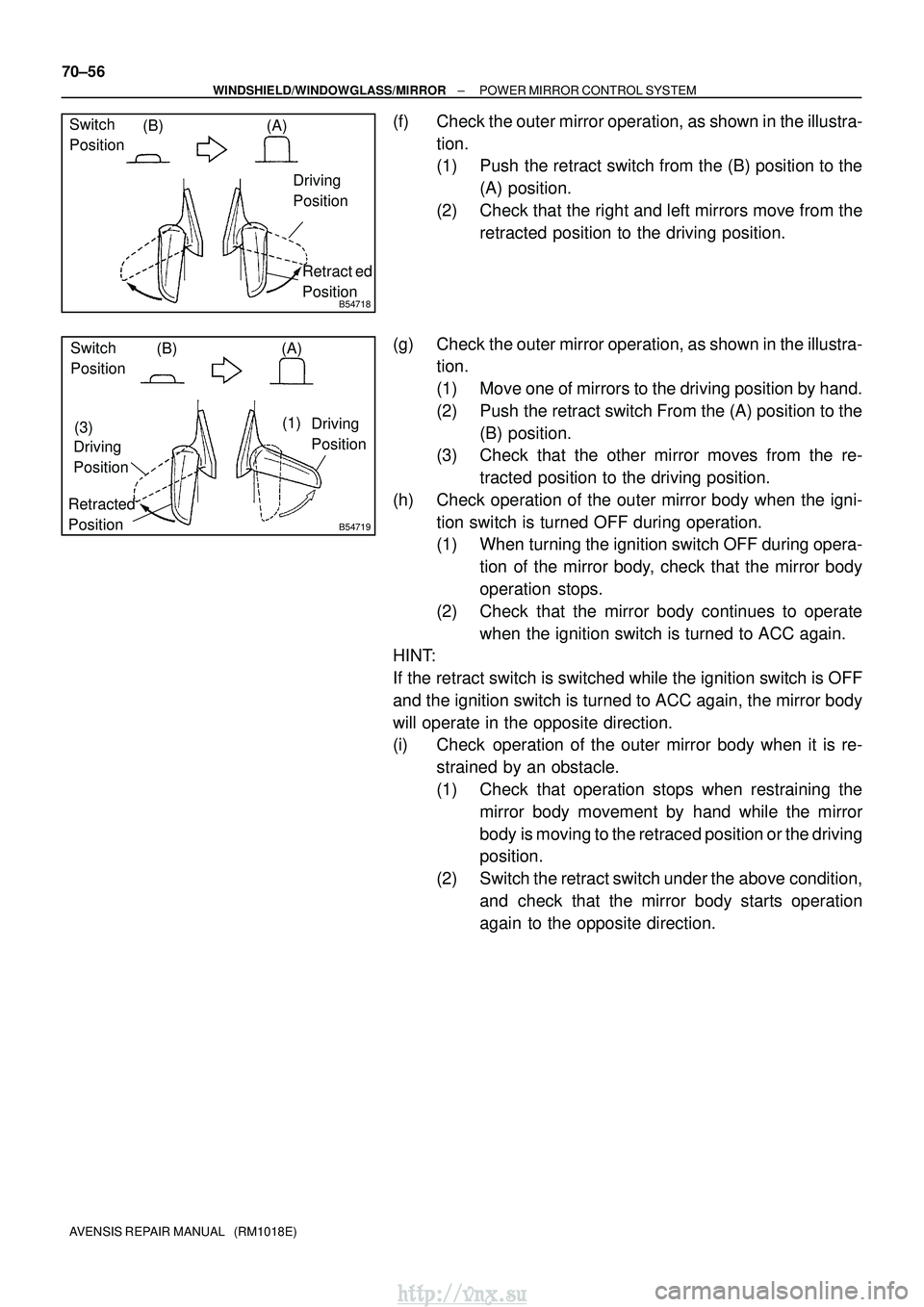

(f) Check the outer mirror operation, as shown in the illustra- tion.
(1) Push the retract switch from the (B) position to the(A) position.
(2) Check that the right and left mirrors move from the retracted position to the driving position.
(g) Check the outer mirror operation, as shown in the illustra- tion.
(1) Move one of mirrors to the driving position by hand.
(2) Push the retract switch From the (A) position to the
(B) position.
(3) Check that the other mirror moves from the re-
tracted position to the driving position.
(h) Check operation of the outer mirror body when the igni- tion switch is turned OFF during operation.
(1) When turning the ignition switch OFF during opera-tion of the mirror body, check that the mirror body
operation stops.
(2) Check that the mirror body continues to operate when the ignition switch is turned to ACC again.
HINT:
If the retract switch is switched while the ignition switch is OFF
and the ignition switch is turned to ACC again, the mirror body
will operate in the opposite direction.
(i) Check operation of the outer mirror body when it is re-
strained by an obstacle.
(1) Check that operation stops when restraining themirror body movement by hand while the mirror
body is moving to the retraced position or the driving
position.
(2) Switch the retract switch under the above condition, and check that the mirror body starts operation
again to the opposite direction.
http://vnx.su
Page 1611 of 2234
700TF±01
B67247
Outer Rear View Mirror Assy LHOuter Mirror Switch Assy Outer Rear View Mirror Assy RH
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER MIRROR CONTROL SYSTEM
70±57
AVENSIS REPAIR MANUAL (RM1018E)
LOCATION
http://vnx.su
Page 1612 of 2234
700TG±01
70±58
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER MIRROR CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

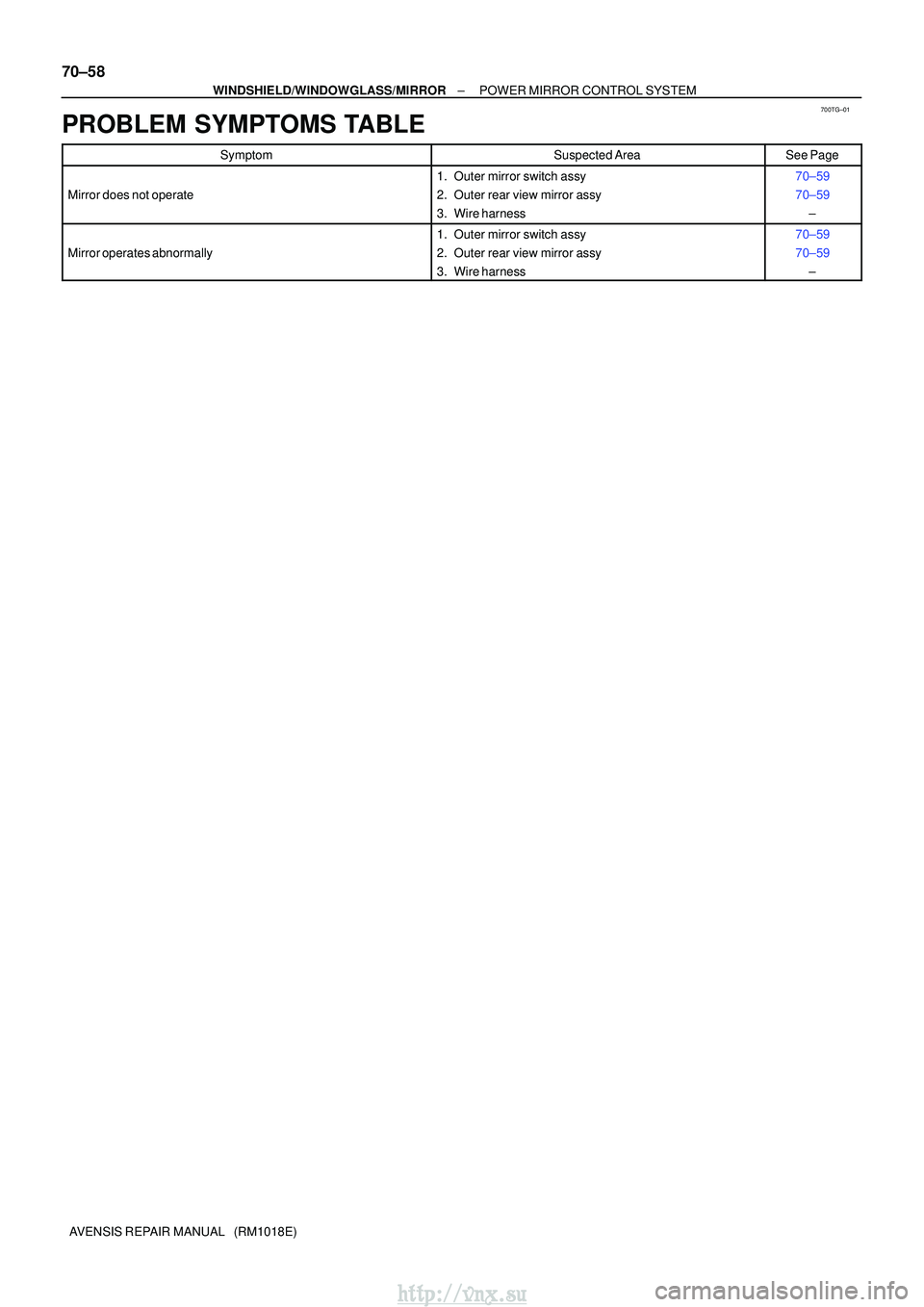

PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
Mirror does not operate
1. Outer mirror switch assy
2. Outer rear view mirror assy
3. Wire harness70±59
70±59 ±
Mirror operates abnormally
1. Outer mirror switch assy
2. Outer rear view mirror assy
3. Wire harness70±59
70±59±
http://vnx.su
Page 1613 of 2234
700TH±01
B59702
Left/Right Adjustment SwitchMirror
Switch
No Pin
UP
OFF
DOWN
LEFT RIGHT LEFT
RIGHT
No Pin
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER MIRROR CONTROL SYSTEM
70±59
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION

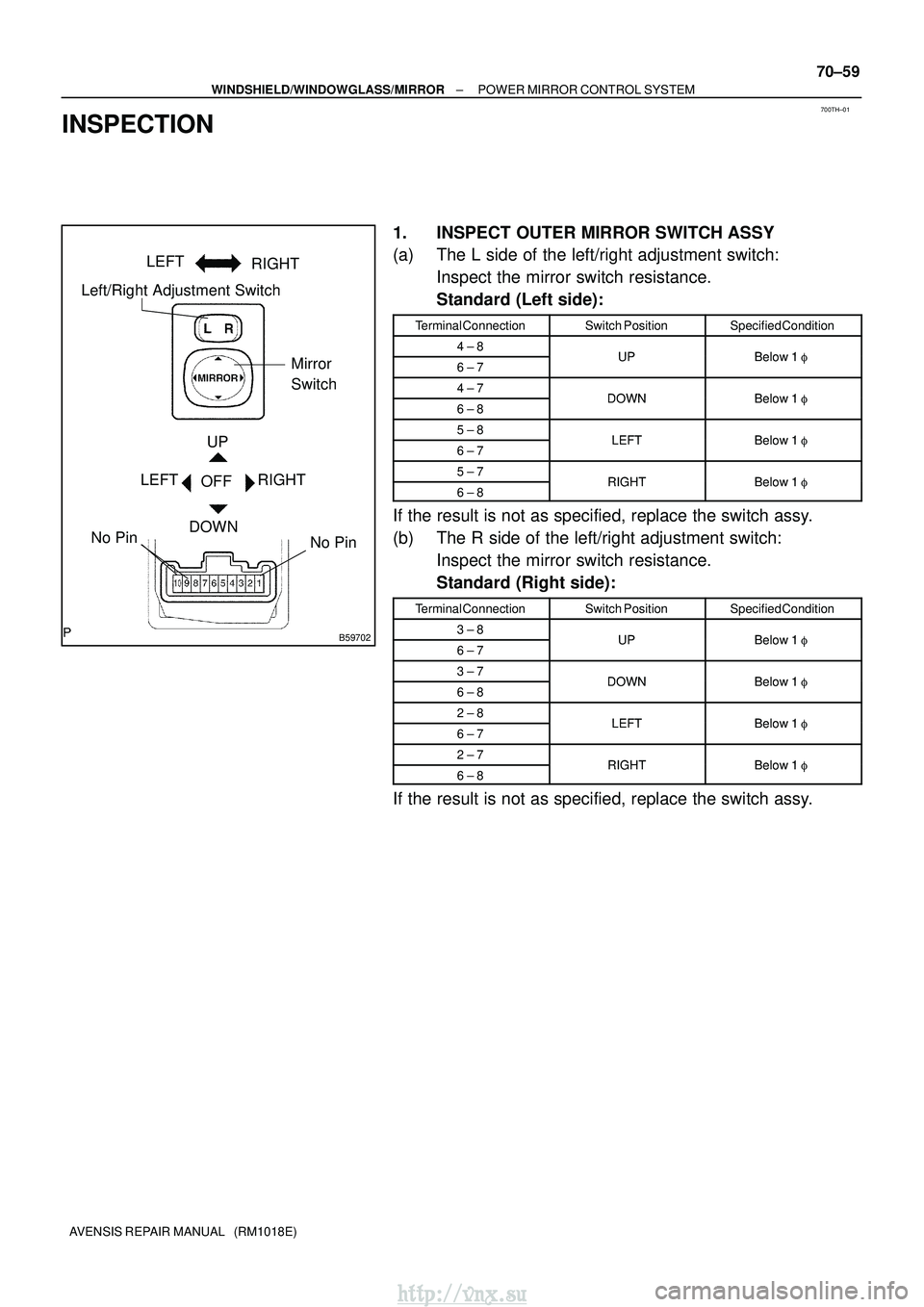

1. INSPECT OUTER MIRROR SWITCH ASSY
(a) The L side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Left side):
Terminal ConnectionSwitch PositionSpecified Condition
4 ± 8UPBelow 1 6 ± 7UPBelow 1
4 ± 7DOWNBelow 16 ± 8DOWNBelow 1
5 ± 8LEFTBelow 16 ± 7LEFTBelow 1
5 ± 7RIGHTBelow 16 ± 8RIGHTBelow 1
If the result is not as specified, replace the switch assy.
(b) The R side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Right side):
Terminal ConnectionSwitch PositionSpecified Condition
3 ± 8UPBelow 1 6 ± 7UPBelow 1
3 ± 7DOWNBelow 16 ± 8DOWNBelow 1
2 ± 8LEFTBelow 16 ± 7LEFTBelow 1
2 ± 7RIGHTBelow 16 ± 8RIGHTBelow 1
If the result is not as specified, replace the switch assy.
http://vnx.su
Page 1614 of 2234

B64822
Left/Right Adjustment SwitchRetract Switch
Mirror
Switch
No Pin
UP
OFF
DOWN
LEFT RIGHT
LEFT RIGHT
70±60
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER MIRROR CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

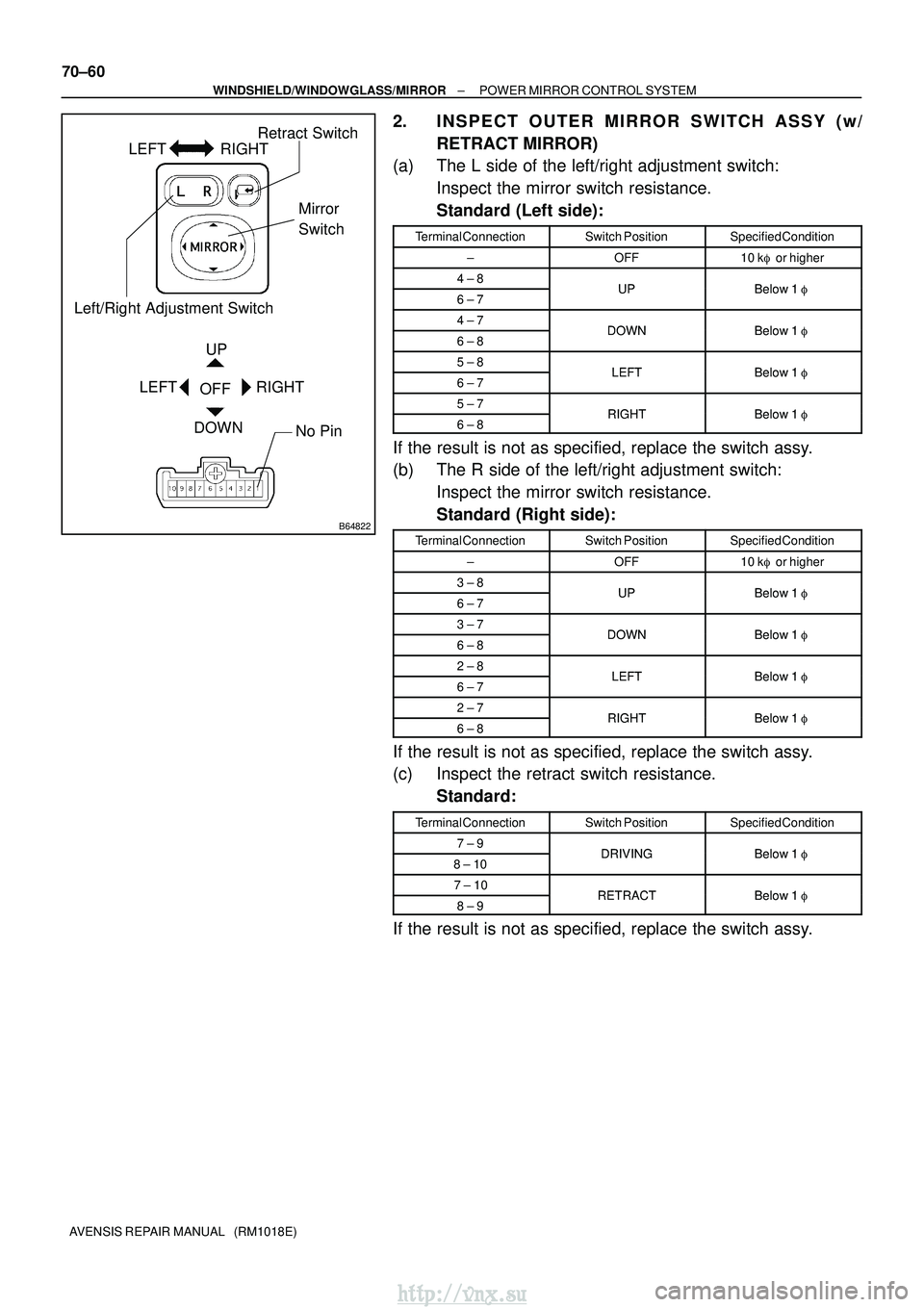

2. INSPECT OUTER MIRROR SWITCH ASSY (w/ RETRACT MIRROR)
(a) The L side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Left side):
Terminal ConnectionSwitch PositionSpecified Condition
±OFF10 k or higher
4 ± 8UPBelow 1 6 ± 7UPBelow 1
4 ± 7DOWNBelow 16 ± 8DOWNBelow 1
5 ± 8LEFTBelow 16 ± 7LEFTBelow 1
5 ± 7RIGHTBelow 16 ± 8RIGHTBelow 1
If the result is not as specified, replace the switch assy.
(b) The R side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Right side):
Terminal ConnectionSwitch PositionSpecified Condition
±OFF10 k or higher
3 ± 8UPBelow 1 6 ± 7UPBelow 1
3 ± 7DOWNBelow 16 ± 8DOWNBelow 1
2 ± 8LEFTBelow 16 ± 7LEFTBelow 1
2 ± 7RIGHTBelow 16 ± 8RIGHTBelow 1
If the result is not as specified, replace the switch assy.
(c) Inspect the retract switch resistance.
Standard:
Terminal ConnectionSwitch PositionSpecified Condition
7 ± 9DRIVINGBelow 1 8 ± 10DRIVINGBelow 1
7 ± 10RETRACTBelow 18 ± 9RETRACTBelow 1
If the result is not as specified, replace the switch assy.
http://vnx.su
Page 1615 of 2234

B68232
(A)(D)
(C)
(B)
12
3
4
5
6
7
B64818
LH Side
A: Forward Position
C: Driving Position
E: Retracted Position
B
A
C D E
12
3
6
7
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER MIRROR CONTROL SYSTEM
70±61
AVENSIS REPAIR MANUAL (RM1018E)

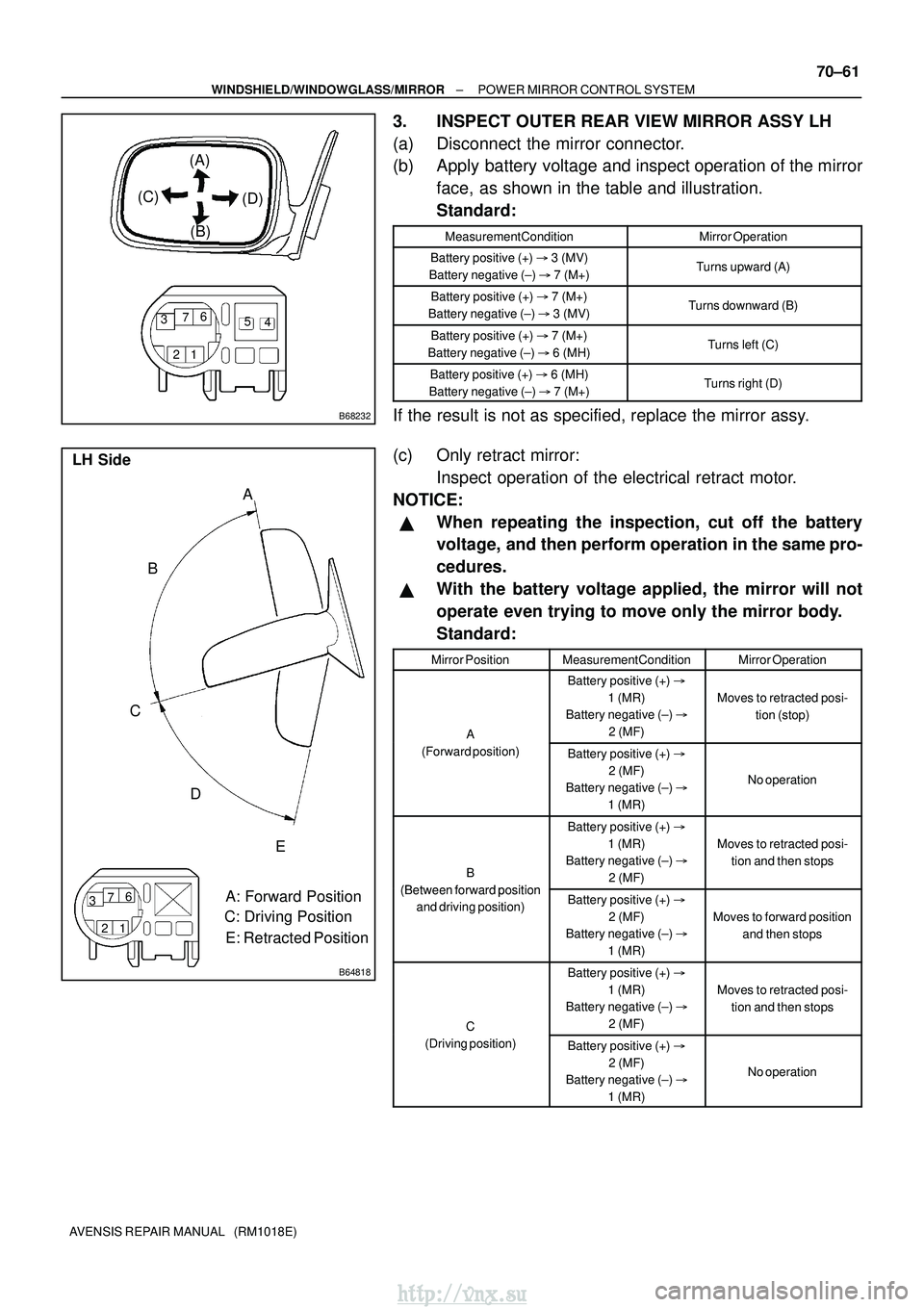

3. INSPECT OUTER REAR VIEW MIRROR ASSY LH
(a) Disconnect the mirror connector.
(b) Apply battery voltage and inspect operation of the mirror
face, as shown in the table and illustration.
Standard:
Measurement ConditionMirror Operation
Battery positive (+) 3 (MV)
Battery negative (±) 7 (M+)Turns upward (A)
Battery positive (+) 7 (M+)
Battery negative (±) 3 (MV)Turns downward (B)
Battery positive (+) 7 (M+)
Battery negative (±) 6 (MH)Turns left (C)
Battery positive (+) 6 (MH)
Battery negative (±) 7 (M+)Turns right (D)
If the result is not as specified, replace the mirror assy.
(c) Only retract mirror:
Inspect operation of the electrical retract motor.
NOTICE:
When repeating the inspection, cut off the battery
voltage, and then perform operation in the same pro-
cedures.
With the battery voltage applied, the mirror will not
operate even trying to move only the mirror body.
Standard:
Mirror PositionMeasurement ConditionMirror Operation
A
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi- tion (stop)
A
(Forward position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
No operation
B
(Between forwardposition
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi- tion and then stops
(Between forward position and driving position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
Moves to forward position and then stops
C
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi- tion and then stops
C
(Driving position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
No operation
http://vnx.su
Page 1616 of 2234

B68233
(A)(D)
(C)
(B)
12
3
4
5
6
7
70±62
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER MIRROR CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E) Mirror Position Mirror Operation
Measurement Condition
D
(Between drivingposition
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi- tion and then stops
(Between driving positionand retracted position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
Moves to driving position and then stops
E
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
No operation
E
(Retracted position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
Moves to driving position and then stops
If the result is not as specified, replace the mirror assy.

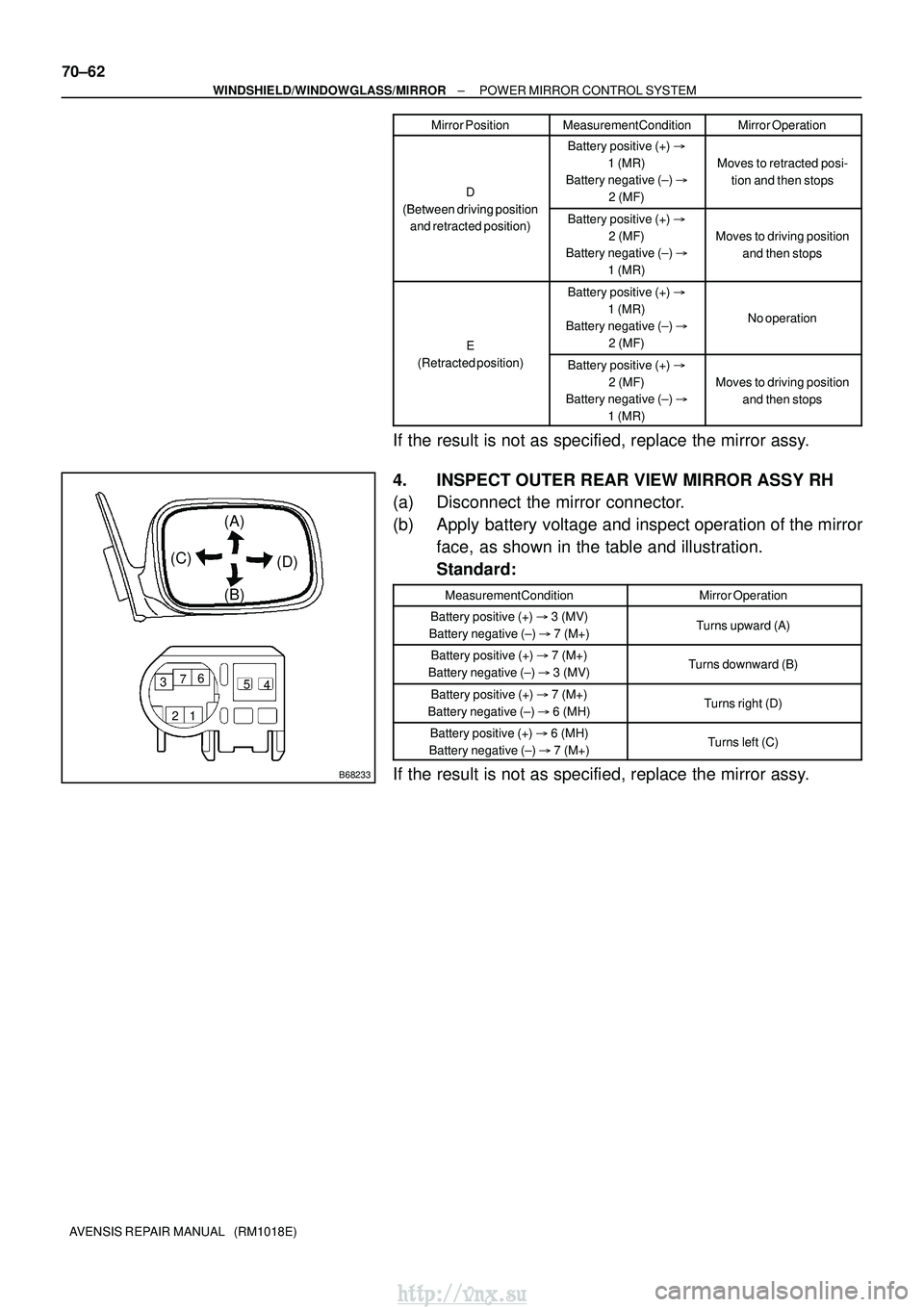

4. INSPECT OUTER REAR VIEW MIRROR ASSY RH
(a) Disconnect the mirror connector.
(b) Apply battery voltage and inspect operation of the mirror face, as shown in the table and illustration.
Standard:
Measurement ConditionMirror Operation
Battery positive (+) 3 (MV)
Battery negative (±) 7 (M+)Turns upward (A)
Battery positive (+) 7 (M+)
Battery negative (±) 3 (MV)Turns downward (B)
Battery positive (+) 7 (M+)
Battery negative (±) 6 (MH)Turns right (D)
Battery positive (+) 6 (MH)
Battery negative (±) 7 (M+)Turns left (C)
If the result is not as specified, replace the mirror assy.
http://vnx.su
