Page 1753 of 2234

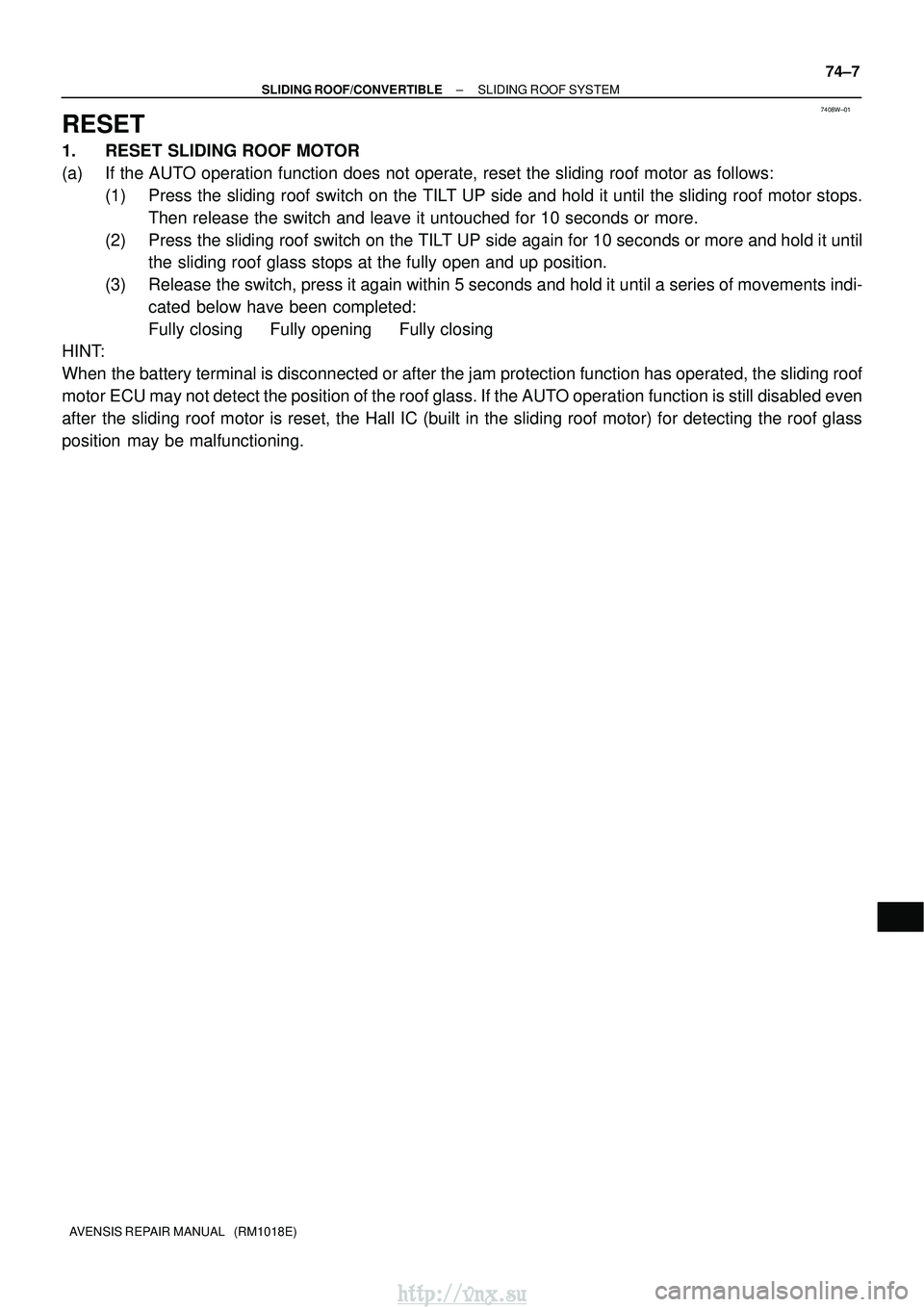

TOYOTA AVENSIS 2003 Service Repair Manual 7408W±01 ± SLIDING ROOF/CONVERTIBLE SLIDING ROOF SYSTEM 74±7 AVENSIS REPAIR MANUAL (RM1018E) RESET 1. RESET SLIDING ROOF MOTOR (a) If the AUTO operation function does not operate, reset the slidi

Page 1754 of 2234

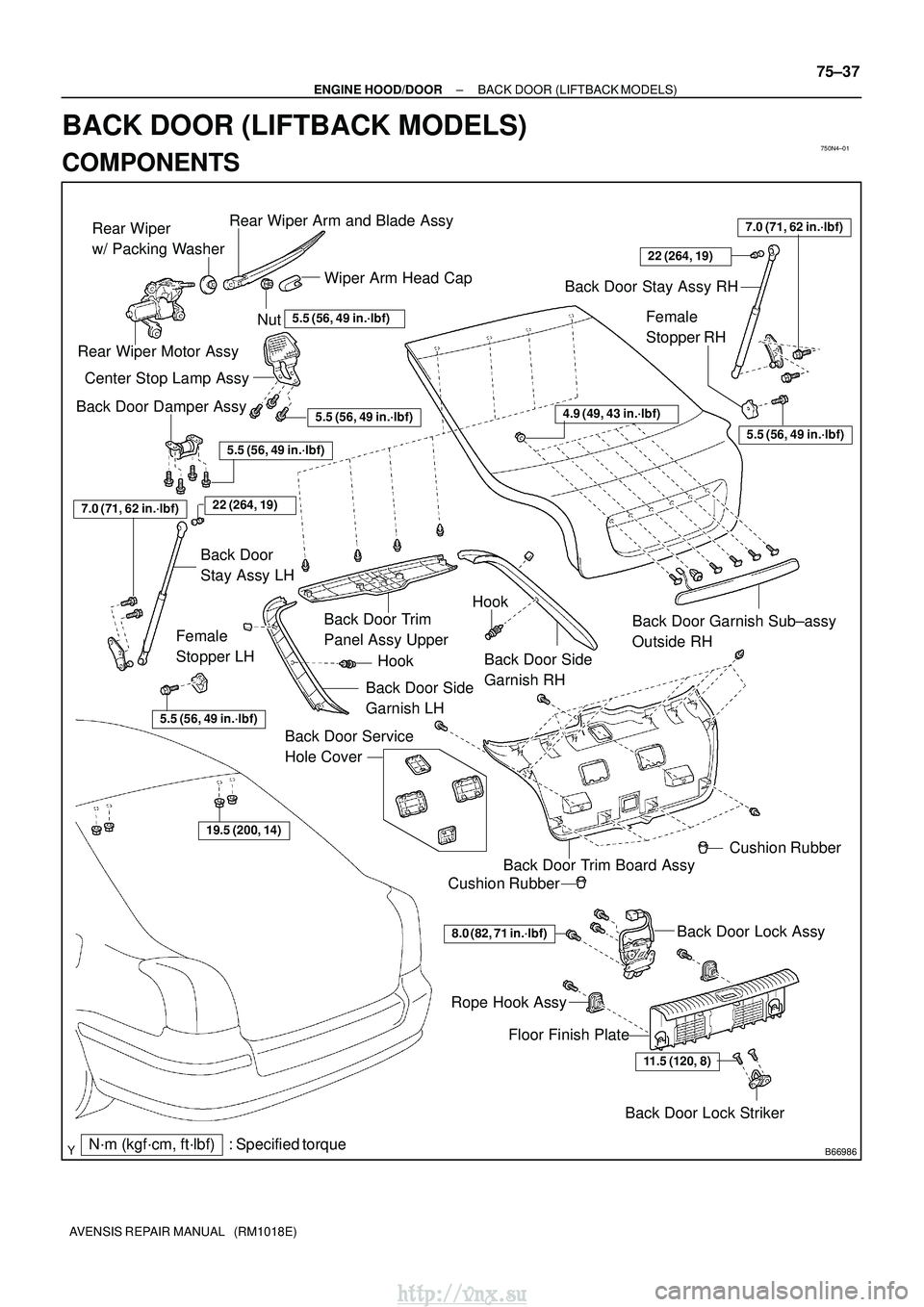

TOYOTA AVENSIS 2003 Service Repair Manual 750N4±01 B66986 Back Door Trim Panel Assy UpperBack Door Trim Board Assy Back Door Side Garnish LH Back Door Garnish Sub±assy Outside RH Floor Finish Plate Center Stop Lamp Assy Back Door Lock St

Page 1755 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 750N5±01 B57104 Centering BoltStandard Bolt B67535 A B C D B66993 75±38 ± ENGINE HOOD/DOOR BACK DOOR (LIFTBACK MODELS) AVENSIS REPAIR MANUAL (RM1018E) ADJUSTMENT HINT: Because a centering bolt is

Page 1756 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B66992 B66994 B66995 ± ENGINE HOOD/DOORBACK DOOR(LIFTBACK MODELS) 75±39 AVENSIS REPAIR MANUAL (RM1018E) (c)Horizontally and vertically adjust the door by loosening the 8 door side hinge bolts. (d)

Page 1757 of 2234

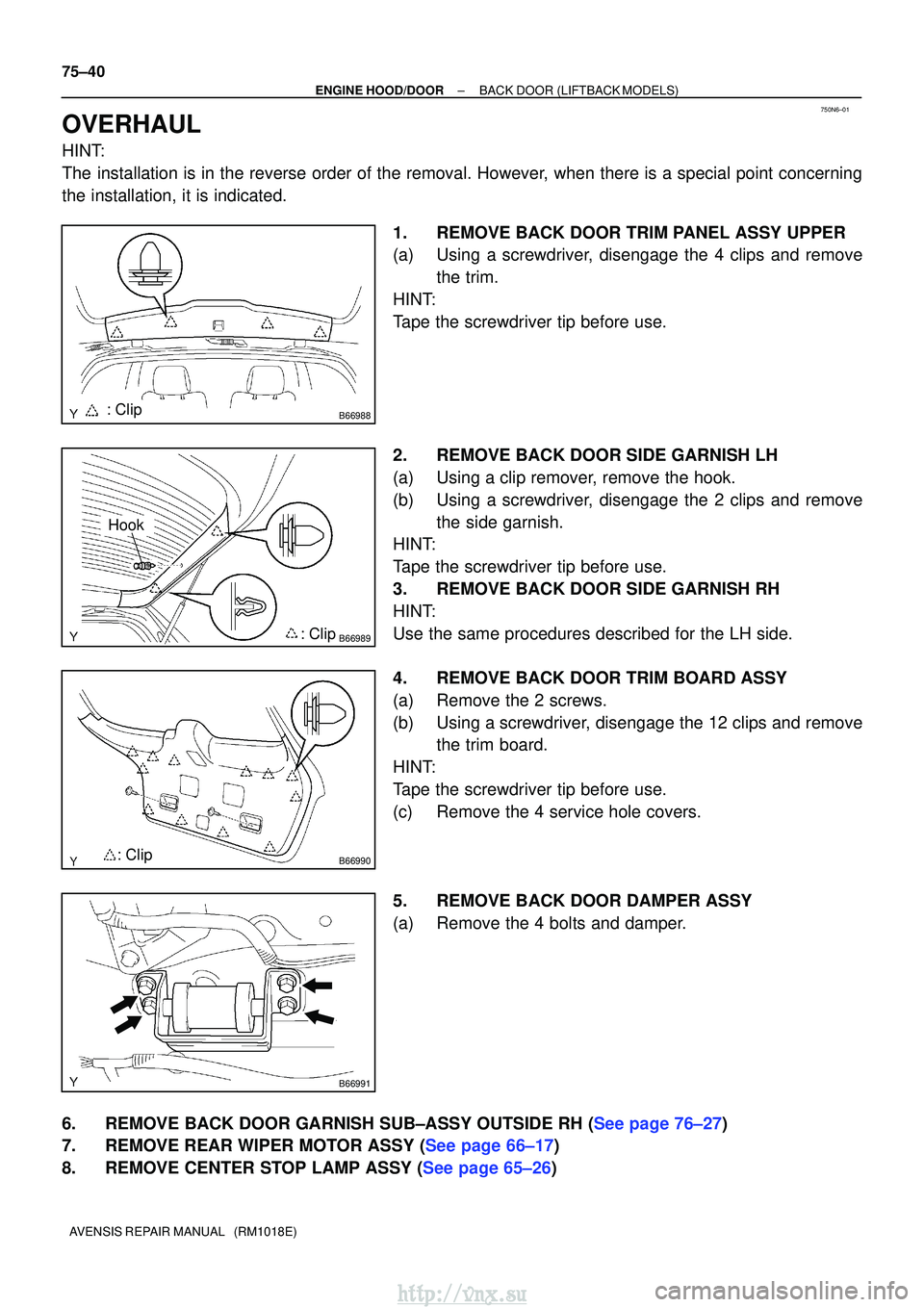

TOYOTA AVENSIS 2003 Service Repair Manual 750N6±01 B66988: Clip B66989: Clip Hook B66990: Clip B66991 75±40 ± ENGINE HOOD/DOORBACK DOOR(LIFTBACK MODELS) AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL HINT: The installation is in the reverse or

Page 1758 of 2234

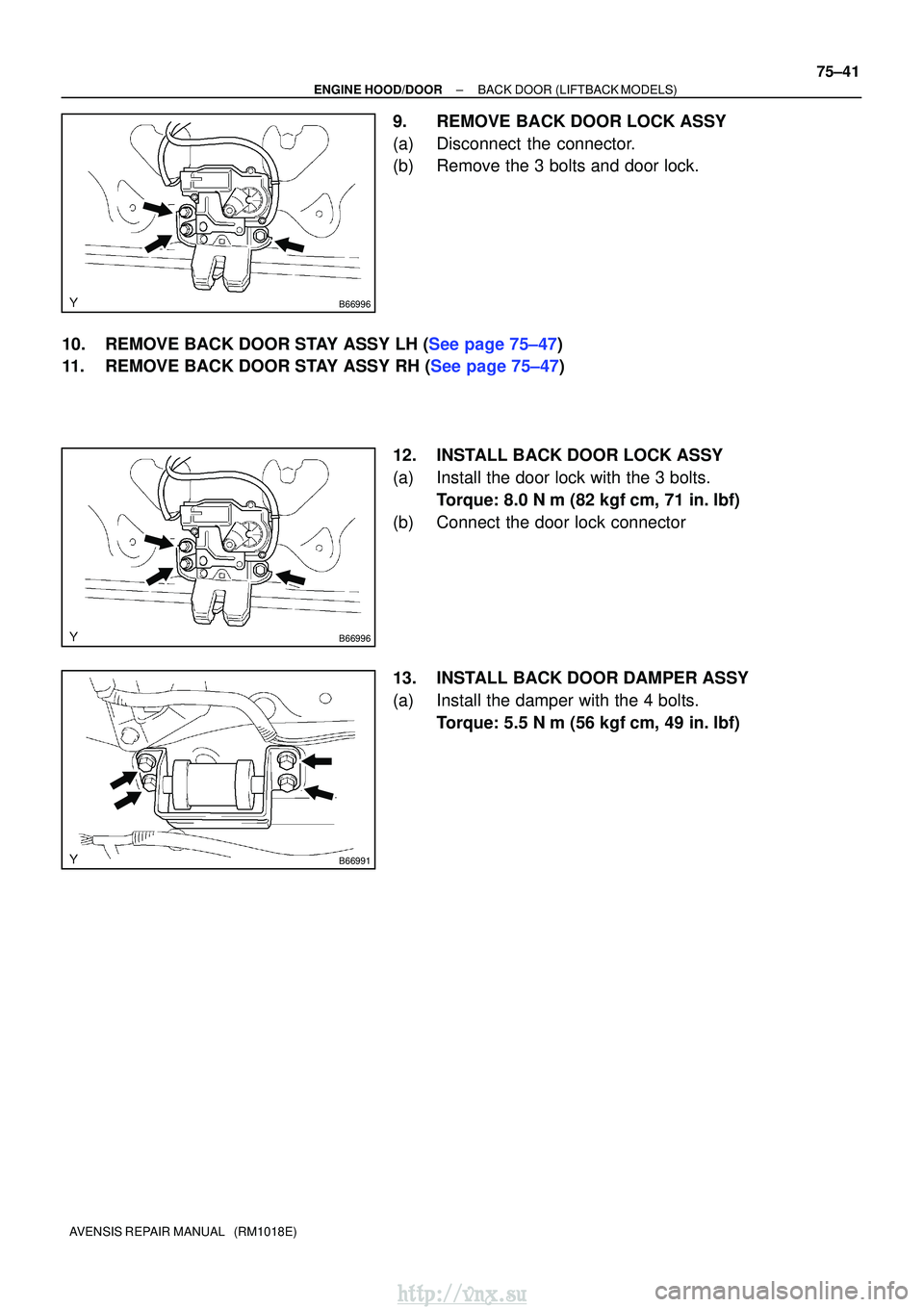

TOYOTA AVENSIS 2003 Service Repair Manual B66996 B66996 B66991 ± ENGINE HOOD/DOOR BACK DOOR (LIFTBACK MODELS) 75±41 AVENSIS REPAIR MANUAL (RM1018E) 9. REMOVE BACK DOOR LOCK ASSY (a) Disconnect the connector. (b) Remove the 3 bolts and doo

Page 1759 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 750N7±01 B66987 Back Door Trim Panel Assy UpperBack Door Side Garnish LH Wiper Motor Assy Rear Spoiler Back Door Garnish Sub±assy Outside RH Back Door Trim Board Assy Door Pull Handle Back Door Lock

Page 1760 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 750N8±01 B57104 Centering BoltStandard Bolt B67534 A B C D B67000 ± ENGINE HOOD/DOOR BACK DOOR (WAGON MODELS) 75±43 AVENSIS REPAIR MANUAL (RM1018E) ADJUSTMENT HINT: Because a centering bolt is us
