STARTING & CHARGING STARTER ASSY (1ZZ±FE/3ZZ±FE)
19±3
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

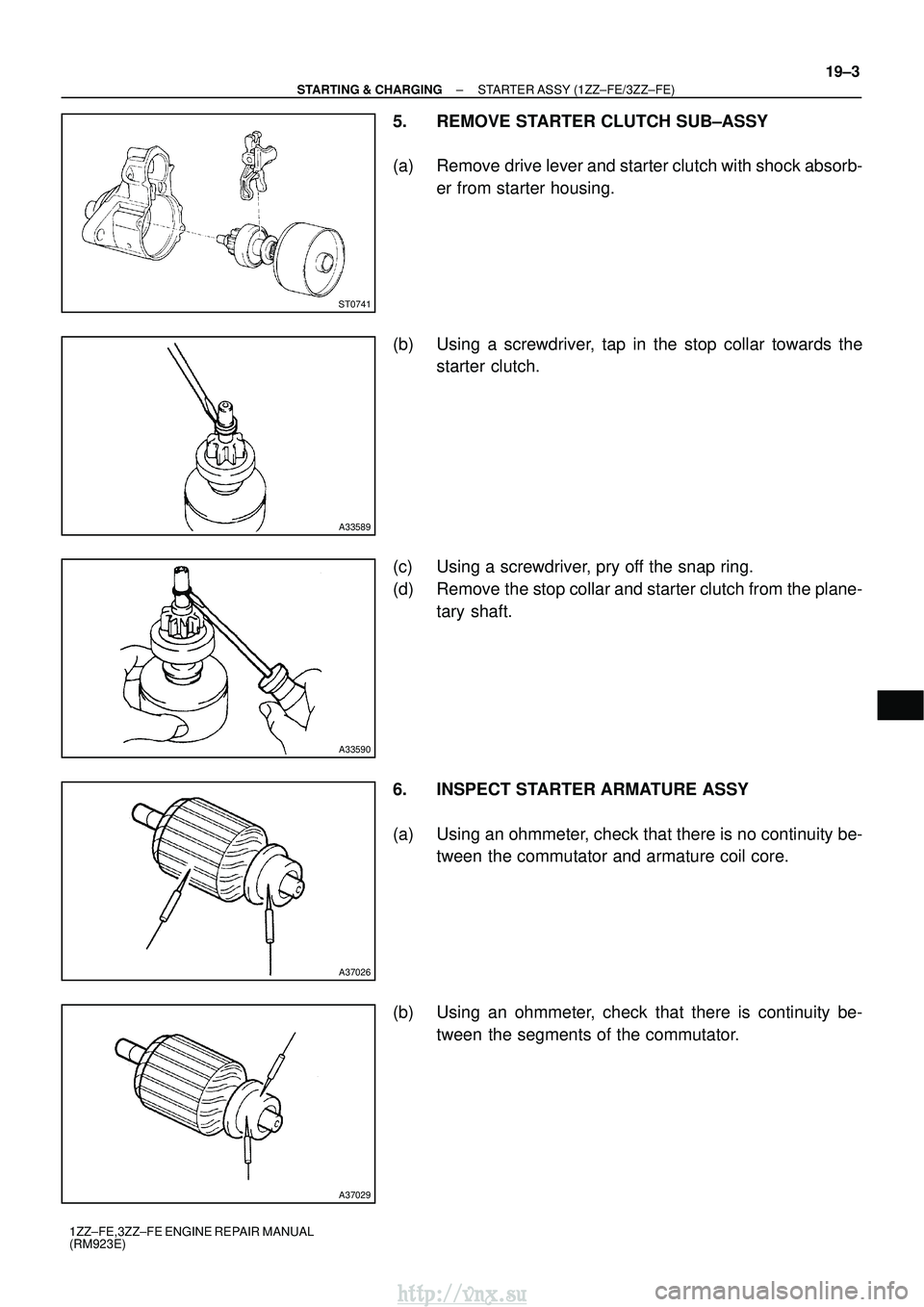

5. REMOVE STARTER CLUTCH SUB±ASSY
(a) Remove drive lever and starter clutch with shock absorb-
er from starter housing.
(b) Using a screwdriver, tap in the stop collar towards the starter clutch.
(c) Using a screwdriver, pry off the snap ring.
(d) Remove the stop collar and starter clutch from the plane- tary shaft.
6. INSPECT STARTER ARMATURE ASSY
(a) Using an ohmmeter, check that there is no continuity be- tween the commutator and armature coil core.
(b) Using an ohmmeter, check that there is continuity be- tween the segments of the commutator.
http://vnx.su
Page 850 of 2234
A37025
A62221
A62222
A62223
19±4
±
STARTING & CHARGING STARTER ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

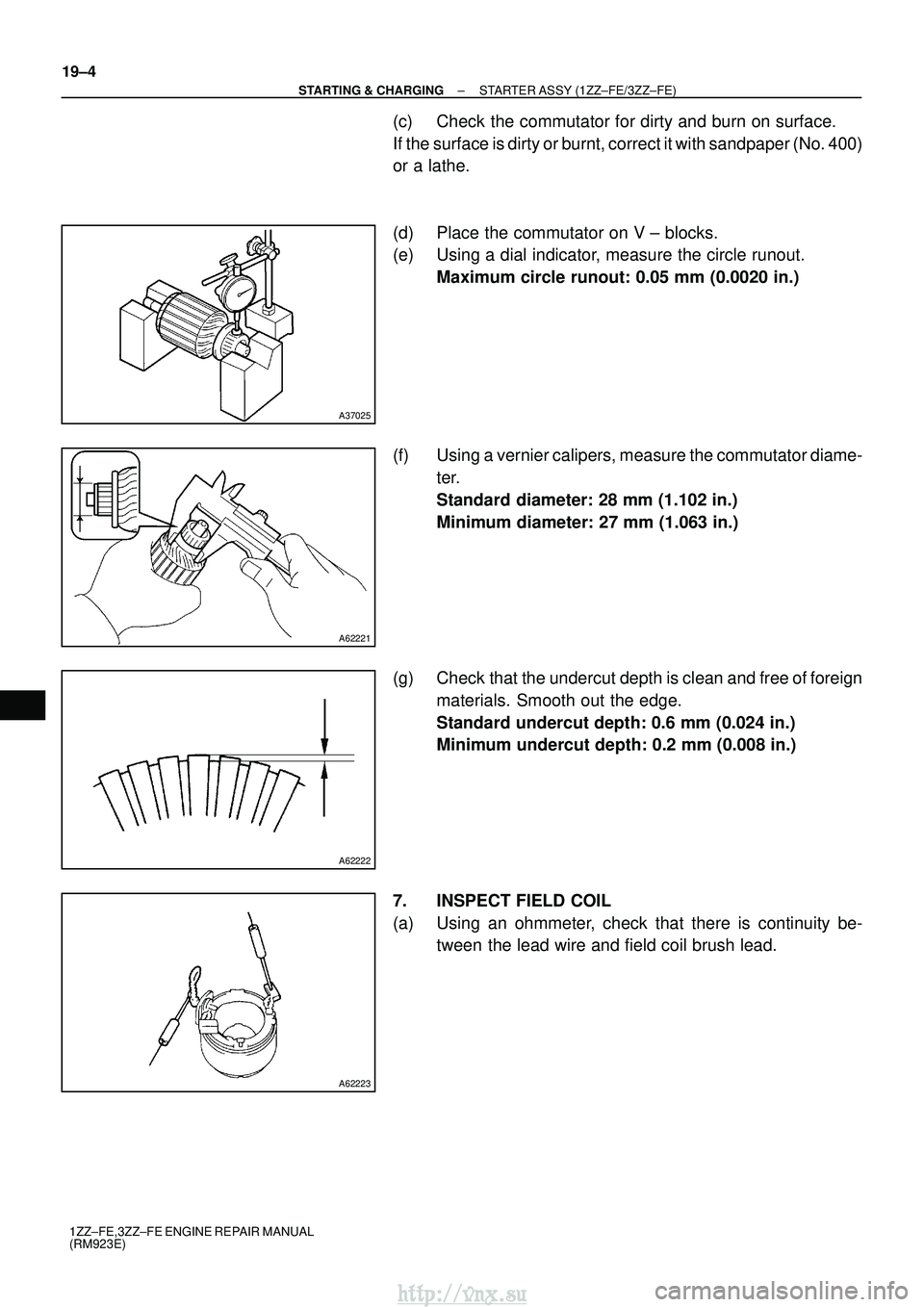

(c) Check the commutator for dirty and burn on surface.
If the surface is dirty or burnt, correct it with sandpaper (No. 400)
or a lathe.
(d) Place the commutator on V ± blocks.
(e) Using a dial indicator, measure the circle runout. Maximum circle runout: 0.05 mm (0.0020 in.)
(f) Using a vernier calipers, measure the commutator diame- ter.
Standard diameter: 28 mm (1.102 in.)
Minimum diameter: 27 mm (1.063 in.)
(g) Check that the undercut depth is clean and free of foreign materials. Smooth out the edge.
Standard undercut depth: 0.6 mm (0.024 in.)
Minimum undercut depth: 0.2 mm (0.008 in.)
7. INSPECT FIELD COIL
(a) Using an ohmmeter, check that there is continuity be- tween the lead wire and field coil brush lead.
http://vnx.su
Page 851 of 2234
A62224
A37017
A37020
A62225
Free
Lock
A33580
±
STARTING & CHARGING STARTER ASSY (1ZZ±FE/3ZZ±FE)
19±5
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

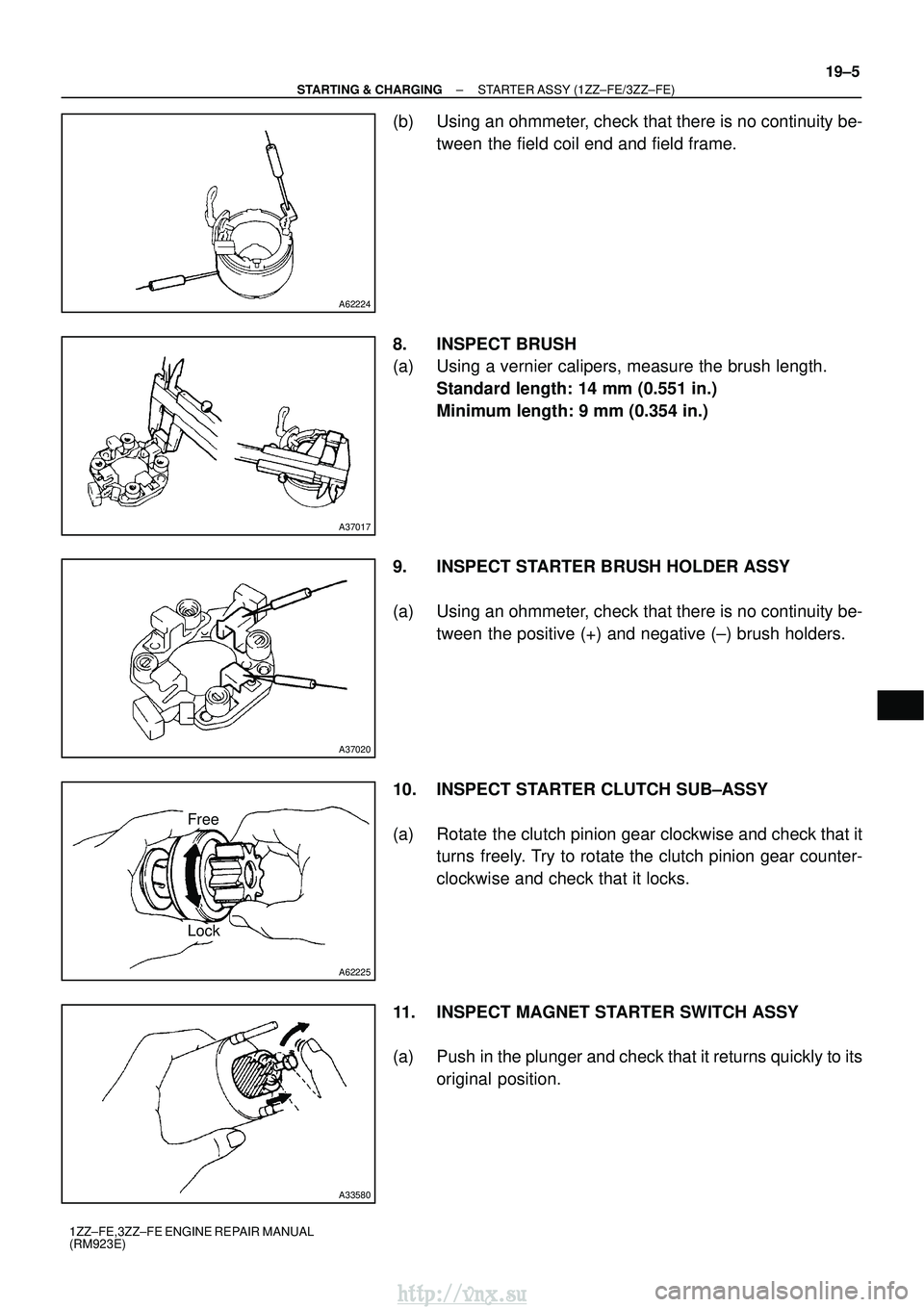

(b) Using an ohmmeter, check that there is no continuity be-
tween the field coil end and field frame.
8. INSPECT BRUSH
(a) Using a vernier calipers, measure the brush length. Standard length: 14 mm (0.551 in.)
Minimum length: 9 mm (0.354 in.)
9. INSPECT STARTER BRUSH HOLDER ASSY
(a) Using an ohmmeter, check that there is no continuity be- tween the positive (+) and negative (±) brush holders.
10. INSPECT STARTER CLUTCH SUB±ASSY
(a) Rotate the clutch pinion gear clockwise and check that it turns freely. Try to rotate the clutch pinion gear counter-
clockwise and check that it locks.
11. INSPECT MAGNET STARTER SWITCH ASSY
(a) Push in the plunger and check that it returns quickly to its original position.
http://vnx.su
Page 852 of 2234
A62226Terminal 50Terminal C
A62227Terminal 50
Switch Body
A33607
A33608
A33587
19±6
±
STARTING & CHARGING STARTER ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

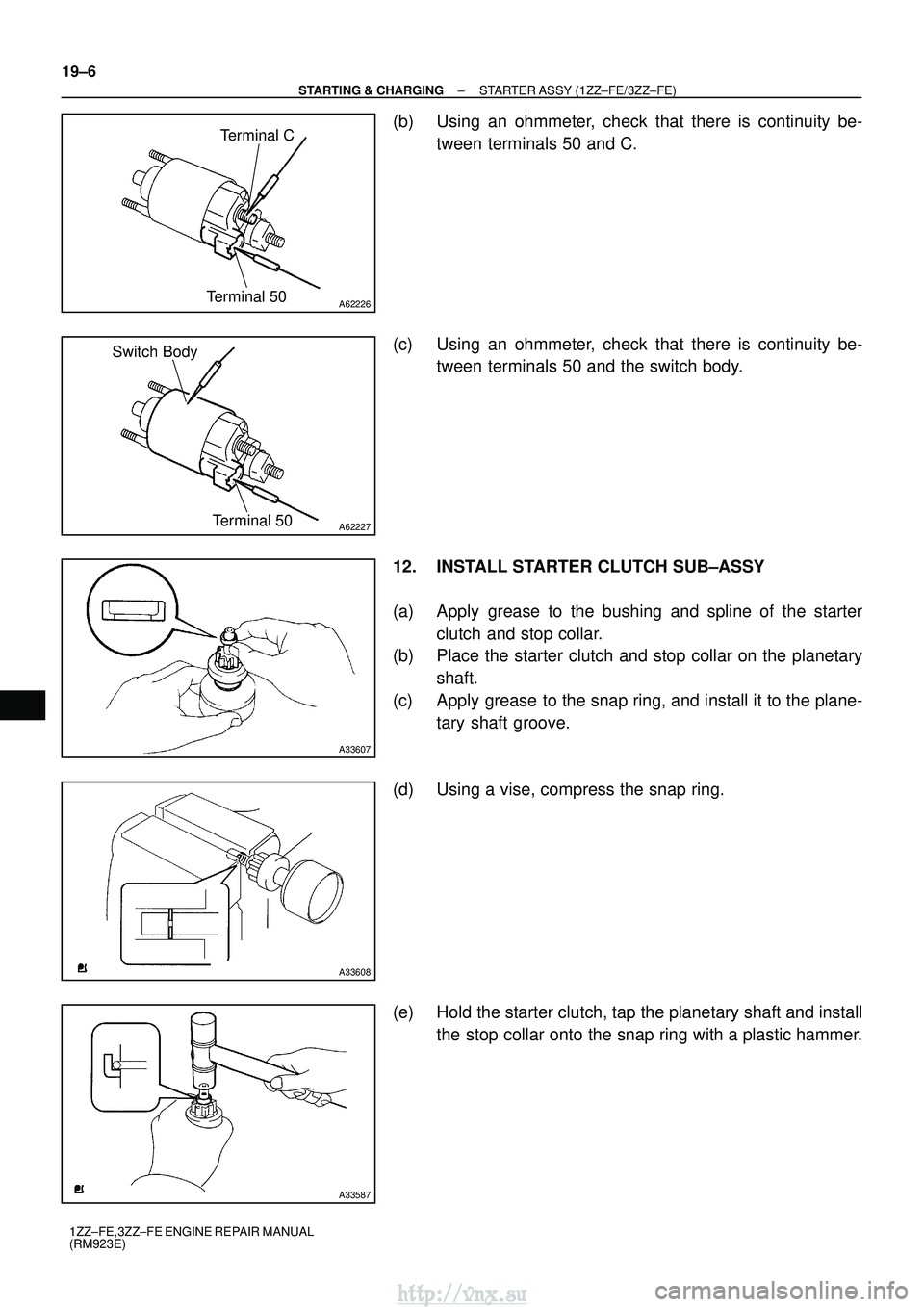

(b) Using an ohmmeter, check that there is continuity be- tween terminals 50 and C.
(c) Using an ohmmeter, check that there is continuity be- tween terminals 50 and the switch body.
12. INSTALL STARTER CLUTCH SUB±ASSY
(a) Apply grease to the bushing and spline of the starter clutch and stop collar.
(b) Place the starter clutch and stop collar on the planetary
shaft.
(c) Apply grease to the snap ring, and install it to the plane- tary shaft groove.
(d) Using a vise, compress the snap ring.
(e) Hold the starter clutch, tap the planetary shaft and install the stop collar onto the snap ring with a plastic hammer.
http://vnx.su
Page 853 of 2234
ST0741
Grease
A62228
CutoutProtrusion
A30137
ST0728
±
STARTING & CHARGING STARTER ASSY (1ZZ±FE/3ZZ±FE)
19±7
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

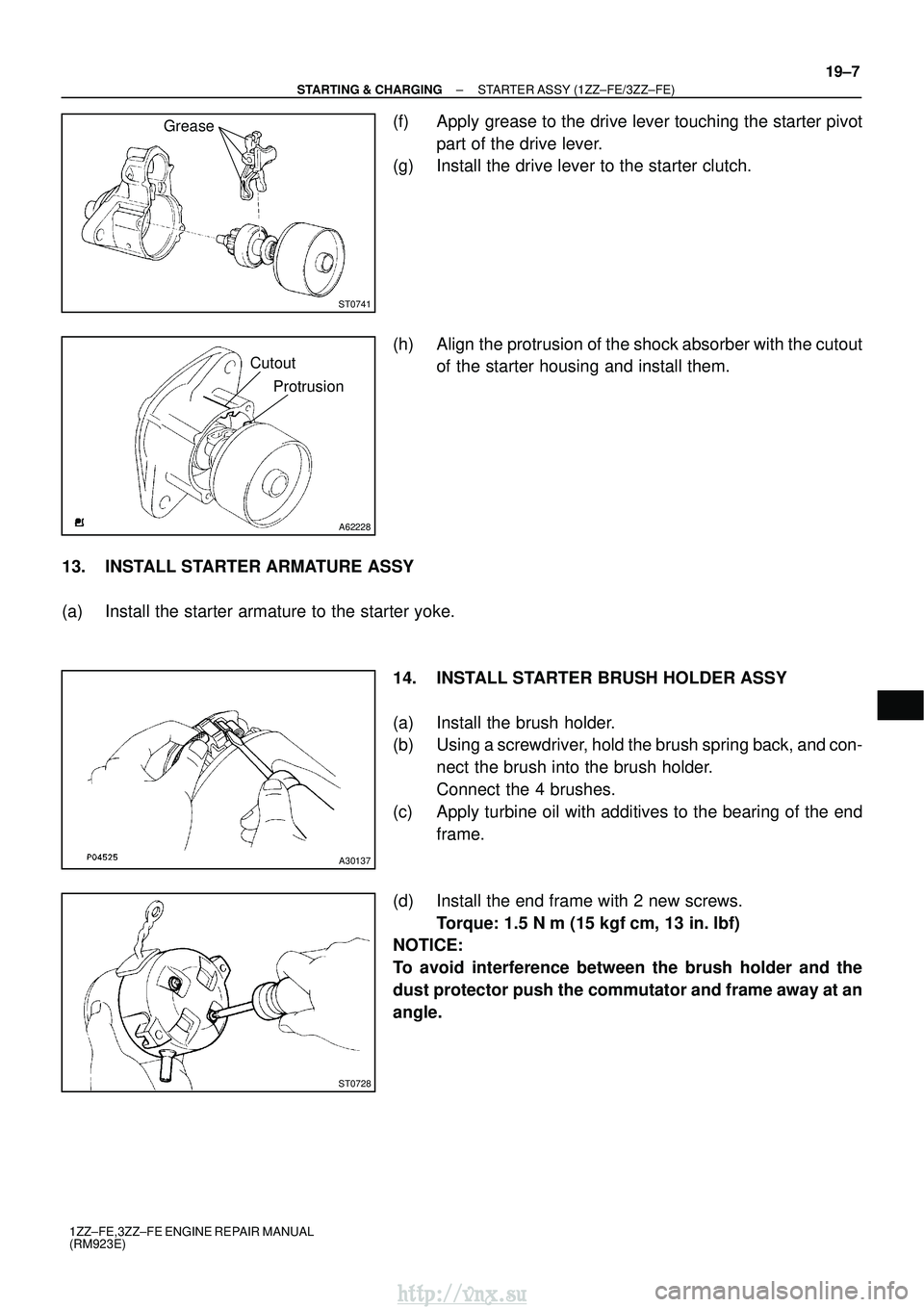

(f) Apply grease to the drive lever touching the starter pivot
part of the drive lever.
(g) Install the drive lever to the starter clutch.
(h) Align the protrusion of the shock absorber with the cutout of the starter housing and install them.
13. INSTALL STARTER ARMATURE ASSY
(a) Install the starter armature to the starter yoke. 14. INSTALL STARTER BRUSH HOLDER ASSY
(a) Install the brush holder.
(b) Using a screwdriver, hold the brush spring back, and con-nect the brush into the brush holder.
Connect the 4 brushes.
(c) Apply turbine oil with additives to the bearing of the end frame.
(d) Install the end frame with 2 new screws. Torque: 1.5 N m (15 kgf cm, 13 in. lbf)
NOTICE:
To avoid interference between the brush holder and the
dust protector push the commutator and frame away at an
angle.
http://vnx.su
Page 854 of 2234
A62229
ProtrusionCutout
A34019
ST0742
A37086
19±8
±
STARTING & CHARGING STARTER ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

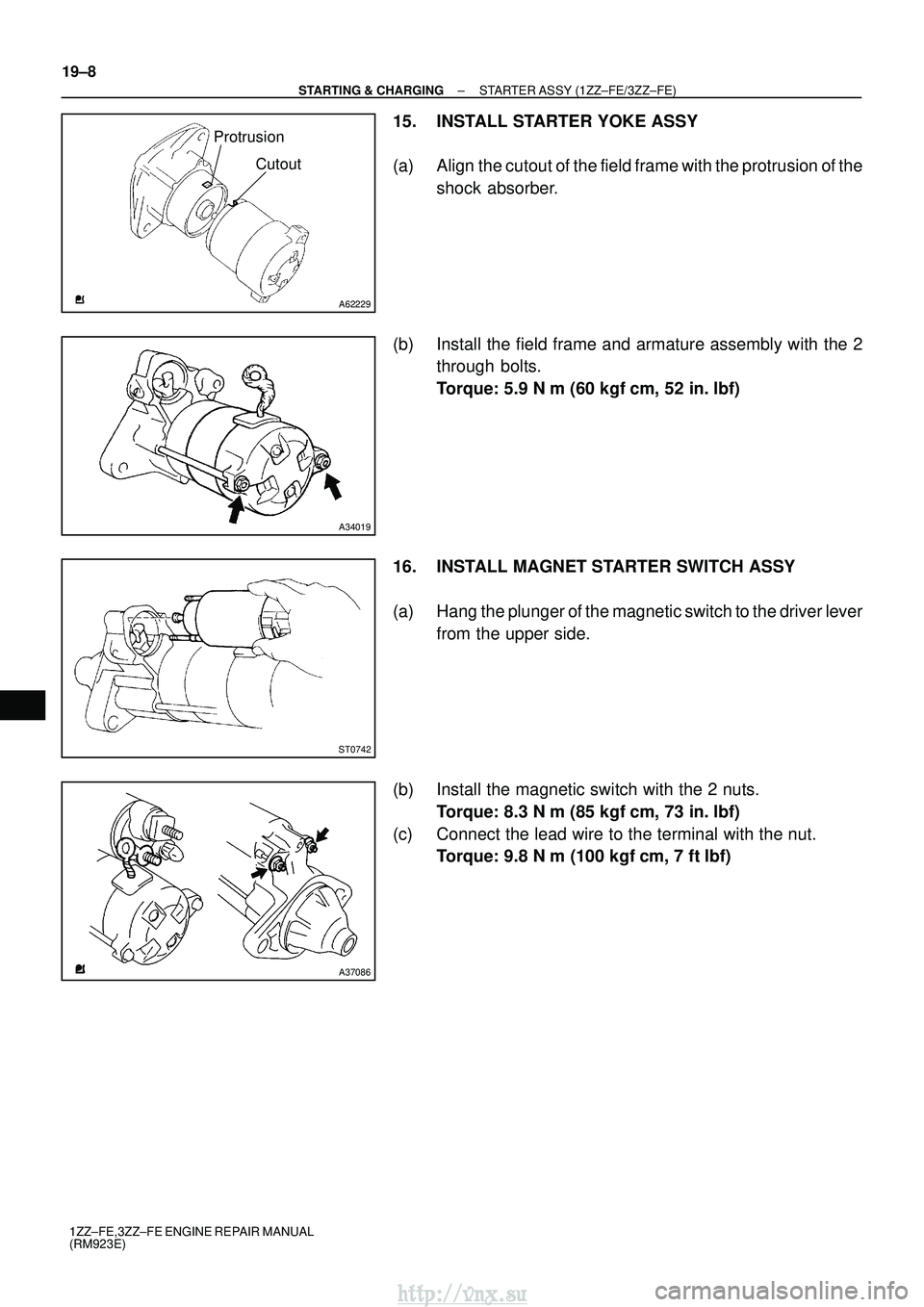

15. INSTALL STARTER YOKE ASSY
(a) Align the cutout of the field frame with the protrusion of the shock absorber.
(b) Install the field frame and armature assembly with the 2 through bolts.
Torque: 5.9 N m (60 kgf cm, 52 in. lbf)
16. INSTALL MAGNET STARTER SWITCH ASSY
(a) Hang the plunger of the magnetic switch to the driver lever from the upper side.
(b) Install the magnetic switch with the 2 nuts. Torque: 8.3 N m (85 kgf cm, 73 in. lbf)
(c) Connect the lead wire to the terminal with the nut. Torque: 9.8 N m (100 kgf cm, 7 ftlbf)
http://vnx.su
Page 855 of 2234

1600R±13
±
COOLING COOLING FAN SYSTEM (1AZ±FE)
16±17
AVENSIS REPAIR MANUAL (RM1018E)

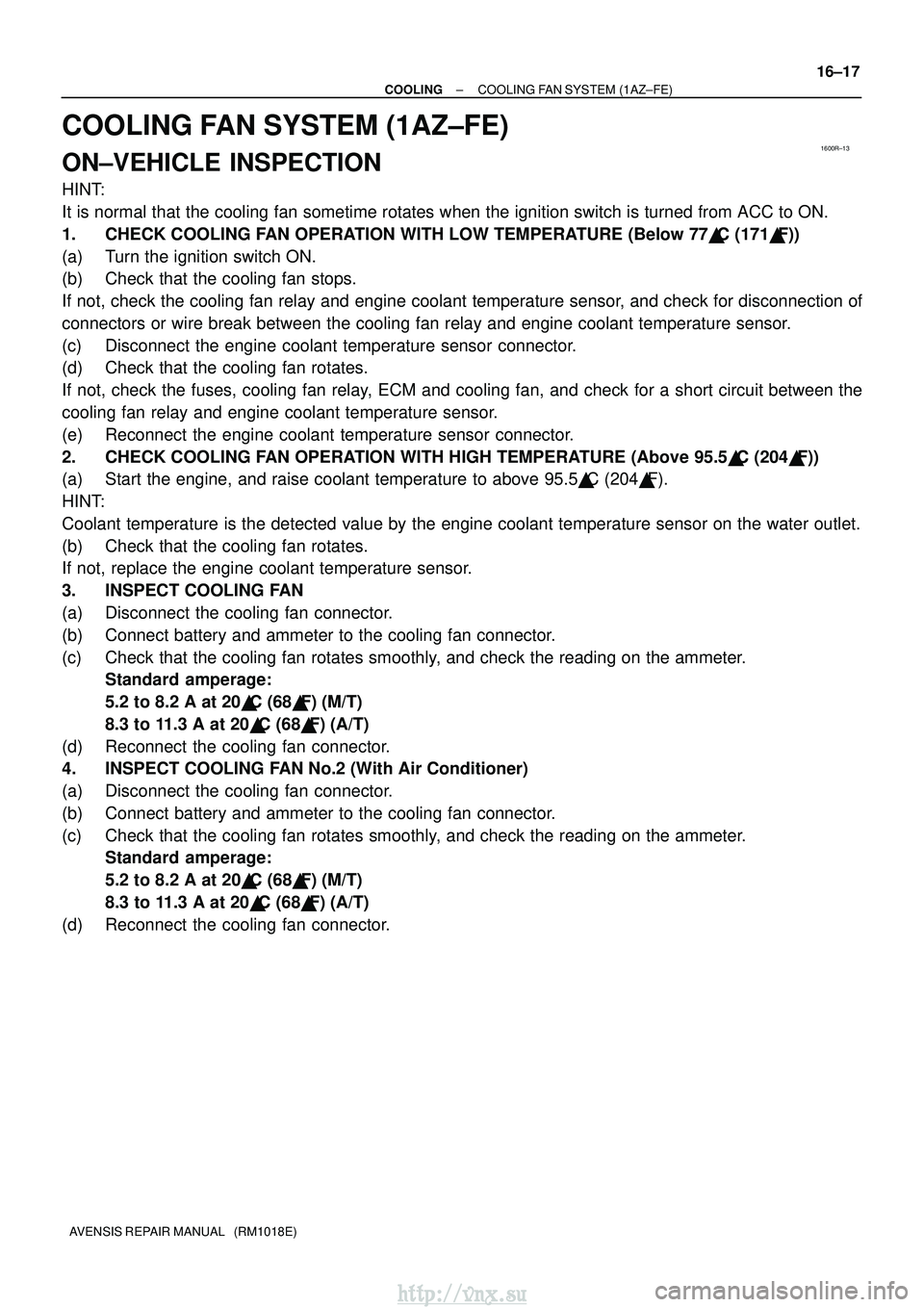

COOLING FAN SYSTEM (1AZ±FE)
ON±VEHICLE INSPECTION
HINT:
It is normal that the cooling fan sometime rotates when the ignition switc\
h is turned from ACC to ON.
1. CHECK COOLING FAN OPERATION WITH LOW TEMPERATURE (Below 77 C (171F))
(a) Turn the ignition switch ON.
(b) Check that the cooling fan stops.
If not, check the cooling fan relay and engine coolant temperature sensor, and check for disconnection of
connectors or wire break between the cooling fan relay and engine coolan\
t temperature sensor.
(c) Disconnect the engine coolant temperature sensor connector.
(d) Check that the cooling fan rotates.
If not, check the fuses, cooling fan relay, ECM and cooling fan, and check for a short circuit between the
cooling fan relay and engine coolant temperature sensor.
(e) Reconnect the engine coolant temperature sensor connector.
2. CHECK COOLING FAN OPERATION WITH HIGH TEMPERATURE (Above 95.5 C (204 F))
(a) Start the engine, and raise coolant temperature to above 95.5 C (204 F).
HINT:
Coolant temperature is the detected value by the engine coolant temperat\
ure sensor on the water outlet.
(b) Check that the cooling fan rotates.
If not, replace the engine coolant temperature sensor.
3. INSPECT COOLING FAN
(a) Disconnect the cooling fan connector.
(b) Connect battery and ammeter to the cooling fan connector.
(c) Check that the cooling fan rotates smoothly, and check the reading on the ammeter. Standard amperage:
5.2 to 8.2 A at 20 C (68F) (M/T)
8.3 to 11.3 A at 20 C (68 F) (A/T)
(d) Reconnect the cooling fan connector.
4. INSPECT COOLING FAN No.2 (With Air Conditioner)
(a) Disconnect the cooling fan connector.
(b) Connect battery and ammeter to the cooling fan connector.
(c) Check that the cooling fan rotates smoothly, and check the reading on the ammeter. Standard amperage:
5.2 to 8.2 A at 20 C (68F) (M/T)
8.3 to 11.3 A at 20 C (68 F) (A/T)
(d) Reconnect the cooling fan connector.
http://vnx.su
Page 856 of 2234
160N3±01
E34090
A30519
E34090
16±18
±
COOLING COOLING FAN SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION

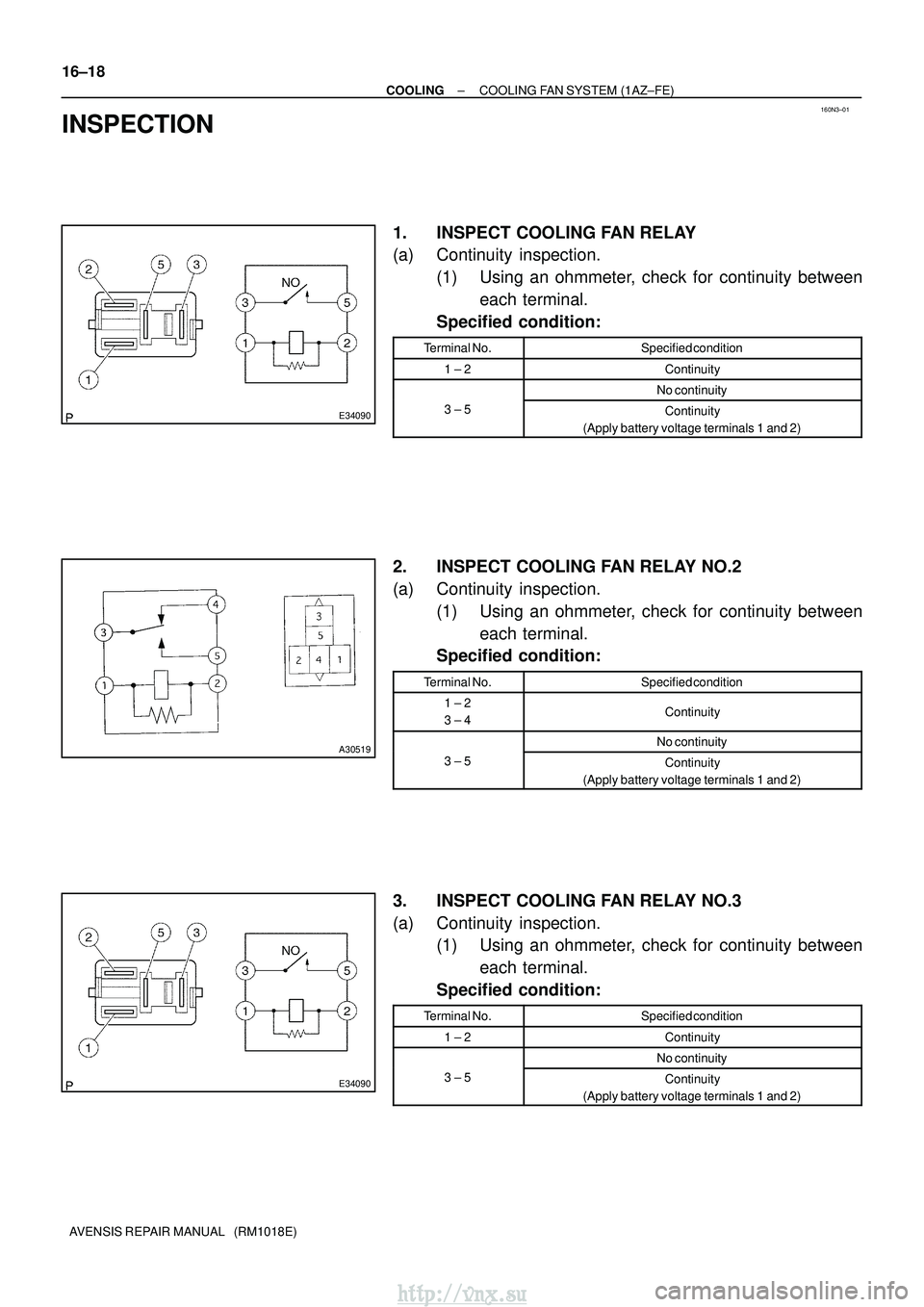

1. INSPECT COOLING FAN RELAY
(a) Continuity inspection. (1) Using an ohmmeter, check for continuity betweeneach terminal.
Specified condition:
Terminal No.Specified condition
1 ± 2Continuity
No continuity
3 ± 5Continuity
(Apply battery voltage terminals 1 and 2)
2. INSPECT COOLING FAN RELAY NO.2
(a) Continuity inspection. (1) Using an ohmmeter, check for continuity betweeneach terminal.
Specified condition:
Terminal No.Specified condition
1 ± 2
3 ± 4Continuity
No continuity
3 ± 5Continuity
(Apply battery voltage terminals 1 and 2)
3. INSPECT COOLING FAN RELAY NO.3
(a) Continuity inspection. (1) Using an ohmmeter, check for continuity between
each terminal.
Specified condition:
Terminal No.Specified condition
1 ± 2Continuity
No continuity
3 ± 5Continuity
(Apply battery voltage terminals 1 and 2)
