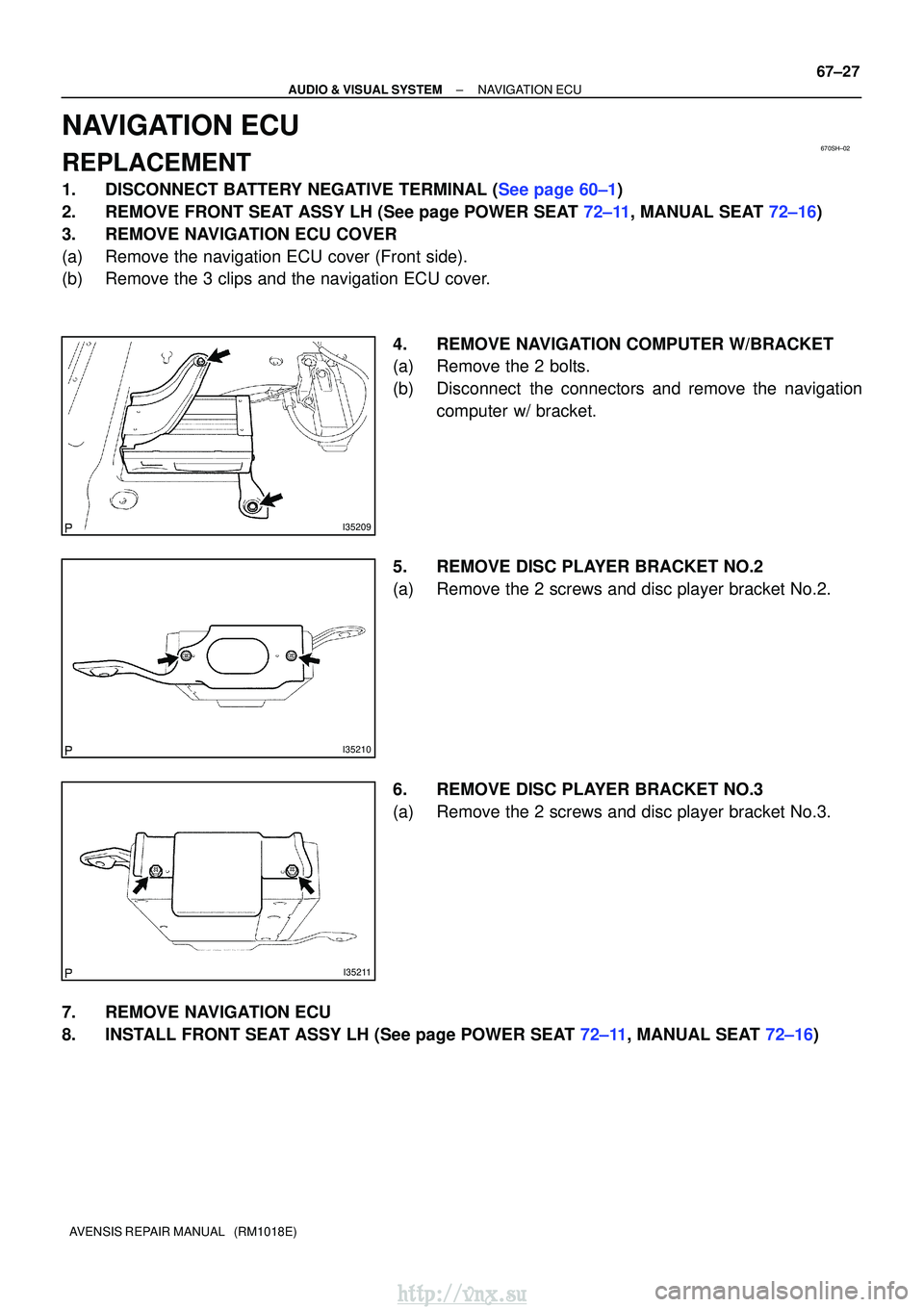

Page 1569 of 2234
670SH±02
I35209
I35210
I35211
±
AUDIO & VISUAL SYSTEMNAVIGATION ECU
67±27
AVENSIS REPAIR MANUAL (RM1018E)
NAVIGATION ECU
REPLACEMENT
1.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
2.REMOVE FRONT SEAT ASSY LH (See page POWER SEAT 72±11, MANUAL SEAT 72±16)
3.REMOVE NAVIGATION ECU COVER
(a)Remove the navigation ECU cover (Front side).
(b)Remove the 3 clips and the navigation ECU cover.
4.REMOVE NAVIGATION COMPUTER W/BRACKET
(a)Remove the 2 bolts.
(b)Disconnect the connectors and remove the navigationcomputer w/ bracket.
5.REMOVE DISC PLAYER BRACKET NO.2
(a)Remove the 2 screws and disc player bracket No.2.
6.REMOVE DISC PLAYER BRACKET NO.3
(a)Remove the 2 screws and disc player bracket No.3.
7.REMOVE NAVIGATION ECU
8.INSTALL FRONT SEAT ASSY LH (See page POWER SEAT 72±11, MANUAL SEAT 72±16)
http://vnx.su

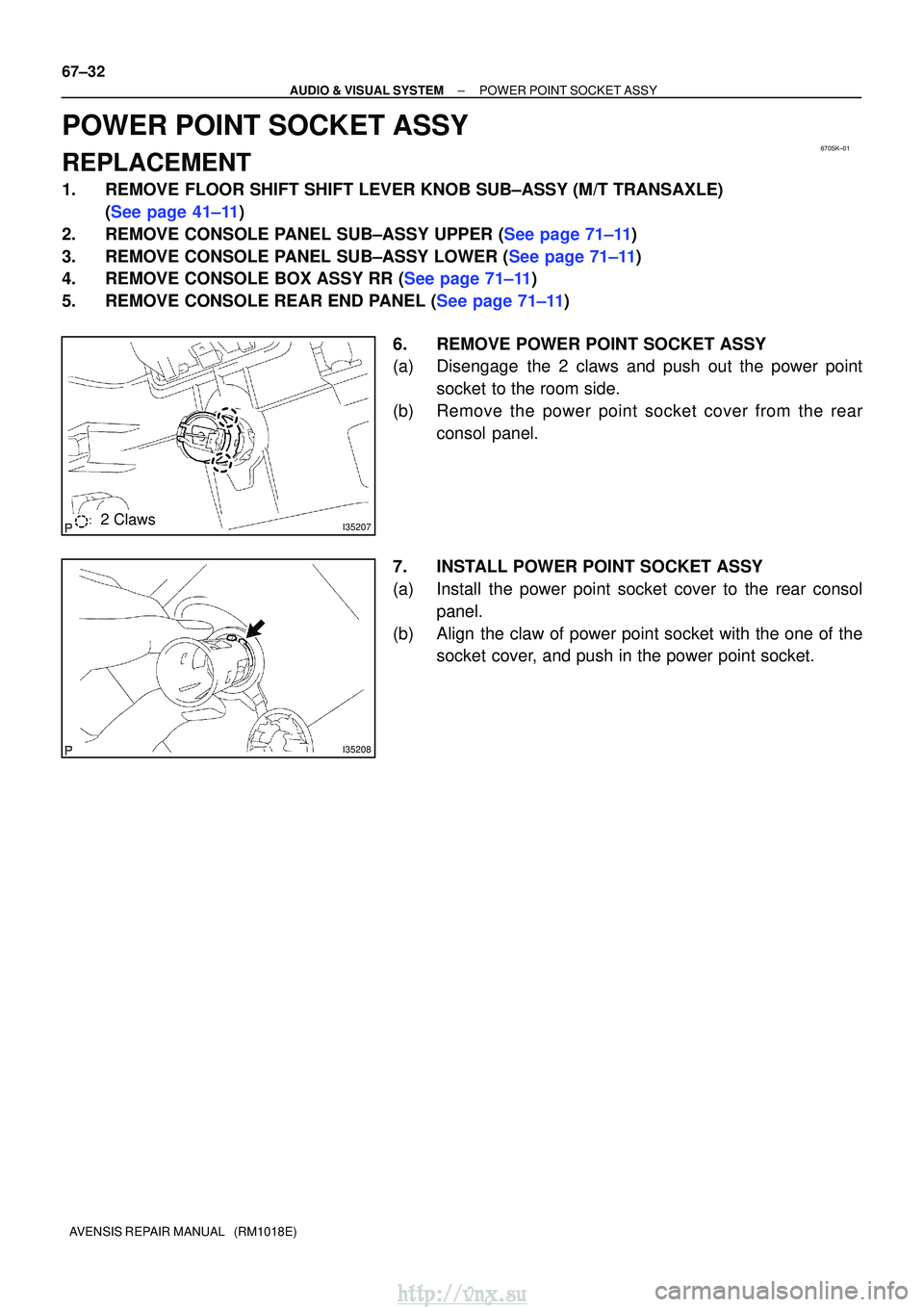

Page 1570 of 2234
670SK±01
I352072 Claws
I35208
67±32
±
AUDIO & VISUAL SYSTEM POWER POINT SOCKET ASSY
AVENSIS REPAIR MANUAL (RM1018E)
POWER POINT SOCKET ASSY
REPLACEMENT
1. REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) (See page 41±11)
2.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
3.REMOVE CONSOLE PANEL SUB±ASSY LOWER (See page 71±11)
4.REMOVE CONSOLE BOX ASSY RR (See page 71±11)
5.REMOVE CONSOLE REAR END PANEL (See page 71±11)
6. REMOVE POWER POINT SOCKET ASSY
(a) Disengage the 2 claws and push out the power pointsocket to the room side.
(b) Remove the power point socket cover from the rear consol panel.
7. INSTALL POWER POINT SOCKET ASSY
(a) Install the power point socket cover to the rear consol panel.
(b) Align the claw of power point socket with the one of the socket cover, and push in the power point socket.
http://vnx.su

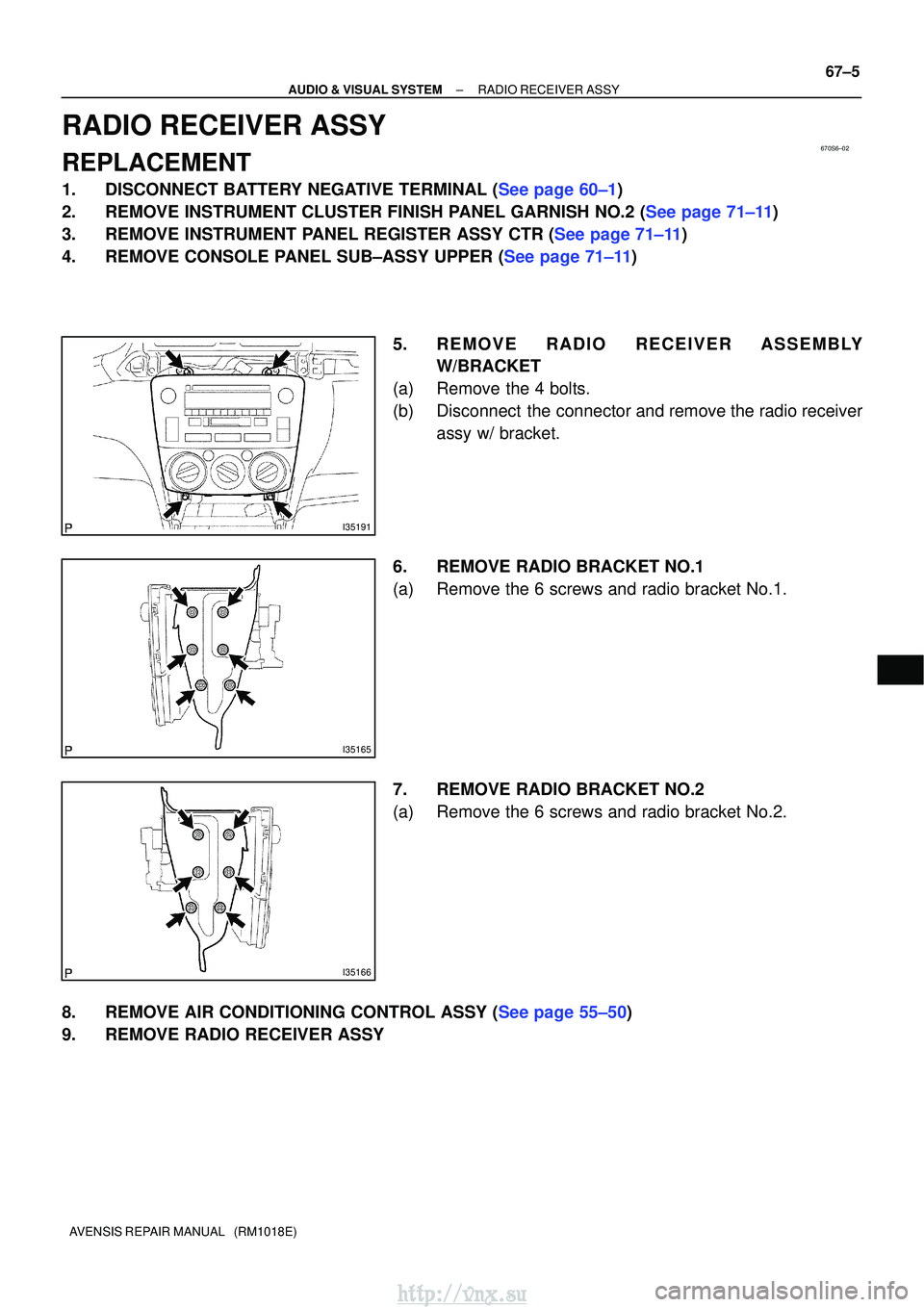

Page 1571 of 2234
670S6±02
I35191
I35165
I35166
±
AUDIO & VISUAL SYSTEMRADIO RECEIVER ASSY
67±5
AVENSIS REPAIR MANUAL (RM1018E)
RADIO RECEIVER ASSY
REPLACEMENT
1.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
2.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (See page 71±11)
3.REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (See page 71±11)
4.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
5.REMOVE RADIO RECEIVER ASSEMBLYW/BRACKET
(a)Remove the 4 bolts.
(b)Disconnect the connector and remove the radio receiver assy w/ bracket.
6.REMOVE RADIO BRACKET NO.1
(a)Remove the 6 screws and radio bracket No.1.
7.REMOVE RADIO BRACKET NO.2
(a)Remove the 6 screws and radio bracket No.2.
8.REMOVE AIR CONDITIONING CONTROL ASSY (See page 55±50)
9. REMOVE RADIO RECEIVER ASSY
http://vnx.su

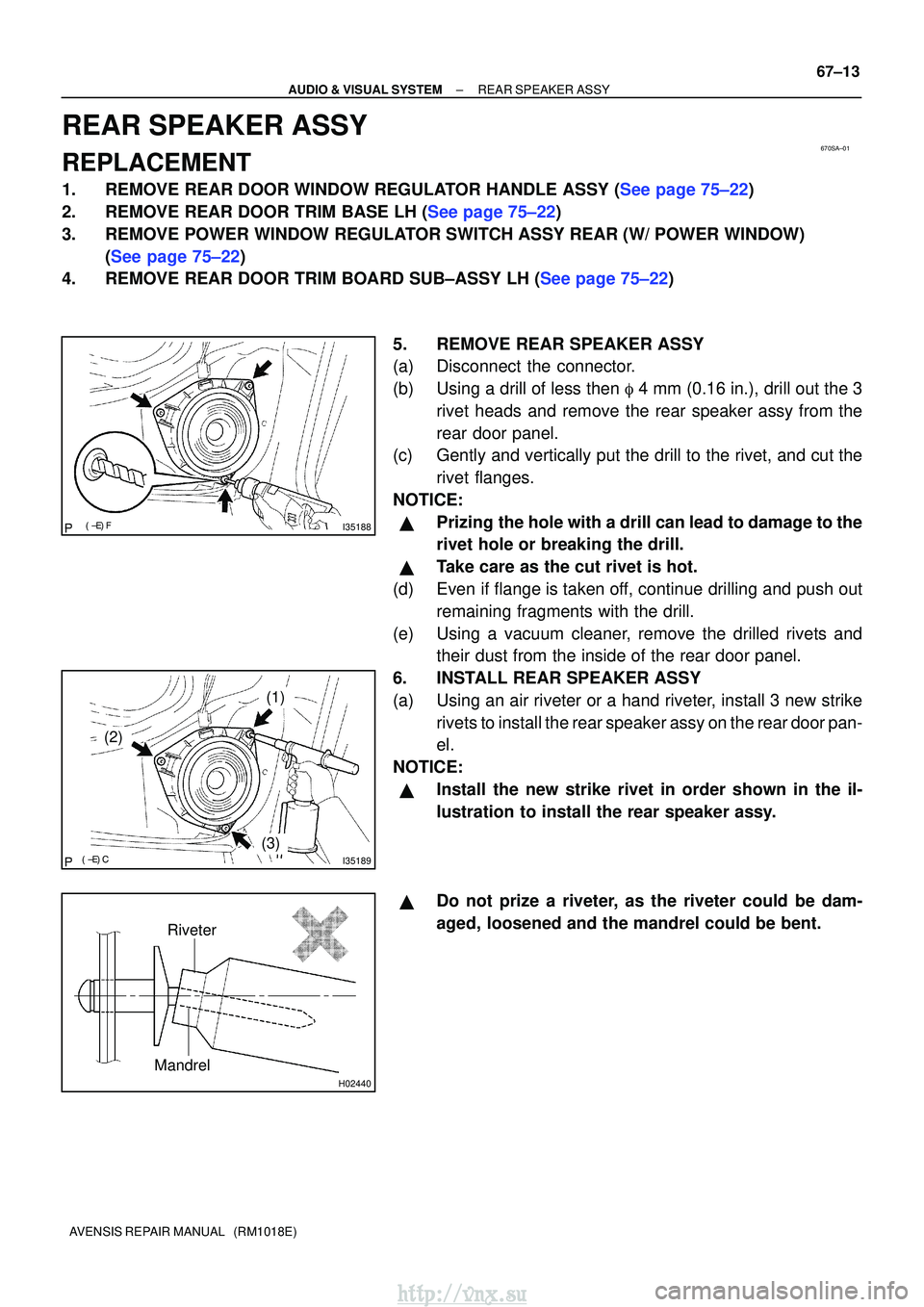

Page 1572 of 2234

670SA±01
I35188
I35189
(2)
(1)
(3)
H02440
Riveter
Mandrel
±
AUDIO & VISUAL SYSTEM REAR SPEAKER ASSY
67±13
AVENSIS REPAIR MANUAL (RM1018E)
REAR SPEAKER ASSY
REPLACEMENT
1.REMOVE REAR DOOR WINDOW REGULATOR HANDLE ASSY (See page 75±22)
2.REMOVE REAR DOOR TRIM BASE LH (See page 75±22)
3. REMOVE POWER WINDOW REGULATOR SWITCH ASSY REAR (W/ POWER WINDOW)
(See page 75±22)
4.REMOVE REAR DOOR TRIM BOARD SUB±ASSY LH (See page 75±22)
5. REMOVE REAR SPEAKER ASSY
(a) Disconnect the connector.
(b) Using a drill of less then 4 mm (0.16 in.), drill out the 3
rivet heads and remove the rear speaker assy from the
rear door panel.
(c) Gently and vertically put the drill to the rivet, and cut the
rivet flanges.
NOTICE:
Prizing the hole with a drill can lead to damage to the
rivet hole or breaking the drill.
Take care as the cut rivet is hot.
(d) Even if flange is taken off, continue drilling and push out remaining fragments with the drill.
(e) Using a vacuum cleaner, remove the drilled rivets and their dust from the inside of the rear door panel.
6. INSTALL REAR SPEAKER ASSY
(a) Using an air riveter or a hand riveter, install 3 new strike rivets to install the rear speaker assy on the rear door pan-
el.
NOTICE:
Install the new strike rivet in order shown in the il-
lustration to install the rear speaker assy.
Do not prize a riveter, as the riveter could be dam-
aged, loosened and the mandrel could be bent.
http://vnx.su

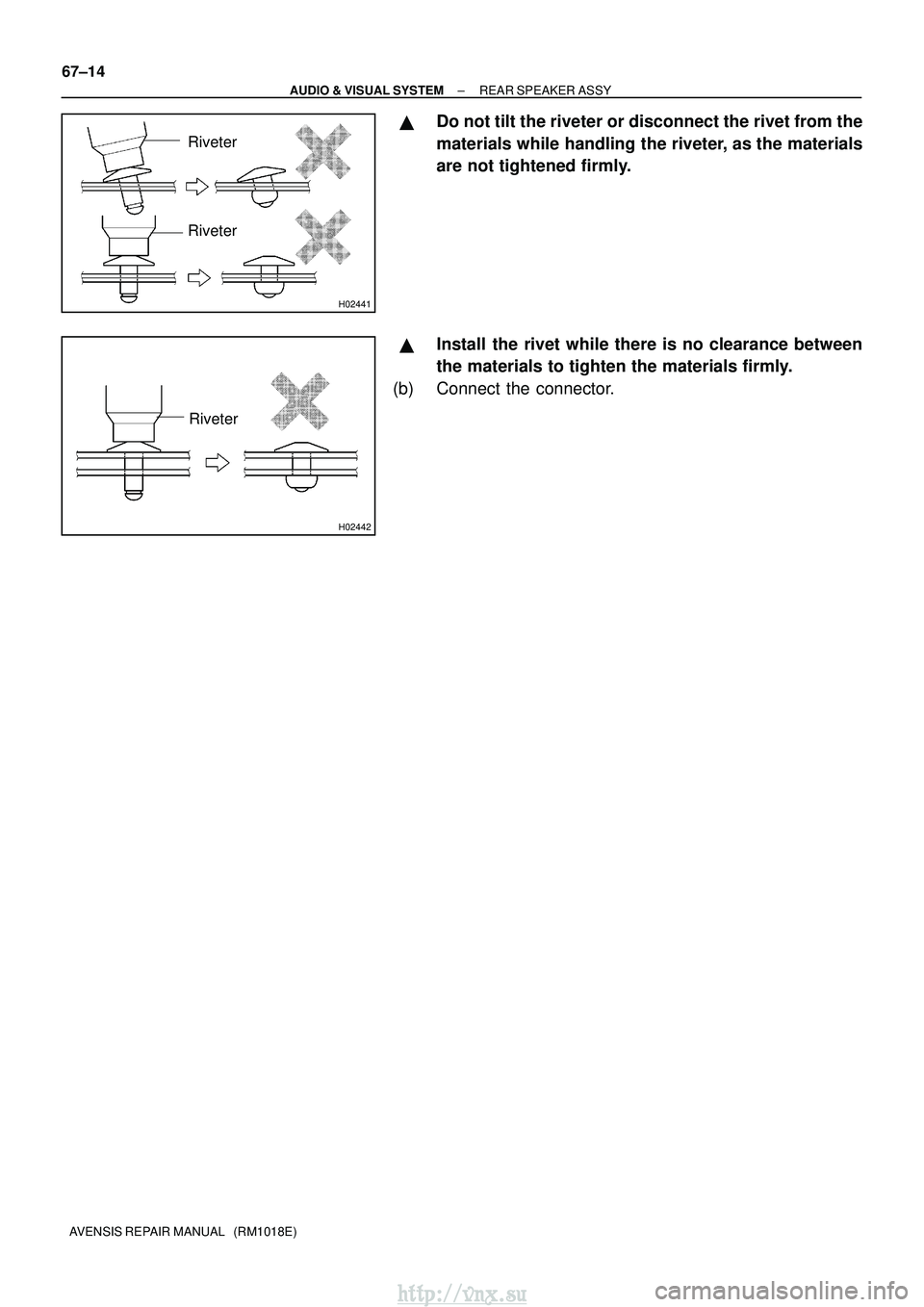

Page 1573 of 2234
H02441
Riveter
Riveter
H02442
Riveter
67±14
±
AUDIO & VISUAL SYSTEM REAR SPEAKER ASSY
AVENSIS REPAIR MANUAL (RM1018E)
Do not tilt the riveter or disconnect the rivet from the
materials while handling the riveter, as the materials
are not tightened firmly.
Install the rivet while there is no clearance between
the materials to tighten the materials firmly.
(b) Connect the connector.
http://vnx.su

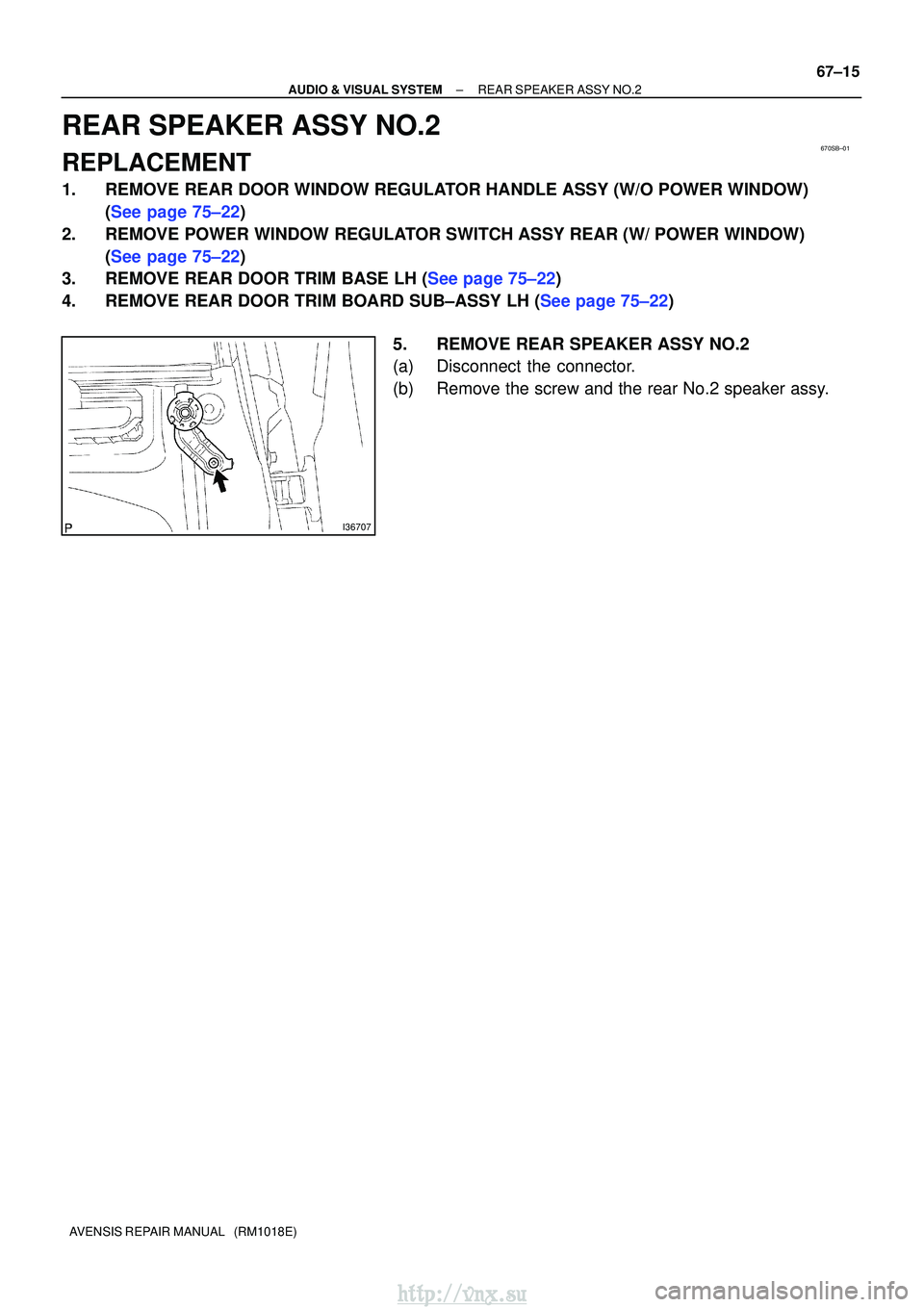

Page 1574 of 2234
670SB±01
I36707
±
AUDIO & VISUAL SYSTEM REAR SPEAKER ASSY NO.2
67±15
AVENSIS REPAIR MANUAL (RM1018E)
REAR SPEAKER ASSY NO.2
REPLACEMENT
1. REMOVE REAR DOOR WINDOW REGULATOR HANDLE ASSY (W/O POWER WINDOW)
(See page 75±22)
2. REMOVE POWER WINDOW REGULATOR SWITCH ASSY REAR (W/ POWER WINDOW) (See page 75±22)
3.REMOVE REAR DOOR TRIM BASE LH (See page 75±22)
4.REMOVE REAR DOOR TRIM BOARD SUB±ASSY LH (See page 75±22)
5. REMOVE REAR SPEAKER ASSY NO.2
(a) Disconnect the connector.
(b) Remove the screw and the rear No.2 speaker assy.
http://vnx.su

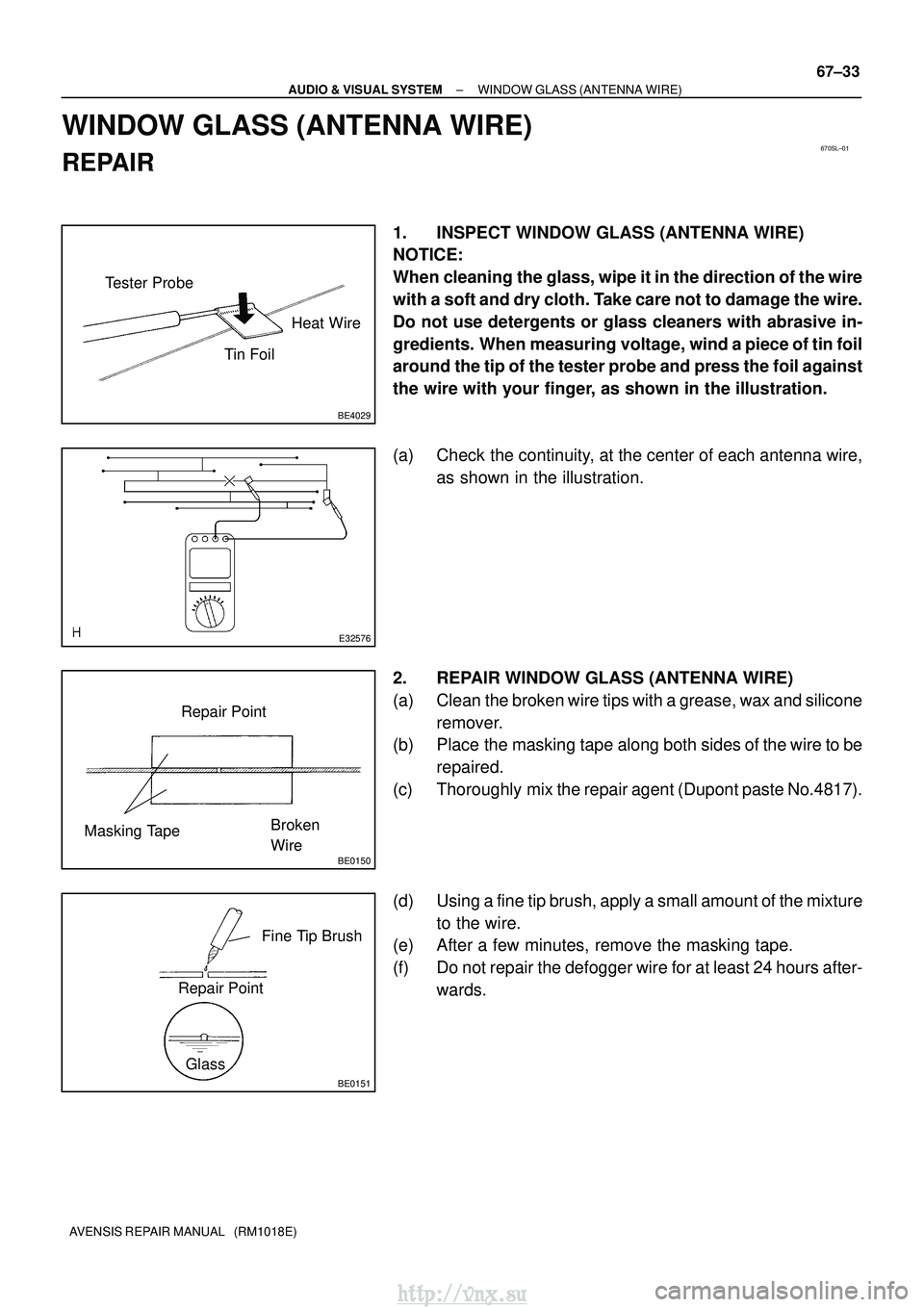

Page 1575 of 2234

670SL±01
BE4029
Tester ProbeTin FoilHeat Wire
E32576
BE0150
Repair Point
Masking Tape Broken
Wire
BE0151
Repair PointFine Tip Brush
Glass
±
AUDIO & VISUAL SYSTEM WINDOW GLASS (ANTENNA WIRE)
67±33
AVENSIS REPAIR MANUAL (RM1018E)
WINDOW GLASS (ANTENNA WIRE)
REPAIR
1. INSPECT WINDOW GLASS (ANTENNA WIRE)
NOTICE:
When cleaning the glass, wipe it in the direction of the wire
with a soft and dry cloth. Take care not to damage the wire.
Do not use detergents or glass cleaners with abrasive in-
gredients. When measuring voltage, wind a piece of tin foil
around the tip of the tester probe and press the foil against
the wire with your finger, as shown in the illustration.
(a) Check the continuity, at the center of each antenna wire,
as shown in the illustration.
2. REPAIR WINDOW GLASS (ANTENNA WIRE)
(a) Clean the broken wire tips with a grease, wax and silicone remover.
(b) Place the masking tape along both sides of the wire to be
repaired.
(c) Thoroughly mix the repair agent (Dupont paste No.4817).
(d) Using a fine tip brush, apply a small amount of the mixture to the wire.
(e) After a few minutes, remove the masking tape.
(f) Do not repair the defogger wire for at least 24 hours after-
wards.
http://vnx.su

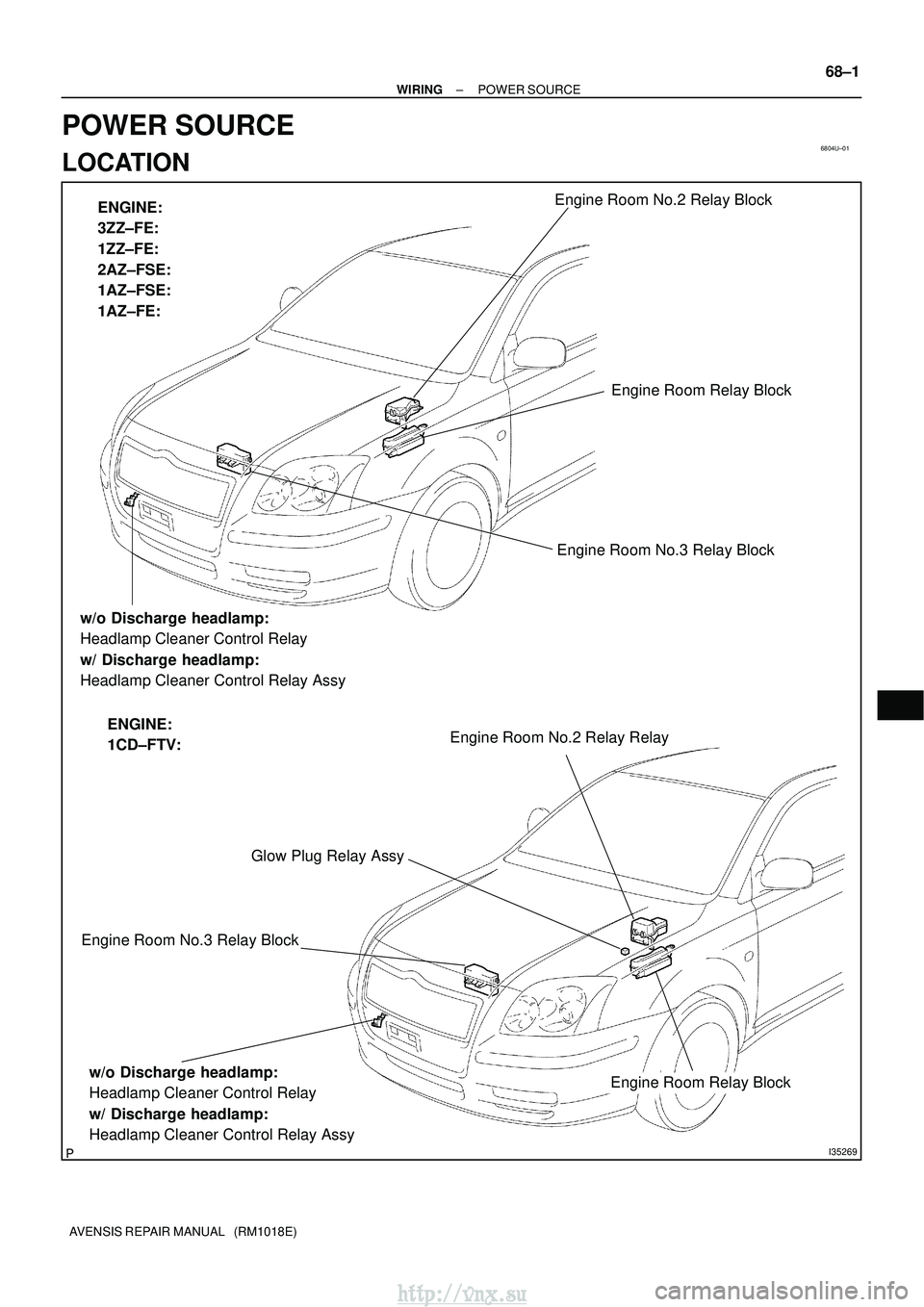

Page 1576 of 2234
6804U±01
I35269
Engine Room No.2 Relay Block
Engine Room Relay Block
Glow Plug Relay AssyEngine Room No.3 Relay Block
Engine Room No.2 Relay Relay
Engine Room No.3 Relay Block
ENGINE:
3ZZ±FE:
1ZZ±FE:
2AZ±FSE:
1AZ±FSE:
1AZ±FE:
ENGINE:
1CD±FTV:
w/o Discharge headlamp:
Headlamp Cleaner Control Relay
w/ Discharge headlamp:
Headlamp Cleaner Control Relay Assy
w/o Discharge headlamp:
Headlamp Cleaner Control Relay
w/ Discharge headlamp:
Headlamp Cleaner Control Relay Assy
Engine Room Relay Block
±
WIRING POWER SOURCE
68±1
AVENSIS REPAIR MANUAL (RM1018E)
POWER SOURCE
LOCATION
