2003 TOYOTA AVENSIS Service Repair Manual

compression ratio air condition drain bolt seats fuel tank removal wheel

Load previous 8 pages

Page 545 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A77303
A77308
A77306
A77307
±
ENGINE MECHANICAL CYLINDER HEAD GASKET (1AZ±FE)
14±161
AVENSIS REPAIR MANUAL (RM1018E)
16. SEPARATE COOLER REFRIGERANT SUCTION HOSE
NO.1 (LHD(W/ AIR CONDITIONER) STE

Page 546 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A77302
14±162
±

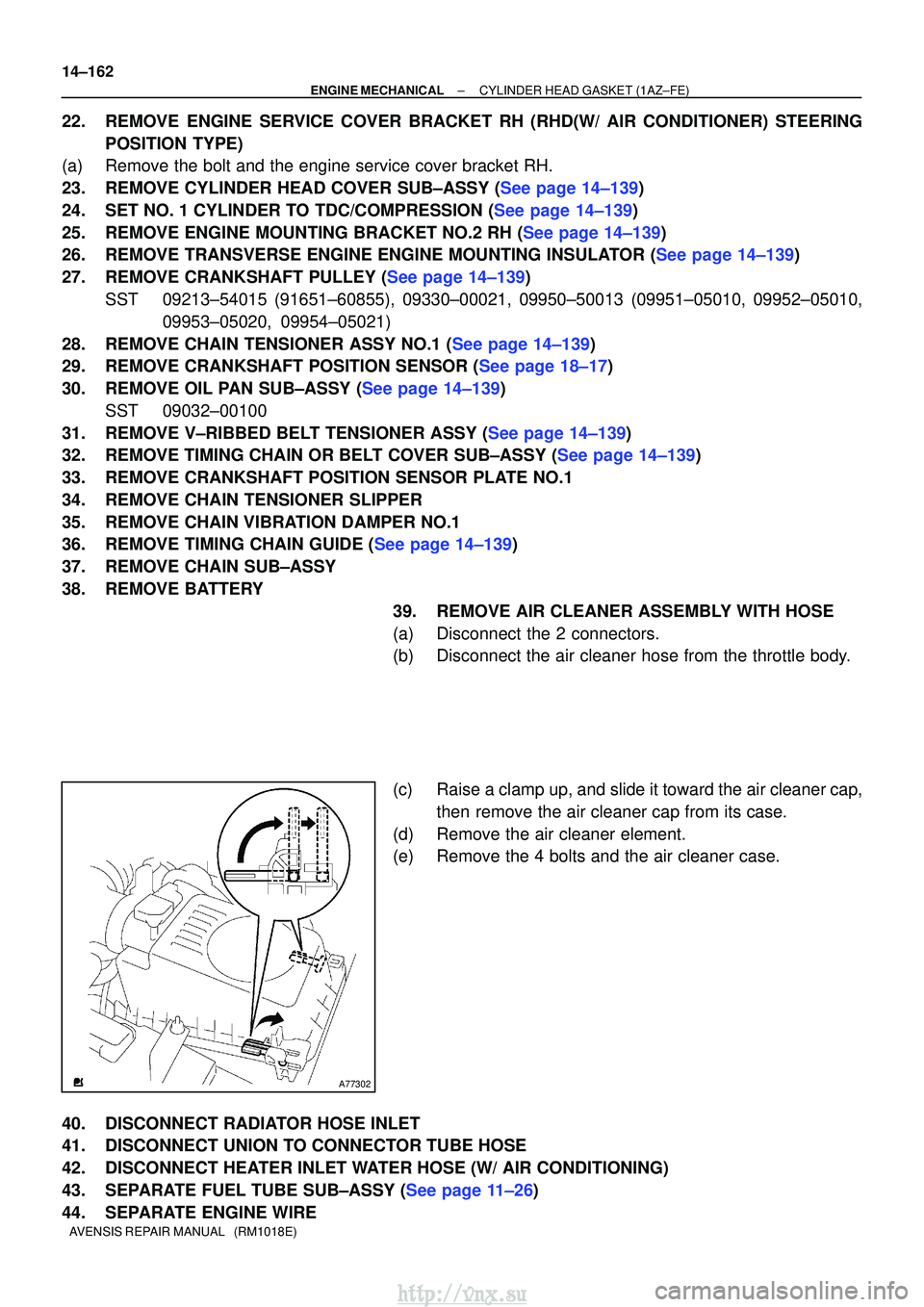

ENGINE MECHANICALCYLINDER HEAD GASKET(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
22.REMOVE ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
(a)Remove

Page 547 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A56446
A52499
A52497
±
ENGINE MECHANICALCYLINDER HEAD GASKET(1AZ±FE)
14±163
AVENSIS REPAIR MANUAL (RM1018E)
45.REMOVE THROTTLE BODY ASSY (See page 10±26)
46.REMOVE INTAKE MANIFOLD
(a)Remove the

Page 548 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A32664
A56213
A7740612
3
4
10 9
8
5 6
7
A77407
Overall Length
14±164
±

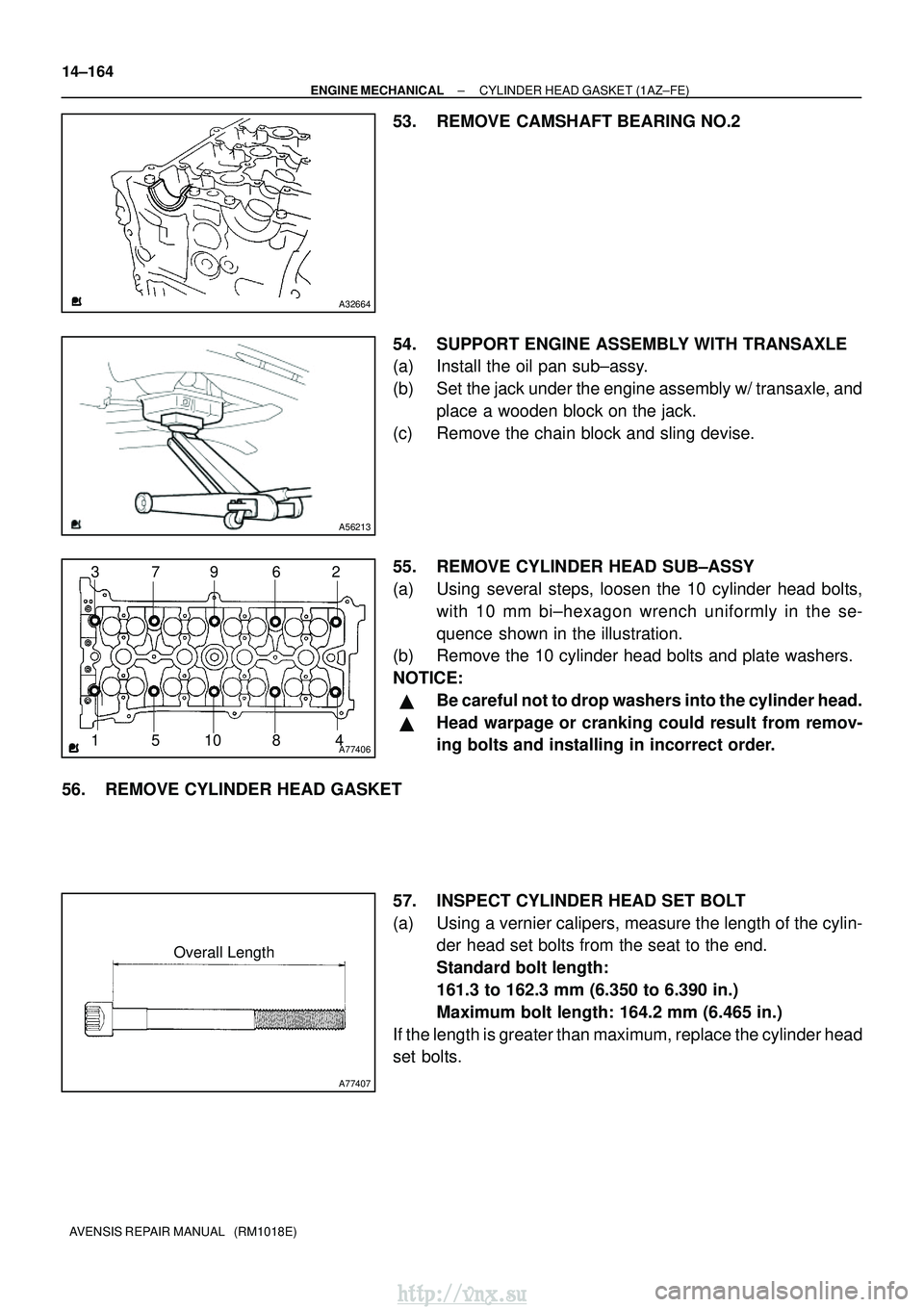

ENGINE MECHANICAL CYLINDER HEAD GASKET (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
53. REMOVE CAMSHAFT BEARING NO.2
54. SUPPORT

Page 549 of 2234

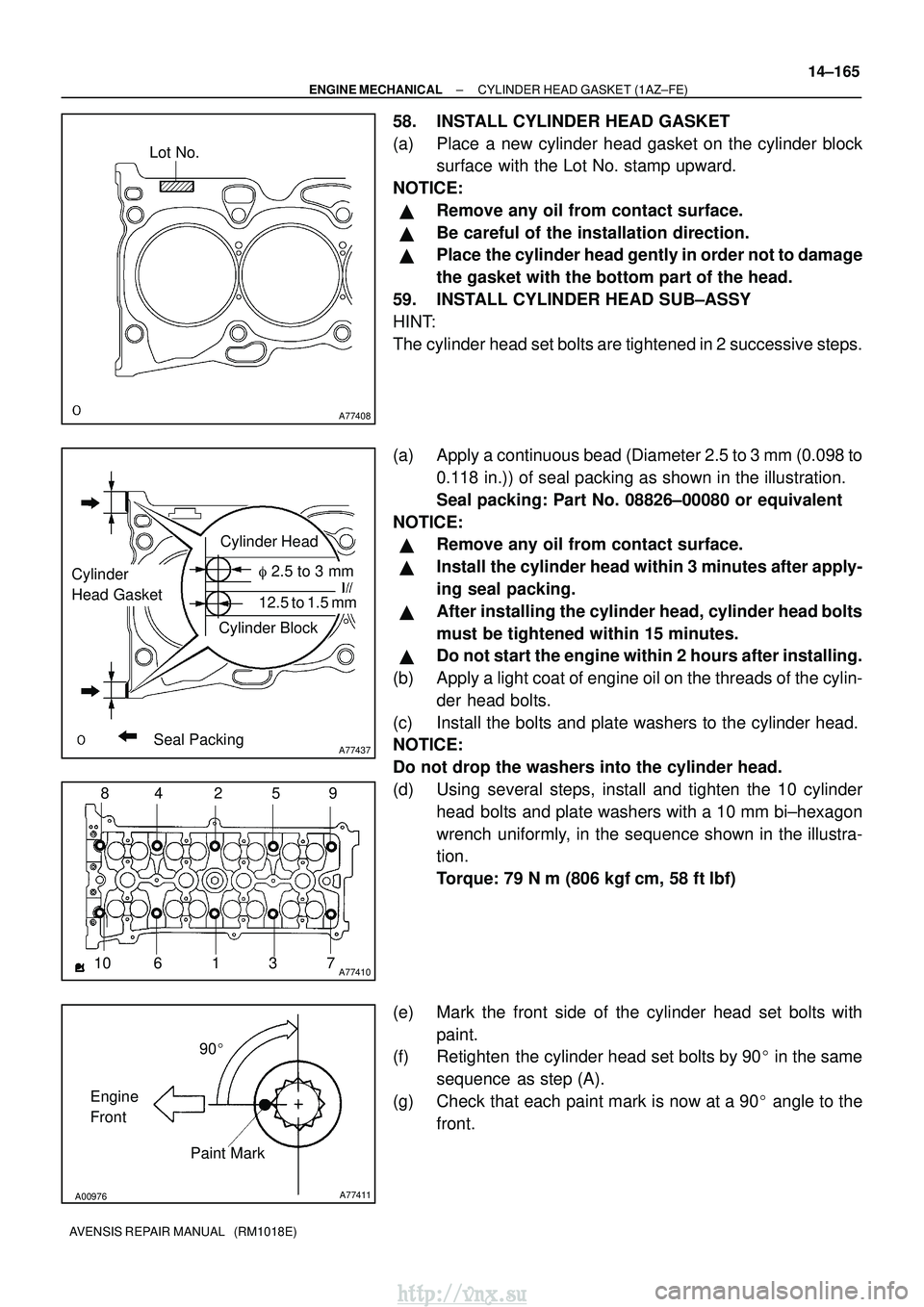

TOYOTA AVENSIS 2003 Service Repair Manual A77408
Lot No.
A77437
Cylinder Head
Cylinder Block
Seal Packing
Cylinder
Head Gasket 2.5 to 3 mm
12.5 to 1.5 mm
A7741012
3
4
10 9
85
67
A00976A77411
90
Engine
Front Paint Mark
±
ENGINE MECHANICAL

Page 550 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A77332
23
145
A52499
A56446
14±166
±
ENGINE MECHANICALCYLINDER HEAD GASKET(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
60.INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSY (W/ VVT±i)
(a)Install a light

Page 551 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual ±

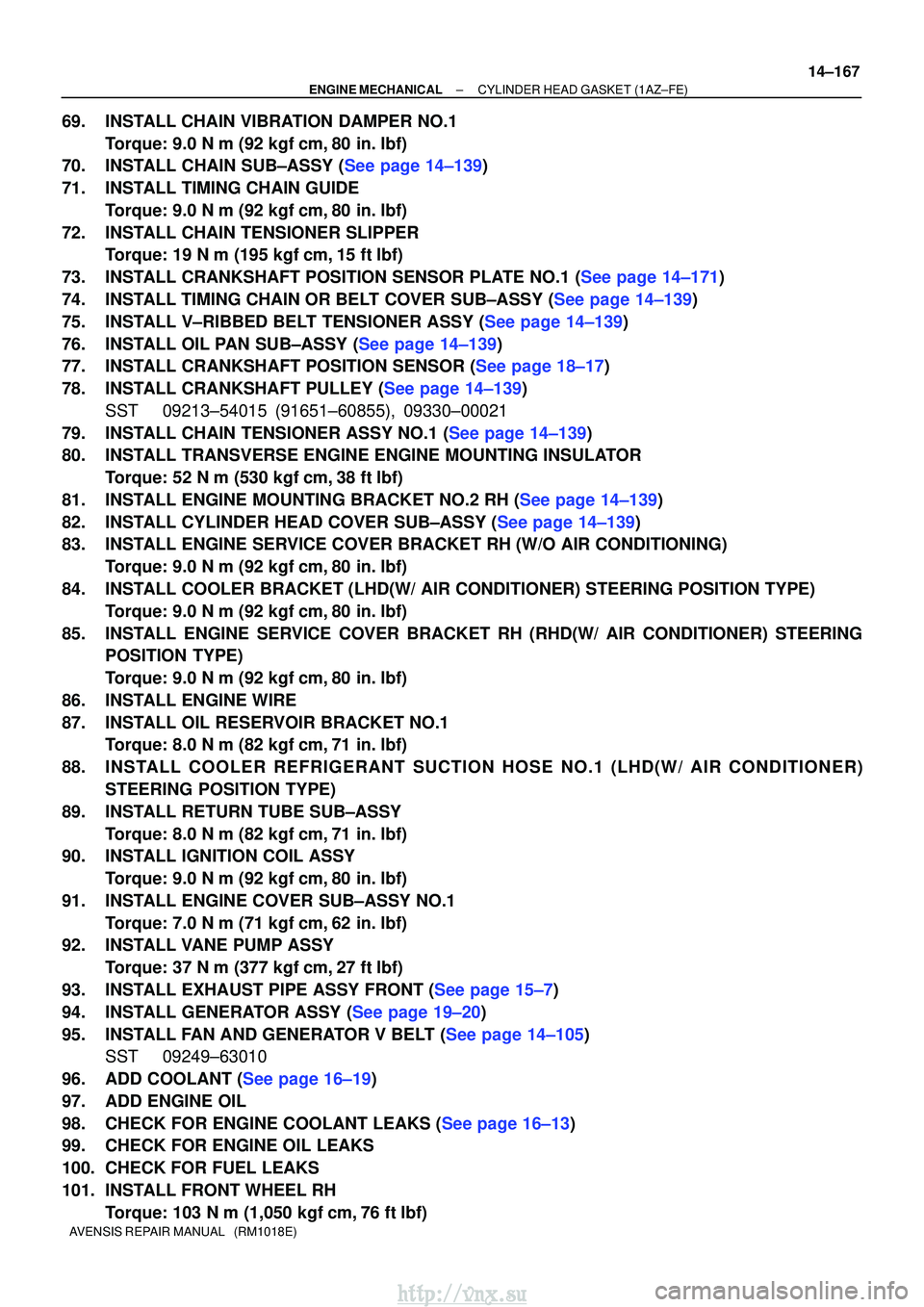

ENGINE MECHANICALCYLINDER HEAD GASKET(1AZ±FE)
14±167
AVENSIS REPAIR MANUAL (RM1018E)
69.INSTALL CHAIN VIBRATION DAMPER NO.1
Torque: 9.0 N m (92 kgfcm,80 in. lbf)
70.INSTALL CHAIN SUB±ASSY (

±
ENGINE MECHANICALCYLINDER HEAD GASKET(1AZ±FE)
14±167
AVENSIS REPAIR MANUAL (RM1018E)
69.INSTALL CHAIN VIBRATION DAMPER NO.1
Torque: 9.0 N m (92 kgfcm,80 in. lbf)
70.INSTALL CHAIN SUB±ASSY (See page 14±139)
71.INSTALL TIMING CHAIN GUIDE
Torque: 9.0 N m (92 kgfcm,80 in. lbf)
72.INSTALL CHAIN TENSIONER SLIPPER Torque: 19 N m (195 kgfcm,15 ftlbf)
73.INSTALL CRANKSHAFT POSITION SENSOR PLATE NO.1 (See page 14±171)
74.INSTALL TIMING CHAIN OR BELT COVER SUB±ASSY (See page 14±139)
75.INSTALL V±RIBBED BELT TENSIONER ASSY (See page 14±139)
76.INSTALL OIL PAN SUB±ASSY (See page 14±139)
77.INSTALL CRANKSHAFT POSITION SENSOR (See page 18±17)
78.INSTALL CRANKSHAFT PULLEY (See page 14±139) SST09213±54015 (91651±60855), 09330±00021
79.INSTALL CHAIN TENSIONER ASSY NO.1 (See page 14±139)
80.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR Torque: 52 N m (530 kgfcm,38 ftlbf)
81.INSTALL ENGINE MOUNTING BRACKET NO.2 RH (See page 14±139)
82.INSTALL CYLINDER HEAD COVER SUB±ASSY (See page 14±139)
83.INSTALL ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING) Torque: 9.0 N m (92 kgfcm,80 in. lbf)
84.INSTALL COOLER BRACKET (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE) Torque: 9.0 N m (92 kgfcm,80 in. lbf)
85.INSTALL ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
Torque: 9.0 N m (92 kgfcm,80 in. lbf)
86.INSTALL ENGINE WIRE
87.INSTALL OIL RESERVOIR BRACKET NO.1 Torque: 8.0 N m (82 kgfcm,71 in. lbf)
88.IN STALL COOL ER REFRIGERANT SUCTION HOSE NO.1 (LHD(W/ AIR CONDITION ER)
STEERING POSITION TYPE)
89.INSTALL RETURN TUBE SUB±ASSY Torque: 8.0 N m (82 kgfcm,71 in. lbf)
90.INSTALL IGNITION COIL ASSY
Torque: 9.0 N m (92 kgfcm,80 in. lbf)
91.INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N m (71 kgfcm,62 in. lbf)
92.INSTALL VANE PUMP ASSY
Torque: 37 N m (377 kgfcm,27 ftlbf)
93.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±7)
94.INSTALL GENERATOR ASSY (See page 19±20)
95.INSTALL FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
96.ADD COOLANT (See page 16±19)
97. ADD ENGINE OIL
98.CHECK FOR ENGINE COOLANT LEAKS (See page 16±13)
99. CHECK FOR ENGINE OIL LEAKS
100. CHECK FOR FUEL LEAKS
101. INSTALL FRONT WHEEL RH Torque: 103 N m (1,050 kgfcm, 76 ft lbf)
http://vnx.su

Page 552 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 141BO±01
A77339
A77292
14±254
±

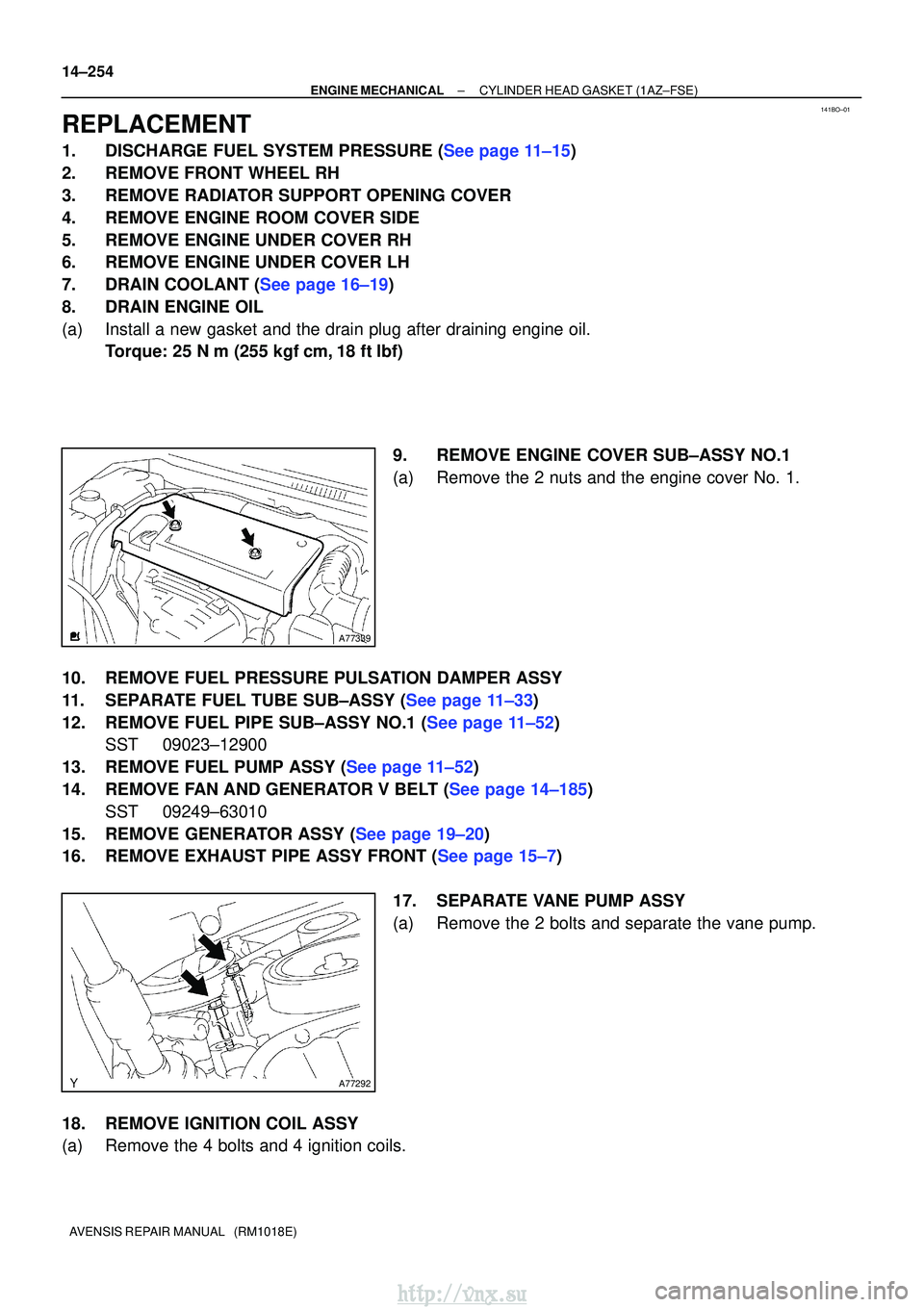

ENGINE MECHANICALCYLINDER HEAD GASKET(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±15)
2.REMOVE FRONT WHEEL
