Page 737 of 2234

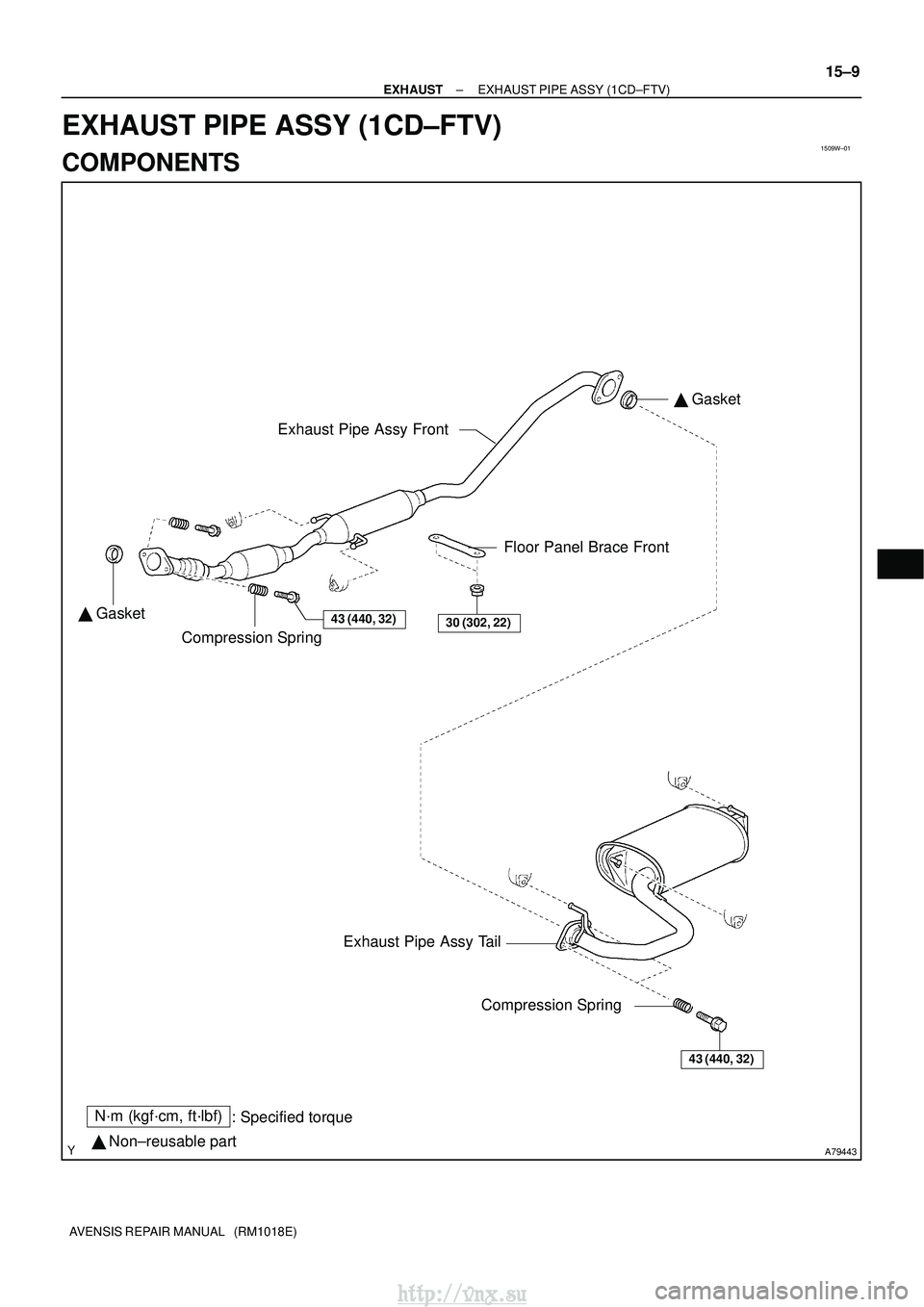

TOYOTA AVENSIS 2003 Service Repair Manual 1509W±01 A79443 30 (302, 22)43 (440, 32) Gasket  Gasket Floor Panel Brace Front Exhaust Pipe Assy Front Compression Spring N´m (kgf´cm, ft´lbf) : Specified torque  Non±reusable part 43 (440,

Page 738 of 2234

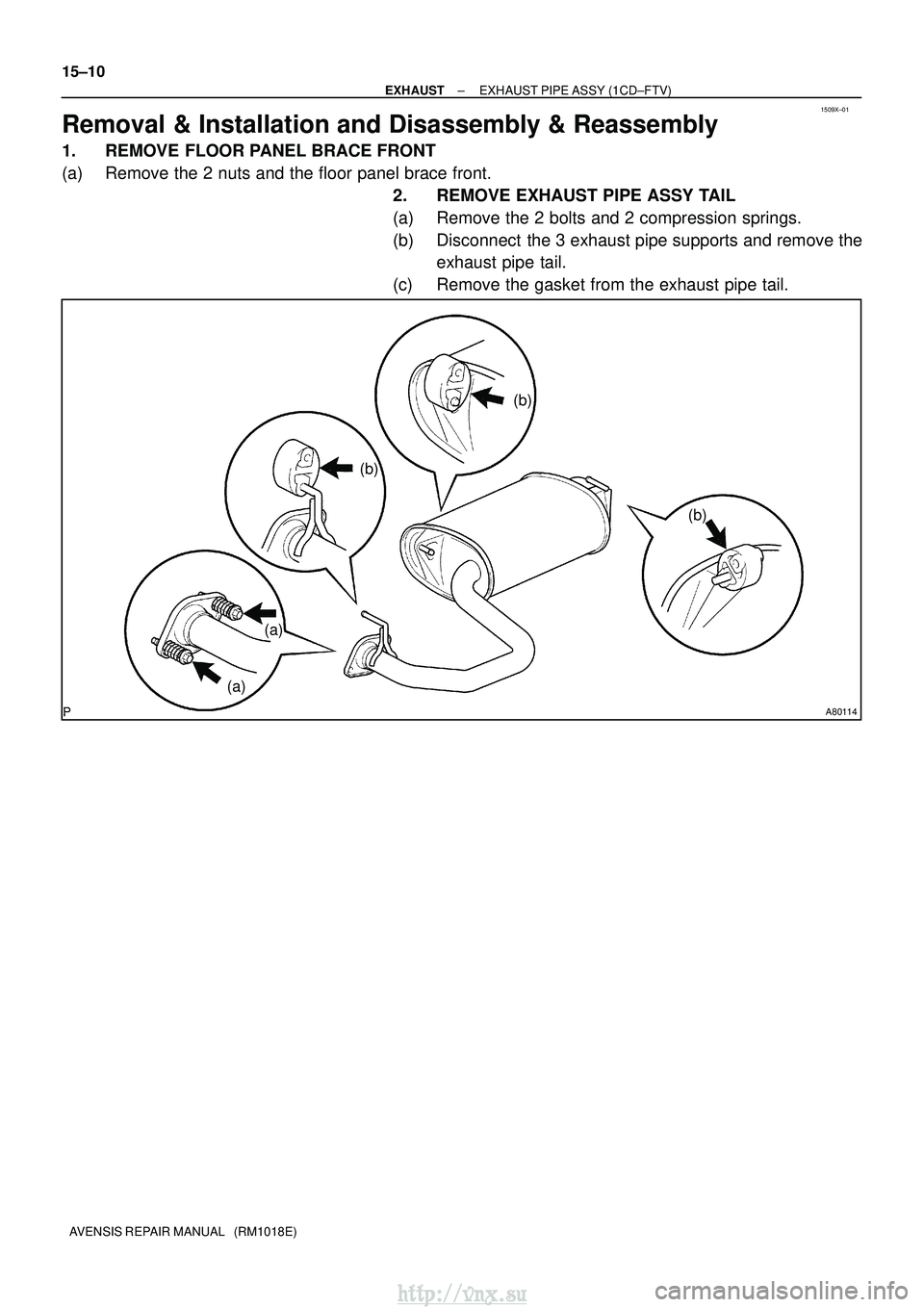

TOYOTA AVENSIS 2003 Service Repair Manual 1509X±01 A80114 (a)(a) (b) (b) (b) 15±10 ± EXHAUST EXHAUST PIPE ASSY (1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) Removal & Installation and Disassembly & Reassembly 1. REMOVE FLOOR PANEL BRACE FRO

Page 739 of 2234

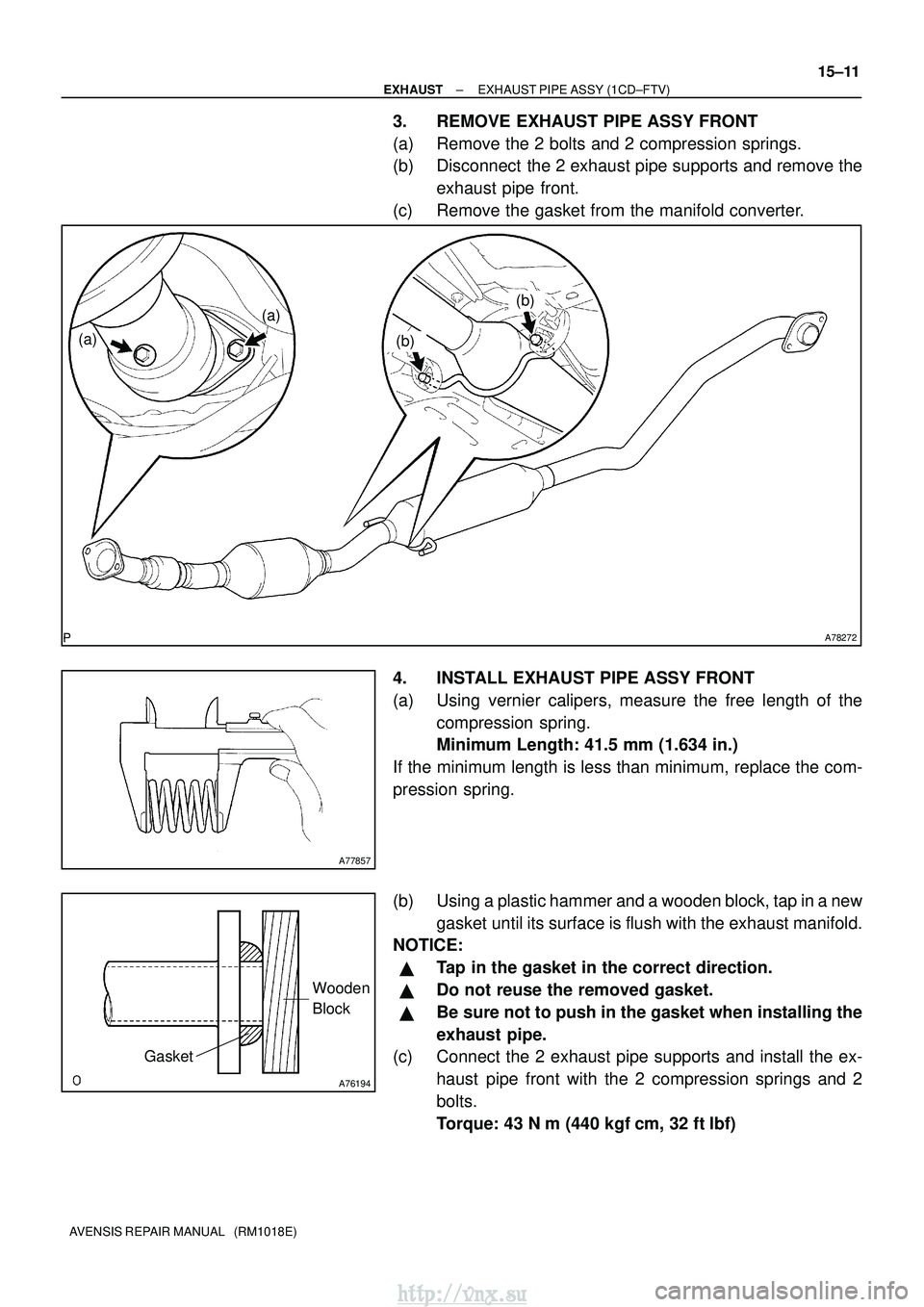

TOYOTA AVENSIS 2003 Service Repair Manual A78272 (a)(b) (b) (a) A77857 A76194 Wooden Block Gasket ± EXHAUST EXHAUST PIPE ASSY (1CD±FTV) 15±11 AVENSIS REPAIR MANUAL (RM1018E) 3. REMOVE EXHAUST PIPE ASSY FRONT (a) Remove the 2 bolts and 2

Page 740 of 2234

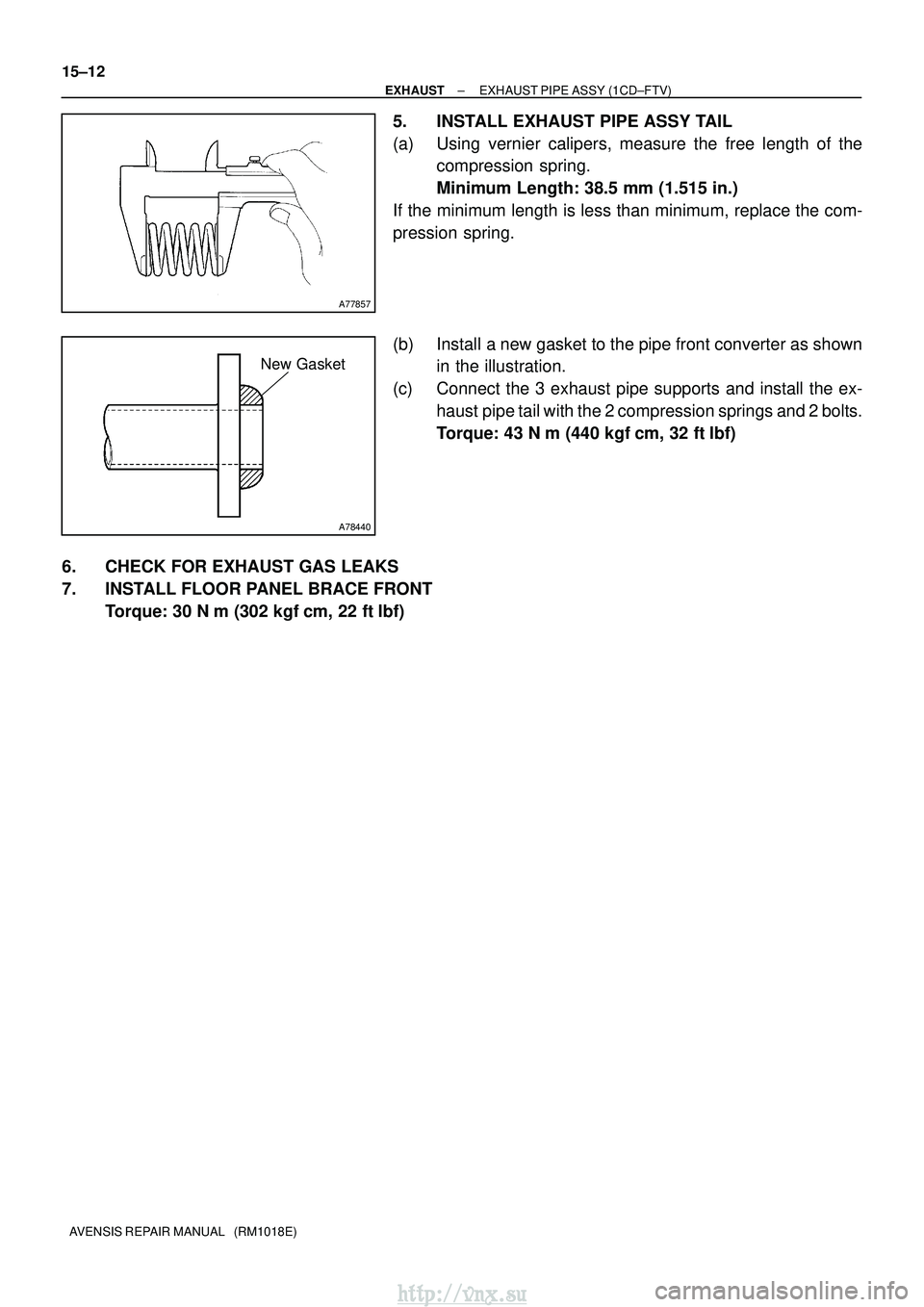

TOYOTA AVENSIS 2003 Service Repair Manual A77857 A78440 New Gasket 15±12 ± EXHAUST EXHAUST PIPE ASSY (1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 5. INSTALL EXHAUST PIPE ASSY TAIL (a) Using vernier calipers, measure the free length of the c

Page 741 of 2234

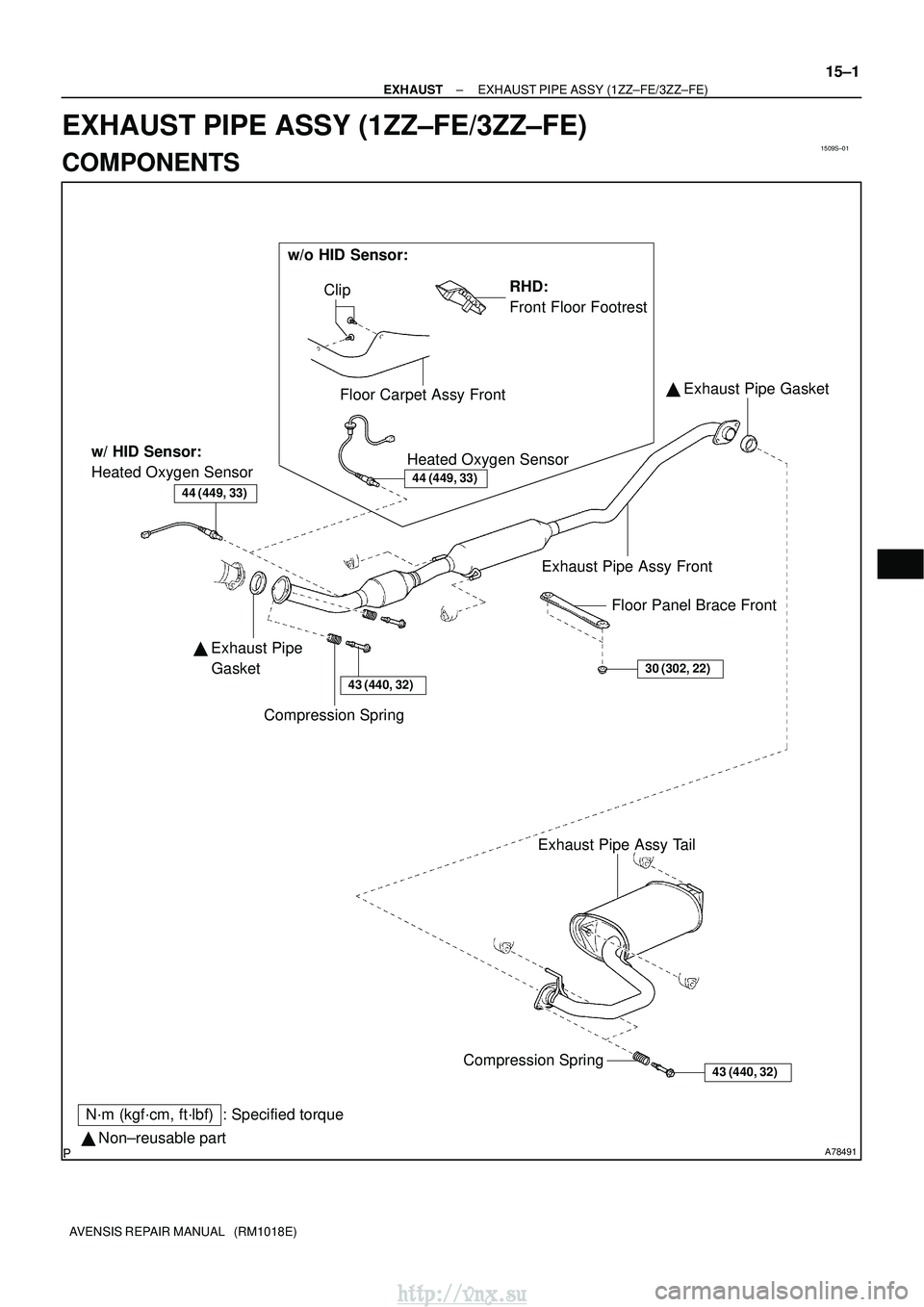

TOYOTA AVENSIS 2003 Service Repair Manual 1509S±01 A78491 Non±reusable part N´m (kgf´cm, ft´lbf) : Specified torque Exhaust Pipe Assy Front Compression Spring Floor Panel Brace Front  Exhaust Pipe Gasket 43 (440, 32)  Exhaust P

Page 742 of 2234

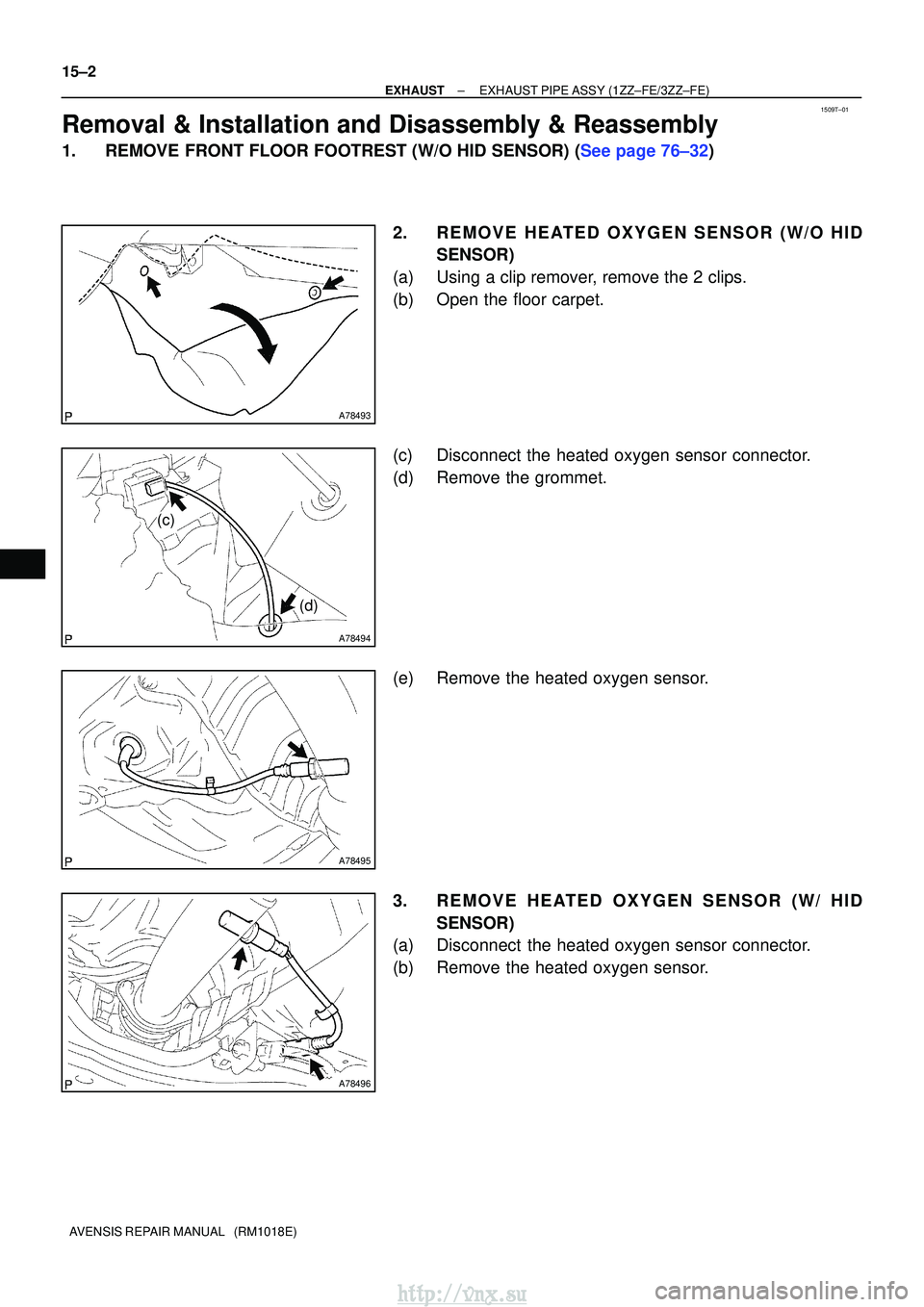

TOYOTA AVENSIS 2003 Service Repair Manual 1509T±01 A78493 A78494 (c) (d) A78495 A78496 15±2 ± EXHAUSTEXHAUST PIPE ASSY(1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) Removal & Installation and Disassembly & Reassembly 1.REMOVE FRONT FL

Page 743 of 2234

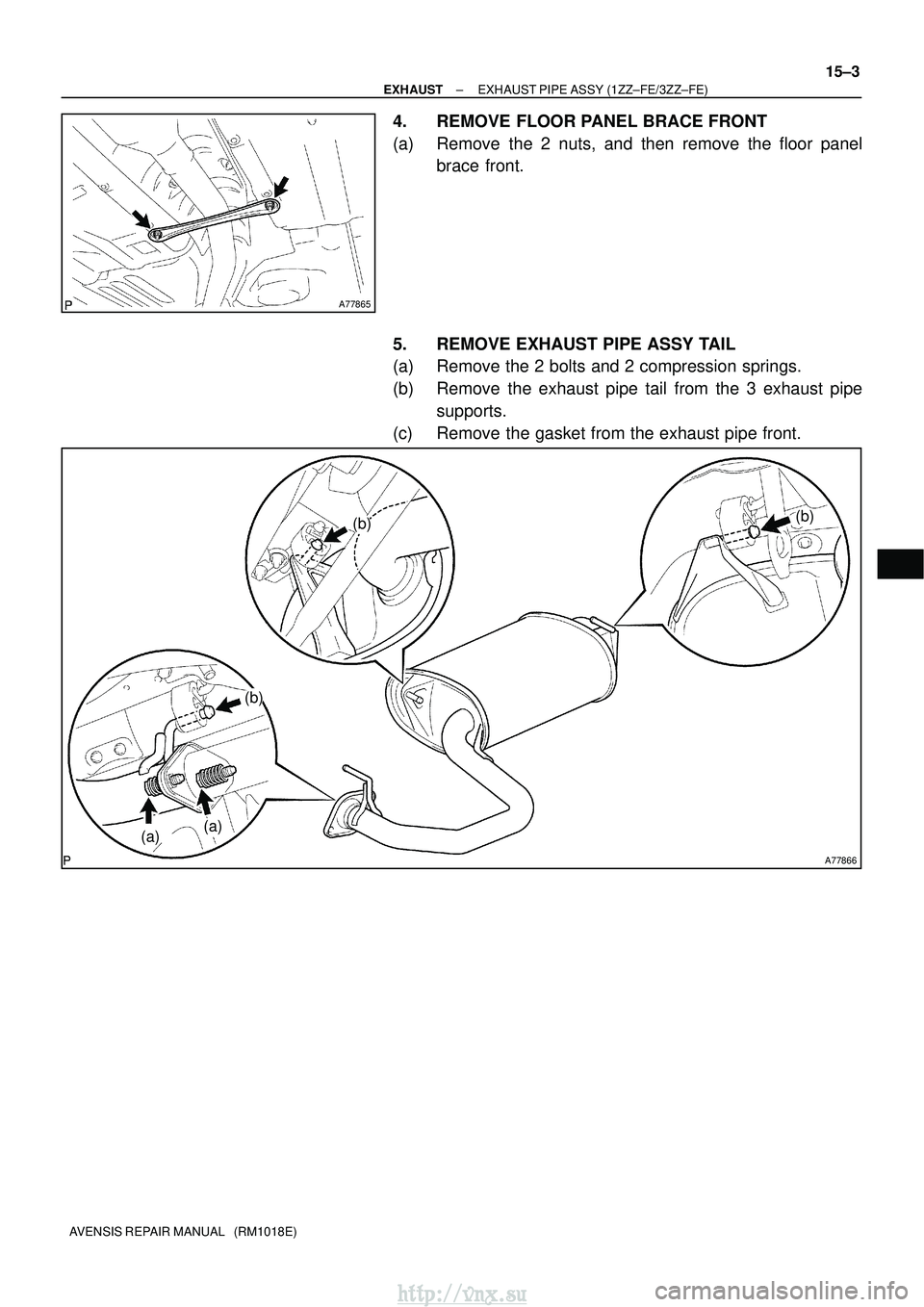

TOYOTA AVENSIS 2003 Service Repair Manual A77865 A77866 (a)(a) (b)(b) (b) ± EXHAUST EXHAUST PIPE ASSY (1ZZ±FE/3ZZ±FE) 15±3 AVENSIS REPAIR MANUAL (RM1018E) 4. REMOVE FLOOR PANEL BRACE FRONT (a) Remove the 2 nuts, and then remove the floo

Page 744 of 2234

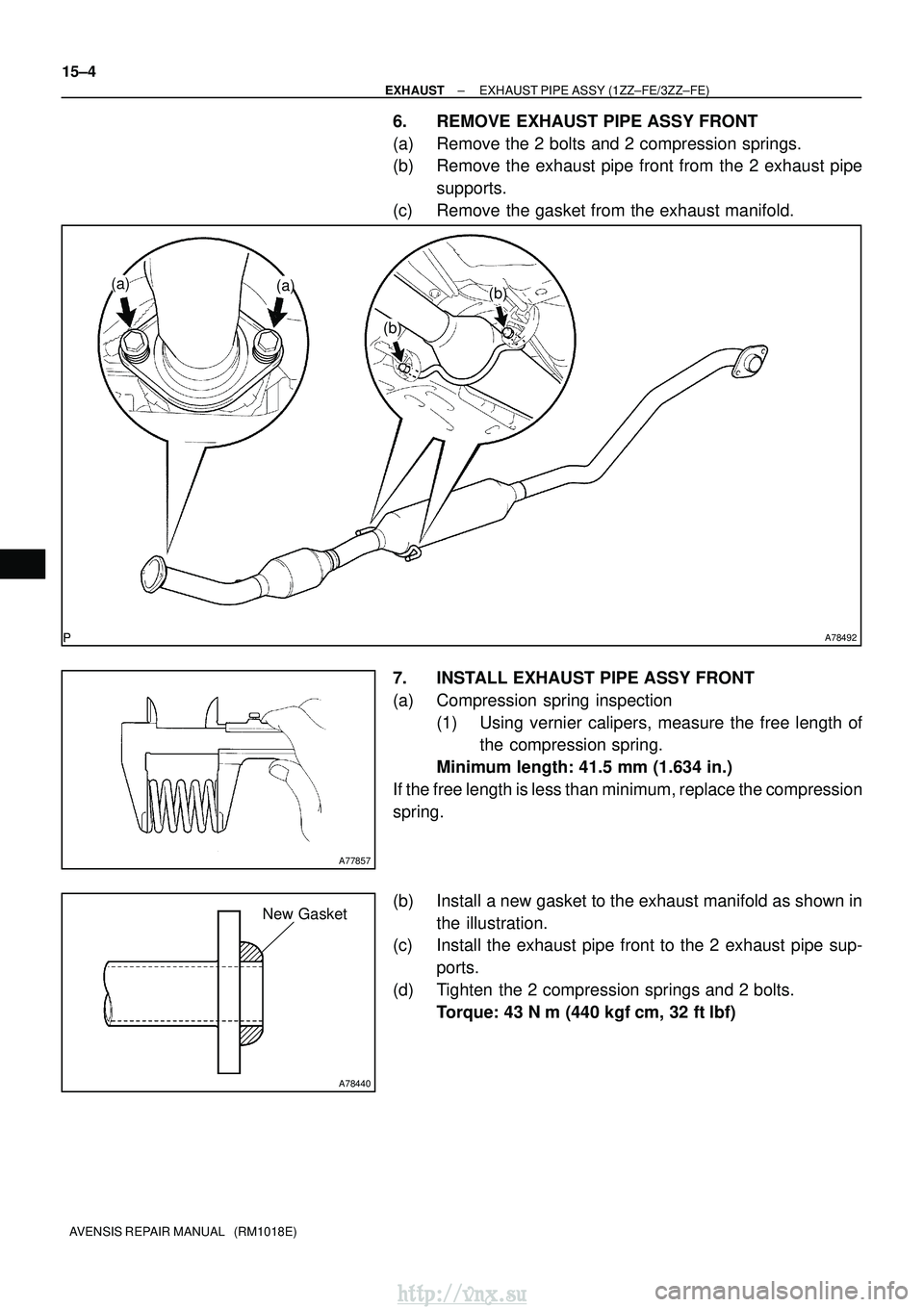

TOYOTA AVENSIS 2003 Service Repair Manual A78492 (a)(a) (b) (b) A77857 A78440 New Gasket 15±4 ± EXHAUST EXHAUST PIPE ASSY (1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 6. REMOVE EXHAUST PIPE ASSY FRONT (a) Remove the 2 bolts and 2 com
