Page 1865 of 2234

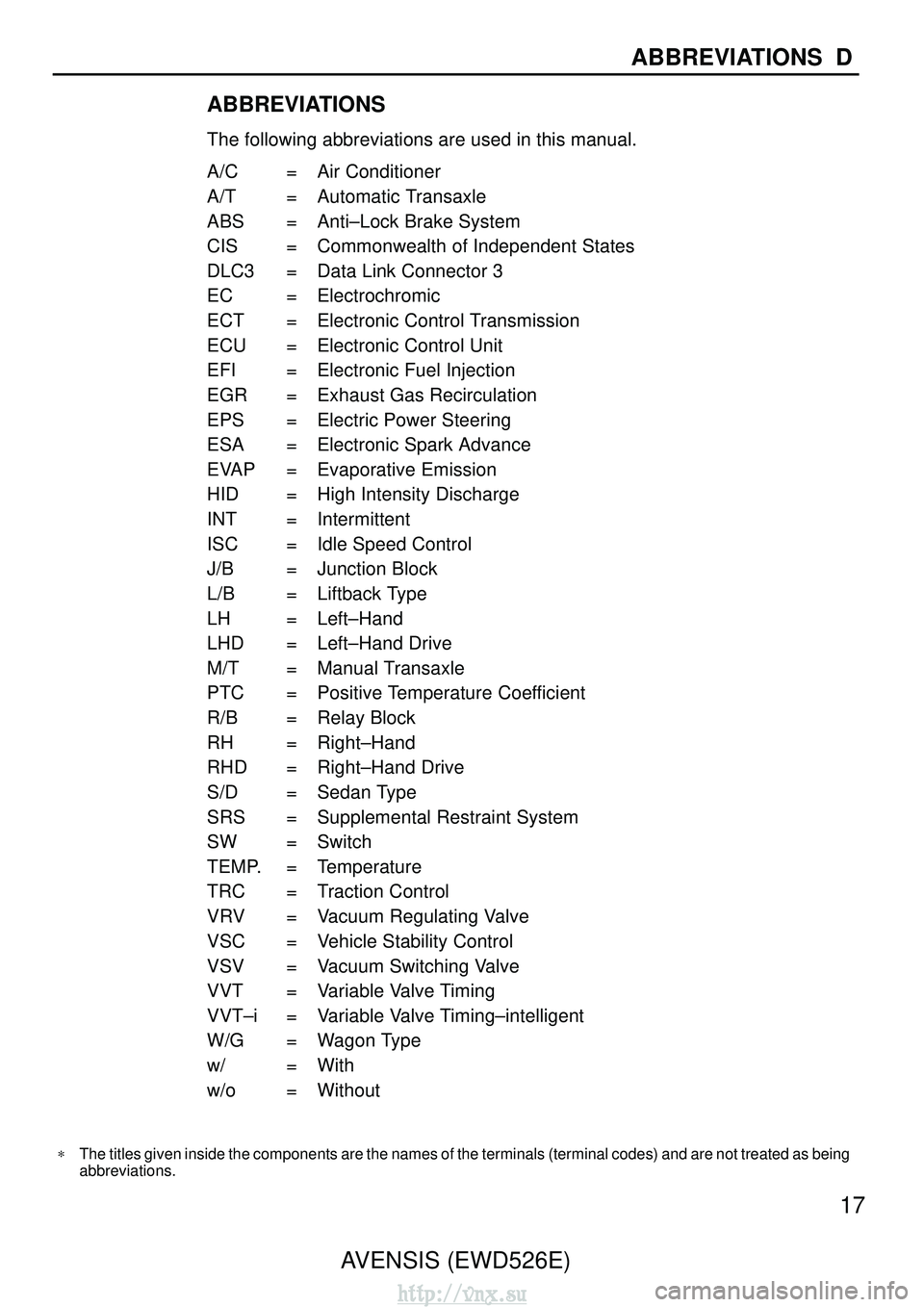

$TOYOTA AVENSIS 2003 Service Repair Manual ∗The titles given inside the components are the names of the terminals (\ terminal codes) and are not treated as being abbreviations. AVENSIS (EWD526E) 17 ABBREVIATIONS D ABBREVIATIONS The followin$

Page 1866 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 18AVENSIS (EWD526E)

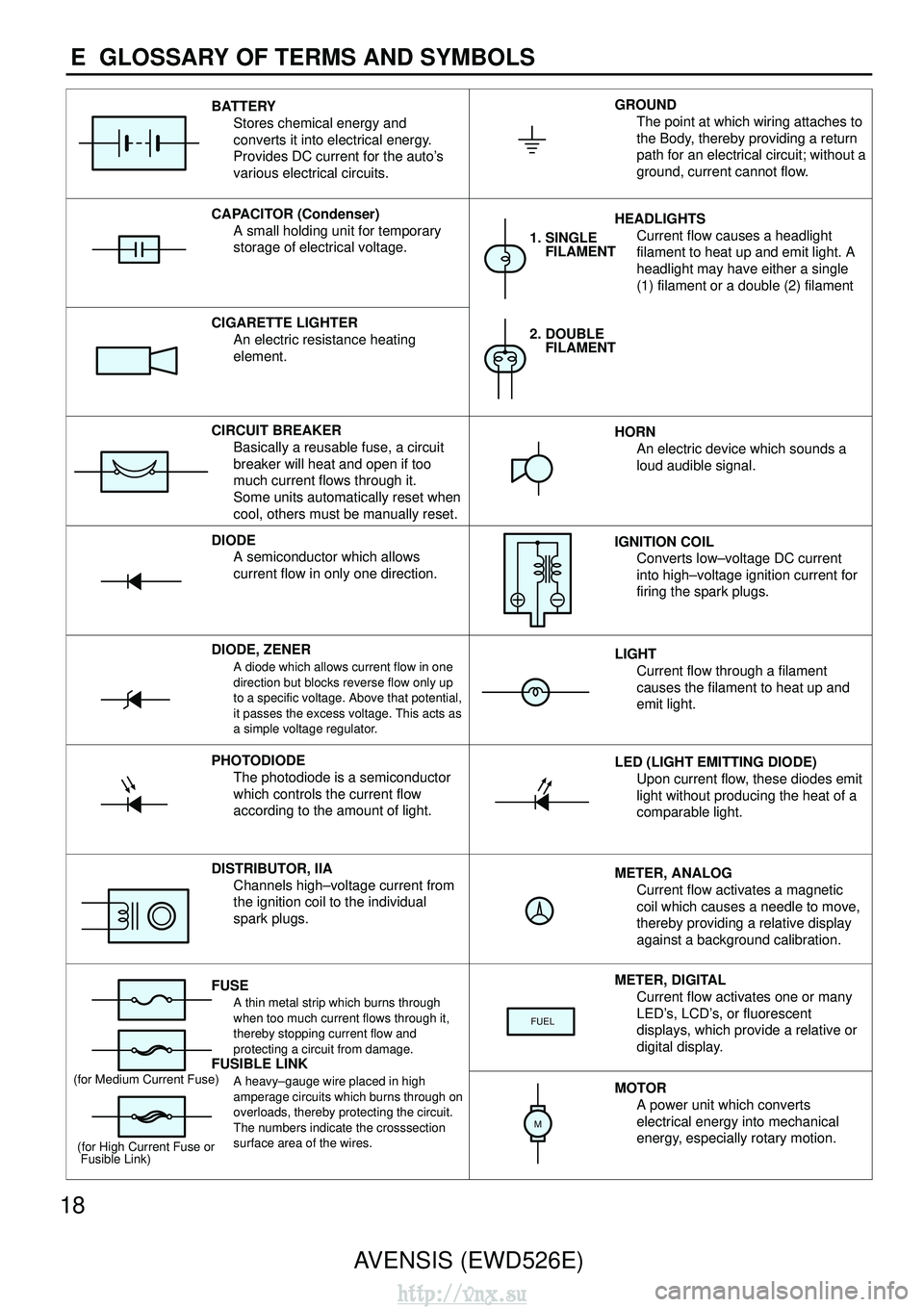

E GLOSSARY OF TERMS AND SYMBOLS
BATTERY
Stores chemical energy and
converts it into electrical energy.
Provides DC current for the auto’s
various electrical circuits.GROUNDThe p

18AVENSIS (EWD526E)
E GLOSSARY OF TERMS AND SYMBOLS
BATTERY
Stores chemical energy and
converts it into electrical energy.
Provides DC current for the auto’s
various electrical circuits.GROUNDThe point at which wiring attaches to
the Body, thereby providing a return
path for an electrical circuit; without a
ground, current cannot flow.
CAPACITOR (Condenser)A small holding unit for temporary
storage of electrical voltage.HEADLIGHTSCurrent flow causes a headlight
filament to heat up and emit light. A
headlight may have either a single
(1) filament or a double (2) filament
1. SINGLE
FILAMENT
CIGARETTE LIGHTER
An electric resistance heating
element.2. DOUBLE
FILAMENT
CIRCUIT BREAKERBasically a reusable fuse, a circuit
breaker will heat and open if too
much current flows through it.
Some units automatically reset when
cool, others must be manually reset.HORNAn electric device which sounds a
loud audible signal.
DIODEA semiconductor which allows
current flow in only one direction.IGNITION COILConverts low–voltage DC current
into high–voltage ignition current for
firing the spark plugs.
DIODE, ZENER
A diode which allows current flow in one
direction but blocks reverse flow only up
to a specific voltage. Above that potential,
it passes the excess voltage. This acts as
a simple voltage regulator.LIGHTCurrent flow through a filament
causes the filament to heat up and
emit light.
PHOTODIODEThe photodiode is a semiconductor
which controls the current flow
according to the amount of light.LED (LIGHT EMITTING DIODE)
Upon current flow, these diodes emit
light without producing the heat of a
comparable light.
DISTRIBUTOR, IIAChannels high–voltage current from
the ignition coil to the individual
spark plugs.METER, ANALOG
Current flow activates a magnetic
coil which causes a needle to move,
thereby providing a relative display
against a background calibration.
FUSE
A thin metal strip which burns through
when too much current flows through it,
thereby stopping current flow and
protecting a circuit from damage.
FUSIBLE LINK
METER, DIGITALCurrent flow activates one or many
LED’s, LCD’s, or fluorescent
displays, which provide a relative or
digital display.
FUEL
A heavy–gauge wire placed in high
amperage circuits which burns through on
overloads, thereby protecting the circuit.
The numbers indicate the crosssection
surface area of the wires.(for Medium Current Fuse)
(for High Current Fuse or
Fusible Link)MOTOR A power unit which converts
electrical energy into mechanical
energy, especially rotary motion.
M
http://vnx.su

Page 1867 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual AVENSIS (EWD526E)19
E

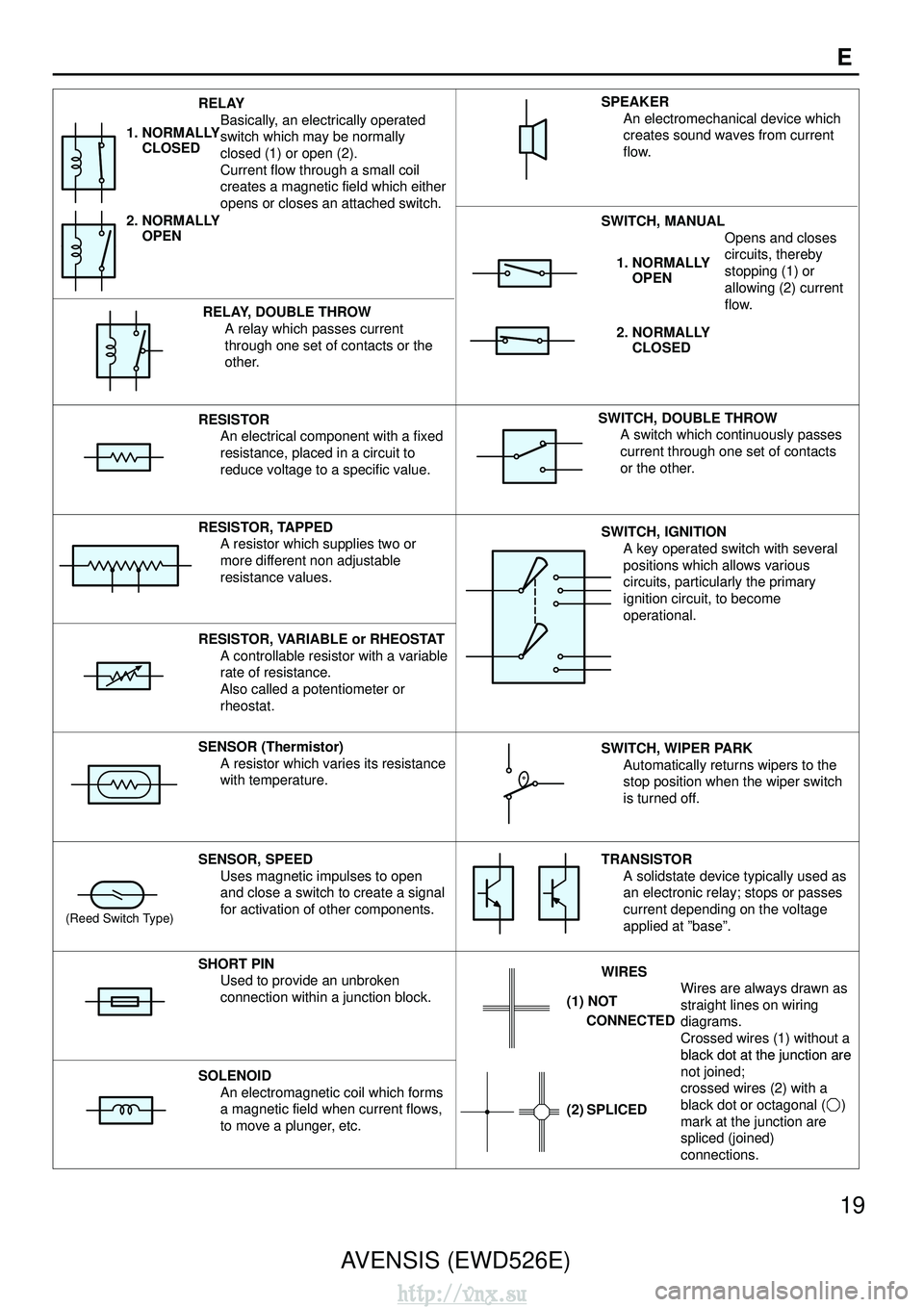

RELAY
Basically, an electrically operated
switch which may be normally
closed (1) or open (2).
Current flow through a small coil
creates a magnetic field which either
opens or cl

AVENSIS (EWD526E)19
E
RELAY
Basically, an electrically operated
switch which may be normally
closed (1) or open (2).
Current flow through a small coil
creates a magnetic field which either
opens or closes an attached switch.
1. NORMALLY
CLOSED
2. NORMALLY
OPEN
SWITCH, MANUAL
Opens and closes
SPEAKERAn electromechanical device which
creates sound waves from current
flow.
RELAY, DOUBLE THROWA relay which passes current
through one set of contacts or the
other.
circuits, thereby
stopping (1) or
allowing (2) current
flow.1. NORMALLY
OPEN
2. NORMALLY
CLOSED
RESISTORAn electrical component with a fixed
resistance, placed in a circuit to
reduce voltage to a specific value.SWITCH, DOUBLE THROWA switch which continuously passes
current through one set of contacts
or the other.
RESISTOR, TAPPED
A resistor which supplies two or
more different non adjustable
resistance values.SWITCH, IGNITIONA key operated switch with several
positions which allows various
circuits, particularly the primary
ignition circuit, to become
operational.
RESISTOR, VARIABLE or RHEOSTAT
A controllable resistor with a variable
rate of resistance.
Also called a potentiometer or
rheostat.
SENSOR (Thermistor)A resistor which varies its resistance
with temperature.SWITCH, WIPER PARKAutomatically returns wipers to the
stop position when the wiper switch
is turned off.
(Reed Switch Type)
SENSOR, SPEEDUses magnetic impulses to open
and close a switch to create a signal
for activation of other components.TRANSISTORA solidstate device typically used as
an electronic relay; stops or passes
current depending on the voltage
applied at ”base”.
SHORT PINUsed to provide an unbroken
connection within a junction block.WIRES Wires are always drawn as
straight lines on wiring
diagrams.
Crossed wires (1) without a
black dot at the junction are
(1) NOT
CONNECTED
SOLENOID
An electromagnetic coil which forms
a magnetic field when current flows,
to move a plunger, etc.
black dot at the junction are
not joined;
crossed wires (2) with a
black dot or octagonal ( )
mark at the junction are
spliced (joined)
connections.
(2) SPLICED
http://vnx.su

Page 1868 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 20AVENSIS (EWD526E)
F RELAY LOCATIONS
[Engine Compartment]
(Gasoline)
Headlight Cleaner
Control Relay
Engine Room
R/B No.1
Engine Room
J/B No.1
Headlight Control
ECU LH
Skid Control
ECU with
Actuator

Page 1869 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual AVENSIS (EWD526E)21
F
[Instrument Panel]
(LHD)
Fuse Block
J/B No.6
Wiper Relay
Door Control
Receiver
Headlight Beam
Level Control
ECU
A/C Control
Assembly
Option Connector
(Navigation ECU)
Engine and

Page 1870 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 22AVENSIS (EWD526E)
F RELAY LOCATIONS
[Body]
(S/D)
Telephone Microphone
AmplifierMoon Roof Control
Relay and Motor
(L/B)
Telephone Microphone
AmplifierMoon Roof Control
Relay and Motor
Rear Wiper
Mot

Page 1871 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual Telephone Microphone
AmplifierMoon Roof Control
Relay and Motor
Rear Wiper
Motor and Relay
AVENSIS (EWD526E)23
F
(W/G)
http://vnx.su

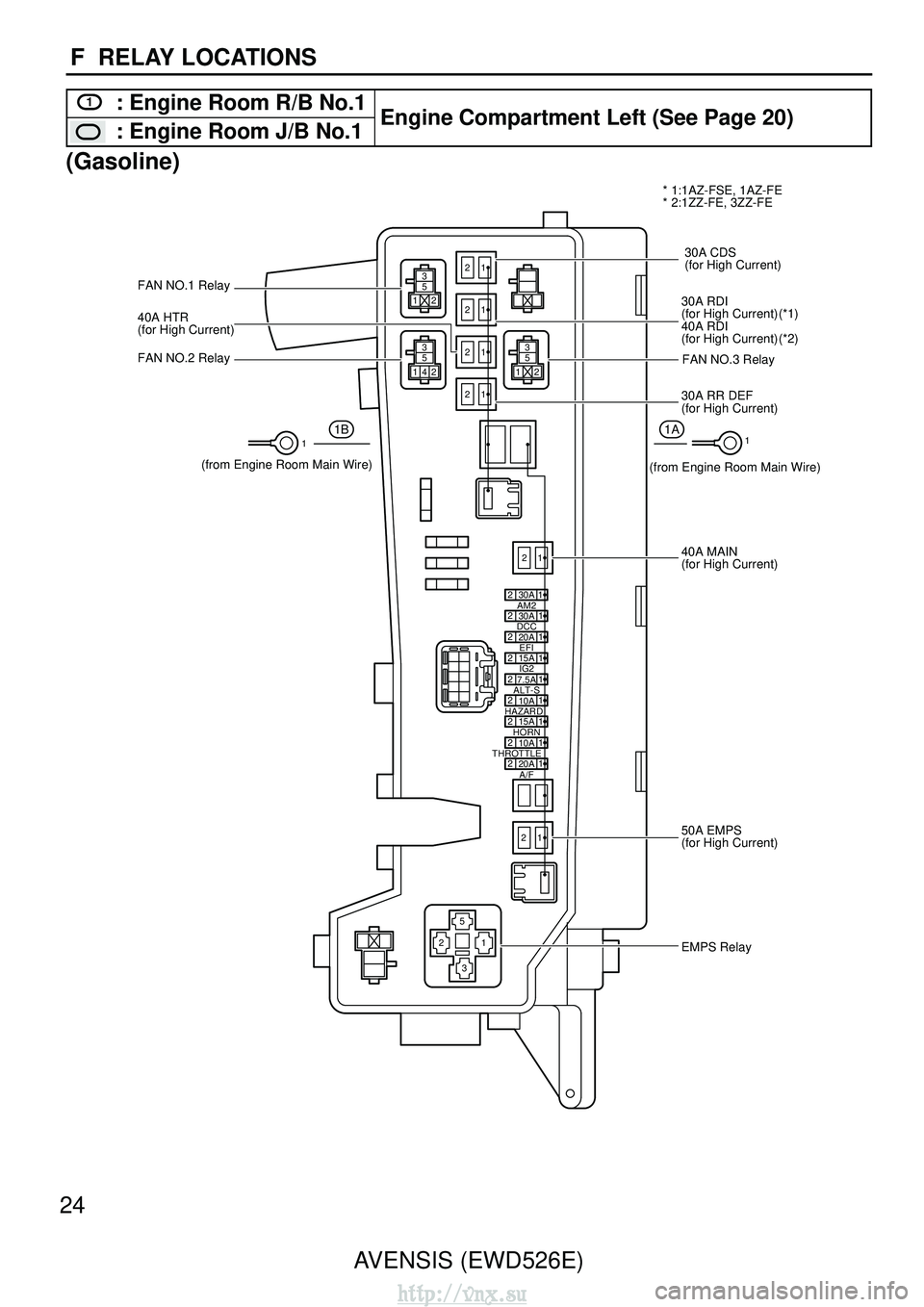

Page 1872 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 3
5
12
3
FAN NO.1 Relay
40A HTR
(for High Current)
30A CDS
(for High Current)
30A RDI
(for High Current)
40A RDI FAN NO.3 Relay
(for High Current)
30A RR DEF
(for High Current)
40A MAIN
(for High Curr
