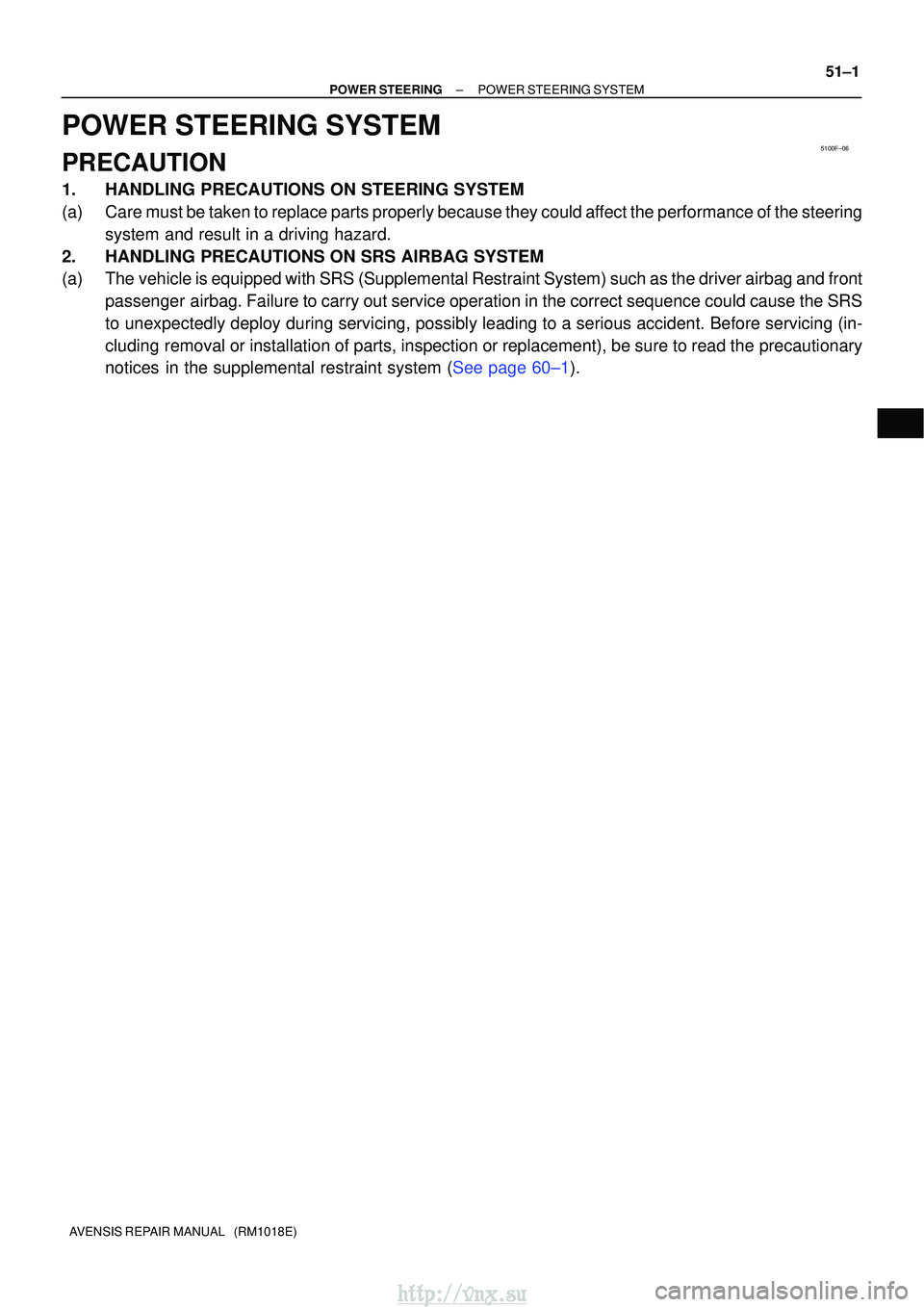

TOYOTA AVENSIS 2003 Service Repair Manual 5100F±06
±
POWER STEERING POWER STEERING SYSTEM
51±1
AVENSIS REPAIR MANUAL (RM1018E)
POWER STEERING SYSTEM
PRECAUTION
1. HANDLING PRECAUTIONS ON STEERING SYSTEM
(a) Care must be taken to replace

Page 1242 of 2234

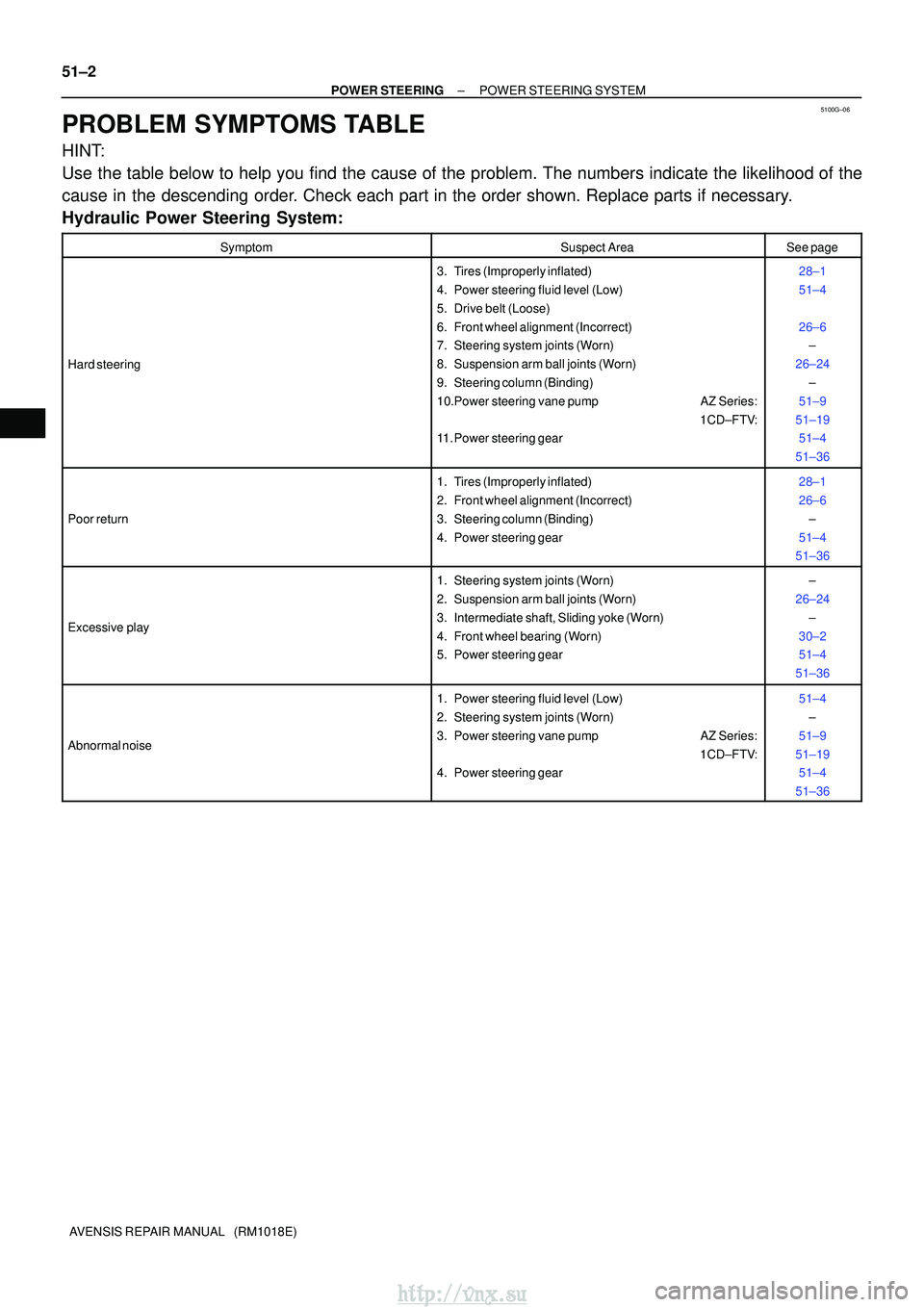

$TOYOTA AVENSIS 2003 Service Repair Manual 5100G±06 51±2 ± POWER STEERING POWER STEERING SYSTEM AVENSIS REPAIR MANUAL (RM1018E) PROBLEM SYMPTOMS TABLE HINT: Use the table below to help you find the cause of the problem. The numbers \ indi$

Page 1243 of 2234

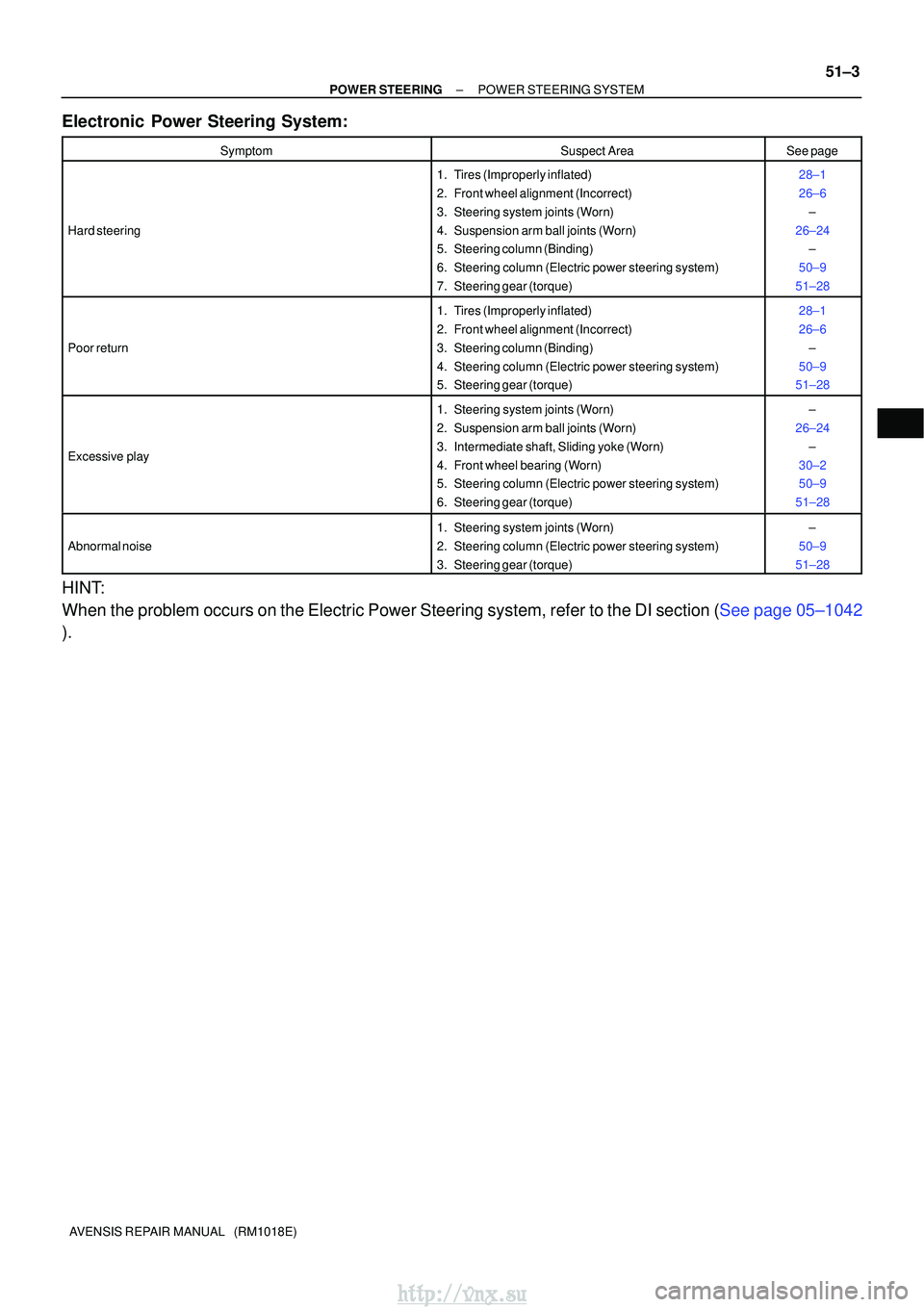

TOYOTA AVENSIS 2003 Service Repair Manual ±
POWER STEERING POWER STEERING SYSTEM
51±3
AVENSIS REPAIR MANUAL (RM1018E)
Electronic Power Steering System:
SymptomSuspect AreaSee page
Hard steering
1. Tires (Improperly inflated)
2. Front whe

Page 1244 of 2234

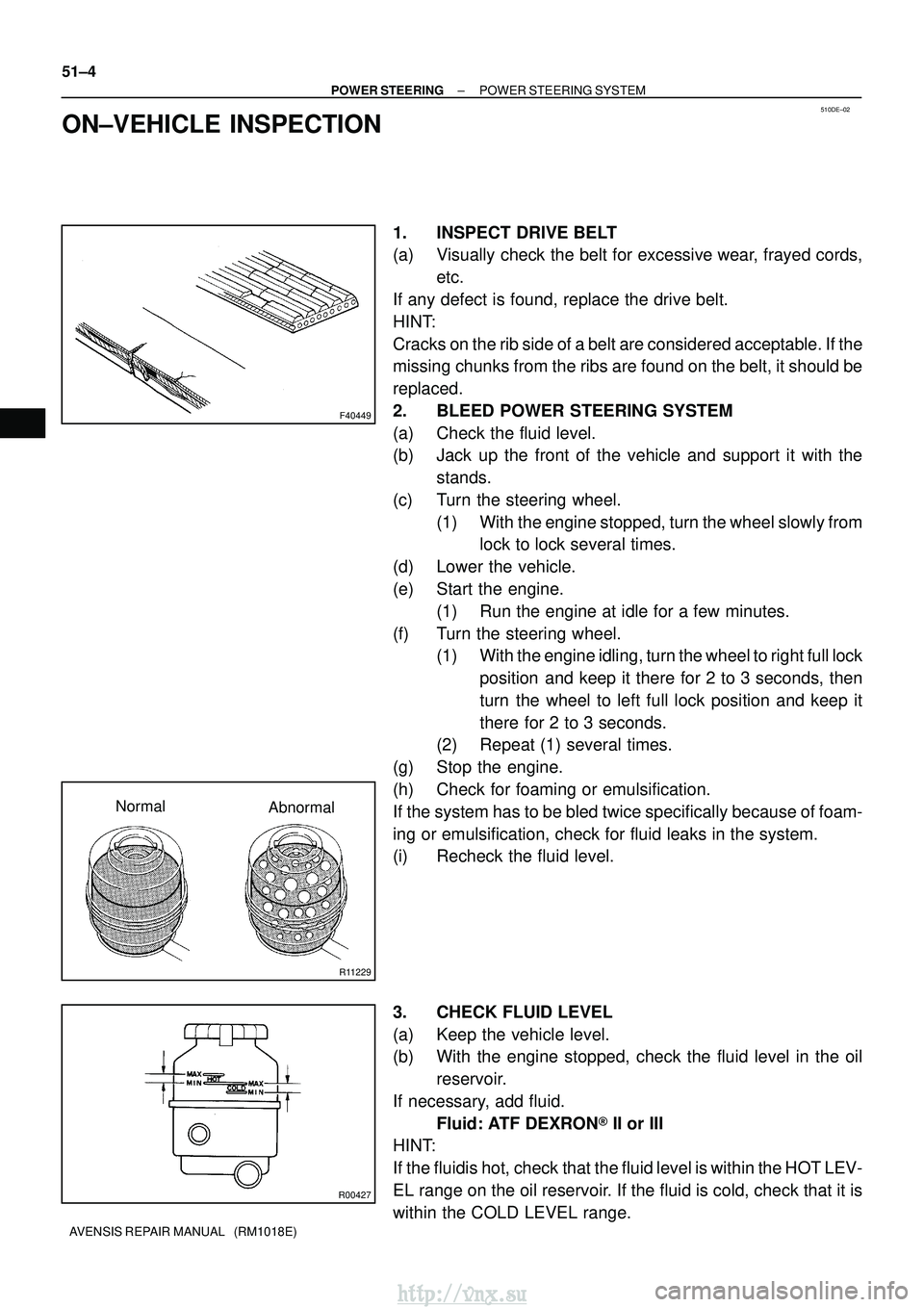

TOYOTA AVENSIS 2003 Service Repair Manual 510DE±02
F40449
R11229
NormalAbnormal
R00427
51±4
±
POWER STEERING POWER STEERING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
ON±VEHICLE INSPECTION
1. INSPECT DRIVE BELT
(a) Visually check the belt f

Page 1245 of 2234

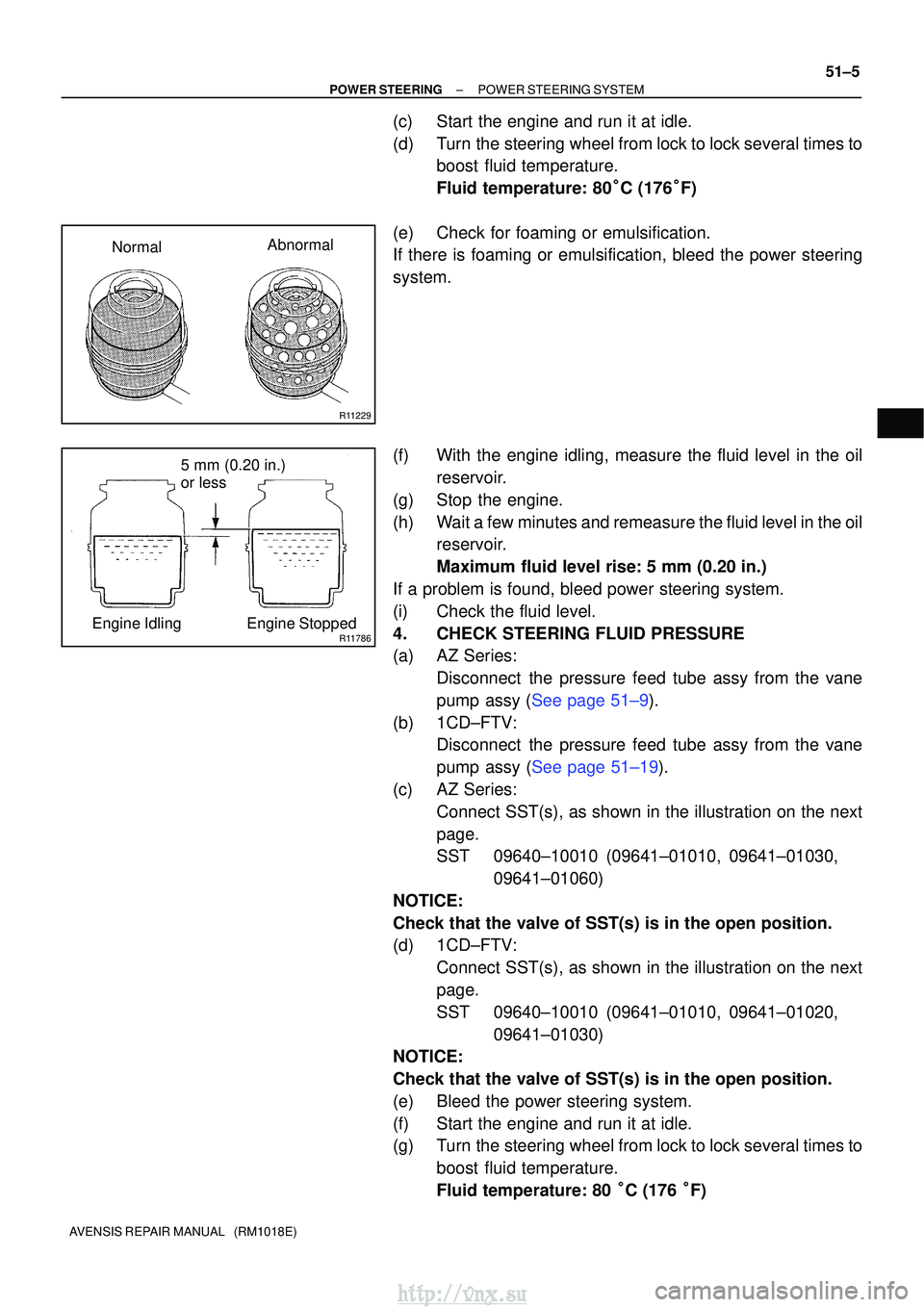

TOYOTA AVENSIS 2003 Service Repair Manual R11229
NormalAbnormal
R11786Engine Idling Engine Stopped5 mm (0.20 in.)
or less
±
POWER STEERING POWER STEERING SYSTEM
51±5
AVENSIS REPAIR MANUAL (RM1018E)
(c) Start the engine and run it at idle.

Page 1246 of 2234

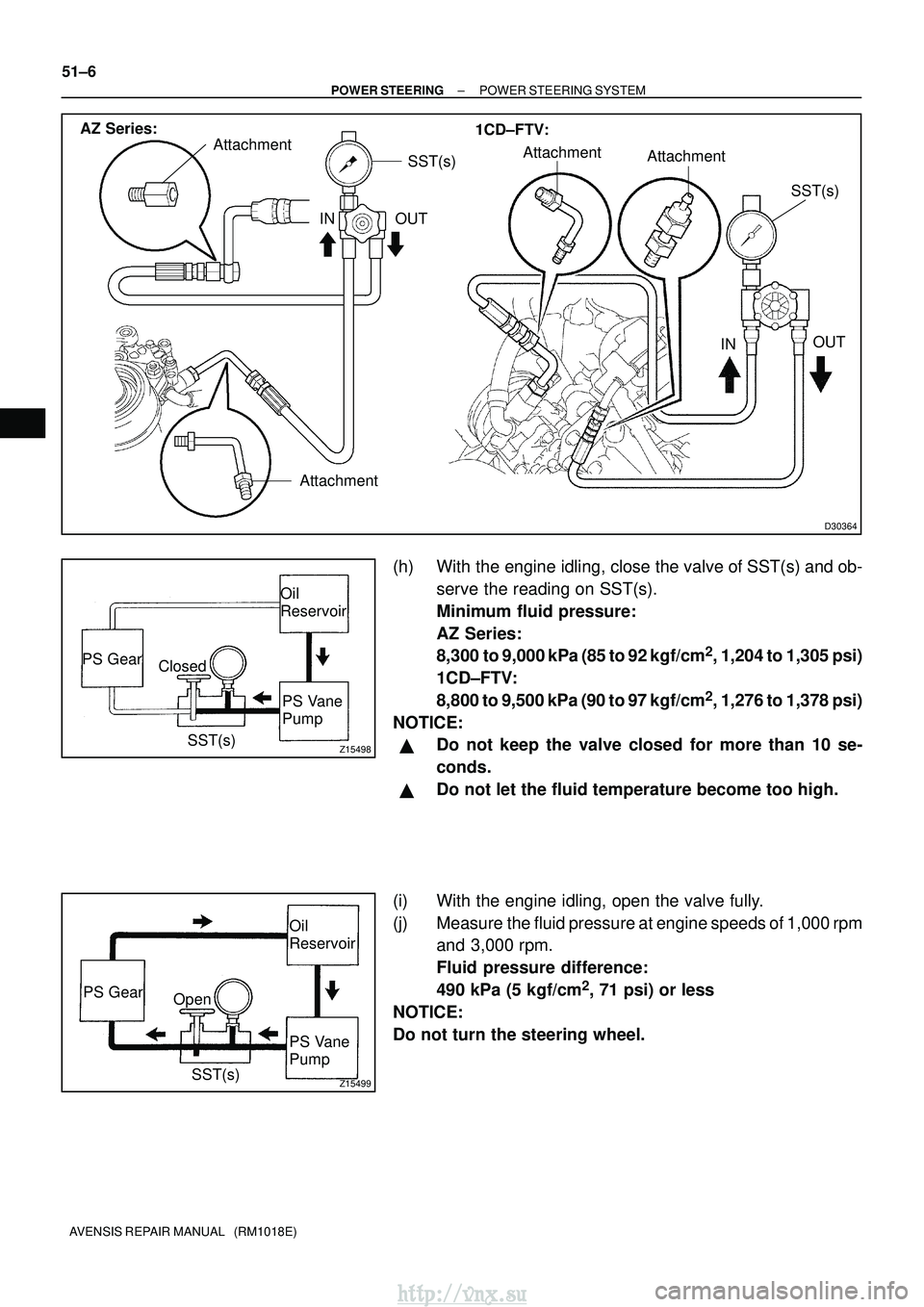

TOYOTA AVENSIS 2003 Service Repair Manual D30364
AttachmentOUT
IN
IN OUTAttachment
SST(s)
SST(s)
Attachment
Attachment
AZ Series:
1CD±FTV:
Z15498
Oil
Reservoir
PS Vane
Pump
PS Gear
SST(s)
Closed
Z15499
Oil
Reservoir
PS Vane
Pump
PS Gear
SST(

Page 1247 of 2234

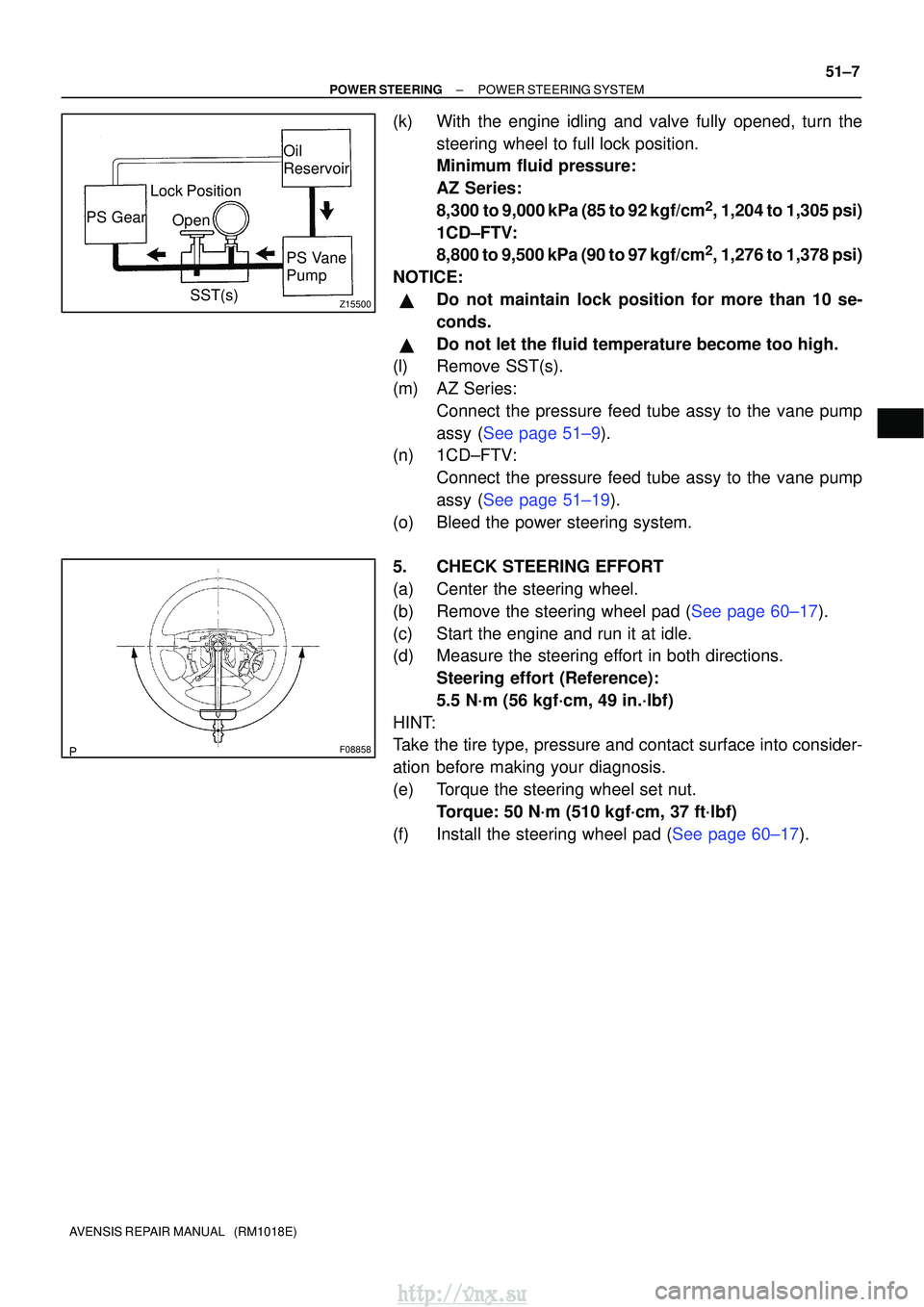

TOYOTA AVENSIS 2003 Service Repair Manual Z15500
Oil
ReservoirPS Vane
Pump
PS Gear
SST(s)
Open
Lock Position
F08858
±
POWER STEERING POWER STEERING SYSTEM
51±7
AVENSIS REPAIR MANUAL (RM1018E)
(k) With the engine idling and valve fully ope

Page 1248 of 2234

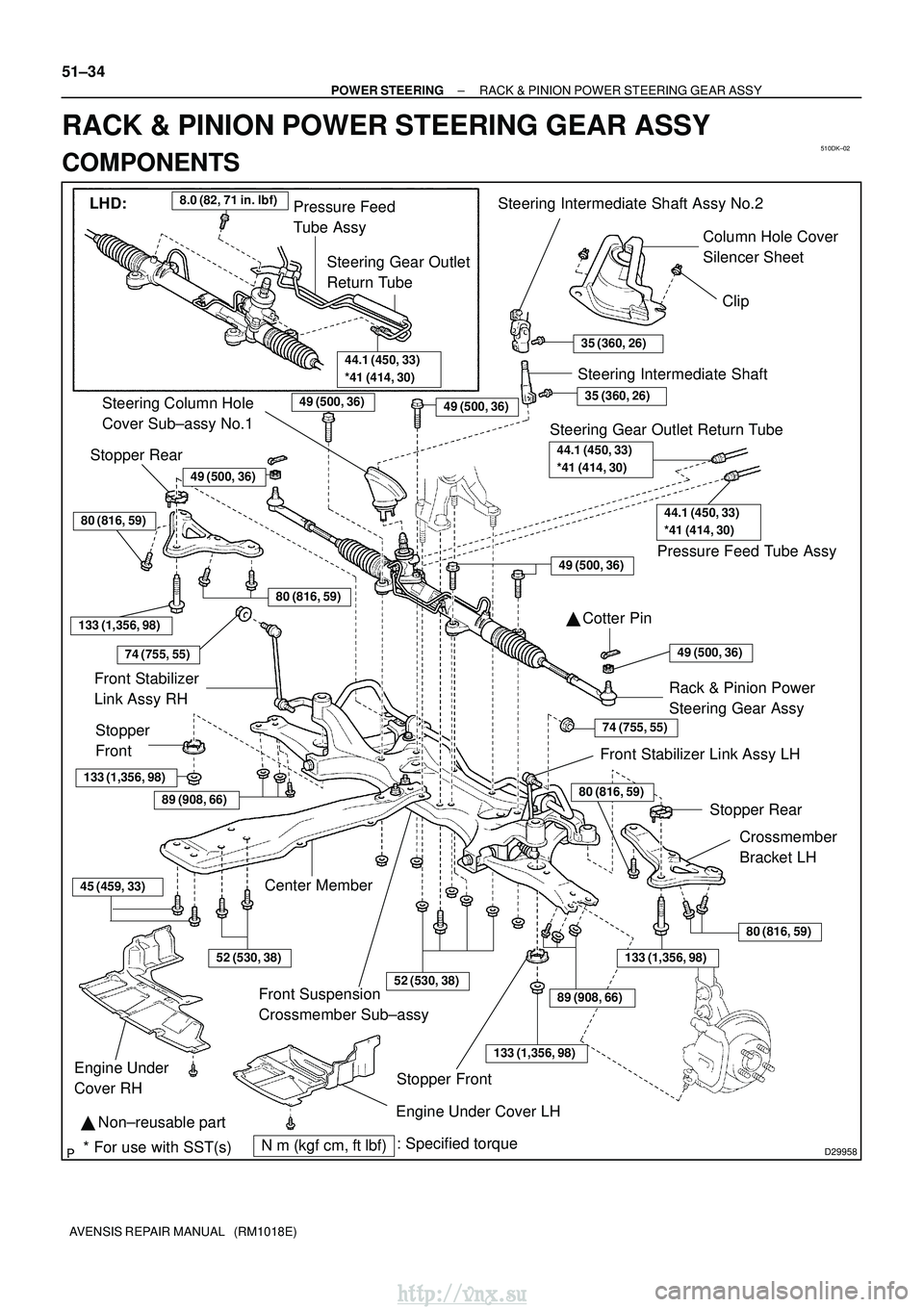

TOYOTA AVENSIS 2003 Service Repair Manual 510DK±02
D29958
LHD:Pressure Feed
Tube Assy8.0 (82, 71 in.lbf)
Steering Gear Outlet
Return Tube
44.1 (450, 33)
*41 (414, 30)
Steering Intermediate Shaft Assy No.2
35 (360, 26)
Steering Intermediate
