Page 1673 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B65859 Clockwise Counter± clockwise Reclining Motor Driving Axis B65448 Clockwise Driving Axis Counter±clockwise Lumbar Support Adjuster Motor ± SEAT FRONT POWER SEAT CONTROL SYSTEM 72±9 AVENSIS

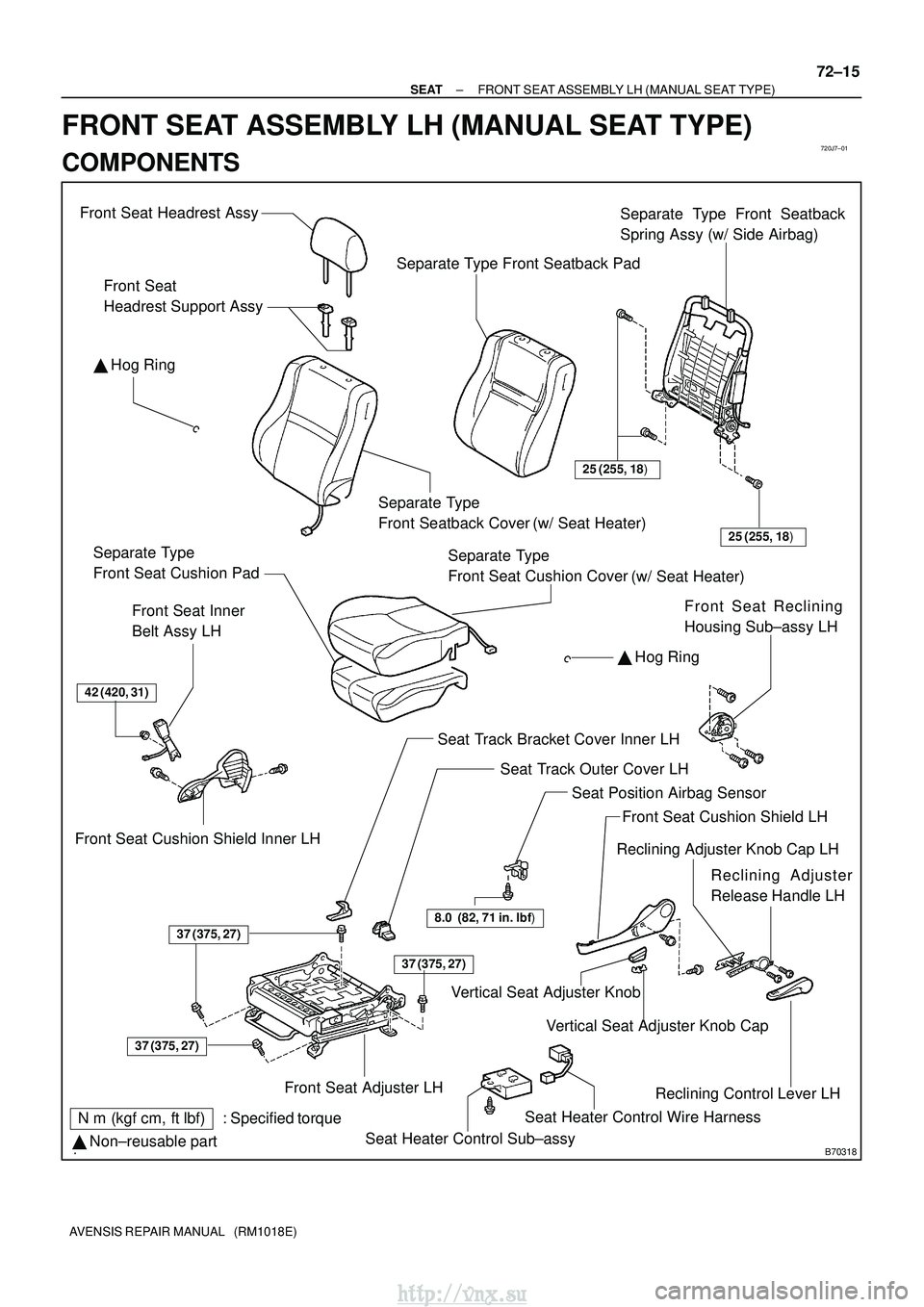

Page 1674 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 720J7±01 B70318 Front Seat Headrest AssyVertical Seat Adjuster KnobReclining Adjuster Release Handle LH Front Seat Cushion Shield LH Front Seat Inner Belt Assy LH Front Seat Cushion Shield Inner LH

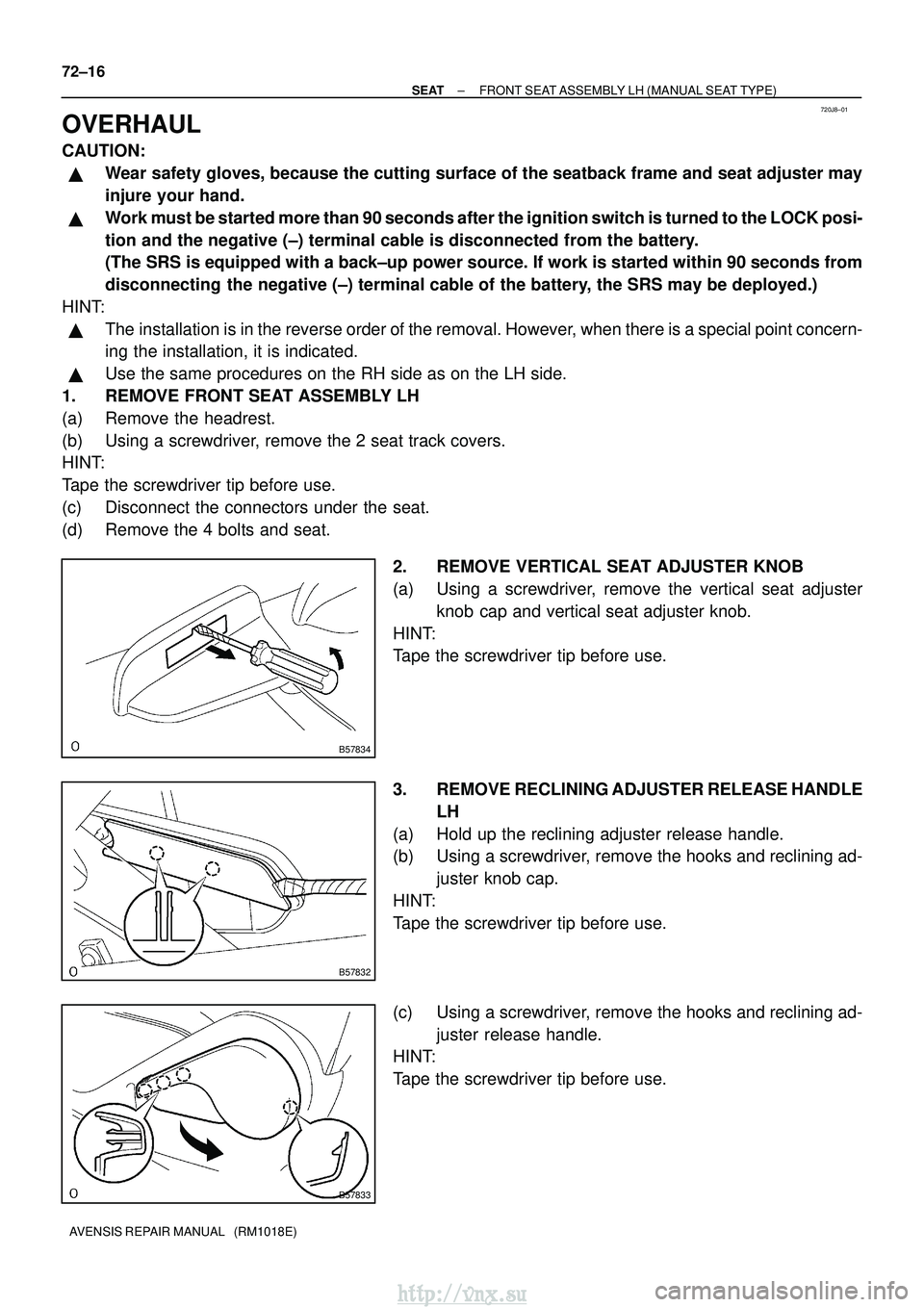

Page 1675 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 720J8±01 B57834 B57832 B57833 72±16 ± SEAT FRONT SEAT ASSEMBLY LH (MANUAL SEAT TYPE) AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL CAUTION: Wear safety gloves, because the cutting surface of the seat

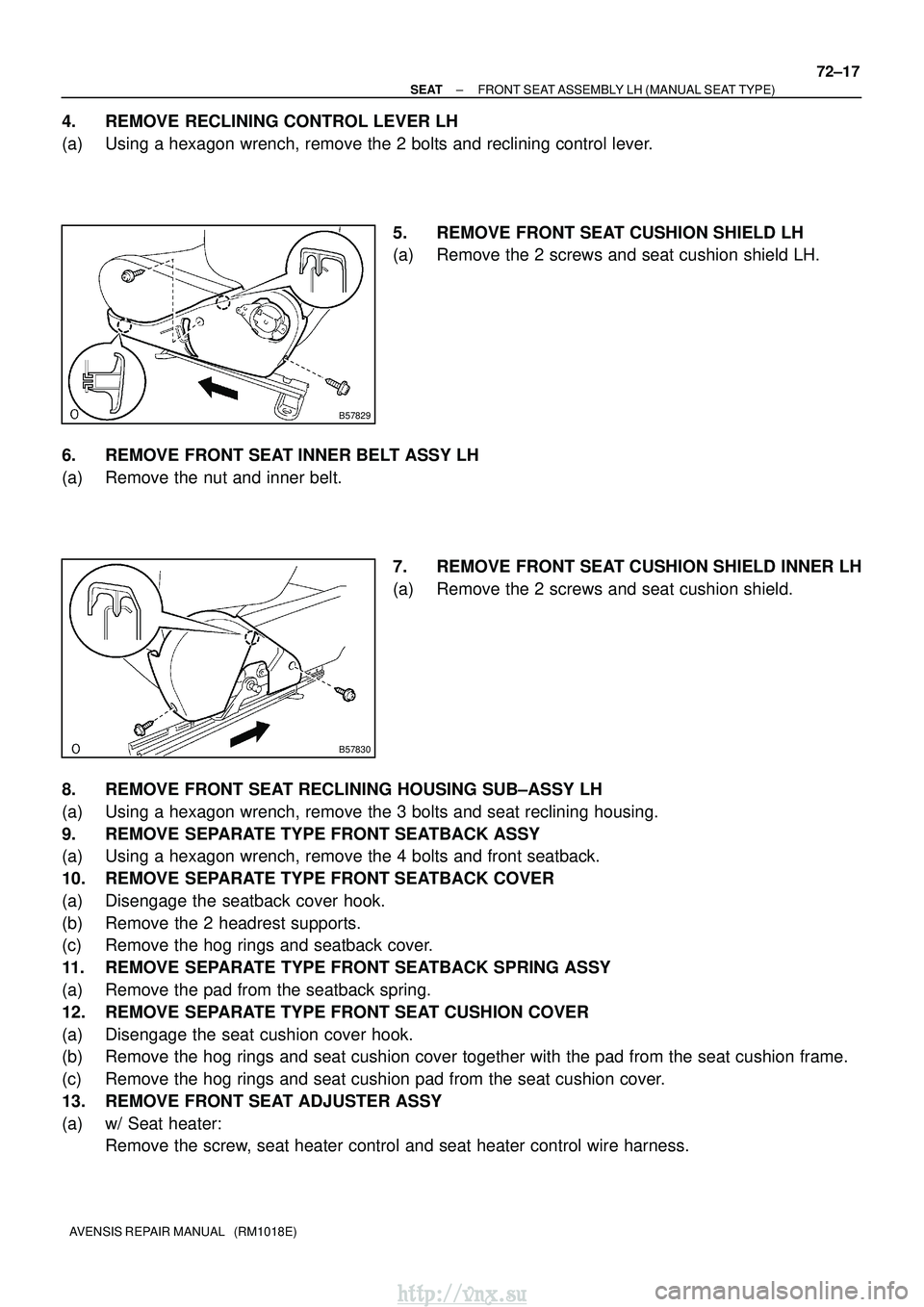

Page 1676 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B57829 B57830 ± SEAT FRONT SEAT ASSEMBLY LH (MANUAL SEAT TYPE) 72±17 AVENSIS REPAIR MANUAL (RM1018E) 4. REMOVE RECLINING CONTROL LEVER LH (a) Using a hexagon wrench, remove the 2 bolts and reclini

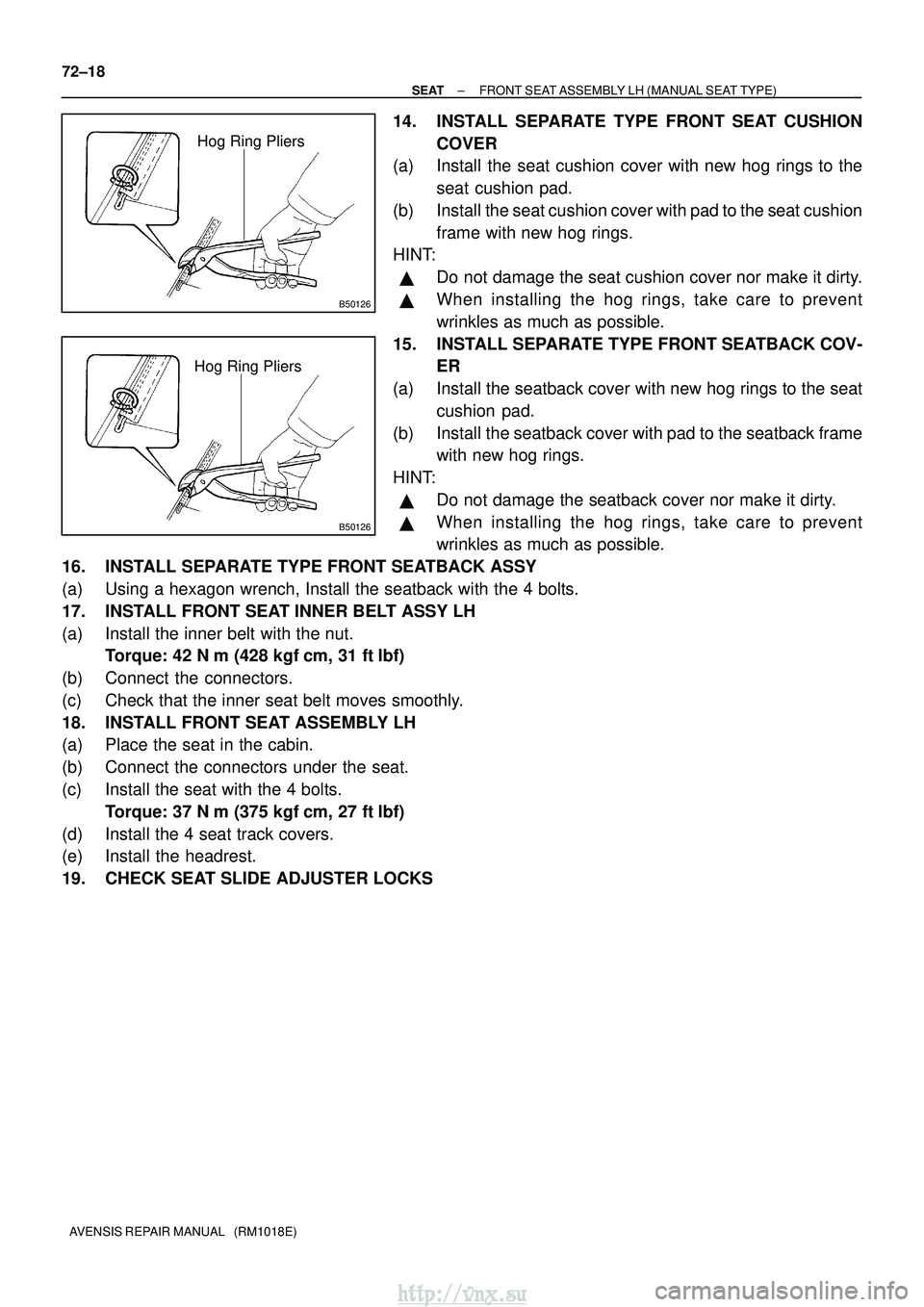

Page 1677 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B50126 Hog Ring Pliers B50126 Hog Ring Pliers 72±18 ± SEAT FRONT SEAT ASSEMBLY LH (MANUAL SEAT TYPE) AVENSIS REPAIR MANUAL (RM1018E) 14. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER (a) Install

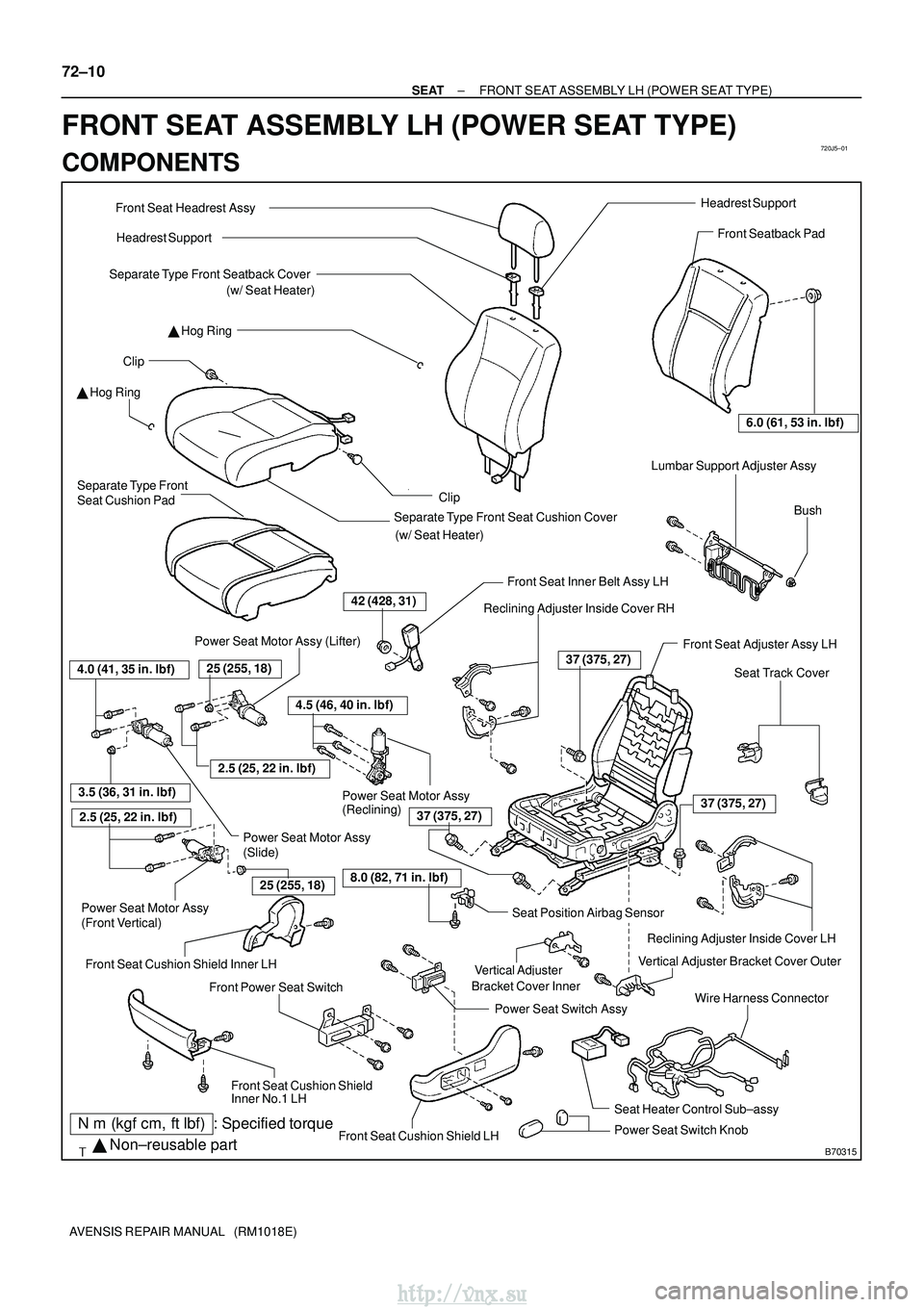

Page 1678 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 720J5±01 B70315 Headrest Support Power Seat Switch Assy Power Seat Switch Knob Front Seat Inner Belt Assy LH Front Seat Headrest Assy  Hog Ring Separate Type Front Seatback Cover  Hog Ring Front S

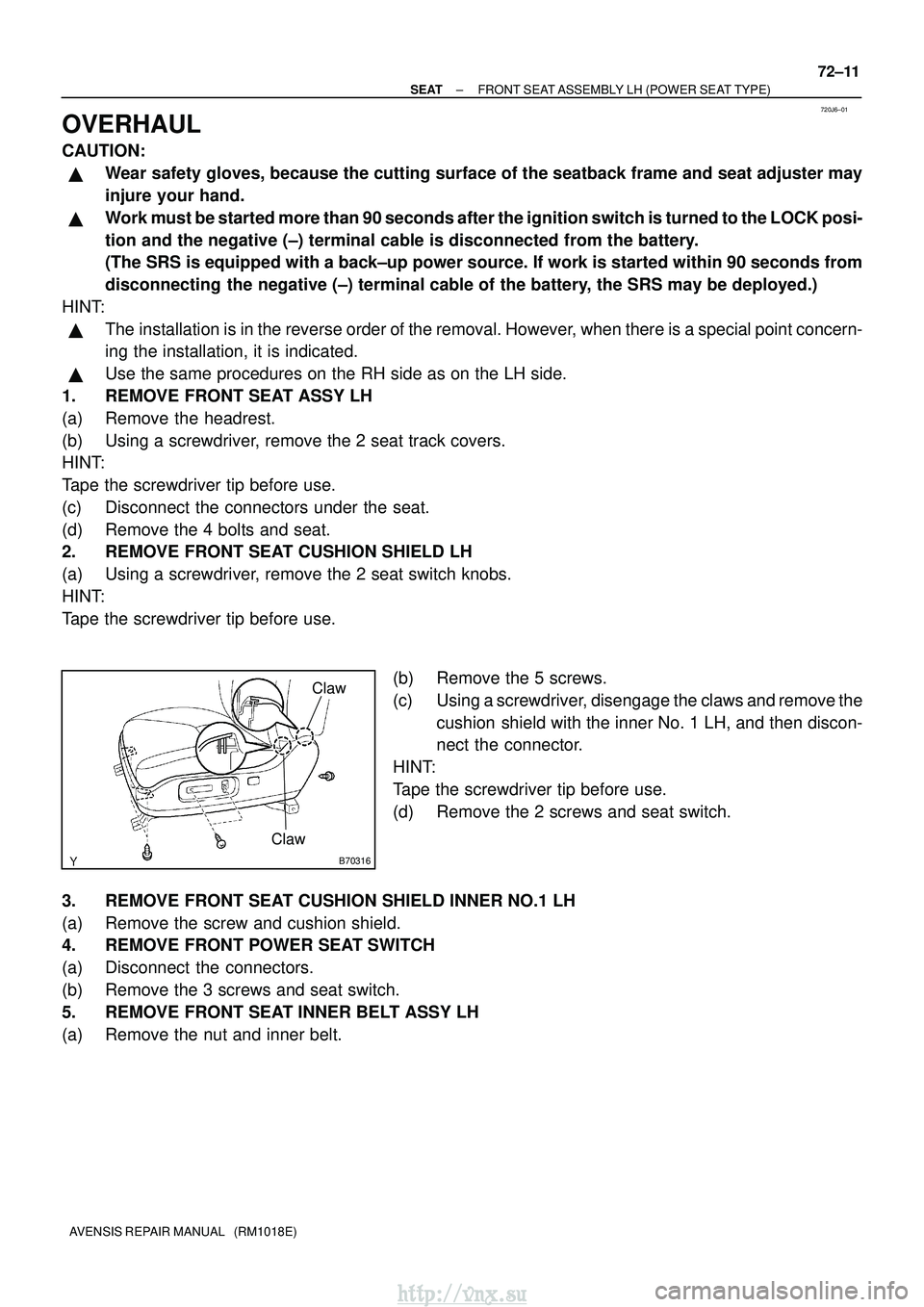

Page 1679 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 720J6±01 B70316 Claw Claw ± SEAT FRONT SEAT ASSEMBLY LH (POWER SEAT TYPE) 72±11 AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL CAUTION: Wear safety gloves, because the cutting surface of the seatback

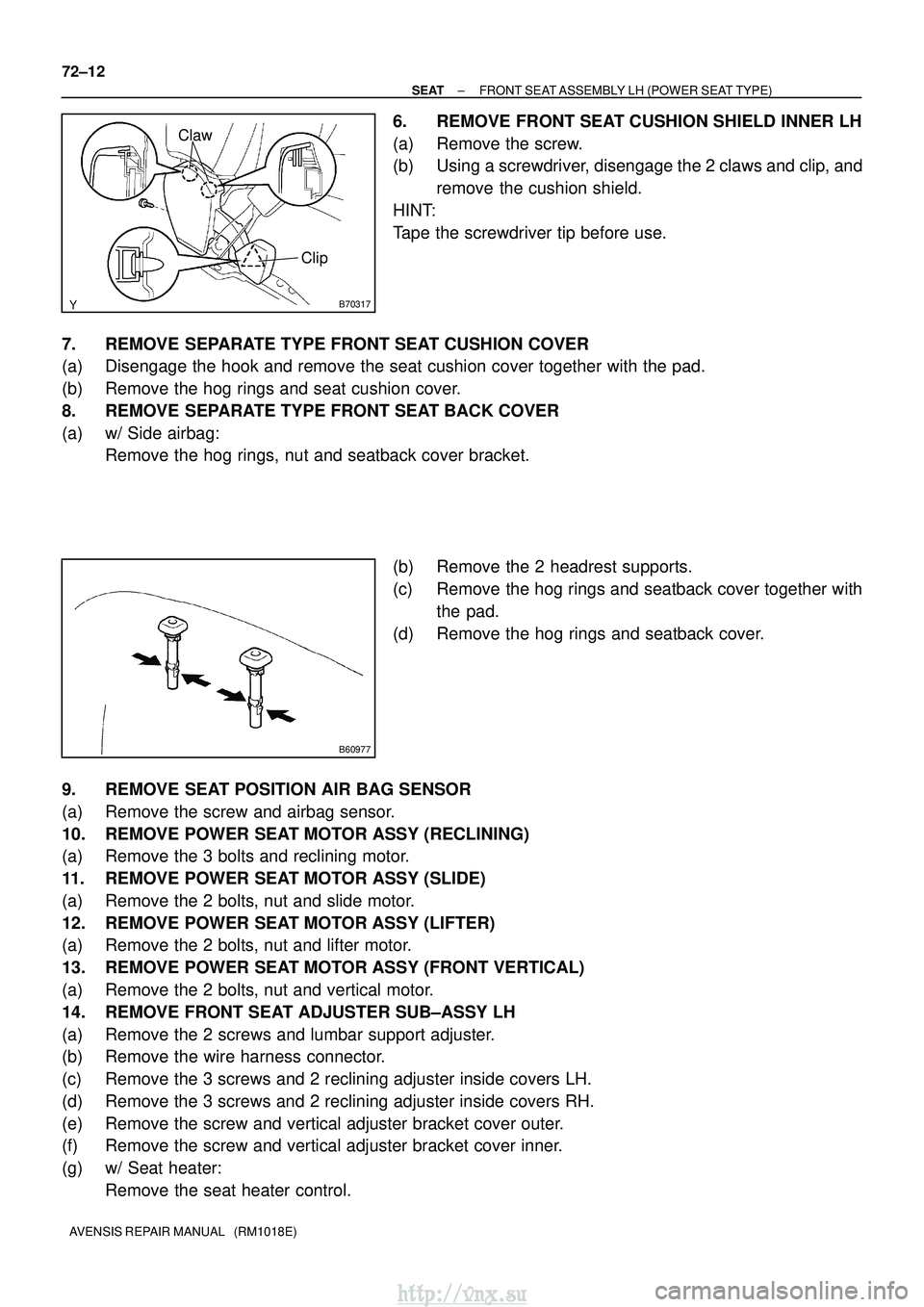

Page 1680 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B70317 ClawClip B60977 72±12 ± SEAT FRONT SEAT ASSEMBLY LH (POWER SEAT TYPE) AVENSIS REPAIR MANUAL (RM1018E) 6. REMOVE FRONT SEAT CUSHION SHIELD INNER LH (a) Remove the screw. (b) Using a screwdri
