Page 1545 of 2234

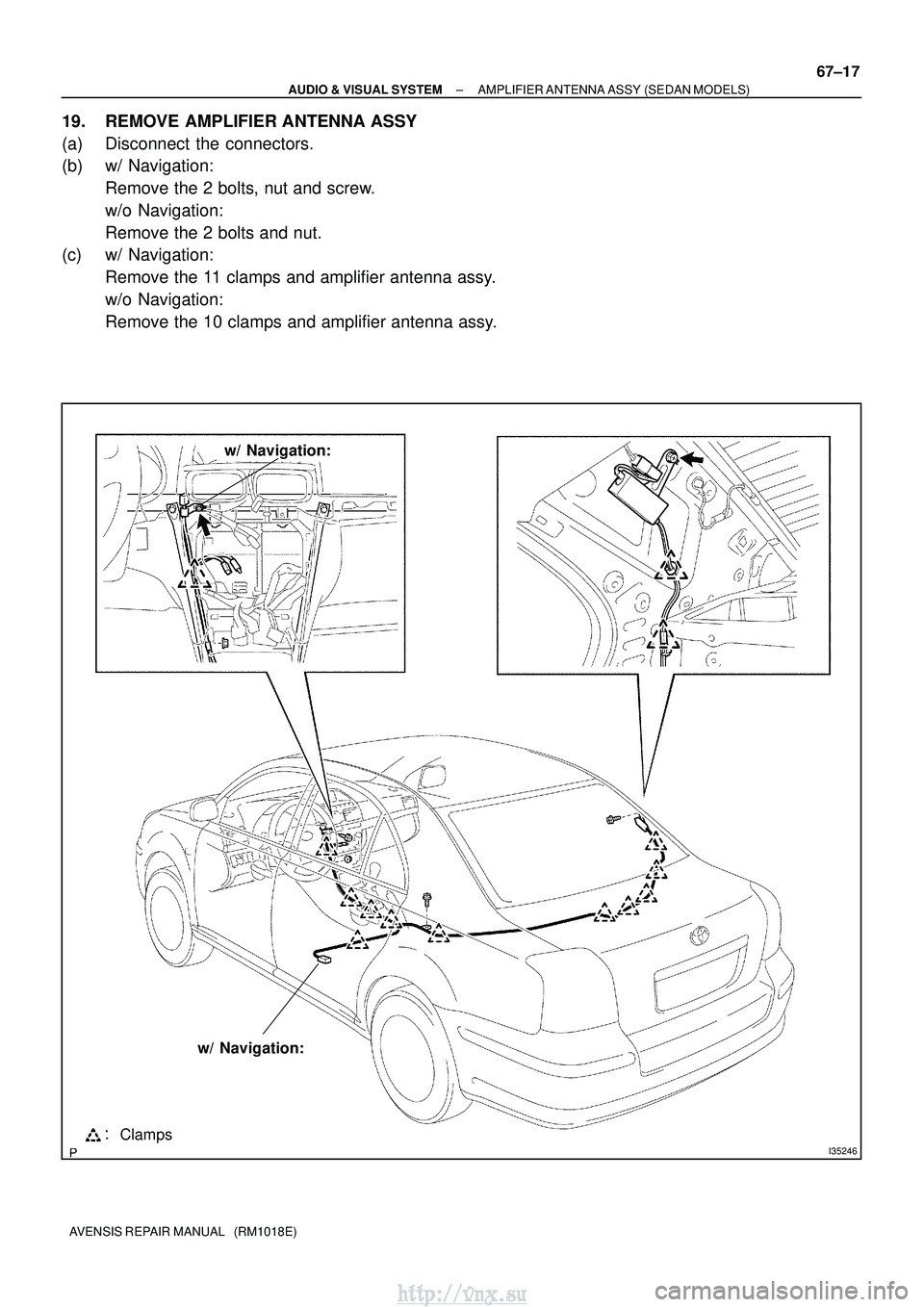

TOYOTA AVENSIS 2003 Service Repair Manual I35246Clamps w/ Navigation: w/ Navigation: ± AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (SEDAN MODELS) 67±17 AVENSIS REPAIR MANUAL (RM1018E) 19. REMOVE AMPLIFIER ANTENNA ASSY (a) Disconnect the

Page 1546 of 2234

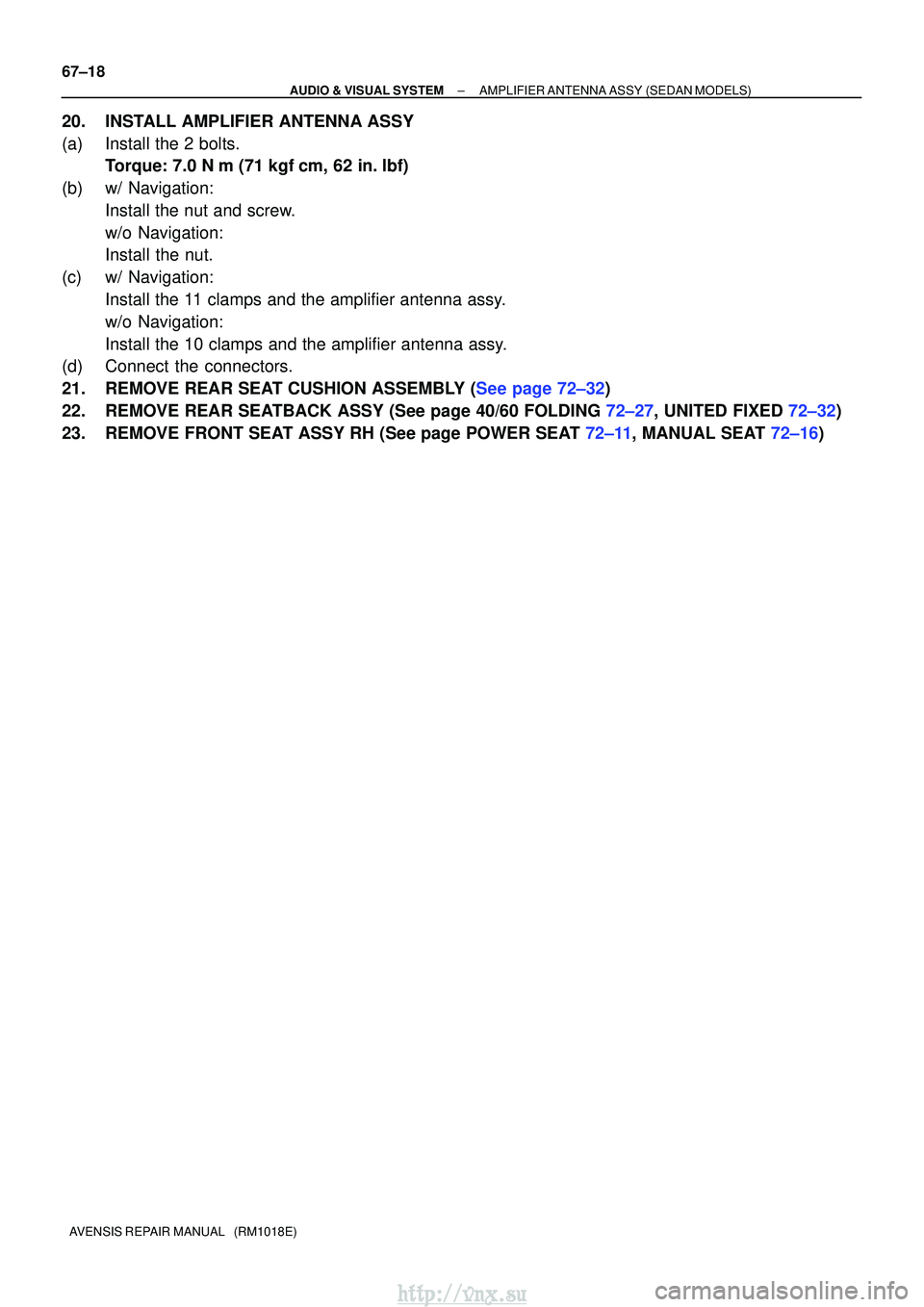

TOYOTA AVENSIS 2003 Service Repair Manual 67±18 ± AUDIO & VISUAL SYSTEMAMPLIFIER ANTENNA ASSY(SEDAN MODELS) AVENSIS REPAIR MANUAL (RM1018E) 20.INSTALL AMPLIFIER ANTENNA ASSY (a)Install the 2 bolts. Torque: 7.0 N m (71 kgfcm, 62 in. lbf

Page 1547 of 2234

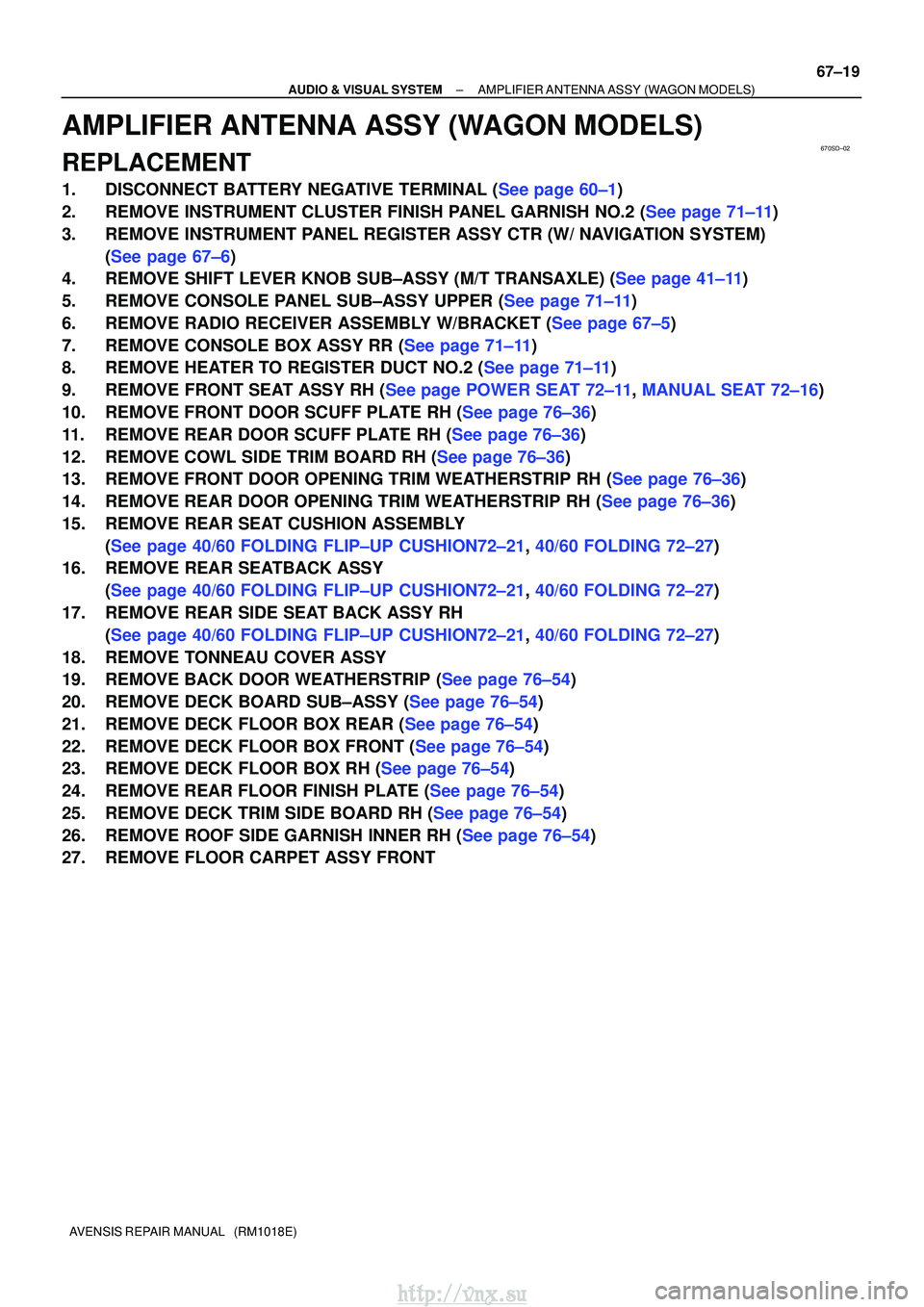

TOYOTA AVENSIS 2003 Service Repair Manual 670SD±02 ± AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (WAGON MODELS) 67±19 AVENSIS REPAIR MANUAL (RM1018E) AMPLIFIER ANTENNA ASSY (WAGON MODELS) REPLACEMENT 1.DISCONNECT BATTERY NEGATIVE TERMIN

Page 1548 of 2234

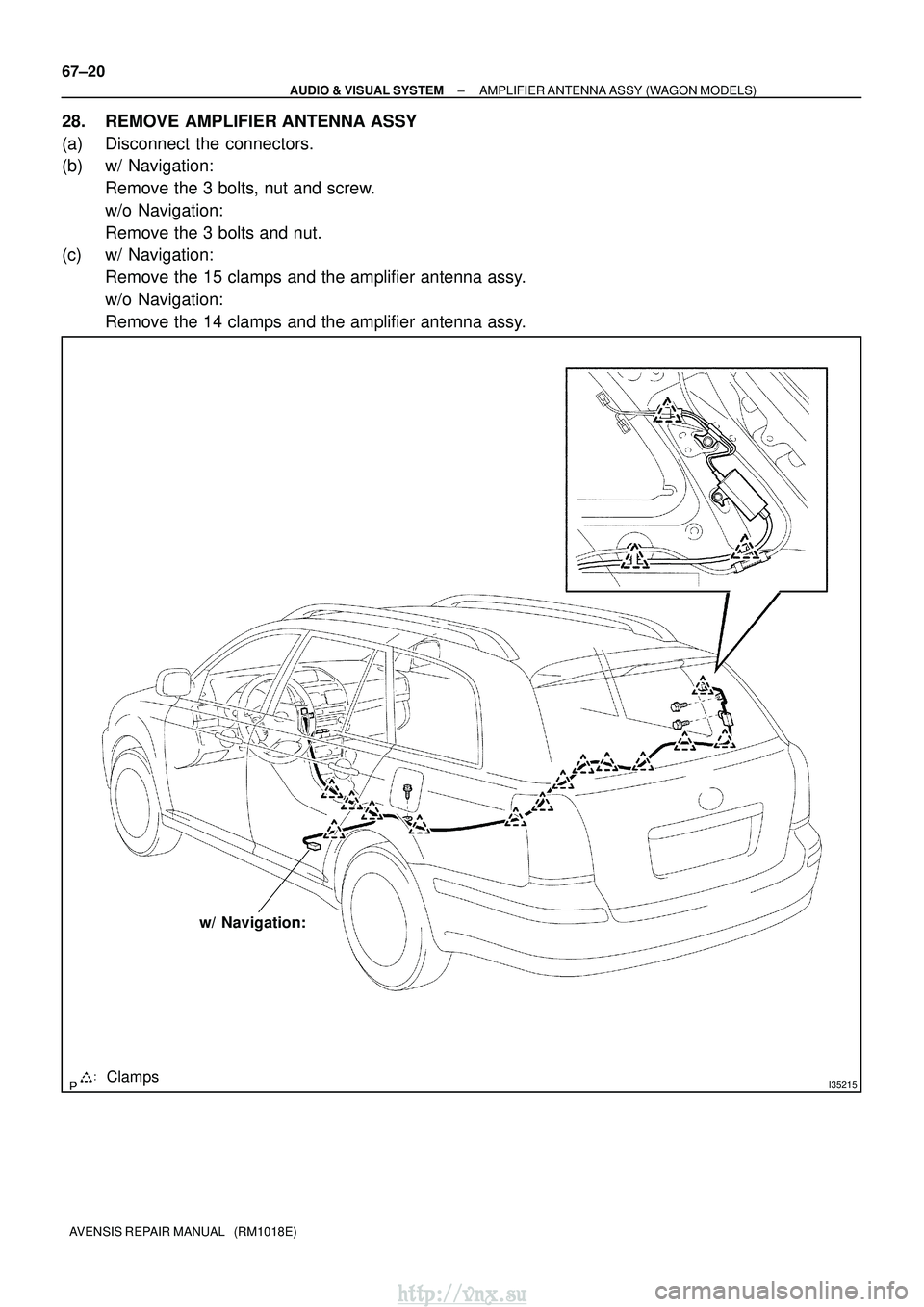

TOYOTA AVENSIS 2003 Service Repair Manual I35215Clamps w/ Navigation: 67±20 ± AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (WAGON MODELS) AVENSIS REPAIR MANUAL (RM1018E) 28. REMOVE AMPLIFIER ANTENNA ASSY (a) Disconnect the connectors. (b)

Page 1549 of 2234

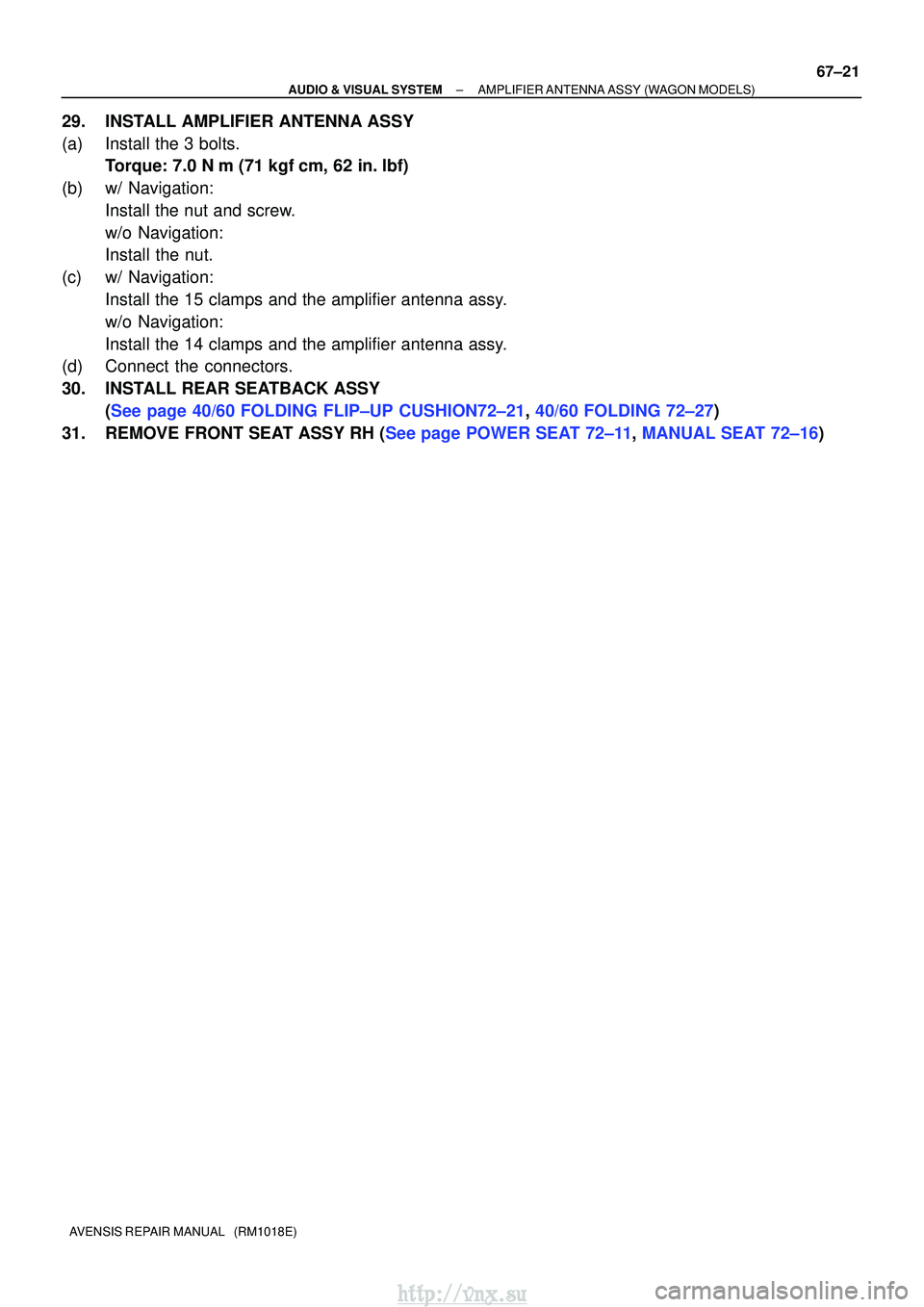

TOYOTA AVENSIS 2003 Service Repair Manual ± AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (WAGON MODELS) 67±21 AVENSIS REPAIR MANUAL (RM1018E) 29. INSTALL AMPLIFIER ANTENNA ASSY (a) Install the 3 bolts. Torque: 7.0 N m (71 kgf cm, 62 in.

Page 1550 of 2234

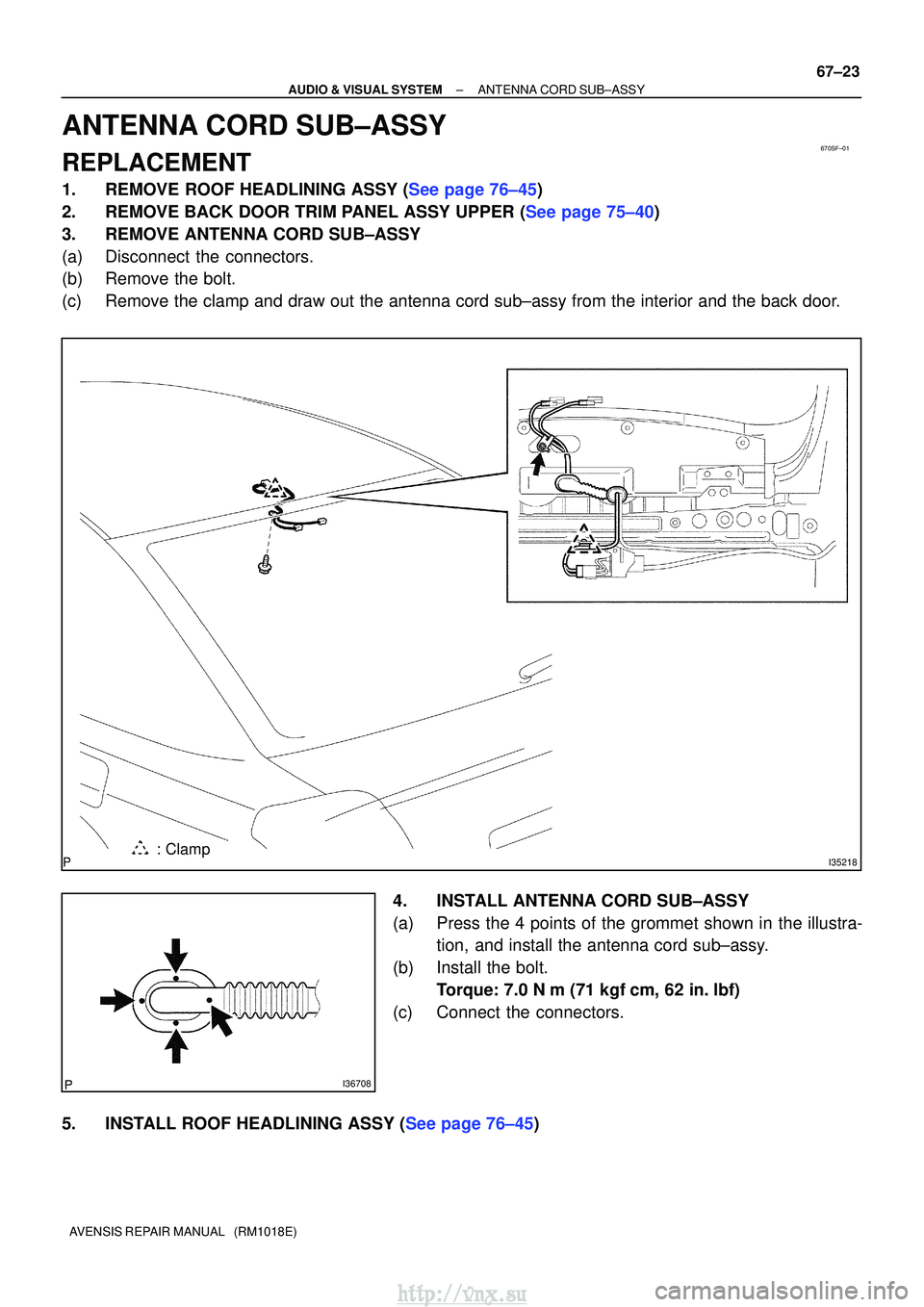

TOYOTA AVENSIS 2003 Service Repair Manual 670SF±01 I35218: Clamp I36708 ± AUDIO & VISUAL SYSTEMANTENNA CORD SUB±ASSY 67±23 AVENSIS REPAIR MANUAL (RM1018E) ANTENNA CORD SUB±ASSY REPLACEMENT 1.REMOVE ROOF HEADLINING ASSY (See page 76±45

Page 1551 of 2234

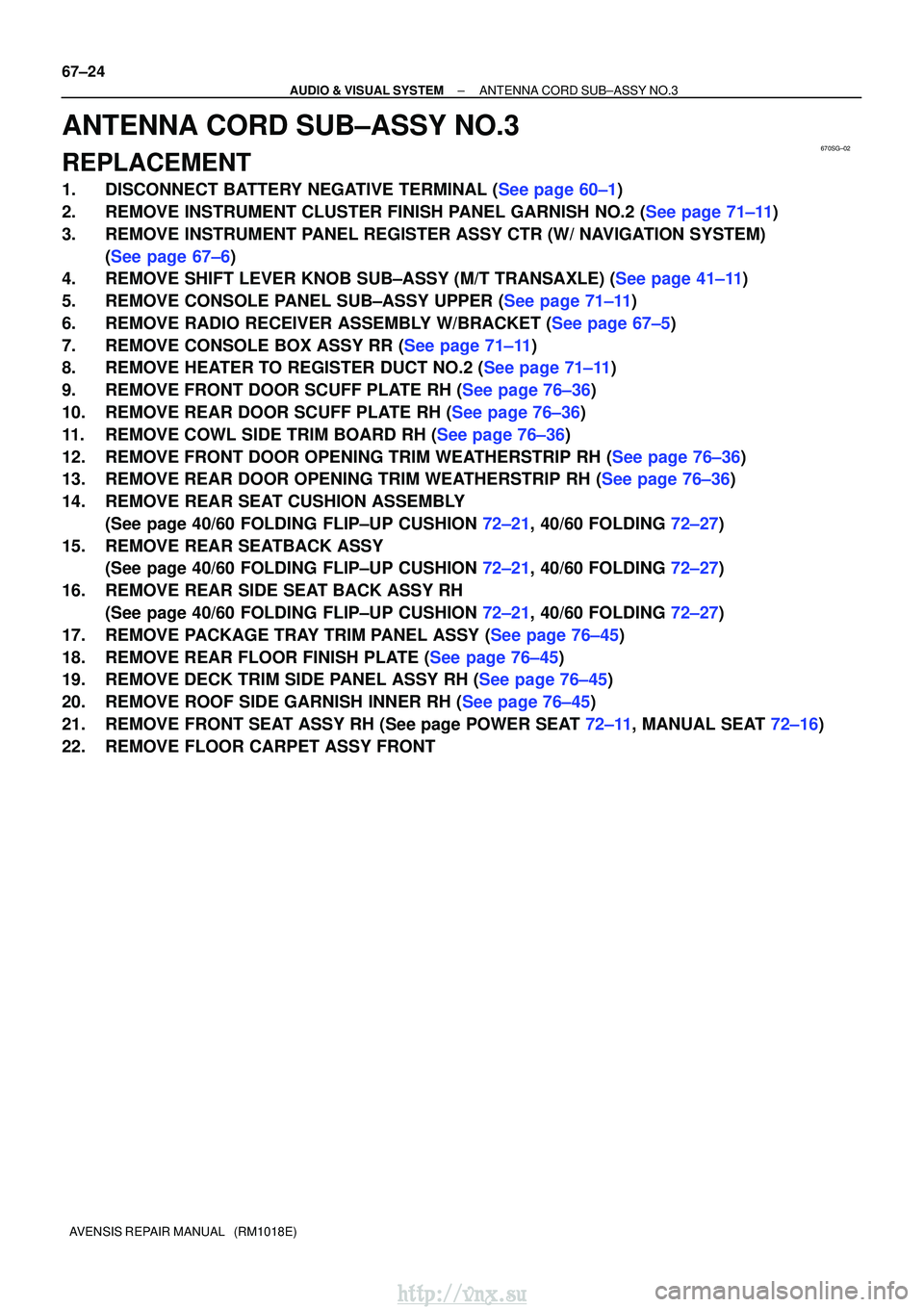

TOYOTA AVENSIS 2003 Service Repair Manual 670SG±02 67±24 ± AUDIO & VISUAL SYSTEM ANTENNA CORD SUB±ASSY NO.3 AVENSIS REPAIR MANUAL (RM1018E) ANTENNA CORD SUB±ASSY NO.3 REPLACEMENT 1.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)

Page 1552 of 2234

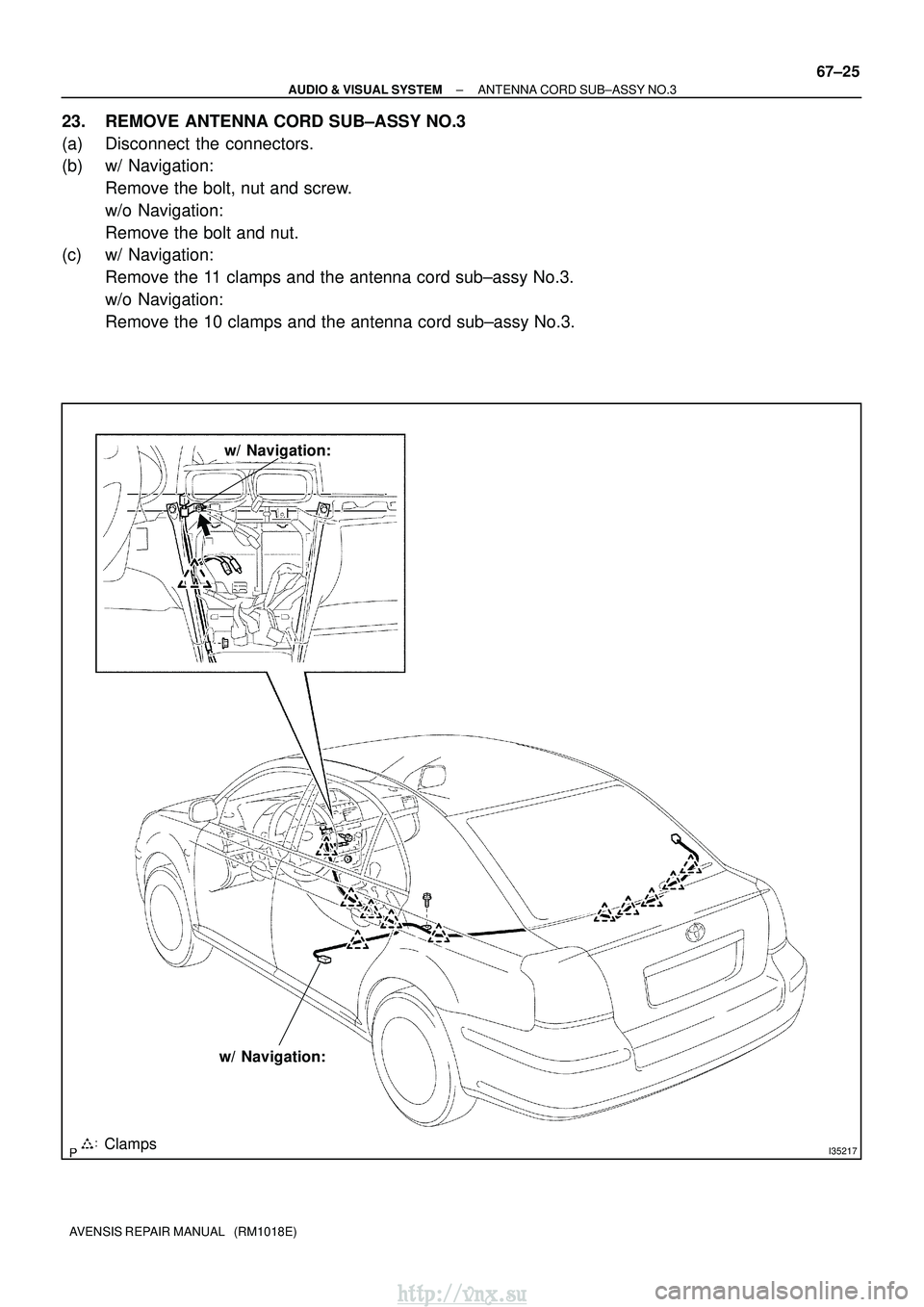

TOYOTA AVENSIS 2003 Service Repair Manual I35217Clamps w/ Navigation: w/ Navigation: ± AUDIO & VISUAL SYSTEM ANTENNA CORD SUB±ASSY NO.3 67±25 AVENSIS REPAIR MANUAL (RM1018E) 23. REMOVE ANTENNA CORD SUB±ASSY NO.3 (a) Disconnect the conne
