Page 1473 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 610CP±02
B66567
42 (430, 31)
42 (430, 31)
Nm (kgf cm ftlbf): Specified torque Rear Seat Cushion Assy
and Rear Seatback Assy
42 (430, 31)
Rear Seat
3 Point Type
Belt Assy OuterRear Seat Belt
Assy O

Page 1474 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 610ED±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
±

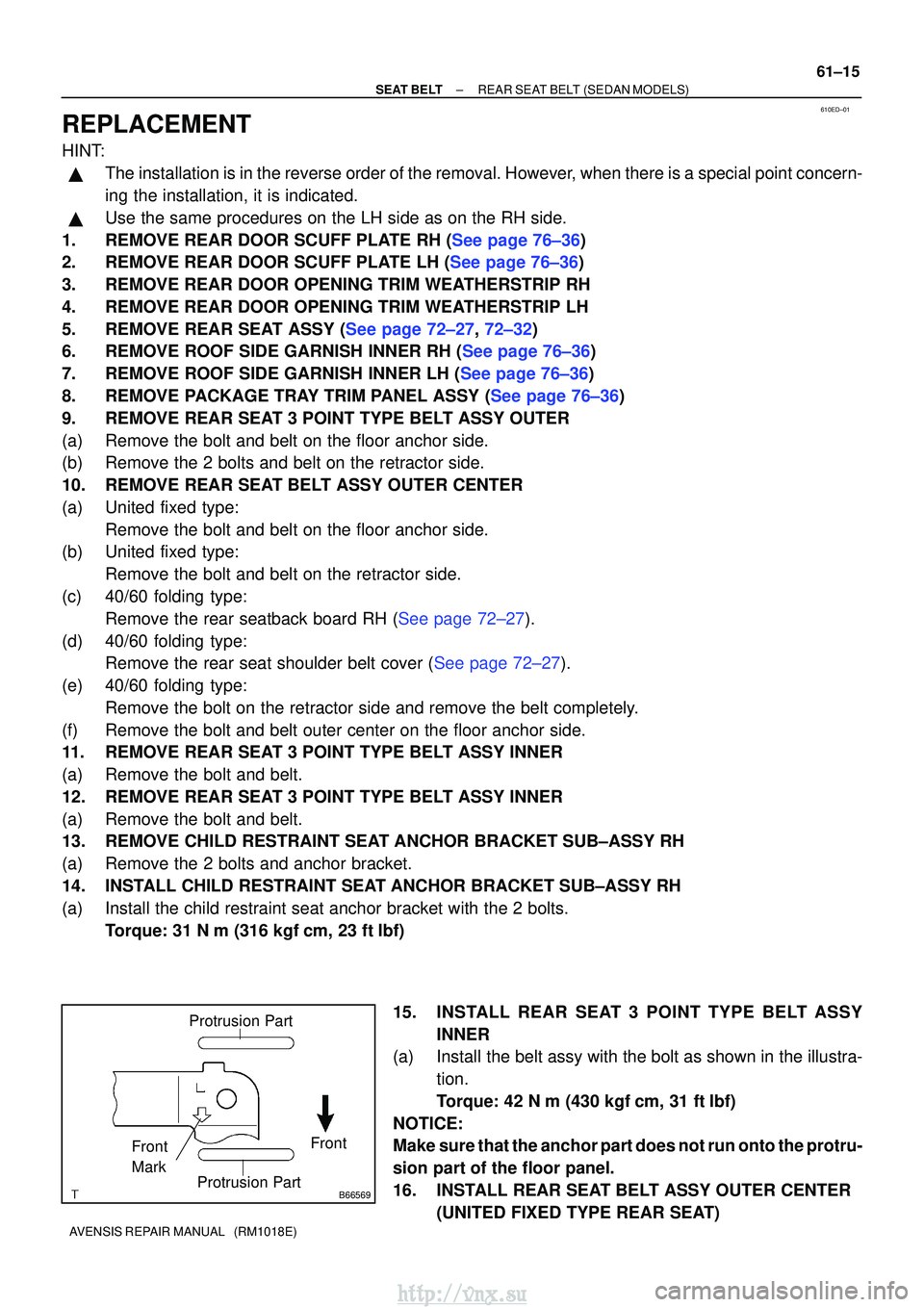

SEAT BELT REAR SEAT BELT (SEDAN MODELS)
61±15
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reve

610ED±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
±
SEAT BELT REAR SEAT BELT (SEDAN MODELS)
61±15
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.
Use the same procedures on the LH side as on the RH side.
1.REMOVE REAR DOOR SCUFF PLATE RH (See page 76±36)
2.REMOVE REAR DOOR SCUFF PLATE LH (See page 76±36)
3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
5.REMOVE REAR SEAT ASSY (See page 72±27, 72±32)
6.REMOVE ROOF SIDE GARNISH INNER RH (See page 76±36)
7.REMOVE ROOF SIDE GARNISH INNER LH (See page 76±36)
8.REMOVE PACKAGE TRAY TRIM PANEL ASSY (See page 76±36)
9. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
(a) Remove the bolt and belt on the floor anchor side.
(b) Remove the 2 bolts and belt on the retractor side.
10. REMOVE REAR SEAT BELT ASSY OUTER CENTER
(a) United fixed type: Remove the bolt and belt on the floor anchor side.
(b) United fixed type:
Remove the bolt and belt on the retractor side.
(c) 40/60 folding type: Remove the rear seatback board RH (See page 72±27).
(d) 40/60 folding type: Remove the rear seat shoulder belt cover (See page 72±27).
(e) 40/60 folding type: Remove the bolt on the retractor side and remove the belt completely.
(f) Remove the bolt and belt outer center on the floor anchor side.
11. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
12. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
13. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Remove the 2 bolts and anchor bracket.
14. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Install the child restraint seat anchor bracket with the 2 bolts. Torque: 31 N m (316 kgf cm, 23 ftlbf)
15. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Install the belt assy with the bolt as shown in the illustra-
tion.
Torque: 42 N m (430 kgf cm, 31 ftlbf)
NOTICE:
Make sure that the anchor part does not run onto the protru-
sion part of the floor panel.
16. INSTALL REAR SEAT BELT ASSY OUTER CENTER (UNITED FIXED TYPE REAR SEAT)
http://vnx.su

Page 1475 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B70205Lock
Unlock
45
61±16
±

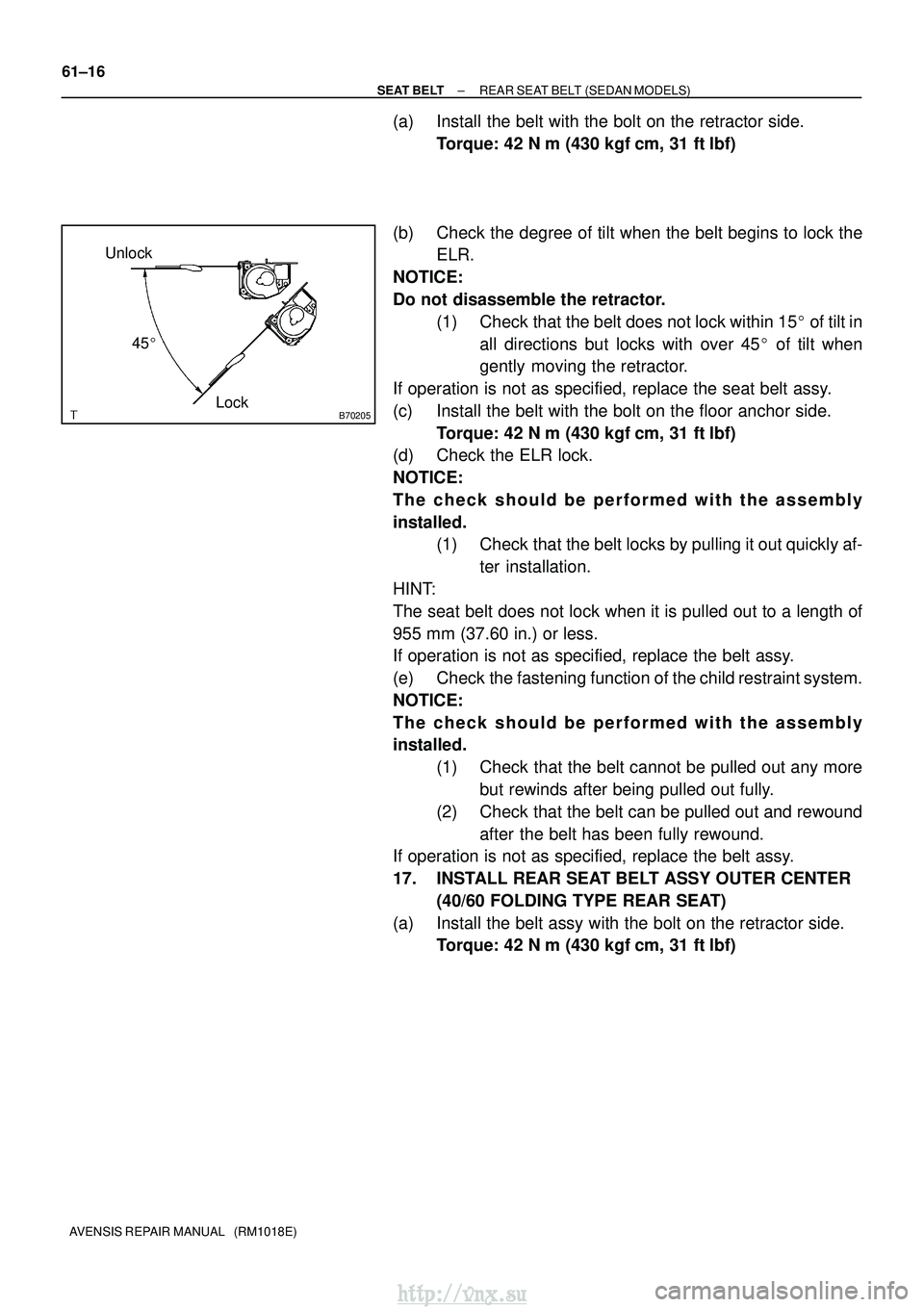

SEAT BELT REAR SEAT BELT (SEDAN MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
(a) Install the belt with the bolt on the retractor side. Torque: 42 N m (430 kgf cm, 31 ft

Page 1476 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B70206
LockUnlock
45
B66570
Protrusion Part
Front
Front
Mark
Protrusion Part
B70207Lock
Unlock
45
±

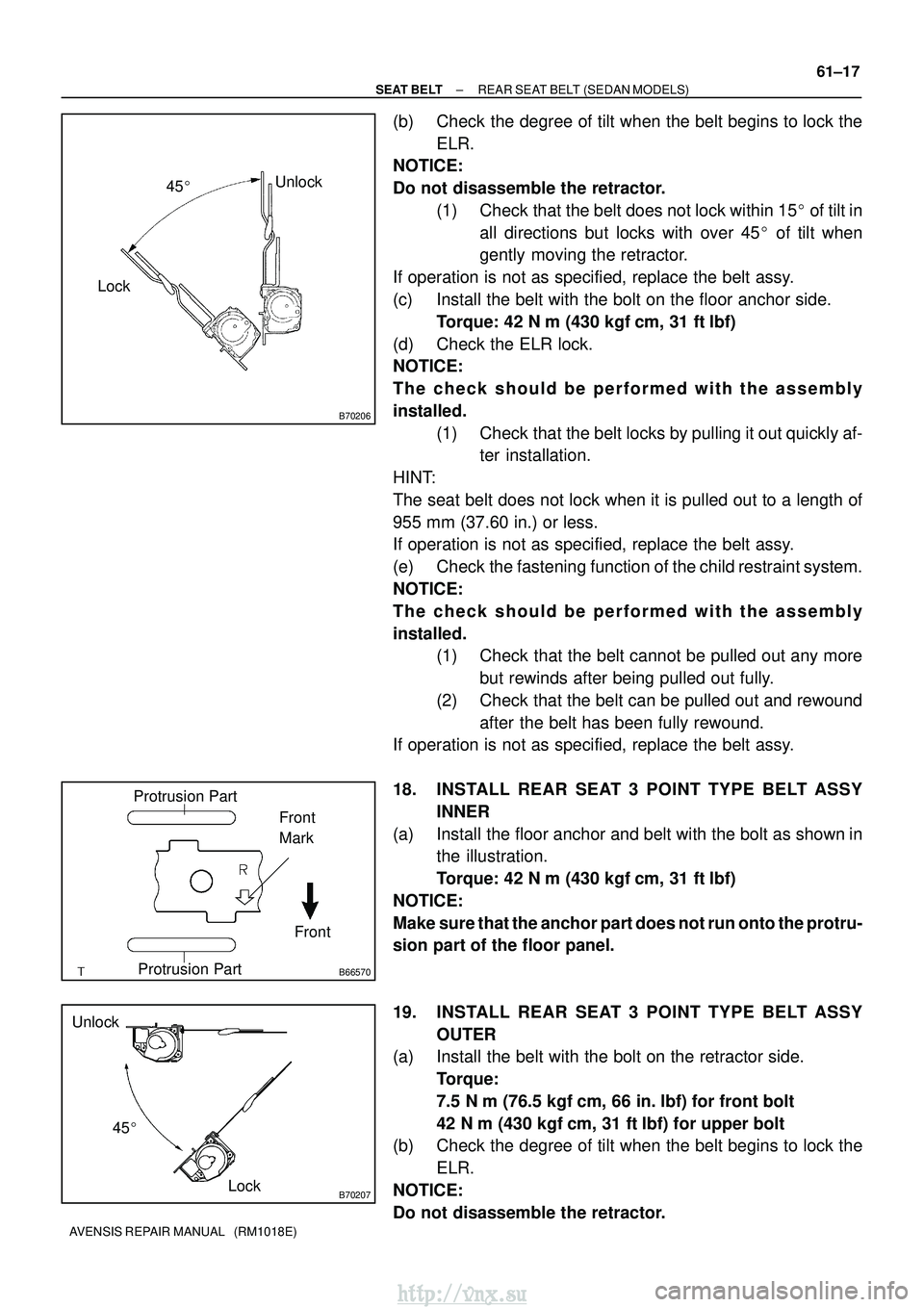

SEAT BELT REAR SEAT BELT (SEDAN MODELS)
61±17
AVENSIS REPAIR MANUAL (RM1018E)
(b) Check the d

Page 1477 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 61±18
±

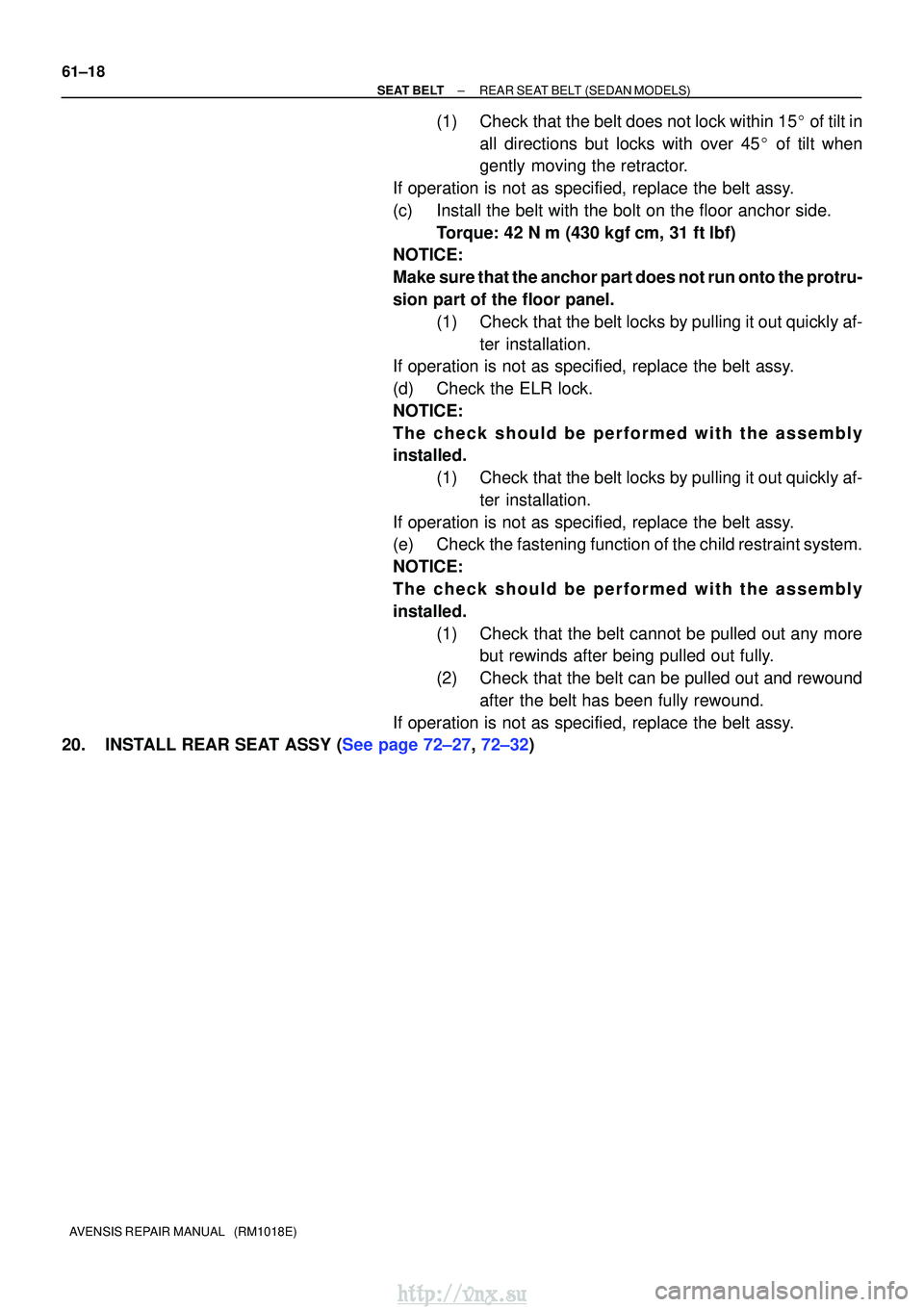

SEAT BELT REAR SEAT BELT (SEDAN MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
(1) Check that the belt does not lock within 15 of tilt in
all directions but locks with over 45 of tilt when
ge

Page 1478 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 610EB±01
A79910Nm (kgf cm ftlbf): Specified torque Rear Window Side
Garnish RH
Roof Side
Garnish Inner RH
Deck Trim
Side Board RH
Deck Floor
Box RH
Deck Floor
Box Front
Tonneau Cover Assy
Deck Boa

Page 1479 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 610EC±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
61±24
±

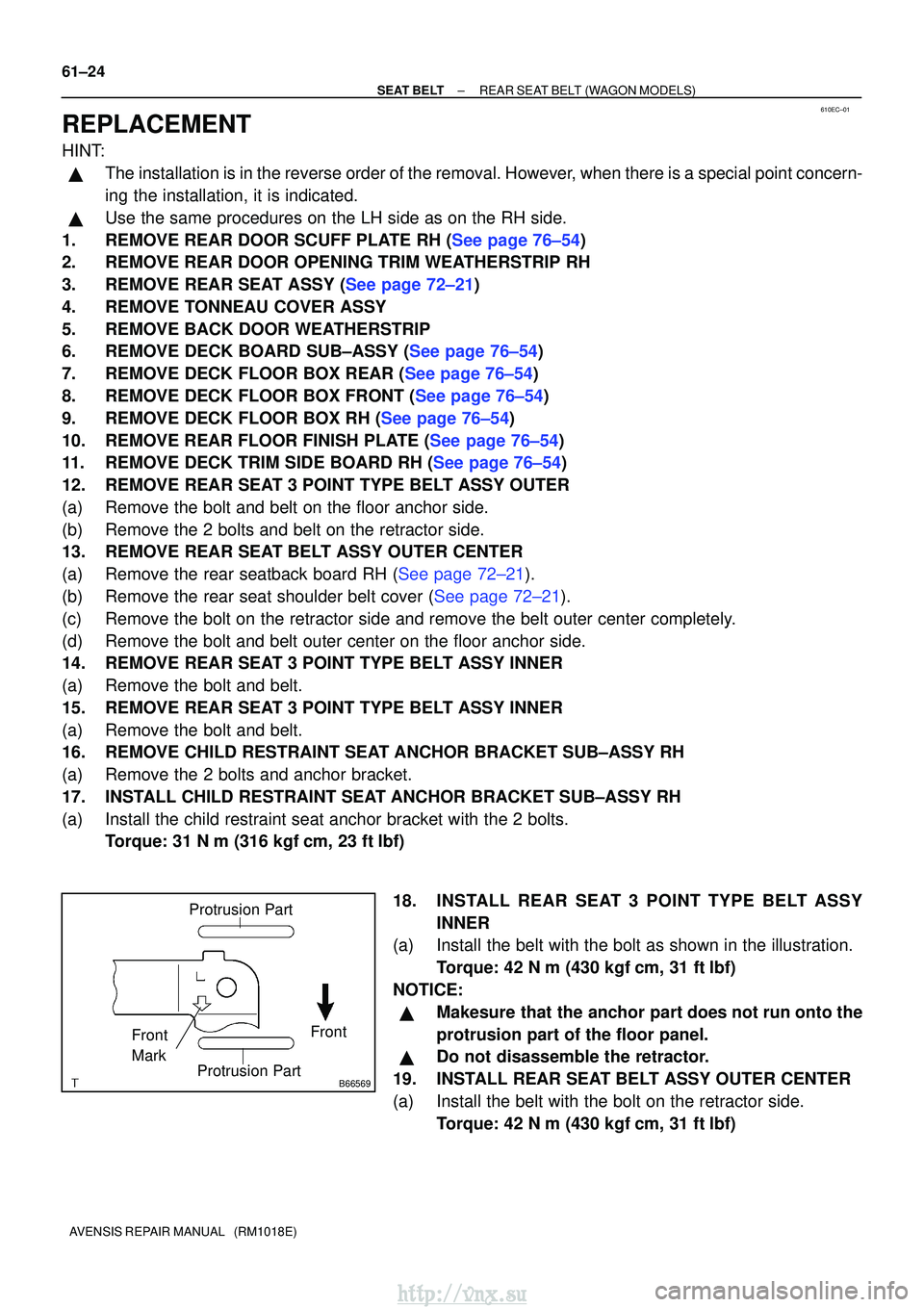

SEAT BELT REAR SEAT BELT (WAGON MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reve

610EC±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
61±24
±
SEAT BELT REAR SEAT BELT (WAGON MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.
Use the same procedures on the LH side as on the RH side.
1.REMOVE REAR DOOR SCUFF PLATE RH (See page 76±54)
2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
3.REMOVE REAR SEAT ASSY (See page 72±21)
4. REMOVE TONNEAU COVER ASSY
5. REMOVE BACK DOOR WEATHERSTRIP
6.REMOVE DECK BOARD SUB±ASSY (See page 76±54)
7.REMOVE DECK FLOOR BOX REAR (See page 76±54)
8.REMOVE DECK FLOOR BOX FRONT (See page 76±54)
9.REMOVE DECK FLOOR BOX RH (See page 76±54)
10.REMOVE REAR FLOOR FINISH PLATE (See page 76±54)
11.REMOVE DECK TRIM SIDE BOARD RH (See page 76±54)
12. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
(a) Remove the bolt and belt on the floor anchor side.
(b) Remove the 2 bolts and belt on the retractor side.
13. REMOVE REAR SEAT BELT ASSY OUTER CENTER
(a)Remove the rear seatback board RH (See page 72±21).
(b)Remove the rear seat shoulder belt cover (See page 72±21).
(c) Remove the bolt on the retractor side and remove the belt outer center c\
ompletely.
(d) Remove the bolt and belt outer center on the floor anchor side.
14. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
15. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
16. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Remove the 2 bolts and anchor bracket.
17. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Install the child restraint seat anchor bracket with the 2 bolts. Torque: 31 N m (316 kgf cm, 23 ftlbf)
18. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Install the belt with the bolt as shown in the illustration.
Torque: 42 N m (430 kgf cm, 31 ftlbf)
NOTICE:
Makesure that the anchor part does not run onto the
protrusion part of the floor panel.
Do not disassemble the retractor.
19. INSTALL REAR SEAT BELT ASSY OUTER CENTER
(a) Install the belt with the bolt on the retractor side. Torque: 42 N m (430 kgf cm, 31 ftlbf)
http://vnx.su

Page 1480 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B70206
LockUnlock
45
B66570
Protrusion Part
Front
Front
Mark
Protrusion Part
B66568Lock
Unlock
45
±

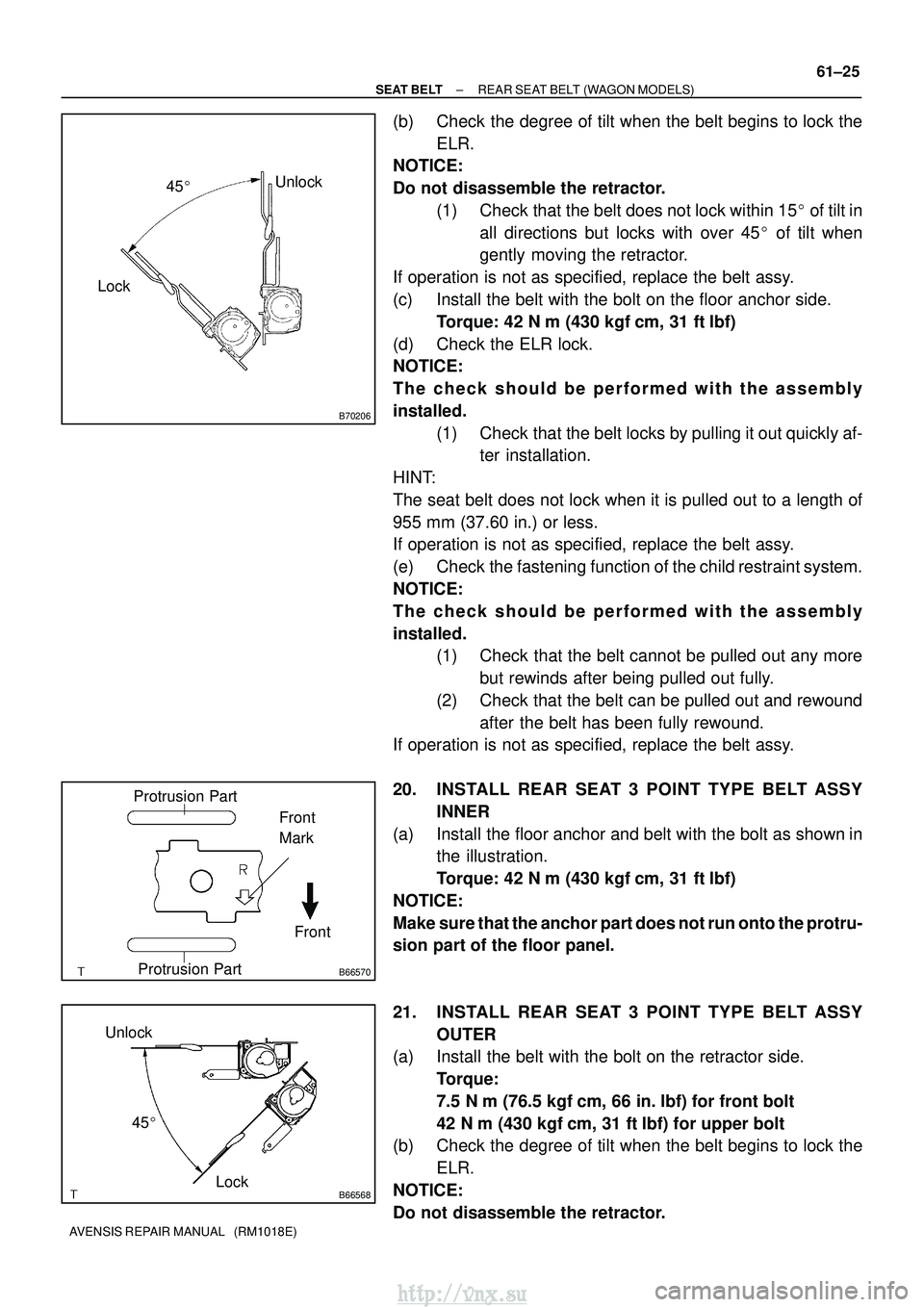

SEAT BELT REAR SEAT BELT (WAGON MODELS)
61±25
AVENSIS REPAIR MANUAL (RM1018E)
(b) Check the d
