Page 561 of 2234

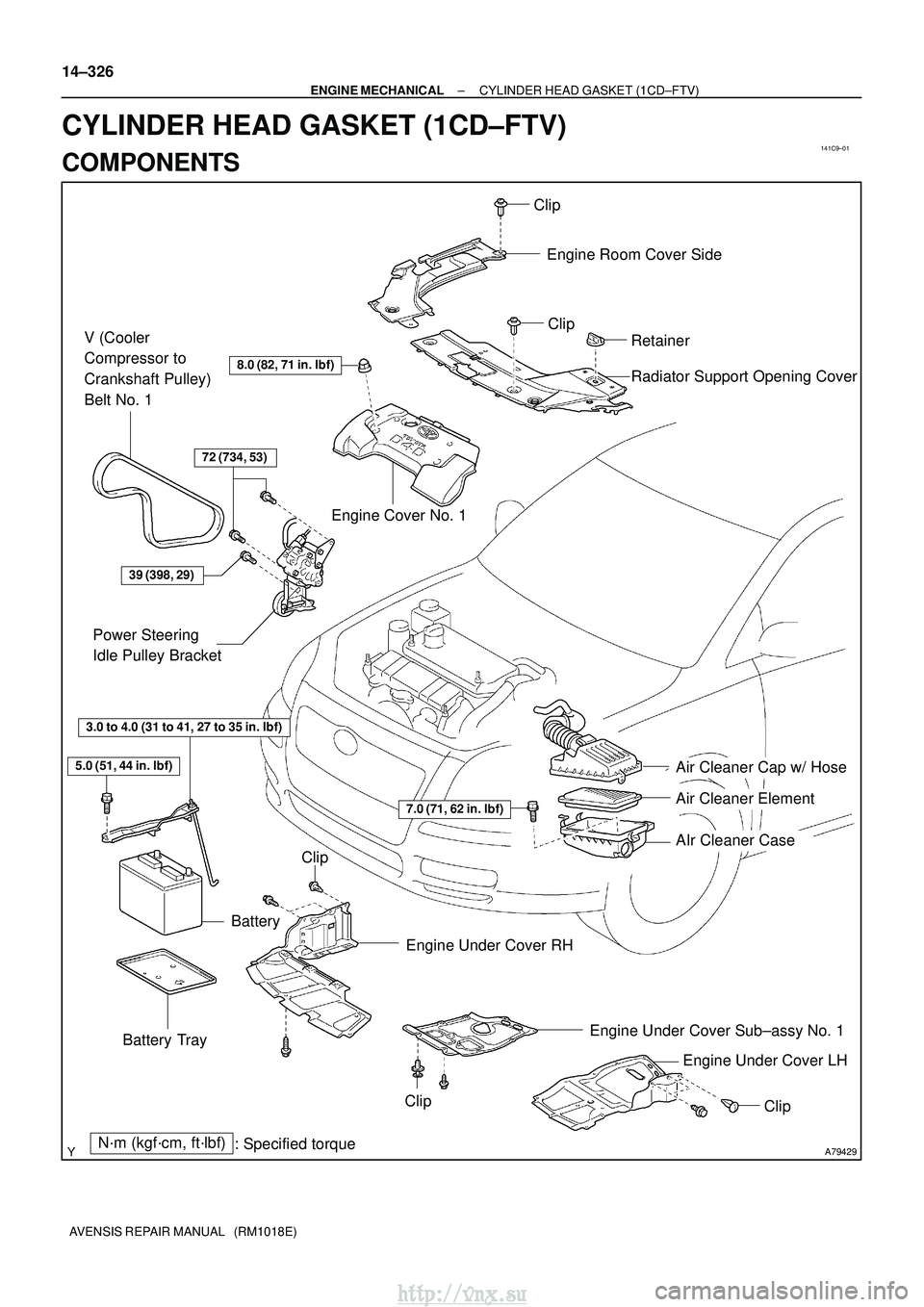

TOYOTA AVENSIS 2003 Service Repair Manual 141C9±01
A79429N´m (kgf´cm, ft´lbf): Specified torque
8.0 (82, 71 in.lbf)
72 (734, 53)
39 (398, 29)
5.0 (51, 44 in. lbf)
3.0 to 4.0 (31 to 41, 27 to 35 in. lbf)
Engine Cover No. 1Engine Room Co

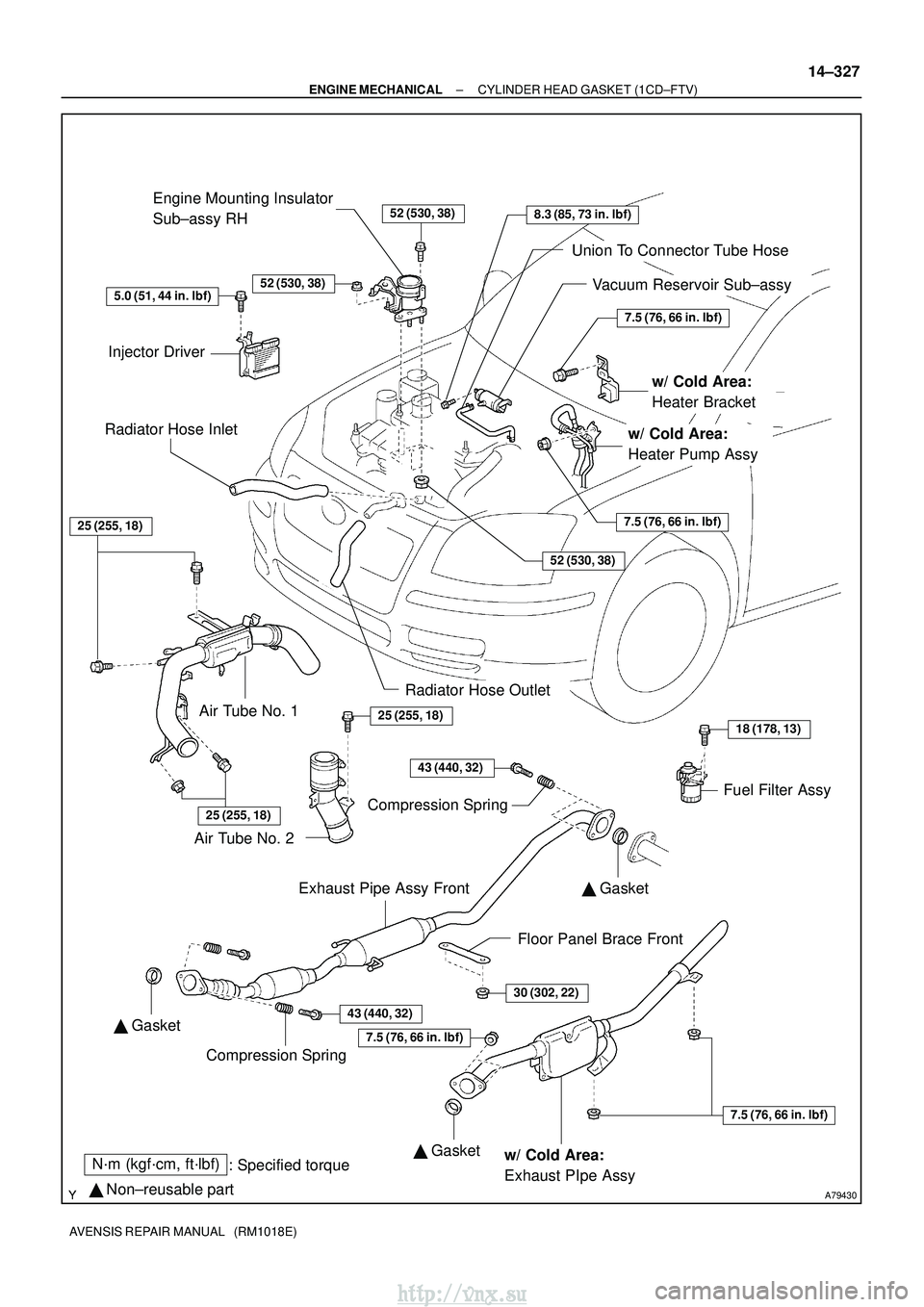

Page 562 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79430
N´m (kgf´cm, ft´lbf): Specified torque
Non±reusable part
52 (530, 38)
52 (530, 38)
7.5 (76, 66 in. lbf)
7.5 (76, 66 in. lbf)
52 (530, 38)
25 (255, 18)
25 (255, 18)
43 (440, 32)
18 (178

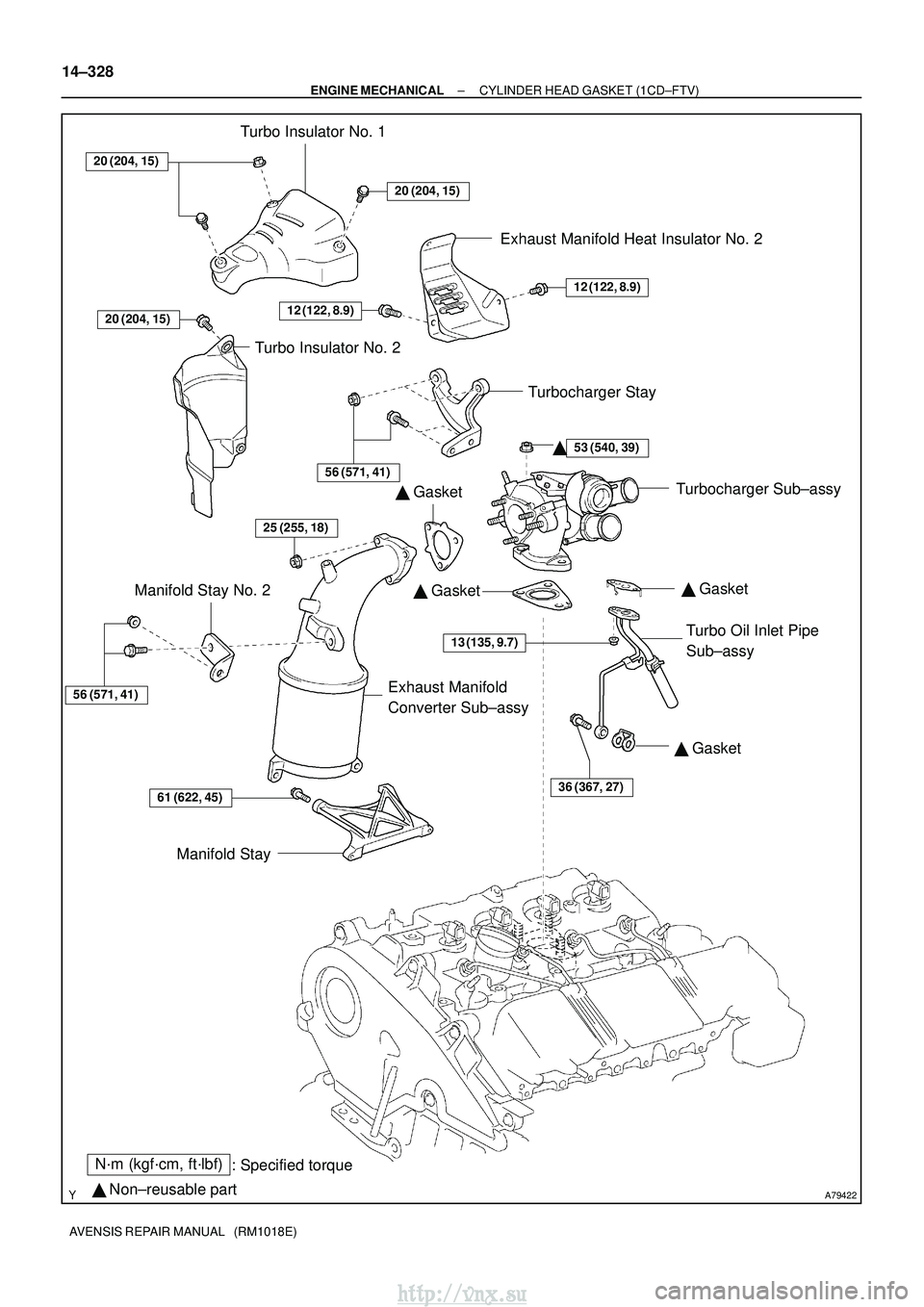

Page 563 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79422
N´m (kgf´cm, ft´lbf): Specified torque
Non±reusable part
Gasket
Gasket

Gasket
20 (204, 15)
20 (204, 15)
12 (122, 8.9)
53 (540, 39)
13 (135, 9.7)
36 (367, 27)61 (622, 45)
56 (571,

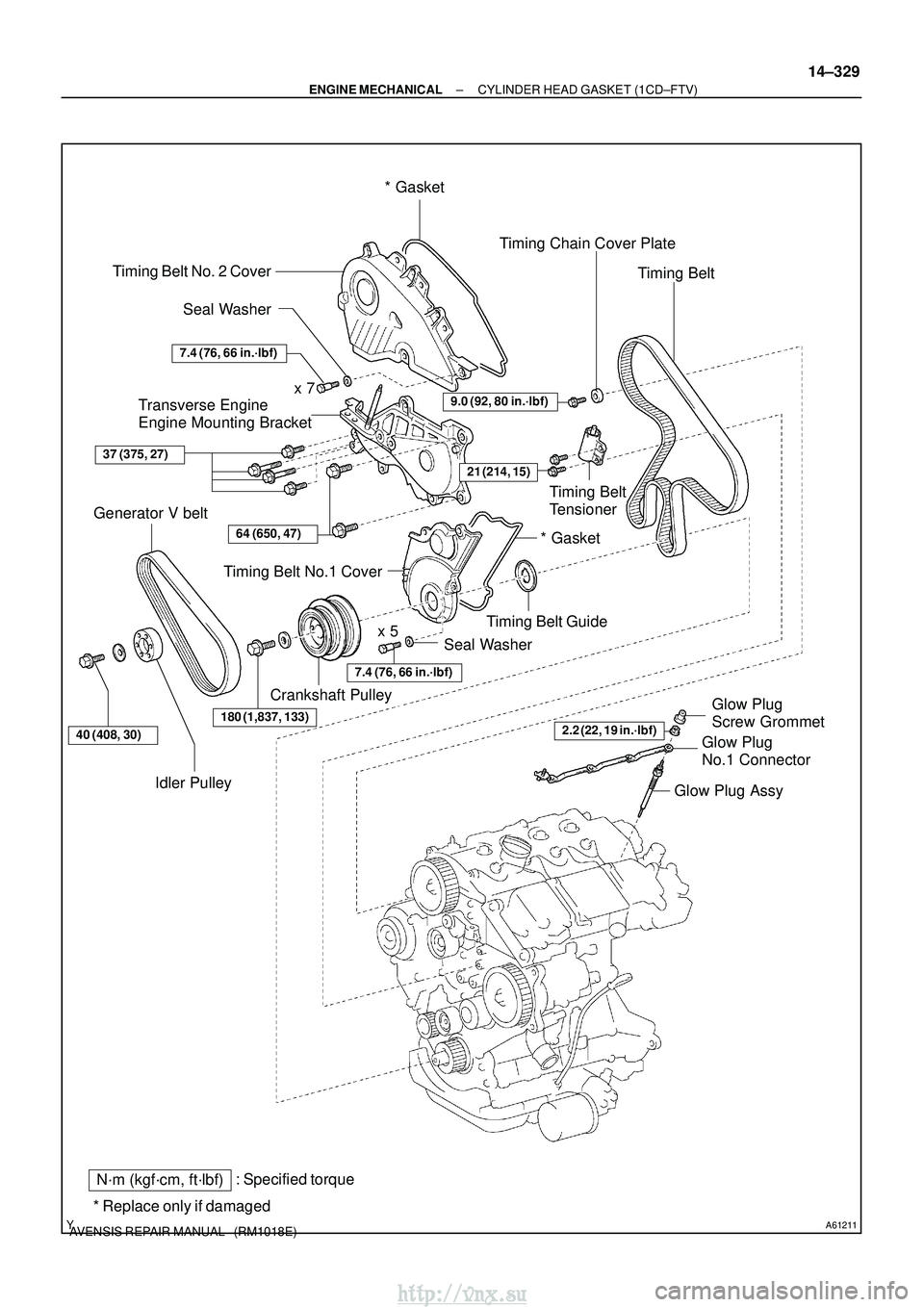

Page 564 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A61211
: Specified torqueN´m (kgf´cm, ft´lbf)
* Replace only if damaged Timing Belt No. 2 Cover
Transverse Engine
Engine Mounting Bracket
Seal Washer
Timing Belt No.1 Cover
Crankshaft Pulley
Seal

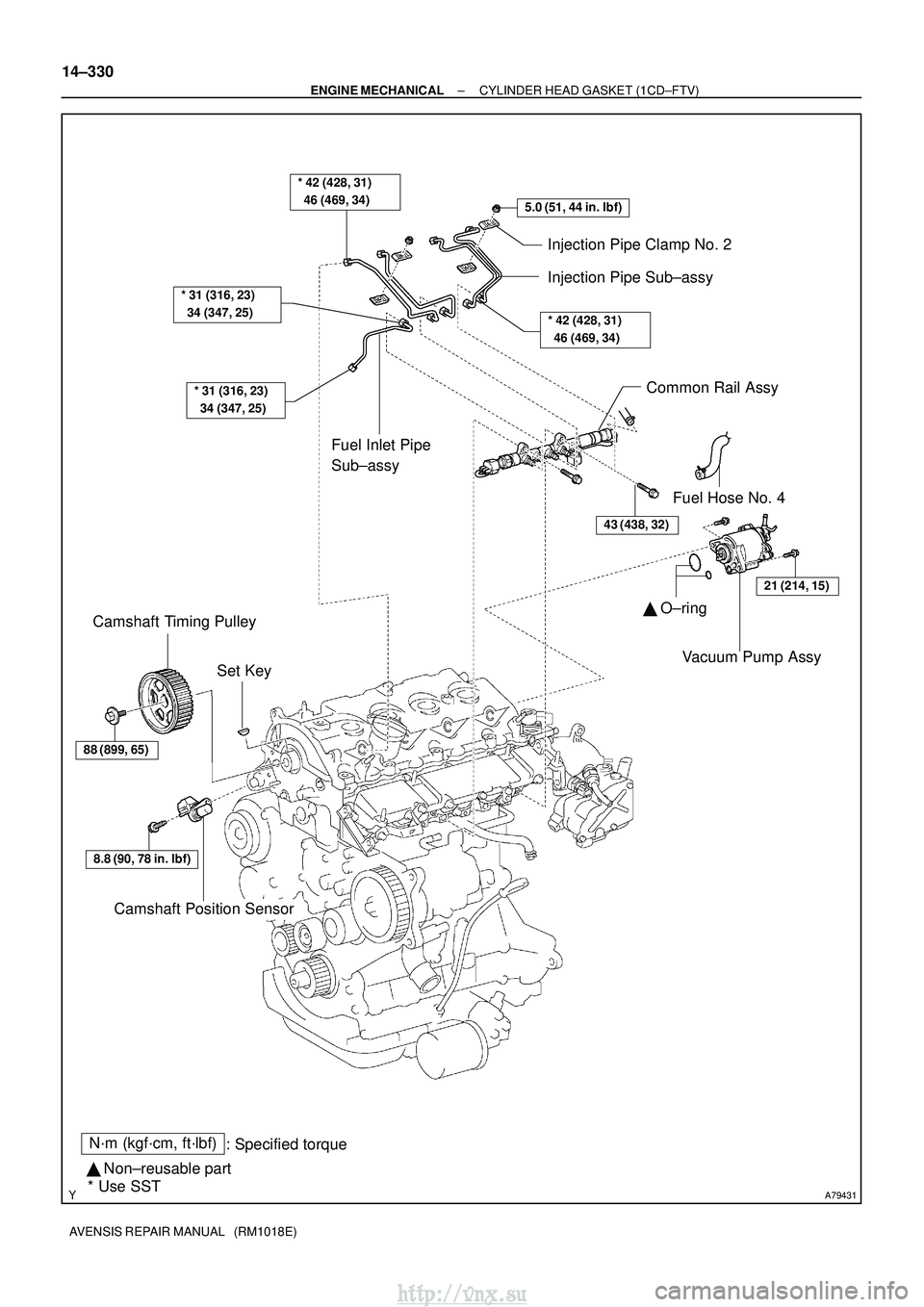

Page 565 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79431
N´m (kgf´cm, ft´lbf): Specified torque
Non±reusable part
* Use SST
5.0 (51, 44 in. lbf)
* 31 (316, 23)
34 (347, 25)
* 31 (316, 23)
34 (347, 25)
Injection Pipe Clamp No. 2
Injectio

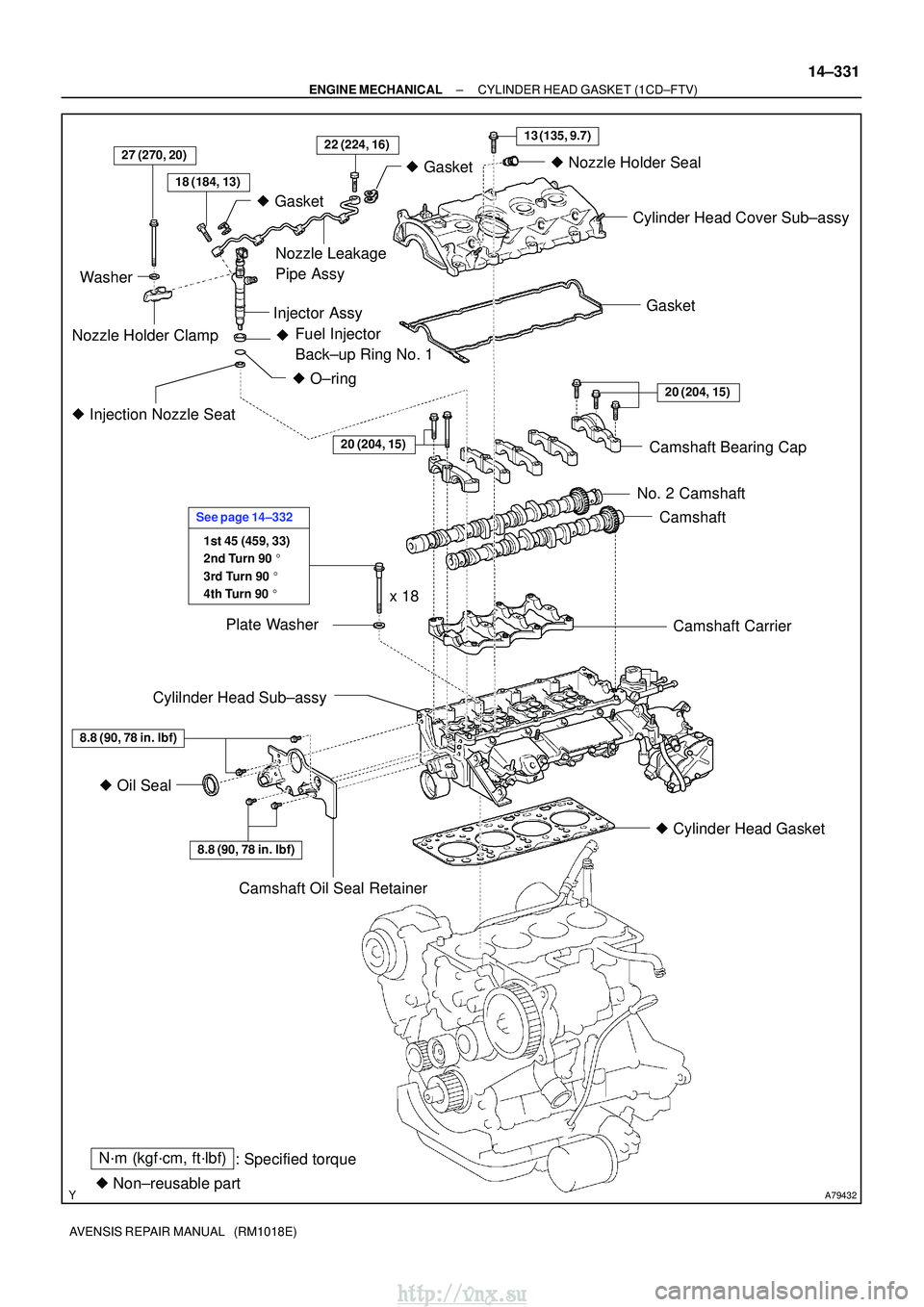

Page 566 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79432
N´m (kgf´cm, ft´lbf): Specified torque
Non±reusable part Gasket
18 (184, 13)
27 (270, 20)22 (224, 16)13 (135, 9.7)
Gasket
O±ring Fuel Injector
Back±up Ring No. 1

Injection No

Page 567 of 2234

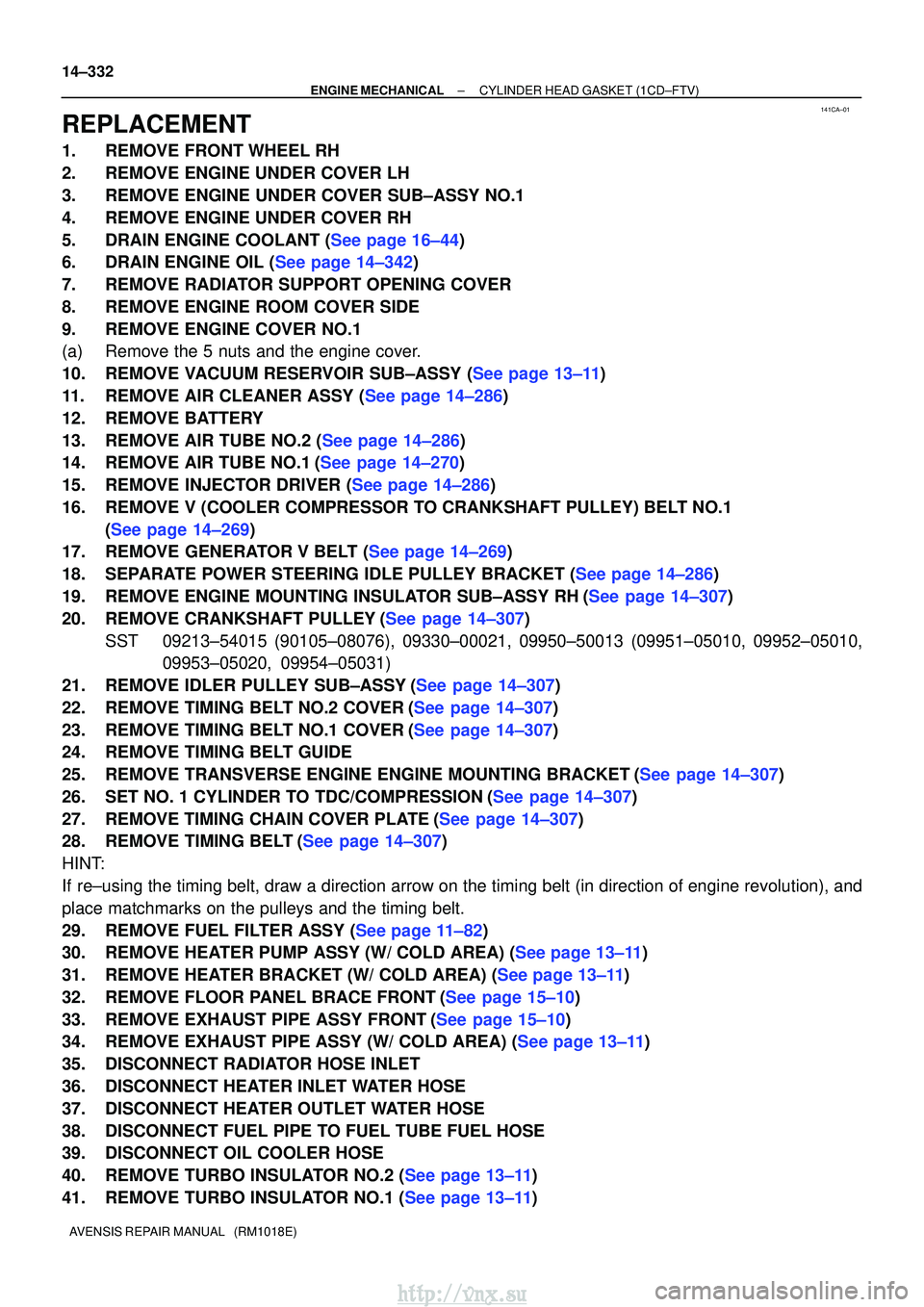

TOYOTA AVENSIS 2003 Service Repair Manual 141CA±01
14±332
±
ENGINE MECHANICALCYLINDER HEAD GASKET(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE FRONT WHEEL RH
2.REMOVE ENGINE UNDER COVER LH
3.REMOVE ENGINE UNDER COVER SU

141CA±01
14±332
±
ENGINE MECHANICALCYLINDER HEAD GASKET(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE FRONT WHEEL RH
2.REMOVE ENGINE UNDER COVER LH
3.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1
4.REMOVE ENGINE UNDER COVER RH
5.DRAIN ENGINE COOLANT (See page 16±44)
6.DRAIN ENGINE OIL (See page 14±342)
7. REMOVE RADIATOR SUPPORT OPENING COVER
8. REMOVE ENGINE ROOM COVER SIDE
9. REMOVE ENGINE COVER NO.1
(a) Remove the 5 nuts and the engine cover.
10.REMOVE VACUUM RESERVOIR SUB±ASSY (See page 13±11)
11.REMOVE AIR CLEANER ASSY (See page 14±286)
12. REMOVE BATTERY
13.REMOVE AIR TUBE NO.2 (See page 14±286)
14.REMOVE AIR TUBE NO.1(See page 14±270)
15.REMOVE INJECTOR DRIVER (See page 14±286)
16. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 14±269)
17.REMOVE GENERATOR V BELT (See page 14±269)
18.SEPARATE POWER STEERING IDLE PULLEY BRACKET (See page 14±286)
19.REMOVE ENGINE MOUNTING INSULATOR SUB±ASSY RH(See page 14±307)
20.REMOVE CRANKSHAFT PULLEY(See page 14±307)
SST 09213±54015 (90105±08076), 09330±00021, 09950±50013 (0995\
1±05010, 09952±05010, 09953±05020, 09954±05031)
21.REMOVE IDLER PULLEY SUB±ASSY(See page 14±307)
22.REMOVE TIMING BELT NO.2 COVER(See page 14±307)
23.REMOVE TIMING BELT NO.1 COVER(See page 14±307)
24. REMOVE TIMING BELT GUIDE
25.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET(See page 14±307)
26.SET NO. 1 CYLINDER TO TDC/COMPRESSION(See page 14±307)
27.REMOVE TIMING CHAIN COVER PLATE(See page 14±307)
28.REMOVE TIMING BELT(See page 14±307)
HINT:
If re±using the timing belt, draw a direction arrow on the timing belt (\
in direction of engine revolution), and
place matchmarks on the pulleys and the timing belt.
29.REMOVE FUEL FILTER ASSY (See page 11±82)
30.REMOVE HEATER PUMP ASSY (W/ COLD AREA) (See page 13±11)
31.REMOVE HEATER BRACKET (W/ COLD AREA) (See page 13±11)
32.REMOVE FLOOR PANEL BRACE FRONT(See page 15±10)
33.REMOVE EXHAUST PIPE ASSY FRONT(See page 15±10)
34.REMOVE EXHAUST PIPE ASSY (W/ COLD AREA) (See page 13±11)
35. DISCONNECT RADIATOR HOSE INLET
36. DISCONNECT HEATER INLET WATER HOSE
37. DISCONNECT HEATER OUTLET WATER HOSE
38. DISCONNECT FUEL PIPE TO FUEL TUBE FUEL HOSE
39. DISCONNECT OIL COOLER HOSE
40.REMOVE TURBO INSULATOR NO.2 (See page 13±11)
41.REMOVE TURBO INSULATOR NO.1 (See page 13±11)
http://vnx.su

Page 568 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79148
SST
A79143
SST
±
ENGINE MECHANICAL CYLINDER HEAD GASKET (1CD±FTV)
14±333
AVENSIS REPAIR MANUAL (RM1018E)
42.REMOVE EXHAUST MANIFOLD HEAT INSULATOR NO.2 (See page 13±11)
43.REMOVE MANIFOLD
