Page 281 of 2234

A60552
30
20
105
3
2
1
0.5
0.3
0.2
0.1
RESISTANCE k
±20 0 20 40 60 80 100 (±4)
TEMPERATURE C( F)
(32) (68) (104)(140)(176)(212)
A65174
Ohmmeter
A60553
±
ENGINE CONTROL SYSTEM SFI SYSTEM (1ZZ±FE/3ZZ±FE)
10±5
AVENSIS REPAIR MANUAL (RM1018E)

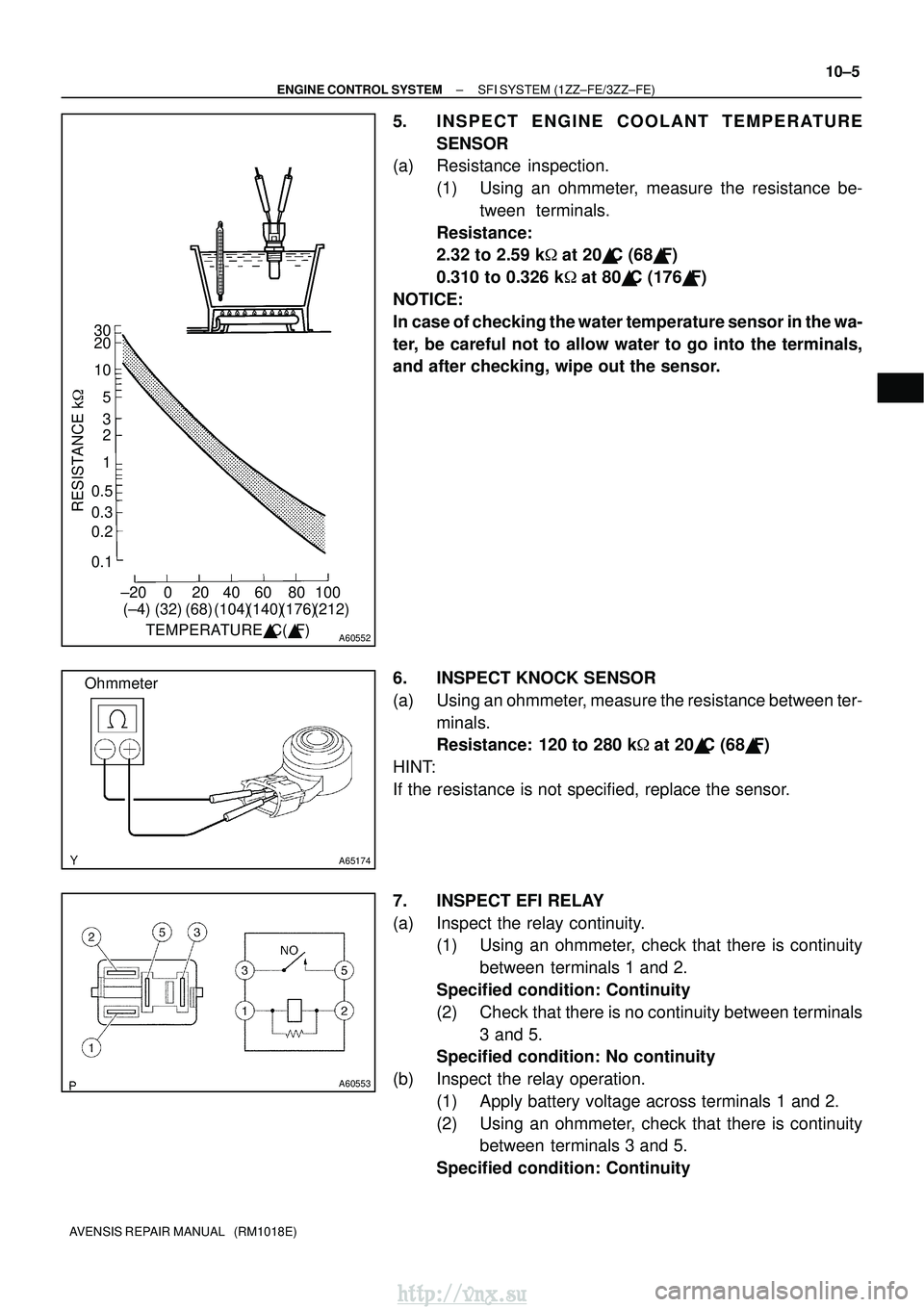

5. INSPECT ENGINE COOLANT TEMPERA TURE
SENSOR
(a) Resistance inspection.
(1) Using an ohmmeter, measure the resistance be-tween terminals.
Resistance:
2.32 to 2.59 k at 20 C (68 F)
0.310 to 0.326 k at 80 C (176 F)
NOTICE:
In case of checking the water temperature sensor in the wa-
ter, be careful not to allow water to go into the terminals,
and after checking, wipe out the sensor.
6. INSPECT KNOCK SENSOR
(a) Using an ohmmeter, measure the resistance between ter- minals.
Resistance: 120 to 280 k at 20 C (68 F)
HINT:
If the resistance is not specified, replace the sensor.
7. INSPECT EFI RELAY
(a) Inspect the relay continuity. (1) Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
Specified condition: Continuity
(2) Check that there is no continuity between terminals 3 and 5.
Specified condition: No continuity
(b) Inspect the relay operation. (1) Apply battery voltage across terminals 1 and 2.
(2) Using an ohmmeter, check that there is continuitybetween terminals 3 and 5.
Specified condition: Continuity
http://vnx.su
Page 282 of 2234
A60553
10±6
±
ENGINE CONTROL SYSTEM SFI SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

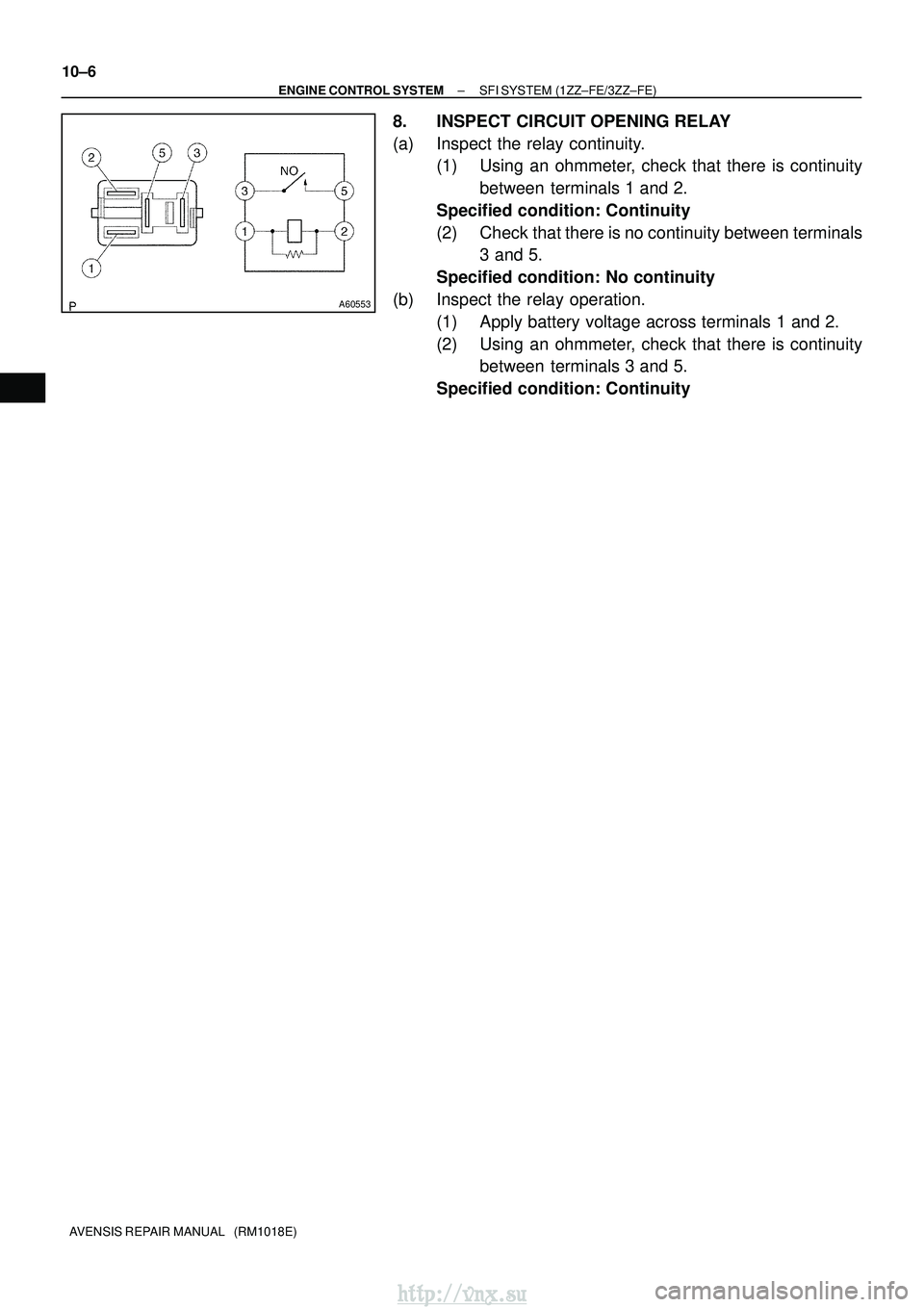

8. INSPECT CIRCUIT OPENING RELAY
(a) Inspect the relay continuity. (1) Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
Specified condition: Continuity
(2) Check that there is no continuity between terminals 3 and 5.
Specified condition: No continuity
(b) Inspect the relay operation. (1) Apply battery voltage across terminals 1 and 2.
(2) Using an ohmmeter, check that there is continuitybetween terminals 3 and 5.
Specified condition: Continuity
http://vnx.su
Page 283 of 2234

100EX±02
A75903
Air
A79035
VG
EVG
A79035
E2
EMPS
±
ENGINE CONTROL SYSTEMSFI SYSTEM(1ZZ±FE/3ZZ±FE)
10±1
AVENSIS REPAIR MANUAL (RM1018E)

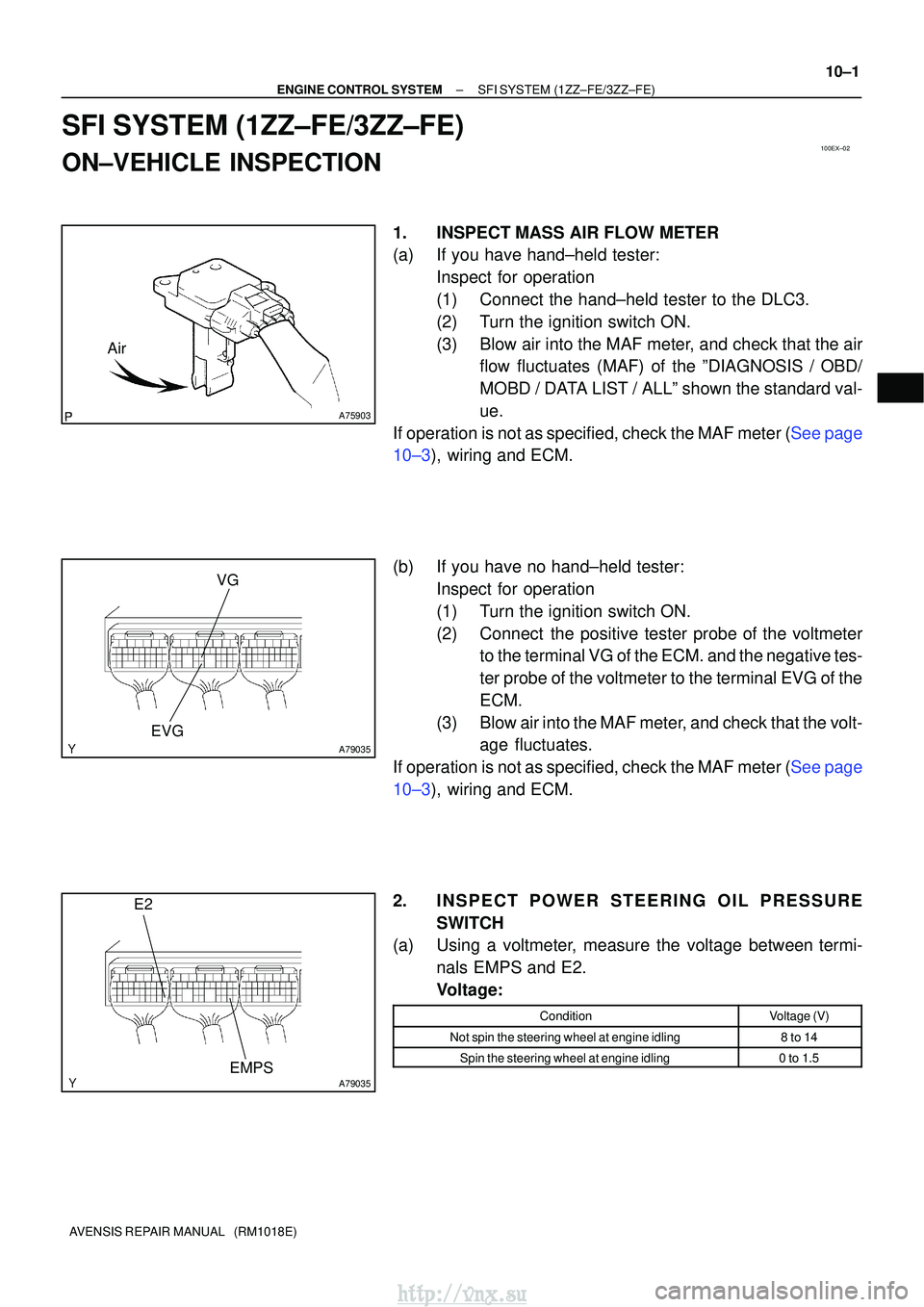

SFI SYSTEM(1ZZ±FE/3ZZ±FE)
ON±VEHICLE INSPECTION
1.INSPECTMASS AIR FLOW METER
(a)If you have hand±held tester:
Inspect for operation
(1)Connect the hand±held tester to the DLC3.
(2)Turn the ignition switch ON.
(3)Blow air into the MAF meter, and check that the airflow fluctuates (MAF) of the ºDIAGNOSIS / OBD/
MOBD / DATA LIST / ALLº shown the standard val-
ue.
If operation is not as specified, check the MAF meter (See page
10±3), wiring and ECM.
(b)If you have no hand±held tester: Inspect for operation
(1)Turn the ignition switch ON.
(2)Connect the positive tester probe of the voltmeterto the terminal VG of the ECM. and the negative tes-
ter probe of the voltmeter to the terminal EVG of the
ECM.
(3)Blow air into the MAF meter, and check that the volt- age fluctuates.
If operation is not as specified, check the MAF meter (See page
10±3), wiring and ECM.
2. INSPECT POWER STEERING OIL PRESSURE SWITCH
(a) Using a voltmeter, measure the voltage between termi-
nals EMPS and E2.
Voltage:
ConditionVoltage (V)
Not spin the steering wheel at engine idling8 to 14
Spin the steering wheel at engine idling0 to 1.5
http://vnx.su
Page 284 of 2234
A60620
Close
Open
Valve
VaIve
Open
Close
Valve
1ZZ±FE:
3ZZ±FE: VaIve
10±2
±
ENGINE CONTROL SYSTEM SFI SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

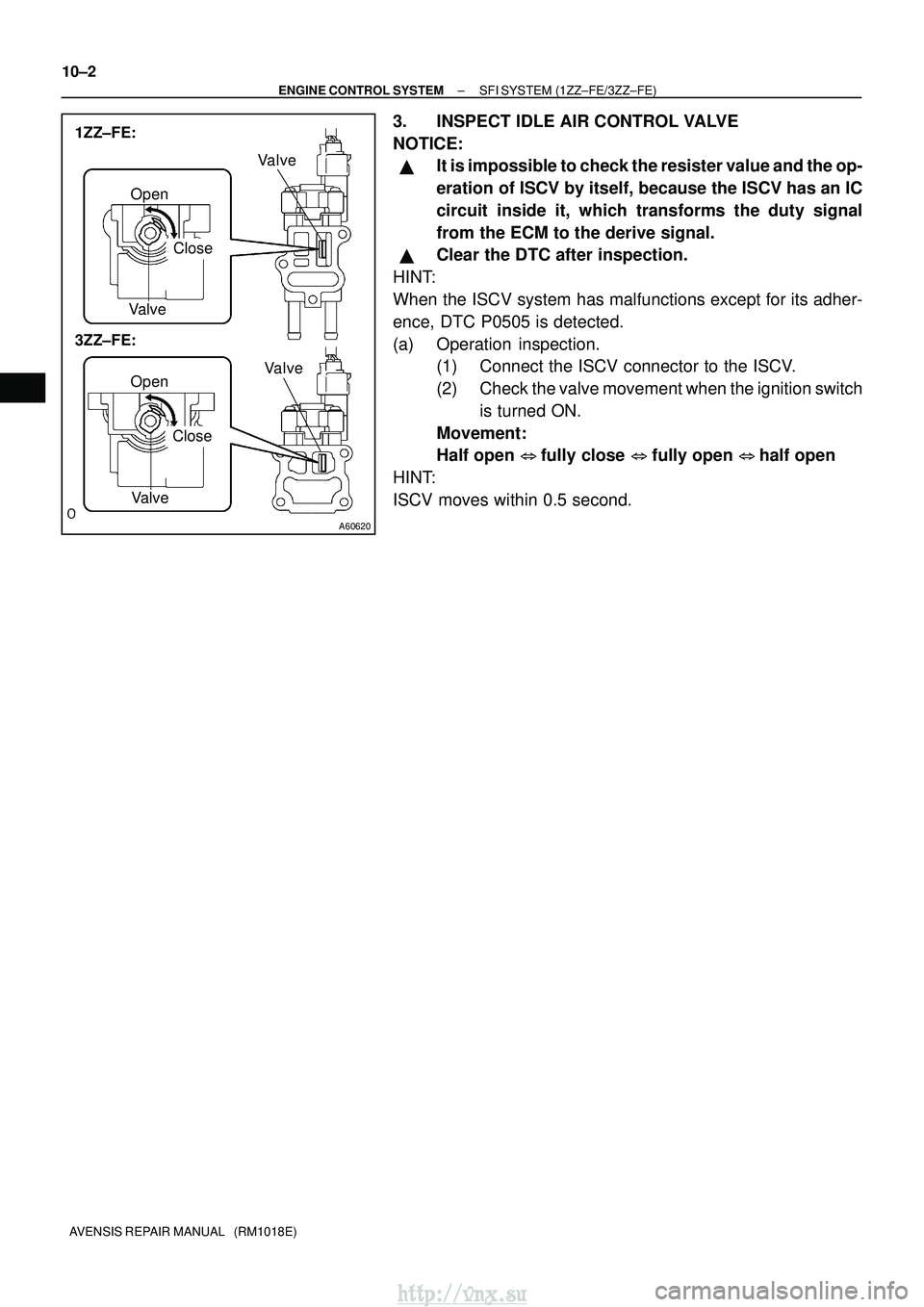

3. INSPECT IDLE AIR CONTROL VALVE
NOTICE:
It is impossible to check the resister value and the op-
eration of ISCV by itself, because the ISCV has an IC
circuit inside it, which transforms the duty signal
from the ECM to the derive signal.
Clear the DTC after inspection.
HINT:
When the ISCV system has malfunctions except for its adher-
ence, DTC P0505 is detected.
(a) Operation inspection. (1) Connect the ISCV connector to the ISCV.
(2) Check the valve movement when the ignition switch
is turned ON.
Movement:
Half open fully close fully open half open
HINT:
ISCV moves within 0.5 second.
http://vnx.su
Page 285 of 2234
100FG±01
A77870
Mass Air Flow
Meter Connector
N´m (kgf´cm, ft´lbf) : Specified torqueEngine Cover Sub±assy
No. 1
7.0 (71, 62 in.
lbf)
Fuel Vapor Feed Hose
No. 2
Air Cleaner Cap
Sub±assy VSV
Connector
Fuel Vapor Feed Hose
Clip
Engine Room Cover Side
Radiator Support Opening Cover
Clip Retainer
x2
x4
10±24
±
ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

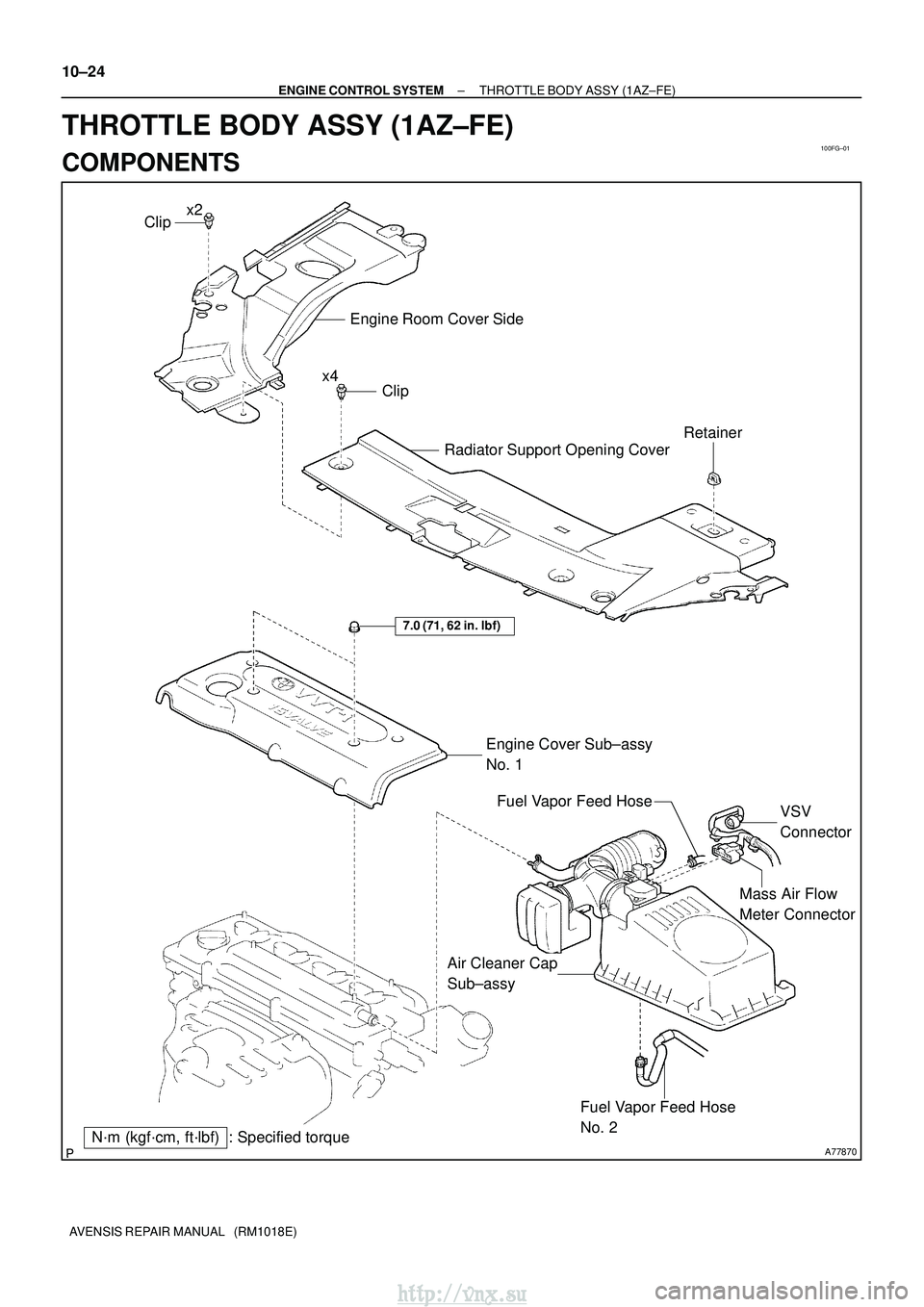

THROTTLE BODY ASSY (1AZ±FE)
COMPONENTS
http://vnx.su
Page 286 of 2234

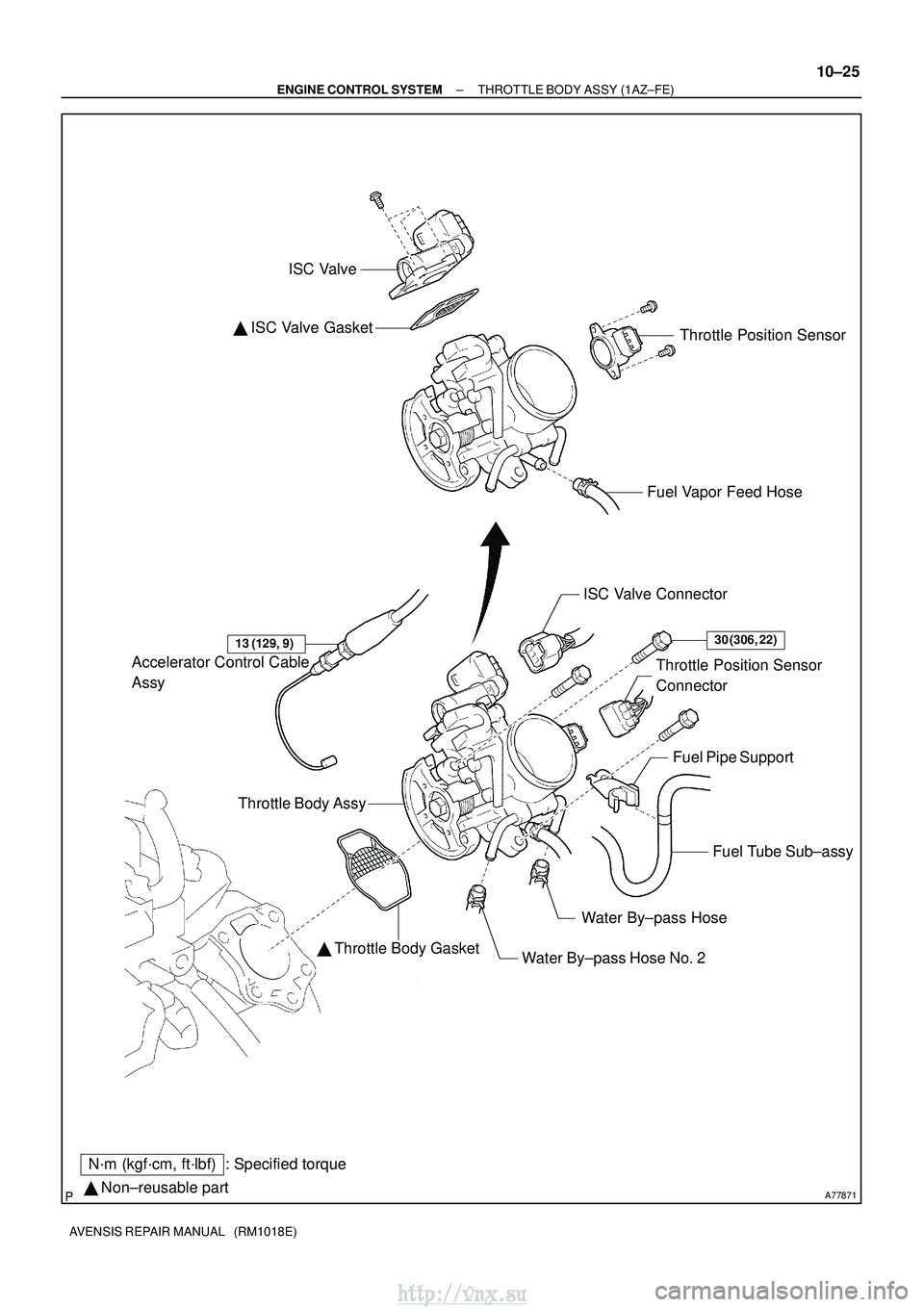

A77871 Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque ISC Valve
ISC Valve Gasket
Fuel Vapor Feed HoseThrottle Position Sensor
Accelerator Control Cable
Assy Throttle Body Gasket
Water By±pass Hose No. 2Water By±pass Hose Fuel Tube Sub±assy
Fuel Pipe Support
Throttle Position Sensor
Connector
ISC Valve Connector
13 (129, 9)30 (306, 22)
Throttle Body Assy
±
ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1AZ±FE)
10±25
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su
Page 287 of 2234
100FH±01
A778975 Claws
A77902
A77872
10±26
±
ENGINE CONTROL SYSTEMTHROTTLE BODY ASSY(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

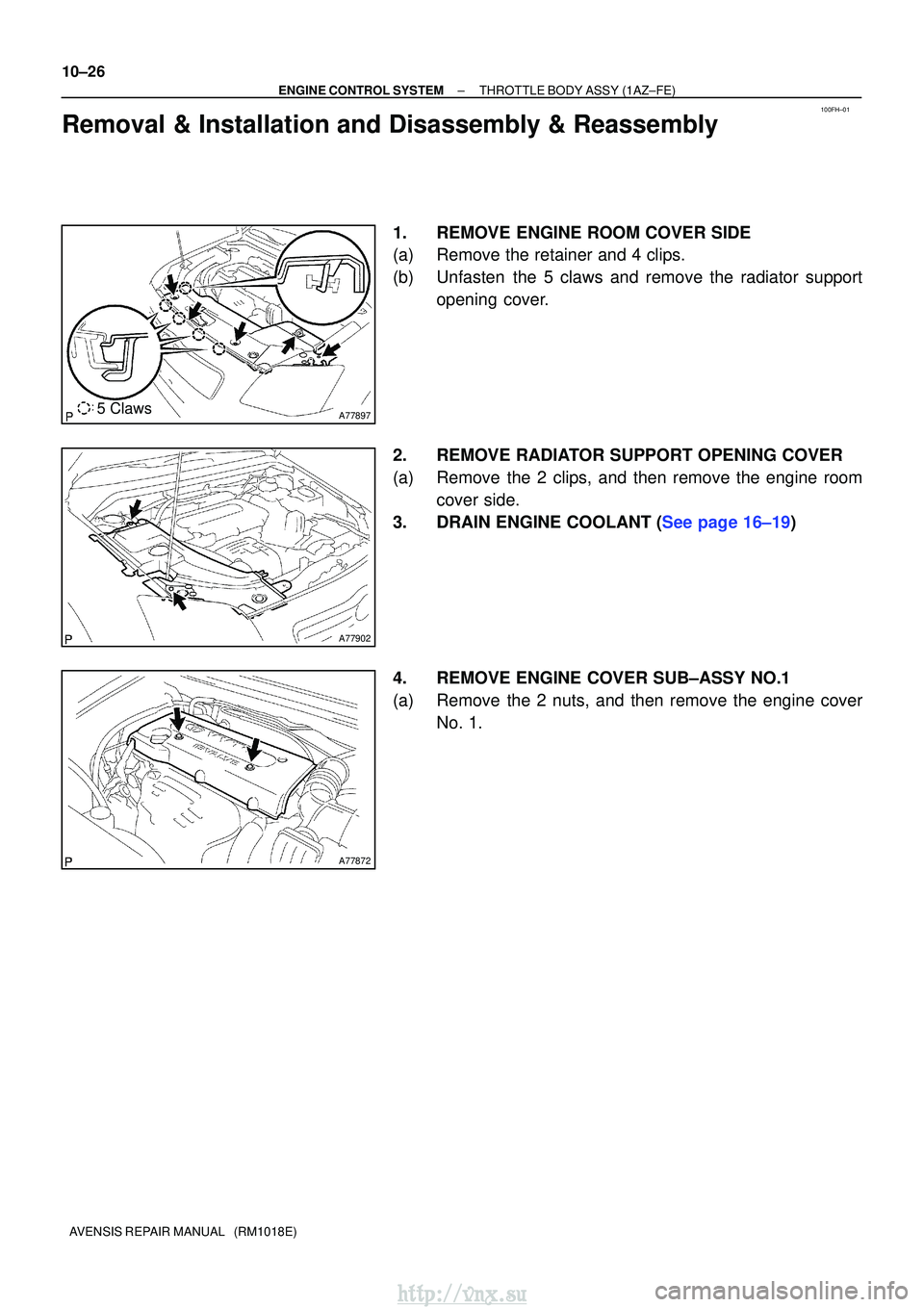

Removal & Installation and Disassembly & Reassembly
1.REMOVE ENGINE ROOM COVER SIDE
(a)Remove the retainer and 4 clips.
(b)Unfasten the 5 claws and remove the radiator support opening cover.
2.REMOVE RADIATOR SUPPORT OPENING COVER
(a)Remove the 2 clips, and then remove the engine room cover side.
3.DRAIN ENGINE COOLANT (See page 16±19)
4. REMOVE ENGINE COVER SUB±ASSY NO.1
(a) Remove the 2 nuts, and then remove the engine cover No. 1.
http://vnx.su
Page 288 of 2234
A77873
(a)
(c)
(b)
(d)
(h)
(i)
(g)
(g)
(f)
(e)
Air cleaner clamp
(c)
A77874
±
ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1AZ±FE)
10±27
AVENSIS REPAIR MANUAL (RM1018E)

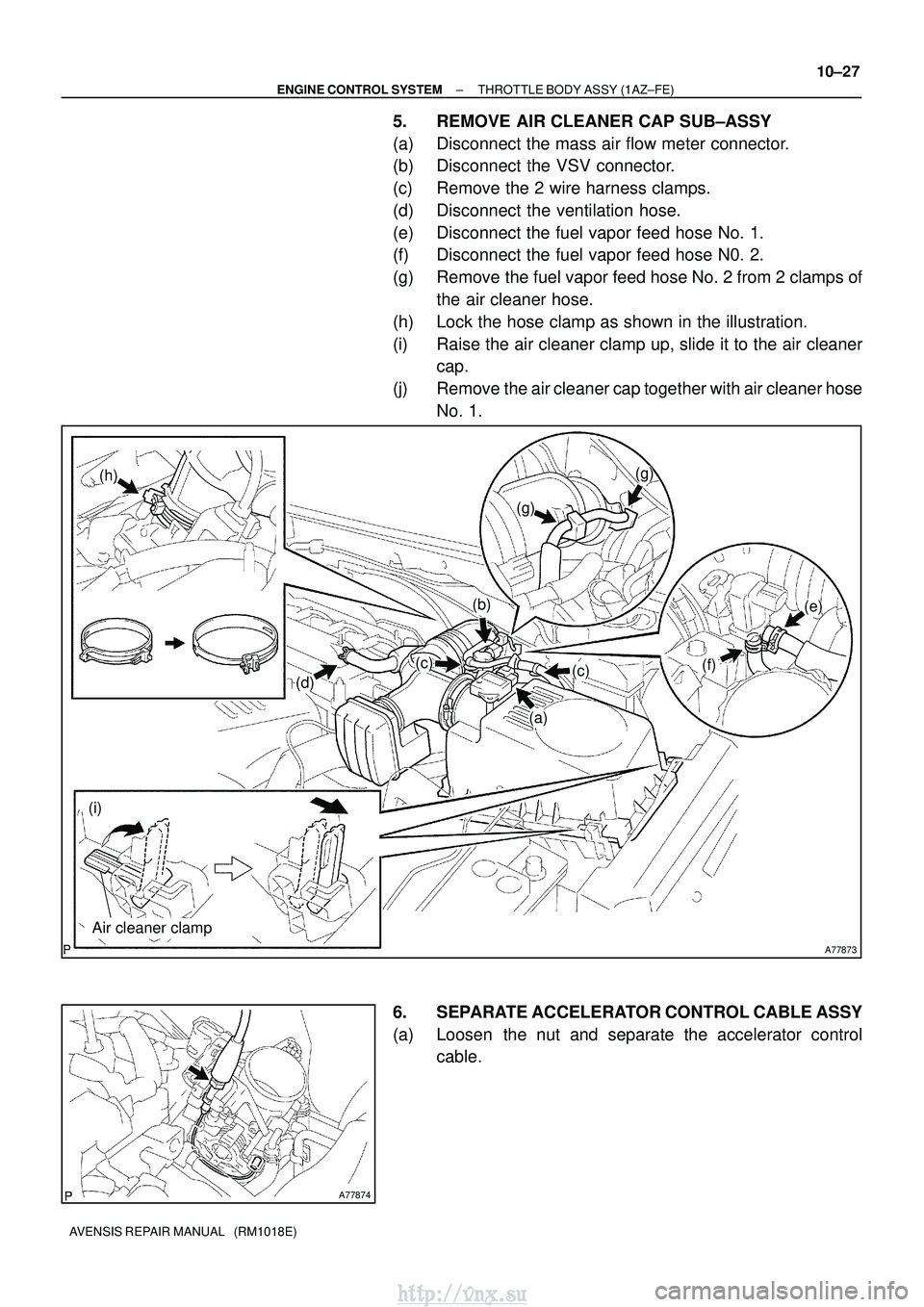

5. REMOVE AIR CLEANER CAP SUB±ASSY
(a) Disconnect the mass air flow meter connector.
(b) Disconnect the VSV connector.
(c) Remove the 2 wire harness clamps.
(d) Disconnect the ventilation hose.
(e) Disconnect the fuel vapor feed hose No. 1.
(f) Disconnect the fuel vapor feed hose N0. 2.
(g) Remove the fuel vapor feed hose No. 2 from 2 clamps of
the air cleaner hose.
(h) Lock the hose clamp as shown in the illustration.
(i) Raise the air cleaner clamp up, slide it to the air cleaner cap.
(j) Remove the air cleaner cap together with air cleaner hose No. 1.
6. SEPARATE ACCELERATOR CONTROL CABLE ASSY
(a) Loosen the nut and separate the accelerator control cable.
