Page 529 of 2234

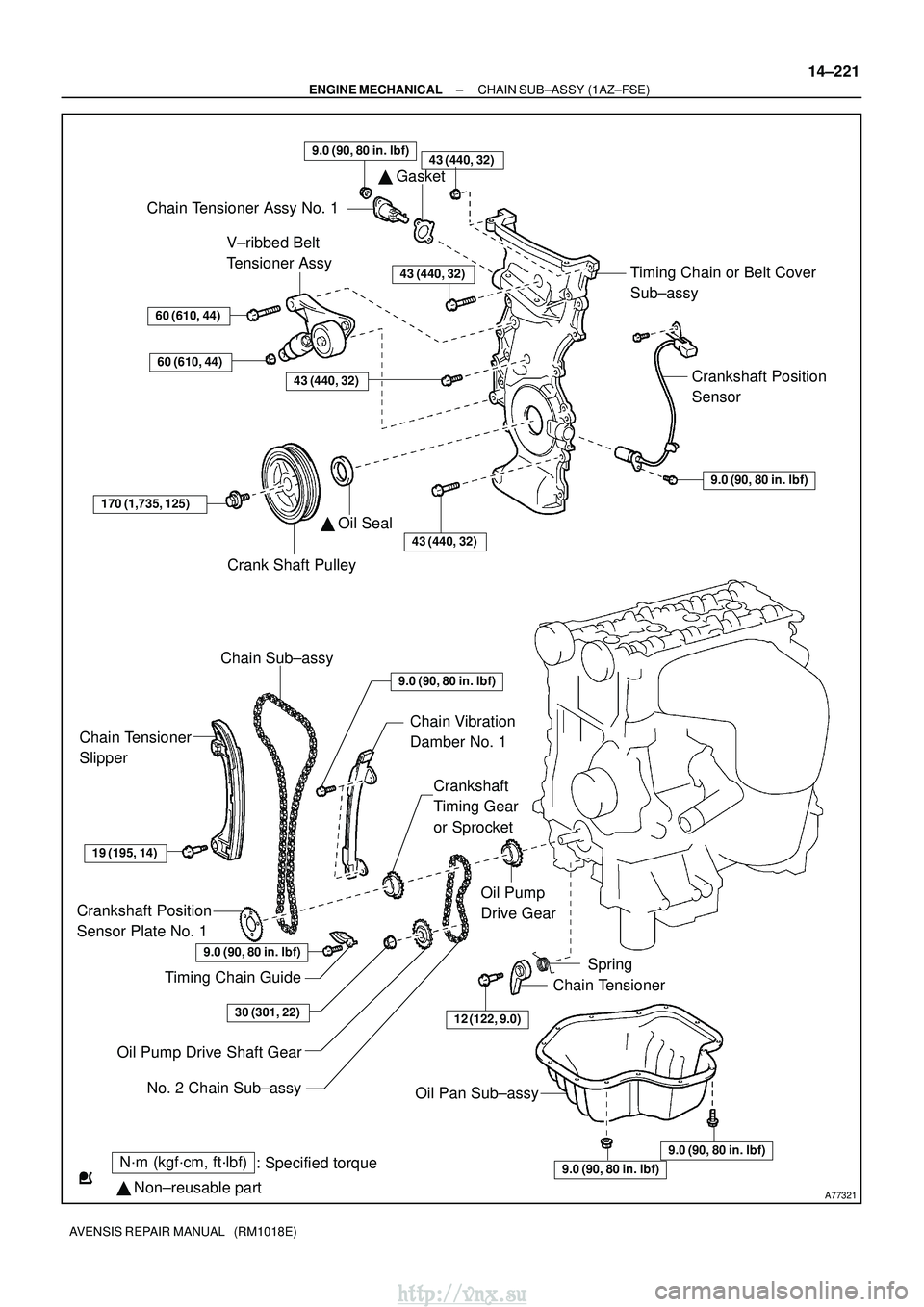

TOYOTA AVENSIS 2003 Service Repair Manual A77321 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part 43 (440, 32)  Gasket Chain Tensioner Assy No. 1 Timing Chain or Belt Cover Sub±assy Crankshaft Position Sensor 9.0 (90, 80 in

Page 530 of 2234

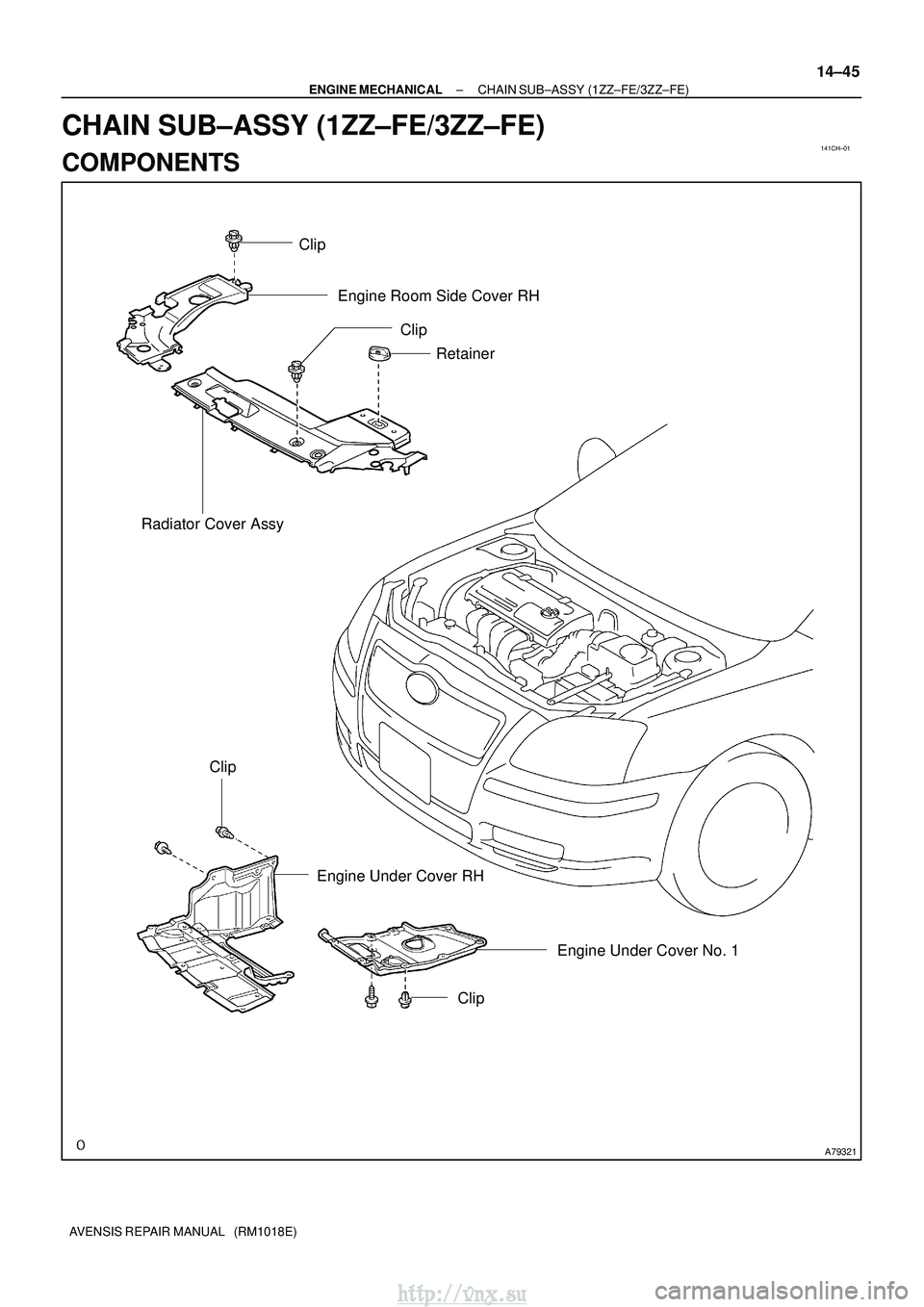

TOYOTA AVENSIS 2003 Service Repair Manual 141CH±01 A79321 ClipEngine Room Side Cover RH Retainer Clip Radiator Cover Assy Clip Engine Under Cover RH Engine Under Cover No. 1 Clip ± ENGINE MECHANICAL CHAIN SUB±ASSY (1ZZ±FE/3ZZ±FE) 14±45

Page 531 of 2234

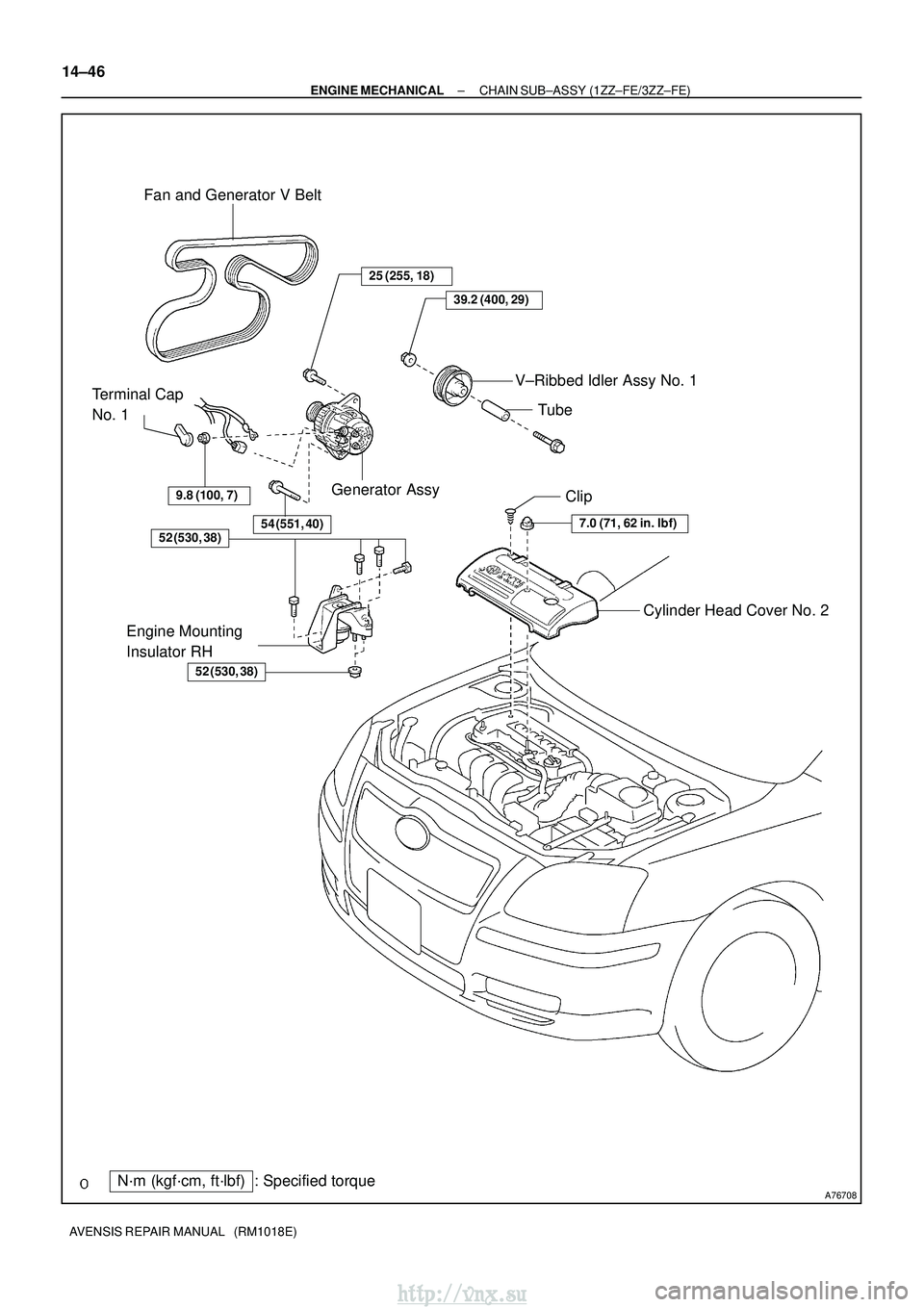

TOYOTA AVENSIS 2003 Service Repair Manual A76708 Fan and Generator V BeltV±Ribbed Idler Assy No. 1 Generator Assy Terminal Cap No. 1 Cylinder Head Cover No. 2 Clip Engine Mounting Insulator RH N´m (kgf´cm, ft´lbf) : Specified torque 54

Page 532 of 2234

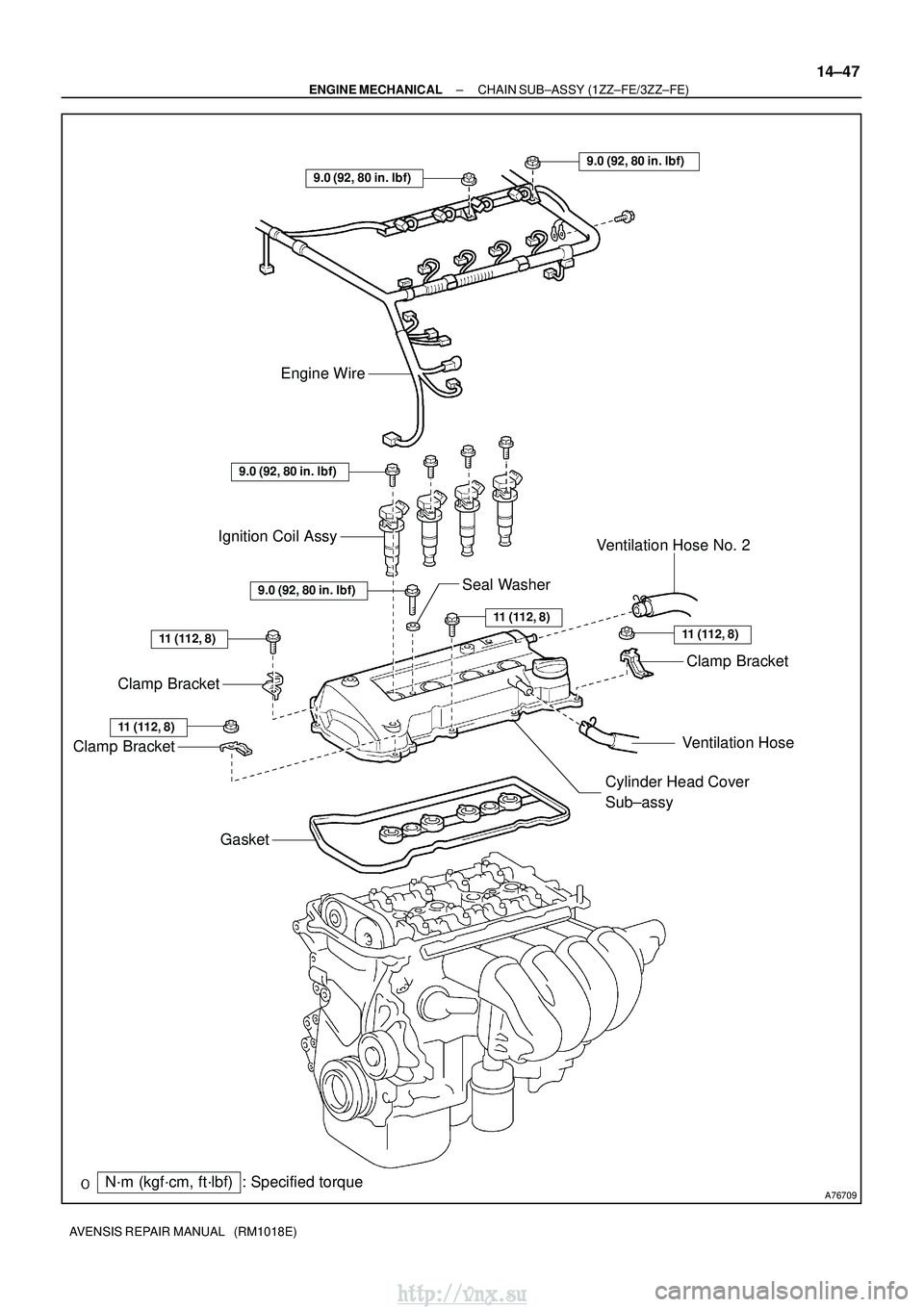

TOYOTA AVENSIS 2003 Service Repair Manual A76709 Ventilation Hose No. 2Clamp Bracket Ventilation Hose Ignition Coil Assy Engine Wire Clamp Bracket Clamp Bracket Gasket Cylinder Head Cover Sub±assy Seal Washer N´m (kgf´cm, ft´lbf) : Speci

Page 533 of 2234

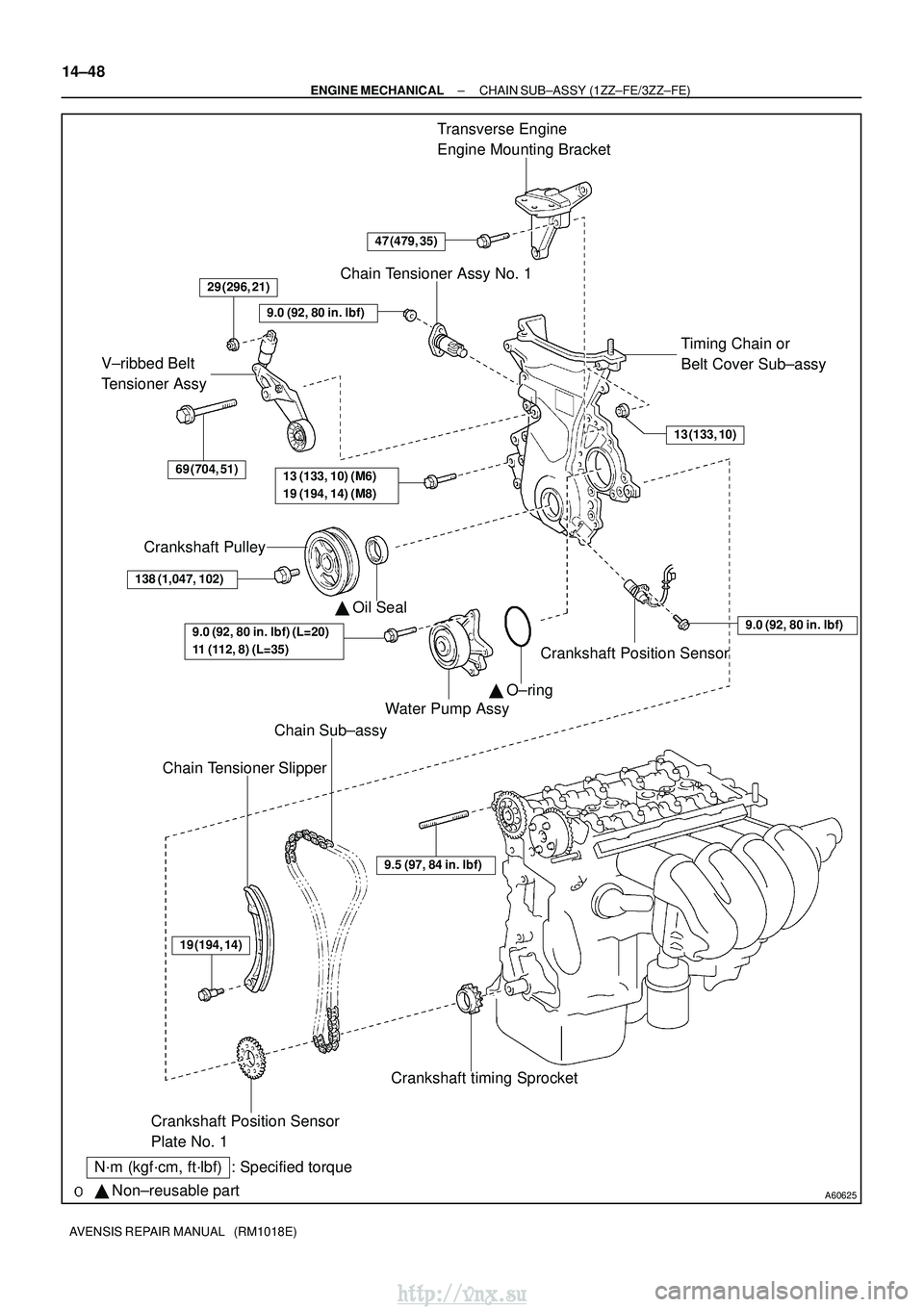

TOYOTA AVENSIS 2003 Service Repair Manual A60625 Crankshaft Pulley V±ribbed Belt Tensioner Assy Water Pump AssyTransverse Engine Engine Mounting Bracket Crankshaft Position Sensor Chain Tensioner Assy No. 1 Timing Chain or Belt Cover Sub

Page 534 of 2234

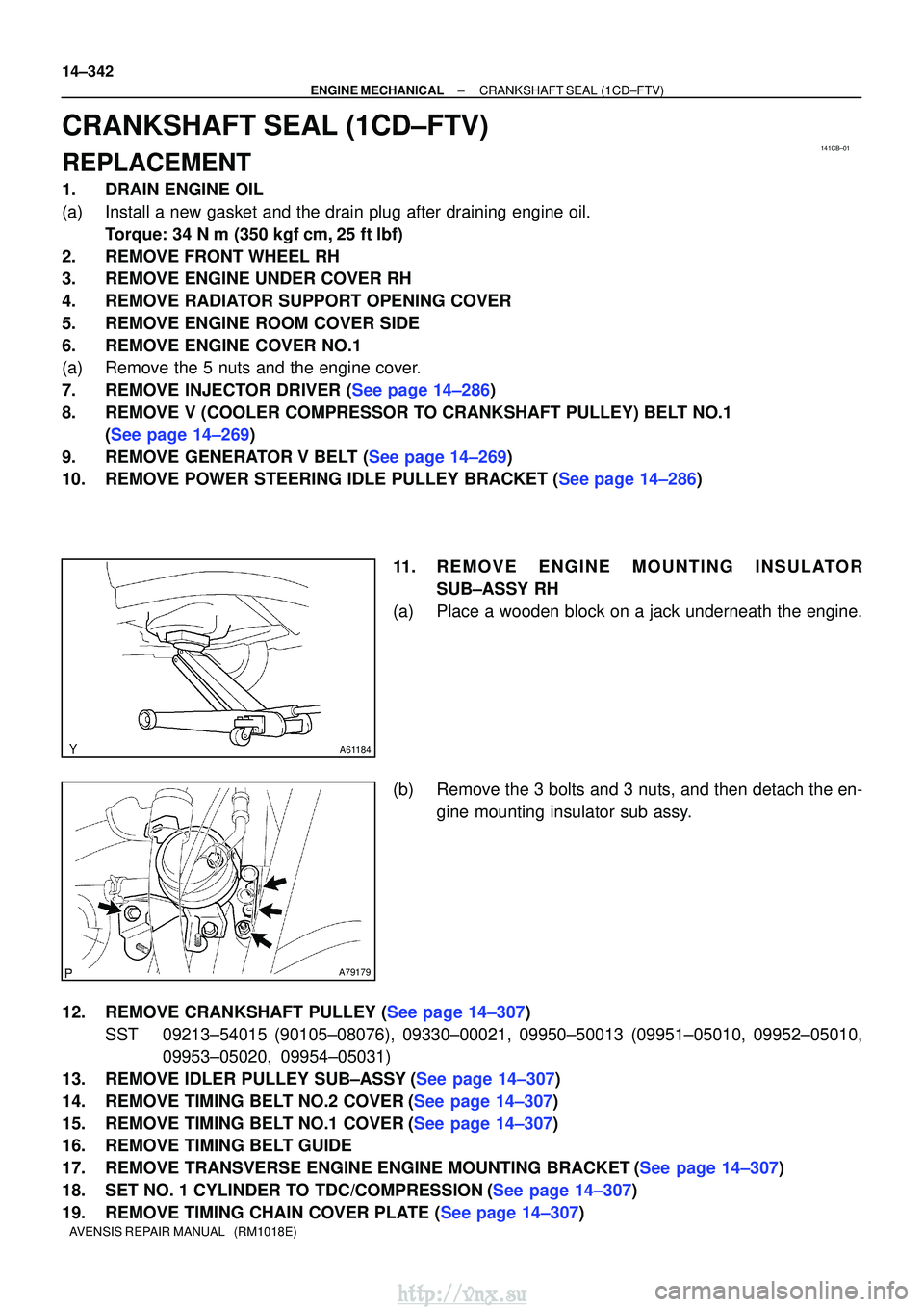

TOYOTA AVENSIS 2003 Service Repair Manual 141CB±01 A61184 A79179 14±342 ± ENGINE MECHANICALCRANKSHAFT SEAL(1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) CRANKSHAFT SEAL(1CD±FTV) REPLACEMENT 1.DRAIN ENGINE OIL (a)Install a new gasket and the

Page 535 of 2234

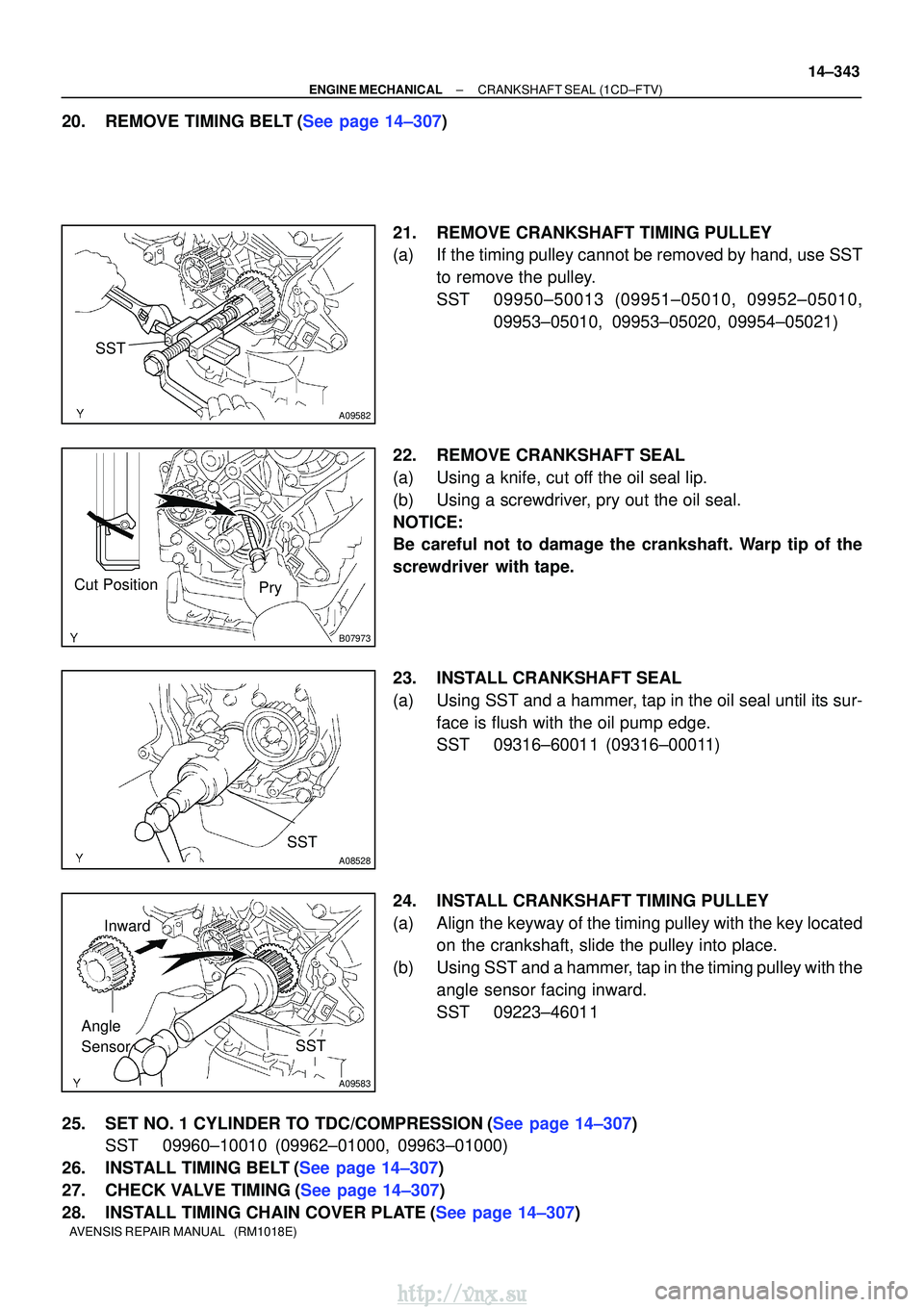

TOYOTA AVENSIS 2003 Service Repair Manual SST A09582 B07973 Cut PositionPry SST A08528 SST A09583 Angle SensorInward ± ENGINE MECHANICALCRANKSHAFT SEAL(1CD±FTV) 14±343 AVENSIS REPAIR MANUAL (RM1018E) 20.REMOVE TIMING BELT(See page 14±3

Page 536 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 14±344 ± ENGINE MECHANICAL CRANKSHAFT SEAL (1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 29.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING BRACKET(See page 14±307) 30.INSTALL TIMING BELT GUIDE(See page 1
