Page 665 of 2234

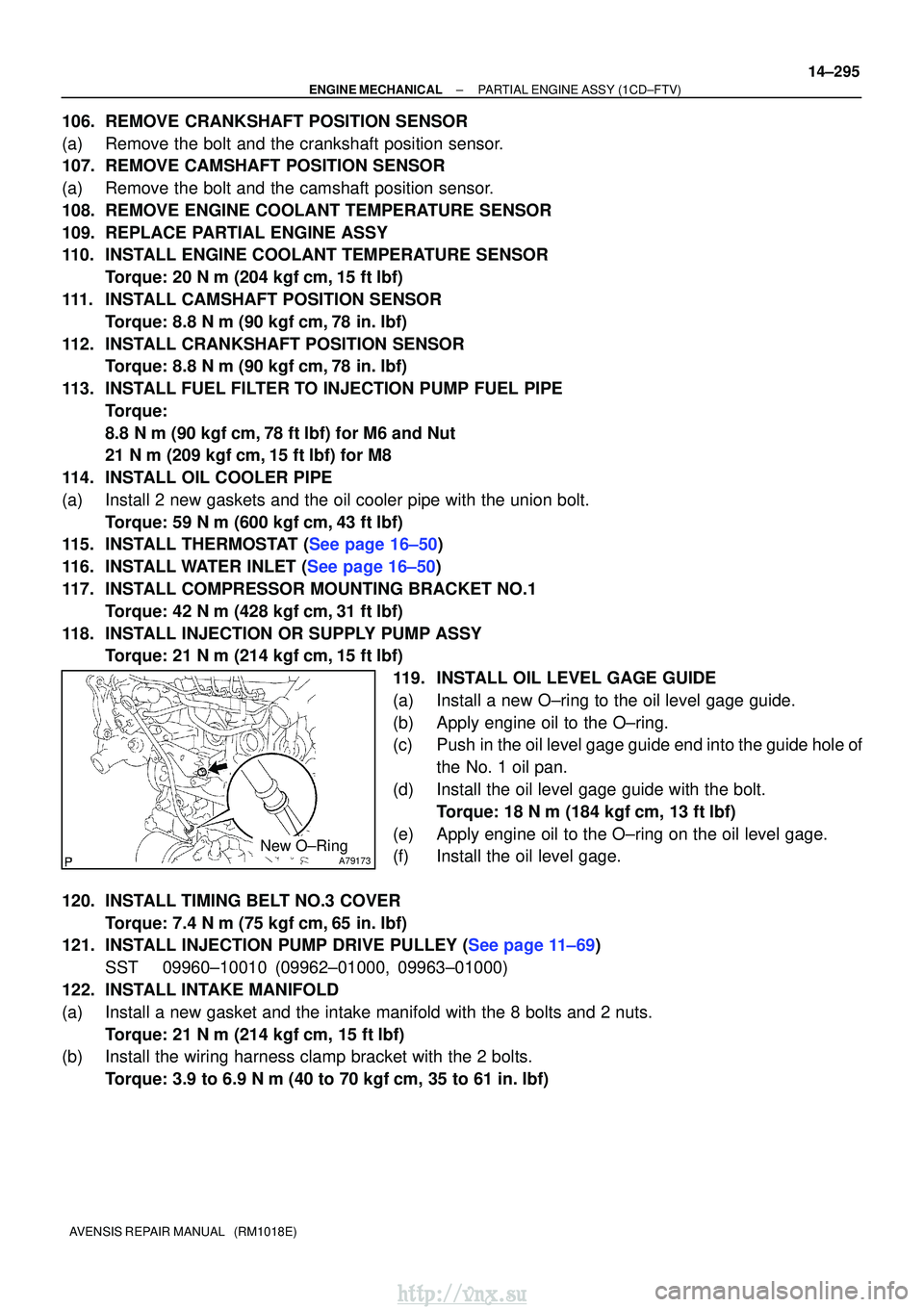

TOYOTA AVENSIS 2003 Service Repair Manual A79173New O±Ring ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) 14±295 AVENSIS REPAIR MANUAL (RM1018E) 106.REMOVE CRANKSHAFT POSITION SENSOR (a)Remove the bolt and the crankshaft position senso

Page 666 of 2234

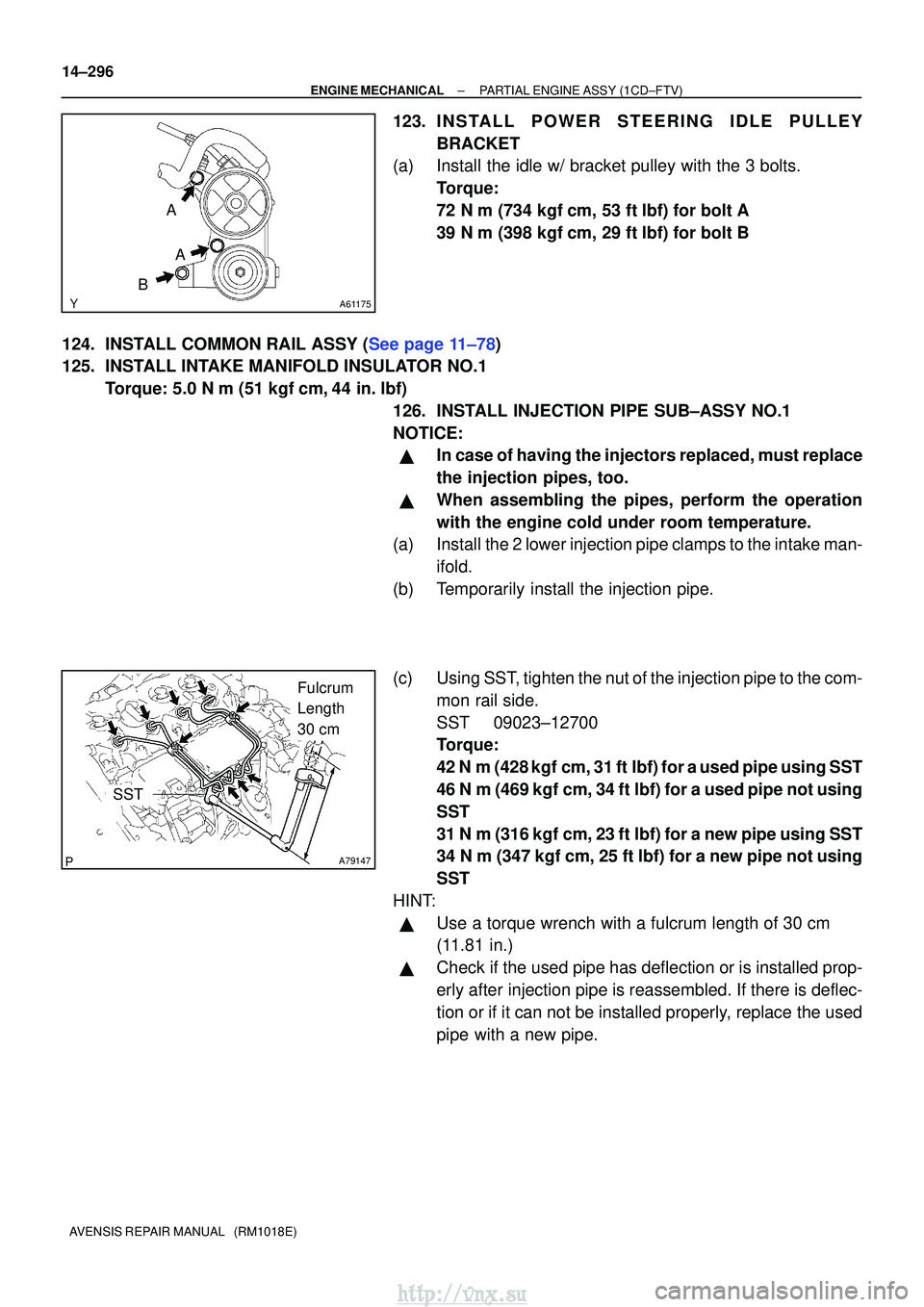

TOYOTA AVENSIS 2003 Service Repair Manual A61175 AA B A79147 Fulcrum Length 30 cm SST 14±296 ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 123.INSTALL POWER STEERING IDLE PULLEY BRACKET (a)Install the

Page 667 of 2234

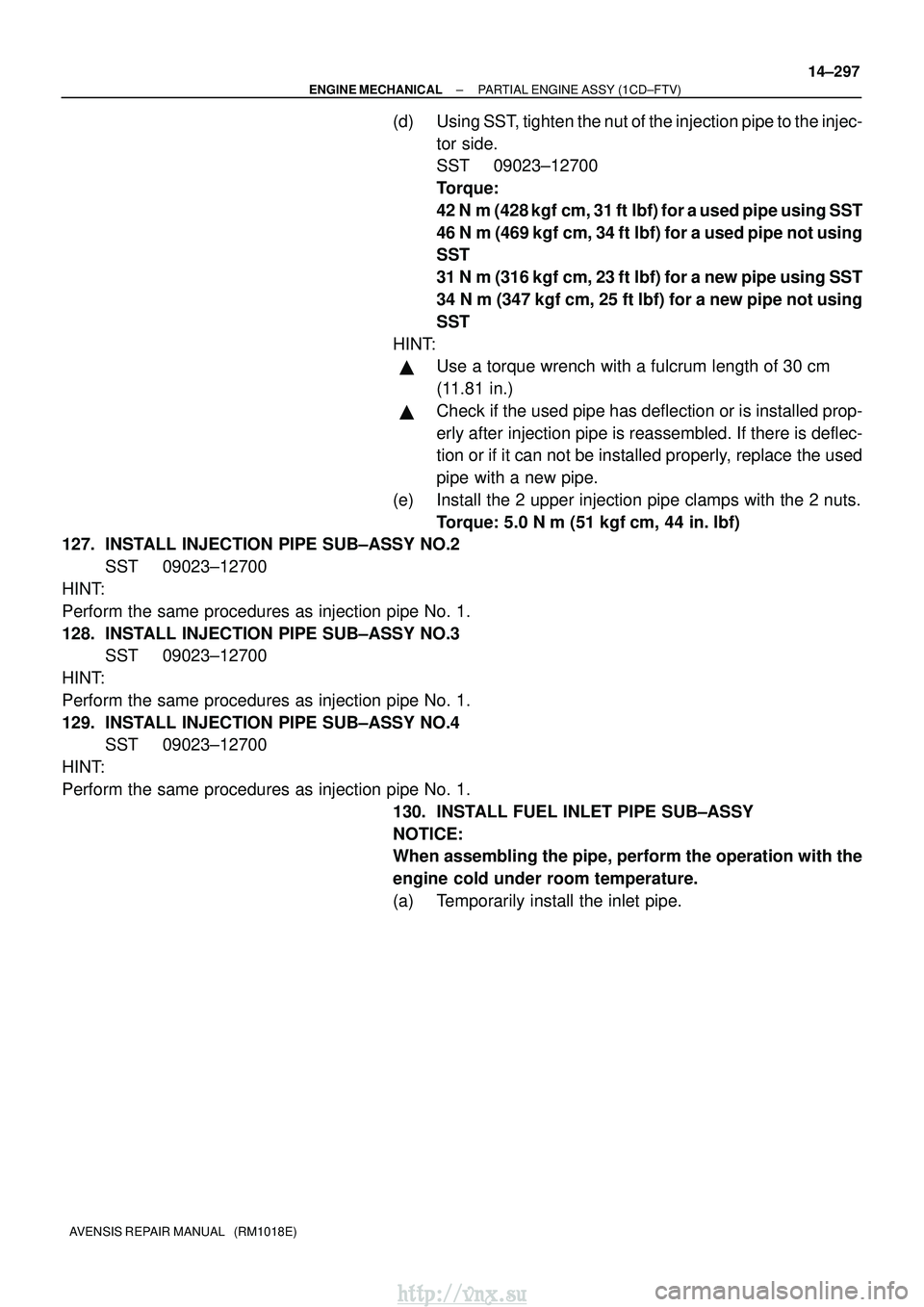

TOYOTA AVENSIS 2003 Service Repair Manual ± ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD±FTV) 14±297 AVENSIS REPAIR MANUAL (RM1018E) (d) Using SST, tighten the nut of the injection pipe to the injec- tor side. SST 09023±12700 Torque: 42

Page 668 of 2234

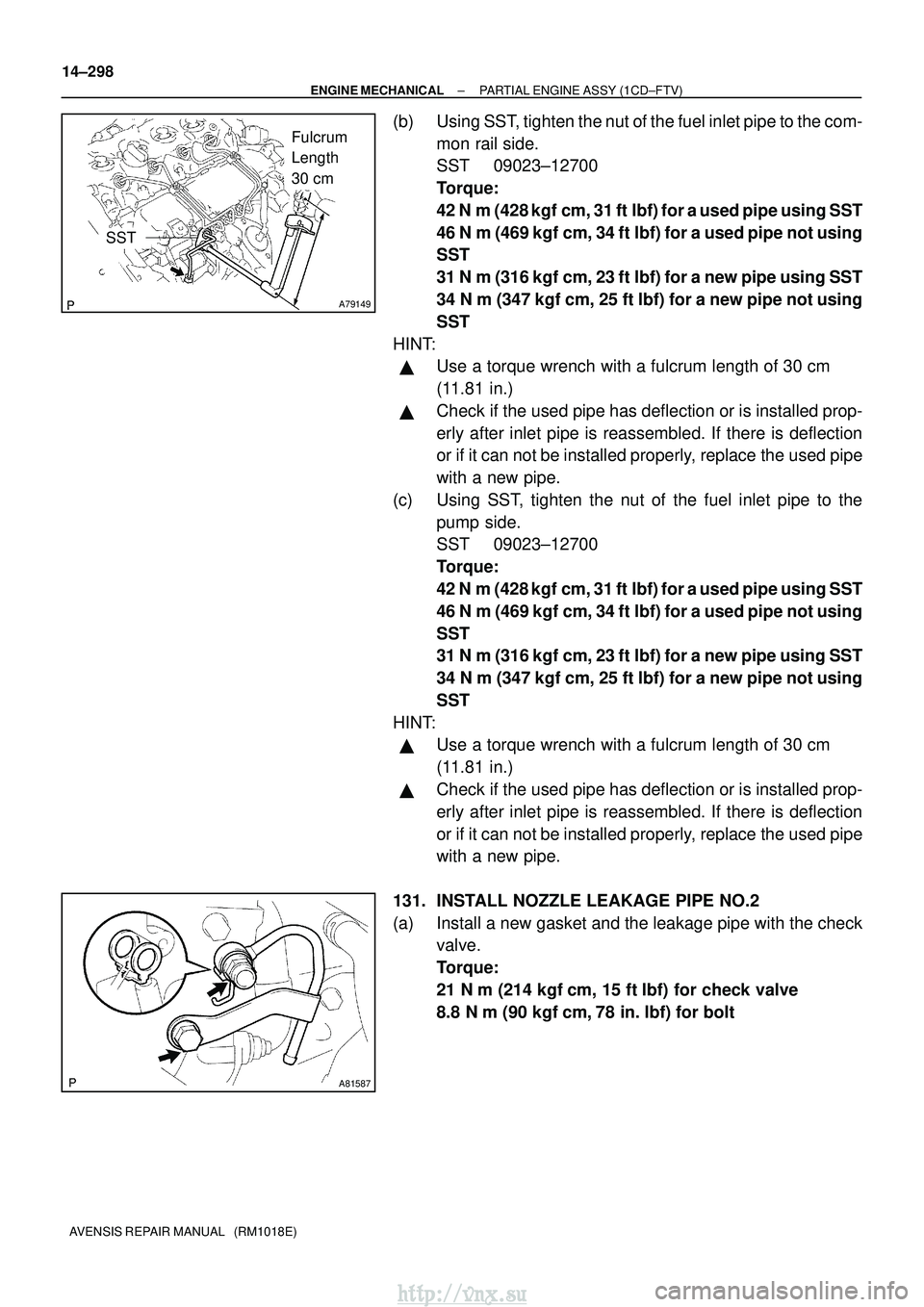

TOYOTA AVENSIS 2003 Service Repair Manual A79149 Fulcrum Length 30 cm SST A81587 14±298 ± ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) (b) Using SST, tighten the nut of the fuel inlet pipe to the com-

Page 669 of 2234

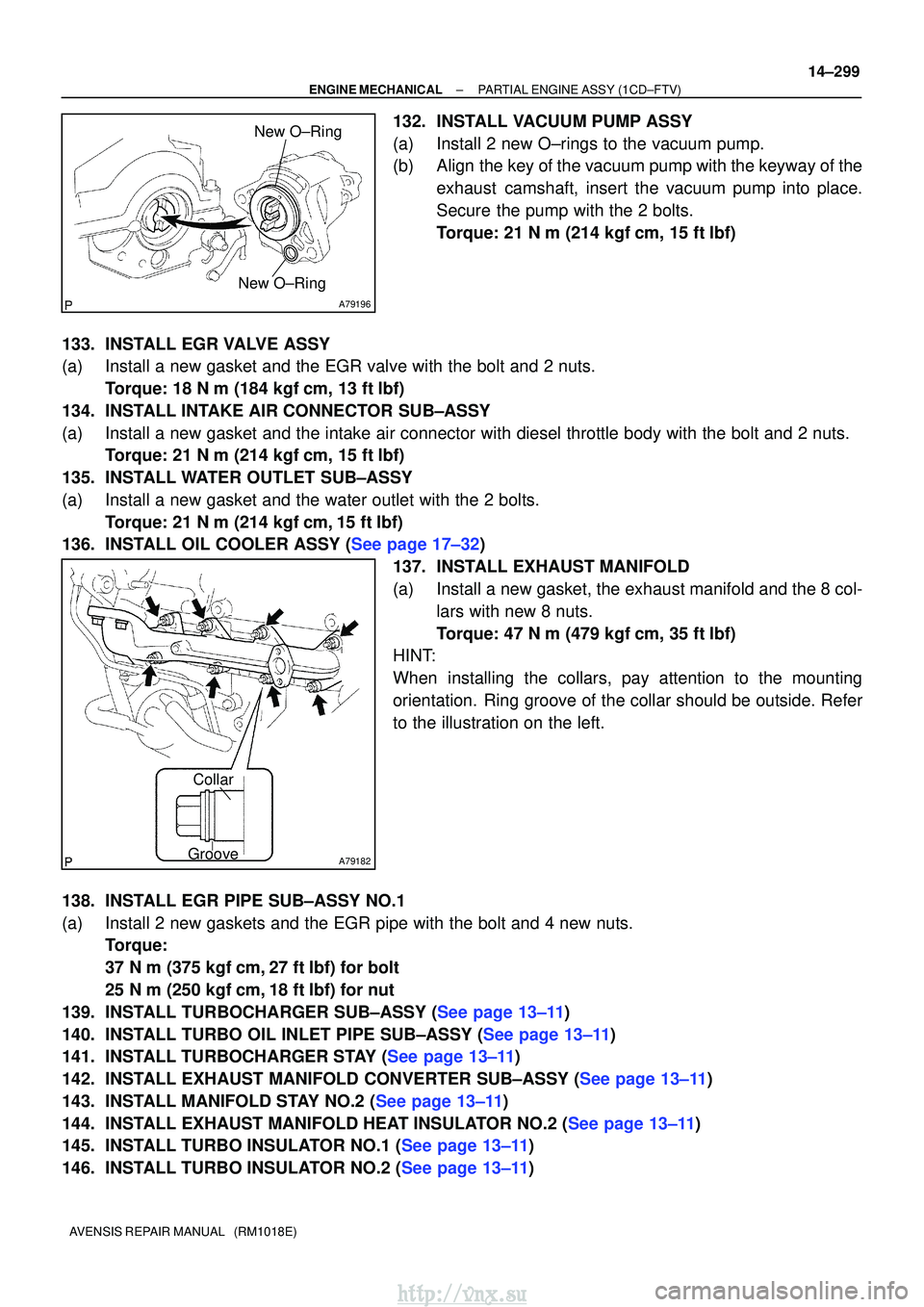

TOYOTA AVENSIS 2003 Service Repair Manual A79196 New O±Ring New O±Ring A79182 Collar Groove ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) 14±299 AVENSIS REPAIR MANUAL (RM1018E) 132.INSTALL VACUUM PUMP ASSY (a)Install 2 new O±rings t

Page 670 of 2234

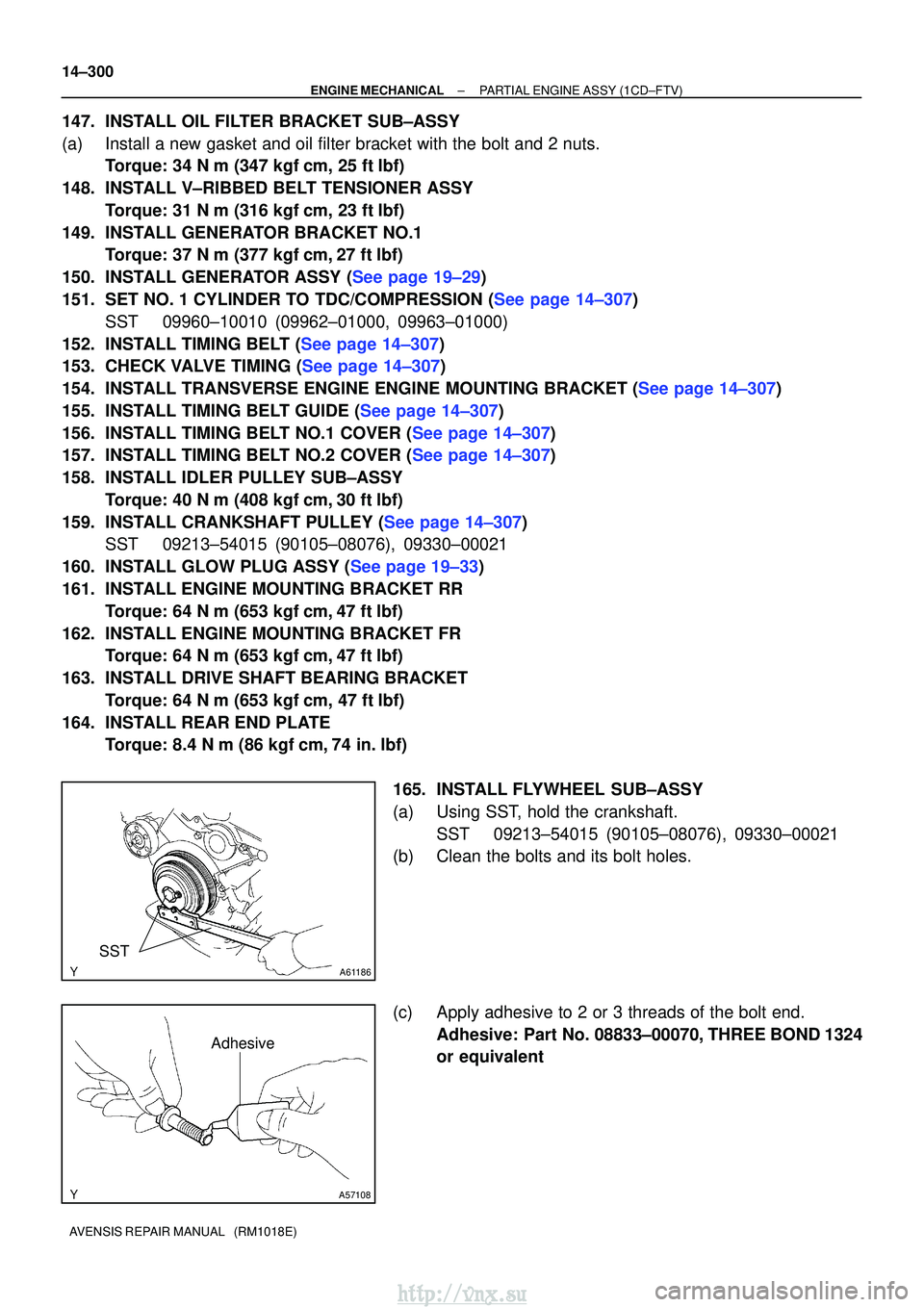

TOYOTA AVENSIS 2003 Service Repair Manual A61186 SST A57108 Adhesive 14±300 ± ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 147. INSTALL OIL FILTER BRACKET SUB±ASSY (a) Install a new gasket and oil filt

Page 671 of 2234

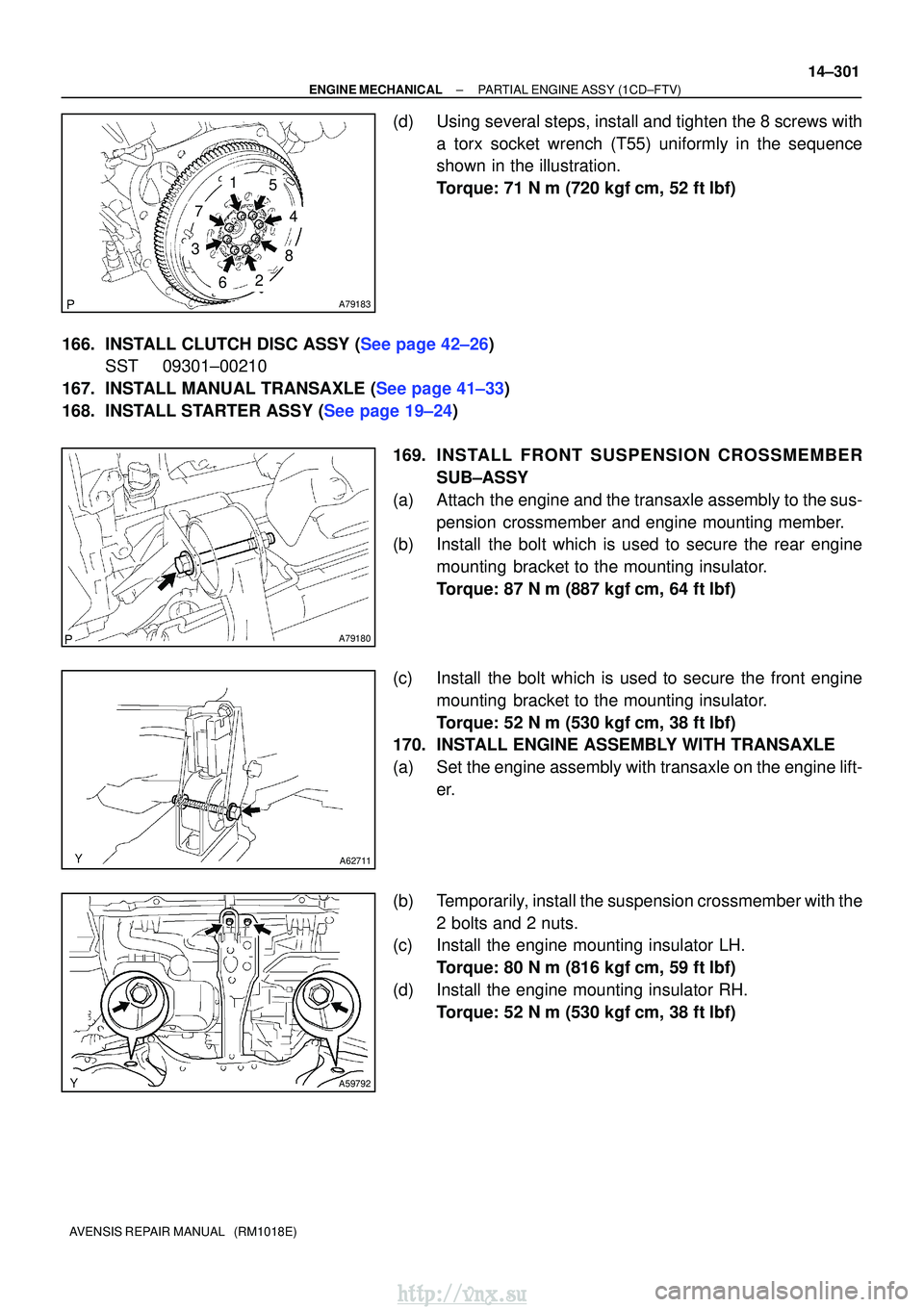

TOYOTA AVENSIS 2003 Service Repair Manual A79183 2 1 3 4 5 6 7 8 A79180 A62711 A59792 ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) 14±301 AVENSIS REPAIR MANUAL (RM1018E) (d)Using several steps, install and tighten the 8 screws with a

Page 672 of 2234

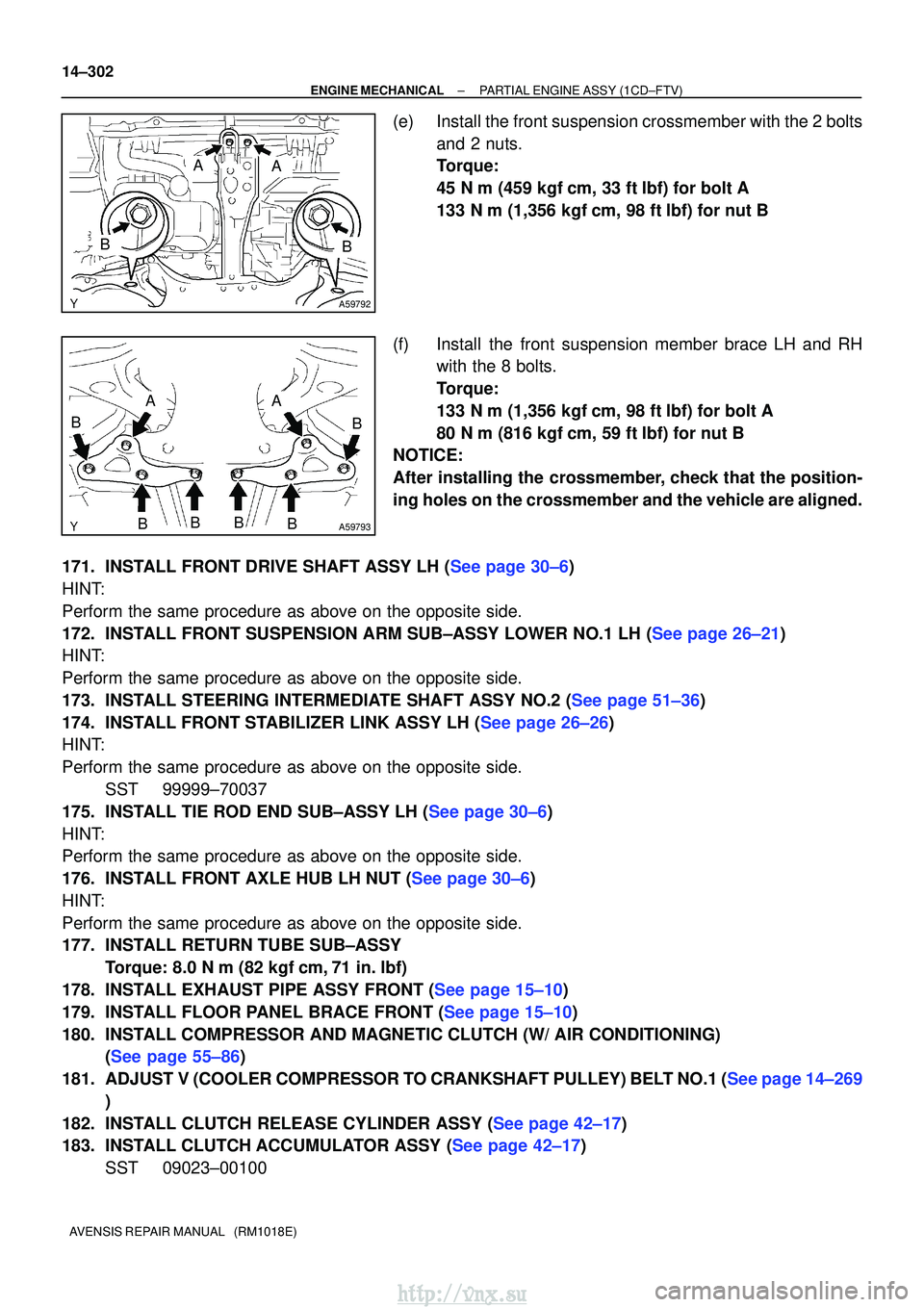

TOYOTA AVENSIS 2003 Service Repair Manual A59792 BB AA A59793 AA BBBBB B 14±302 ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) (e)Install the front suspension crossmember with the 2 bolts and 2 nuts. Torq
