Page 1041 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual G23877 G23886 Outward Inward Longer Shorter Inward Outward Front Longer Shorter CAMBER ADJUSTING CAM ASSY TIE ROD ADJUSTING TUBE ± REAR SUSPENSION REAR WHEEL ALIGNMENT 27±5 AVENSIS REPAIR MANUAL (

Page 1042 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual G23890 Example:Camber To e 100 (1.0 ) (Scale) 0 2 4 6 27±6 ± REAR SUSPENSION REAR WHEEL ALIGNMENT AVENSIS REPAIR MANUAL (RM1018E) (i) How to read an adjustment chart (using examples). (1) Measu

Page 1043 of 2234

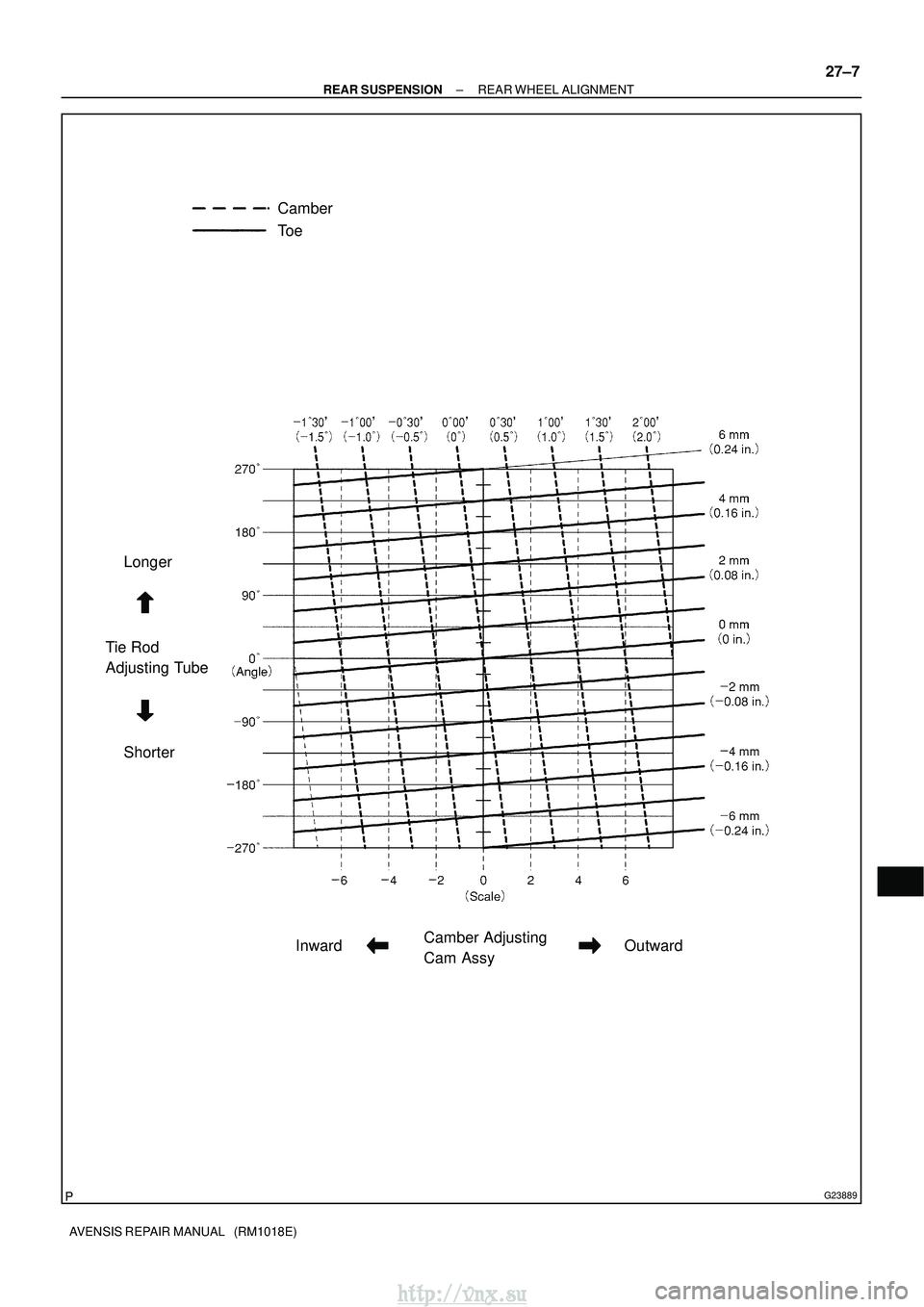

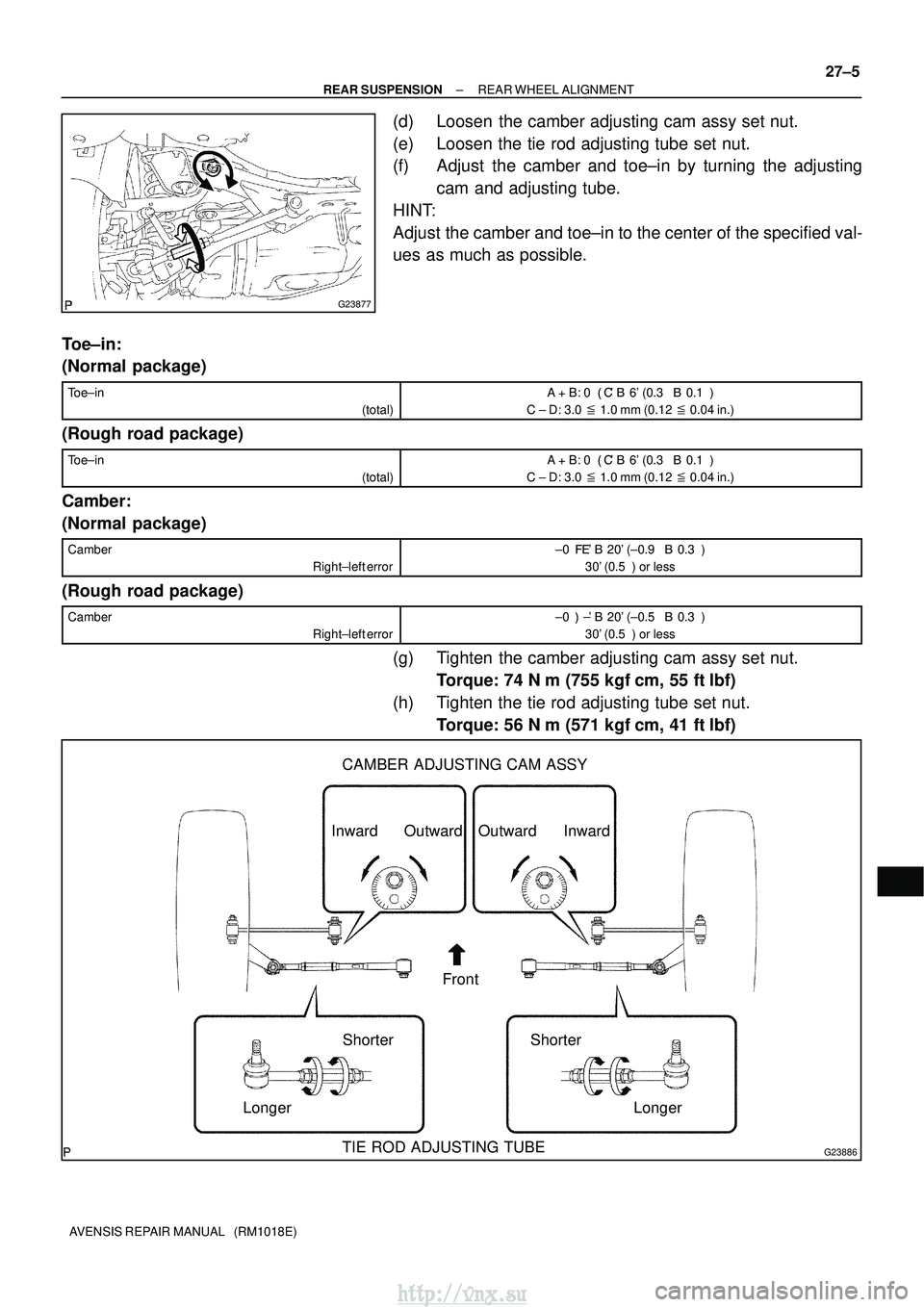

TOYOTA AVENSIS 2003 Service Repair Manual G23889 Camber To e Longer Tie Rod Adjusting Tube Shorter InwardCamber Adjusting Cam Assy Outward ± REAR SUSPENSION REAR WHEEL ALIGNMENT 27±7 AVENSIS REPAIR MANUAL (RM1018E) http://vnx.su

Page 1044 of 2234

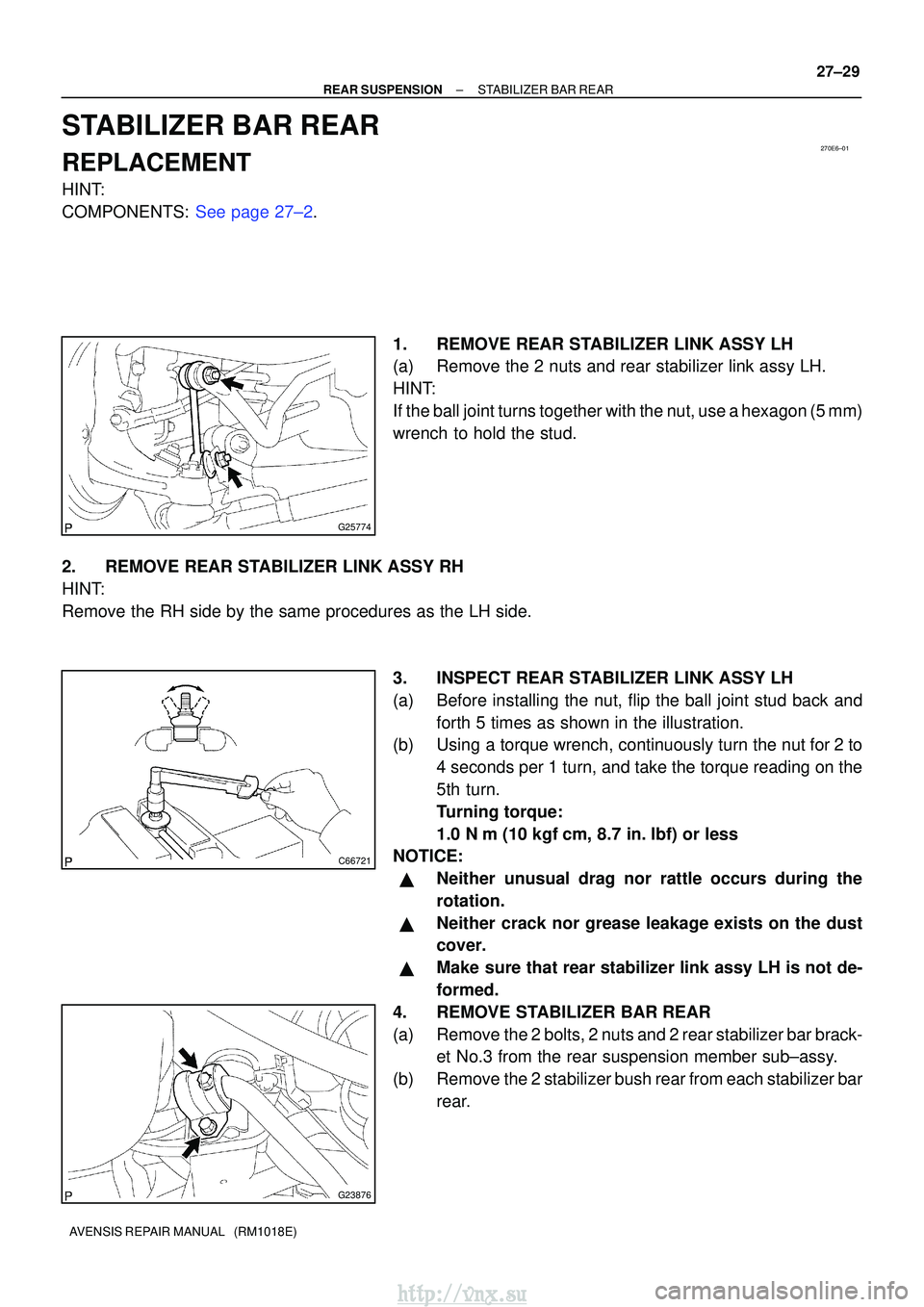

TOYOTA AVENSIS 2003 Service Repair Manual 270E6±01 G25774 C66721 G23876 ± REAR SUSPENSION STABILIZER BAR REAR 27±29 AVENSIS REPAIR MANUAL (RM1018E) STABILIZER BAR REAR REPLACEMENT HINT: COMPONENTS: See page 27±2. 1. REMOVE REAR STABILIZ

Page 1045 of 2234

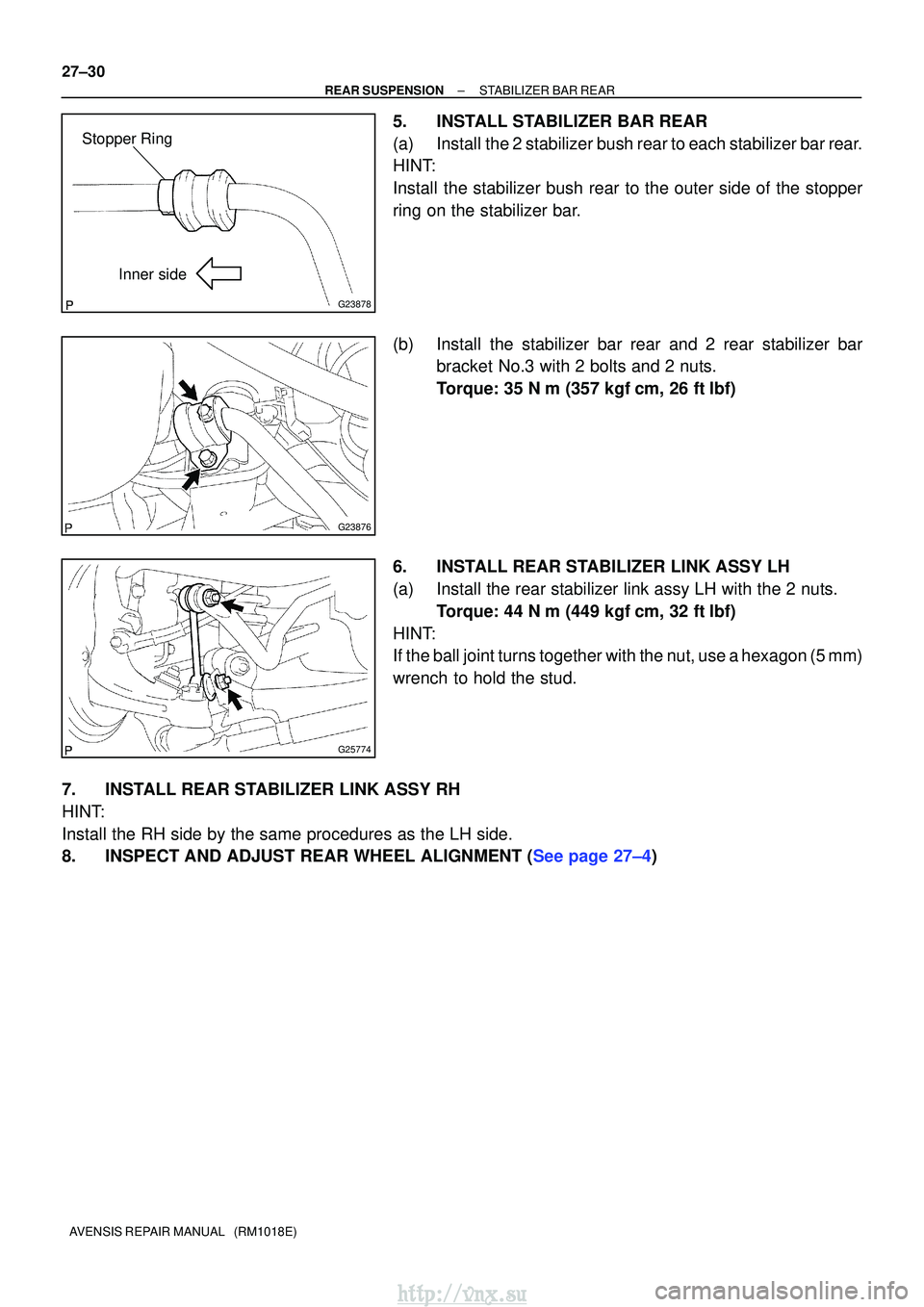

TOYOTA AVENSIS 2003 Service Repair Manual G23878 Inner side Stopper Ring G23876 G25774 27±30 ± REAR SUSPENSION STABILIZER BAR REAR AVENSIS REPAIR MANUAL (RM1018E) 5. INSTALL STABILIZER BAR REAR (a) Install the 2 stabilizer bush rear to ea

Page 1046 of 2234

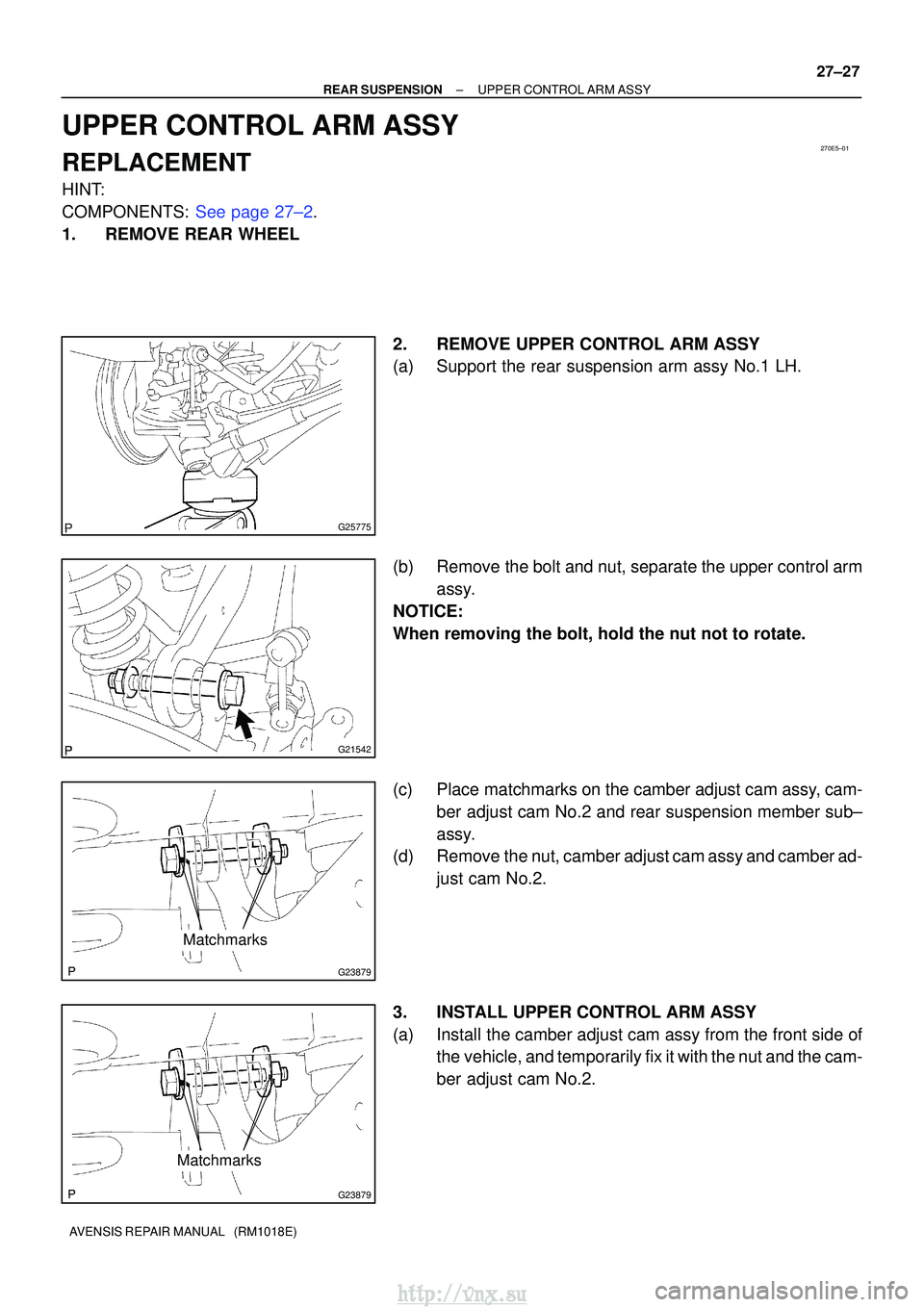

TOYOTA AVENSIS 2003 Service Repair Manual 270E5±01 G25775 G21542 G23879 Matchmarks G23879 Matchmarks ± REAR SUSPENSION UPPER CONTROL ARM ASSY 27±27 AVENSIS REPAIR MANUAL (RM1018E) UPPER CONTROL ARM ASSY REPLACEMENT HINT: COMPONENTS: See

Page 1047 of 2234

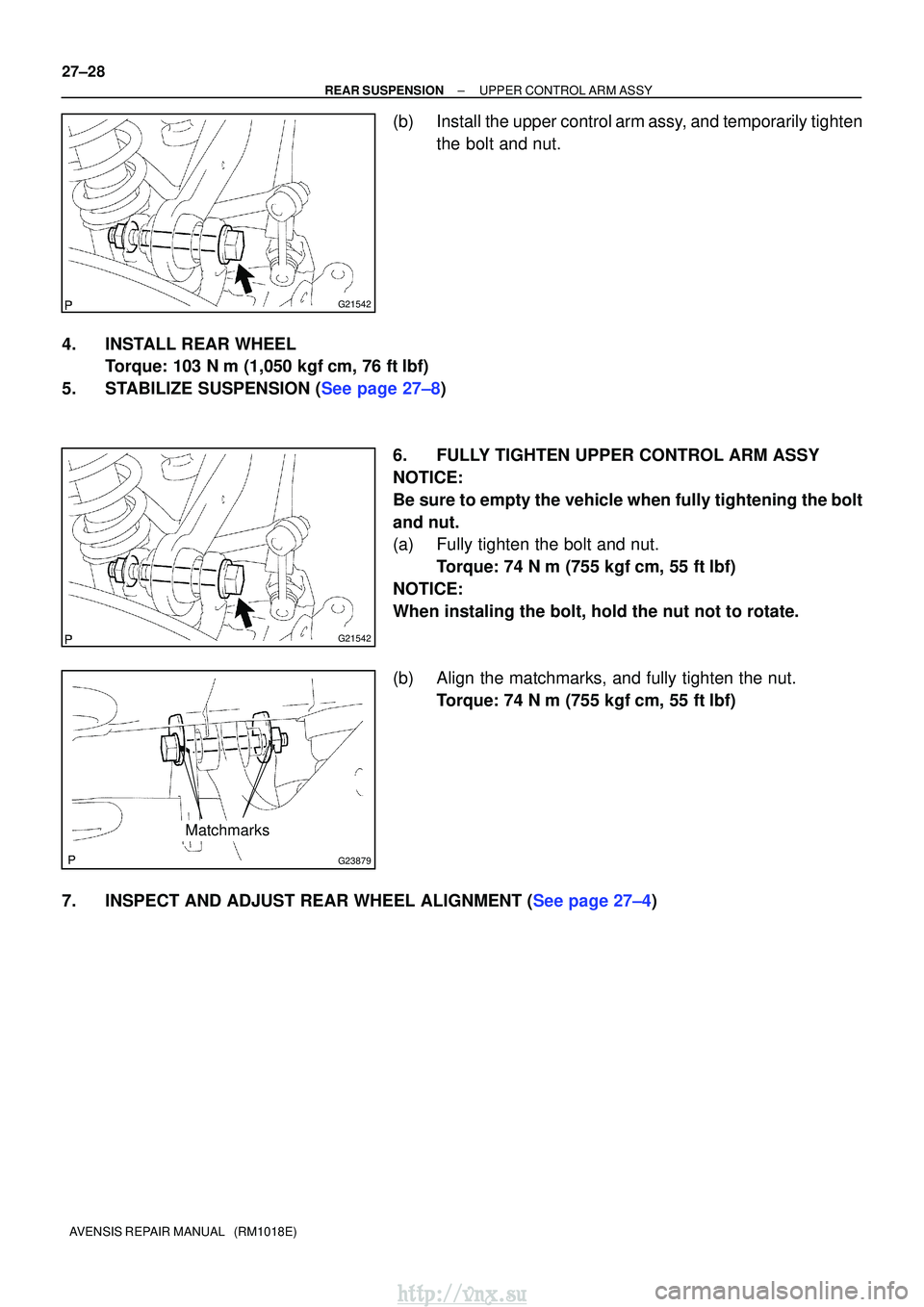

TOYOTA AVENSIS 2003 Service Repair Manual G21542 G21542 G23879 Matchmarks 27±28 ± REAR SUSPENSION UPPER CONTROL ARM ASSY AVENSIS REPAIR MANUAL (RM1018E) (b) Install the upper control arm assy, and temporarily tighten the bolt and nut. 4.

Page 1048 of 2234

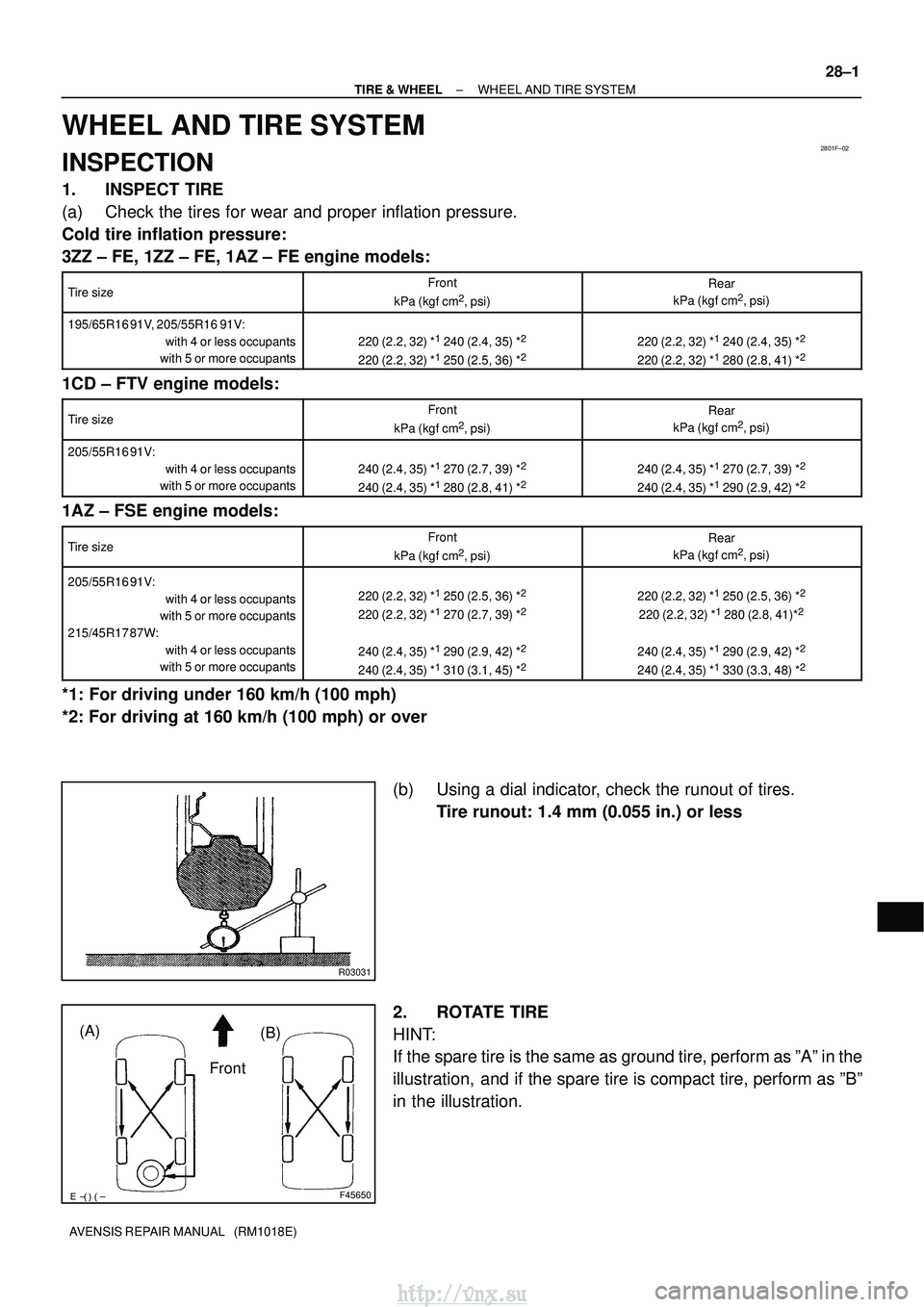

TOYOTA AVENSIS 2003 Service Repair Manual 2801F±02 R03031 F45650 Front (A) (B) ± TIRE & WHEEL WHEEL AND TIRE SYSTEM 28±1 AVENSIS REPAIR MANUAL (RM1018E) WHEEL AND TIRE SYSTEM INSPECTION 1. INSPECT TIRE (a) Check the tires for wear
