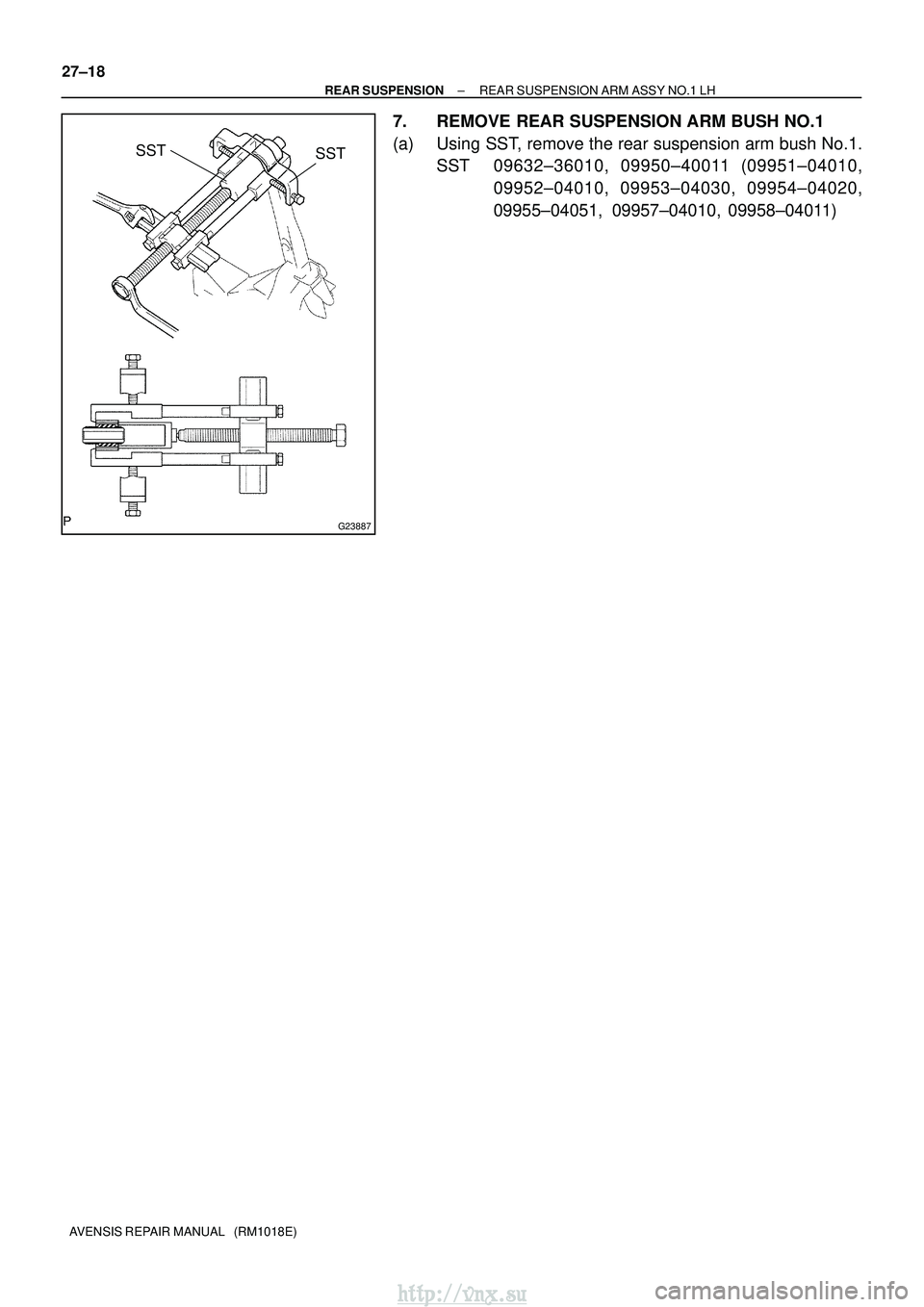

Page 1033 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual G23887 SSTSST 27±18 ± REAR SUSPENSION REAR SUSPENSION ARM ASSY NO.1 LH AVENSIS REPAIR MANUAL (RM1018E) 7. REMOVE REAR SUSPENSION ARM BUSH NO.1 (a) Using SST, remove the rear suspension arm bush No

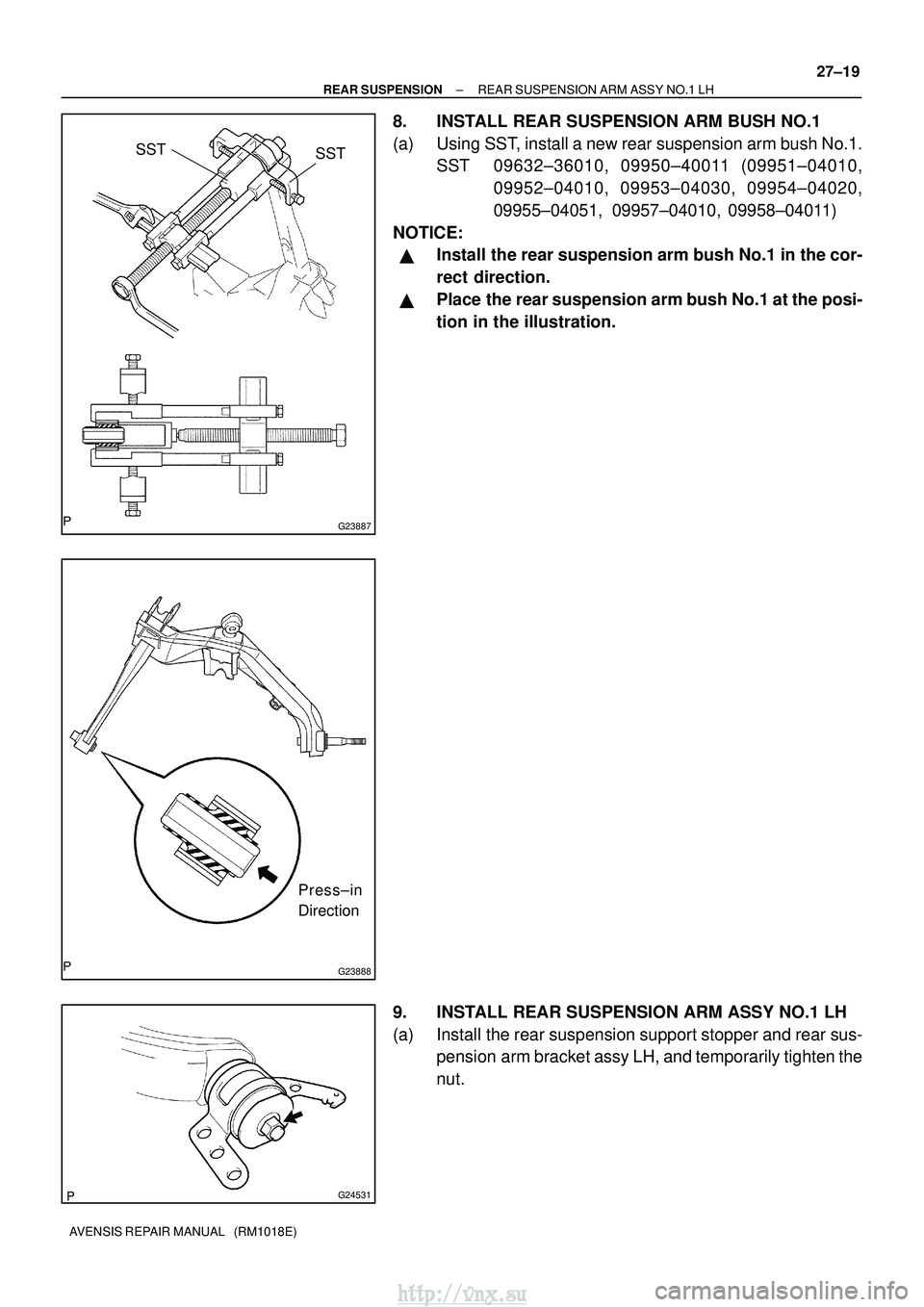

Page 1034 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual G23887 SSTSST G23888 Press±in Direction G24531 ± REAR SUSPENSION REAR SUSPENSION ARM ASSY NO.1 LH 27±19 AVENSIS REPAIR MANUAL (RM1018E) 8. INSTALL REAR SUSPENSION ARM BUSH NO.1 (a) Using SST, ins

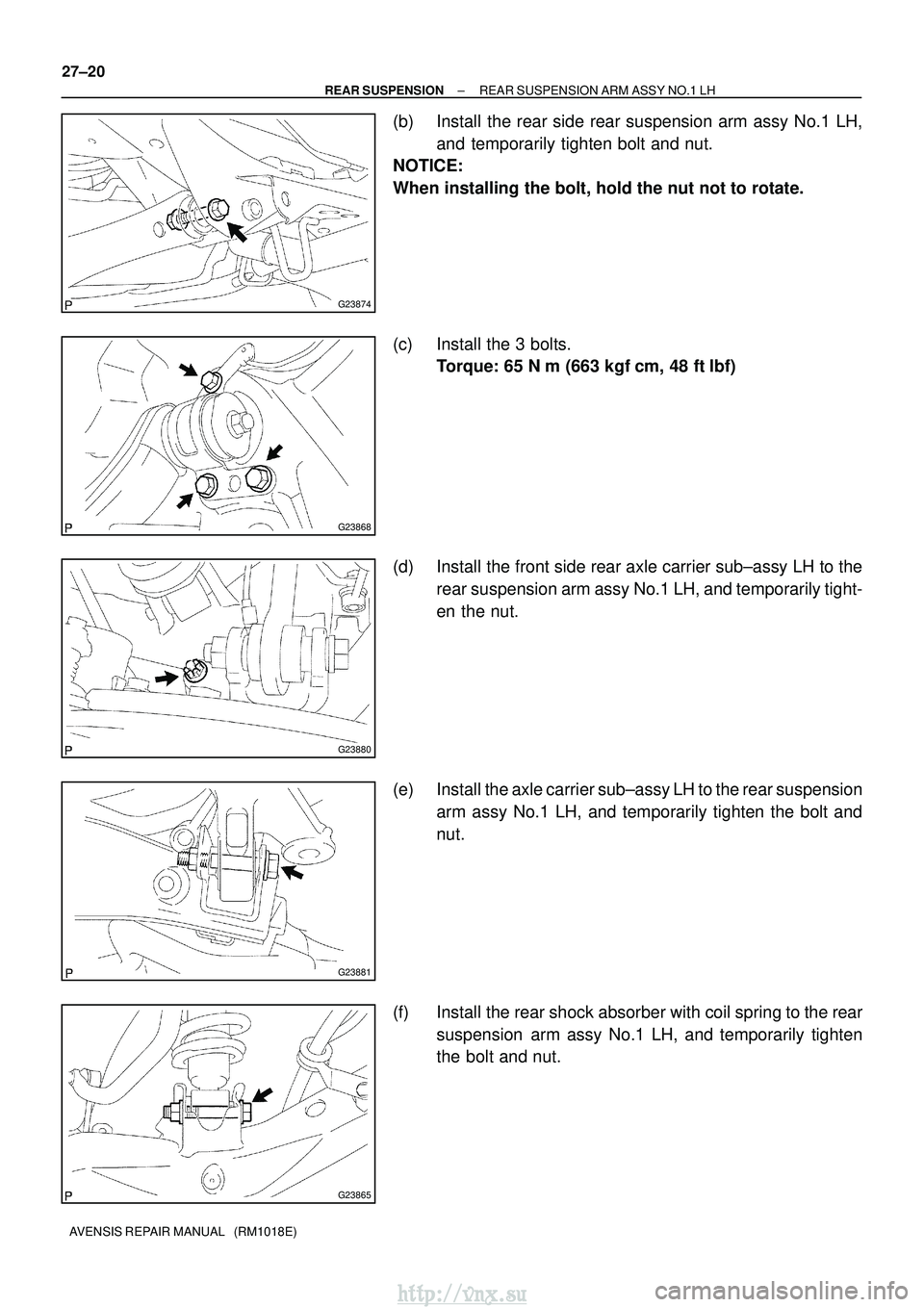

Page 1035 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual G23874 G23868 G23880 G23881 G23865 27±20 ± REAR SUSPENSION REAR SUSPENSION ARM ASSY NO.1 LH AVENSIS REPAIR MANUAL (RM1018E) (b) Install the rear side rear suspension arm assy No.1 LH, and temporar

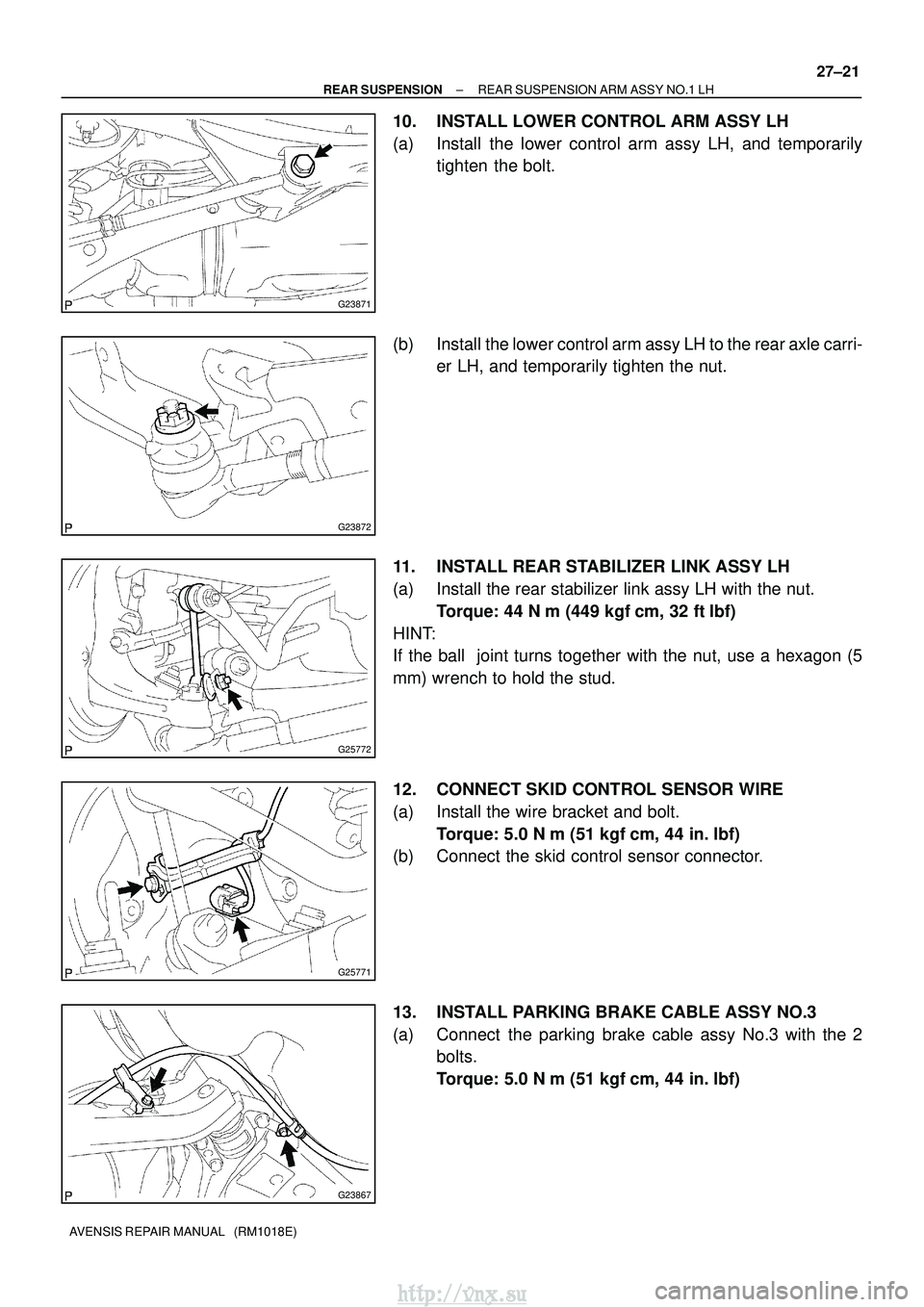

Page 1036 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual G23871 G23872 G25772 G25771 G23867 ± REAR SUSPENSION REAR SUSPENSION ARM ASSY NO.1 LH 27±21 AVENSIS REPAIR MANUAL (RM1018E) 10. INSTALL LOWER CONTROL ARM ASSY LH (a) Install the lower control arm

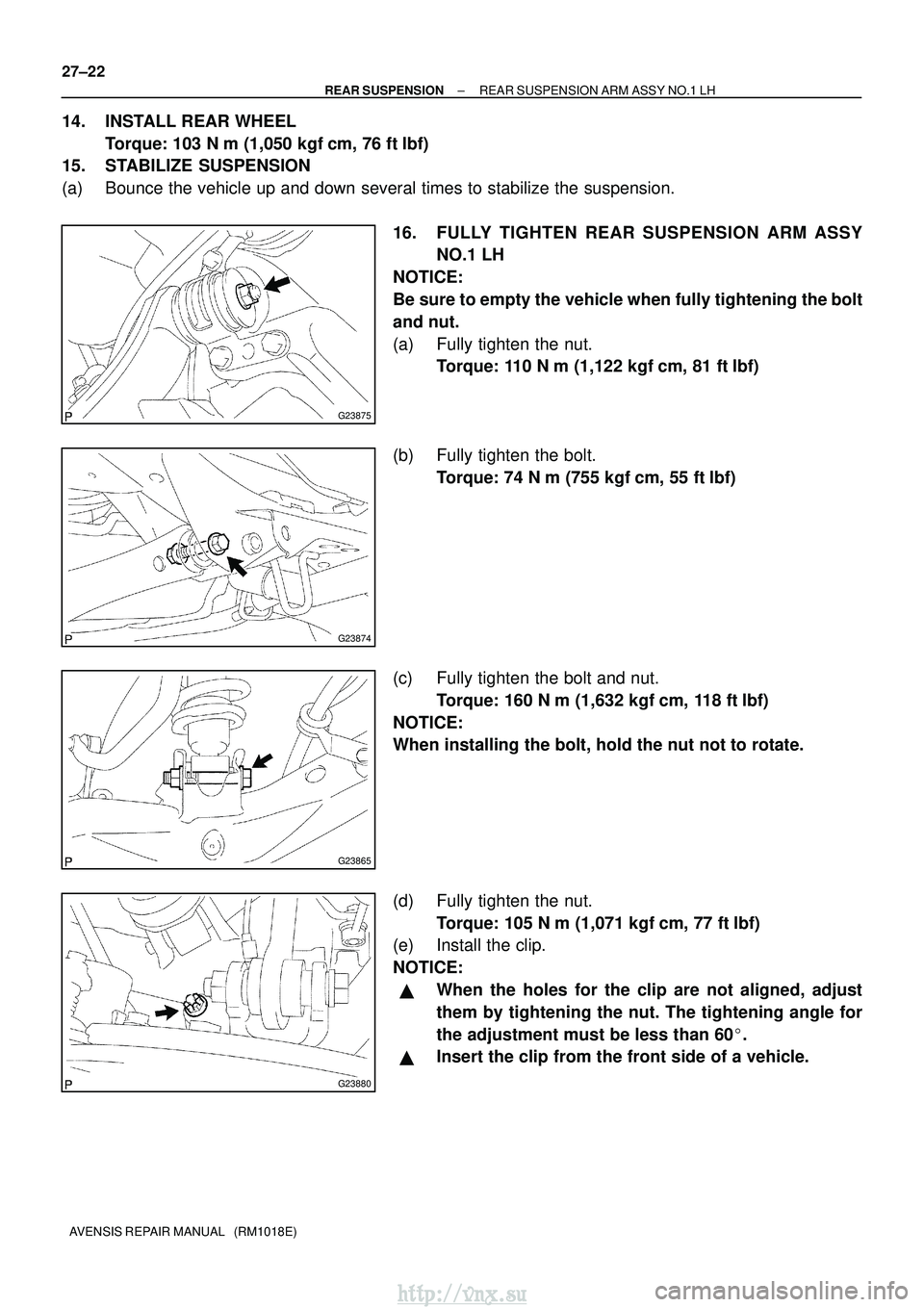

Page 1037 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual G23875 G23874 G23865 G23880 27±22 ± REAR SUSPENSION REAR SUSPENSION ARM ASSY NO.1 LH AVENSIS REPAIR MANUAL (RM1018E) 14. INSTALL REAR WHEEL Torque: 103 N m (1,050 kgfcm, 76 ft lbf) 15. STABILIZ

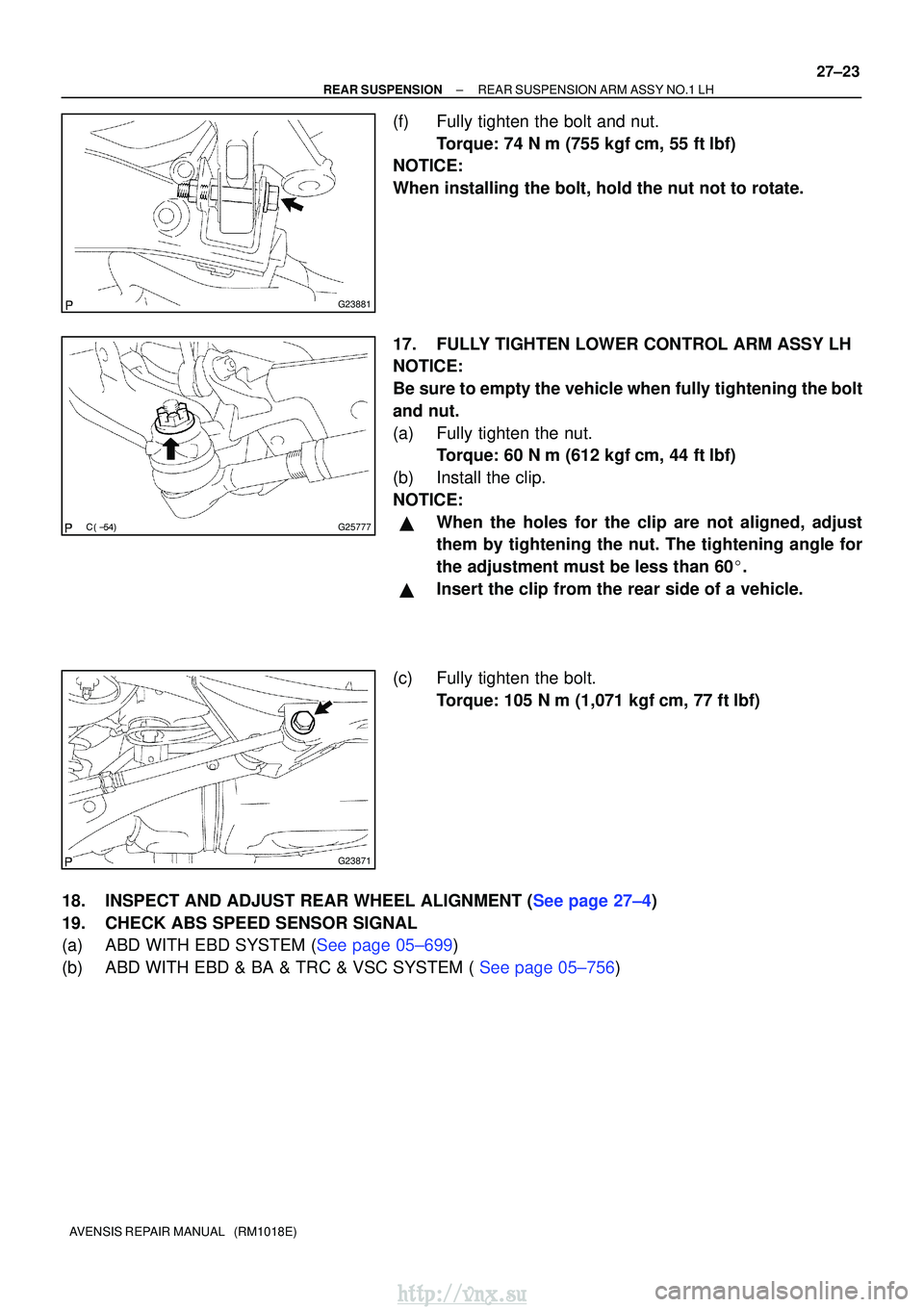

Page 1038 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual G23881 G25777 G23871 ± REAR SUSPENSION REAR SUSPENSION ARM ASSY NO.1 LH 27±23 AVENSIS REPAIR MANUAL (RM1018E) (f) Fully tighten the bolt and nut. Torque: 74 N m (755 kgf cm, 55 ftlbf) NOT

Page 1039 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 270E7±01 ± REAR SUSPENSION REAR SUSPENSION SYSTEM 27±1 AVENSIS REPAIR MANUAL (RM1018E) REAR SUSPENSION SYSTEM PROBLEM SYMPTOMS TABLE Use the table below to help you find the cause of the problem.

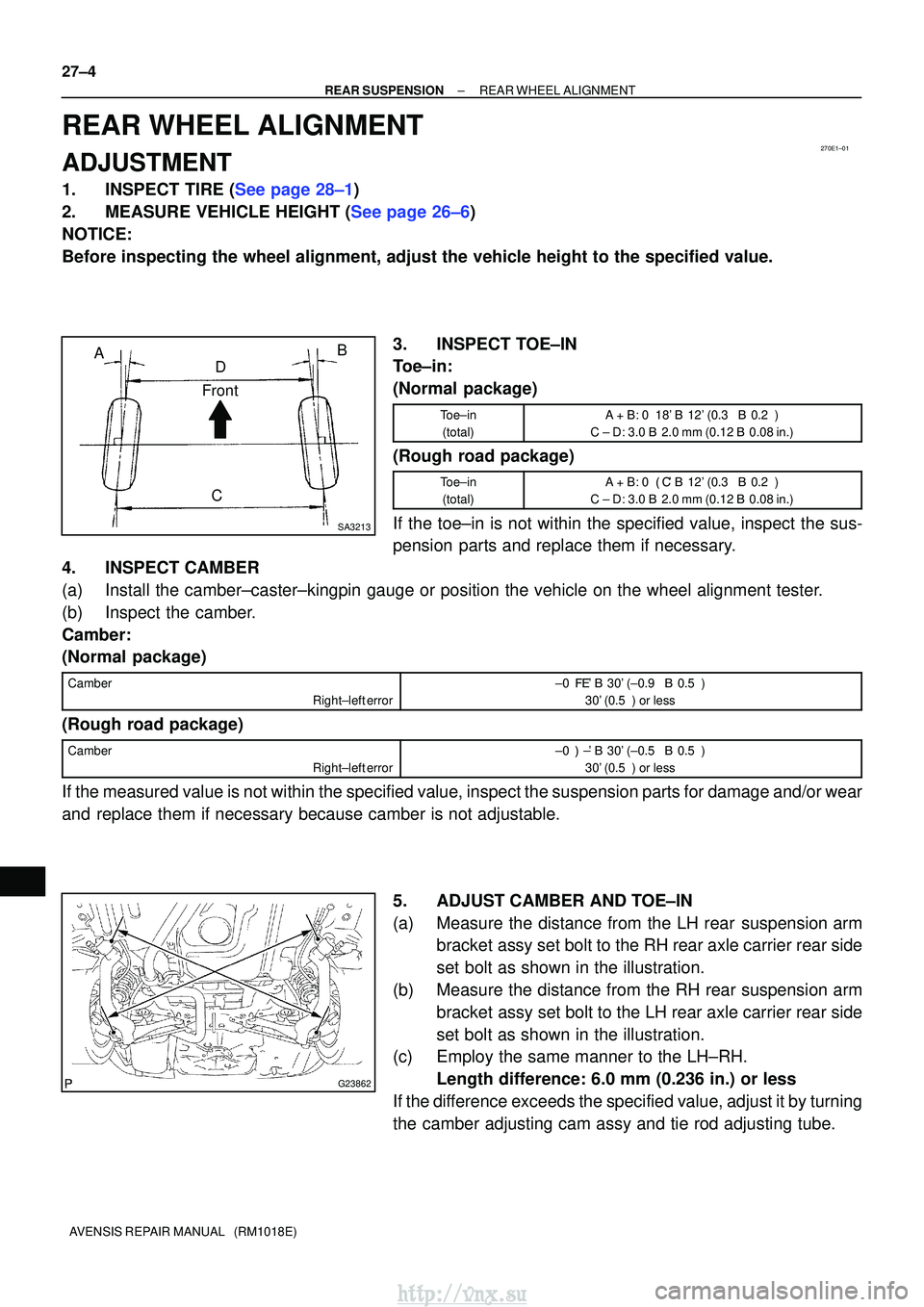

Page 1040 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 270E1±01 SA3213 AD B Front C G23862 27±4 ± REAR SUSPENSION REAR WHEEL ALIGNMENT AVENSIS REPAIR MANUAL (RM1018E) REAR WHEEL ALIGNMENT ADJUSTMENT 1.INSPECT TIRE (See page 28±1) 2.MEASURE VEHICLE H
