Page 1457 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H42654
H41401
H42655
H42759
H42656
±
SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
60±13
AVENSIS REPAIR MANUAL (RM1018E)
5. FRONT SEAT AIRBAG ASSY (VEHICLE NOT IN-
VOLVED IN COLLISIO

Page 1458 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H42657
H42659
60±14
±
SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

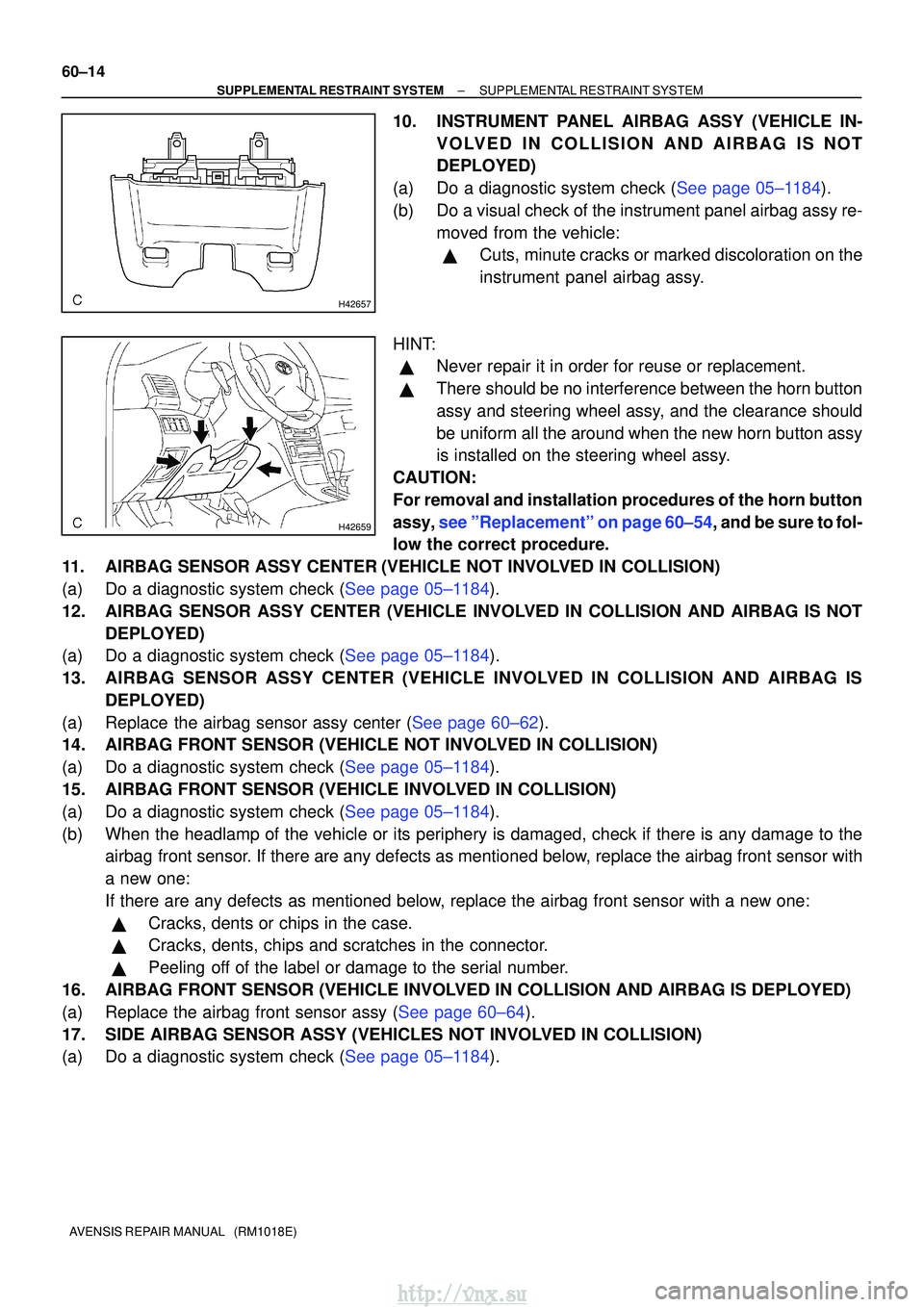

10. INSTRUMENT PANEL AIRBAG ASSY (VEHICLE IN- VOLVED IN COLLISION AND AIRBAG IS NO

H42657
H42659
60±14
±
SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
10. INSTRUMENT PANEL AIRBAG ASSY (VEHICLE IN- VOLVED IN COLLISION AND AIRBAG IS NOT
DEPLOYED)
(a)Do a diagnostic system check (See page 05±1184).
(b) Do a visual check of the instrument panel airbag assy re- moved from the vehicle:
Cuts, minute cracks or marked discoloration on the
instrument panel airbag assy.
HINT:
Never repair it in order for reuse or replacement.
There should be no interference between the horn button
assy and steering wheel assy, and the clearance should
be uniform all the around when the new horn button assy
is installed on the steering wheel assy.
CAUTION:
For removal and installation procedures of the horn button
assy, see ºReplacementº on page 60±54, and be sure to fol-
low the correct procedure.
11. AIRBAG SENSOR ASSY CENTER (VEHICLE NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
12. AIRBAG SENSOR ASSY CENTER (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED)
(a)Do a diagnostic system check (See page 05±1184).
13. AIRBAG SENSOR ASSY CENTER (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS
DEPLOYED)
(a)Replace the airbag sensor assy center (See page 60±62).
14. AIRBAG FRONT SENSOR (VEHICLE NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
15. AIRBAG FRONT SENSOR (VEHICLE INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
(b) When the headlamp of the vehicle or its periphery is damaged, check if t\
here is any damage to the airbag front sensor. If there are any defects as mentioned below, replace the airbag front sensor with
a new one:
If there are any defects as mentioned below, replace the airbag front sensor with a new one:
Cracks, dents or chips in the case.
Cracks, dents, chips and scratches in the connector.
Peeling off of the label or damage to the serial number.
16. AIRBAG FRONT SENSOR (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS DEPLOYED)
(a)Replace the airbag front sensor assy (See page 60±64).
17. SIDE AIRBAG SENSOR ASSY (VEHICLES NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
http://vnx.su

Page 1459 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual ±
SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
60±15
AVENSIS REPAIR MANUAL (RM1018E)

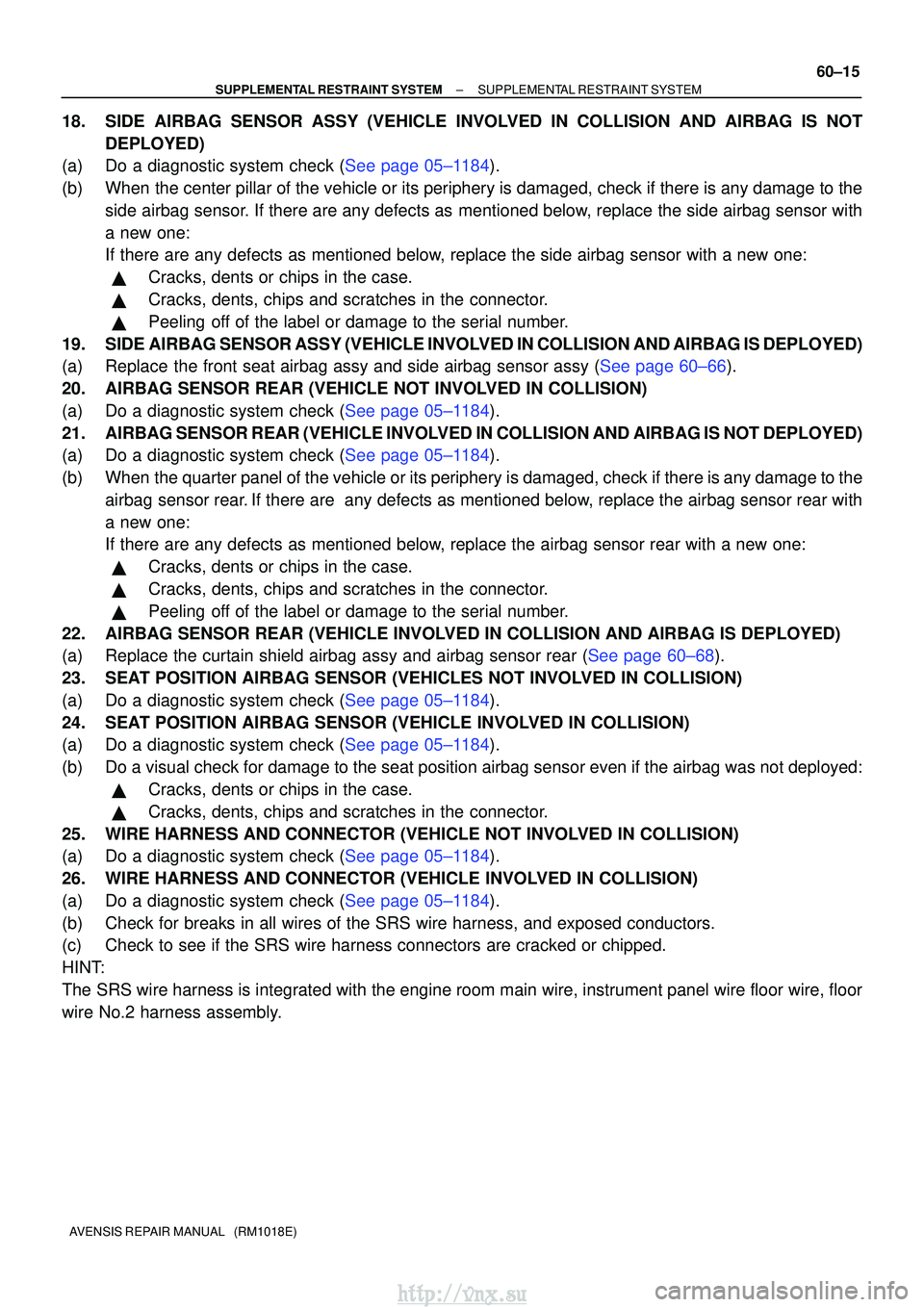

18. SIDE AIRBAG SENSOR ASSY (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT
DEPLOYED)
(a)Do a d

±
SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
60±15
AVENSIS REPAIR MANUAL (RM1018E)
18. SIDE AIRBAG SENSOR ASSY (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT
DEPLOYED)
(a)Do a diagnostic system check (See page 05±1184).
(b) When the center pillar of the vehicle or its periphery is damaged, check if \
there is any damage to the
side airbag sensor. If there are any defects as mentioned below, replace the side airbag sensor with
a new one:
If there are any defects as mentioned below, replace the side airbag sensor with a new one:
Cracks, dents or chips in the case.
Cracks, dents, chips and scratches in the connector.
Peeling off of the label or damage to the serial number.
19. SIDE AIRBAG SENSOR ASSY (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS DEPLOYED)
(a)Replace the front seat airbag assy and side airbag sensor assy (See page 60±66).
20. AIRBAG SENSOR REAR (VEHICLE NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
21. AIRBAG SENSOR REAR (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED)
(a)Do a diagnostic system check (See page 05±1184).
(b) When the quarter panel of the vehicle or its periphery is damaged, check if \
there is any damage to the airbag sensor rear. If there are any defects as mentioned below, replace the airbag sensor rear with
a new one:
If there are any defects as mentioned below, replace the airbag sensor rear with a new one:
Cracks, dents or chips in the case.
Cracks, dents, chips and scratches in the connector.
Peeling off of the label or damage to the serial number.
22. AIRBAG SENSOR REAR (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS DEPLOYED)
(a)Replace the curtain shield airbag assy and airbag sensor rear (See page 60±68).
23. SEAT POSITION AIRBAG SENSOR (VEHICLES NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
24. SEAT POSITION AIRBAG SENSOR (VEHICLE INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
(b) Do a visual check for damage to the seat position airbag sensor even if th\
e airbag was not deployed:
Cracks, dents or chips in the case.
Cracks, dents, chips and scratches in the connector.
25. WIRE HARNESS AND CONNECTOR (VEHICLE NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
26. WIRE HARNESS AND CONNECTOR (VEHICLE INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
(b) Check for breaks in all wires of the SRS wire harness, and exposed condu\
ctors.
(c) Check to see if the SRS wire harness connectors are cracked or chipped.
HINT:
The SRS wire harness is integrated with the engine room main wire, instrume\
nt panel wire floor wire, floor
wire No.2 harness assembly.
http://vnx.su

Page 1460 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 610E8±01
B69710
±
SEAT BELT FRONT SEAT BELT
61±5
AVENSIS REPAIR MANUAL (RM1018E)

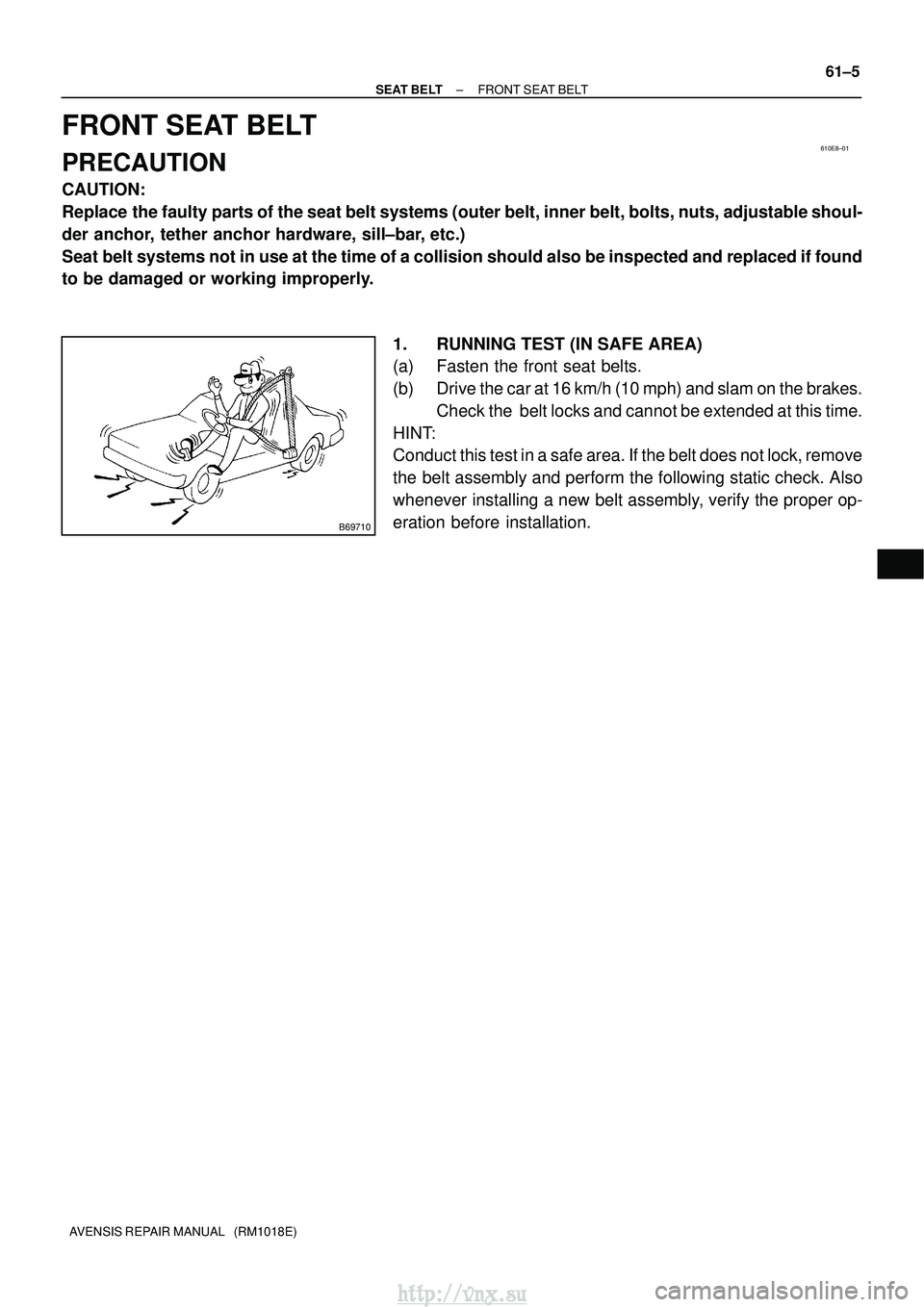

FRONT SEAT BELT
PRECAUTION
CAUTION:
Replace the faulty parts of the seat belt systems (outer belt, inner belt, bol

Page 1461 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 610CM±02

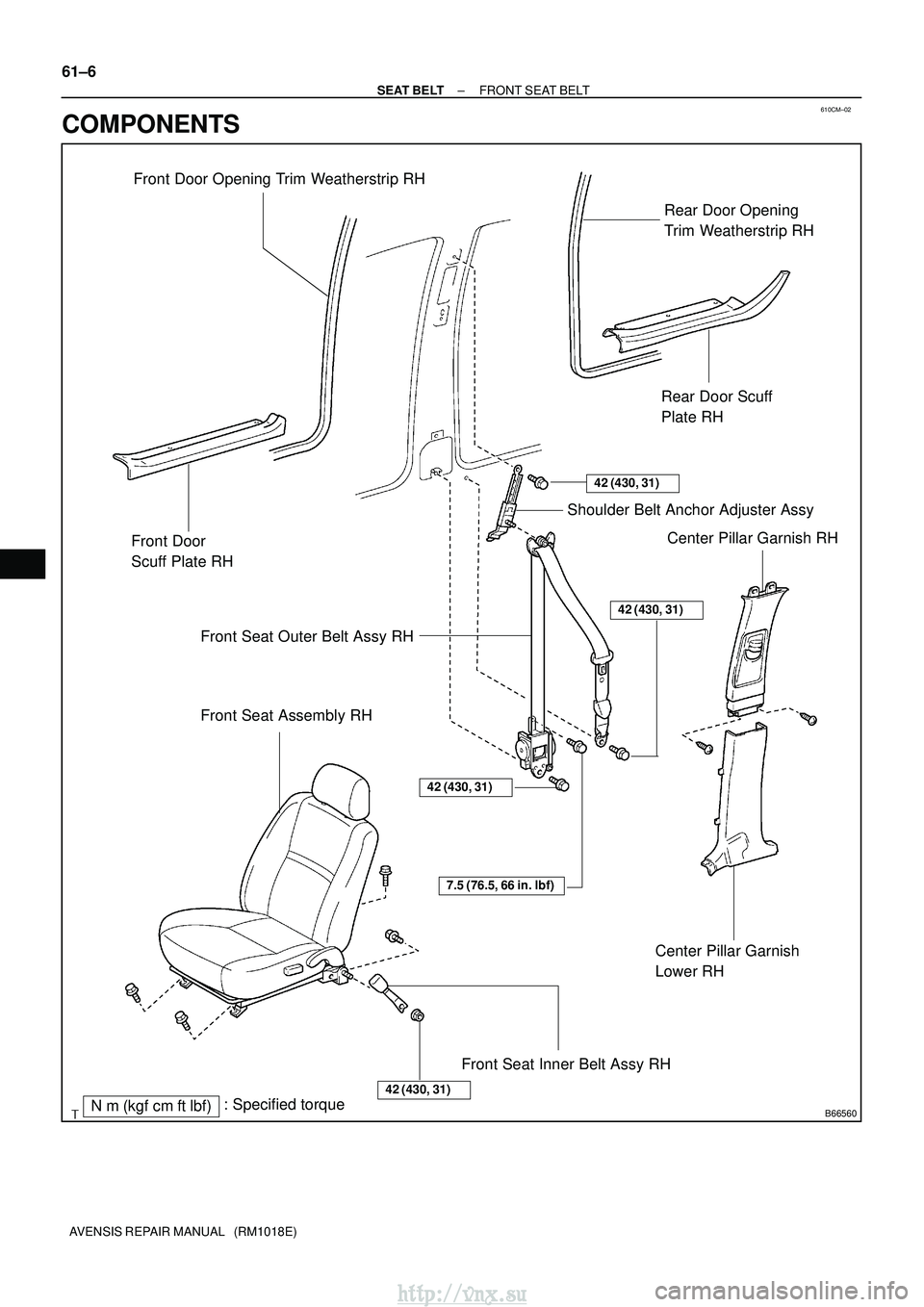

B66560Nm (kgf cm ftlbf): Specified torque
Front Door
Scuff Plate RH
Center Pillar Garnish
Lower RH
Center Pillar Garnish RH
Rear Door Scuff
Plate RH
Shoulder Belt Anchor Adjuster Assy
Fr

Page 1462 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 610CN±02
B65506
±
SEAT BELT FRONT SEAT BELT
61±7
AVENSIS REPAIR MANUAL (RM1018E)

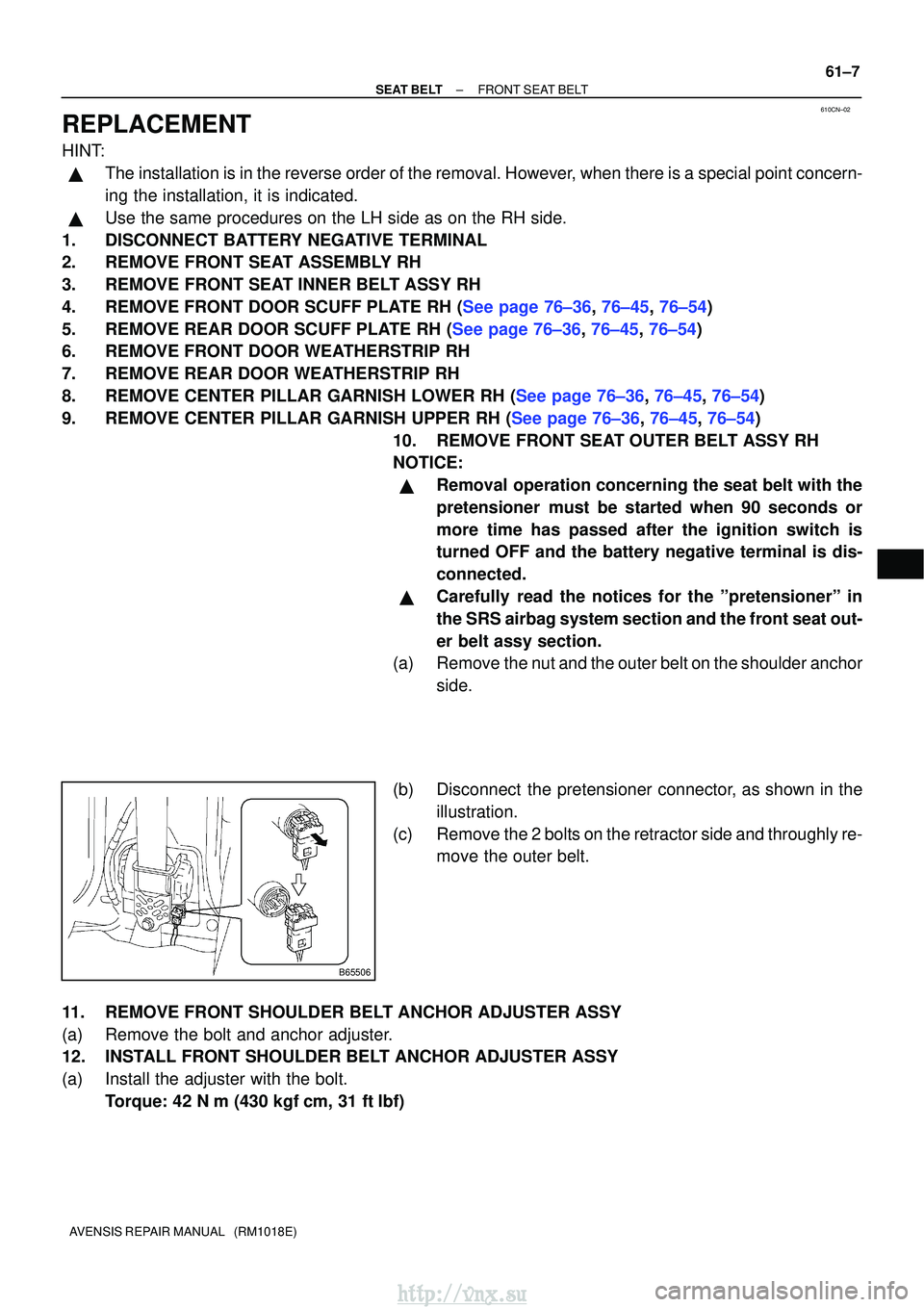

REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point

Page 1463 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B65022
Lock
Unlock
Retractor
45
B66462
61±8
±
SEAT BELT FRONT SEAT BELT
AVENSIS REPAIR MANUAL (RM1018E)

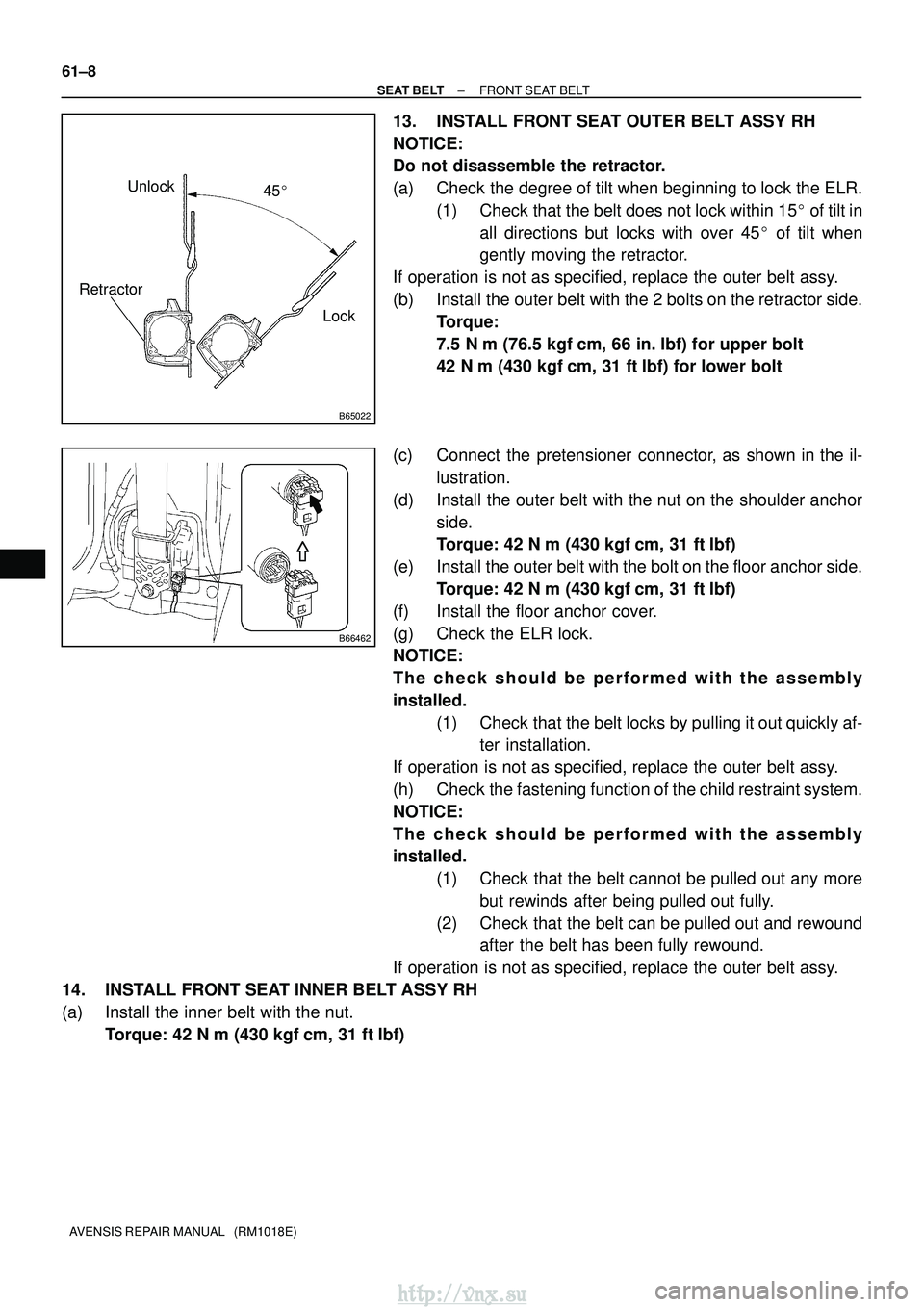

13. INSTALL FRONT SEAT OUTER BELT ASSY RH
NOTICE:
Do not disassemble the retractor.
(a) Ch

Page 1464 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 610CO±02
B50515
SST
B50511
±
SEAT BELT FRONT SEAT BELT
61±9
AVENSIS REPAIR MANUAL (RM1018E)

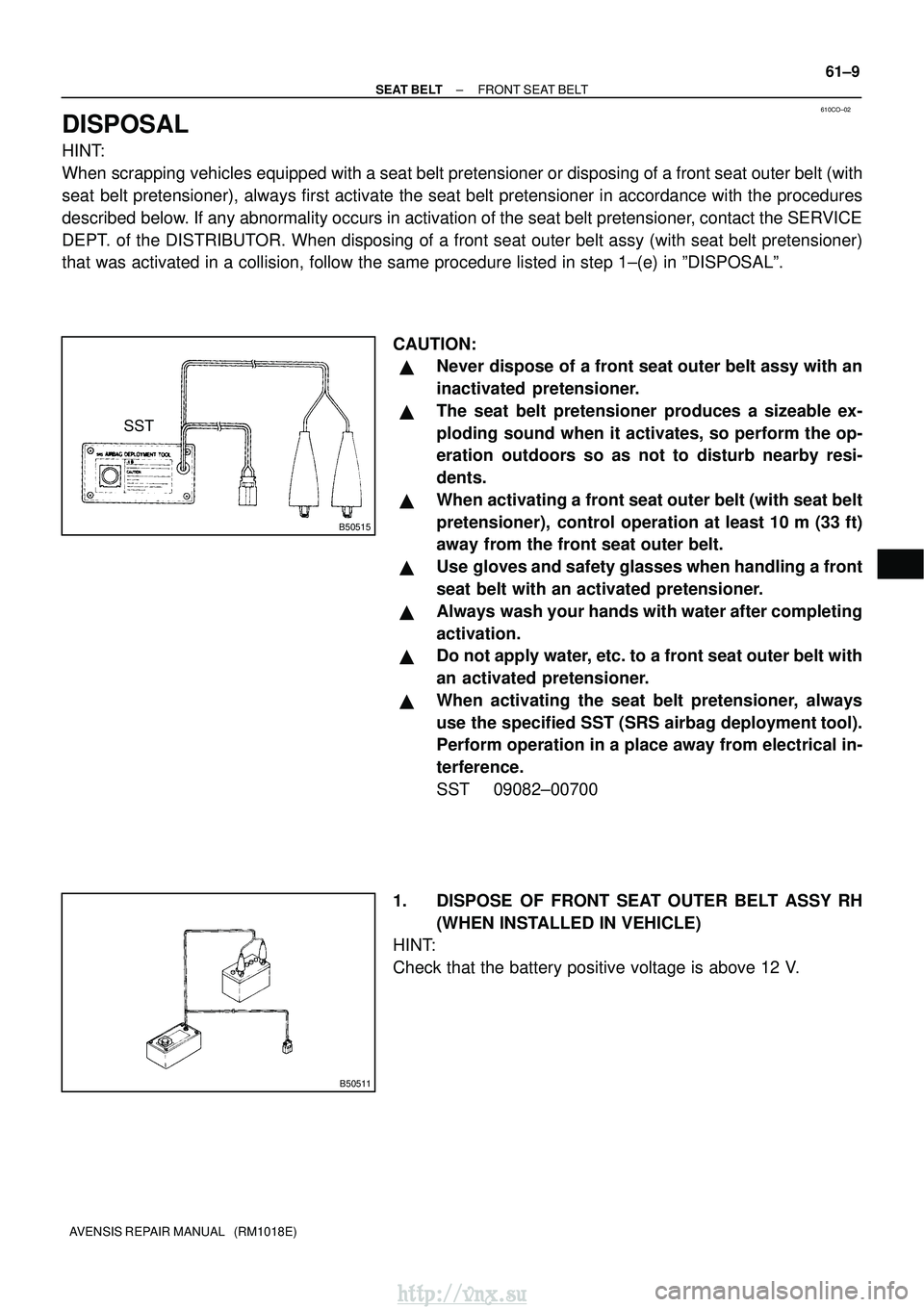

DISPOSAL
HINT:
When scrapping vehicles equipped with a seat belt pretensioner or disposing of a front s
