Page 1505 of 2234

E68999
LH:
RH:
1
1 3
3
2
2
1
25
E68130
65±6
±
LIGHTING LIGHTING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

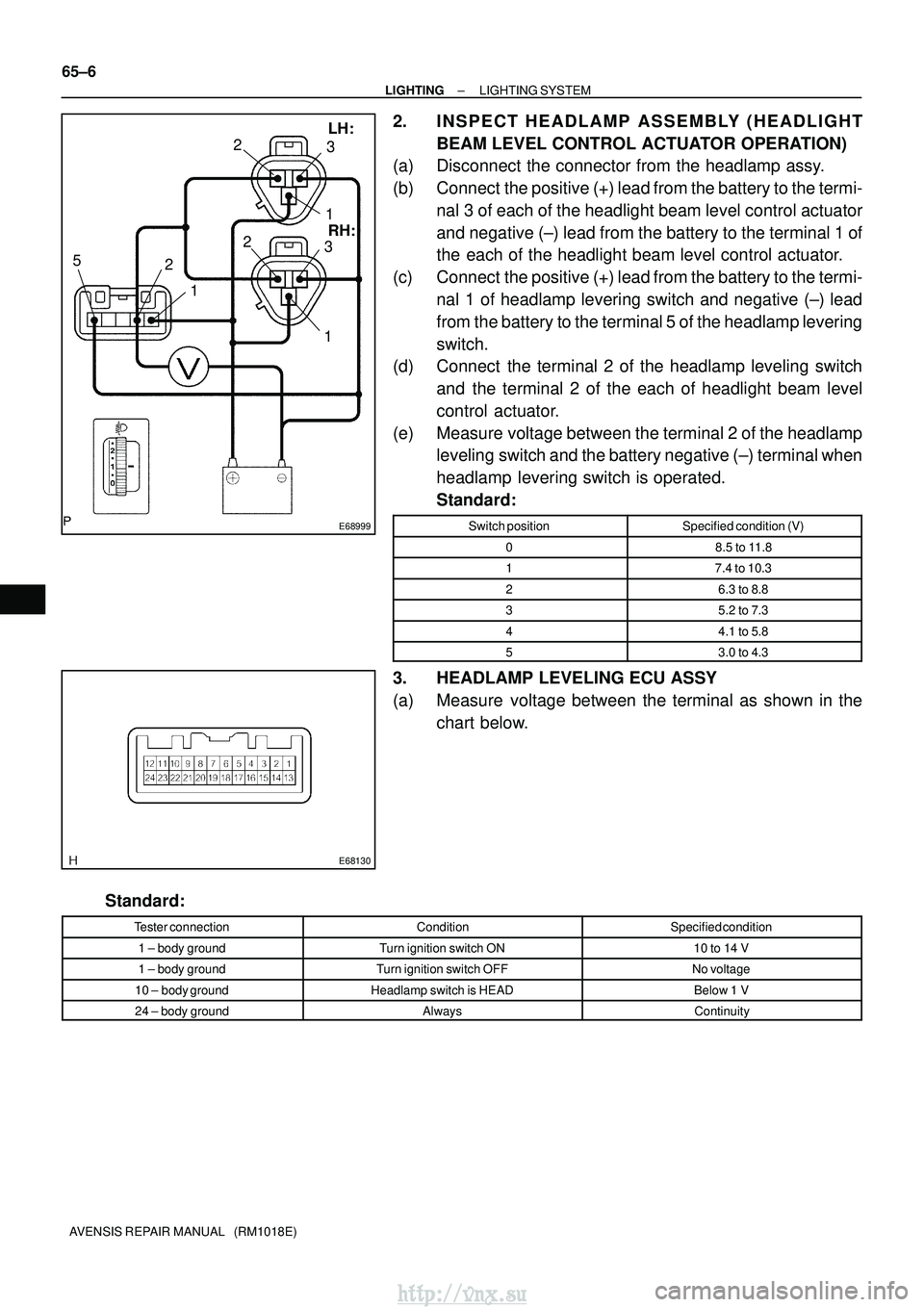

2. INSPECT HEADLAMP ASSEMBLY (HEADLIGHT BEAM LEVEL CONTROL ACTUATOR OPERATION)
(a) Disconnect the connector from the headlamp assy.
(b) Connect the positive (+) lead from the battery to the termi-
nal 3 of each of the headlight beam level control actuator
and negative (±) lead from the battery to the terminal 1 of
the each of the headlight beam level control actuator.
(c) Connect the positive (+) lead from the battery to the termi- nal 1 of headlamp levering switch and negative (±) lead
from the battery to the terminal 5 of the headlamp levering
switch.
(d) Connect the terminal 2 of the headlamp leveling switch
and the terminal 2 of the each of headlight beam level
control actuator.
(e) Measure voltage between the terminal 2 of the headlamp leveling switch and the battery negative (±) terminal when
headlamp levering switch is operated.
Standard:
Switch positionSpecified condition (V)
08.5 to 11.8
17.4 to 10.3
26.3 to 8.8
35.2 to 7.3
44.1 to 5.8
53.0 to 4.3
3. HEADLAMP LEVELING ECU ASSY
(a) Measure voltage between the terminal as shown in the
chart below.
Standard:
Tester connectionConditionSpecified condition
1 ± body groundTurn ignition switch ON10 to 14 V
1 ± body groundTurn ignition switch OFFNo voltage
10 ± body groundHeadlamp switch is HEADBelow 1 V
24 ± body groundAlwaysContinuity
http://vnx.su
Page 1506 of 2234

±
LIGHTING LIGHTING SYSTEM
65±7
AVENSIS REPAIR MANUAL (RM1018E)

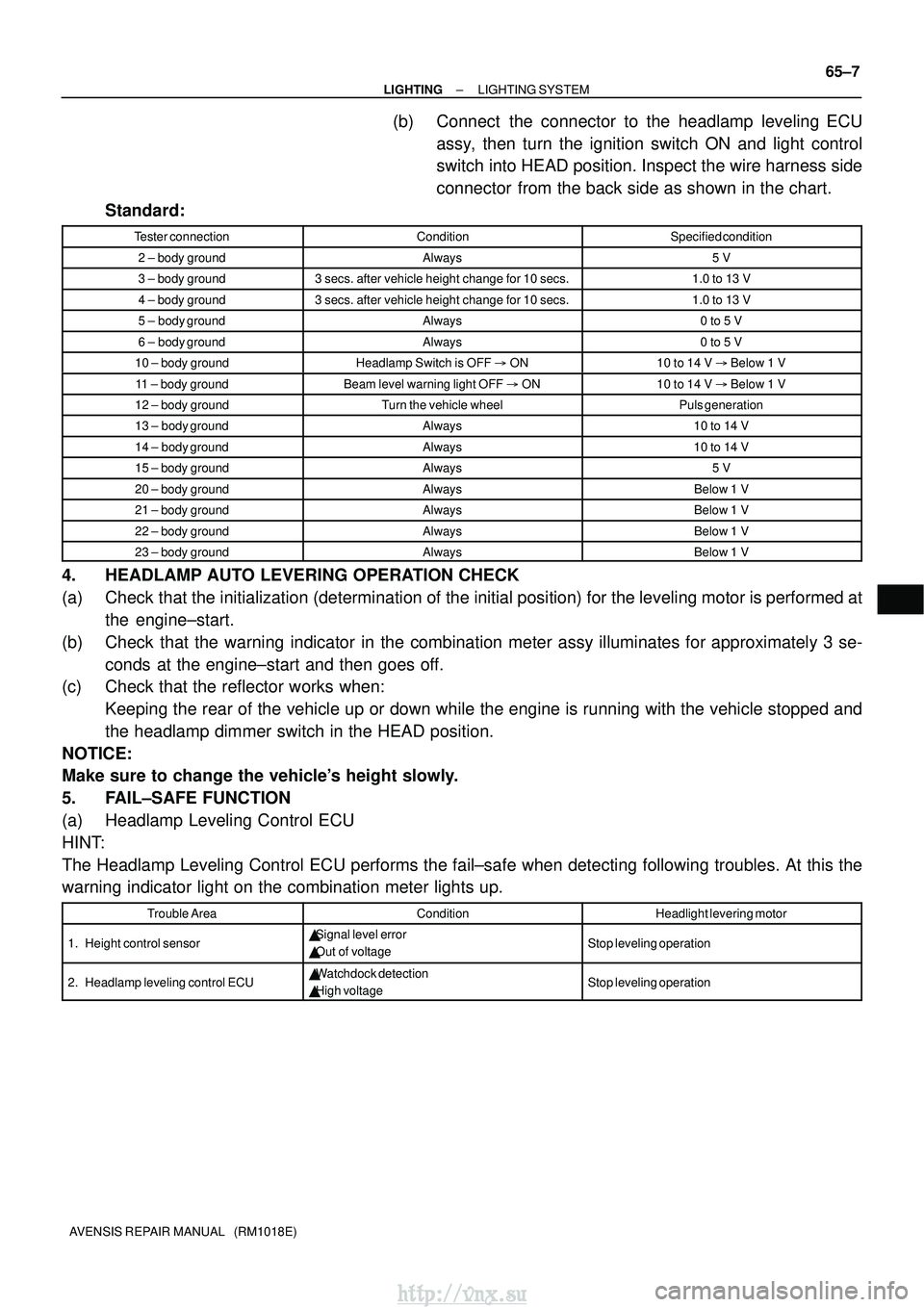

(b) Connect the connector to the headlamp leveling ECU
assy, then turn the ignition switch ON and light control
switch into HEAD position. Inspect the wire harness side
connector from the back side as shown in the chart.
Standard:
Tester connectionConditionSpecified condition
2 ± body groundAlways5 V
3 ± body ground3 secs. after vehicle height change for 10 secs.1.0 to 13 V
4 ± body ground3 secs. after vehicle height change for 10 secs.1.0 to 13 V
5 ± body groundAlways0 to 5 V
6 ± body groundAlways0 to 5 V
10 ± body groundHeadlamp Switch is OFF ON10 to 14 V Below 1 V
11 ± body groundBeam level warning light OFF ON10 to 14 V Below 1 V
12 ± body groundTurn the vehicle wheelPuls generation
13 ± body groundAlways10 to 14 V
14 ± body groundAlways10 to 14 V
15 ± body groundAlways5 V
20 ± body groundAlwaysBelow 1 V
21 ± body groundAlwaysBelow 1 V
22 ± body groundAlwaysBelow 1 V
23 ± body groundAlwaysBelow 1 V
4. HEADLAMP AUTO LEVERING OPERATION CHECK
(a) Check that the initialization (determination of the initial position) for t\
he leveling motor is performed at
the engine±start.
(b) Check that the warning indicator in the combination meter assy illuminates for approximately 3 se- conds at the engine±start and then goes off.
(c) Check that the reflector works when:
Keeping the rear of the vehicle up or down while the engine is running with the vehicle stopped and
the headlamp dimmer switch in the HEAD position.
NOTICE:
Make sure to change the vehicle's height slowly.
5. FAIL±SAFE FUNCTION
(a) Headlamp Leveling Control ECU
HINT:
The Headlamp Leveling Control ECU performs the fail±safe when detecti\
ng following troubles. At this the
warning indicator light on the combination meter lights up.
Trouble AreaConditionHeadlight levering motor
1. Height control sensor Signal level error
Out of voltageStop leveling operation
2. Headlamp leveling control ECUWatchdock detection
High voltageStop leveling operation
http://vnx.su
Page 1507 of 2234

65±8
±
LIGHTING LIGHTING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

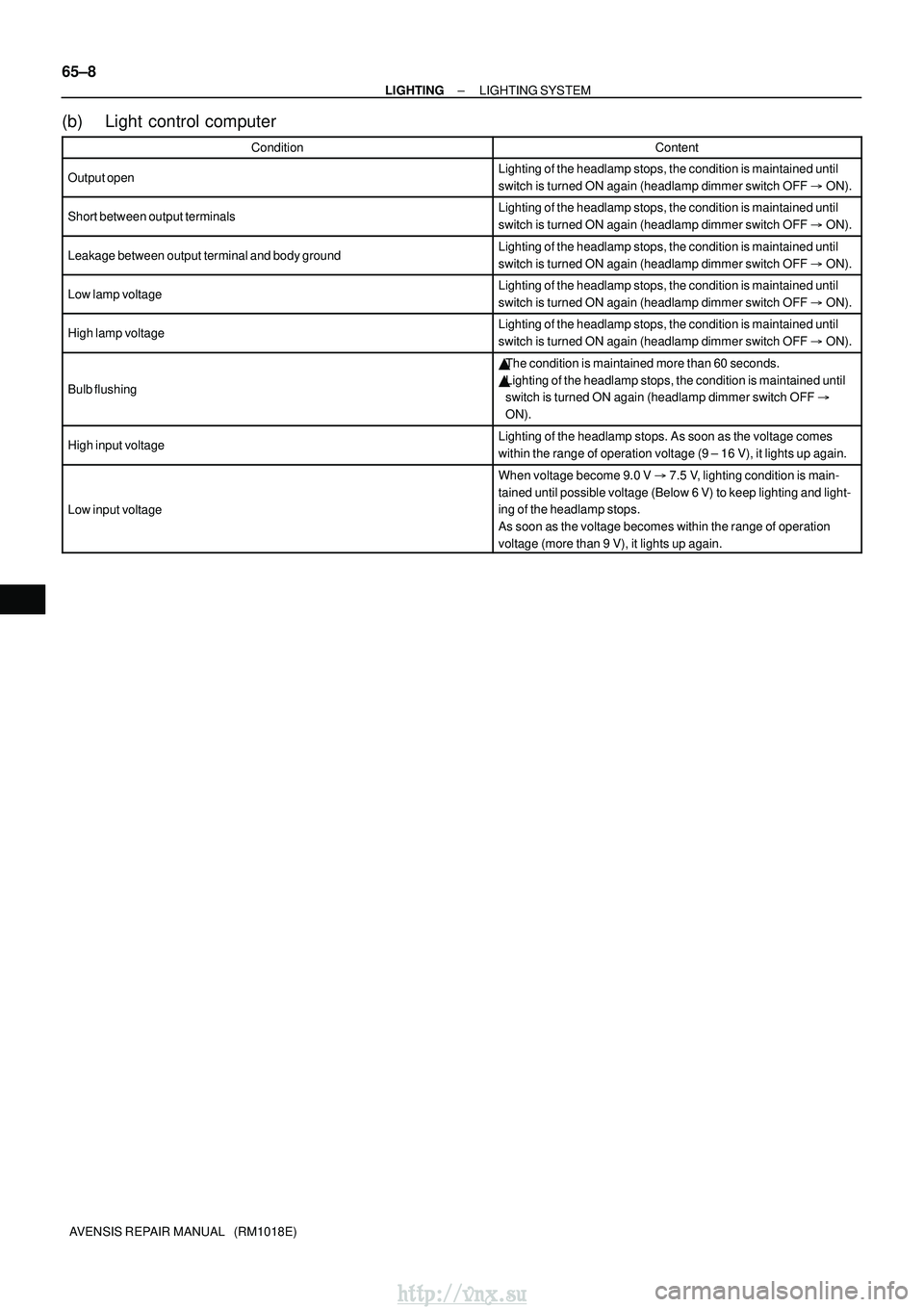

(b) Light control computer
ConditionContent
Output openLighting of the headlamp stops, the condition is maintained until
switch is turned ON again (headlamp dimmer switch OFF ON).
Short between output terminalsLighting of the headlamp stops, the condition is maintained until
switch is turned ON again (headlamp dimmer switch OFF ON).
Leakage between output terminal and body groundLighting of the headlamp stops, the condition is maintained until
switch is turned ON again (headlamp dimmer switch OFF ON).
Low lamp voltageLighting of the headlamp stops, the condition is maintained until
switch is turned ON again (headlamp dimmer switch OFF ON).
High lamp voltageLighting of the headlamp stops, the condition is maintained until
switch is turned ON again (headlamp dimmer switch OFF ON).
Bulb flushing
The condition is maintained more than 60 seconds.
Lighting of the headlamp stops, the condition is maintained until
switch is turned ON again (headlamp dimmer switch OFF
ON).
High input voltageLighting of the headlamp stops. As soon as the voltage comes
within the range of operation voltage (9 ± 16 V), it lights up agai\
n.
Low input voltage
When voltage become 9.0 V 7.5 V, lighting condition is main-
tained until possible voltage (Below 6 V) to keep lighting and light-
ing of the headlamp stops.
As soon as the voltage becomes within the range of operation
voltage (more than 9 V), it lights up again.
http://vnx.su
Page 1508 of 2234

650SR±01
78
9
654 3 2 1
10
11
121314151617I33101
I35771
±
LIGHTING LIGHTING SYSTEM
65±9
AVENSIS REPAIR MANUAL (RM1018E)

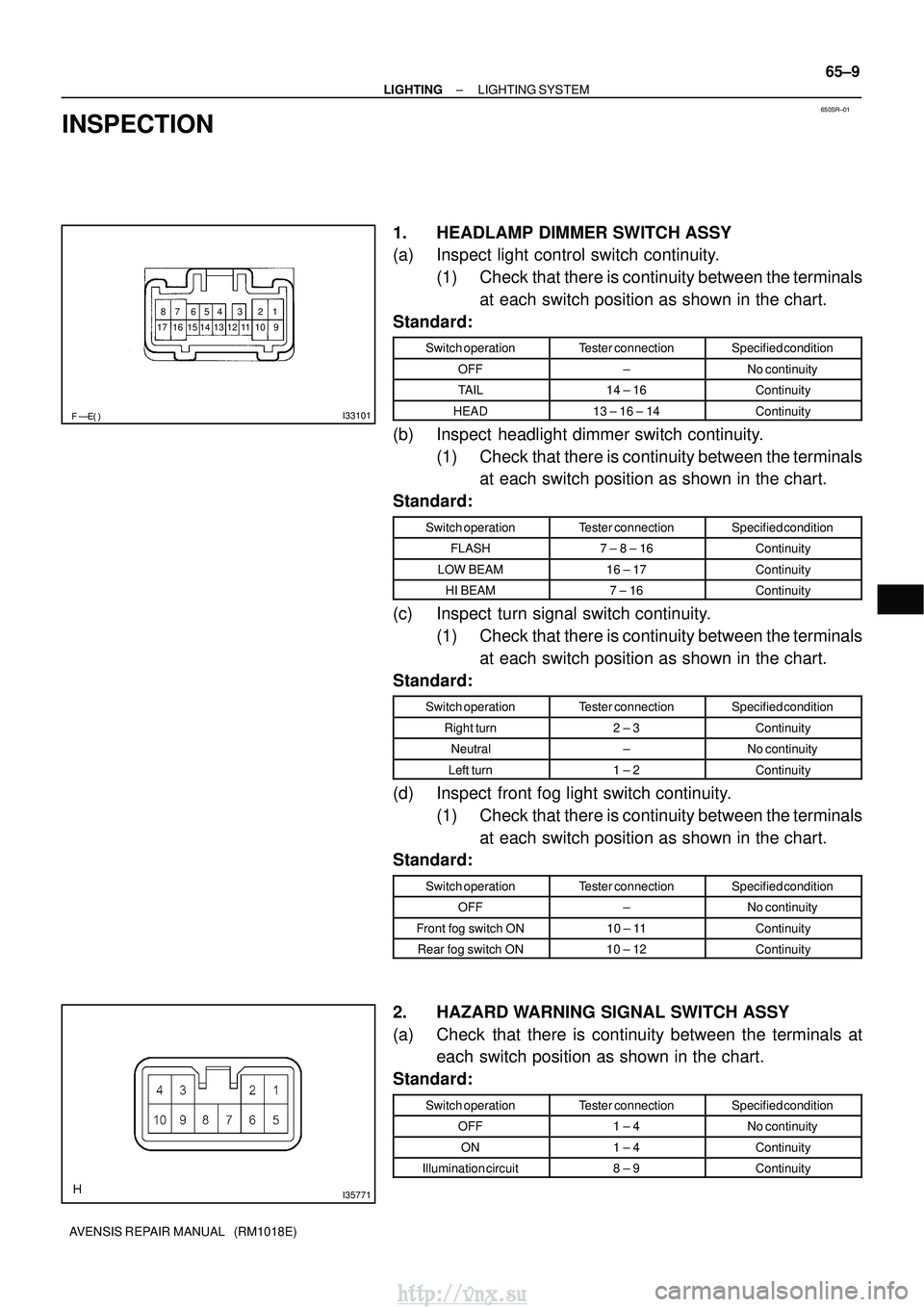

INSPECTION
1. HEADLAMP DIMMER SWITCH ASSY
(a) Inspect light control switch continuity.
(1) Check that there is continuity between the terminalsat each switch position as shown in the chart.
Standard:
Switch operationTester connectionSpecified condition
OFF±No continuity
TAIL14 ± 16Continuity
HEAD13 ± 16 ± 14Continuity
(b) Inspect headlight dimmer switch continuity. (1) Check that there is continuity between the terminalsat each switch position as shown in the chart.
Standard:
Switch operationTester connectionSpecified condition
FLASH7 ± 8 ± 16Continuity
LOW BEAM16 ± 17Continuity
HI BEAM7 ± 16Continuity
(c) Inspect turn signal switch continuity. (1) Check that there is continuity between the terminalsat each switch position as shown in the chart.
Standard:
Switch operationTester connectionSpecified condition
Right turn2 ± 3Continuity
Neutral±No continuity
Left turn1 ± 2Continuity
(d) Inspect front fog light switch continuity. (1) Check that there is continuity between the terminalsat each switch position as shown in the chart.
Standard:
Switch operationTester connectionSpecified condition
OFF±No continuity
Front fog switch ON10 ± 11Continuity
Rear fog switch ON10 ± 12Continuity
2. HAZARD WARNING SIGNAL SWITCH ASSY
(a) Check that there is continuity between the terminals at each switch position as shown in the chart.
Standard:
Switch operationTester connectionSpecified condition
OFF1 ± 4No continuity
ON1 ± 4Continuity
Illumination circuit8 ± 9Continuity
http://vnx.su
Page 1509 of 2234

I30905
I30905
E64835
65±10
±
LIGHTING LIGHTING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

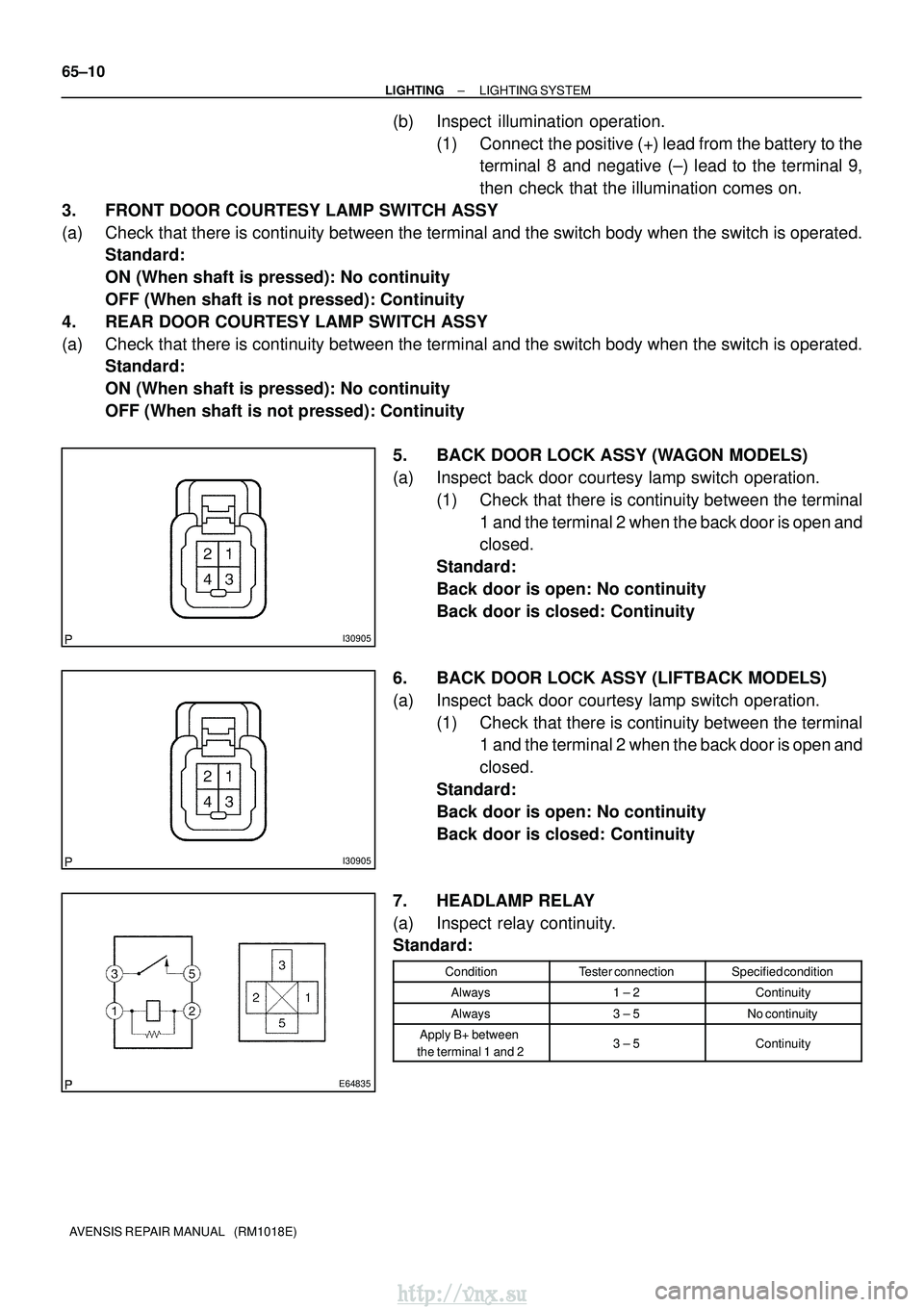

(b) Inspect illumination operation. (1) Connect the positive (+) lead from the battery to theterminal 8 and negative (±) lead to the terminal 9,
then check that the illumination comes on.
3. FRONT DOOR COURTESY LAMP SWITCH ASSY
(a) Check that there is continuity between the terminal and the switch body when \
the switch is operated. Standard:
ON (When shaft is pressed): No continuity
OFF (When shaft is not pressed): Continuity
4. REAR DOOR COURTESY LAMP SWITCH ASSY
(a) Check that there is continuity between the terminal and the switch body when \
the switch is operated. Standard:
ON (When shaft is pressed): No continuity
OFF (When shaft is not pressed): Continuity
5. BACK DOOR LOCK ASSY (WAGON MODELS)
(a) Inspect back door courtesy lamp switch operation.(1) Check that there is continuity between the terminal1 and the terminal 2 when the back door is open and
closed.
Standard:
Back door is open: No continuity
Back door is closed: Continuity
6. BACK DOOR LOCK ASSY (LIFTBACK MODELS)
(a) Inspect back door courtesy lamp switch operation. (1) Check that there is continuity between the terminal1 and the terminal 2 when the back door is open and
closed.
Standard:
Back door is open: No continuity
Back door is closed: Continuity
7. HEADLAMP RELAY
(a) Inspect relay continuity.
Standard:
ConditionTester connectionSpecified condition
Always1 ± 2Continuity
Always3 ± 5No continuity
Apply B+ between
the terminal 1 and 23 ± 5Continuity
http://vnx.su
Page 1510 of 2234

B16200
B16200
B16200
E64835
E68131
±
LIGHTING LIGHTING SYSTEM
65±11
AVENSIS REPAIR MANUAL (RM1018E)

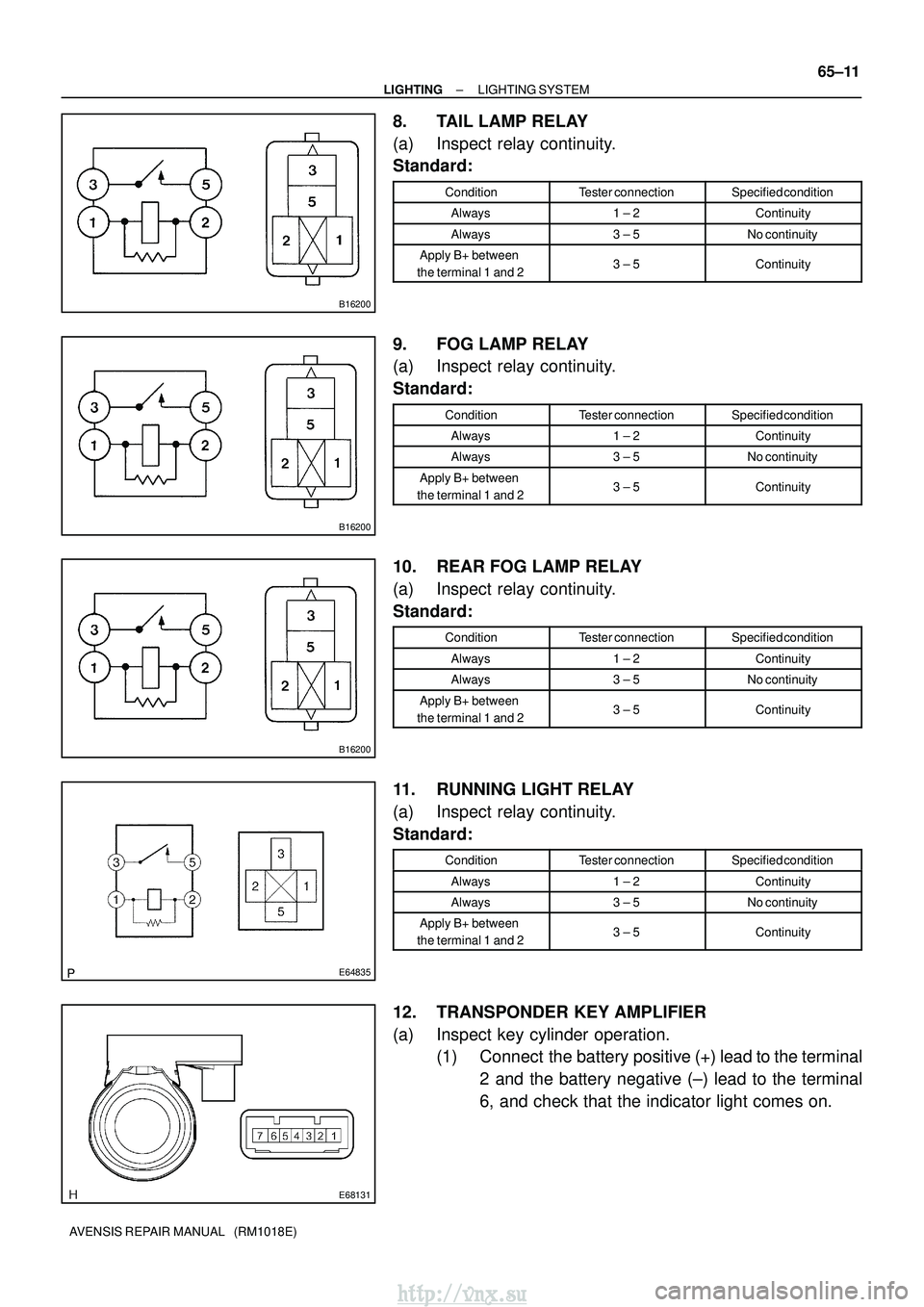

8. TAIL LAMP RELAY
(a) Inspect relay continuity.
Standard:
ConditionTester connectionSpecified condition
Always1 ± 2Continuity
Always3 ± 5No continuity
Apply B+ between
the terminal 1 and 23 ± 5Continuity
9. FOG LAMP RELAY
(a) Inspect relay continuity.
Standard:
ConditionTester connectionSpecified condition
Always1 ± 2Continuity
Always3 ± 5No continuity
Apply B+ between
the terminal 1 and 23 ± 5Continuity
10. REAR FOG LAMP RELAY
(a) Inspect relay continuity.
Standard:
ConditionTester connectionSpecified condition
Always1 ± 2Continuity
Always3 ± 5No continuity
Apply B+ between
the terminal 1 and 23 ± 5Continuity
11. RUNNING LIGHT RELAY
(a) Inspect relay continuity.
Standard:
ConditionTester connectionSpecified condition
Always1 ± 2Continuity
Always3 ± 5No continuity
Apply B+ between
the terminal 1 and 23 ± 5Continuity
12. TRANSPONDER KEY AMPLIFIER
(a) Inspect key cylinder operation. (1) Connect the battery positive (+) lead to the terminal
2 and the battery negative (±) lead to the terminal
6, and check that the indicator light comes on.
http://vnx.su
Page 1511 of 2234

E68137
E68137
65±12
±
LIGHTING LIGHTING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

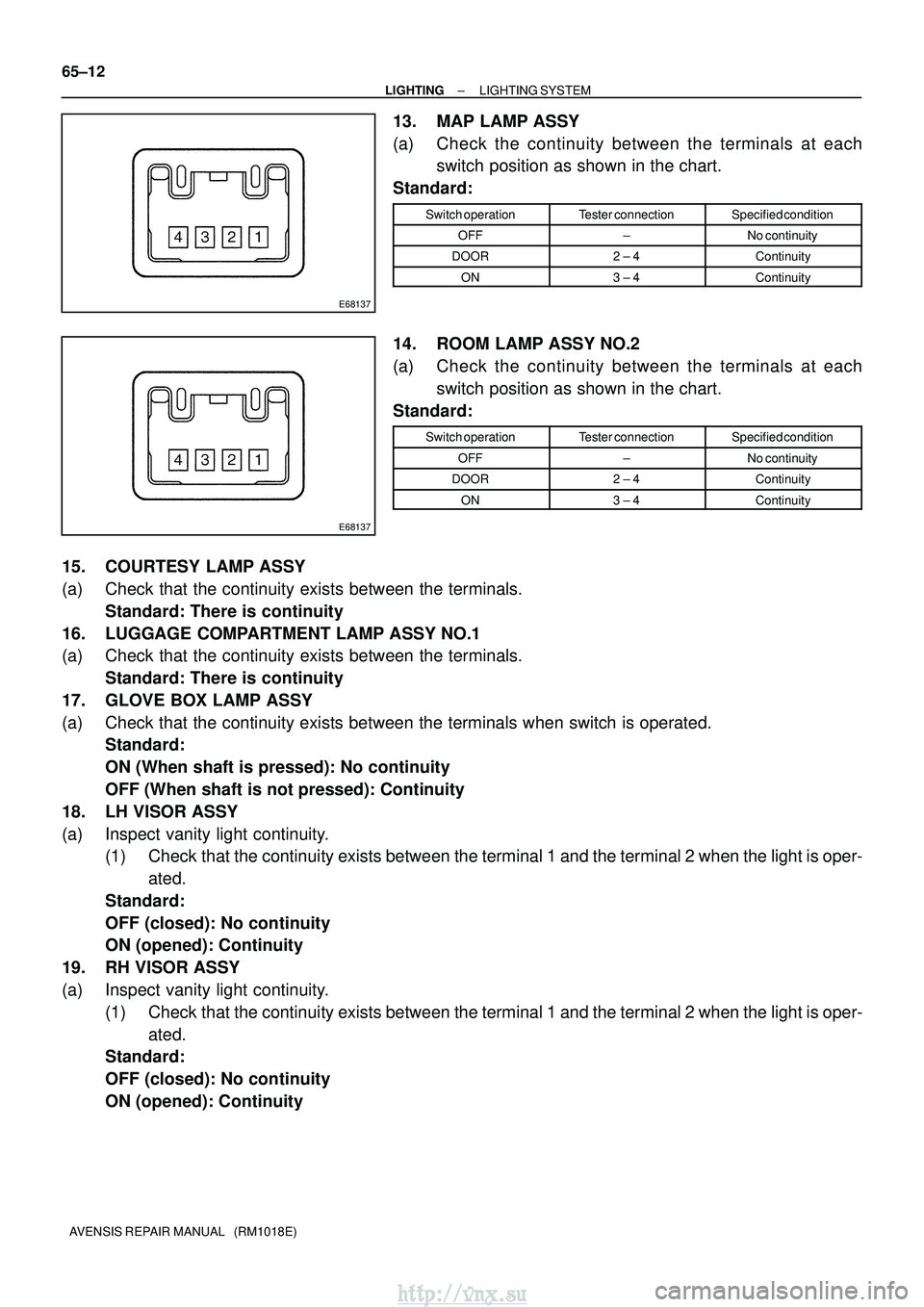

13. MAP LAMP ASSY
(a) Check the continuity between the terminals at each switch position as shown in the chart.
Standard:
Switch operationTester connectionSpecified condition
OFF±No continuity
DOOR2 ± 4Continuity
ON3 ± 4Continuity
14. ROOM LAMP ASSY NO.2
(a) Check the continuity between the terminals at each switch position as shown in the chart.
Standard:
Switch operationTester connectionSpecified condition
OFF±No continuity
DOOR2 ± 4Continuity
ON3 ± 4Continuity
15. COURTESY LAMP ASSY
(a) Check that the continuity exists between the terminals. Standard: There is continuity
16. LUGGAGE COMPARTMENT LAMP ASSY NO.1
(a) Check that the continuity exists between the terminals. Standard: There is continuity
17. GLOVE BOX LAMP ASSY
(a) Check that the continuity exists between the terminals when switch is op\
erated. Standard:
ON (When shaft is pressed): No continuity
OFF (When shaft is not pressed): Continuity
18. LH VISOR ASSY
(a) Inspect vanity light continuity. (1) Check that the continuity exists between the terminal 1 and the terminal 2 when the\
light is oper-
ated.
Standard:
OFF (closed): No continuity
ON (opened): Continuity
19. RH VISOR ASSY
(a) Inspect vanity light continuity. (1) Check that the continuity exists between the terminal 1 and the terminal 2 when the\
light is oper-ated.
Standard:
OFF (closed): No continuity
ON (opened): Continuity
http://vnx.su
Page 1512 of 2234

E68132
E68133
E65594
Free Pushed in4
2
1 3
±
LIGHTING LIGHTING SYSTEM
65±13
AVENSIS REPAIR MANUAL (RM1018E)

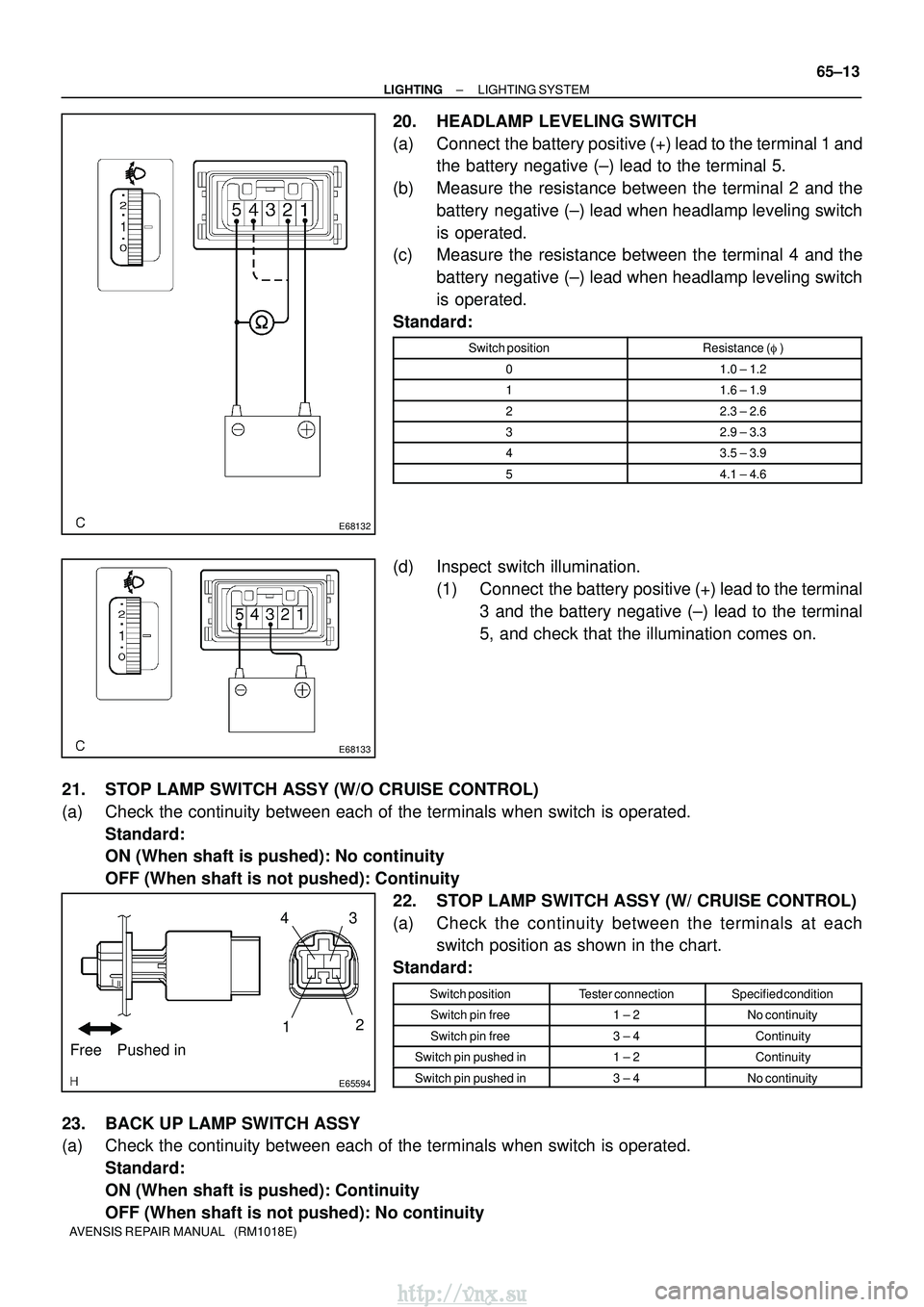

20. HEADLAMP LEVELING SWITCH
(a) Connect the battery positive (+) lead to the terminal 1 and
the battery negative (±) lead to the terminal 5.
(b) Measure the resistance between the terminal 2 and the battery negative (±) lead when headlamp leveling switch
is operated.
(c) Measure the resistance between the terminal 4 and the
battery negative (±) lead when headlamp leveling switch
is operated.
Standard:
Switch positionResistance ( )
01.0 ± 1.2
11.6 ± 1.9
22.3 ± 2.6
32.9 ± 3.3
43.5 ± 3.9
54.1 ± 4.6
(d) Inspect switch illumination.
(1) Connect the battery positive (+) lead to the terminal3 and the battery negative (±) lead to the terminal
5, and check that the illumination comes on.
21. STOP LAMP SWITCH ASSY (W/O CRUISE CONTROL)
(a) Check the continuity between each of the terminals when switch is operat\
ed. Standard:
ON (When shaft is pushed): No continuity
OFF (When shaft is not pushed): Continuity 22. STOP LAMP SWITCH ASSY (W/ CRUISE CONTROL)
(a) Check the continuity between the terminals at eachswitch position as shown in the chart.
Standard:
Switch positionTester connectionSpecified condition
Switch pin free1 ± 2No continuity
Switch pin free3 ± 4Continuity
Switch pin pushed in1 ± 2Continuity
Switch pin pushed in3 ± 4No continuity
23. BACK UP LAMP SWITCH ASSY
(a) Check the continuity between each of the terminals when switch is operat\
ed. Standard:
ON (When shaft is pushed): Continuity
OFF (When shaft is not pushed): No continuity
http://vnx.su
