Page 305 of 2234

A78501
A78503
30 to 45
A78469
66.3 mm
(2.610 in.)
Rotation
Center of
Throttle Link
11
10±16
±
ENGINE CONTROL SYSTEMTHROTTLE BODY ASSY(3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

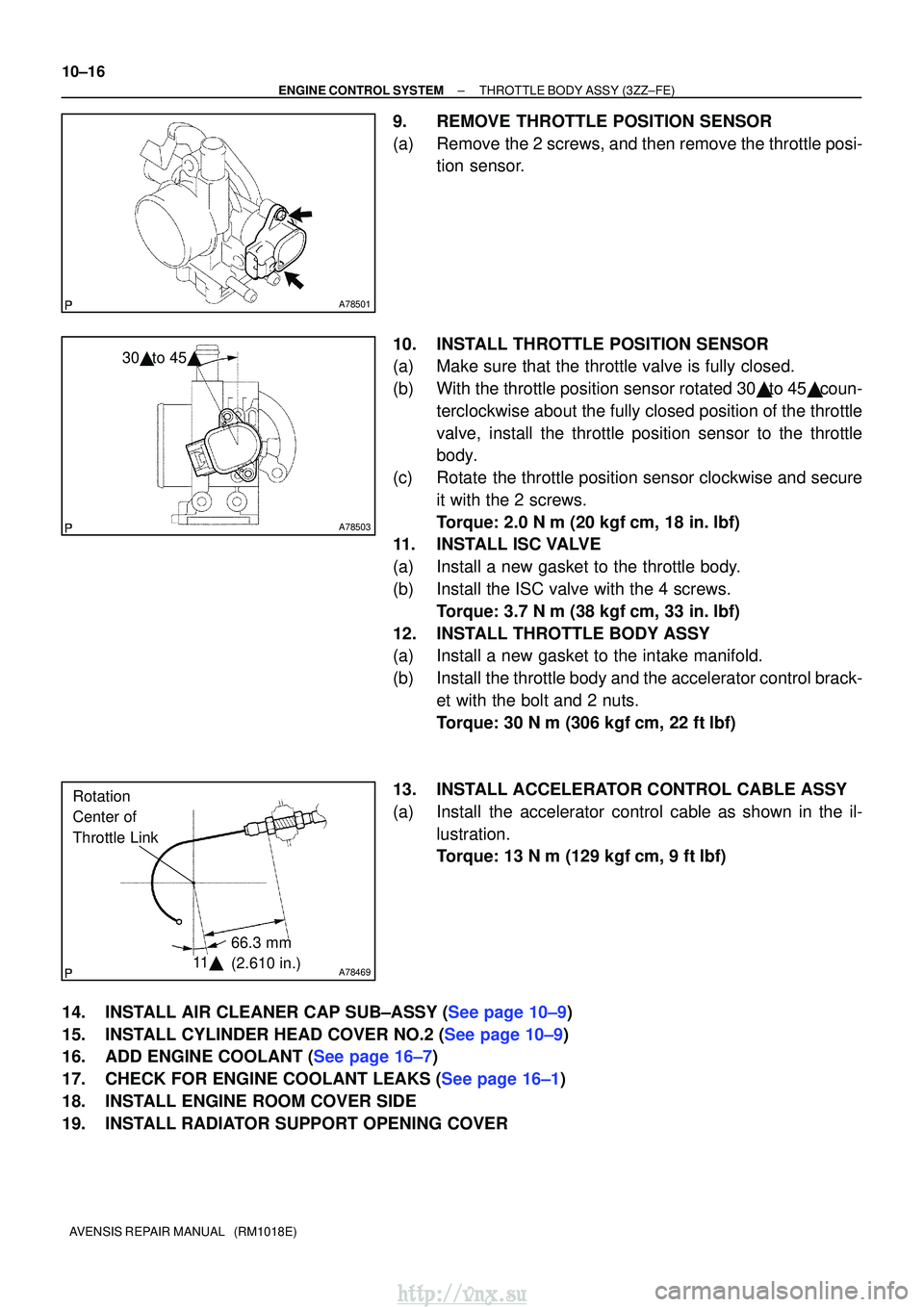

9.REMOVE THROTTLE POSITION SENSOR
(a)Remove the 2 screws, and then remove the throttle posi- tion sensor.
10.INSTALL THROTTLE POSITION SENSOR
(a)Make sure that the throttle valve is fully closed.
(b)With the throttle position sensor rotated 30 to 45 coun- terclockwise about the fully closed position of the throttle
valve, install the throttle position sensor to the throttle
body.
(c)Rotate the throttle position sensor clockwise and secure it with the 2 screws.
Torque: 2.0 N m (20 kgfcm, 18 in. lbf)
11.INSTALL ISC VALVE
(a)Install a new gasket to the throttle body.
(b)Install the ISC valve with the 4 screws.
Torque: 3.7 N m (38 kgfcm, 33 in. lbf)
12.INSTALL THROTTLE BODY ASSY
(a)Install a new gasket to the intake manifold.
(b)Install the throttle body and the accelerator control brack- et with the bolt and 2 nuts.
Torque: 30 N m (306 kgfcm, 22 ftlbf)
13.INSTALL ACCELERATOR CONTROL CABLE ASSY
(a)Install the accelerator control cable as shown in the il- lustration.
Torque: 13 Nm (129 kgfcm, 9 ftlbf)
14.INSTALL AIR CLEANER CAP SUB±ASSY (See page 10±9)
15.INSTALL CYLINDER HEAD COVER NO.2 (See page 10±9)
16.ADD ENGINE COOLANT (See page 16±7)
17.CHECK FOR ENGINE COOLANT LEAKS (See page 16±1)
18. INSTALL ENGINE ROOM COVER SIDE
19. INSTALL RADIATOR SUPPORT OPENING COVER
http://vnx.su
Page 306 of 2234
110UB±01
A79437
8.0 (82, 71 in.lbf)
Engine Cover No. 1 Radiator Support Opening Cover
N´m (kgf´cm, ft´lbf)
: Specified torque
6.0 (61, 53 in.lbf)
Radiator Reserve
Tank Assy
Clip
Ratainer
11±76
±
FUEL COMMON RAIL ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
COMMON RAIL ASSY (1CD±FTV)

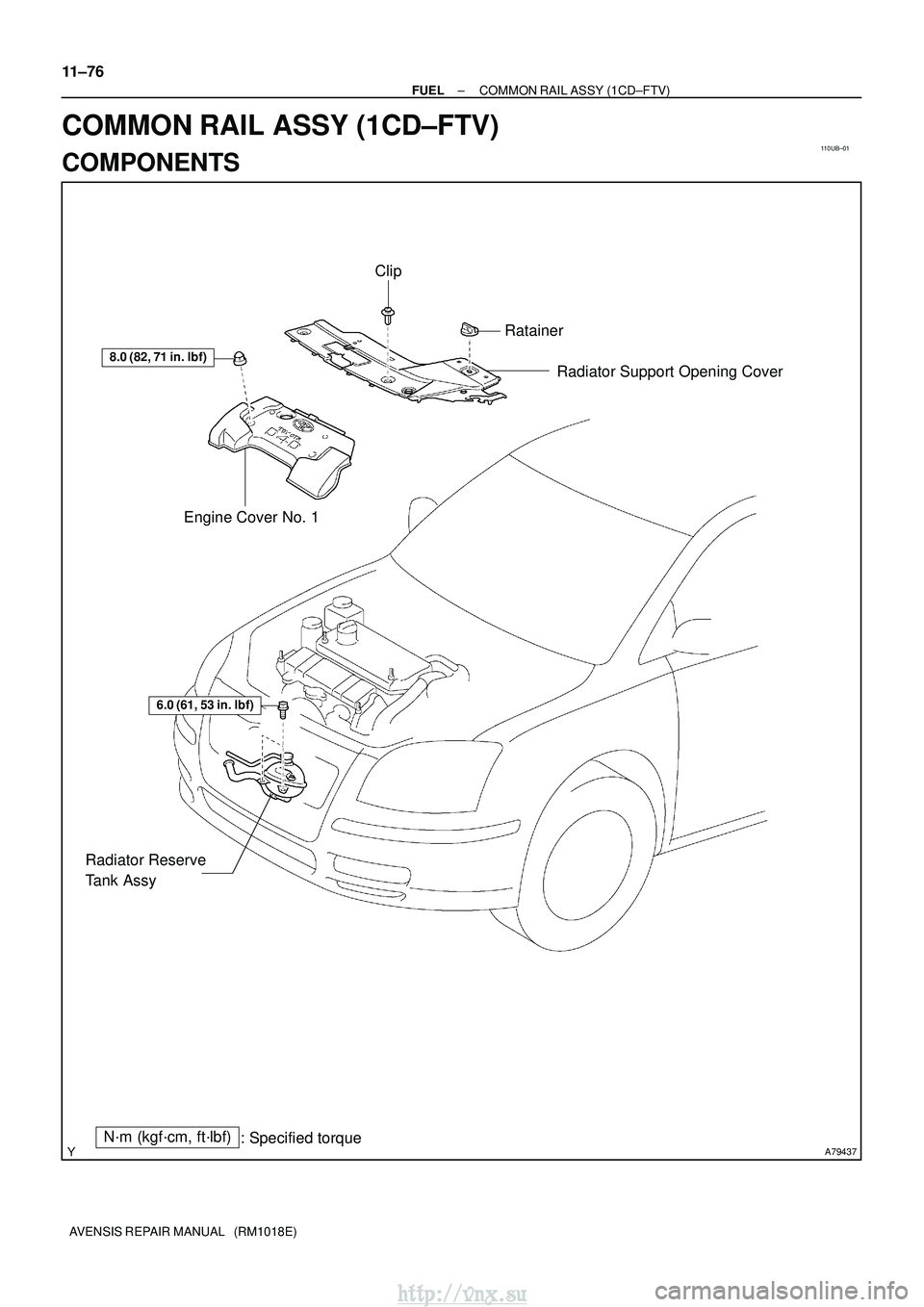

COMPONENTS
http://vnx.su
Page 307 of 2234
A79438
5.0 (51, 44 in.lbf)

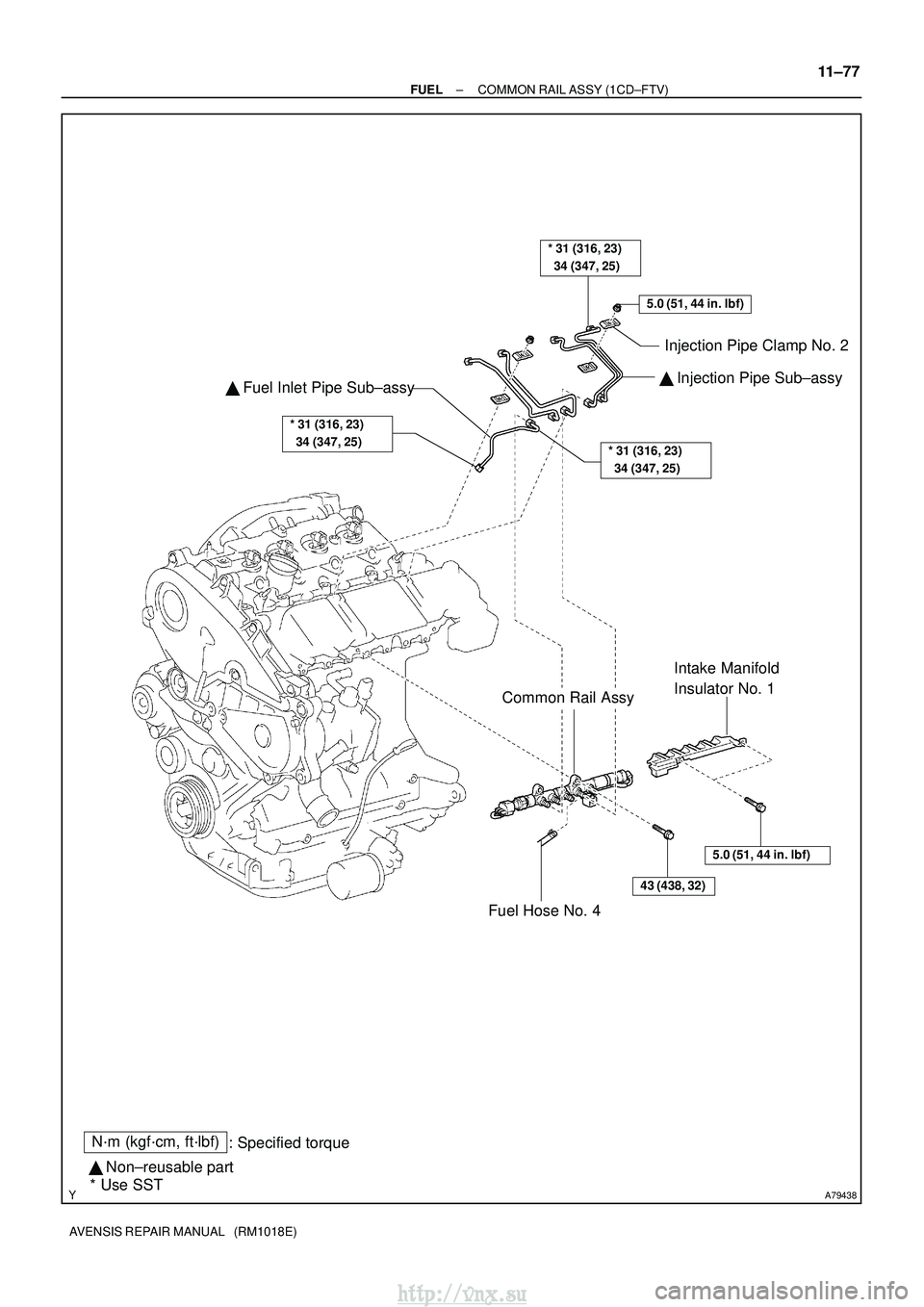

* 31 (316, 23)
34 (347, 25)
Injection Pipe Clamp No. 2
Injection Pipe Sub±assy
* 31 (316, 23)
34 (347, 25)
N´m (kgf´cm, ft´lbf)
: Specified torque
Non±reusable part
* Use SST
Common Rail Assy
Intake Manifold
Insulator No. 1
Fuel Hose No. 4
Fuel Inlet Pipe Sub±assy
5.0 (51, 44 in. lbf)
43 (438, 32)
* 31 (316, 23)
34 (347, 25)
±
FUEL COMMON RAIL ASSY (1CD±FTV)
11±77
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su
Page 308 of 2234

110UC±01
A79148
SST
A79143
SST
11±78
±
FUELCOMMON RAIL ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

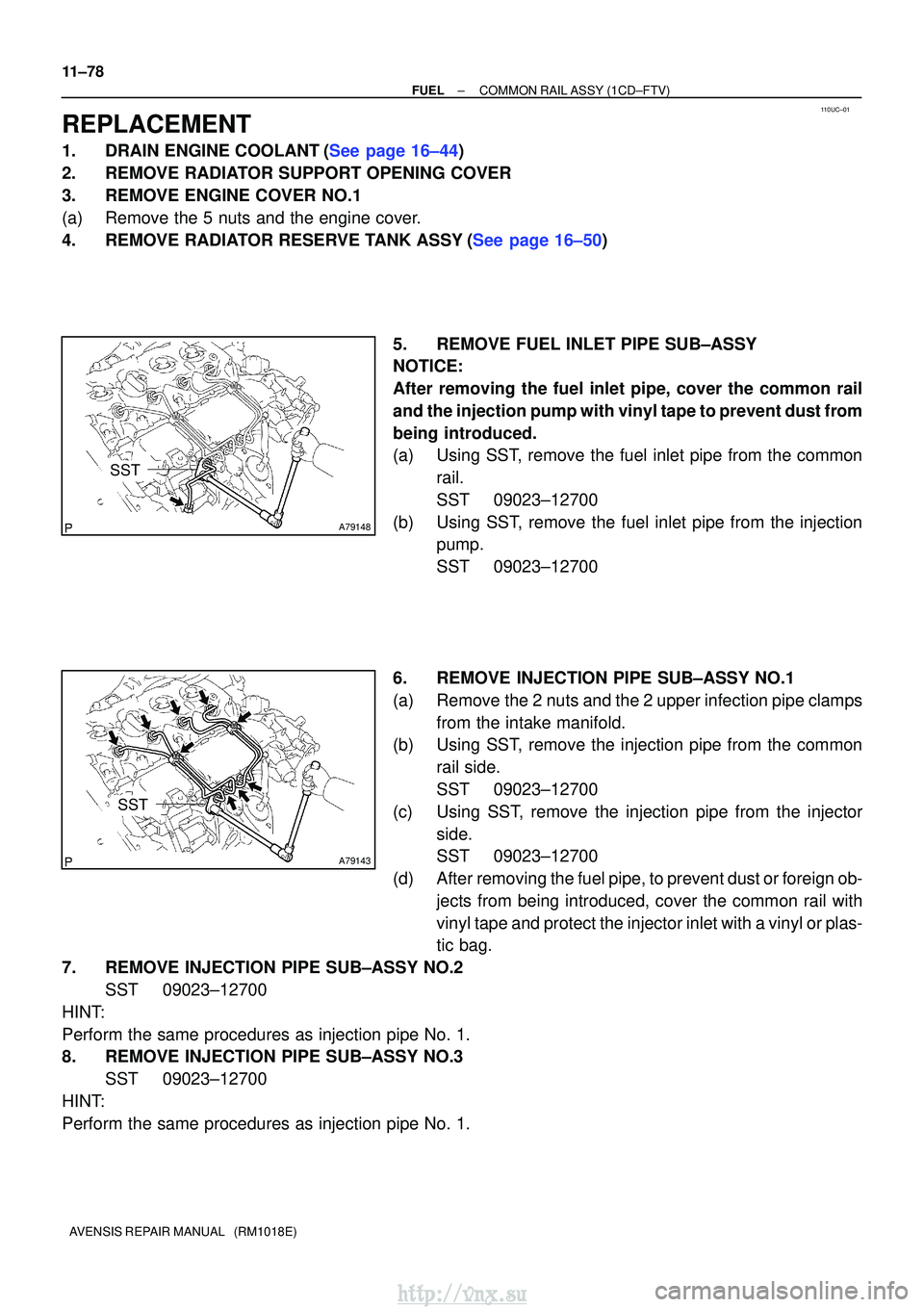

REPLACEMENT
1.DRAIN ENGINE COOLANT(See page 16±44)
2. REMOVE RADIATOR SUPPORT OPENING COVER
3. REMOVE ENGINE COVER NO.1
(a) Remove the 5 nuts and the engine cover.
4.REMOVE RADIATOR RESERVE TANK ASSY(See page 16±50) 5. REMOVE FUEL INLET PIPE SUB±ASSY
NOTICE:
After removing the fuel inlet pipe, cover the common rail
and the injection pump with vinyl tape to prevent dust from
being introduced.
(a) Using SST, remove the fuel inlet pipe from the commonrail.
SST 09023±12700
(b) Using SST, remove the fuel inlet pipe from the injection pump.
SST 09023±12700
6. REMOVE INJECTION PIPE SUB±ASSY NO.1
(a) Remove the 2 nuts and the 2 upper infection pipe clamps from the intake manifold.
(b) Using SST, remove the injection pipe from the common
rail side.
SST 09023±12700
(c) Using SST, remove the injection pipe from the injector side.
SST 09023±12700
(d) After removing the fuel pipe, to prevent dust or foreign ob- jects from being introduced, cover the common rail with
vinyl tape and protect the injector inlet with a vinyl or plas-
tic bag.
7. REMOVE INJECTION PIPE SUB±ASSY NO.2 SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
8. REMOVE INJECTION PIPE SUB±ASSY NO.3 SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
http://vnx.su
Page 309 of 2234

A79154
A79147
30 cm
(11.81 in.)
SST
±
FUELCOMMON RAIL ASSY(1CD±FTV)
11±79
AVENSIS REPAIR MANUAL (RM1018E)

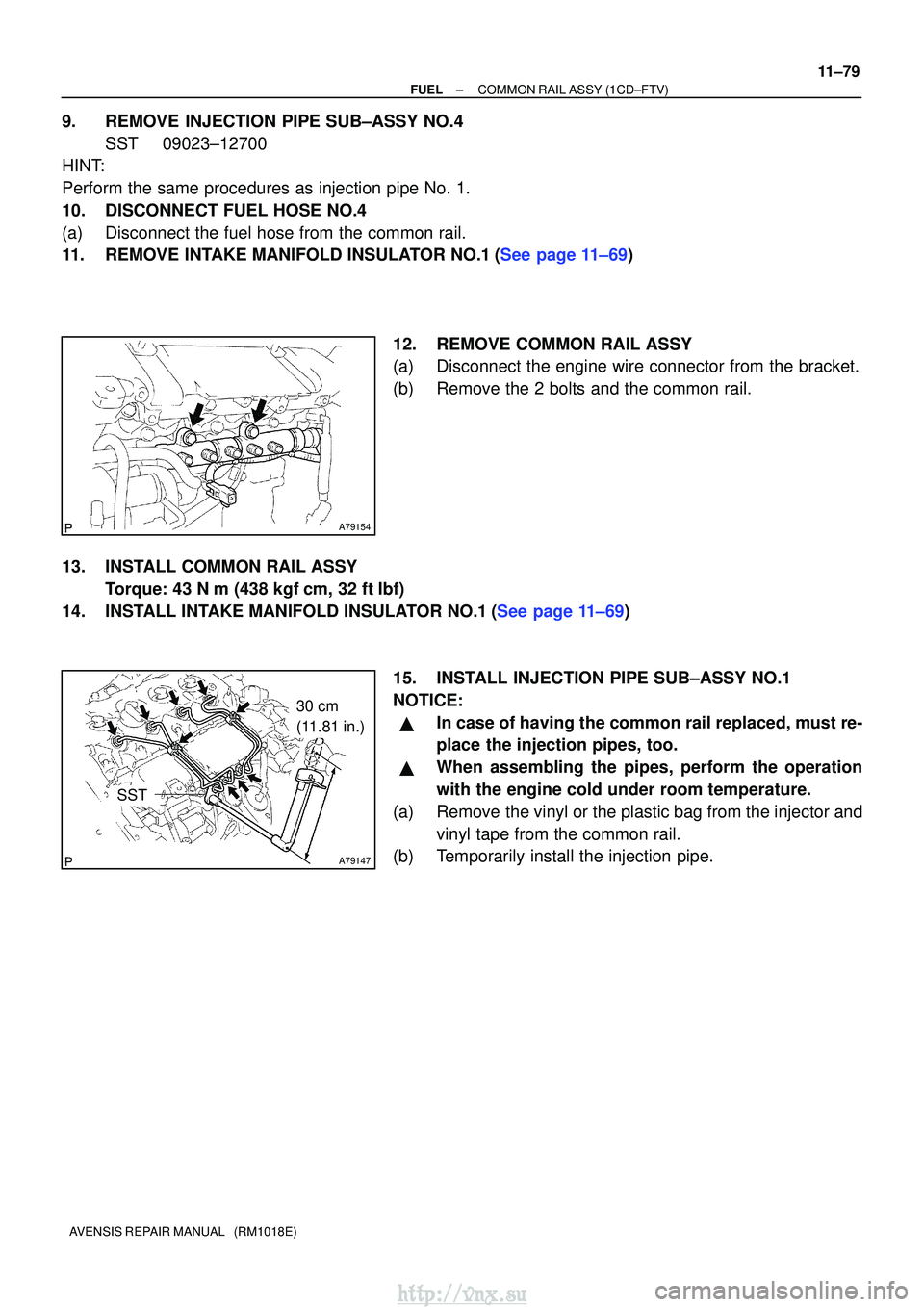

9.REMOVE INJECTION PIPE SUB±ASSY NO.4
SST09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
10.DISCONNECT FUEL HOSE NO.4
(a)Disconnect the fuel hose from the common rail.
11.REMOVE INTAKE MANIFOLD INSULATOR NO.1(See page 11±69)
12.REMOVE COMMON RAIL ASSY
(a)Disconnect the engine wire connector from the bracket.
(b)Remove the 2 bolts and the common rail.
13.INSTALL COMMON RAIL ASSY Torque: 43 N m (438 kgfcm, 32 ftlbf)
14.INSTALL INTAKE MANIFOLD INSULATOR NO.1(See page 11±69)
15. INSTALL INJECTION PIPE SUB±ASSY NO.1
NOTICE:
In case of having the common rail replaced, must re-
place the injection pipes, too.
When assembling the pipes, perform the operation
with the engine cold under room temperature.
(a) Remove the vinyl or the plastic bag from the injector and vinyl tape from the common rail.
(b) Temporarily install the injection pipe.
http://vnx.su
Page 310 of 2234

11±80
±
FUEL COMMON RAIL ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

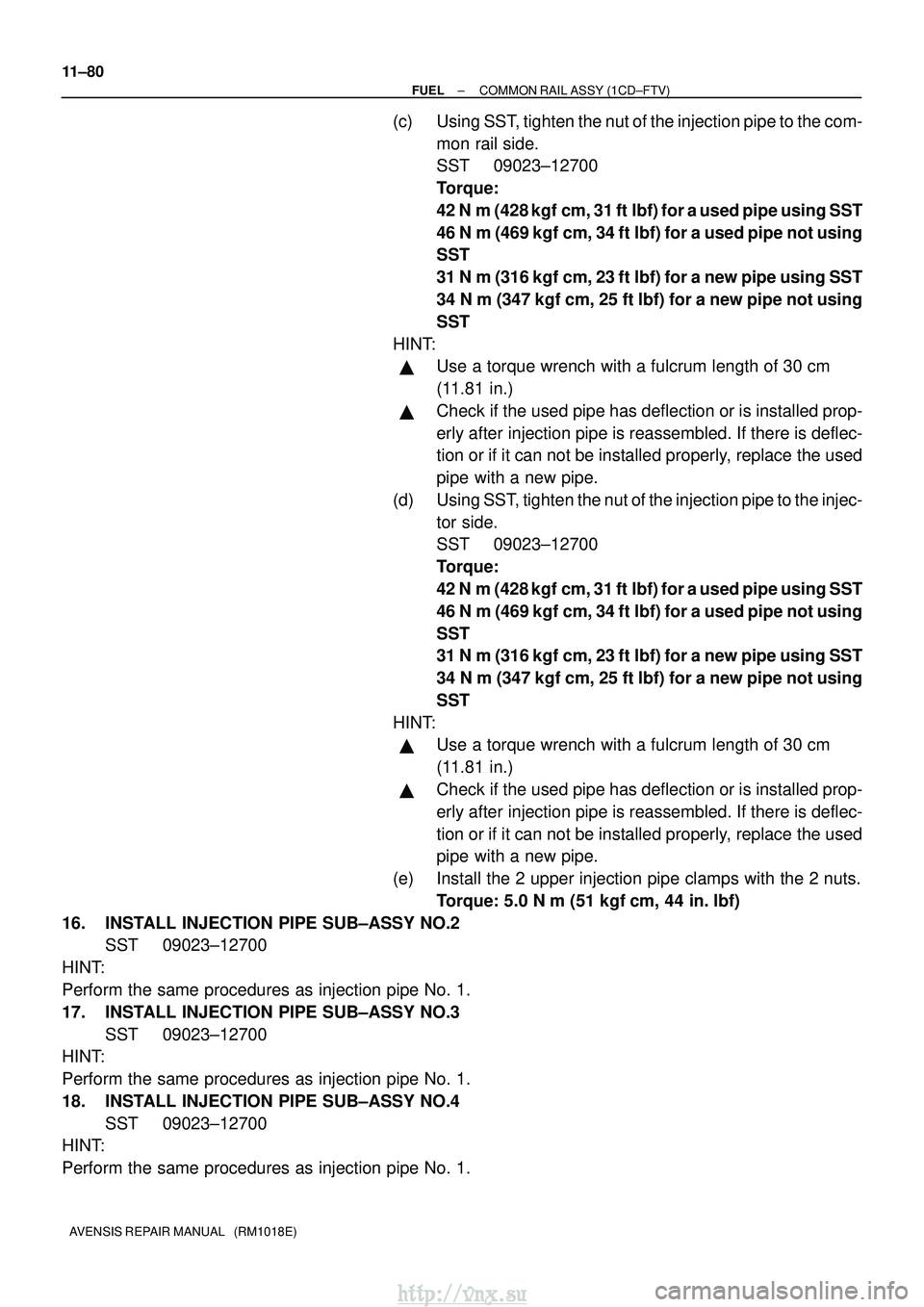

(c) Using SST, tighten the nut of the injection pipe to the com- mon rail side.
SST 09023±12700
Torque:
42 Nm (428 kgf cm, 31 ftlbf) for a used pipe using SST
46 N m (469 kgf cm, 34 ftlbf) for a used pipe not using
SST
31 N m (316 kgf cm, 23 ftlbf) for a new pipe using SST
34 N m (347 kgf cm, 25 ft lbf) for a new pipe not using
SST
HINT:
Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)
Check if the used pipe has deflection or is installed prop-
erly after injection pipe is reassembled. If there is deflec-
tion or if it can not be installed properly, replace the used
pipe with a new pipe.
(d) Using SST, tighten the nut of the injection pipe to the injec- tor side.
SST 09023±12700
Torque:
42 Nm (428 kgf cm, 31 ftlbf) for a used pipe using SST
46 N m (469 kgf cm, 34 ftlbf) for a used pipe not using
SST
31 N m (316 kgf cm, 23 ftlbf) for a new pipe using SST
34 N m (347 kgf cm, 25 ft lbf) for a new pipe not using
SST
HINT:
Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)
Check if the used pipe has deflection or is installed prop-
erly after injection pipe is reassembled. If there is deflec-
tion or if it can not be installed properly, replace the used
pipe with a new pipe.
(e) Install the 2 upper injection pipe clamps with the 2 nuts. Torque: 5.0 N m (51 kgf cm, 44 in. lbf)
16. INSTALL INJECTION PIPE SUB±ASSY NO.2 SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
17. INSTALL INJECTION PIPE SUB±ASSY NO.3 SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
18. INSTALL INJECTION PIPE SUB±ASSY NO.4
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
http://vnx.su
Page 311 of 2234

A79149
30 cm
(11.81 in.)
SST
±
FUELCOMMON RAIL ASSY(1CD±FTV)
11±81
AVENSIS REPAIR MANUAL (RM1018E)

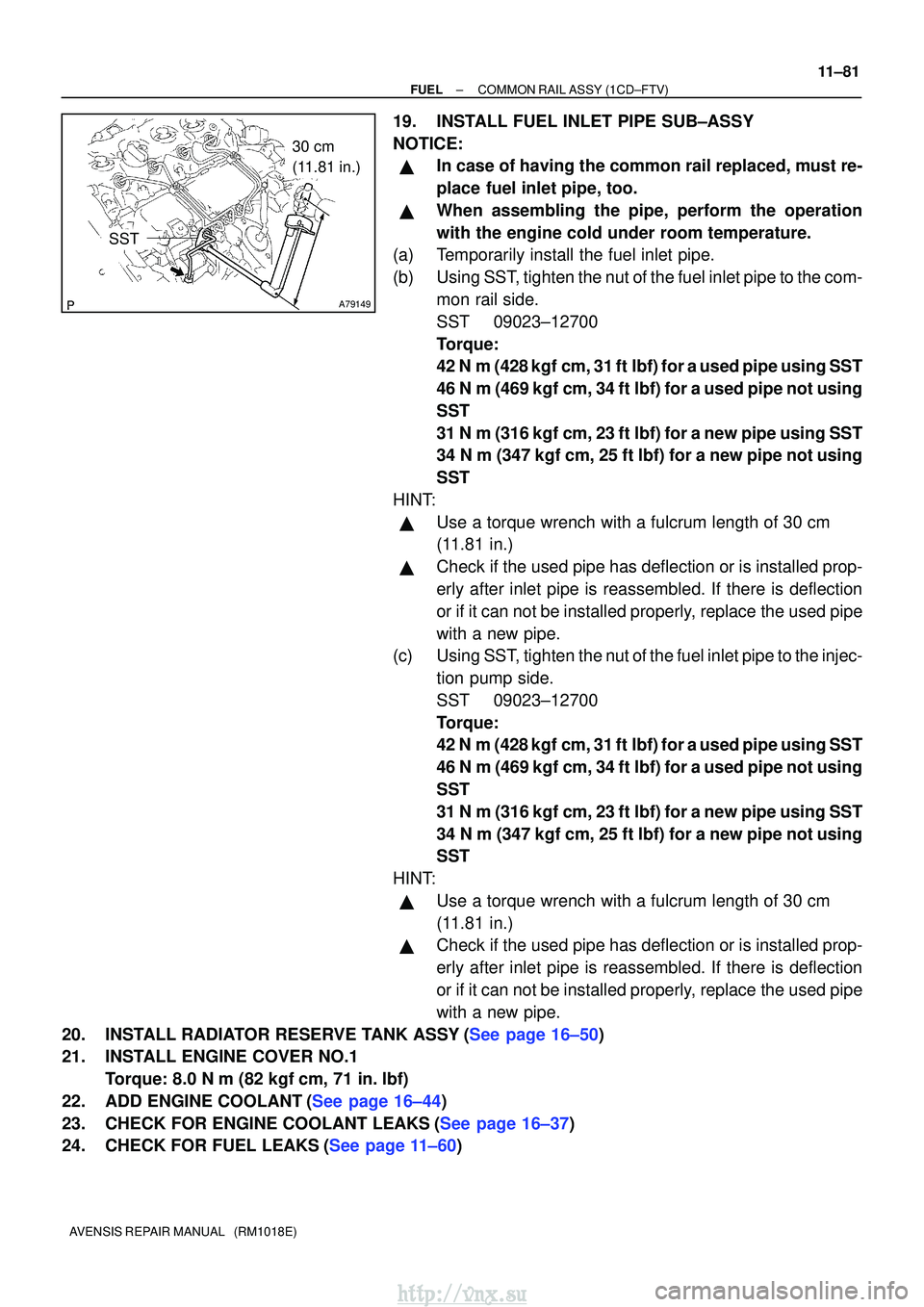

19.INSTALL FUEL INLET PIPE SUB±ASSY
NOTICE:
In case of having the common rail replaced, must re-
place fuel inlet pipe, too.
When assembling the pipe, perform the operation
with the engine cold under room temperature.
(a)Temporarily install the fuel inlet pipe.
(b)Using SST, tighten the nut of the fuel inlet pipe to the com-
mon rail side.
SST09023±12700
Torque:
42 Nm (428 kgfcm, 31 ftlbf) for a used pipe using SST
46 Nm (469 kgfcm, 34 ftlbf) for a used pipe not using
SST
31 N m (316 kgfcm, 23 ftlbf) for a new pipe using SST
34 Nm (347 kgf cm, 25 ftlbf) for a new pipe not using
SST
HINT:
Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)
Check if the used pipe has deflection or is installed prop-
erly after inlet pipe is reassembled. If there is deflection
or if it can not be installed properly, replace the used pipe
with a new pipe.
(c)Using SST, tighten the nut of the fuel inlet pipe to the injec-
tion pump side.
SST09023±12700
Torque:
42 Nm (428 kgfcm, 31 ftlbf) for a used pipe using SST
46 Nm (469 kgfcm, 34 ftlbf) for a used pipe not using
SST
31 N m (316 kgfcm, 23 ftlbf) for a new pipe using SST
34 Nm (347 kgf cm, 25 ftlbf) for a new pipe not using
SST
HINT:
Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)
Check if the used pipe has deflection or is installed prop-
erly after inlet pipe is reassembled. If there is deflection
or if it can not be installed properly, replace the used pipe
with a new pipe.
20.INSTALL RADIATOR RESERVE TANK ASSY(See page 16±50)
21. INSTALL ENGINE COVER NO.1 Torque: 8.0 N m (82 kgf cm, 71 in. lbf)
22.ADD ENGINE COOLANT(See page 16±44)
23.CHECK FOR ENGINE COOLANT LEAKS(See page 16±37)
24.CHECK FOR FUEL LEAKS(See page 11±60)
http://vnx.su
Page 312 of 2234

110UD±01
A79188
A80091SST
A79190
11±82
±
FUEL FUEL FILTER ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
FUEL FILTER ASSY (1CD±FTV)
REPLACEMENT

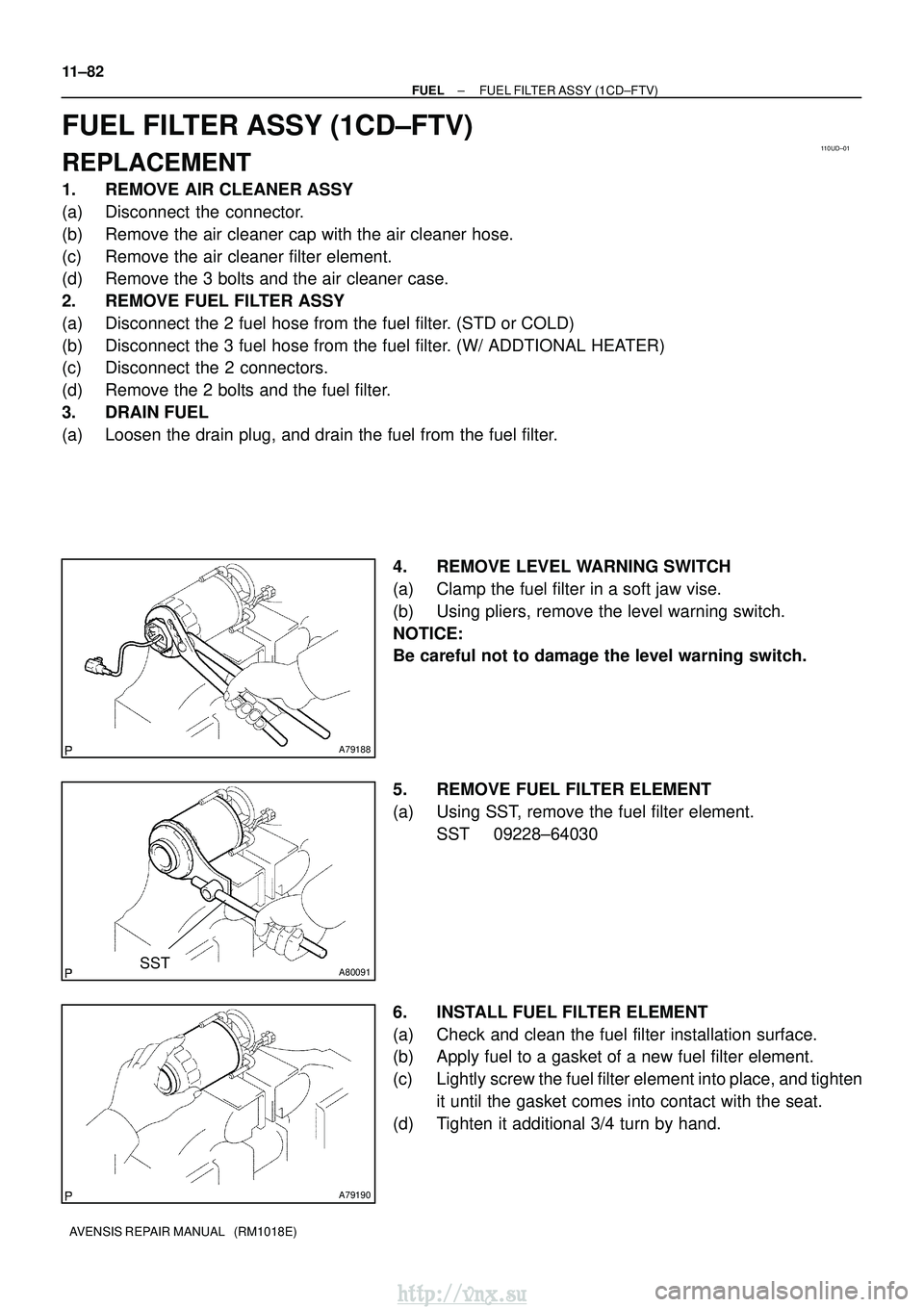

1. REMOVE AIR CLEANER ASSY
(a) Disconnect the connector.
(b) Remove the air cleaner cap with the air cleaner hose.
(c) Remove the air cleaner filter element.
(d) Remove the 3 bolts and the air cleaner case.
2. REMOVE FUEL FILTER ASSY
(a) Disconnect the 2 fuel hose from the fuel filter. (STD or COLD)
(b) Disconnect the 3 fuel hose from the fuel filter. (W/ ADDTIONAL HEATER)
(c) Disconnect the 2 connectors.
(d) Remove the 2 bolts and the fuel filter.
3. DRAIN FUEL
(a) Loosen the drain plug, and drain the fuel from the fuel filter. 4. REMOVE LEVEL WARNING SWITCH
(a) Clamp the fuel filter in a soft jaw vise.
(b) Using pliers, remove the level warning switch.
NOTICE:
Be careful not to damage the level warning switch.
5. REMOVE FUEL FILTER ELEMENT
(a) Using SST, remove the fuel filter element.SST 09228±64030
6. INSTALL FUEL FILTER ELEMENT
(a) Check and clean the fuel filter installation surface.
(b) Apply fuel to a gasket of a new fuel filter element.
(c) Lightly screw the fuel filter element into place, and tighten it until the gasket comes into contact with the seat.
(d) Tighten it additional 3/4 turn by hand.
