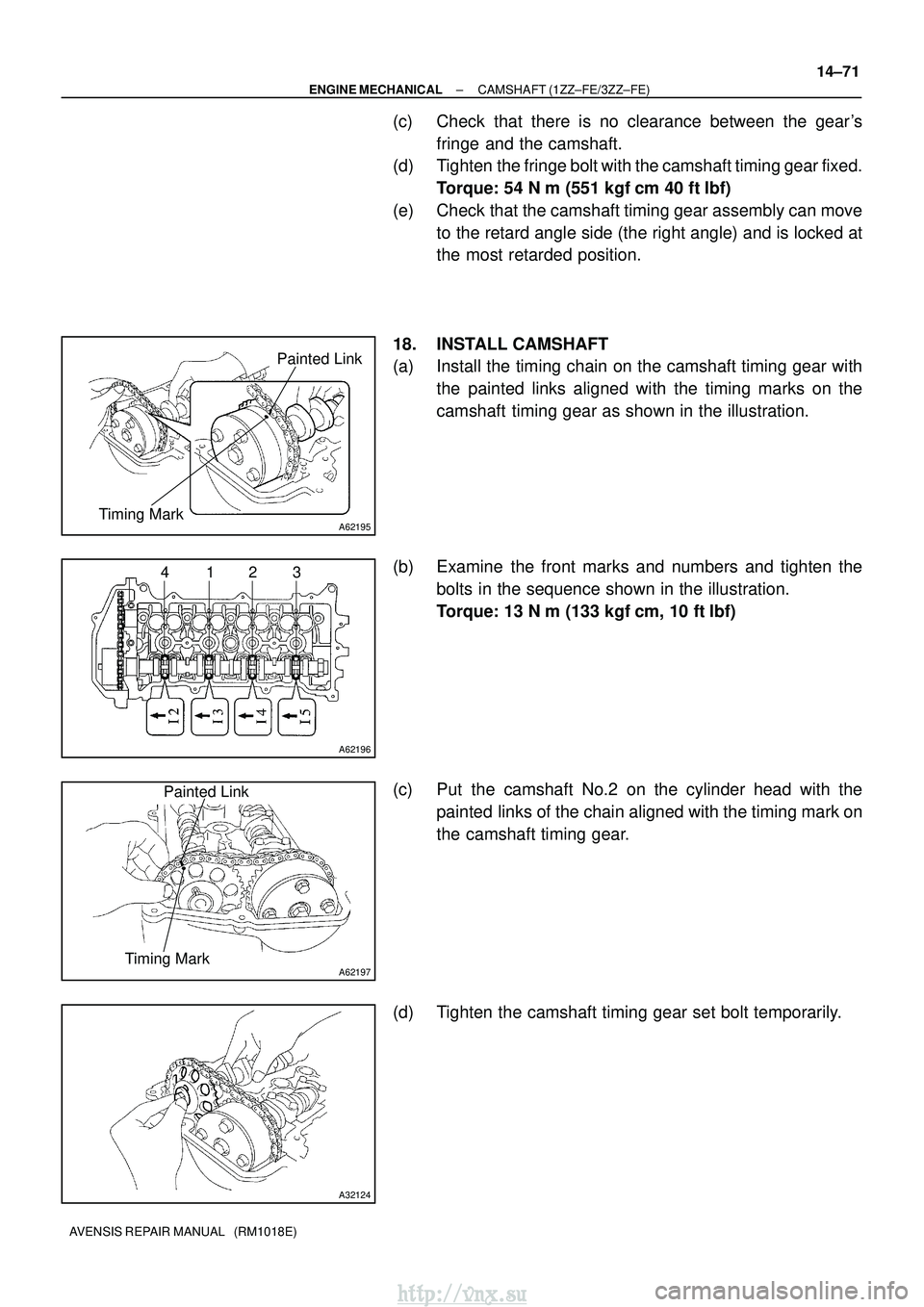

TOYOTA AVENSIS 2003 Service Repair Manual A62195 Painted Link Timing Mark A62196 4123 A62197 Painted Link Timing Mark A32124 ± ENGINE MECHANICAL CAMSHAFT (1ZZ±FE/3ZZ±FE) 14±71 AVENSIS REPAIR MANUAL (RM1018E) (c) Check that there is no c

Page 490 of 2234

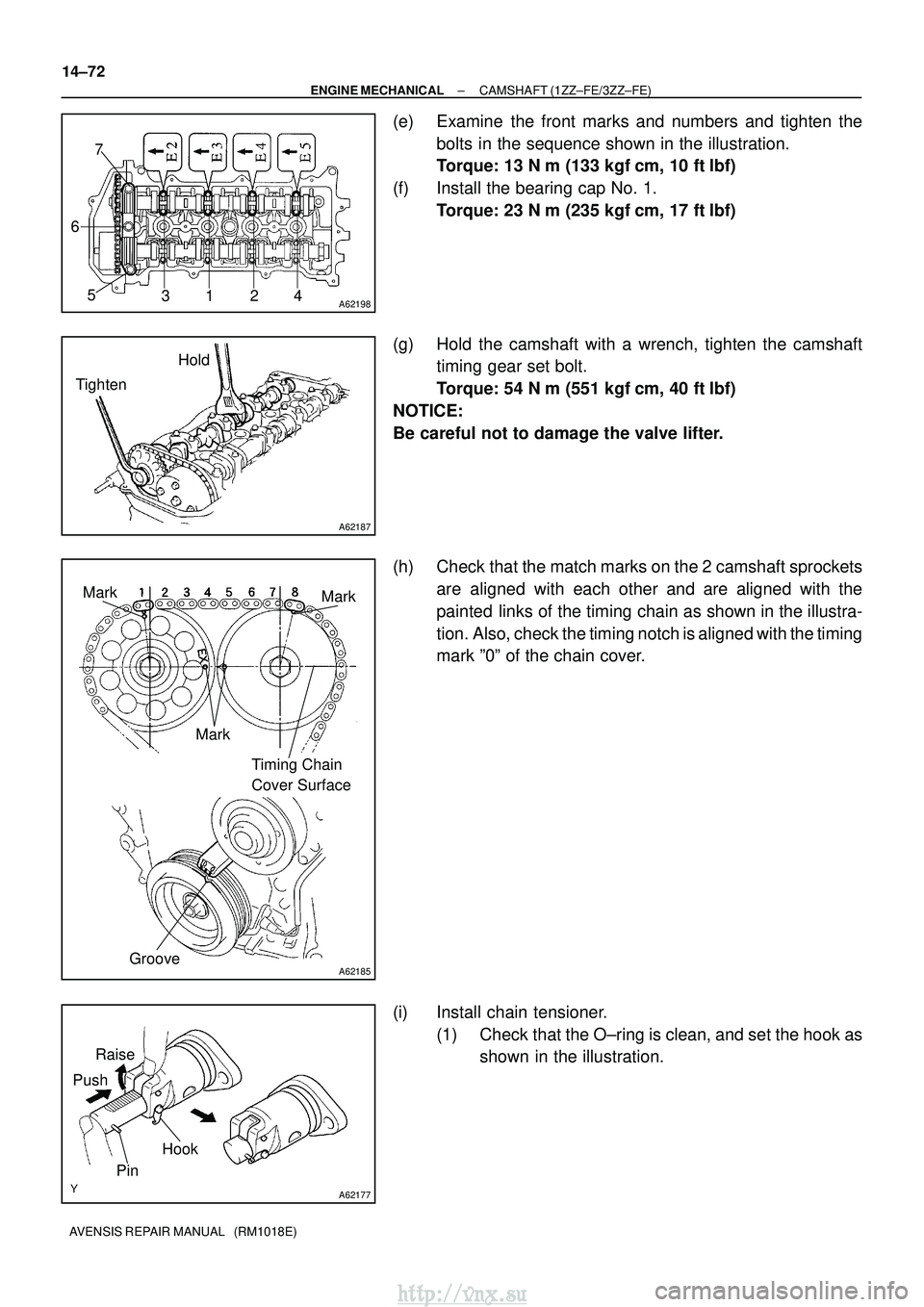

TOYOTA AVENSIS 2003 Service Repair Manual A621983124 5 6 7 A62187 Hold Tighten A62185 Mark Mark Mark Timing Chain Cover Surface Groove A62177 Raise Push Hook Pin 14±72 ± ENGINE MECHANICAL CAMSHAFT (1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL

Page 491 of 2234

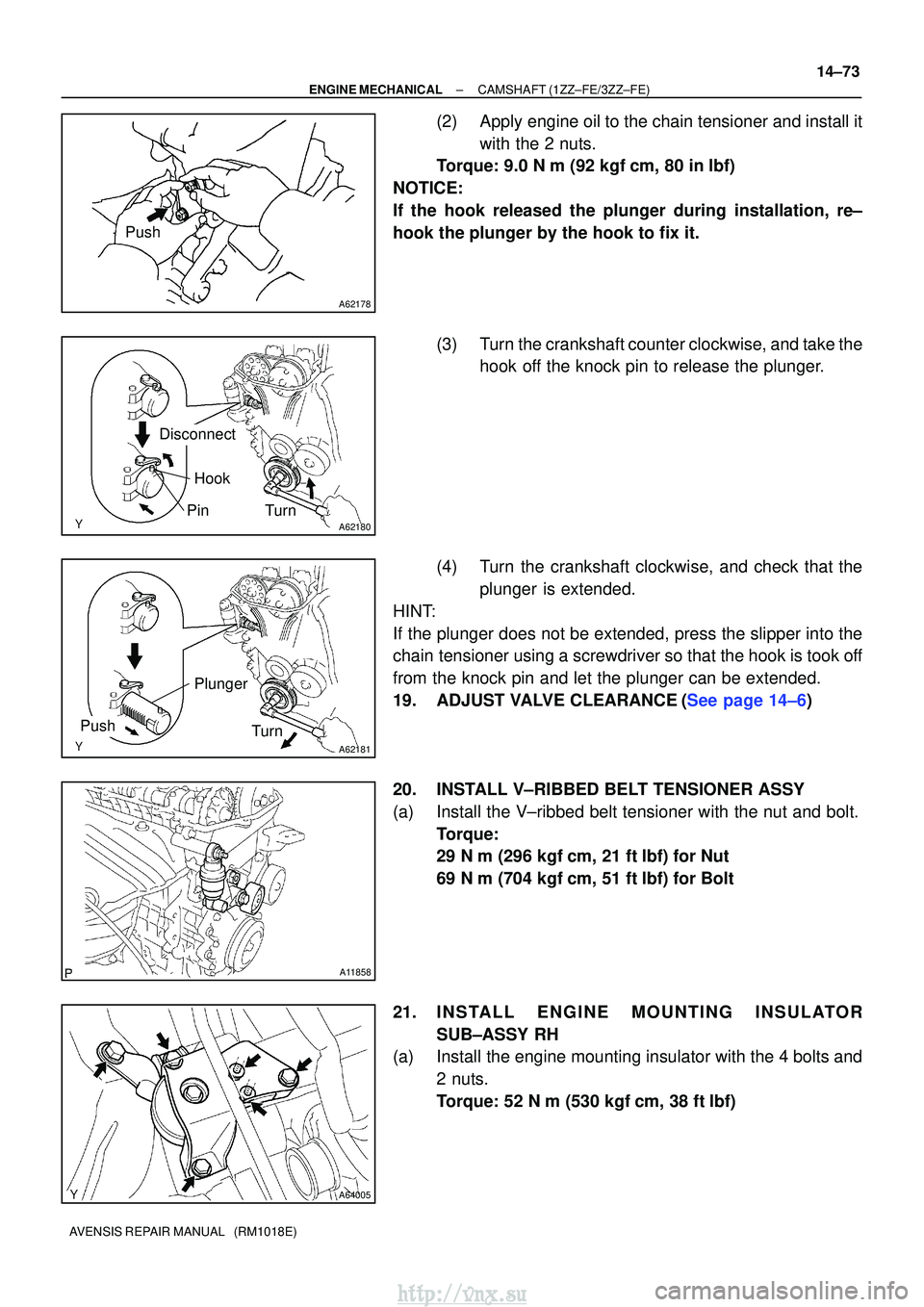

TOYOTA AVENSIS 2003 Service Repair Manual A62178 Push A62180 DisconnectHook PinTurn A62181 Plunger Turn Push A11858 A64005 ± ENGINE MECHANICALCAMSHAFT(1ZZ±FE/3ZZ±FE) 14±73 AVENSIS REPAIR MANUAL (RM1018E) (2)Apply engine oil to the chain

Page 492 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A62182 Seal Packing A65687 AA A A A A A A BB A A64023 14±74 ± ENGINE MECHANICAL CAMSHAFT (1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 22. INSTALL CYLINDER HEAD COVER SUB±ASSY (a) Remove any

Page 493 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A76713 A78459 ± ENGINE MECHANICAL CAMSHAFT (1ZZ±FE/3ZZ±FE) 14±75 AVENSIS REPAIR MANUAL (RM1018E) (b) Install the engine wire with the 2 nuts. Torque: 9.0 N m (92 kgf cm, 80 in. lbf) 24. INSTA

Page 494 of 2234

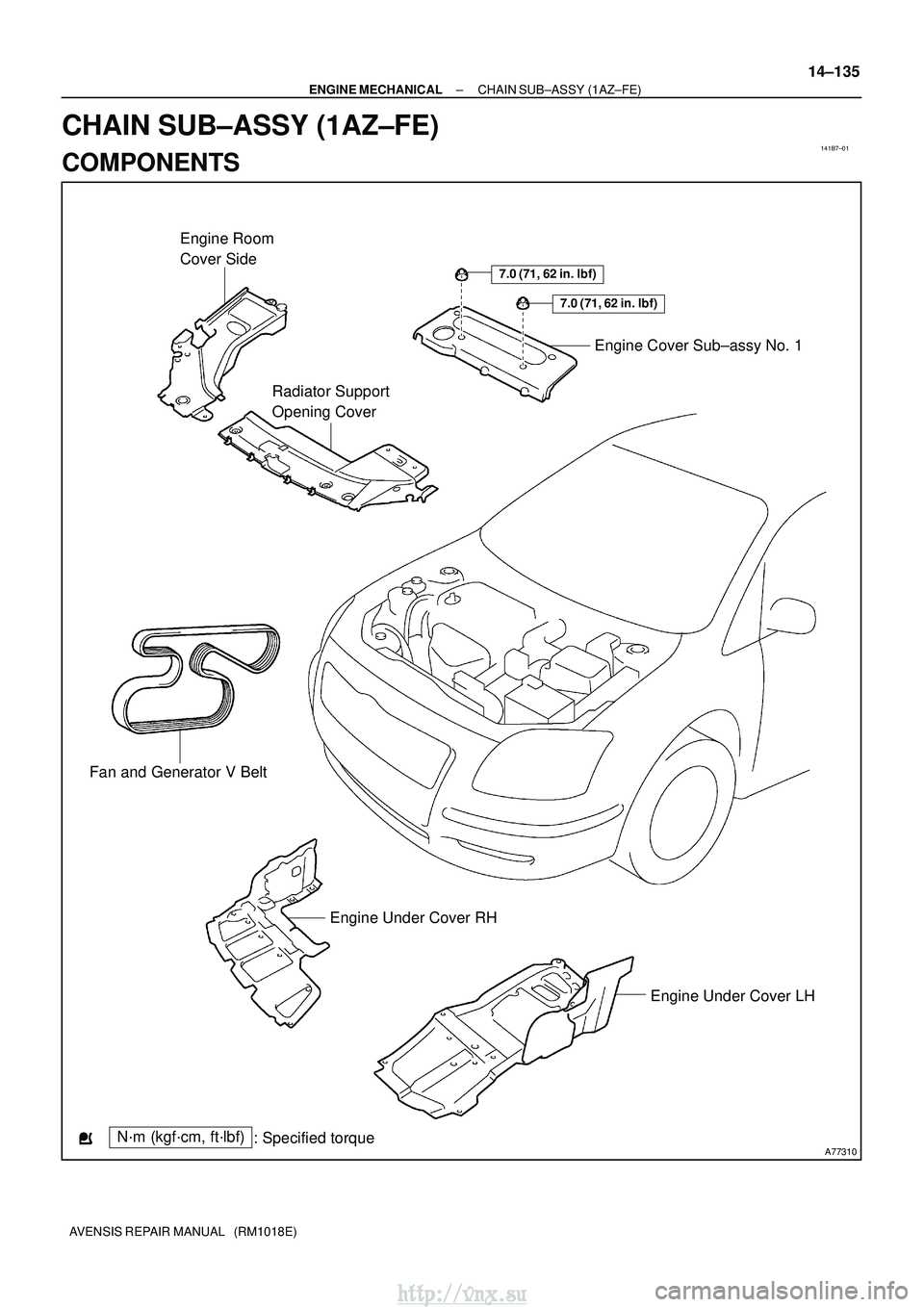

TOYOTA AVENSIS 2003 Service Repair Manual 141B7±01 A77310 Engine Cover Sub±assy No. 1 Radiator Support Opening Cover Engine Room Cover Side Fan and Generator V Belt Engine Under Cover RH Engine Under Cover LH N´m (kgf´cm, ft´lbf): Spec

Page 495 of 2234

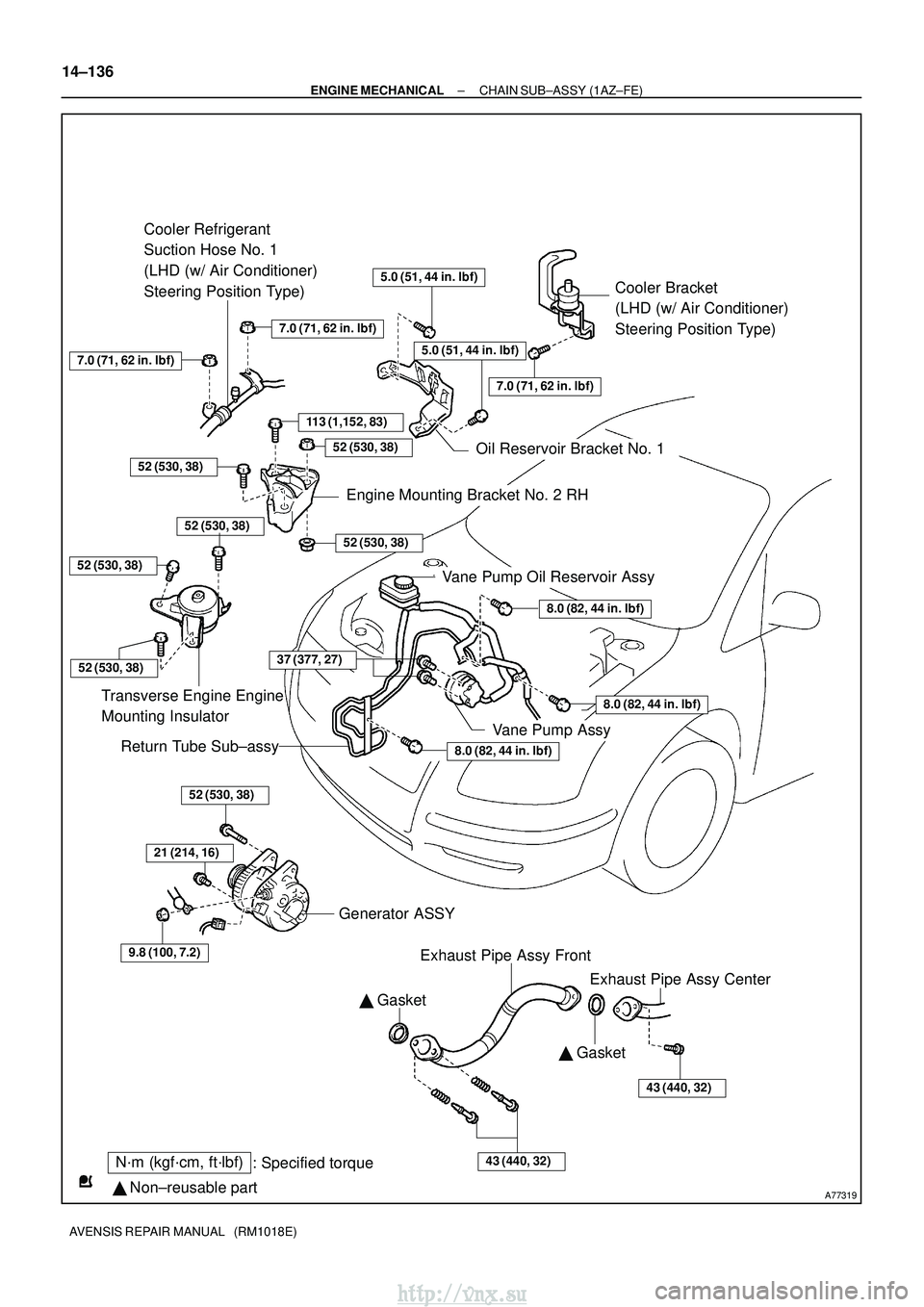

TOYOTA AVENSIS 2003 Service Repair Manual A77319 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part  Gasket Cooler Bracket (LHD (w/ Air Conditioner) Steering Position Type) 113 (1,152, 83) Cooler Refrigerant Suction Hose No.

Page 496 of 2234

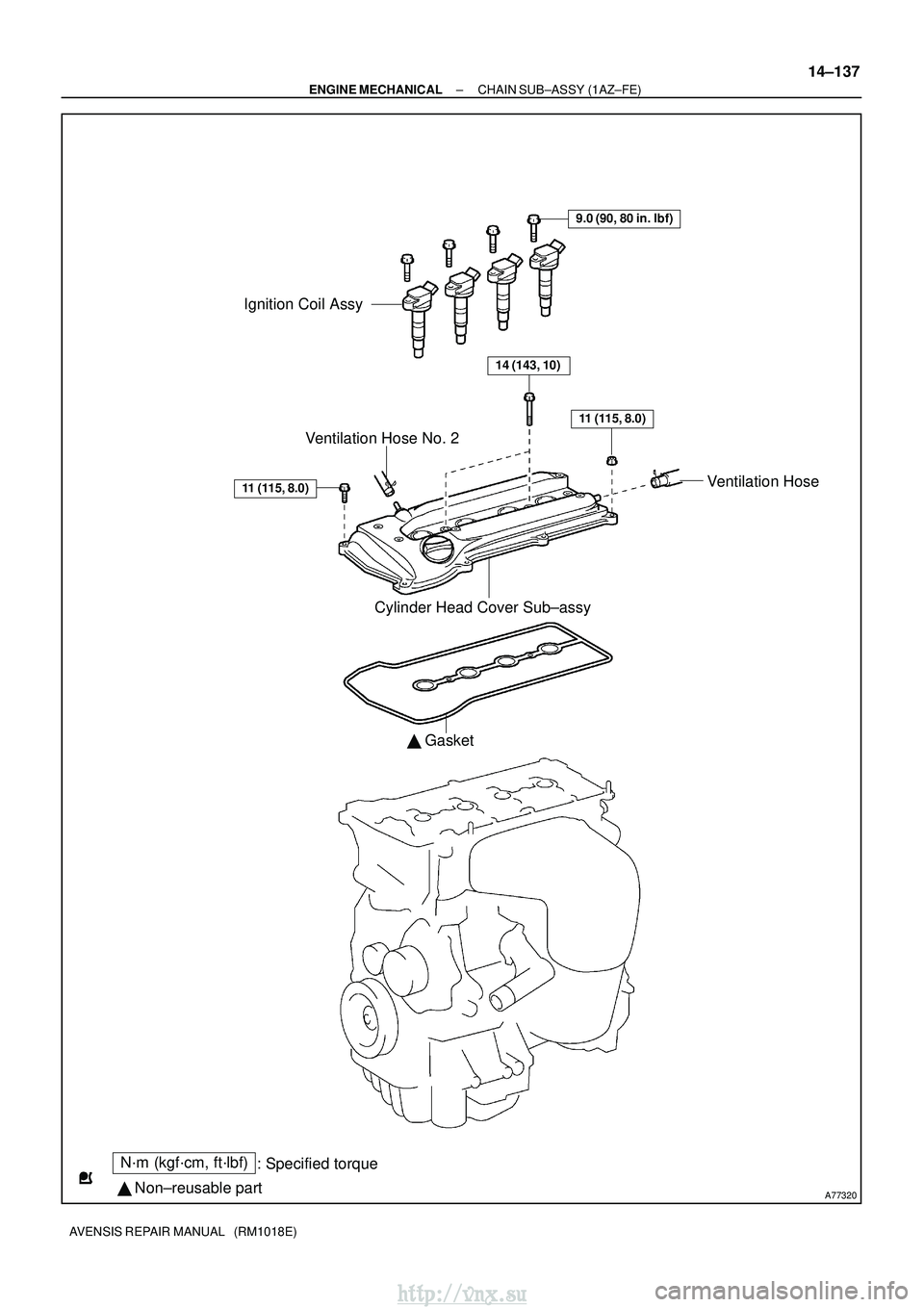

TOYOTA AVENSIS 2003 Service Repair Manual A77320 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part Ignition Coil Assy 9.0 (90, 80 in. lbf) 14 (143, 10) 11 (115, 8.0) Cylinder Head Cover Sub±assy  Gasket 11 (115, 8.0) Ventilat
