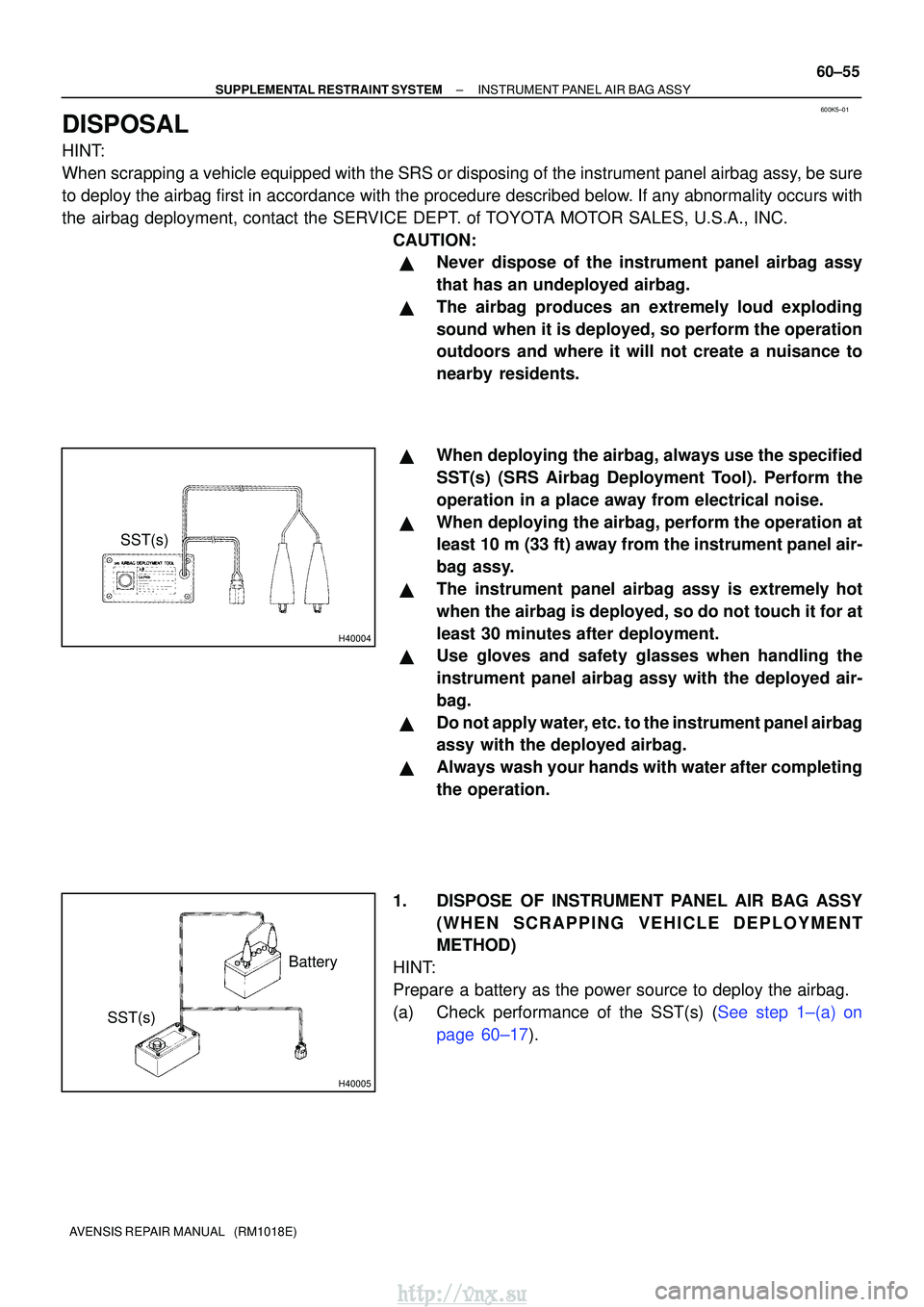

Page 1425 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 600K5±01 H40004 SST(s) H40005 SST(s)Battery ± SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL AIR BAG ASSY 60±55 AVENSIS REPAIR MANUAL (RM1018E) DISPOSAL HINT: When scrapping a vehicle equipped wi

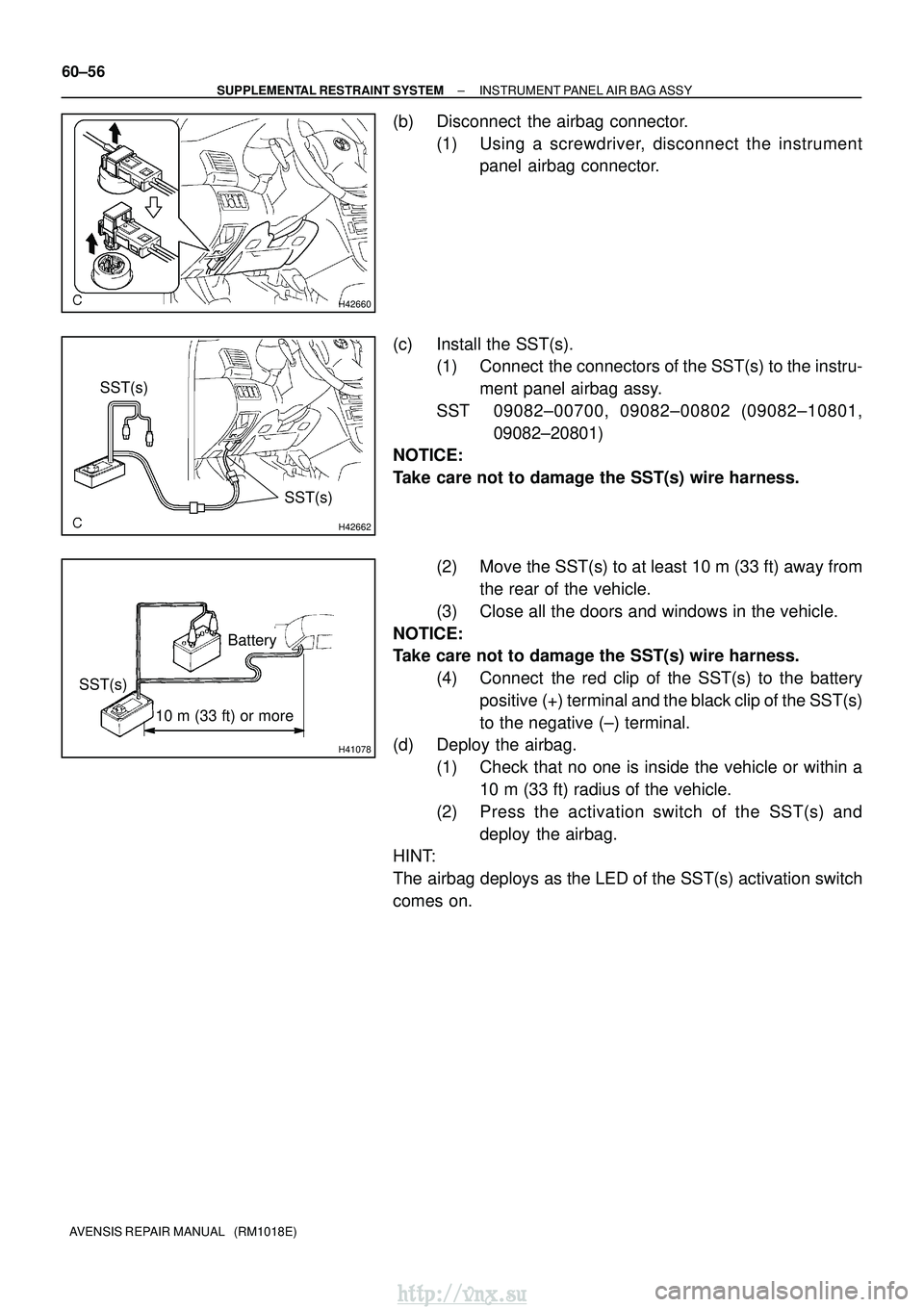

Page 1426 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H42660 H42662 SST(s)SST(s) H41078 10 m (33 ft) or more SST(s)Battery 60±56 ± SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL AIR BAG ASSY AVENSIS REPAIR MANUAL (RM1018E) (b) Disconnect the airbag

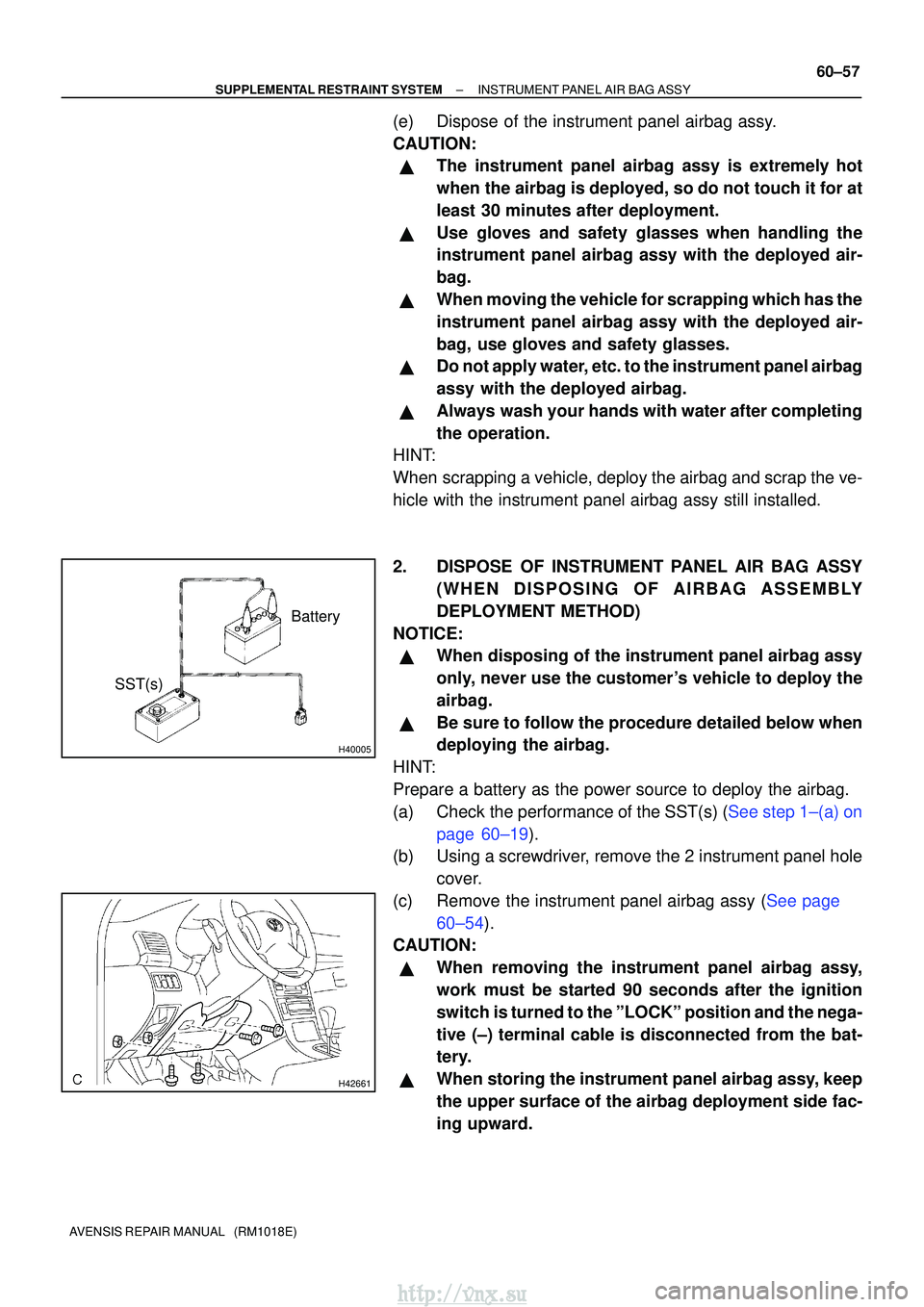

Page 1427 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H40005 Battery SST(s) H42661 ± SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL AIR BAG ASSY 60±57 AVENSIS REPAIR MANUAL (RM1018E) (e) Dispose of the instrument panel airbag assy. CAUTION: The inst

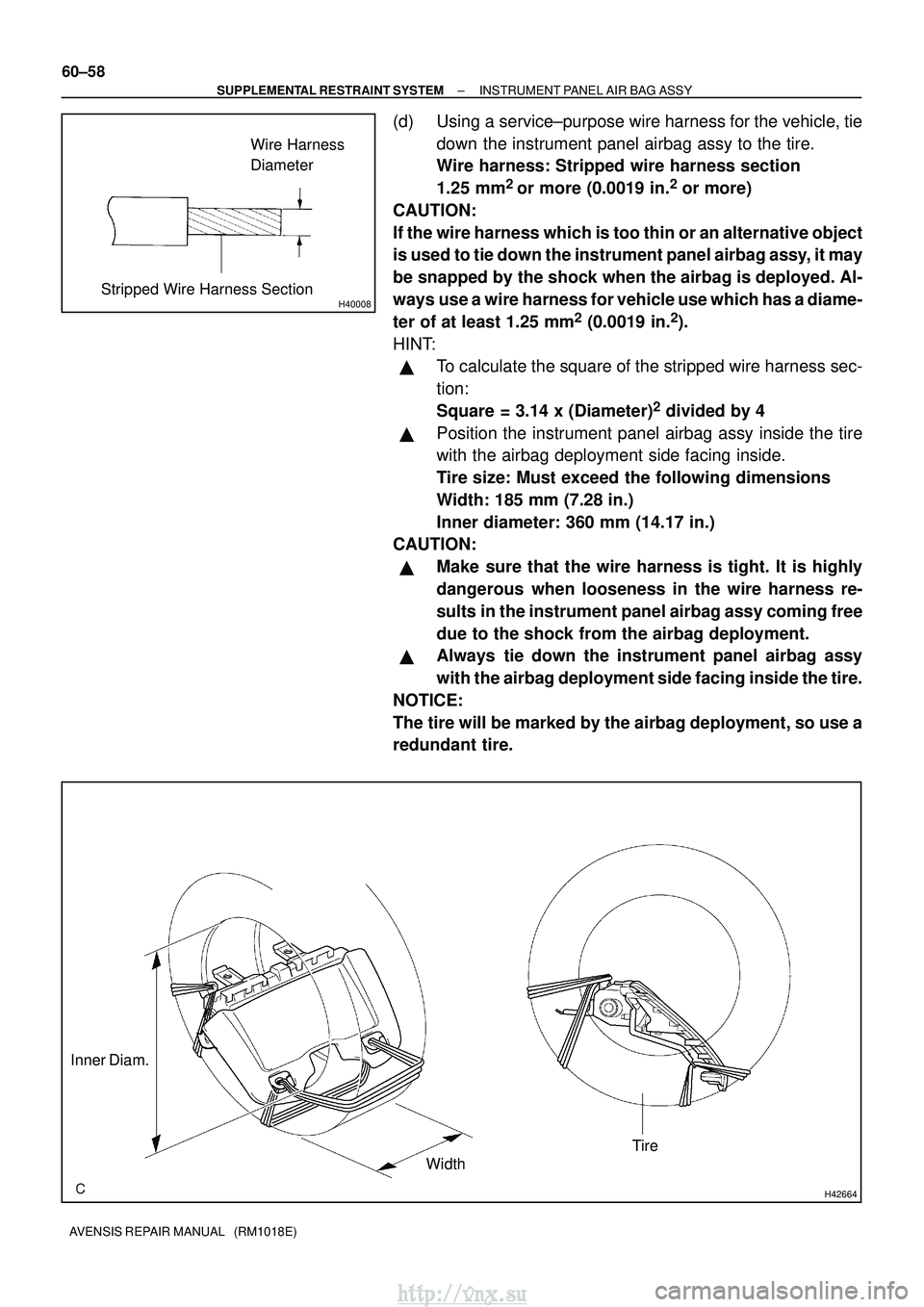

Page 1428 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H40008 Wire Harness Diameter Stripped Wire Harness Section H42664 Inner Diam. WidthTire 60±58 ± SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL AIR BAG ASSY AVENSIS REPAIR MANUAL (RM1018E) (d) Usin

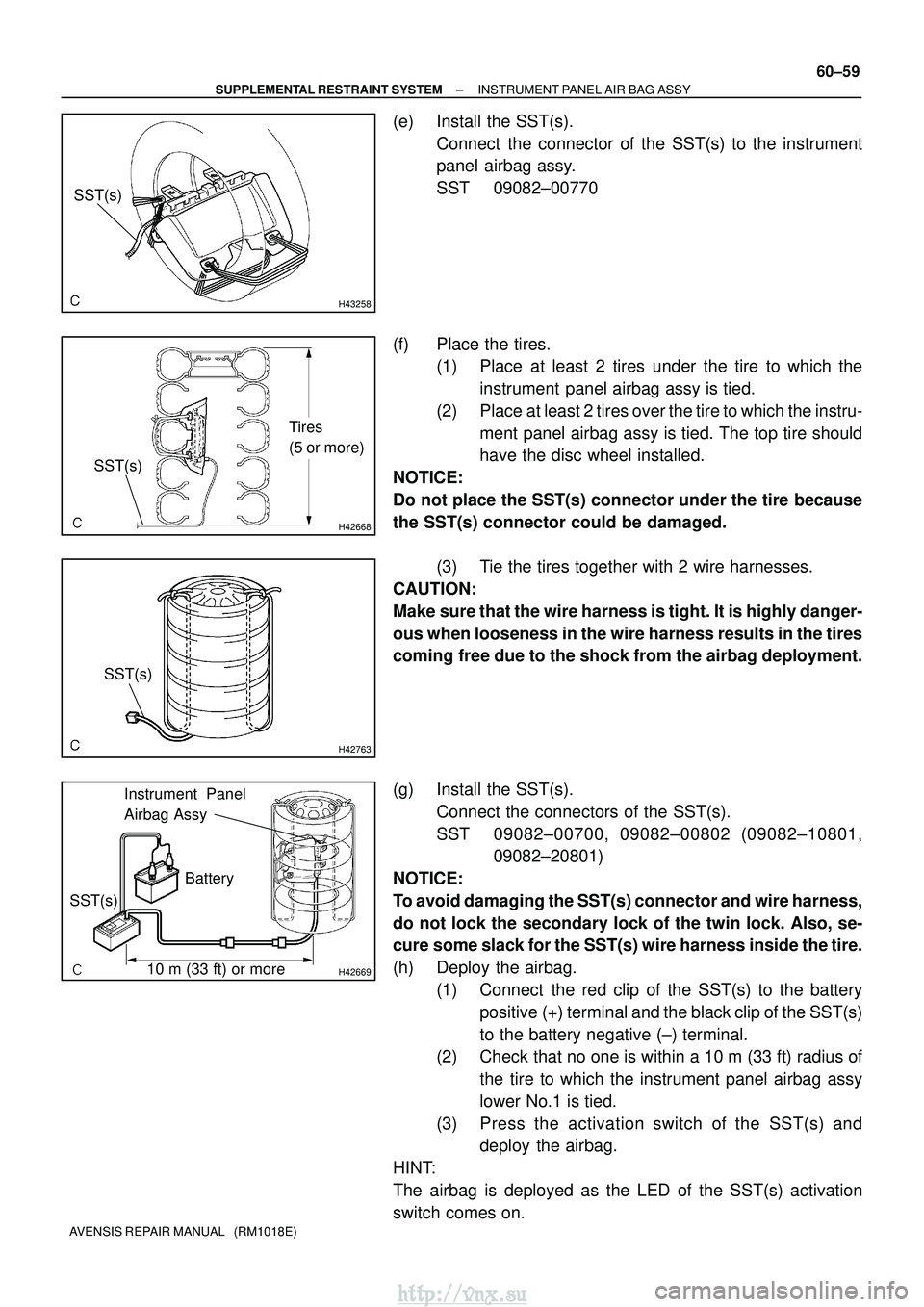

Page 1429 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H43258 SST(s) H42668 Tires (5 or more) SST(s) H42763 SST(s) H4266910 m (33 ft) or more SST(s) Battery Instrument Panel Airbag Assy ± SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL AIR BAG ASSY 60±59

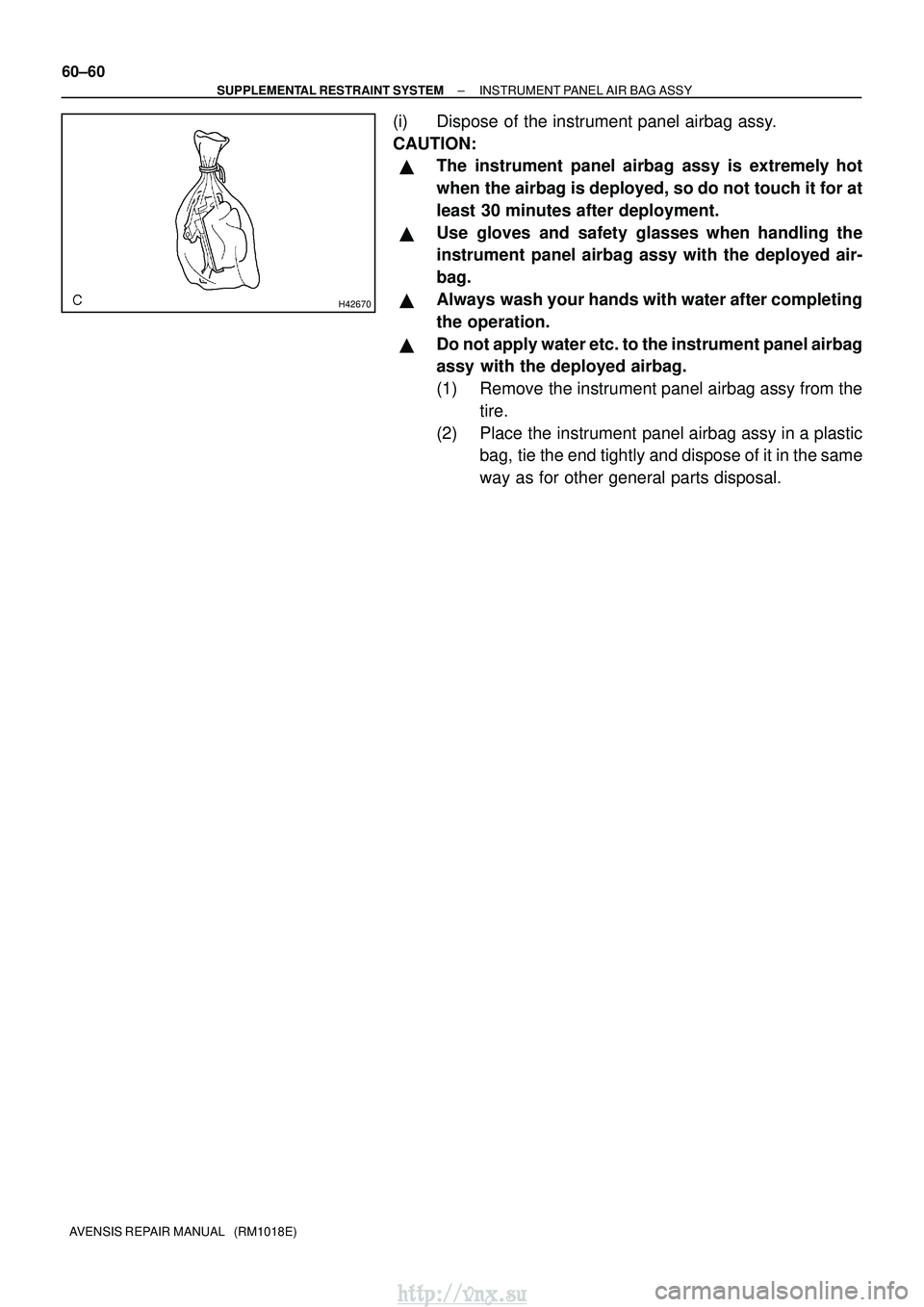

Page 1430 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H42670 60±60 ± SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL AIR BAG ASSY AVENSIS REPAIR MANUAL (RM1018E) (i) Dispose of the instrument panel airbag assy. CAUTION: The instrument panel airbag as

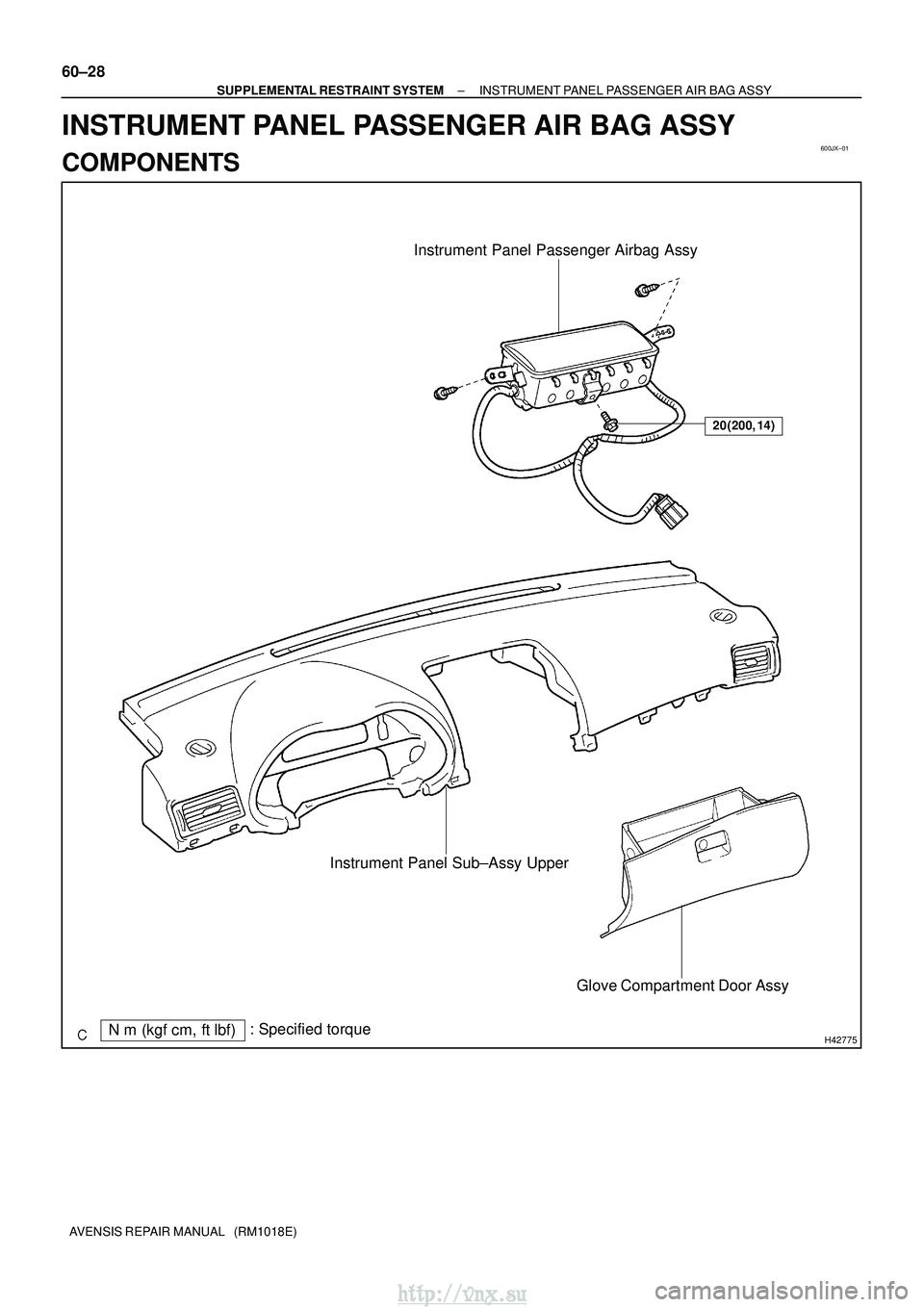

Page 1431 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 600JX±01 H42775 Instrument Panel Passenger Airbag Assy Instrument Panel Sub±Assy Upper Glove Compartment Door Assy 20 (200, 14) N m (kgf cm, ftlbf): Specified torque 60±28 ± SUPPLEMENTAL RESTRA

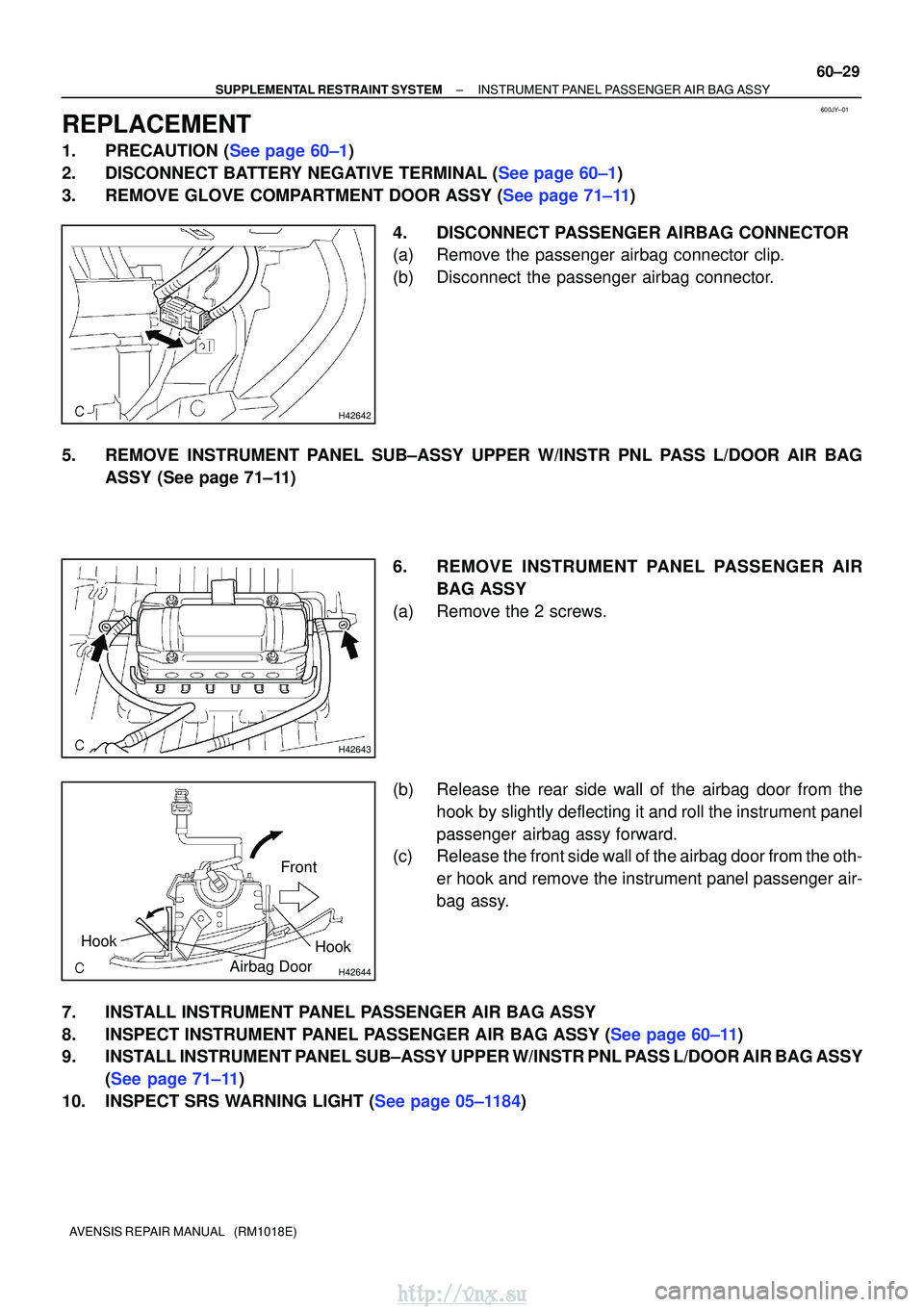

Page 1432 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 600JY±01 H42642 H42643 H42644 Hook Airbag DoorHook Front ± SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG ASSY 60±29 AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT 1.PRECAUTION (Se
