Page 289 of 2234

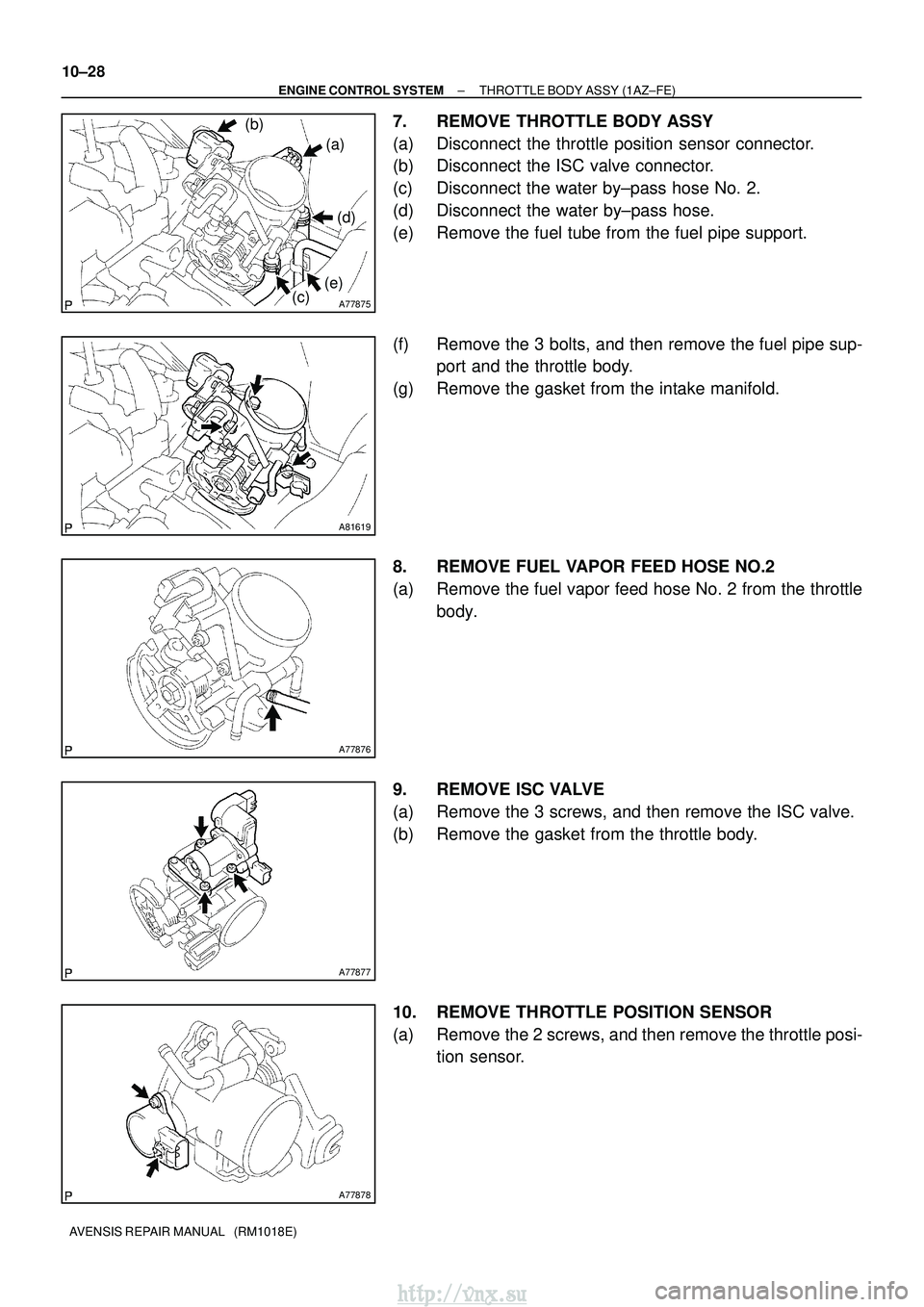

TOYOTA AVENSIS 2003 Service Repair Manual A77875 (a) (b) (c) (d) (e) A81619 A77876 A77877 A77878 10±28 ± ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1AZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 7. REMOVE THROTTLE BODY ASSY (a) Disconnect the th

Page 290 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A77879 45 A77880 83.8 mm (3.299 in.) Rotation Center of Throttle Link ± ENGINE CONTROL SYSTEMTHROTTLE BODY ASSY(1AZ±FE) 10±29 AVENSIS REPAIR MANUAL (RM1018E) 11.INSTALL THROTTLE POSITION SENS

Page 291 of 2234

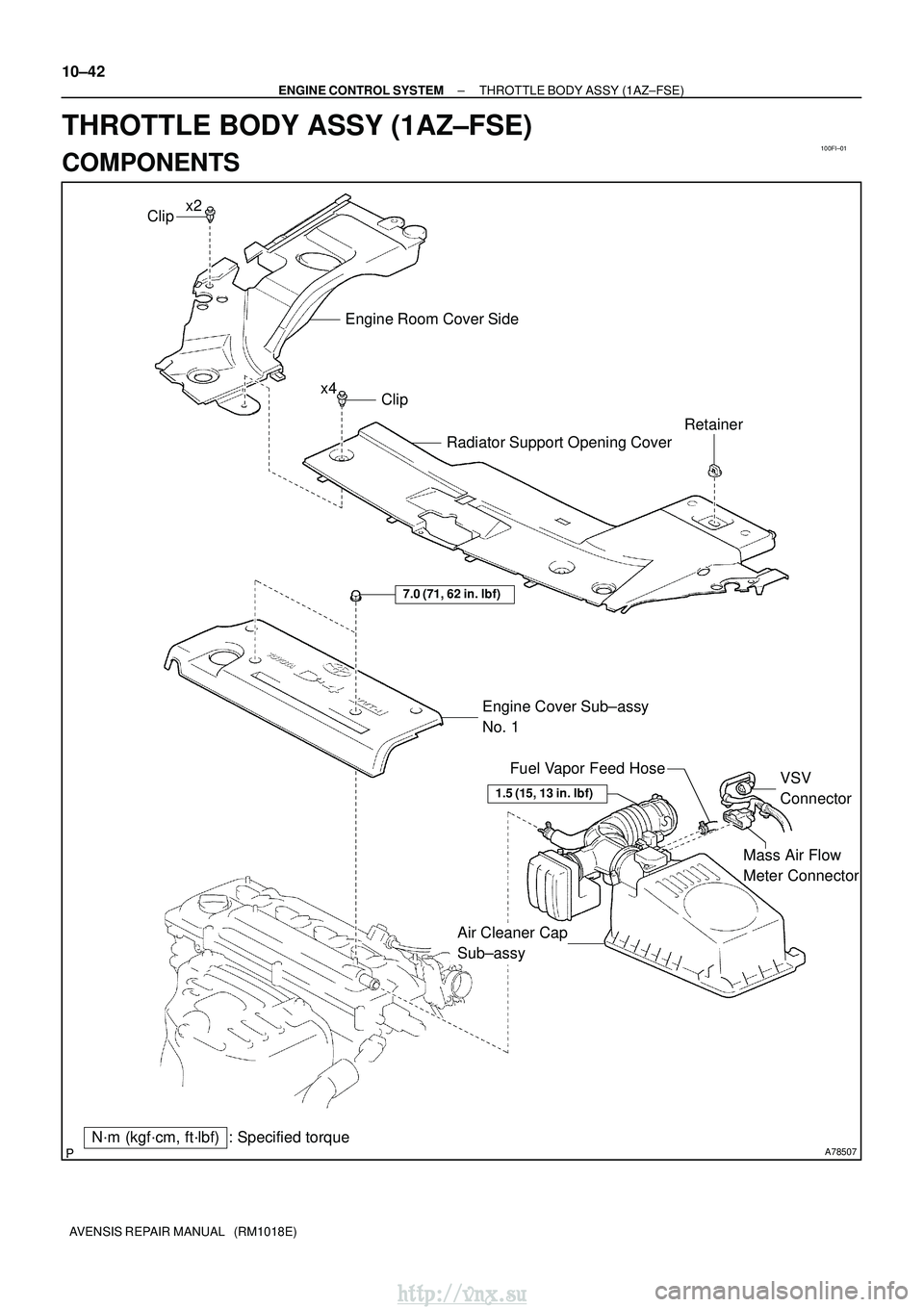

TOYOTA AVENSIS 2003 Service Repair Manual 100FI±01 A78507 Mass Air Flow Meter Connector N´m (kgf´cm, ft´lbf) : Specified torqueEngine Cover Sub±assy No. 1 7.0 (71, 62 in. lbf) Air Cleaner Cap Sub±assy VSV Connector Fuel Vapor Feed

Page 292 of 2234

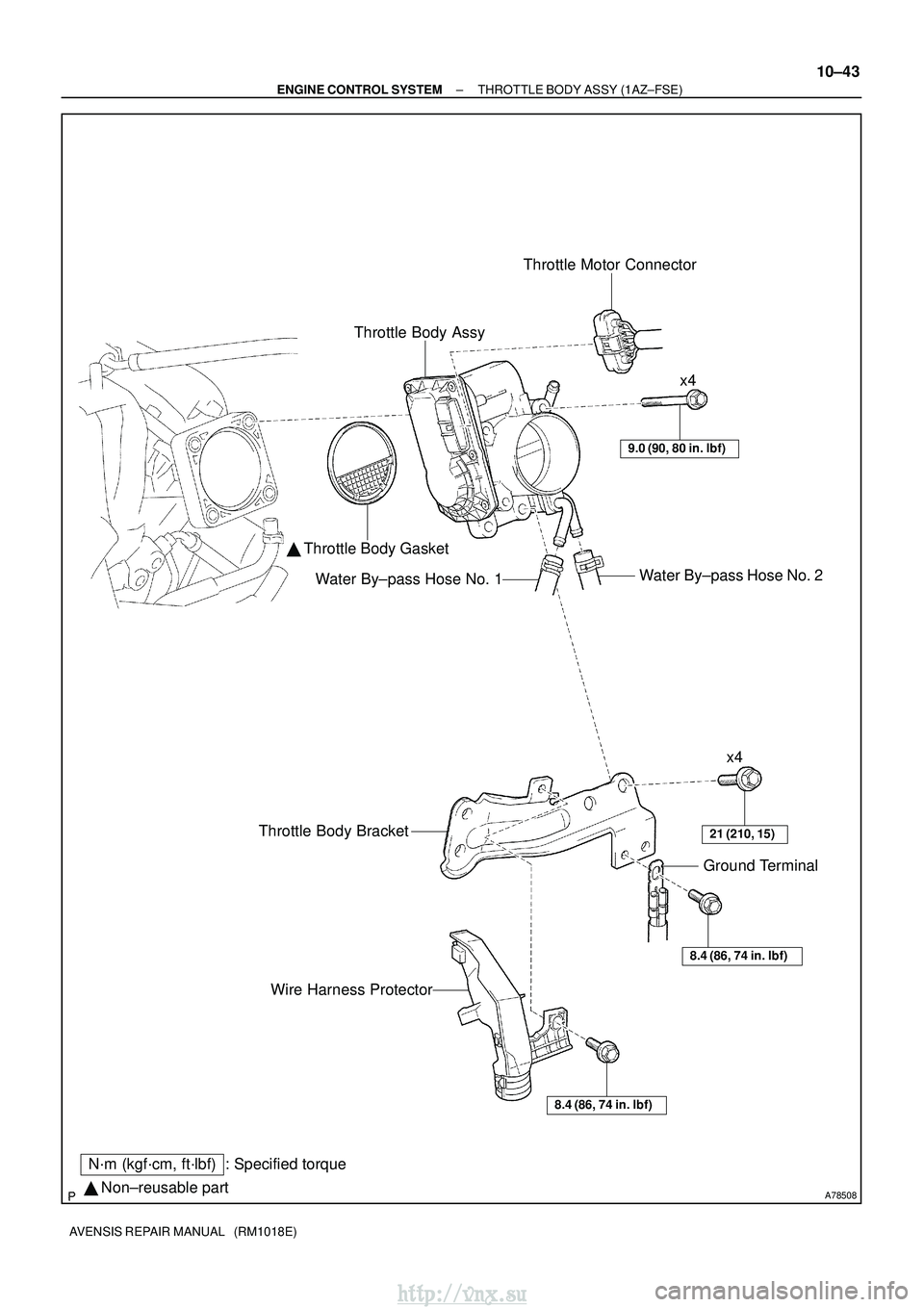

TOYOTA AVENSIS 2003 Service Repair Manual A78508 Non±reusable part N´m (kgf´cm, ft´lbf) : Specified torque Throttle Body Assy Throttle Motor Connector  Throttle Body Gasket Water By±pass Hose No. 2 Water By±pass Hose No. 1 9.0 (90, 8

Page 293 of 2234

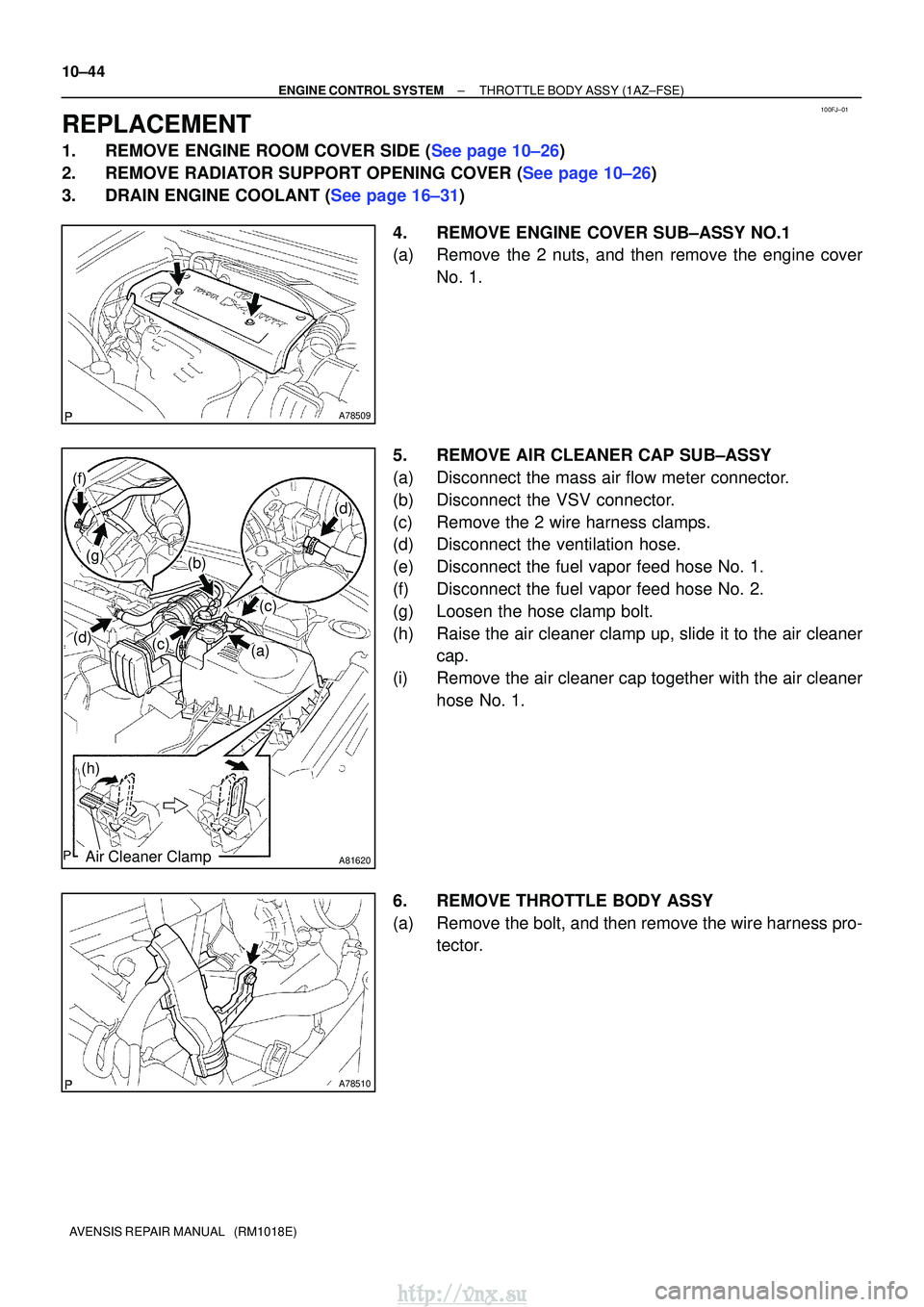

TOYOTA AVENSIS 2003 Service Repair Manual 100FJ±01 A78509 A81620 (a)(c) (c) (b) (d) (f) (g) (d) (h) Air Cleaner Clamp A78510 10±44 ± ENGINE CONTROL SYSTEMTHROTTLE BODY ASSY(1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT 1.REMOVE E

Page 294 of 2234

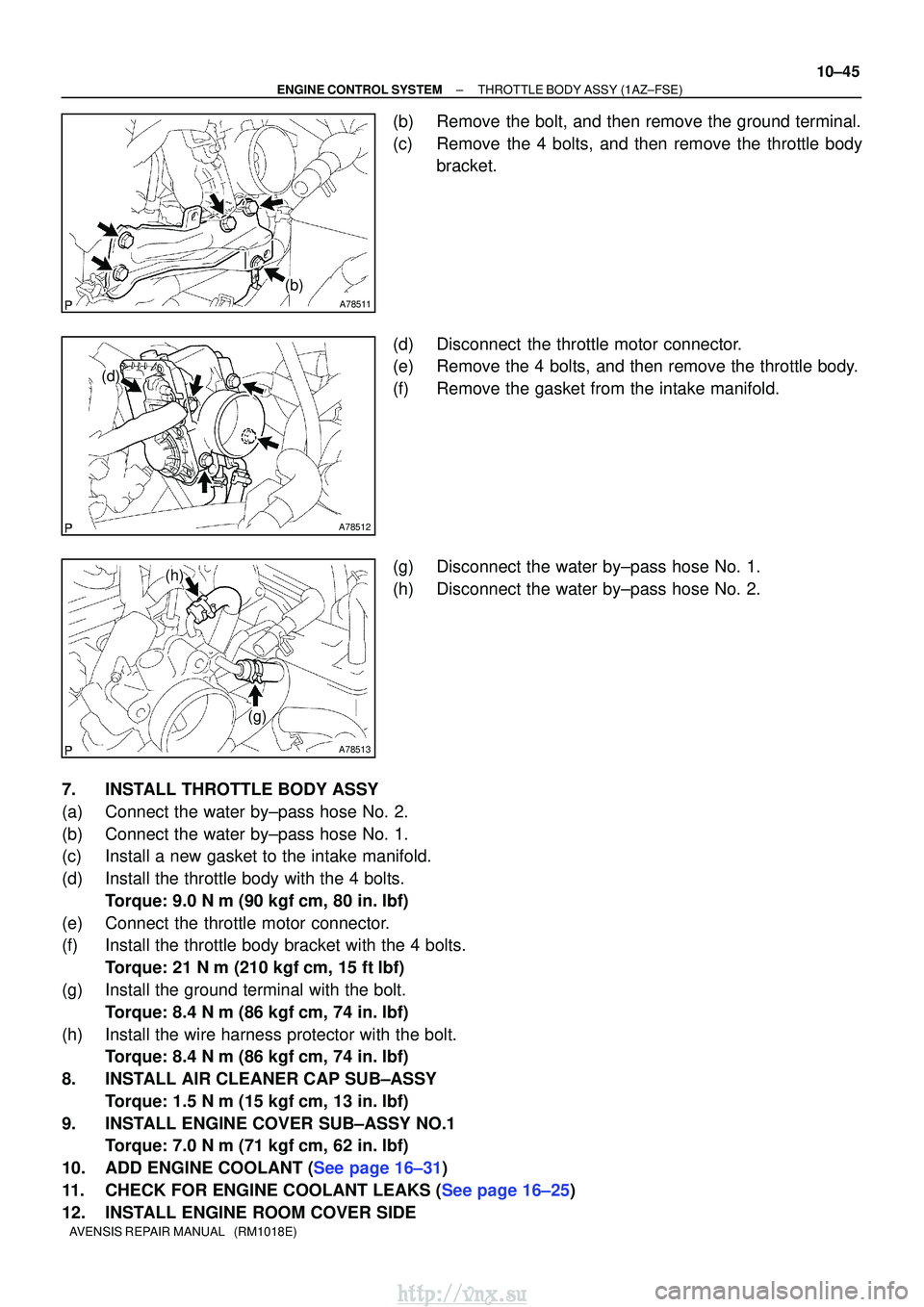

TOYOTA AVENSIS 2003 Service Repair Manual A78511 (b) A78512 (d) A78513 (g) (h) ± ENGINE CONTROL SYSTEMTHROTTLE BODY ASSY(1AZ±FSE) 10±45 AVENSIS REPAIR MANUAL (RM1018E) (b)Remove the bolt, and then remove the ground terminal. (c)Remove th

Page 295 of 2234

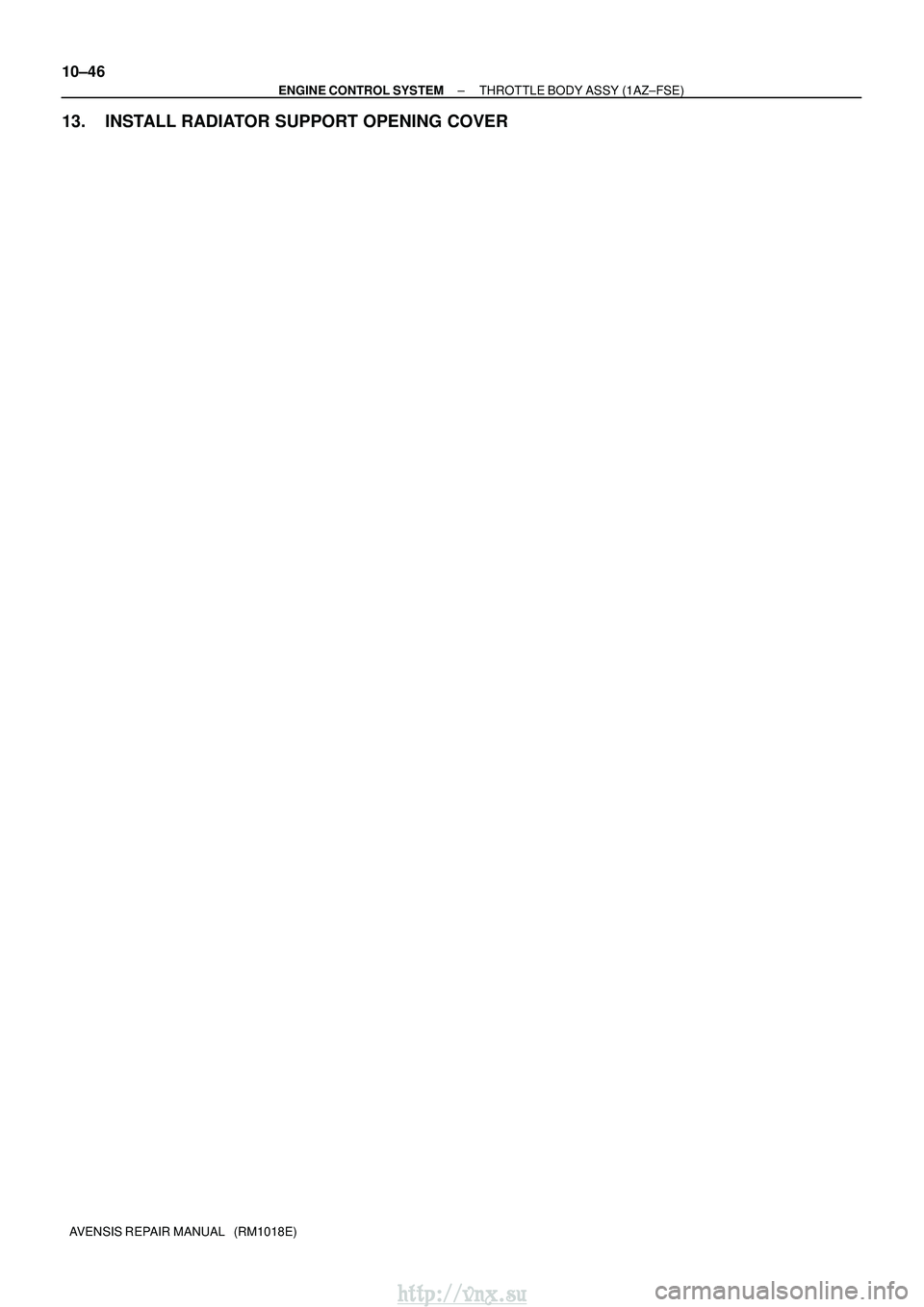

TOYOTA AVENSIS 2003 Service Repair Manual 10±46 ± ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) 13. INSTALL RADIATOR SUPPORT OPENING COVER http://vnx.su

Page 296 of 2234

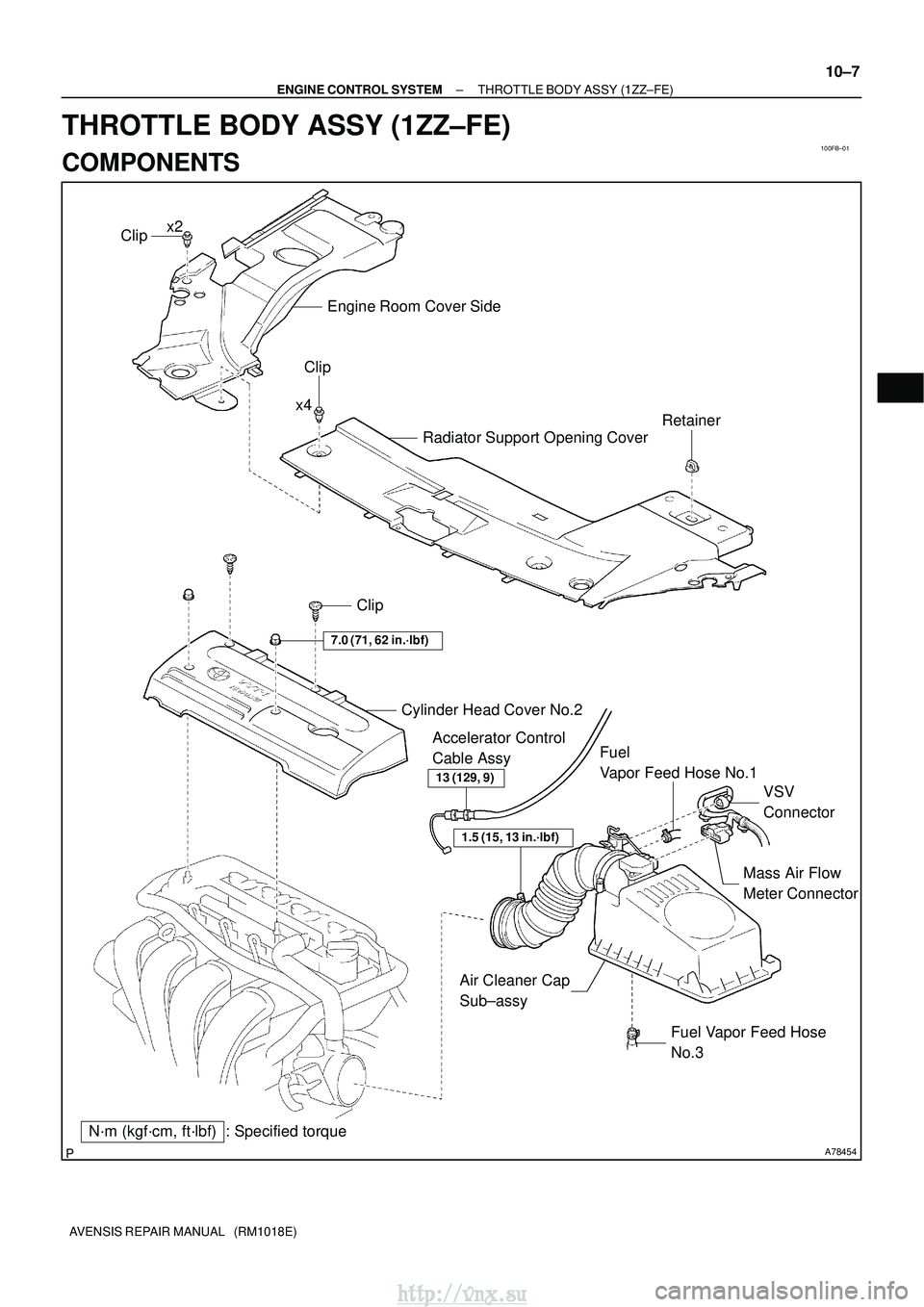

TOYOTA AVENSIS 2003 Service Repair Manual 100FB±01 A78454 N´m (kgf´cm, ft´lbf) : Specified torqueClip Cylinder Head Cover No.2Fuel Vapor Feed Hose No.1VSV Connector Mass Air Flow Meter Connector Accelerator Control Cable Assy Fuel Vap
