Page 897 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 160MJ±01
A62118
1010
16±10
±
COOLINGTHERMOSTAT(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
THERMOSTAT(1ZZ±FE/3ZZ±FE)
REPLACEMENT
1.REMOVE RADIATOR SUPPORT OPENING COVER (See page 14±27)

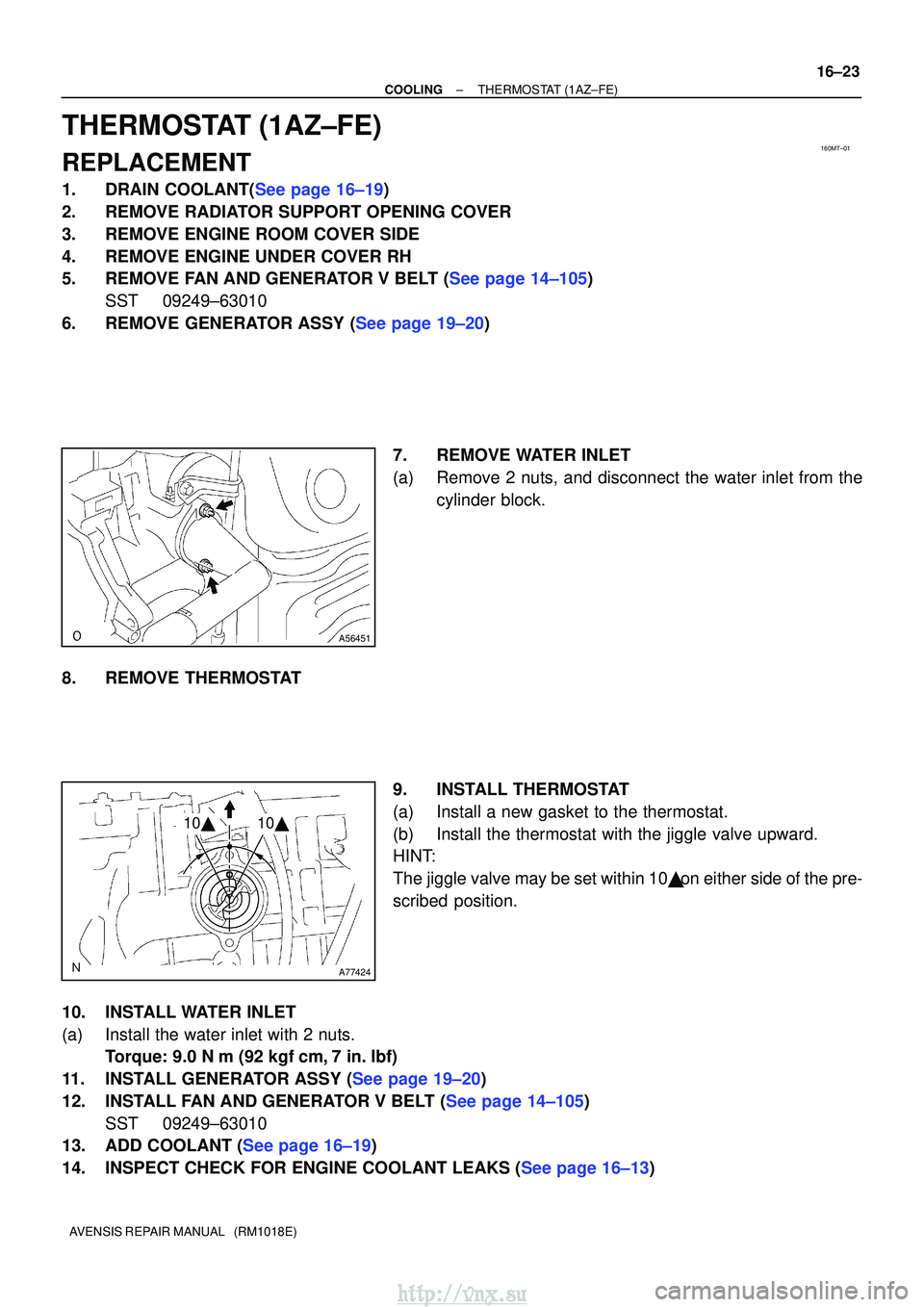

Page 898 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 160MT±01
A56451
A77424
1010
±
COOLINGTHERMOSTAT(1AZ±FE)
16±23
AVENSIS REPAIR MANUAL (RM1018E)
THERMOSTAT(1AZ±FE)
REPLACEMENT
1.DRAIN COOLANT(See page 16±19)
2.REMOVE RADIATOR SUPPORT OPENING

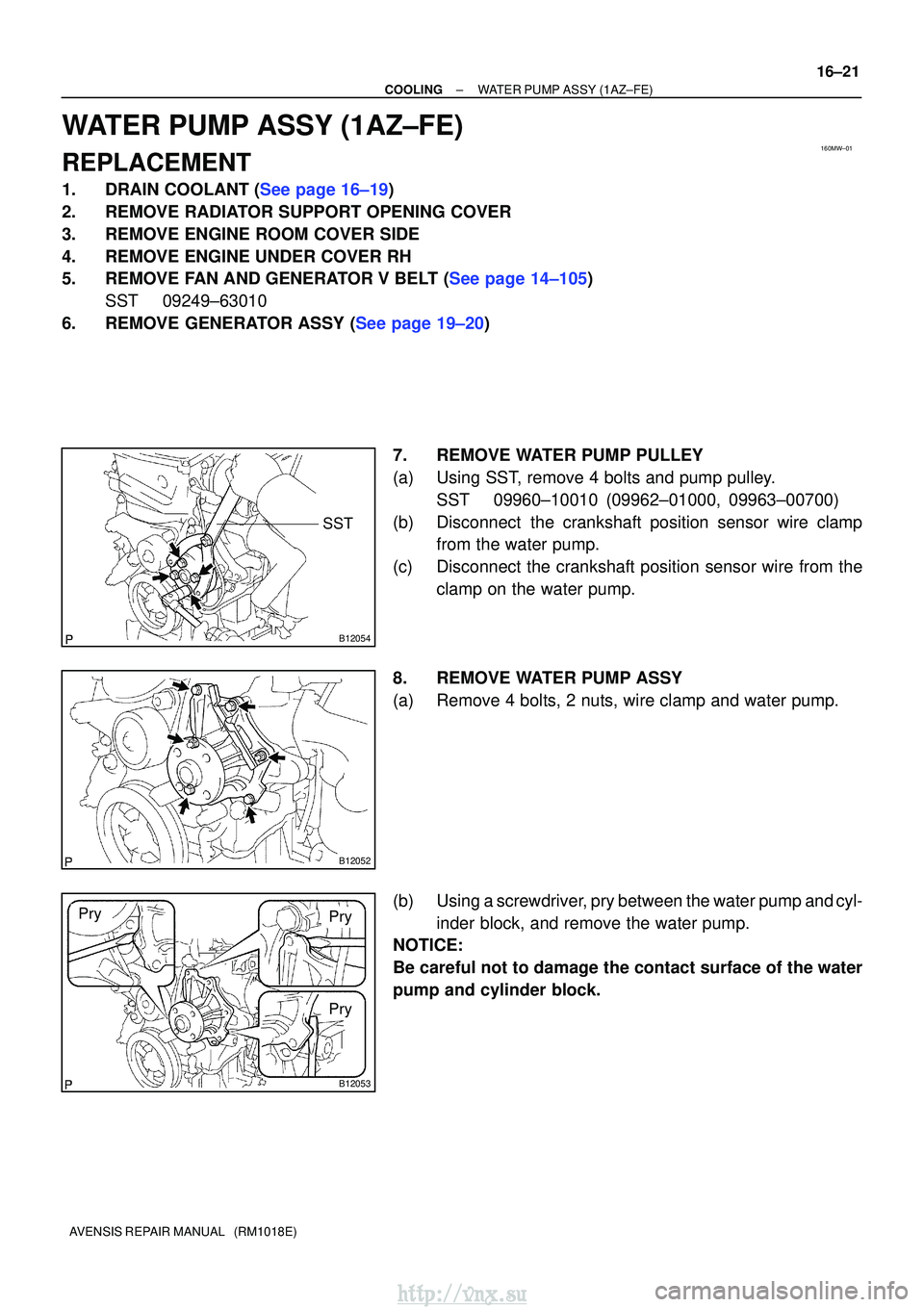

Page 899 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 160MW±01
B12054
SST
B12052
B12053
Pry
PryPry
±
COOLINGWATER PUMP ASSY(1AZ±FE)
16±21
AVENSIS REPAIR MANUAL (RM1018E)
WATER PUMP ASSY(1AZ±FE)
REPLACEMENT
1.DRAIN COOLANT (See page 16±19)
2. REMO

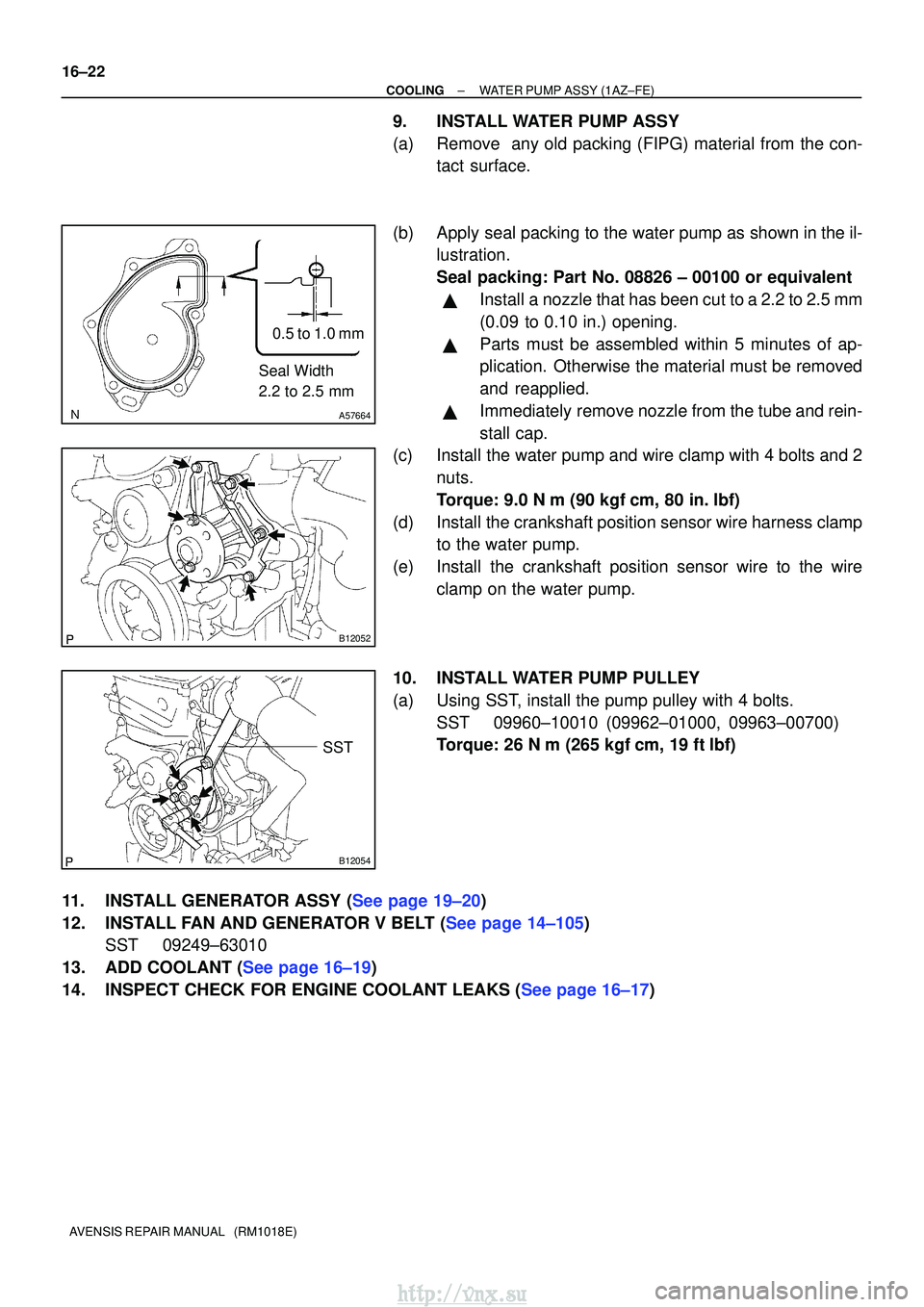

Page 900 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A57664
Seal Width
2.2 to 2.5 mm0.5 to 1.0 mm
B12052
B12054
SST
16±22
±
COOLINGWATER PUMP ASSY(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
9.INSTALL WATER PUMP ASSY
(a)Remove any old packing (FIPG) m

Page 901 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 160MR±01
B12054
SST
B12052
B12053
Pry
PryPry
±
COOLINGWATER PUMP ASSY(1AZ±FSE)
16±33
AVENSIS REPAIR MANUAL (RM1018E)
WATER PUMP ASSY(1AZ±FSE)
REPLACEMENT
1.DRAIN COOLANT (See page 16±31)
2. RE

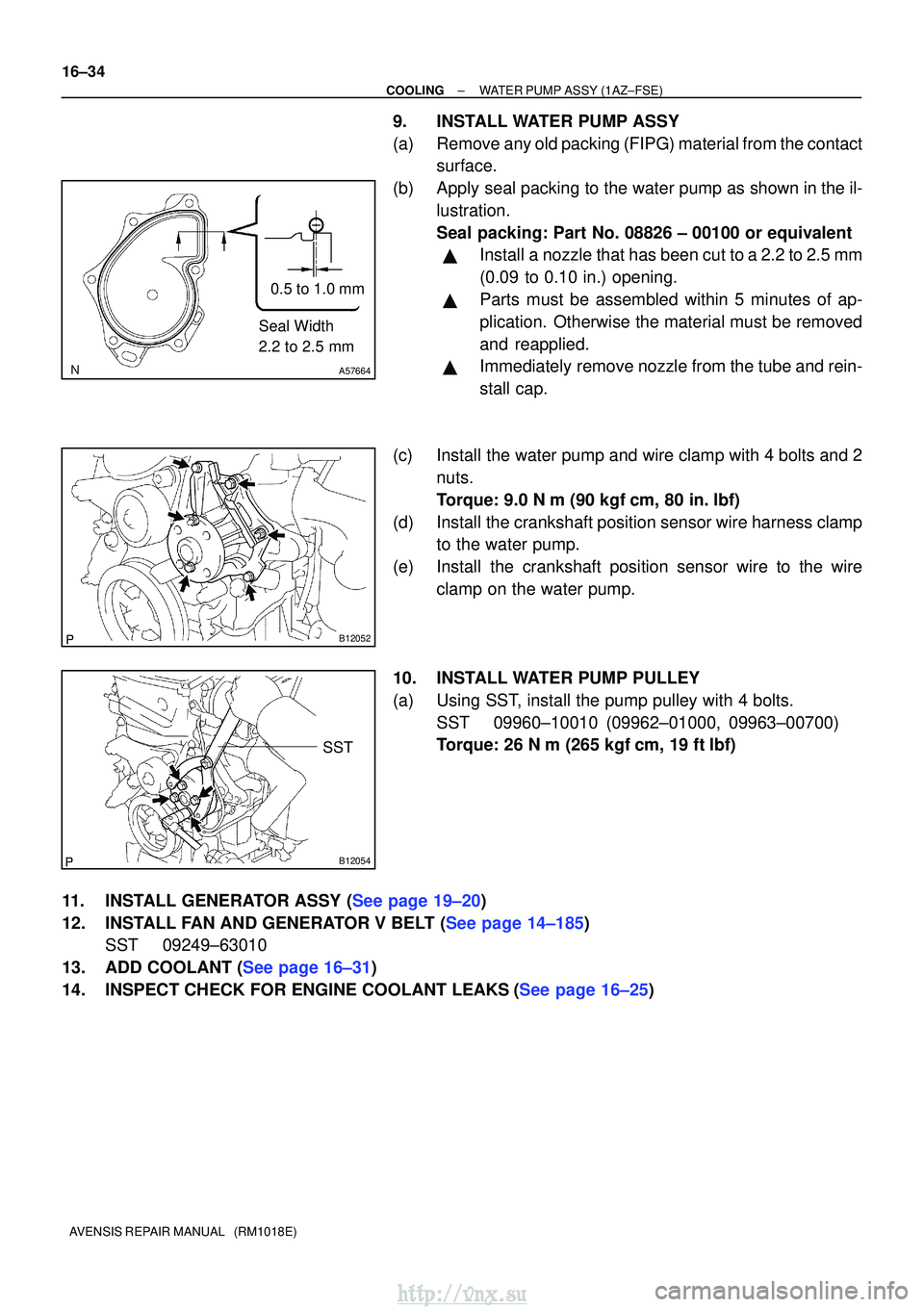

Page 902 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A57664
Seal Width
2.2 to 2.5 mm0.5 to 1.0 mm
B12052
B12054
SST
16±34
±
COOLINGWATER PUMP ASSY(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
9.INSTALL WATER PUMP ASSY
(a)Remove any old packing (FIPG) m

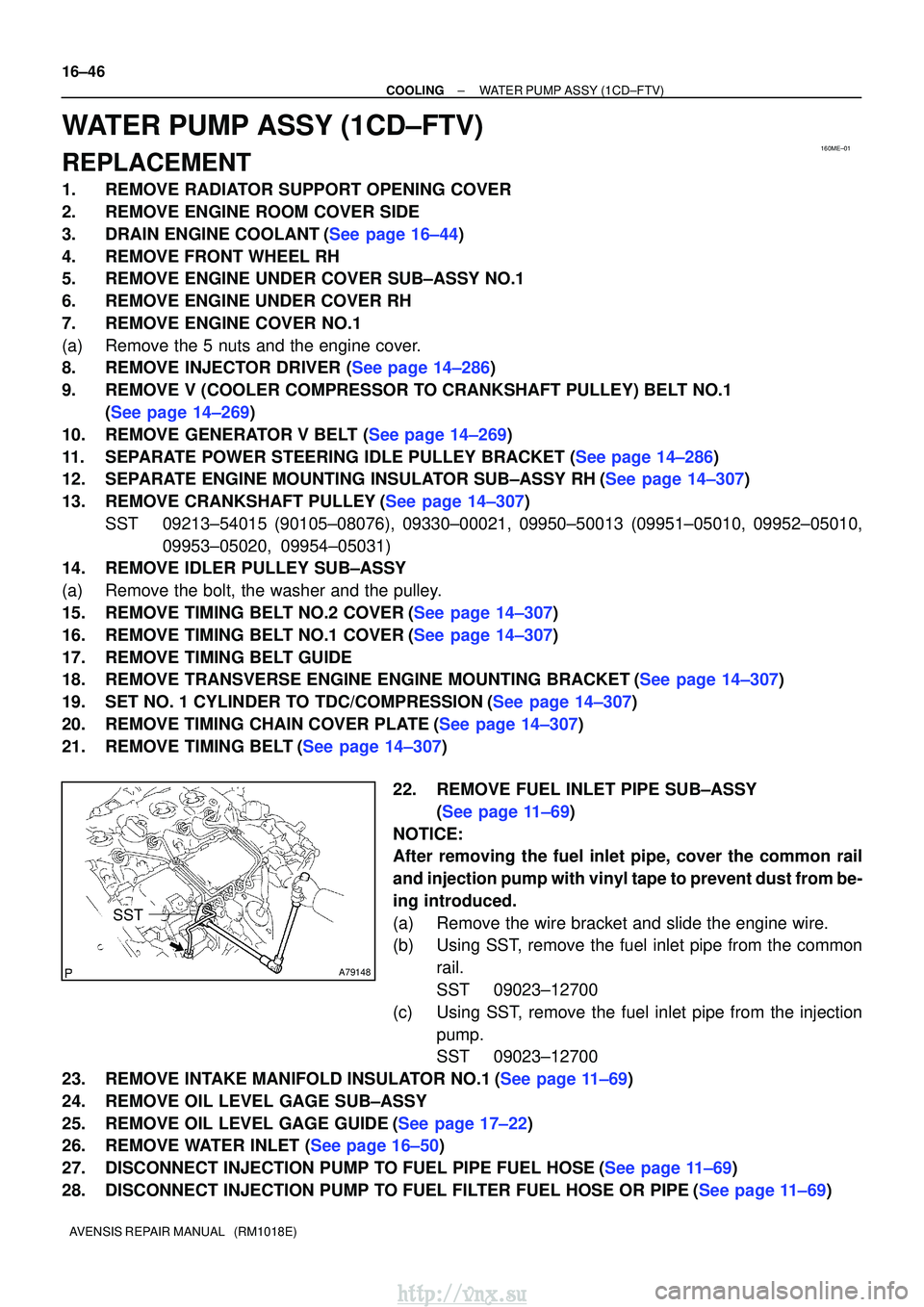

Page 903 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 160ME±01
A79148
SST
16±46
±
COOLINGWATER PUMP ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
WATER PUMP ASSY(1CD±FTV)
REPLACEMENT
1.REMOVE RADIATOR SUPPORT OPENING COVER
2.REMOVE ENGINE ROOM COV

160ME±01
A79148
SST
16±46
±
COOLINGWATER PUMP ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
WATER PUMP ASSY(1CD±FTV)
REPLACEMENT
1.REMOVE RADIATOR SUPPORT OPENING COVER
2.REMOVE ENGINE ROOM COVER SIDE
3.DRAIN ENGINE COOLANT(See page 16±44)
4.REMOVE FRONT WHEEL RH
5.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1
6.REMOVE ENGINE UNDER COVER RH
7.REMOVE ENGINE COVER NO.1
(a)Remove the 5 nuts and the engine cover.
8.REMOVE INJECTOR DRIVER (See page 14±286)
9.REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 14±269)
10.REMOVE GENERATOR V BELT (See page 14±269)
11.SEPARATE POWER STEERING IDLE PULLEY BRACKET (See page 14±286)
12.SEPARATE ENGINE MOUNTING INSULATOR SUB±ASSY RH(See page 14±307)
13.REMOVE CRANKSHAFT PULLEY(See page 14±307) SST 09213±54015 (90105±08076), 09330±00021, 09950±50013 (0995\
1±05010, 09952±05010, 09953±05020, 09954±05031)
14. REMOVE IDLER PULLEY SUB±ASSY
(a) Remove the bolt, the washer and the pulley.
15.REMOVE TIMING BELT NO.2 COVER(See page 14±307)
16.REMOVE TIMING BELT NO.1 COVER(See page 14±307)
17. REMOVE TIMING BELT GUIDE
18.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET(See page 14±307)
19.SET NO. 1 CYLINDER TO TDC/COMPRESSION(See page 14±307)
20.REMOVE TIMING CHAIN COVER PLATE(See page 14±307)
21.REMOVE TIMING BELT(See page 14±307)
22. REMOVE FUEL INLET PIPE SUB±ASSY(See page 11±69)
NOTICE:
After removing the fuel inlet pipe, cover the common rail
and injection pump with vinyl tape to prevent dust from be-
ing introduced.
(a) Remove the wire bracket and slide the engine wire.
(b) Using SST, remove the fuel inlet pipe from the common rail.
SST 09023±12700
(c) Using SST, remove the fuel inlet pipe from the injection pump.
SST 09023±12700
23.REMOVE INTAKE MANIFOLD INSULATOR NO.1(See page 11±69)
24. REMOVE OIL LEVEL GAGE SUB±ASSY
25.REMOVE OIL LEVEL GAGE GUIDE(See page 17±22)
26.REMOVE WATER INLET (See page 16±50)
27.DISCONNECT INJECTION PUMP TO FUEL PIPE FUEL HOSE(See page 11±69)
28.DISCONNECT INJECTION PUMP TO FUEL FILTER FUEL HOSE OR PIPE(See page 11±69)
http://vnx.su

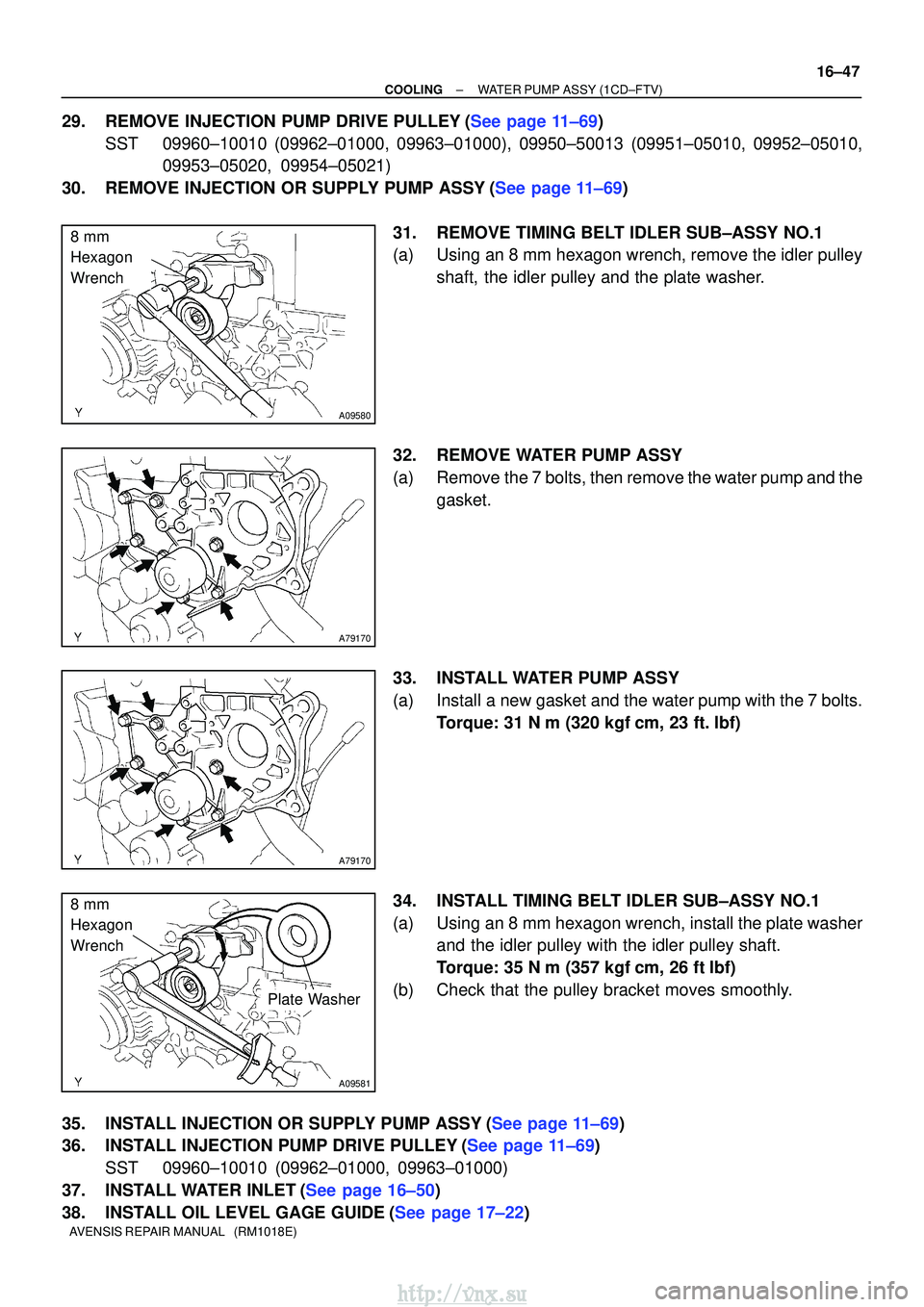

Page 904 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A09580
8 mm
Hexagon
Wrench
A79170
A79170
A09581
8 mm
Hexagon
Wrench
Plate Washer
±
COOLINGWATER PUMP ASSY(1CD±FTV)
16±47
AVENSIS REPAIR MANUAL (RM1018E)
29.REMOVE INJECTION PUMP DRIVE PULLEY(
