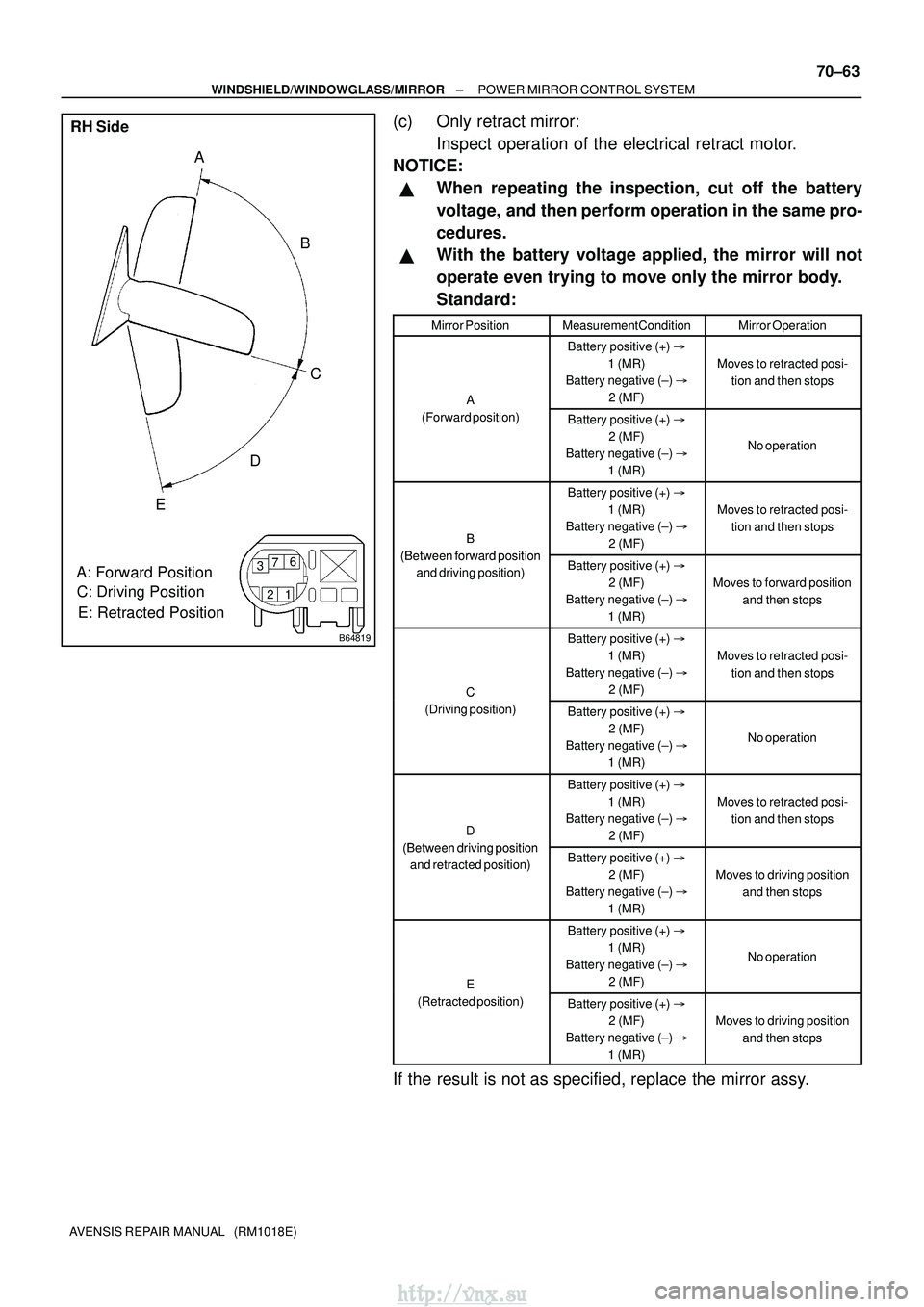

TOYOTA AVENSIS 2003 Service Repair Manual B64819
RH SideA: Forward PositionC: Driving Position
E: Retracted Position B
A
C
D
E
12
3
6
7
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER MIRROR CONTROL SYSTEM
70±63
AVENSIS REPAIR MANUAL (RM1018E)
(c)

Page 1618 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 700S7±01
B66761
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
70±1
AVENSIS REPAIR MANUAL (RM1018E)

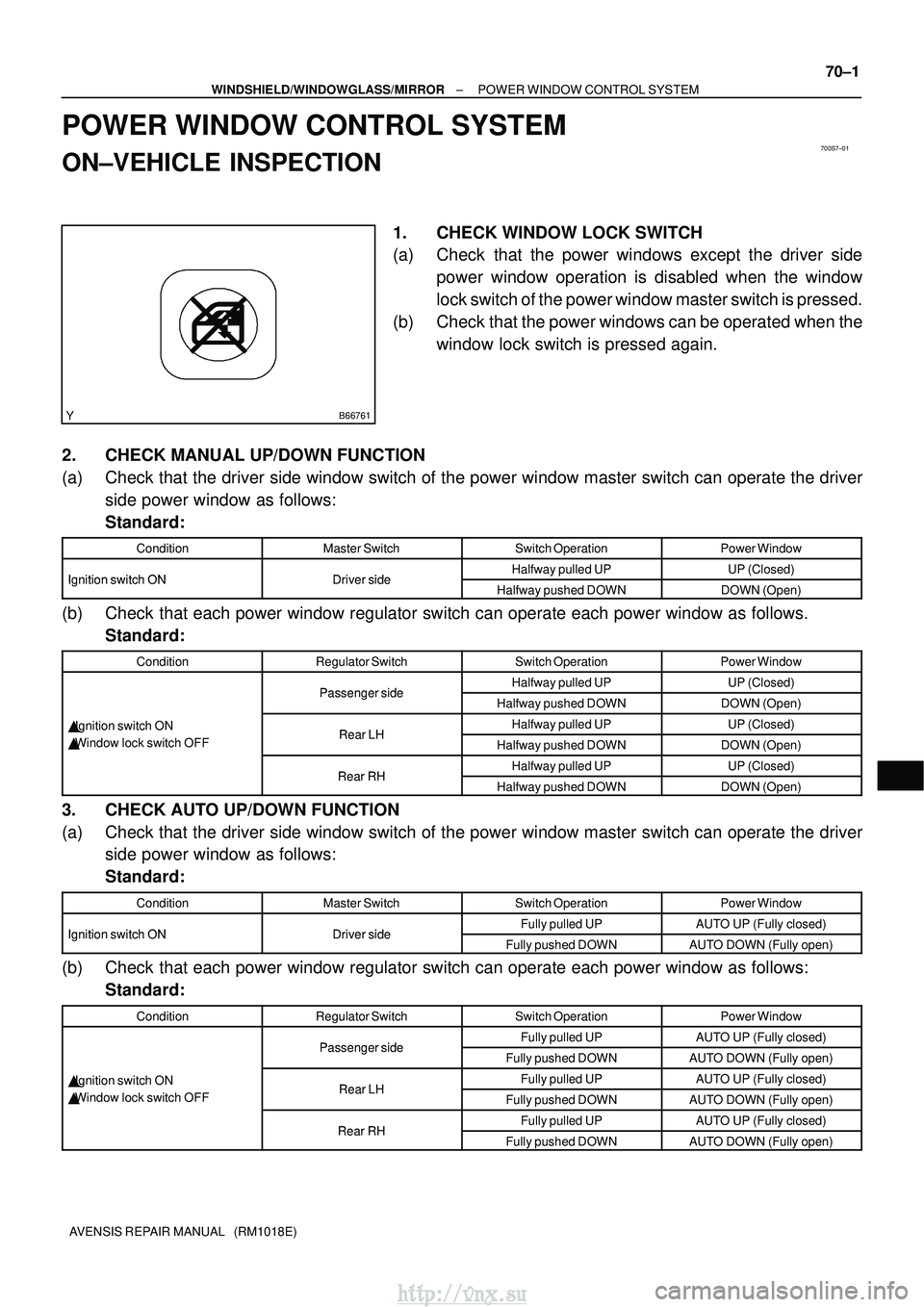

POWER WINDOW CONTROL SYSTEM
ON±VEHICLE INSPECTION
1. CHECK WINDOW LOCK SWITCH
(a)

700S7±01
B66761
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
70±1
AVENSIS REPAIR MANUAL (RM1018E)
POWER WINDOW CONTROL SYSTEM
ON±VEHICLE INSPECTION
1. CHECK WINDOW LOCK SWITCH
(a) Check that the power windows except the driver side
power window operation is disabled when the window
lock switch of the power window master switch is pressed.
(b) Check that the power windows can be operated when the window lock switch is pressed again.
2. CHECK MANUAL UP/DOWN FUNCTION
(a) Check that the driver side window switch of the power window master swit\
ch can operate the driver side power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Ignition switch ONDriver sideHalfway pulled UPUP (Closed)Ignition switch ONDriver sideHalfway pushed DOWNDOWN (Open)
(b) Check that each power window regulator switch can operate each power window a\
s follows.Standard:
ConditionRegulator SwitchSwitch OperationPower Window
Passenger sideHalfway pulled UPUP (Closed)Passenger sideHalfway pushed DOWNDOWN (Open)
Ignition switch ONRear LHHalfway pulled UPUP (Closed)Ignition switch ON
Window lock switch OFFRear LHHalfway pushed DOWNDOWN (Open)
Rear RHHalfway pulled UPUP (Closed)Rear RHHalfway pushed DOWNDOWN (Open)
3. CHECK AUTO UP/DOWN FUNCTION
(a) Check that the driver side window switch of the power window master swit\
ch can operate the driver
side power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Ignition switch ONDriver sideFully pulled UPAUTO UP (Fully closed)Ignition switch ONDriver sideFully pushed DOWNAUTO DOWN (Fully open)
(b) Check that each power window regulator switch can operate each power window a\
s follows:
Standard:
ConditionRegulator SwitchSwitch OperationPower Window
Passenger sideFully pulled UPAUTO UP (Fully closed)Passenger sideFully pushed DOWNAUTO DOWN (Fully open)
Ignition switch ONRear LHFully pulled UPAUTO UP (Fully closed)Ignition switch ON
Window lock switch OFFRear LHFully pushed DOWNAUTO DOWN (Fully open)
Rear RHFully pulled UPAUTO UP (Fully closed)Rear RHFully pushed DOWNAUTO DOWN (Fully open)
http://vnx.su

Page 1619 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B51853
Hammer
70±2
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

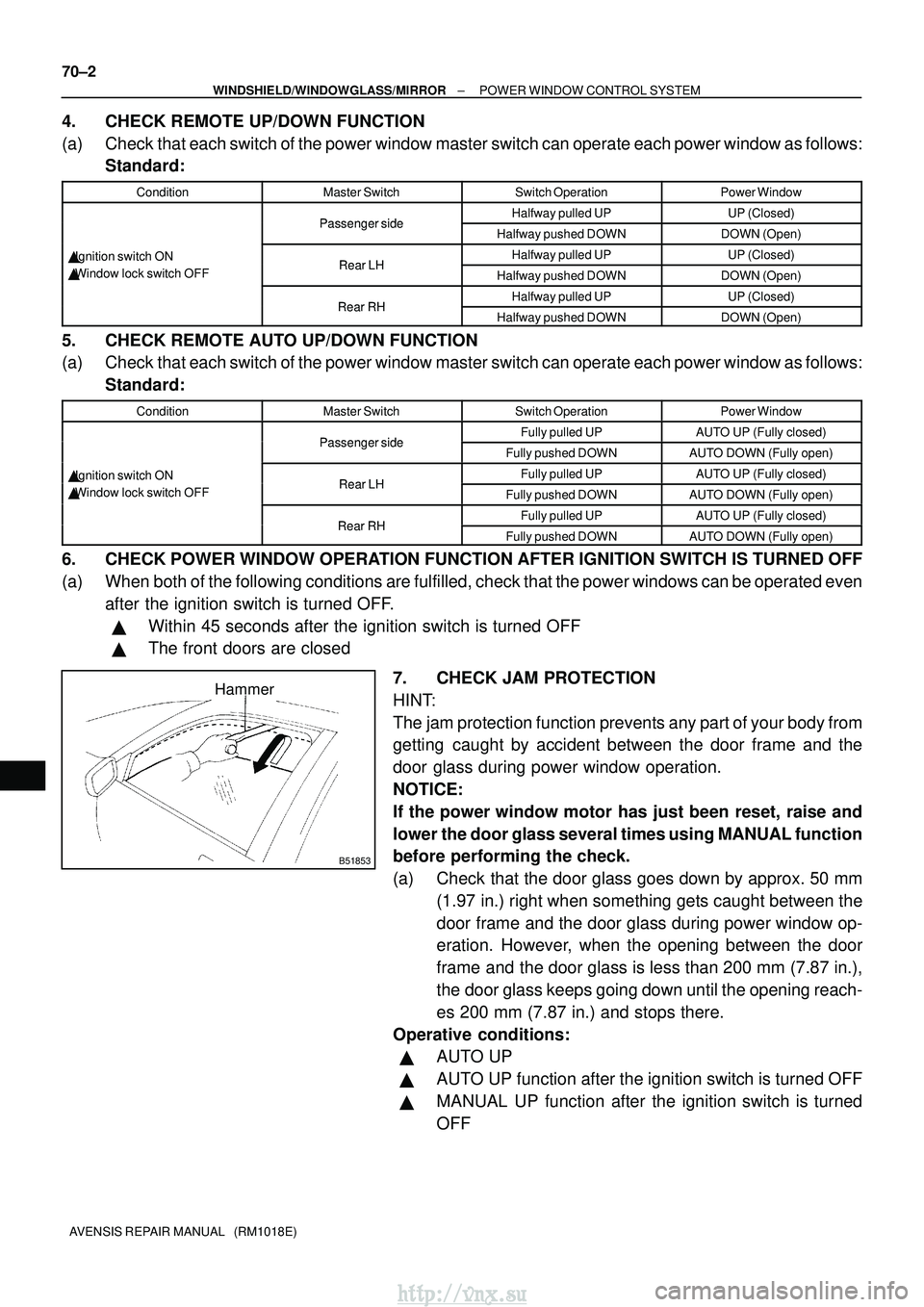

4. CHECK REMOTE UP/DOWN FUNCTION
(a) Check that each switch of the power window maste

B51853
Hammer
70±2
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
4. CHECK REMOTE UP/DOWN FUNCTION
(a) Check that each switch of the power window master switch can operate each power window as follows: Standard:
ConditionMaster SwitchSwitch OperationPower Window
Passenger sideHalfway pulled UPUP (Closed)Passenger sideHalfway pushed DOWNDOWN (Open)
Ignition switch ONRear LHHalfway pulled UPUP (Closed)Ignition switch ON
Window lock switch OFFRear LHHalfway pushed DOWNDOWN (Open)
Rear RHHalfway pulled UPUP (Closed)Rear RHHalfway pushed DOWNDOWN (Open)
5. CHECK REMOTE AUTO UP/DOWN FUNCTION
(a) Check that each switch of the power window master switch can operate each power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Passenger sideFully pulled UPAUTO UP (Fully closed)Passenger sideFully pushed DOWNAUTO DOWN (Fully open)
Ignition switch ONRear LHFully pulled UPAUTO UP (Fully closed)Ignition switch ON
Window lock switch OFFRear LHFully pushed DOWNAUTO DOWN (Fully open)
Rear RHFully pulled UPAUTO UP (Fully closed)Rear RHFully pushed DOWNAUTO DOWN (Fully open)
6. CHECK POWER WINDOW OPERATION FUNCTION AFTER IGNITION SWITCH IS TURNED OFF
(a) When both of the following conditions are fulfilled, check that the power windows can be operated even
after the ignition switch is turned OFF.
Within 45 seconds after the ignition switch is turned OFF
The front doors are closed
7. CHECK JAM PROTECTION
HINT:
The jam protection function prevents any part of your body from
getting caught by accident between the door frame and the
door glass during power window operation.
NOTICE:
If the power window motor has just been reset, raise and
lower the door glass several times using MANUAL function
before performing the check.
(a) Check that the door glass goes down by approx. 50 mm(1.97 in.) right when something gets caught between the
door frame and the door glass during power window op-
eration. However, when the opening between the door
frame and the door glass is less than 200 mm (7.87 in.),
the door glass keeps going down until the opening reach-
es 200 mm (7.87 in.) and stops there.
Operative conditions:
AUTO UP
AUTO UP function after the ignition switch is turned OFF
MANUAL UP function after the ignition switch is turned
OFF
http://vnx.su

Page 1620 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 700S8±01
B67299
Instrument Panel J/B Assy
Integration Relay
IG1 Relay
Instrument Panel J/B Assy
Integration Relay
IG1 Relay
LHD Models
RHD Models
±

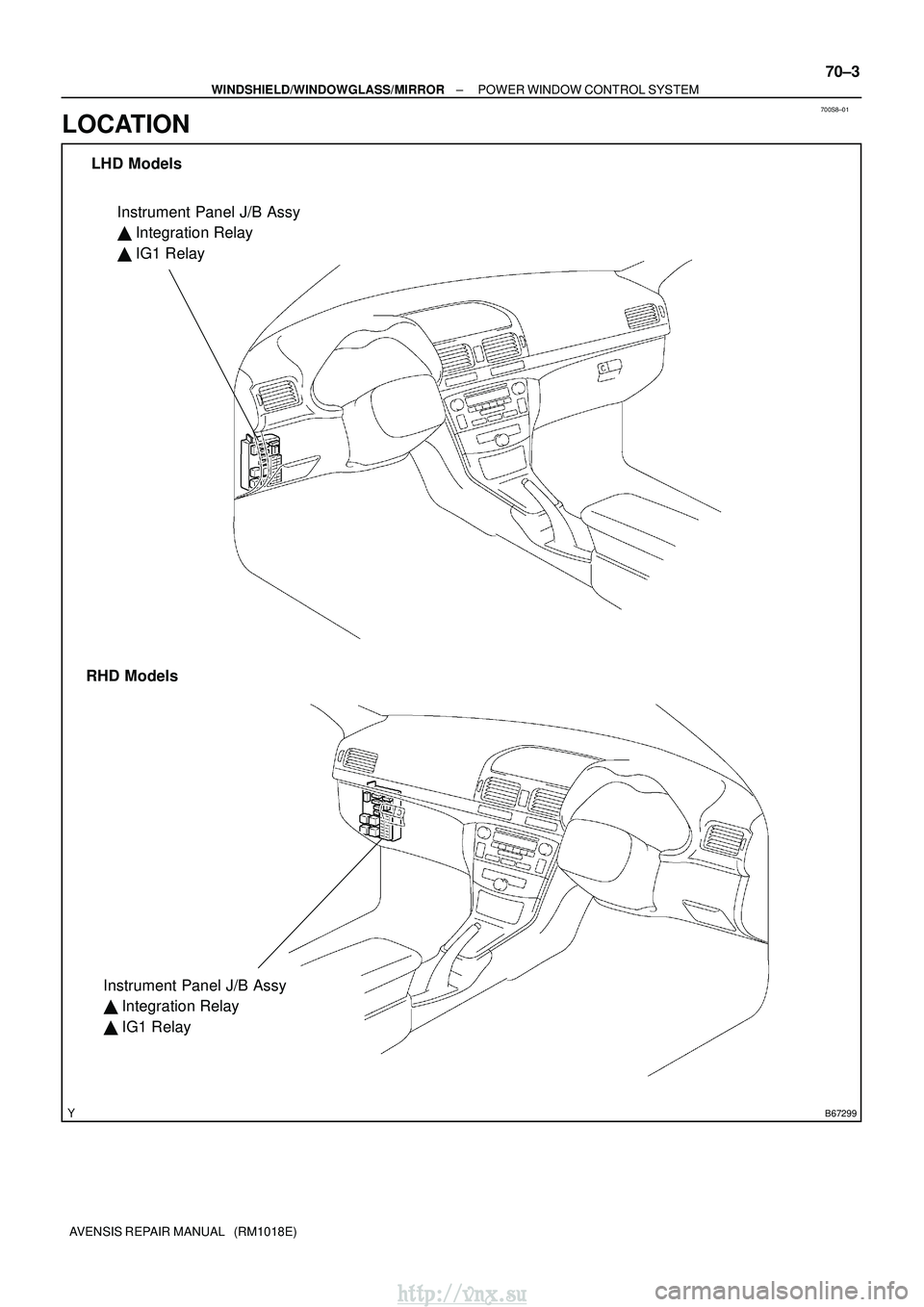

WINDSHIELD/WINDOWGLASS/MIRROR POWER WIND

Page 1621 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B66778
Door Window Regulator Sub±assy
(Passenger Side)
Power Window Regulator Switch*
(Passenger Side)
Door Window Regulator Sub±assy
(Driver Side)
Door Window Regulator Sub±assy
(Rear RH)

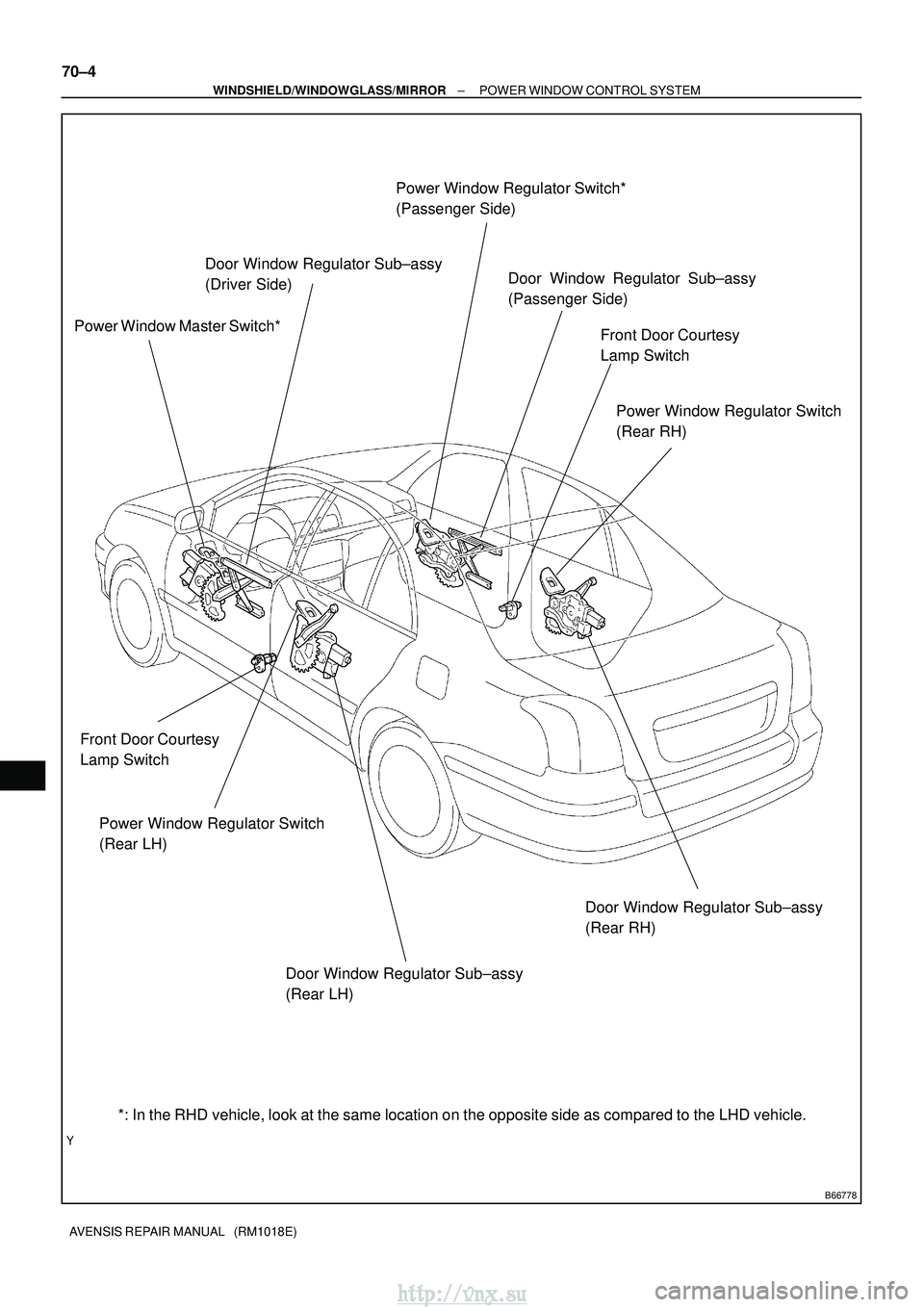

Door Wi

Page 1622 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 700S9±01
±
WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
70±5
AVENSIS REPAIR MANUAL (RM1018E)

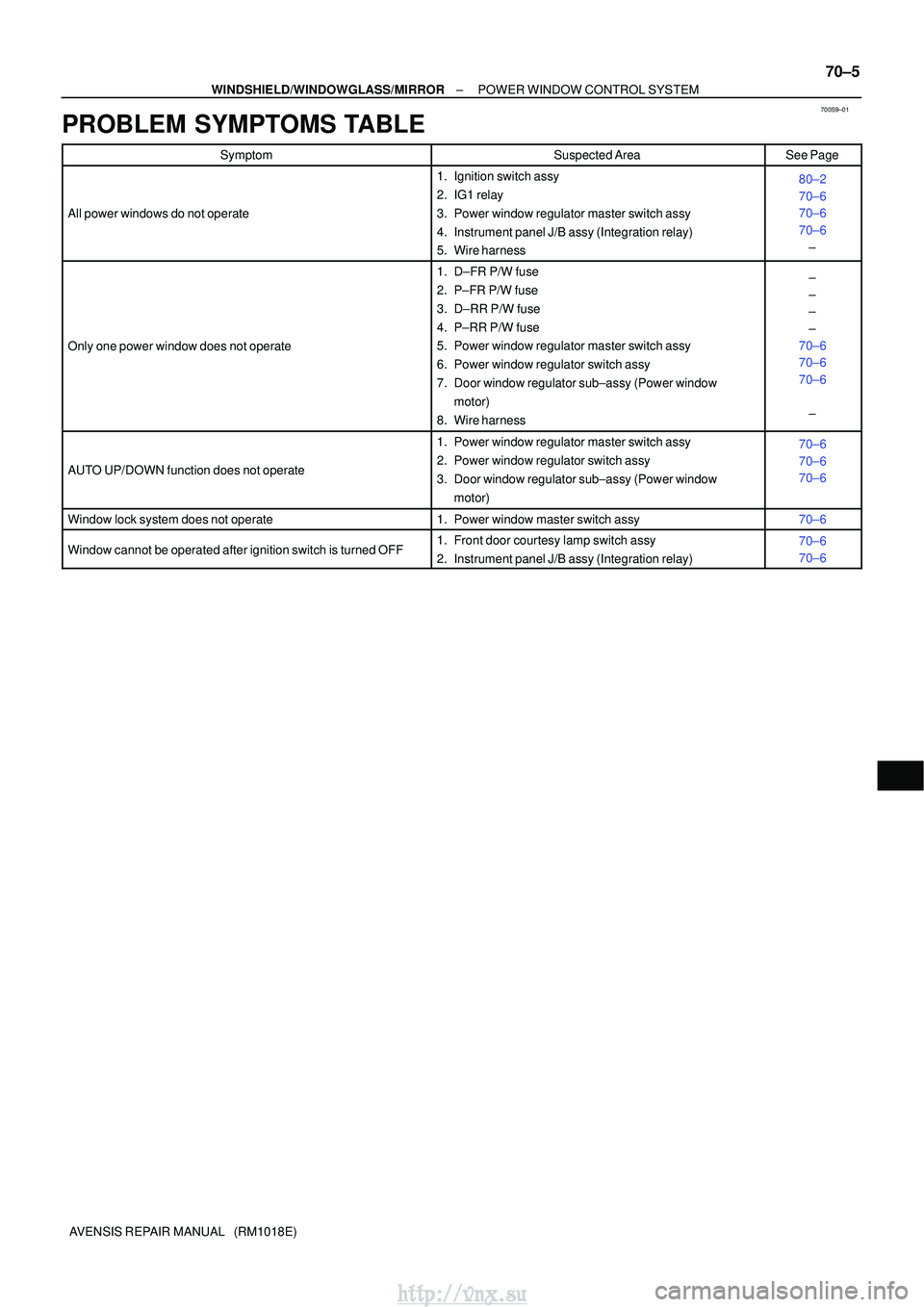

PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
All power windows do not operate
1. I

Page 1623 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 700SA±01
B58278
1212345678910
11
24 23 22 21 2019 18 17 16 15 14 13
70±6
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

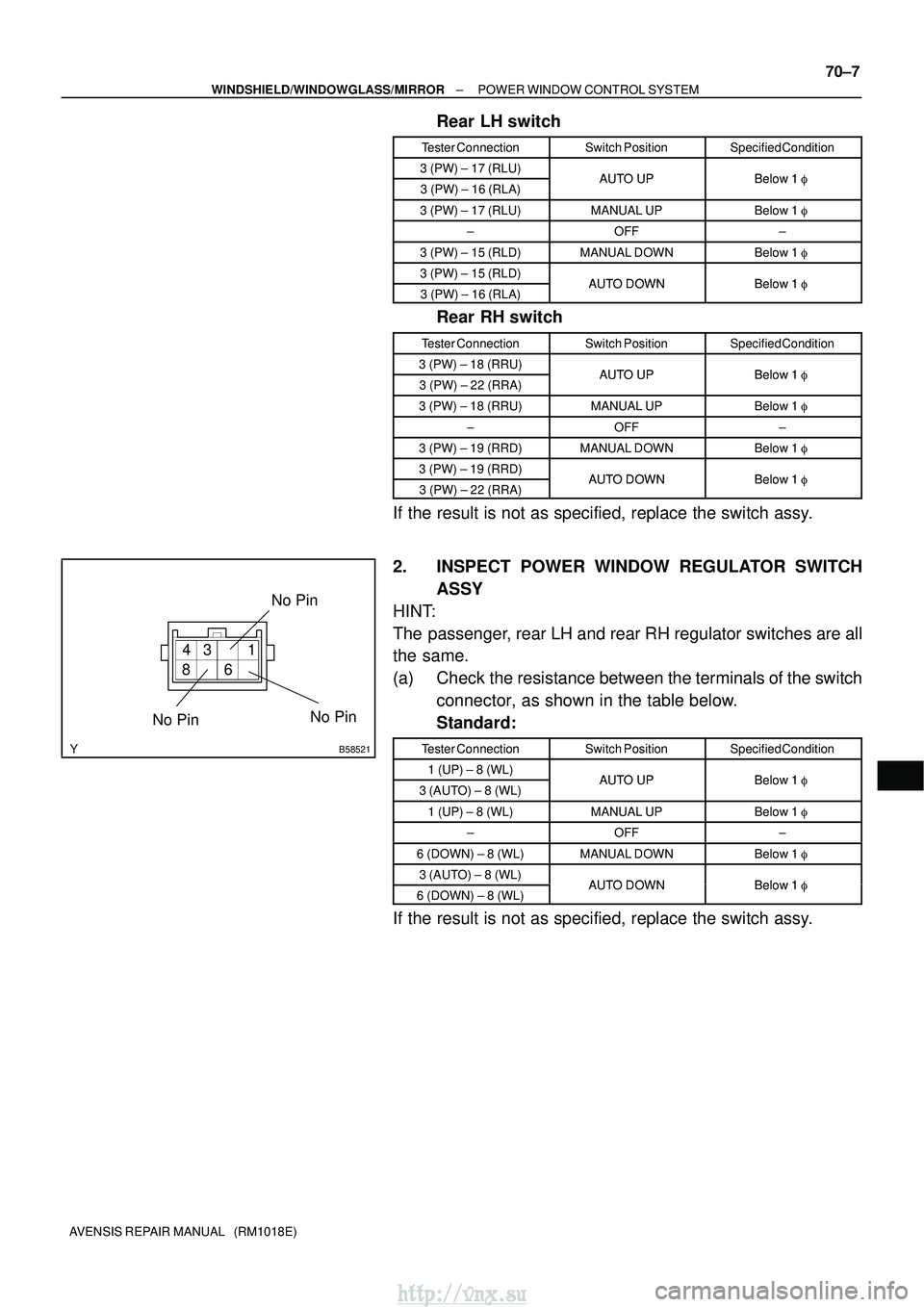

INSPECTION

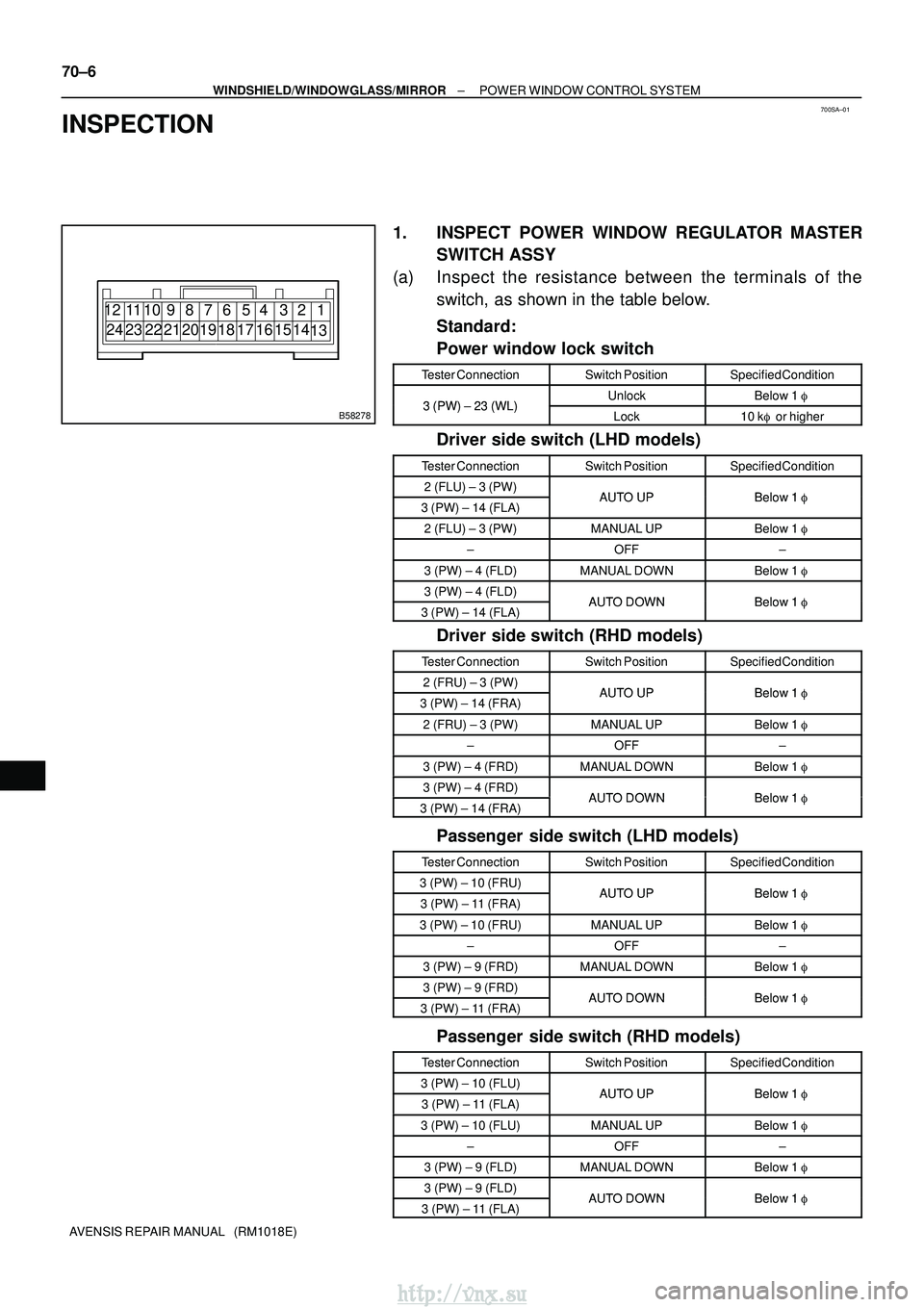

1. INSPECT POWER WI

Page 1624 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B58521
134
68
No Pin
No Pin
No Pin
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
70±7
AVENSIS REPAIR MANUAL (RM1018E)
Rear LH switch
Tester ConnectionSwitch PositionSpecified Conditi
