Page 1625 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B58265
Up
Down
1 2 3
4
5 6
B58557
Up
Down
12
3
4 5 6
70±8
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

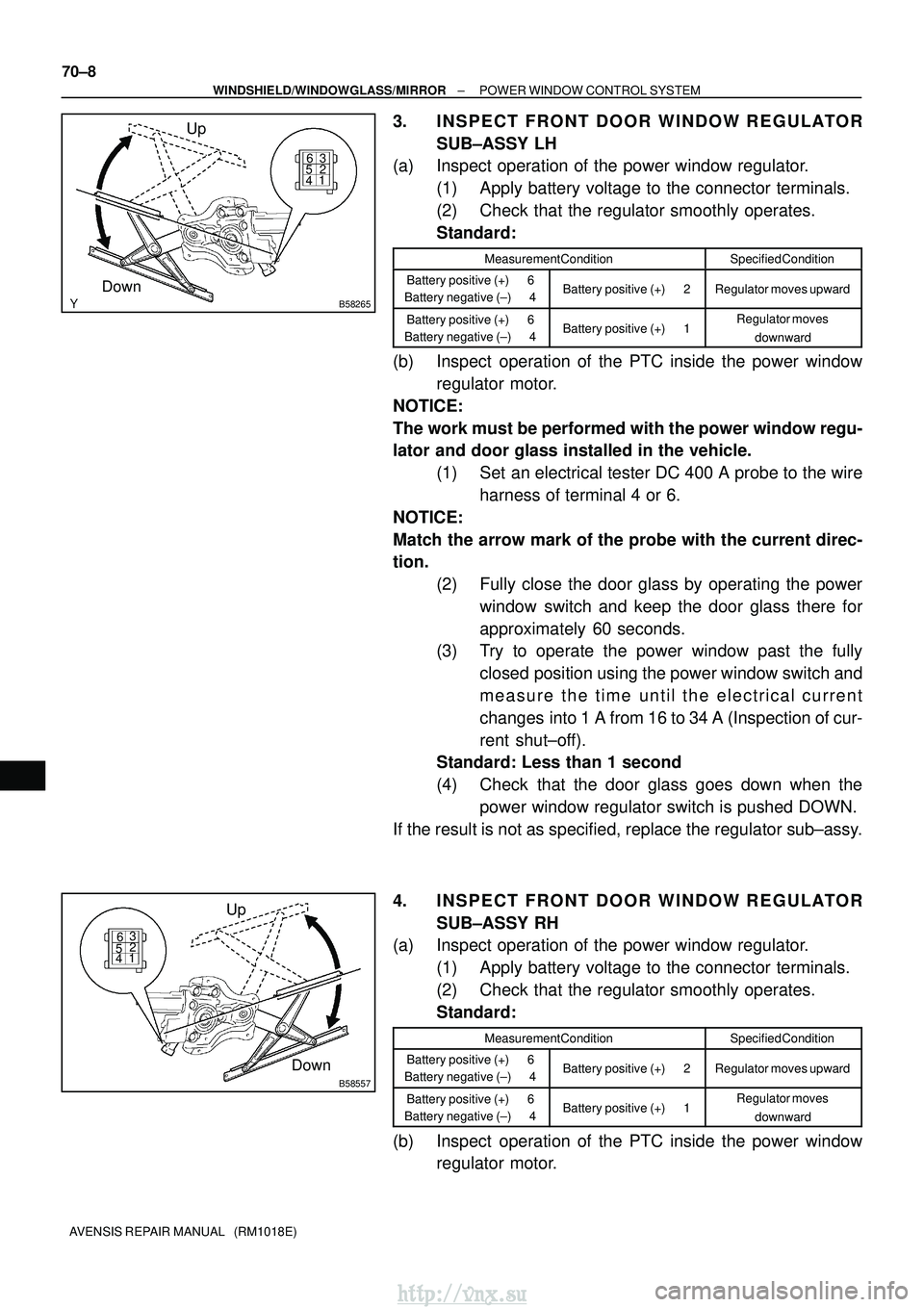

3. INSPECT FRONT DOOR WINDOW REGULATOR SUB±AS

B58265
Up
Down
1 2 3
4
5 6
B58557
Up
Down
12
3
4 5 6
70±8
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
3. INSPECT FRONT DOOR WINDOW REGULATOR SUB±ASSY LH
(a) Inspect operation of the power window regulator.
(1) Apply battery voltage to the connector terminals.
(2) Check that the regulator smoothly operates.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+) 6
Battery negative (±) 4Battery positive (+) 2Regulator moves upward
Battery positive (+) 6
Battery negative (±) 4Battery positive (+) 1Regulator moves
downward
(b) Inspect operation of the PTC inside the power window regulator motor.
NOTICE:
The work must be performed with the power window regu-
lator and door glass installed in the vehicle. (1) Set an electrical tester DC 400 A probe to the wireharness of terminal 4 or 6.
NOTICE:
Match the arrow mark of the probe with the current direc-
tion. (2) Fully close the door glass by operating the powerwindow switch and keep the door glass there for
approximately 60 seconds.
(3) Try to operate the power window past the fully
closed position using the power window switch and
measure the time until the electrical current
changes into 1 A from 16 to 34 A (Inspection of cur-
rent shut±off).
Standard: Less than 1 second
(4) Check that the door glass goes down when the
power window regulator switch is pushed DOWN.
If the result is not as specified, replace the regulator sub±assy.
4. INSPECT FRONT DOOR WINDOW REGULATOR SUB±ASSY RH
(a) Inspect operation of the power window regulator.
(1) Apply battery voltage to the connector terminals.
(2) Check that the regulator smoothly operates.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+) 6
Battery negative (±) 4Battery positive (+) 2Regulator moves upward
Battery positive (+) 6
Battery negative (±) 4Battery positive (+) 1Regulator moves
downward
(b) Inspect operation of the PTC inside the power window regulator motor.
http://vnx.su

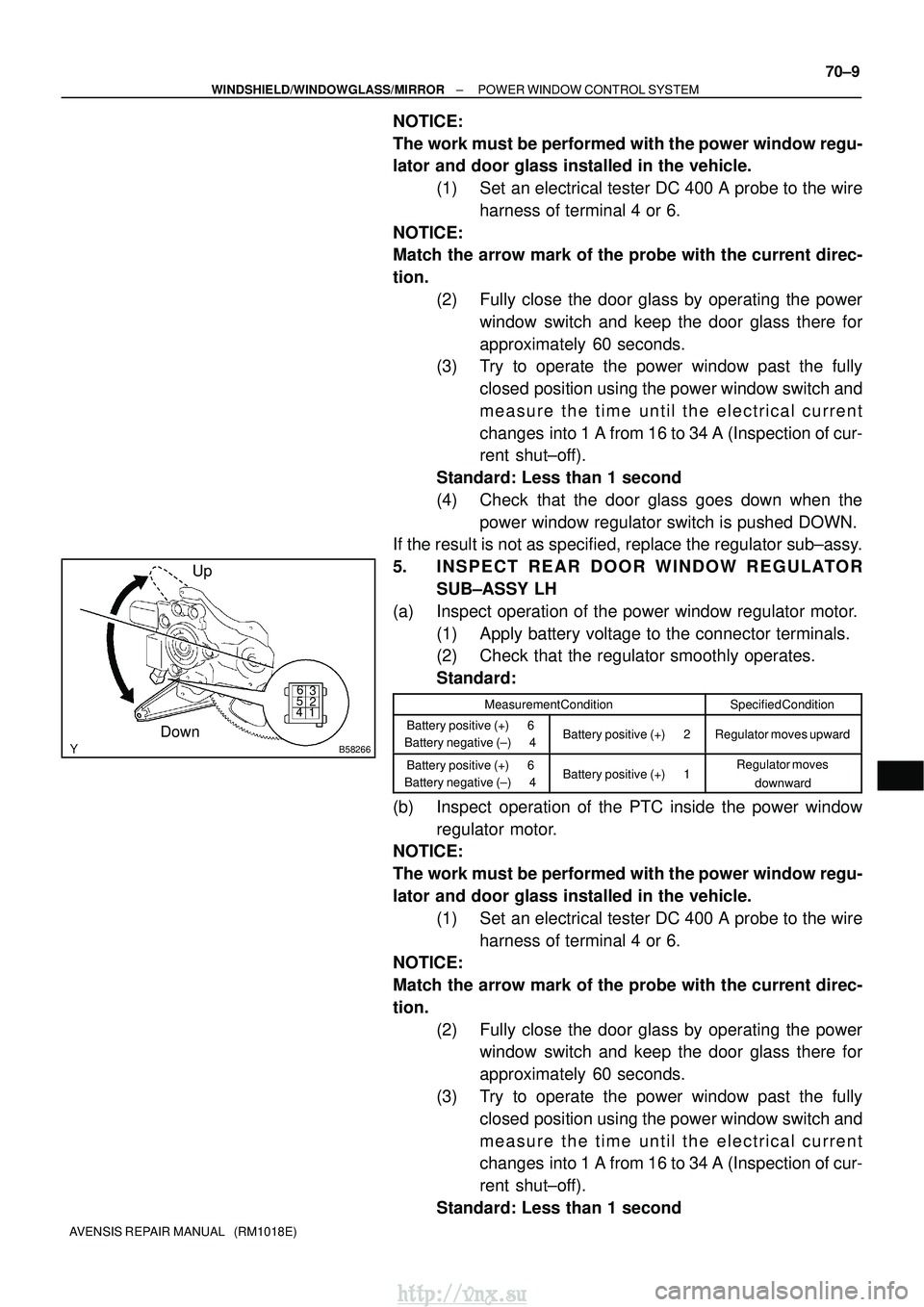

Page 1626 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B58266
12 3
4 56
Up
Down
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
70±9
AVENSIS REPAIR MANUAL (RM1018E)
NOTICE:
The work must be performed with the power window regu-
lator and d

B58266
12 3
4 56
Up
Down
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
70±9
AVENSIS REPAIR MANUAL (RM1018E)
NOTICE:
The work must be performed with the power window regu-
lator and door glass installed in the vehicle.
(1) Set an electrical tester DC 400 A probe to the wireharness of terminal 4 or 6.
NOTICE:
Match the arrow mark of the probe with the current direc-
tion. (2) Fully close the door glass by operating the powerwindow switch and keep the door glass there for
approximately 60 seconds.
(3) Try to operate the power window past the fully
closed position using the power window switch and
measure the time until the electrical current
changes into 1 A from 16 to 34 A (Inspection of cur-
rent shut±off).
Standard: Less than 1 second
(4) Check that the door glass goes down when the power window regulator switch is pushed DOWN.
If the result is not as specified, replace the regulator sub±assy.
5. INSPECT REAR DOOR WINDOW REGULATOR
SUB±ASSY LH
(a) Inspect operation of the power window regulator motor. (1) Apply battery voltage to the connector terminals.
(2) Check that the regulator smoothly operates.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+) 6
Battery negative (±) 4Battery positive (+) 2Regulator moves upward
Battery positive (+) 6
Battery negative (±) 4Battery positive (+) 1Regulator moves
downward
(b) Inspect operation of the PTC inside the power window regulator motor.
NOTICE:
The work must be performed with the power window regu-
lator and door glass installed in the vehicle.
(1) Set an electrical tester DC 400 A probe to the wireharness of terminal 4 or 6.
NOTICE:
Match the arrow mark of the probe with the current direc-
tion.
(2) Fully close the door glass by operating the powerwindow switch and keep the door glass there for
approximately 60 seconds.
(3) Try to operate the power window past the fully closed position using the power window switch and
measure the time until the electrical current
changes into 1 A from 16 to 34 A (Inspection of cur-
rent shut±off).
Standard: Less than 1 second
http://vnx.su

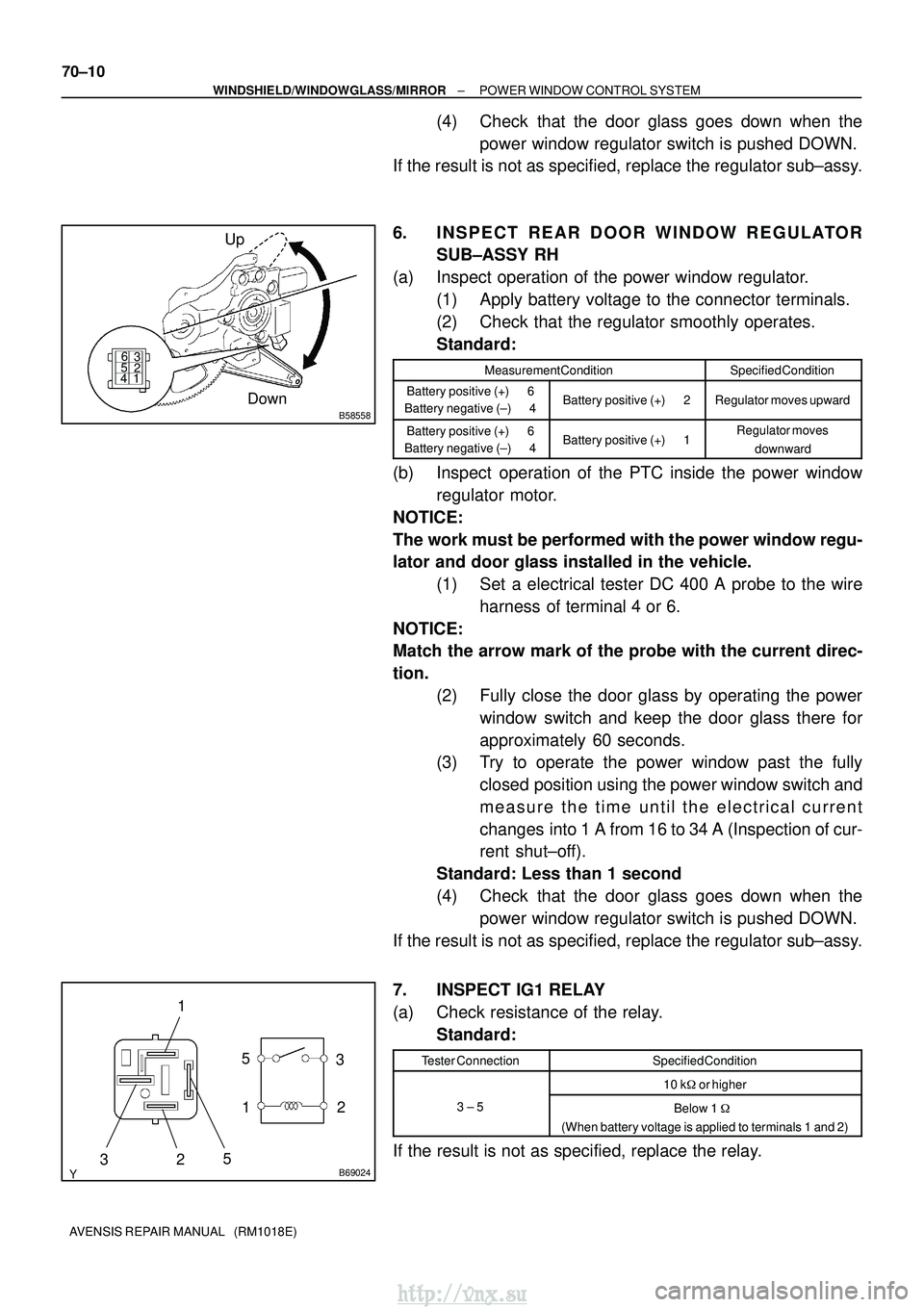

Page 1627 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B58558
UpDown
12 3
4 56
B690245
2 1
3 5
3
2
1
70±10
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
(4) Check that the door glass goes down when the pow

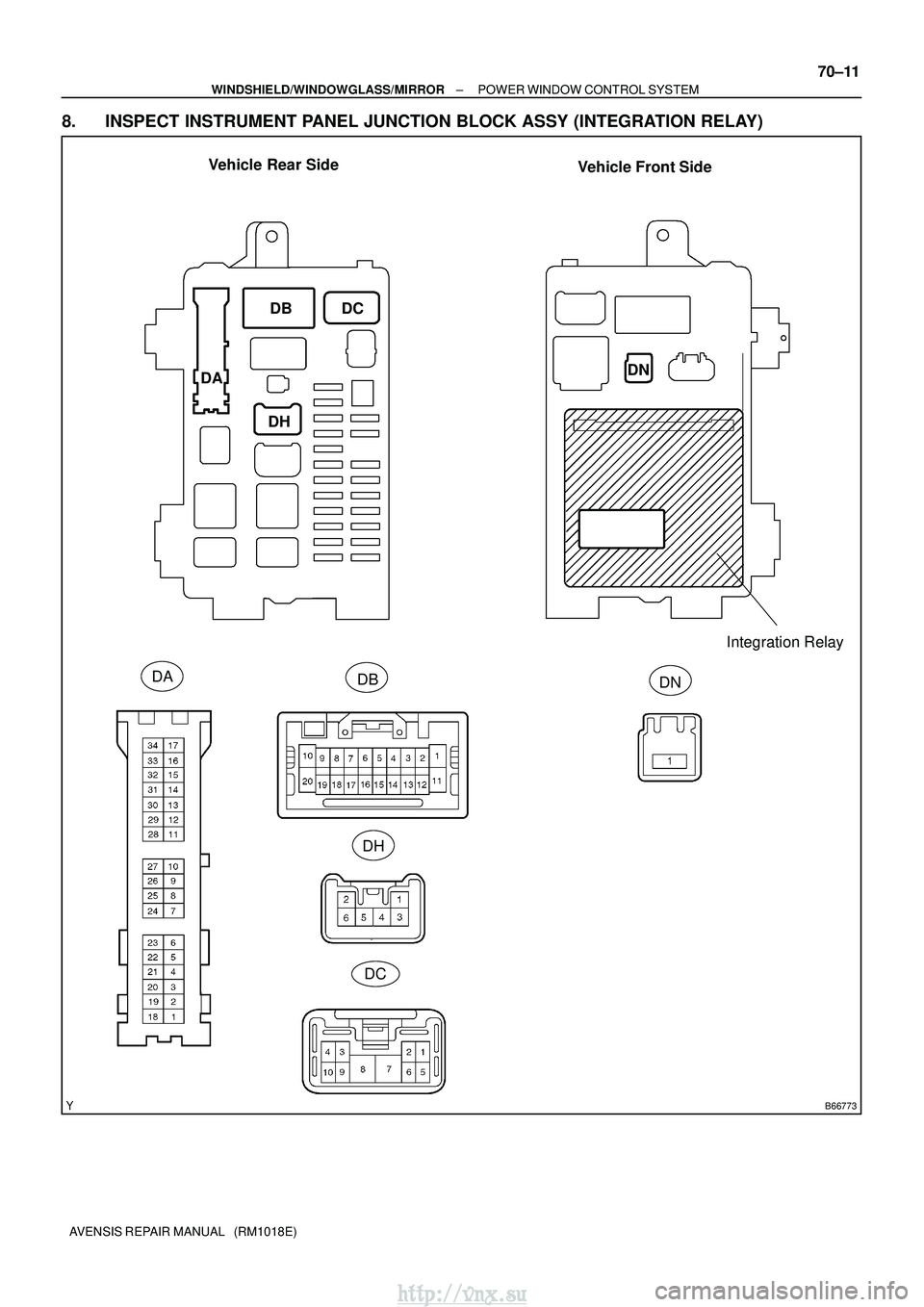

Page 1628 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B66773
DADBDN
Vehicle Front Side
Vehicle Rear Side
DB
DA DH DC
DN
DC
DH
Integration Relay
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
70±11
AVENSIS REPAIR MANUAL (RM1018E)
8. INSPE

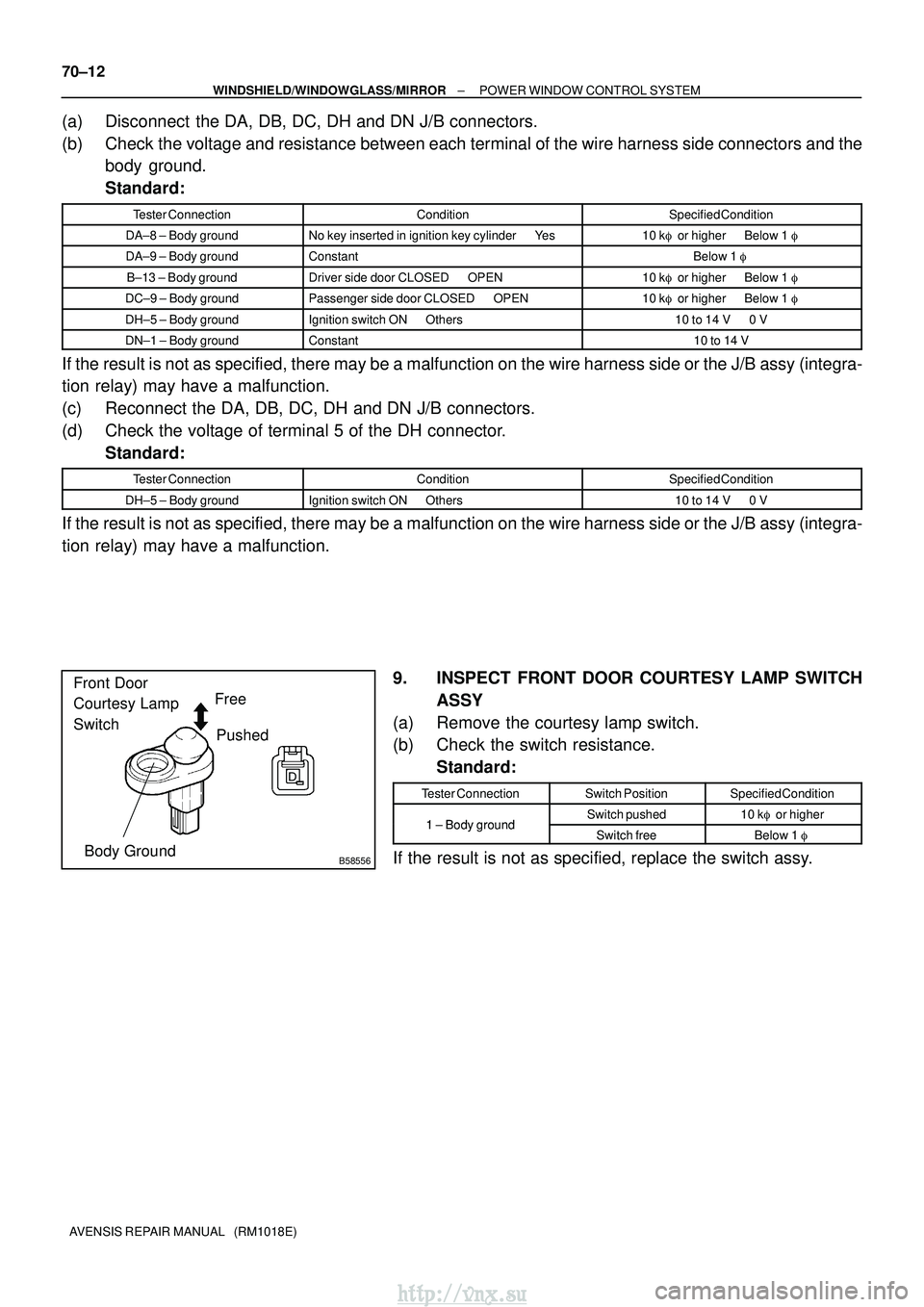

Page 1629 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual
B58556
Front Door
Courtesy Lamp
SwitchPushed
Free
Body Ground
70±12
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
(a) Disconnect the DA, DB, DC, D

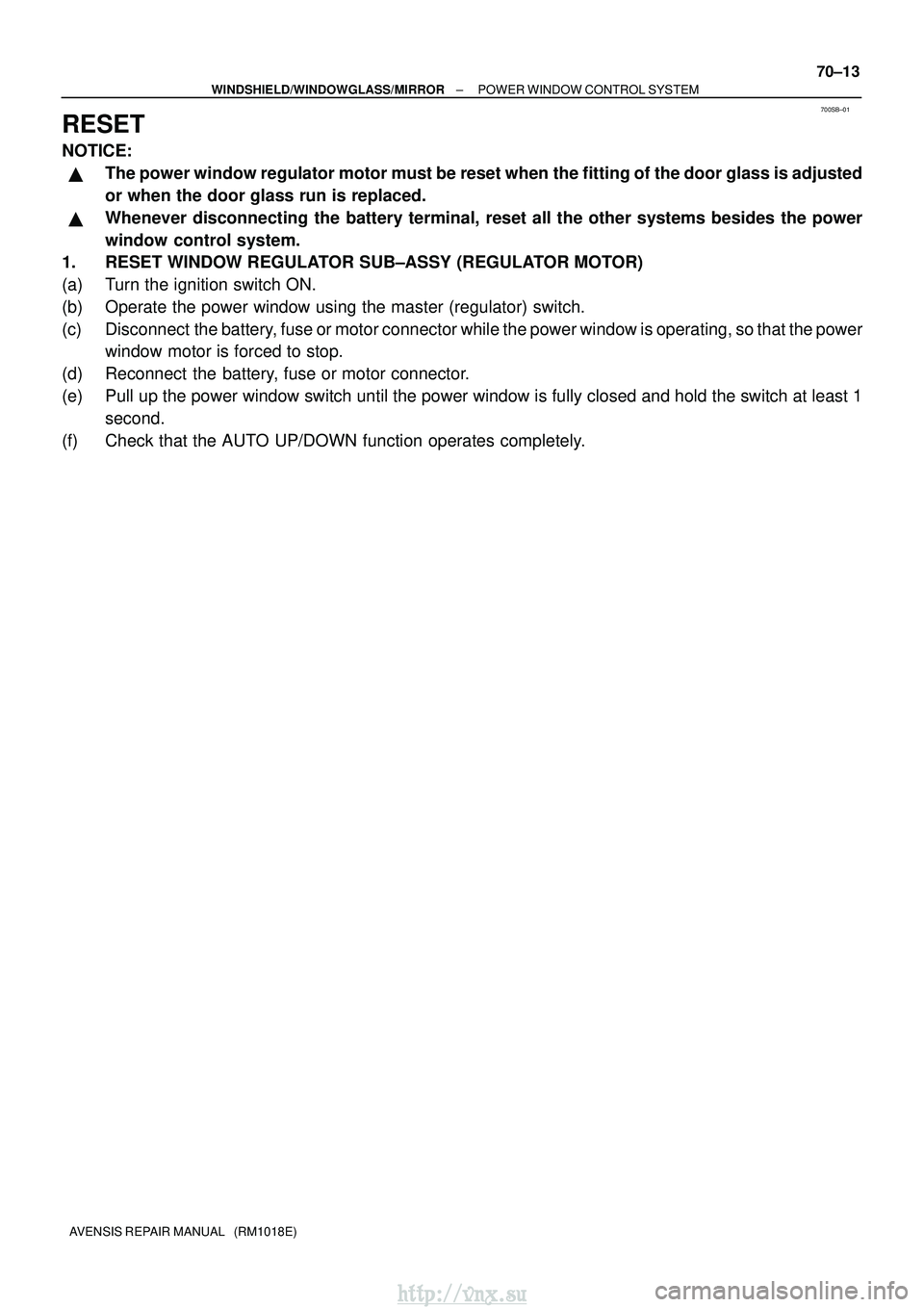

Page 1630 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 700SB±01
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
70±13
AVENSIS REPAIR MANUAL (RM1018E)
RESET
NOTICE:
The power window regulator motor must be reset when the fitting of the do

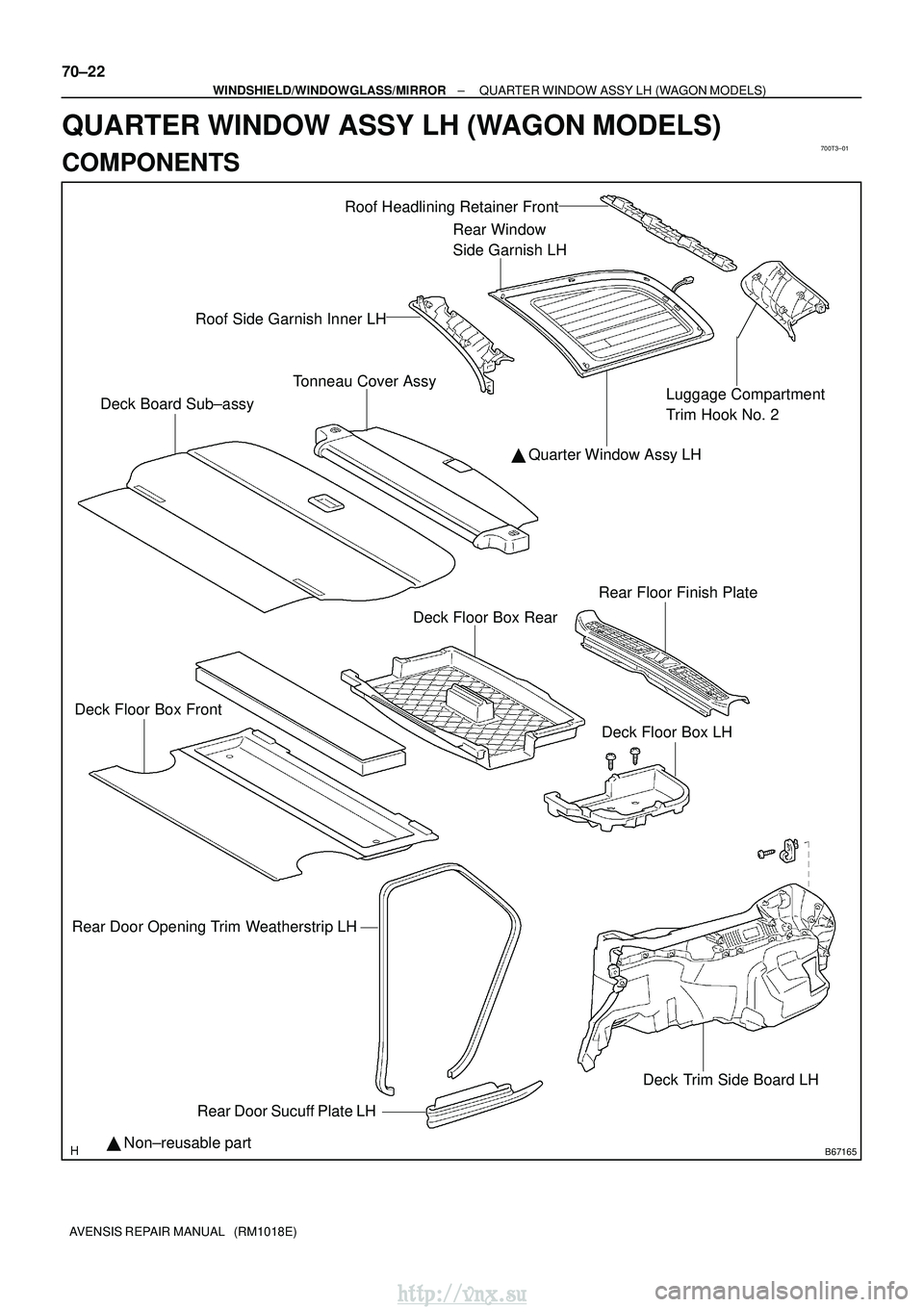

Page 1631 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 700T3±01
B67165
Roof Side Garnish Inner LHDeck Trim Side Board LH

Quarter Window Assy LH
Rear Window
Side Garnish LH
Luggage Compartment
Trim Hook No. 2
Non±reusable part Tonneau Cover Assy
D

Page 1632 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 700T4±01
B68022
Piano Wire
Clip
Clip
B68023
Protective Tape
±
WINDSHIELD/WINDOWGLASS/MIRROR QUARTER WINDOW ASSY LH (WAGON MODELS)
70±23
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The inst
