Page 1809 of 2234

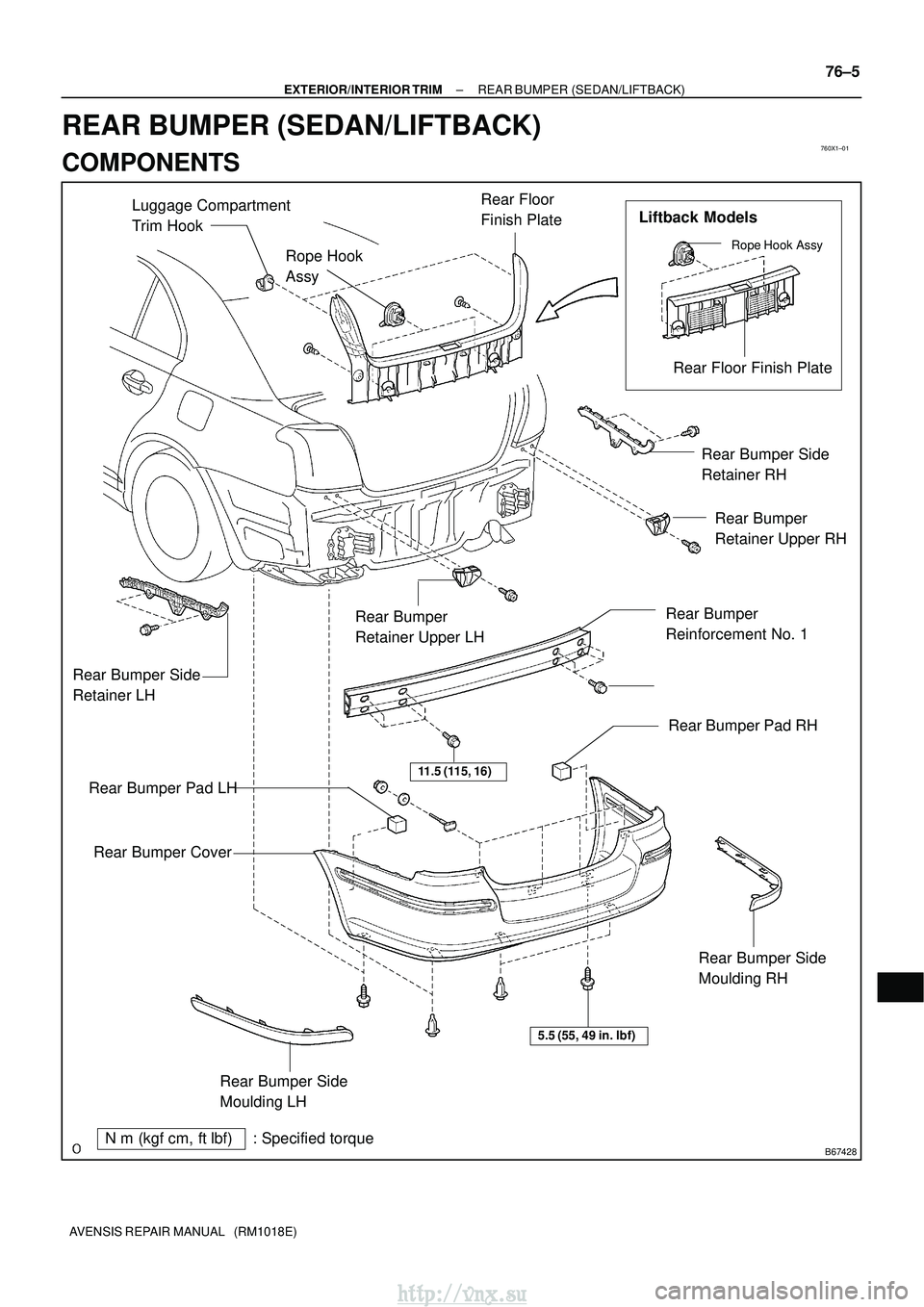

TOYOTA AVENSIS 2003 Service Repair Manual 760X1±01 B67428 Rear Floor Finish PlateRear Floor Finish Plate Rear Bumper Cover Rear Bumper Reinforcement No. 1 Rear Bumper Side Retainer LH Rear Bumper Side Retainer RH Rear Bumper Retainer Upper

Page 1810 of 2234

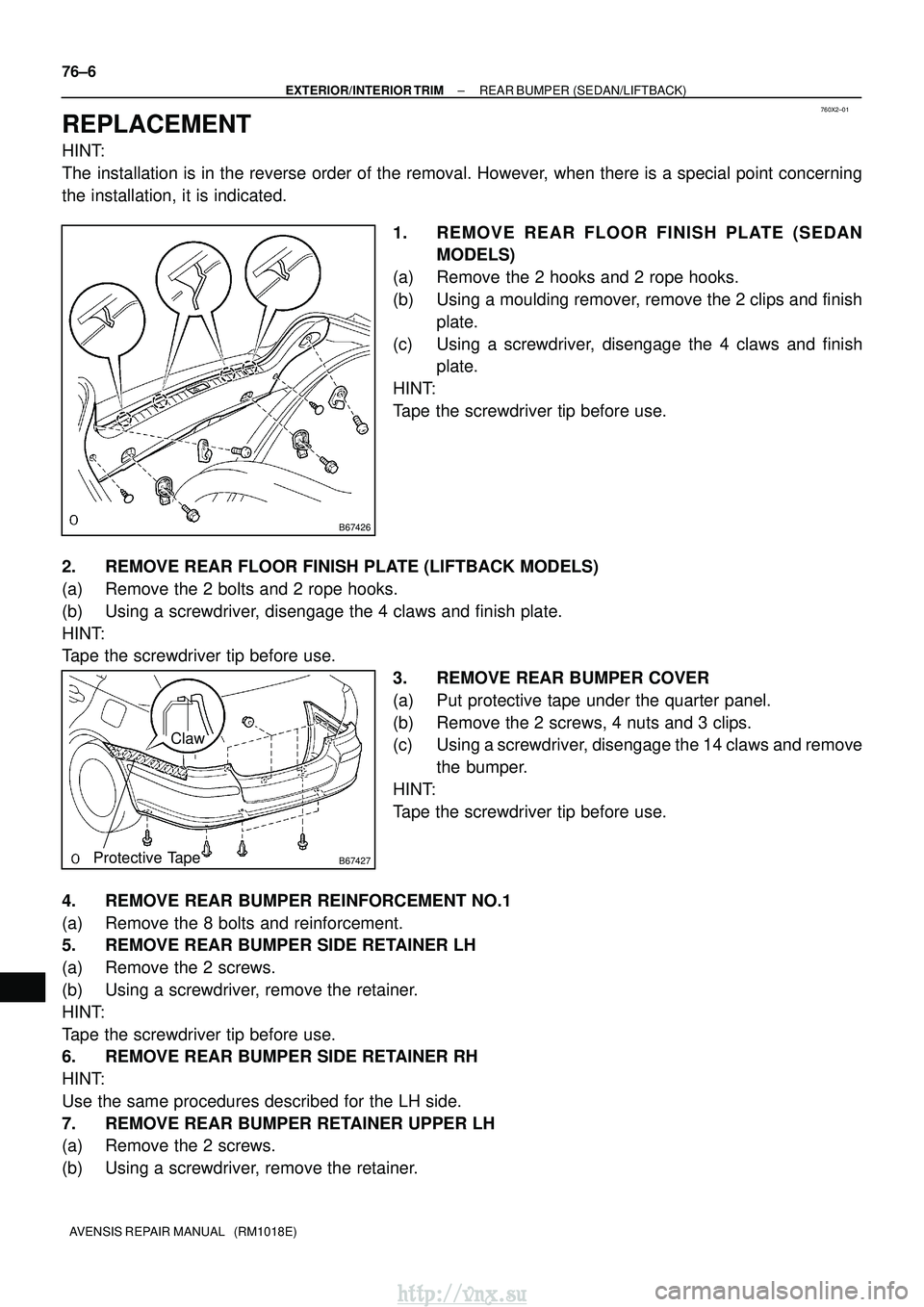

TOYOTA AVENSIS 2003 Service Repair Manual 760X2±01 B67426 B67427Protective Tape Claw 76±6 ± EXTERIOR/INTERIOR TRIM REAR BUMPER (SEDAN/LIFTBACK) AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT HINT: The installation is in the reverse order of

Page 1811 of 2234

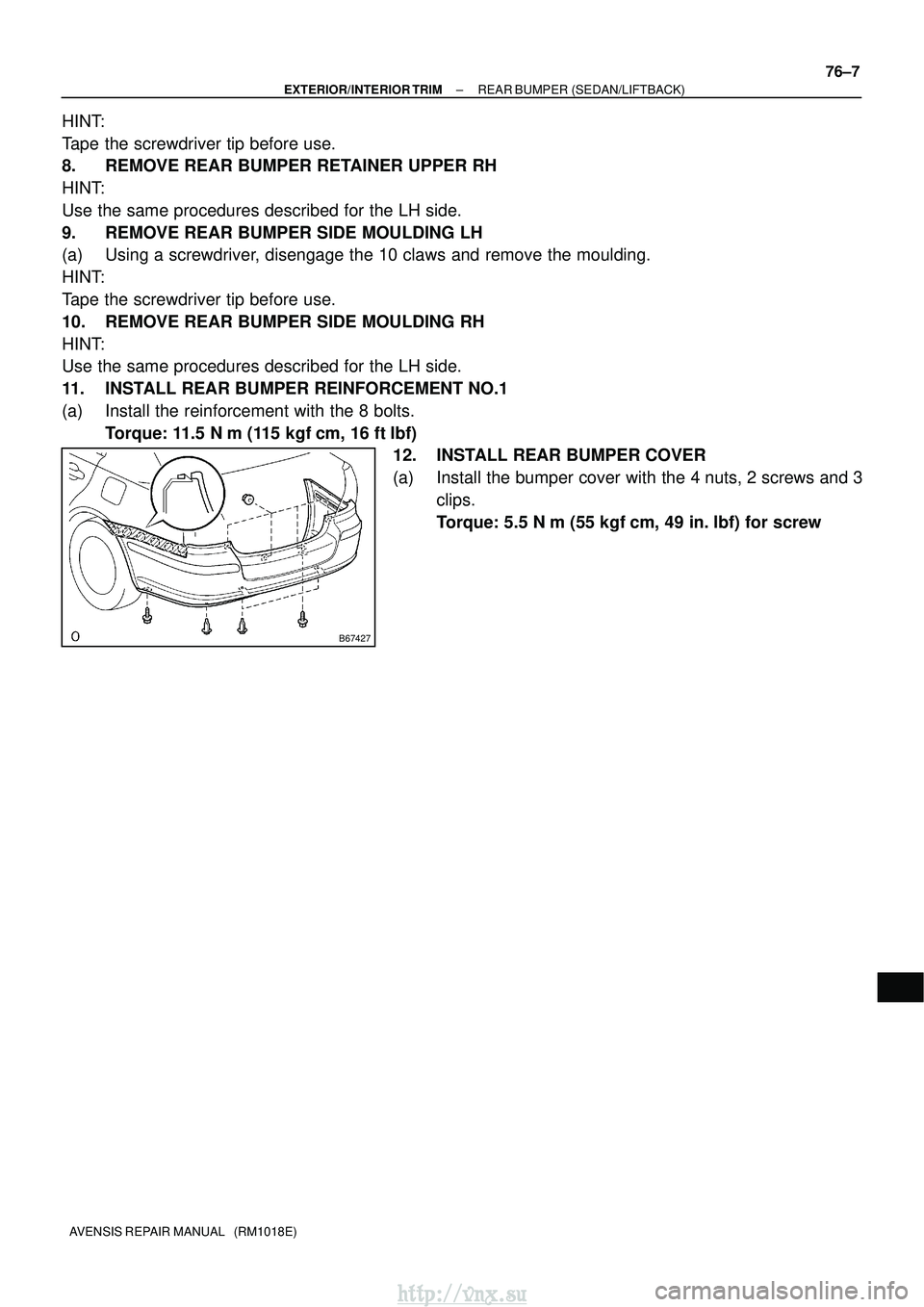

TOYOTA AVENSIS 2003 Service Repair Manual B67427 ± EXTERIOR/INTERIOR TRIM REAR BUMPER (SEDAN/LIFTBACK) 76±7 AVENSIS REPAIR MANUAL (RM1018E) HINT: Tape the screwdriver tip before use. 8. REMOVE REAR BUMPER RETAINER UPPER RH HINT: Use the s

Page 1812 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 760X3±01 B67423 Rear Floor Finish Plate Rear Bumper Cover Rear Bumper Side Retainer LH Rear Bumper Side Retainer RH Rear Bumper Retainer Upper LH Rear Bumper Retainer Upper RH Rear Bumper Side Mould

Page 1813 of 2234

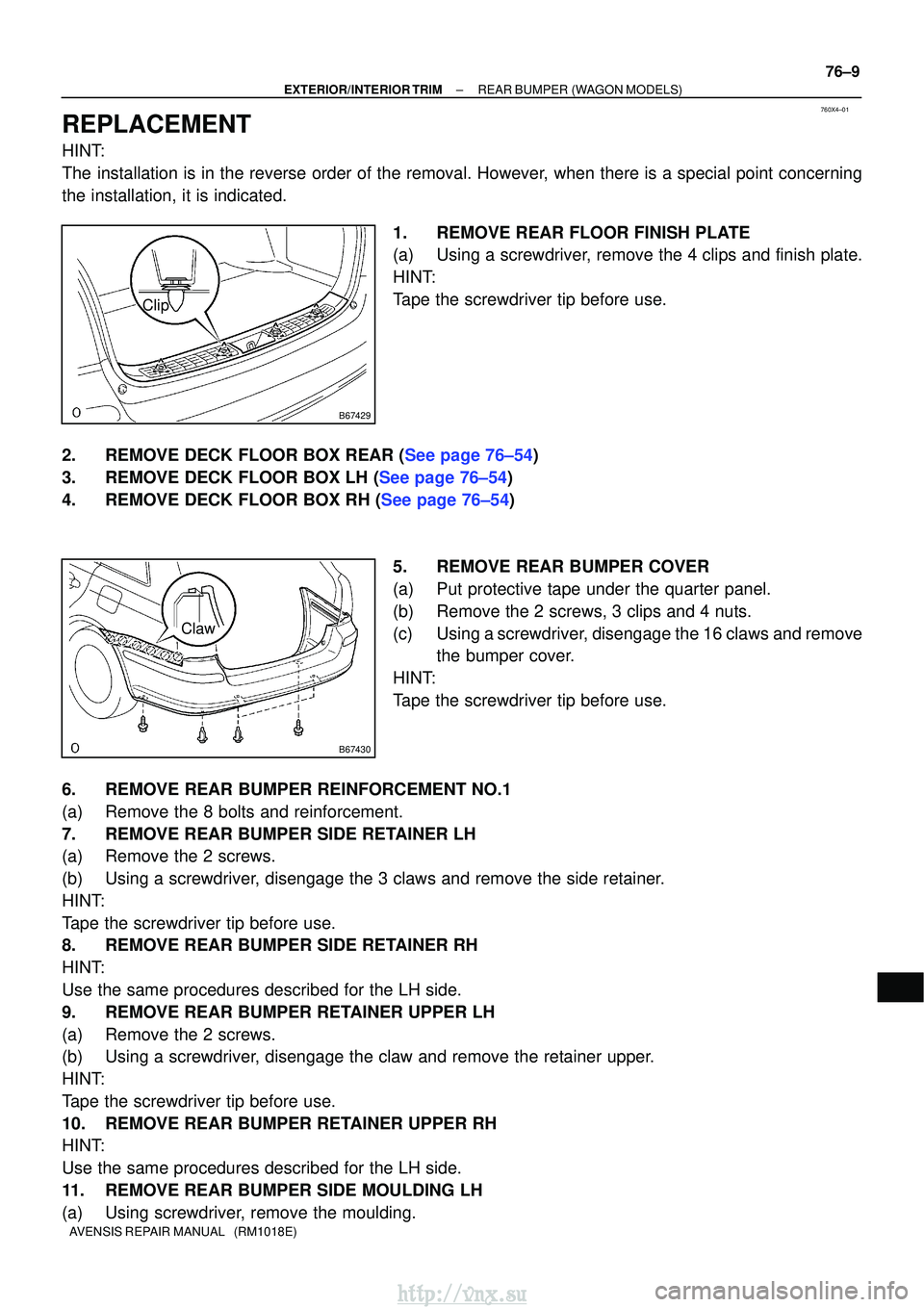

TOYOTA AVENSIS 2003 Service Repair Manual 760X4±01 B67429 Clip B67430 Claw ± EXTERIOR/INTERIOR TRIMREAR BUMPER(WAGON MODELS) 76±9 AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT HINT: The installation is in the reverse order of the removal.

Page 1814 of 2234

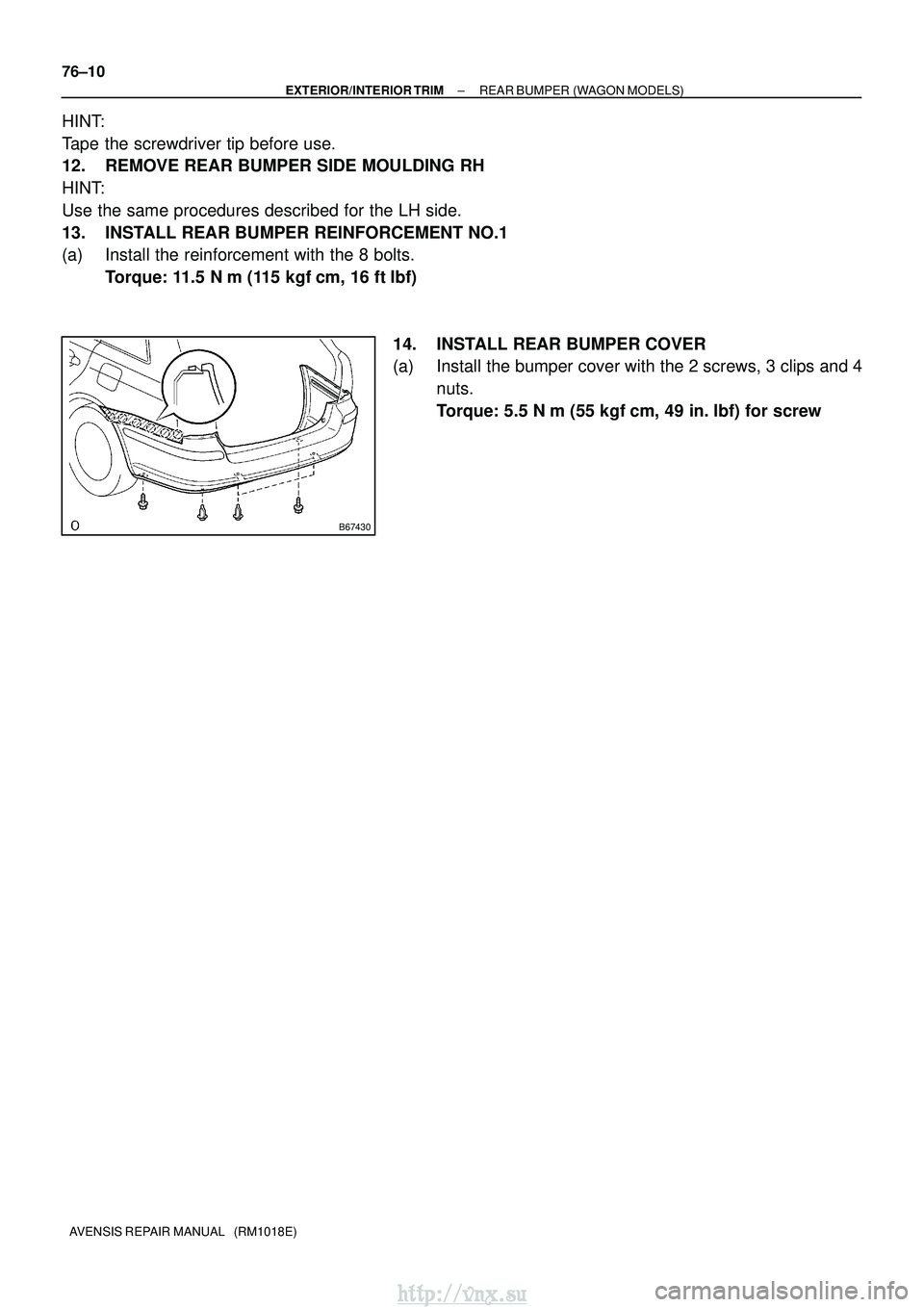

TOYOTA AVENSIS 2003 Service Repair Manual B67430 76±10 ± EXTERIOR/INTERIOR TRIM REAR BUMPER (WAGON MODELS) AVENSIS REPAIR MANUAL (RM1018E) HINT: Tape the screwdriver tip before use. 12. REMOVE REAR BUMPER SIDE MOULDING RH HINT: Use the sa

Page 1815 of 2234

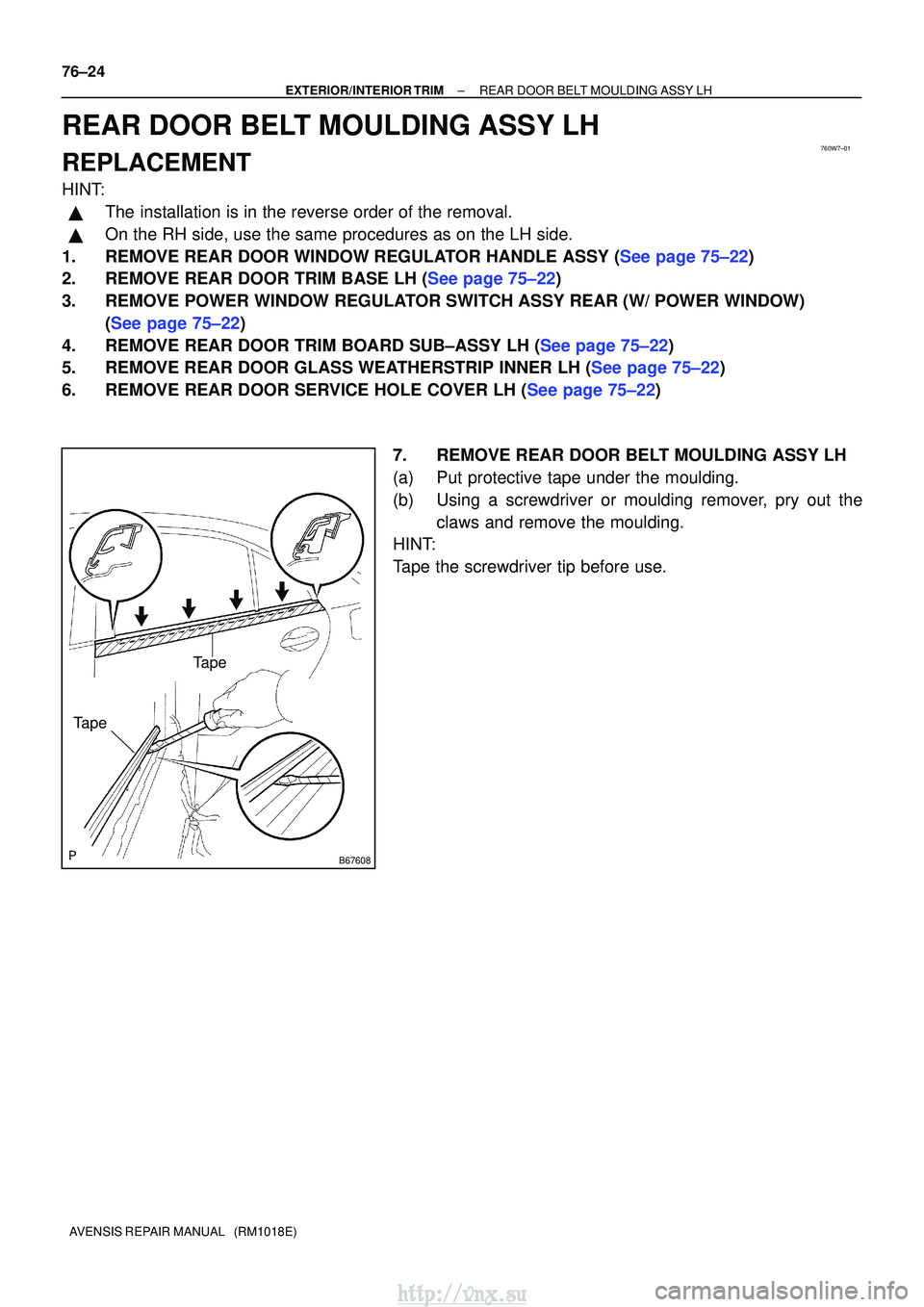

TOYOTA AVENSIS 2003 Service Repair Manual 760W7±01 B67608 Tape Tape 76±24 ± EXTERIOR/INTERIOR TRIMREAR DOOR BELT MOULDING ASSY LH AVENSIS REPAIR MANUAL (RM1018E) REAR DOOR BELT MOULDING ASSY LH REPLACEMENT HINT: The installation is in t

Page 1816 of 2234

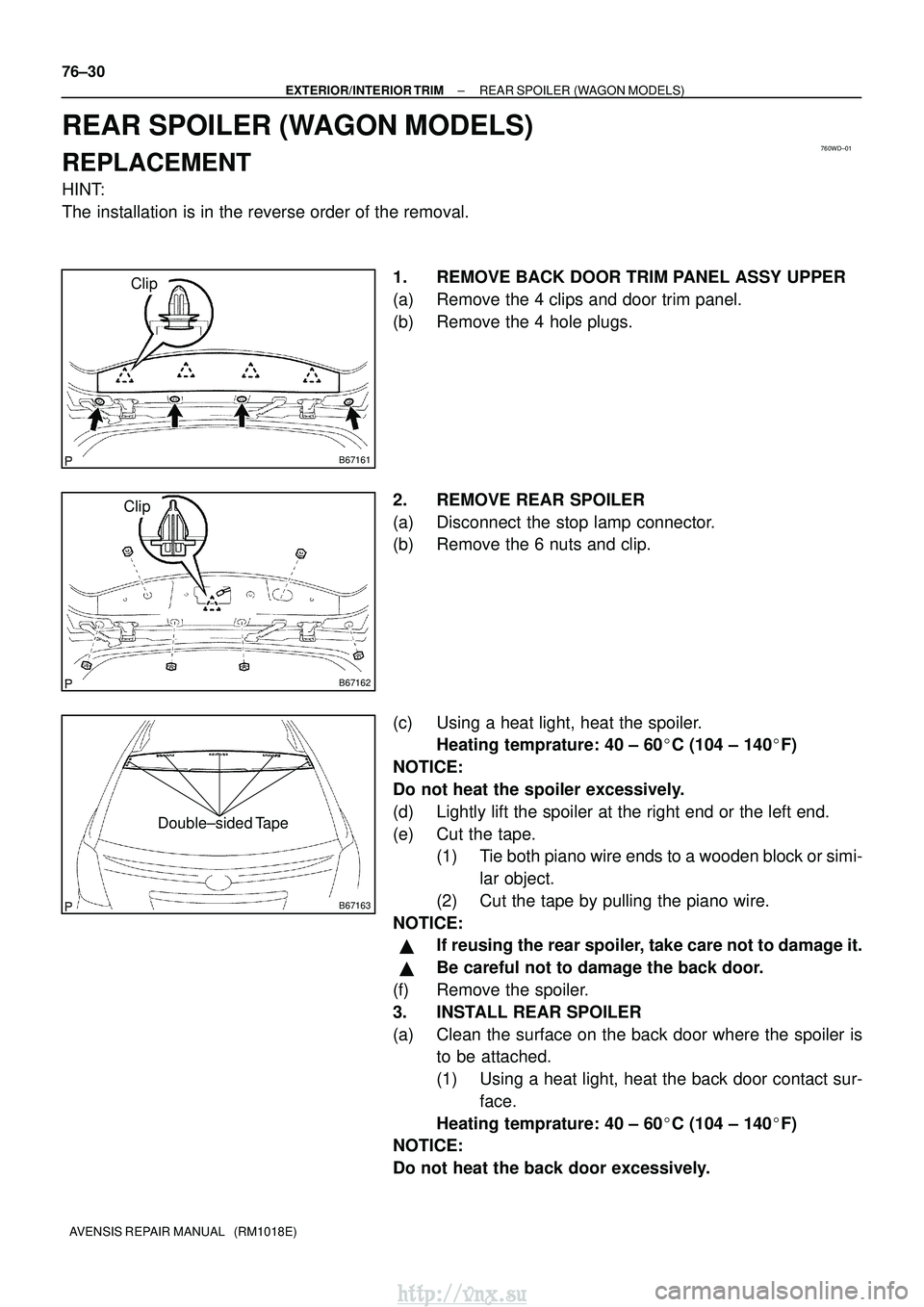

TOYOTA AVENSIS 2003 Service Repair Manual 760WD±01 B67161 Clip B67162 Clip B67163 Double±sided Tape 76±30 ± EXTERIOR/INTERIOR TRIM REAR SPOILER (WAGON MODELS) AVENSIS REPAIR MANUAL (RM1018E) REAR SPOILER (WAGON MODELS) REPLACEMENT HINT:
