Page 585 of 2234

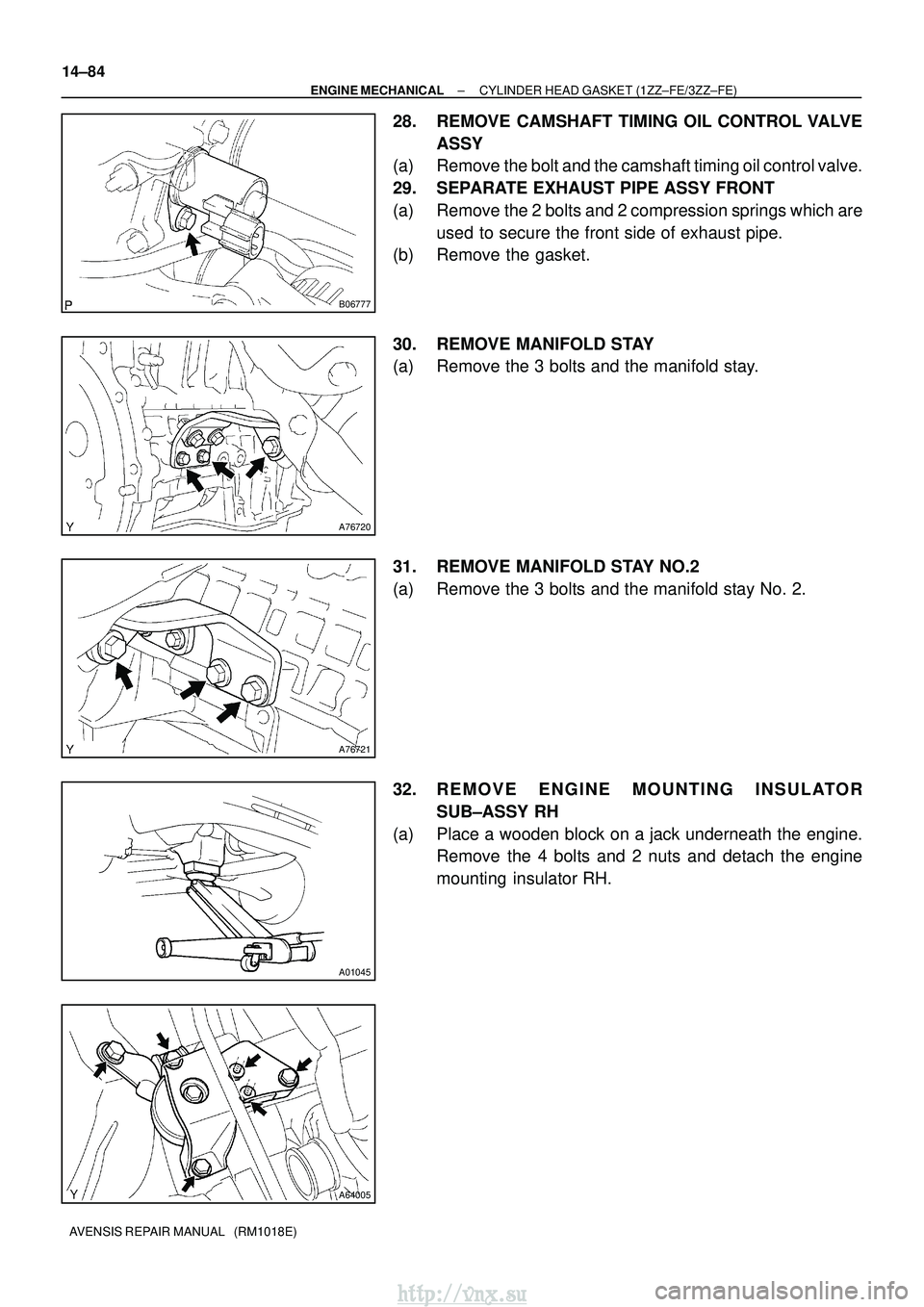

TOYOTA AVENSIS 2003 Service Repair Manual B06777 A76720 A76721 A01045 A64005 14±84 ± ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 28. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSY (a) Remove the

Page 586 of 2234

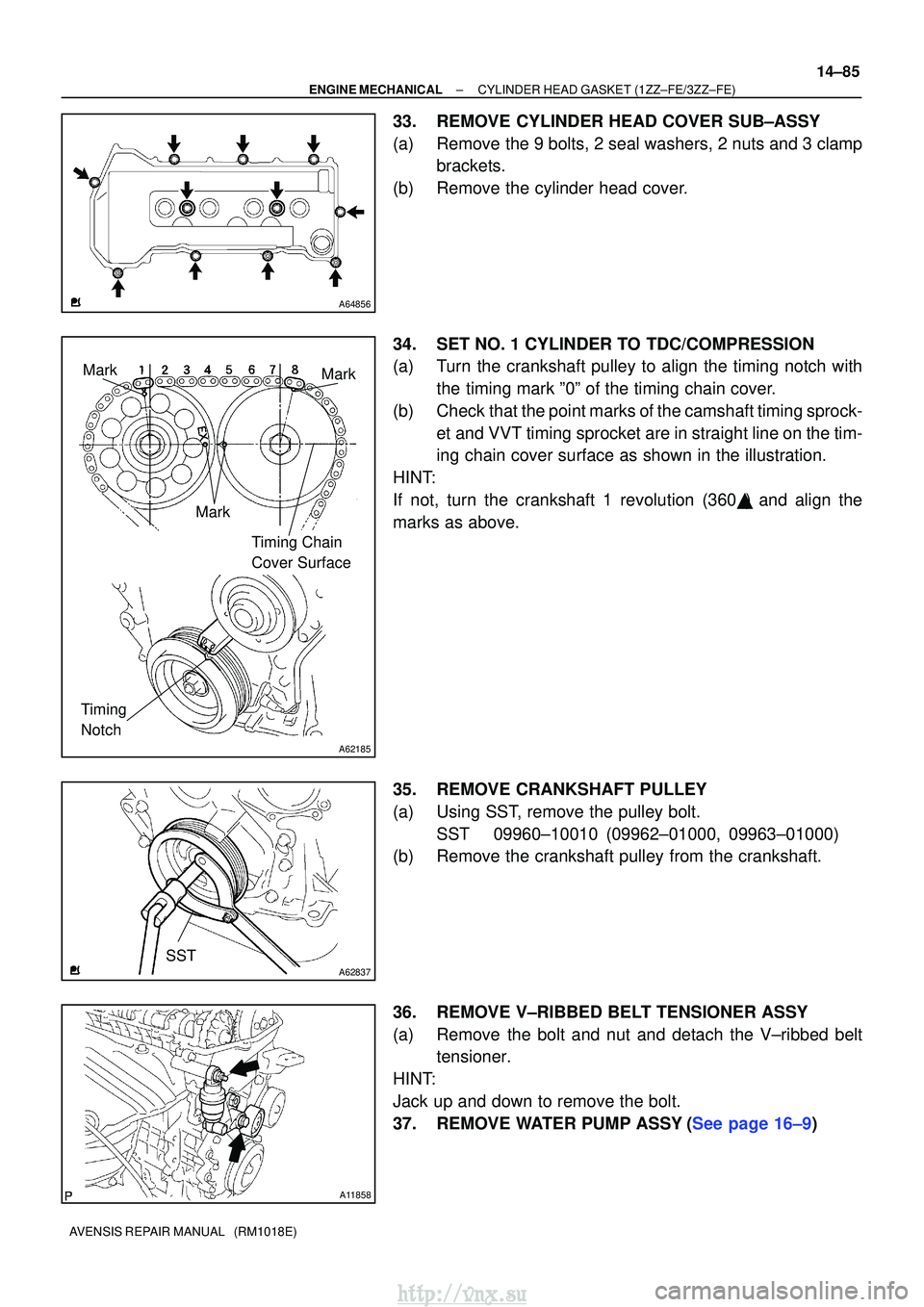

TOYOTA AVENSIS 2003 Service Repair Manual A64856 A62185 MarkMark Mark Timing Chain Cover Surface Timing Notch A62837SST A11858 ± ENGINE MECHANICALCYLINDER HEAD GASKET(1ZZ±FE/3ZZ±FE) 14±85 AVENSIS REPAIR MANUAL (RM1018E) 33.REMOVE CYLI

Page 587 of 2234

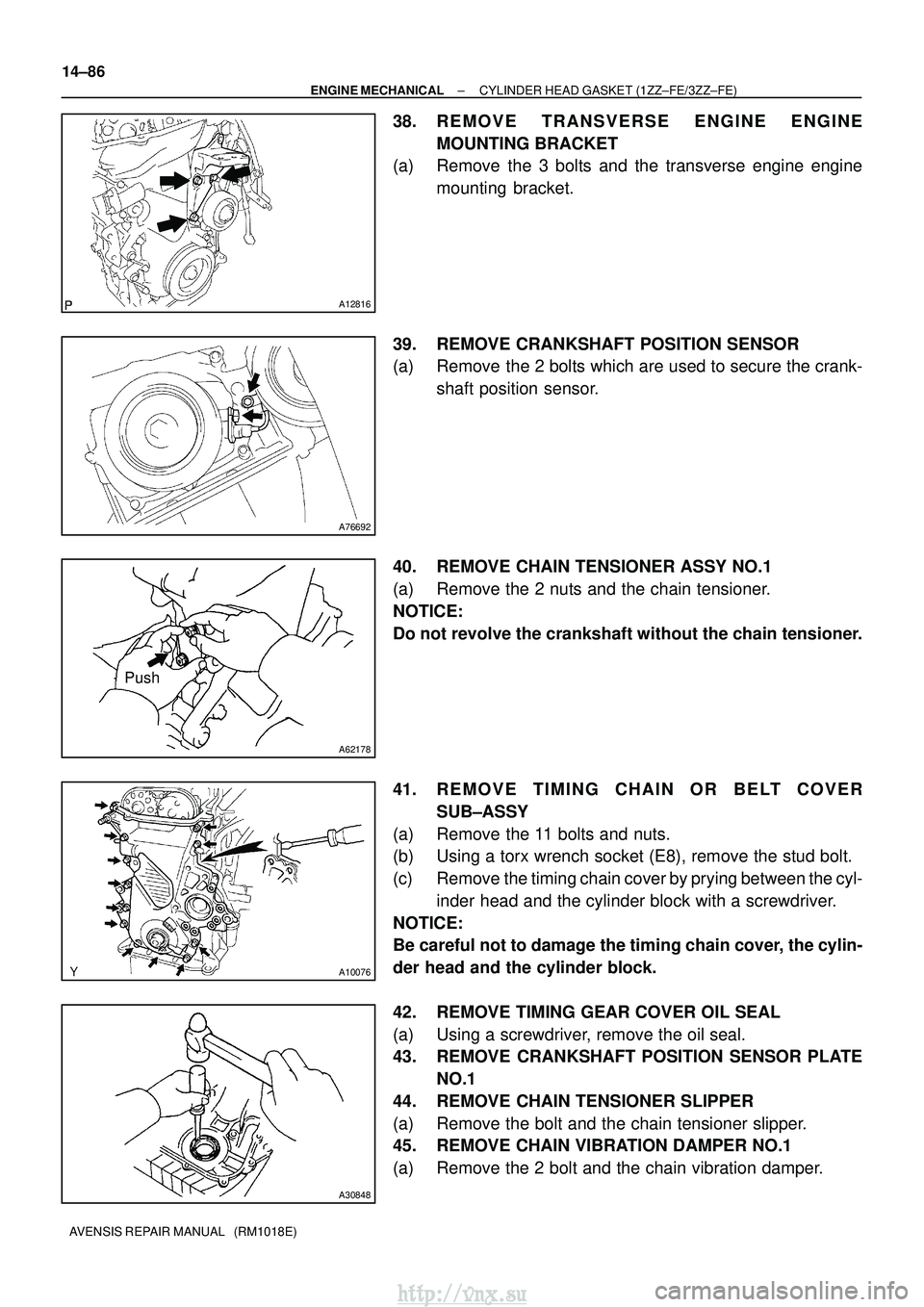

TOYOTA AVENSIS 2003 Service Repair Manual A12816 A76692 A62178 Push A10076 A30848 14±86 ± ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 38. REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET (a) Re

Page 588 of 2234

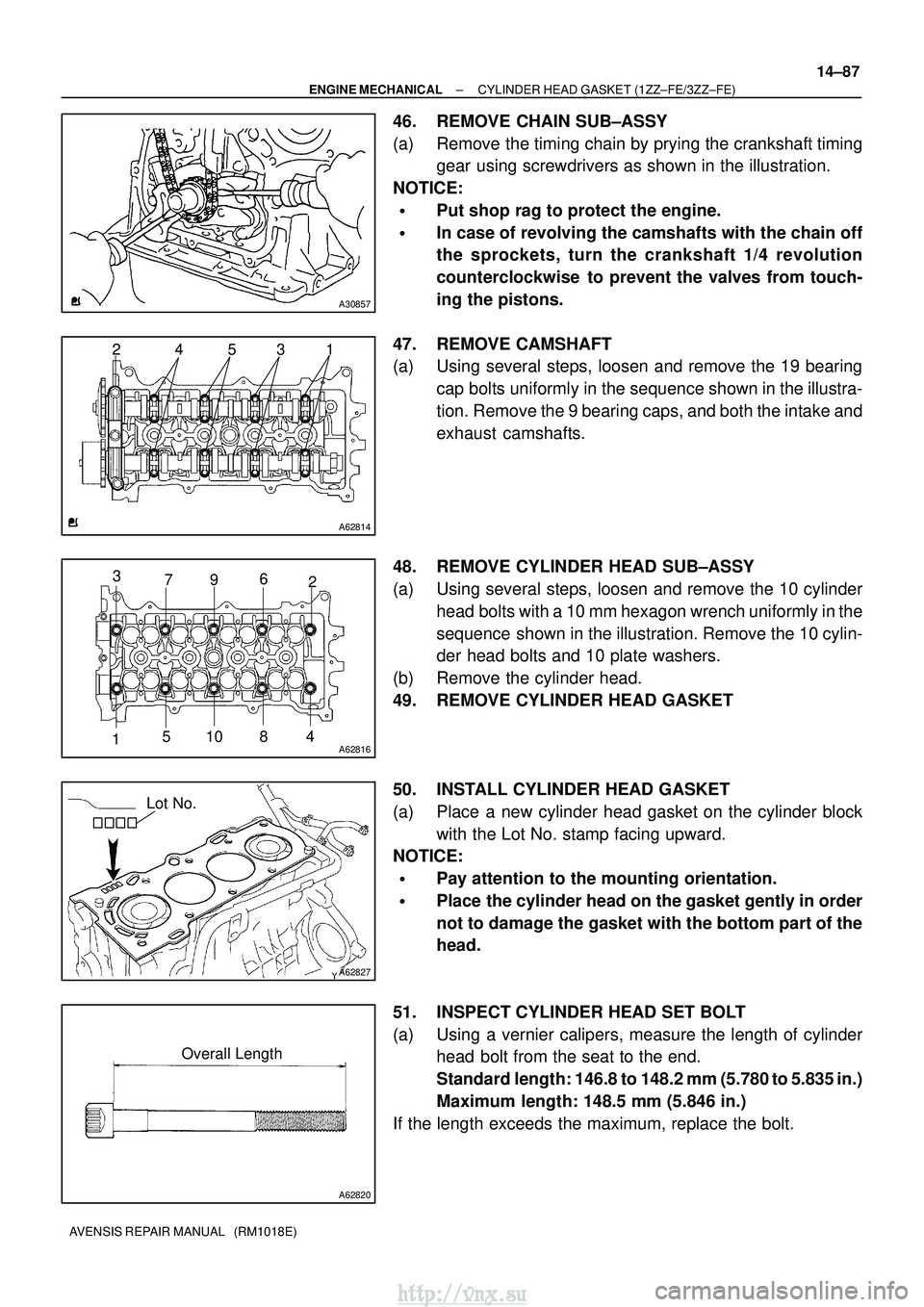

TOYOTA AVENSIS 2003 Service Repair Manual A30857 A62814 4 2531 A62816 2 5 3 1 10 8 4 79 6 A62827 Lot No. A62820 Overall Length ± ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE) 14±87 AVENSIS REPAIR MANUAL (RM1018E) 46. REMOVE CHA

Page 589 of 2234

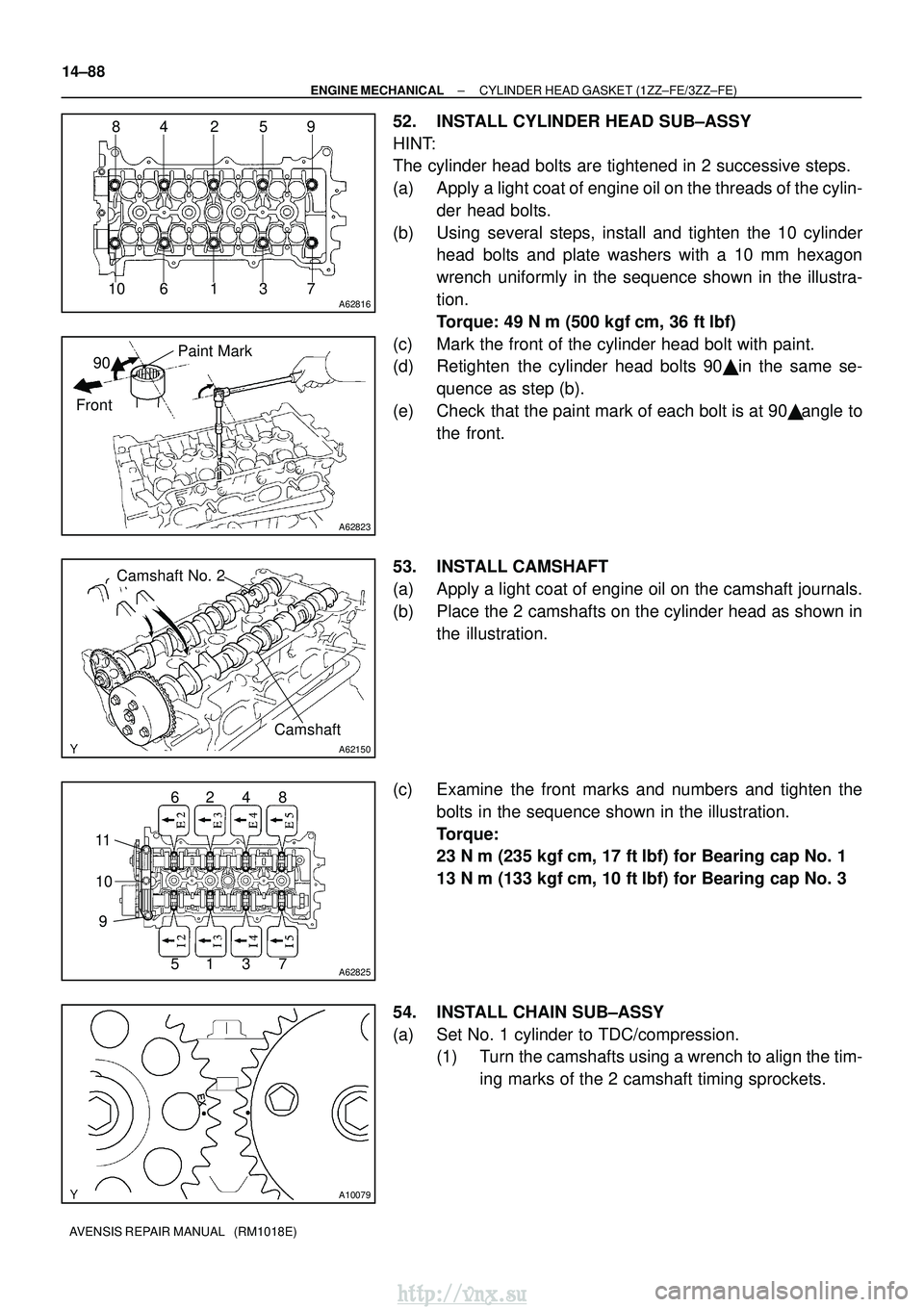

TOYOTA AVENSIS 2003 Service Repair Manual A62816 84 2 59731610 A62823 Paint Mark 90  Front A62150 Camshaft No. 2 Camshaft A62825 62 4 8 51 3 7 11 10 9 A10079 14±88 ± ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE) AVENSIS REPAIR M

Page 590 of 2234

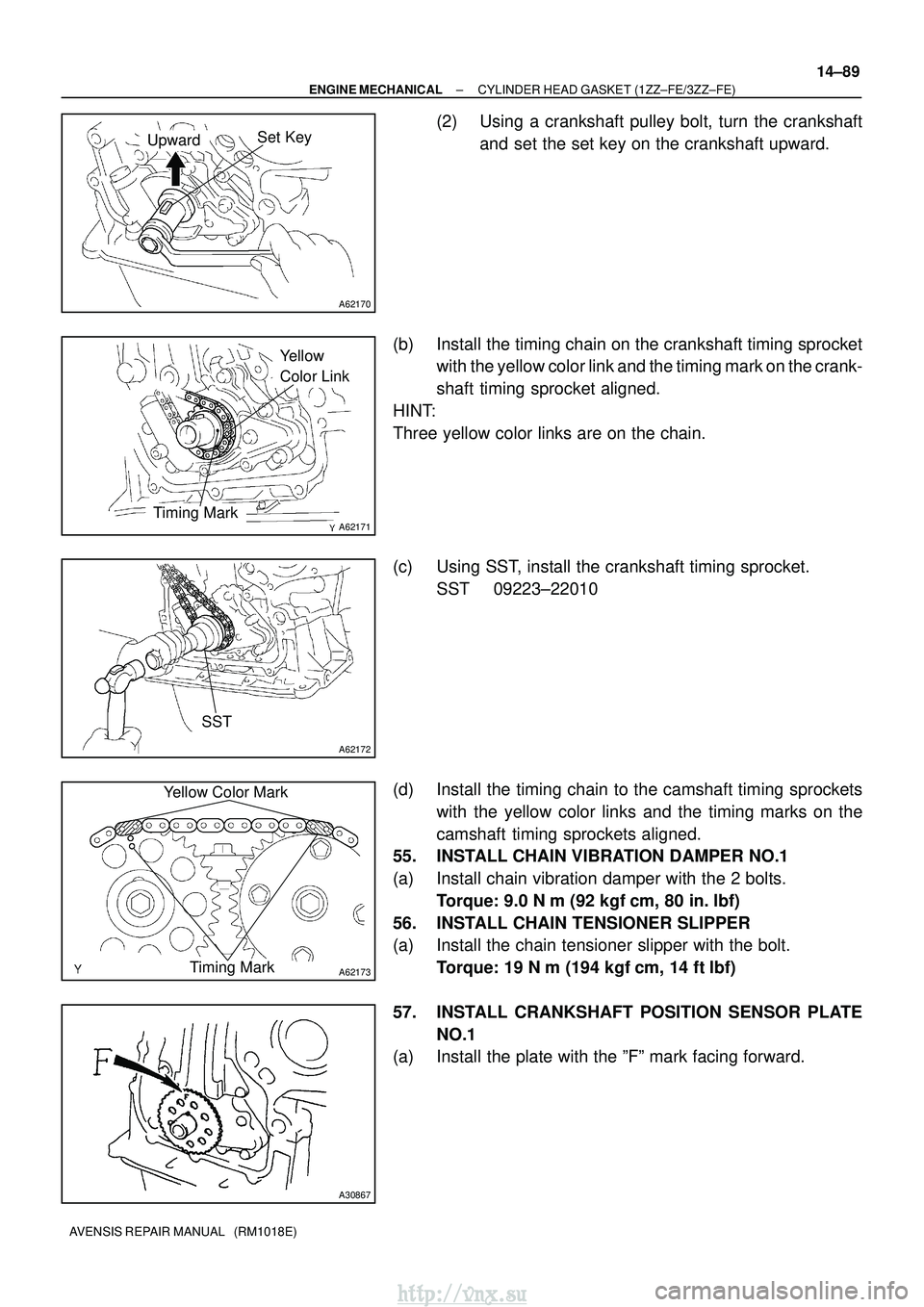

TOYOTA AVENSIS 2003 Service Repair Manual A62170 Set KeyUpward A62171 Yellow Color Link Timing Mark A62172 SST A62173 Yellow Color MarkTiming Mark A30867 ± ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE) 14±89 AVENSIS REPAIR MANUA

Page 591 of 2234

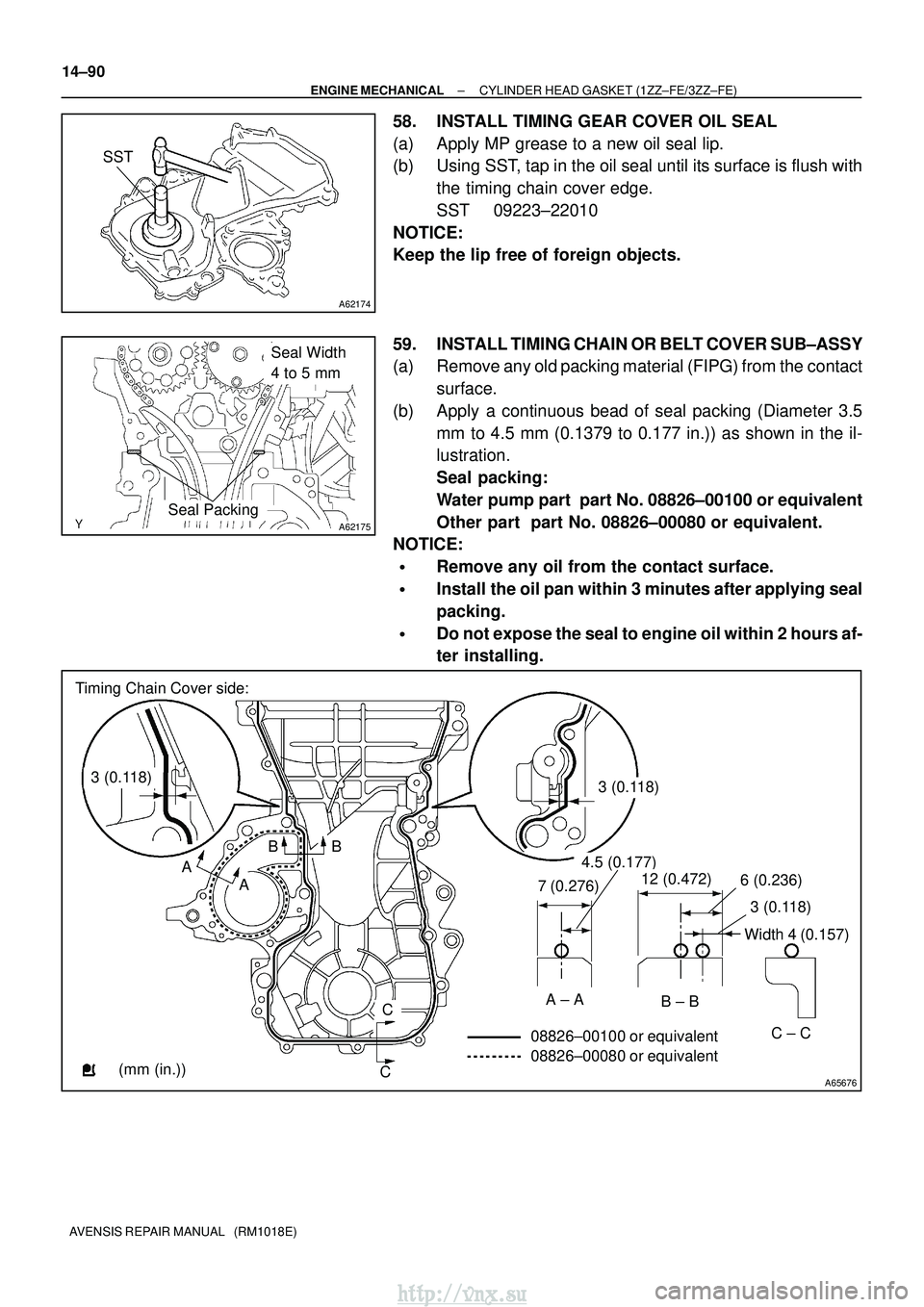

TOYOTA AVENSIS 2003 Service Repair Manual A62174 SST A62175 Seal Width 4 to 5 mm Seal Packing A65676 Timing Chain Cover side: 3 (0.118)3 (0.118) A ABB C C 7 (0.276) 4.5 (0.177) 12 (0.472)6 (0.236) 3 (0.118) Width 4 (0.157) A ± AB ± B C ±

Page 592 of 2234

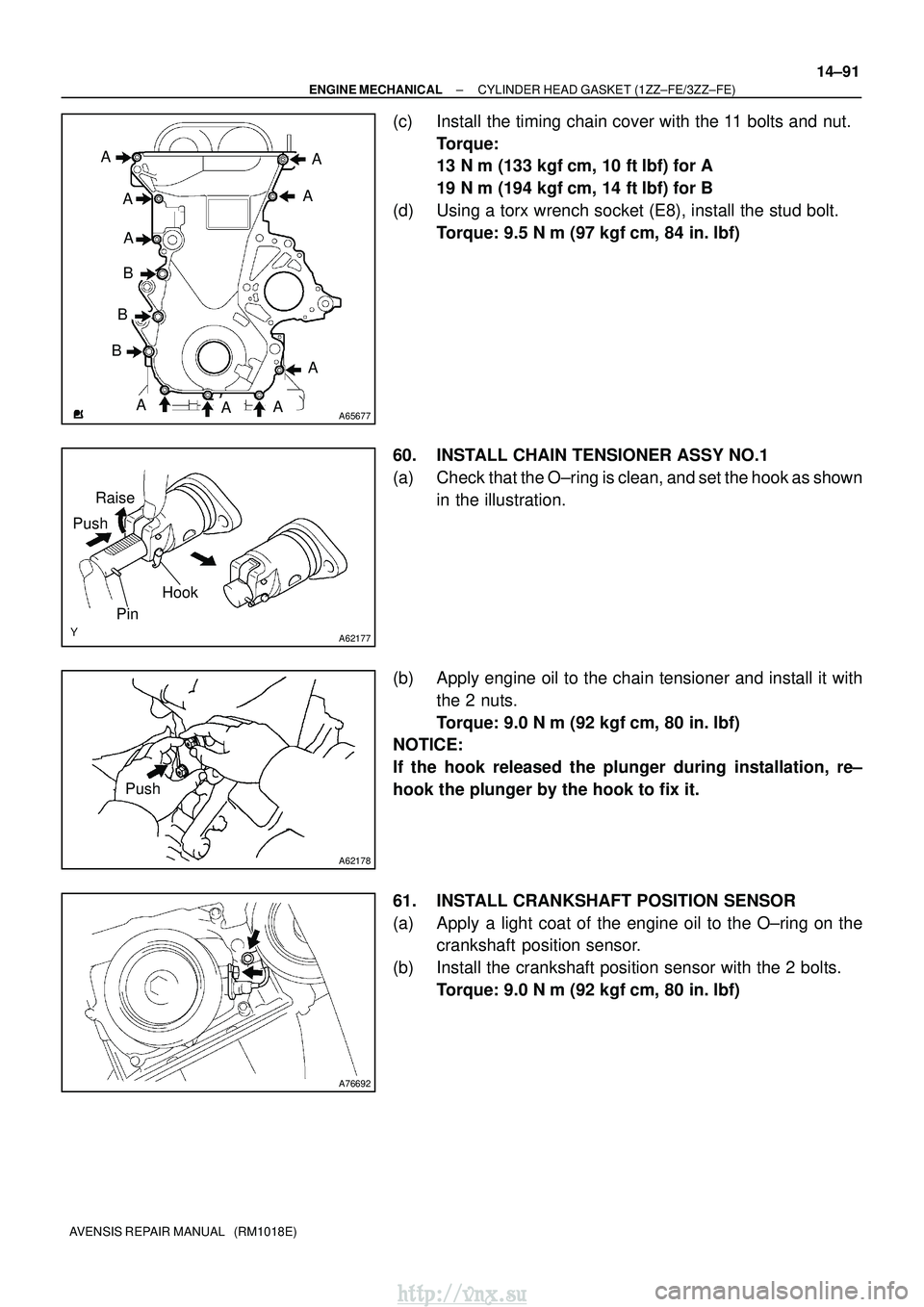

TOYOTA AVENSIS 2003 Service Repair Manual A65677 AAA A A A AAA B B B A62177 Raise Push Hook Pin A62178 Push A76692 ± ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE) 14±91 AVENSIS REPAIR MANUAL (RM1018E) (c) Install the timing cha
