Page 769 of 2234

A01455
A62789
Plastigage
A01454
A01453
±
ENGINE MECHANICAL CYLINDER HEAD ASSY (1ZZ±FE/3ZZ±FE)
14±33
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

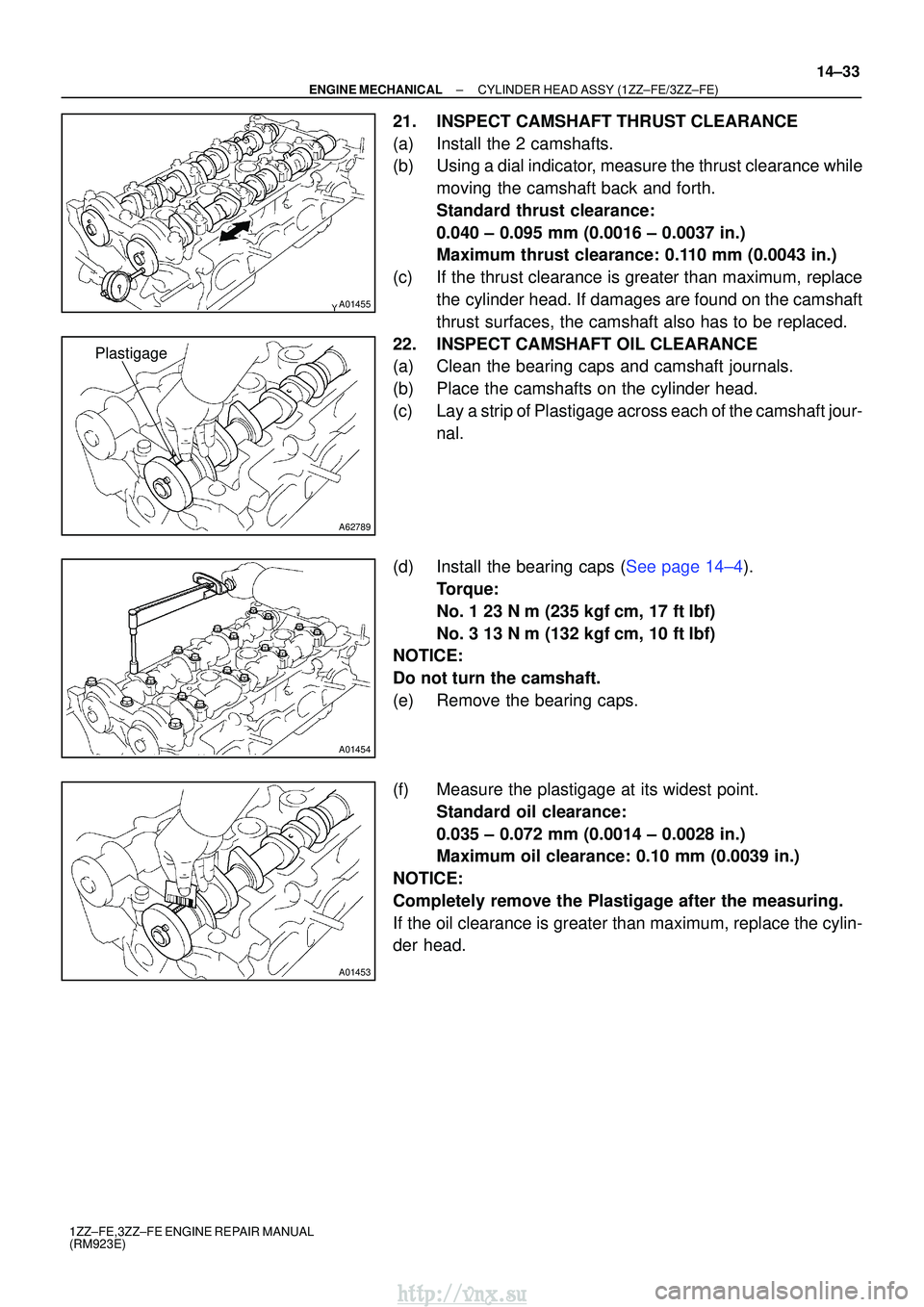

21. INSPECT CAMSHAFT THRUST CLEARANCE
(a) Install the 2 camshafts.
(b) Using a dial indicator, measure the thrust clearance while
moving the camshaft back and forth.
Standard thrust clearance:
0.040 ± 0.095 mm (0.0016 ± 0.0037 in.)
Maximum thrust clearance: 0.110 mm (0.0043 in.)
(c) If the thrust clearance is greater than maximum, replace the cylinder head. If damages are found on the camshaft
thrust surfaces, the camshaft also has to be replaced.
22. INSPECT CAMSHAFT OIL CLEARANCE
(a) Clean the bearing caps and camshaft journals.
(b) Place the camshafts on the cylinder head.
(c) Lay a strip of Plastigage across each of the camshaft jour- nal.
(d)Install the bearing caps (See page 14±4). Torque:
No. 1 23 N m (235 kgf cm, 17 ftlbf)
No. 3 13 N m (132 kgf cm, 10 ftlbf)
NOTICE:
Do not turn the camshaft.
(e) Remove the bearing caps.
(f) Measure the plastigage at its widest point.
Standard oil clearance:
0.035 ± 0.072 mm (0.0014 ± 0.0028 in.)
Maximum oil clearance: 0.10 mm (0.0039 in.)
NOTICE:
Completely remove the Plastigage after the measuring.
If the oil clearance is greater than maximum, replace the cylin-
der head.
http://vnx.su
Page 770 of 2234
A62790
AB
F
D
C
E
24.5
A B
D
E C F
16 89 34.5
9 53.5
16.5
1238.5 22.5
12
48.5
5
38.5
21.5
12
[mm]C
Front side:
Exhaust side: Intake side:
Upper side:
14±34
±
ENGINE MECHANICAL CYLINDER HEAD ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

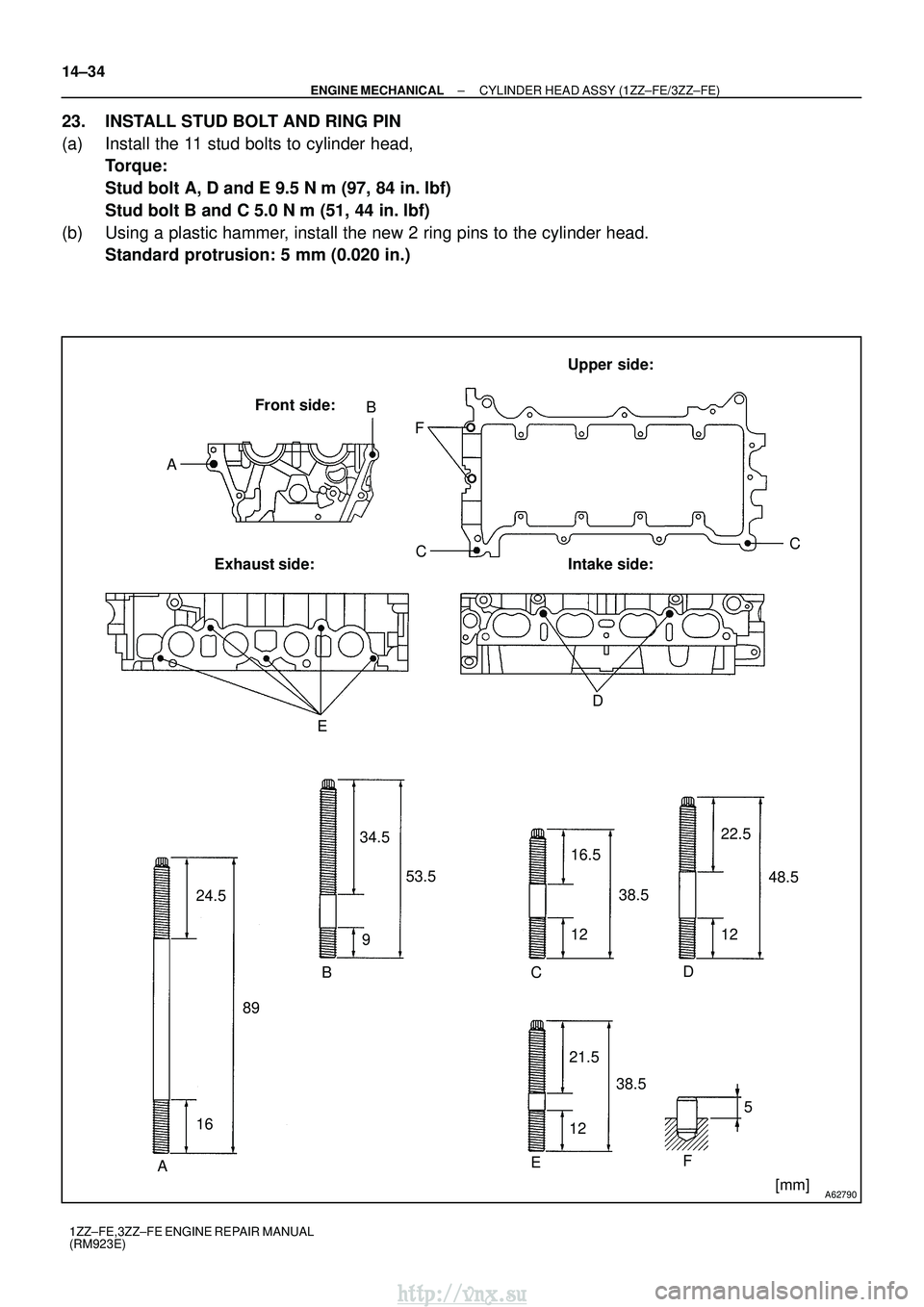

23. INSTALL STUD BOLT AND RING PIN
(a) Install the 11 stud bolts to cylinder head, Torque:
Stud bolt A, D and E 9.5 N m (97, 84 in.lbf)
Stud bolt B and C 5.0 N m (51, 44 in. lbf)
(b) Using a plastic hammer, install the new 2 ring pins to the cylinder head. Standard protrusion: 5 mm (0.020 in.)
http://vnx.su
Page 771 of 2234

A62791
14 mm25 mm
9 mm
A
B
C
A62792
Adhesive
A62793
B A
C
A62794
SST
±
ENGINE MECHANICAL CYLINDER HEAD ASSY (1ZZ±FE/3ZZ±FE)
14±35
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

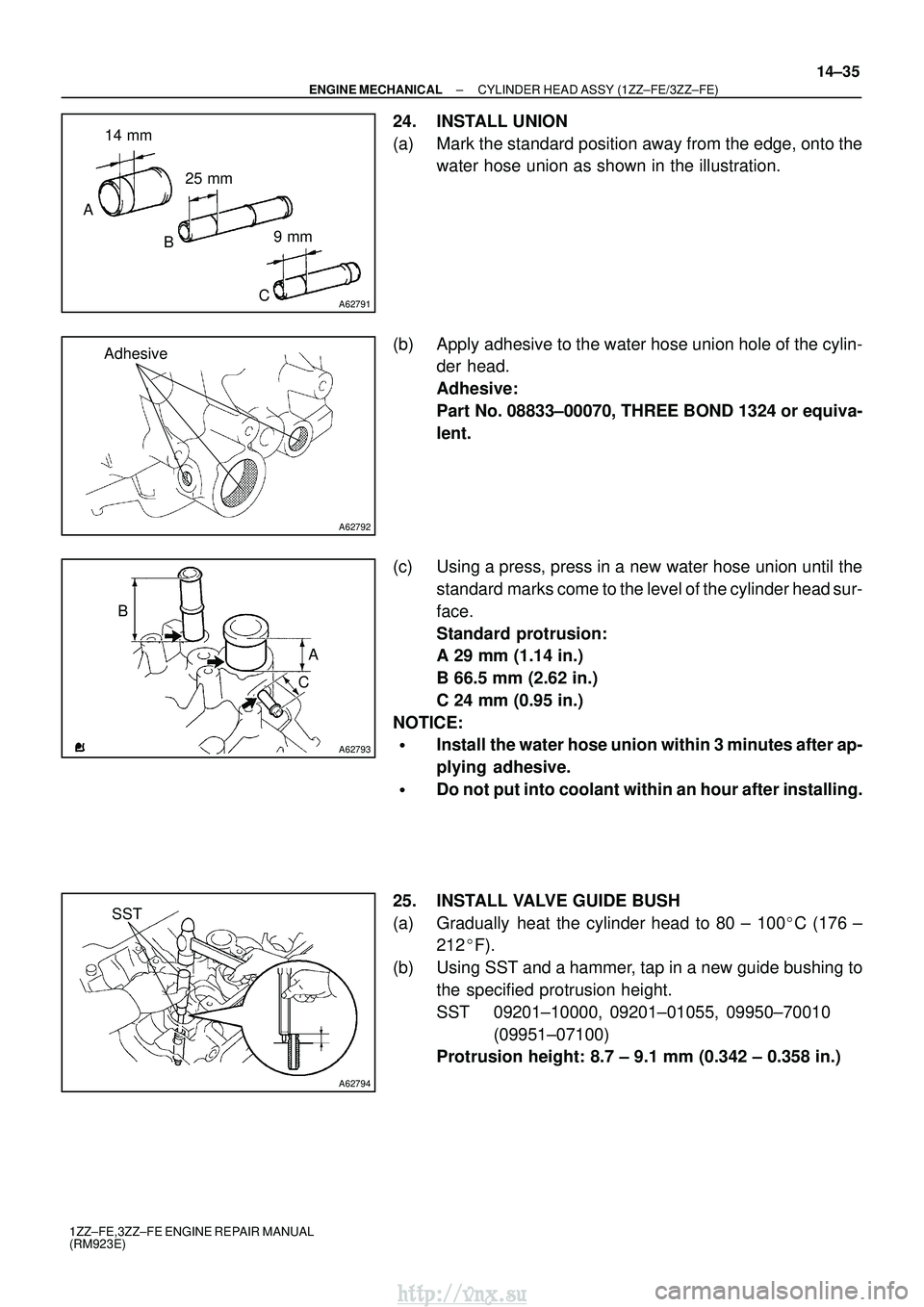

24. INSTALL UNION
(a) Mark the standard position away from the edge, onto the
water hose union as shown in the illustration.
(b) Apply adhesive to the water hose union hole of the cylin- der head.
Adhesive:
Part No. 08833±00070, THREE BOND 1324 or equiva-
lent.
(c) Using a press, press in a new water hose union until the standard marks come to the level of the cylinder head sur-
face.
Standard protrusion:
A 29 mm (1.14 in.)
B 66.5 mm (2.62 in.)
C 24 mm (0.95 in.)
NOTICE:
Install the water hose union within 3 minutes after ap-
plying adhesive.
Do not put into coolant within an hour after installing.
25. INSTALL VALVE GUIDE BUSH
(a) Gradually heat the cylinder head to 80 ± 100 C (176 ±
212 F).
(b) Using SST and a hammer, tap in a new guide bushing to the specified protrusion height.
SST 09201±10000, 09201±01055, 09950±70010 (09951±07100)
Protrusion height: 8.7 ± 9.1 mm (0.342 ± 0.358 in.)
http://vnx.su
Page 772 of 2234

A62795
Exhaust
Intake Mark
ºNOKº
Black Surface
Gray Surface
A62796
SST
A01065
A62780
SST
A07307
14±36
±
ENGINE MECHANICAL CYLINDER HEAD ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

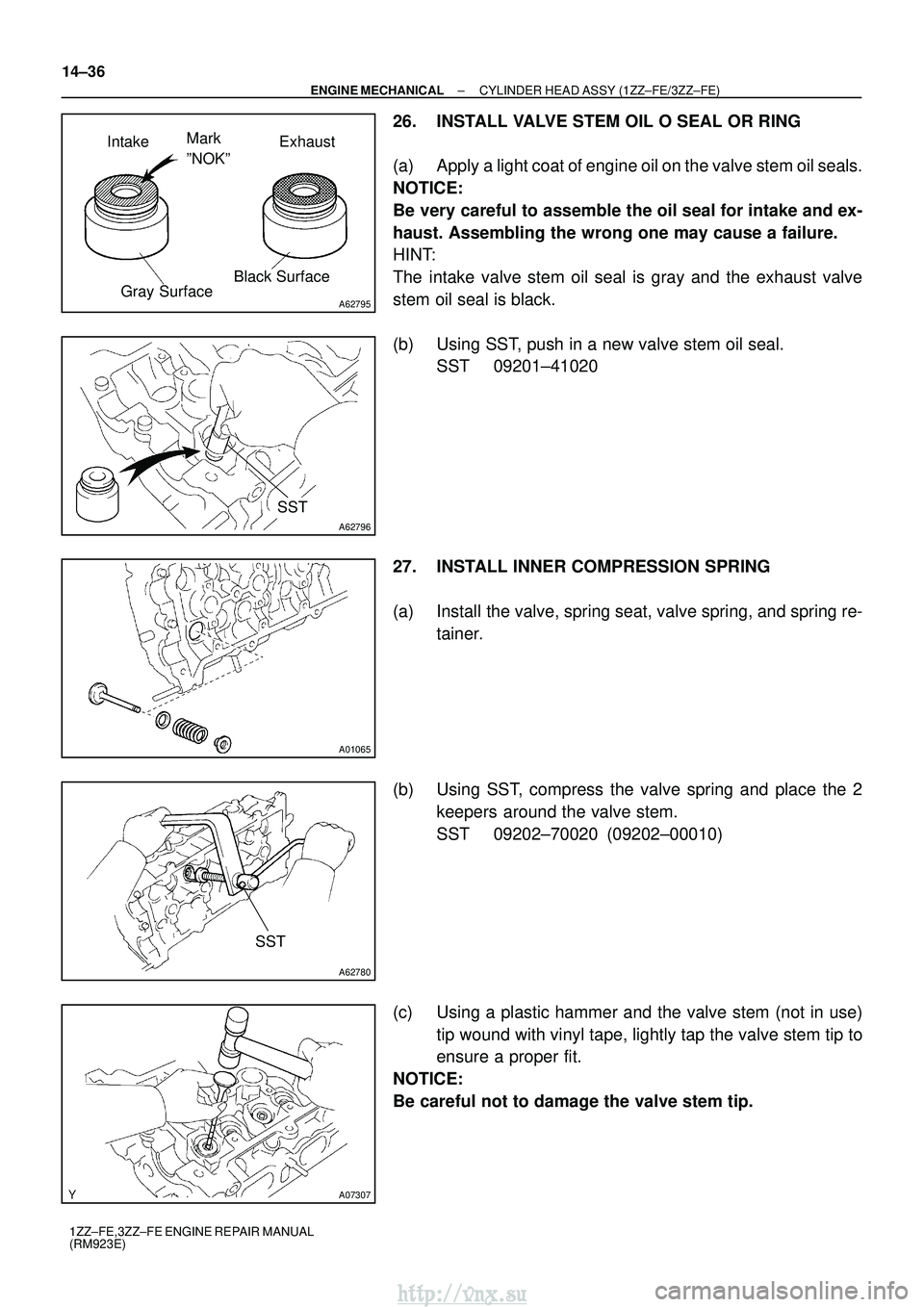

26. INSTALL VALVE STEM OIL O SEAL OR RING
(a) Apply a light coat of engine oil on the valve stem oil seals.
NOTICE:
Be very careful to assemble the oil seal for intake and ex-
haust. Assembling the wrong one may cause a failure.
HINT:
The intake valve stem oil seal is gray and the exhaust valve
stem oil seal is black.
(b) Using SST, push in a new valve stem oil seal. SST 09201±41020
27. INSTALL INNER COMPRESSION SPRING
(a) Install the valve, spring seat, valve spring, and spring re- tainer.
(b) Using SST, compress the valve spring and place the 2 keepers around the valve stem.
SST 09202±70020 (09202±00010)
(c) Using a plastic hammer and the valve stem (not in use) tip wound with vinyl tape, lightly tap the valve stem tip to
ensure a proper fit.
NOTICE:
Be careful not to damage the valve stem tip.
http://vnx.su
Page 773 of 2234
±
ENGINE MECHANICAL CYLINDER HEAD ASSY (1ZZ±FE/3ZZ±FE)
14±37
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

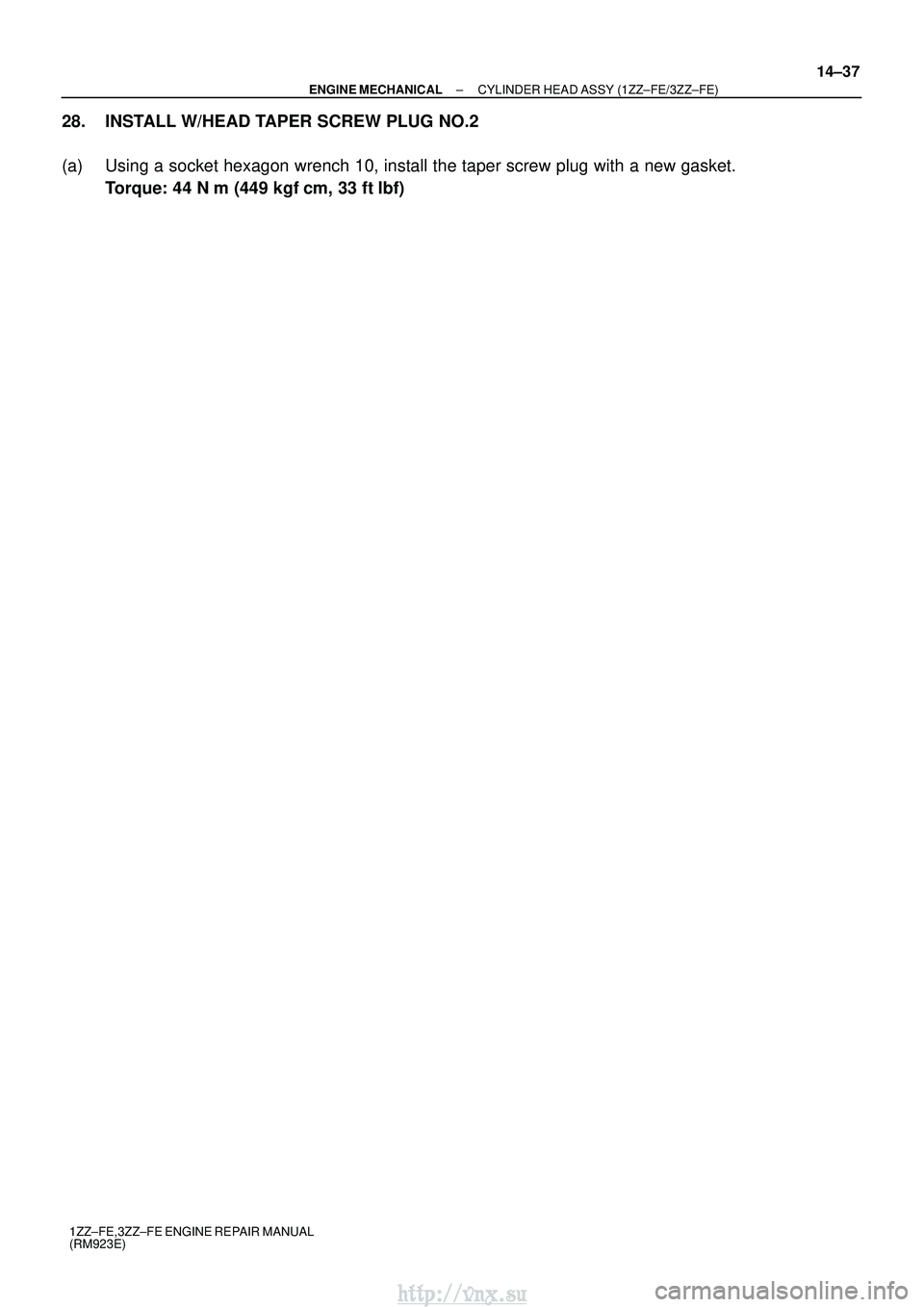

28. INSTALL W/HEAD TAPER SCREW PLUG NO.2
(a) Using a socket hexagon wrench 10, install the taper screw plug with a ne\
w gasket.
Torque: 44 N m (449 kgf cm, 33 ftlbf)
http://vnx.su
Page 774 of 2234
140KJ±01
A62768
Oil Filler Cap Sub±assy
Gasket
Ventilation Valve
Sub±assy
Seal Washer
Cylinder Head Cover
Sub±assy Gasket Spark Plug
Water Pump Assy
Crankshaft Pulley
9.0 (92, 80 in.
lbf)
9.0 (92, 80 in.lbf)
9.0 (92, 80 in. lbf)
11 (112, 8)
25 (255, 18)
O±ring
11 (112, 8)
138 (1,407, 102)
9.0 (92, 80 in. lbf)
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
14±1
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

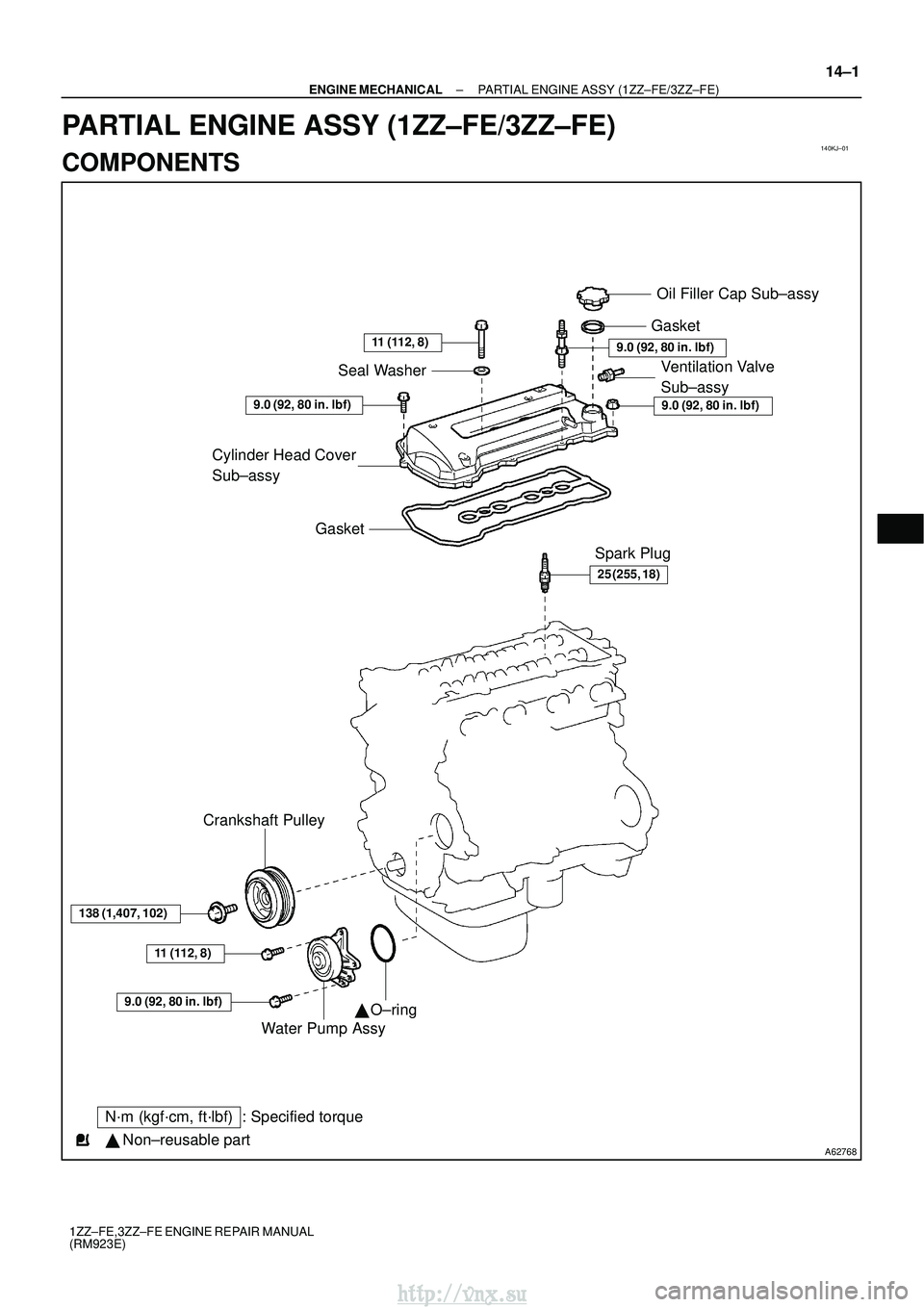

PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
COMPONENTS
http://vnx.su
Page 775 of 2234

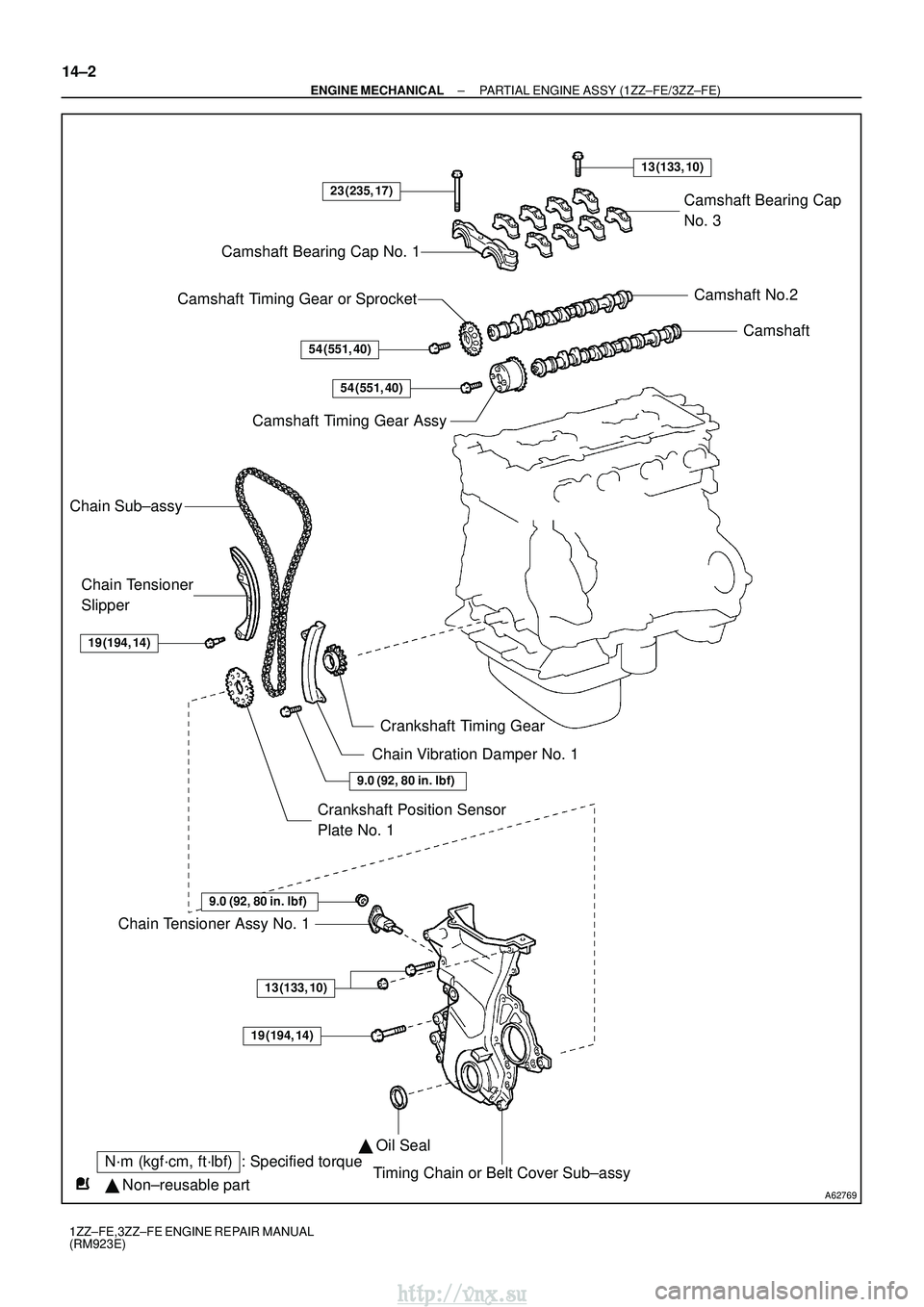

A62769
Camshaft Bearing Cap No. 1
Camshaft Timing Gear or Sprocket
Camshaft Timing Gear Assy Camshaft Bearing Cap
No. 3
Camshaft No.2 Camshaft
Chain Tensioner Assy No. 1
Timing Chain or Belt Cover Sub±assy
Chain Tensioner
Slipper
Crankshaft Position Sensor
Plate No. 1Chain Vibration Damper No. 1
Crankshaft Timing Gear
13 (133, 10)
23 (235, 17)
54 (551, 40)
54 (551, 40)
Chain Sub±assy
19 (194, 14)
9.0 (92, 80 in.
lbf)
9.0 (92, 80 in.lbf)
13 (133, 10)
19 (194, 14)
Oil Seal
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque
14±2
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)
http://vnx.su
Page 776 of 2234

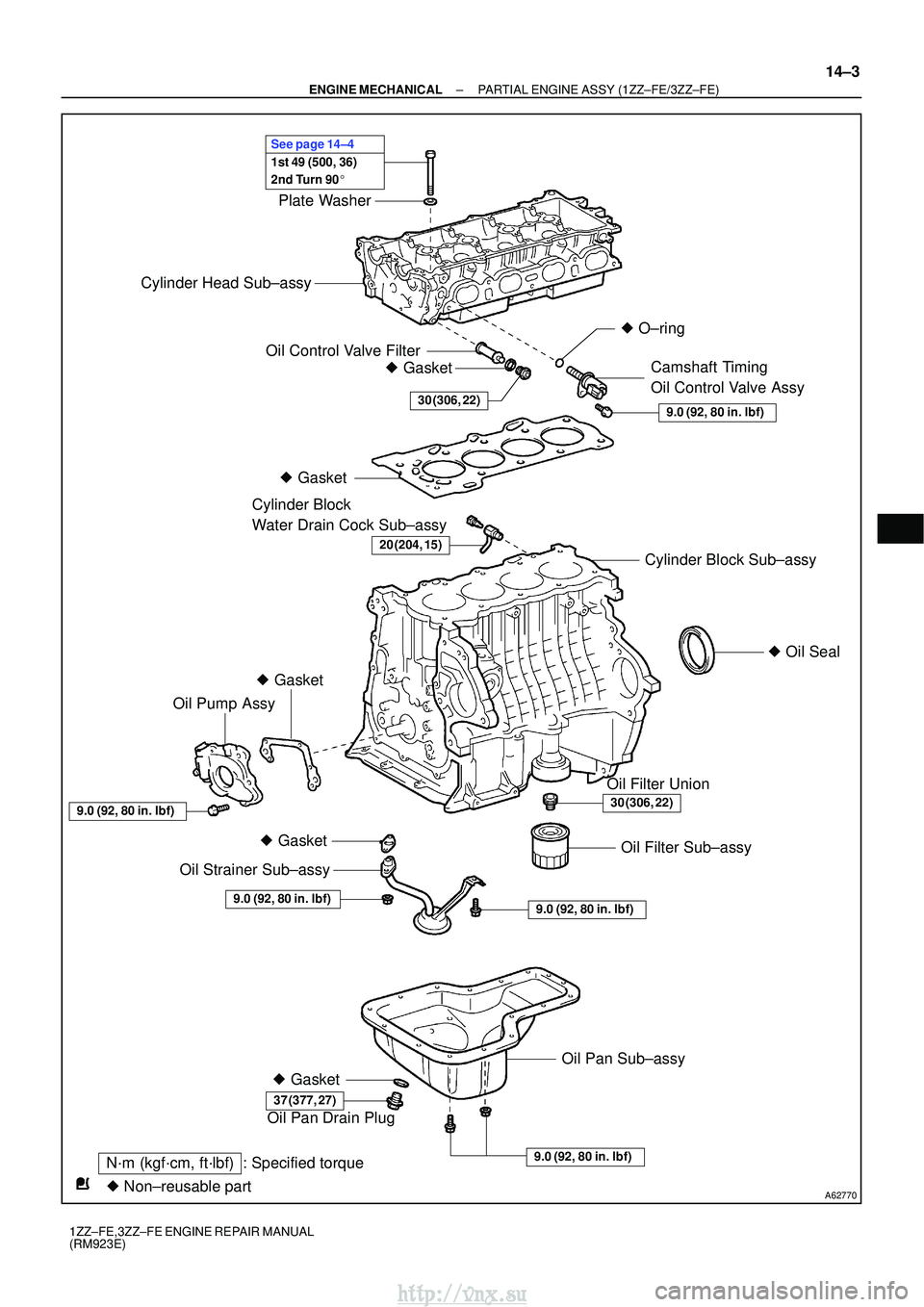

A62770
Cylinder Head Sub±assyOil Control Valve Filter Gasket
Gasket
O±ring
Camshaft Timing
Oil Control Valve Assy
Cylinder Block Sub±assy Oil Seal
Oil Pump Assy
Gasket
Oil Strainer Sub±assy Oil Filter Sub±assy
Gasket
Gasket
1st 49 (500, 36)
2nd Turn 90 See page 14±4
Plate Washer
30 (306, 22)9.0 (92, 80 in. lbf)
9.0 (92, 80 in.lbf)9.0 (92, 80 in. lbf)
9.0 (92, 80 in. lbf)30 (306, 22)
Oil Filter Union
37 (377, 27)
Oil Pan Drain Plug
9.0 (92, 80 in. lbf)
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque
20 (204, 15)
Cylinder Block
Water Drain Cock Sub±assy
Oil Pan Sub±assy
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
14±3
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)
