Page 1273 of 2234

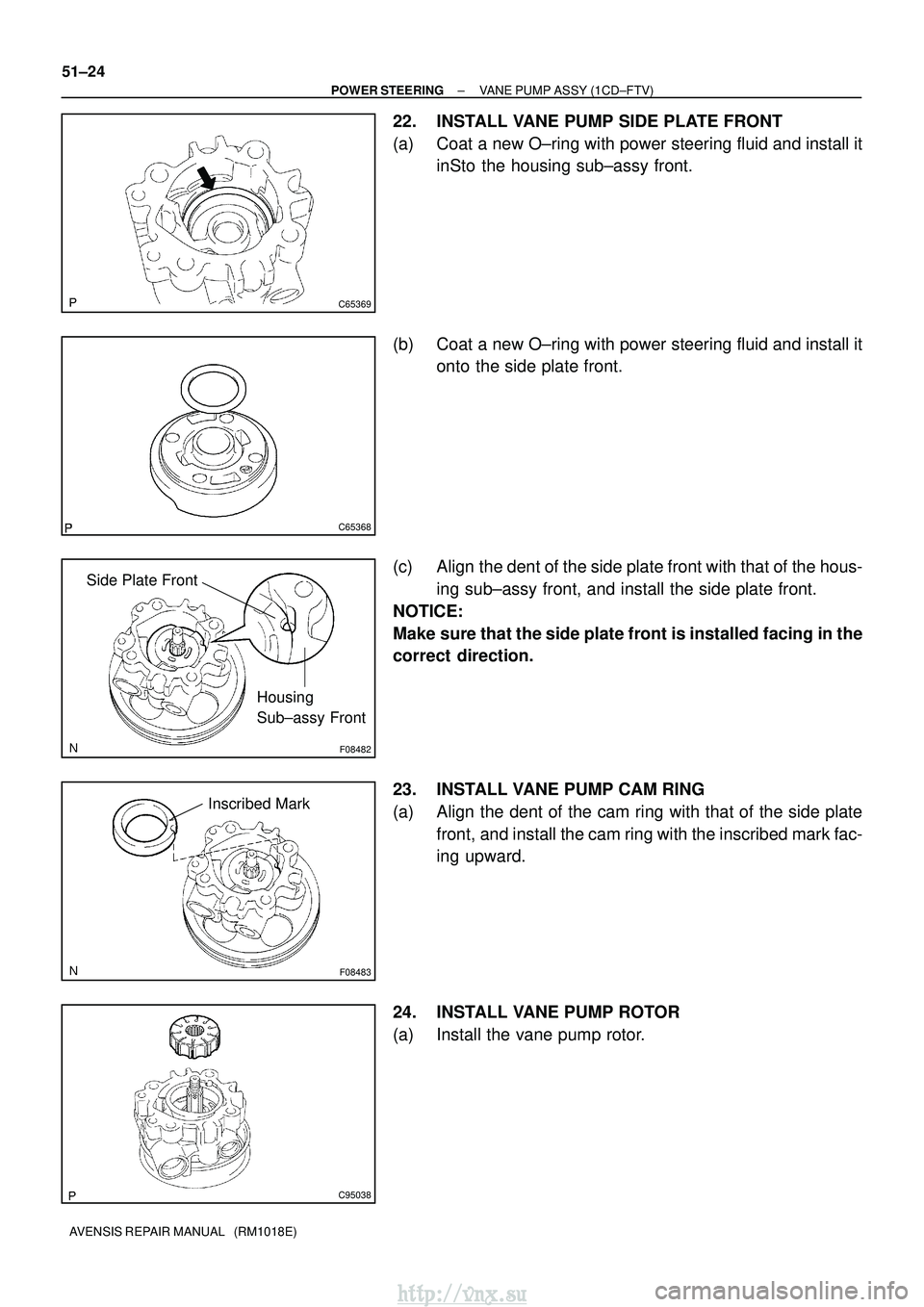

TOYOTA AVENSIS 2003 Service Repair Manual C65369 C65368 F08482 Housing Sub±assy Front Side Plate Front F08483 Inscribed Mark C95038 51±24 ± POWER STEERING VANE PUMP ASSY (1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 22. INSTALL VANE PUMP SI

Page 1274 of 2234

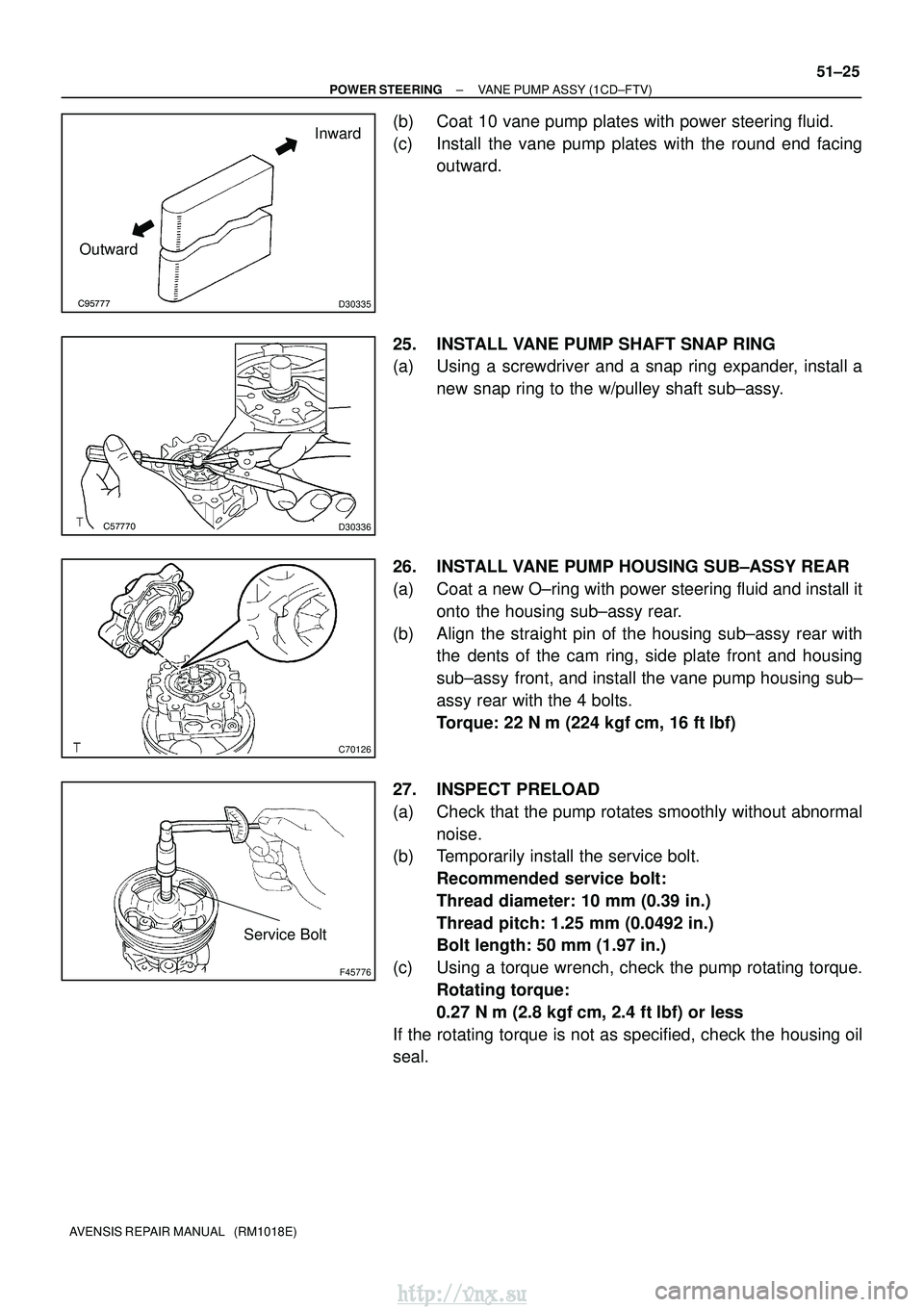

TOYOTA AVENSIS 2003 Service Repair Manual D30335 Inward Outward D30336 C70126 F45776 Service Bolt ± POWER STEERING VANE PUMP ASSY (1CD±FTV) 51±25 AVENSIS REPAIR MANUAL (RM1018E) (b) Coat 10 vane pump plates with power steerin

Page 1275 of 2234

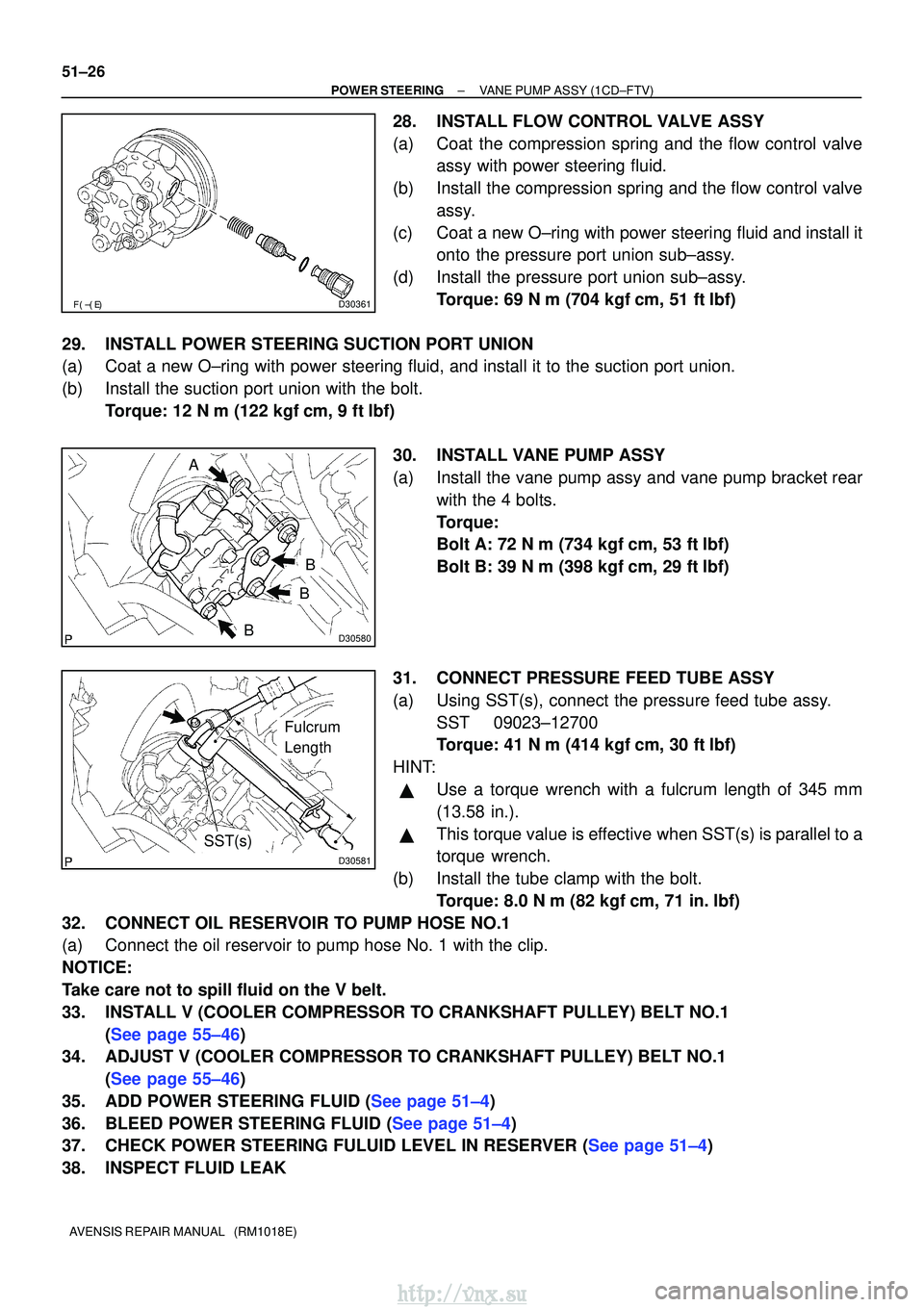

TOYOTA AVENSIS 2003 Service Repair Manual D30361 D30580 B B B A D30581 Fulcrum Length SST(s) 51±26 ± POWER STEERING VANE PUMP ASSY (1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 28. INSTALL FLOW CONTROL VALVE ASSY (a) Coat the compressi

Page 1276 of 2234

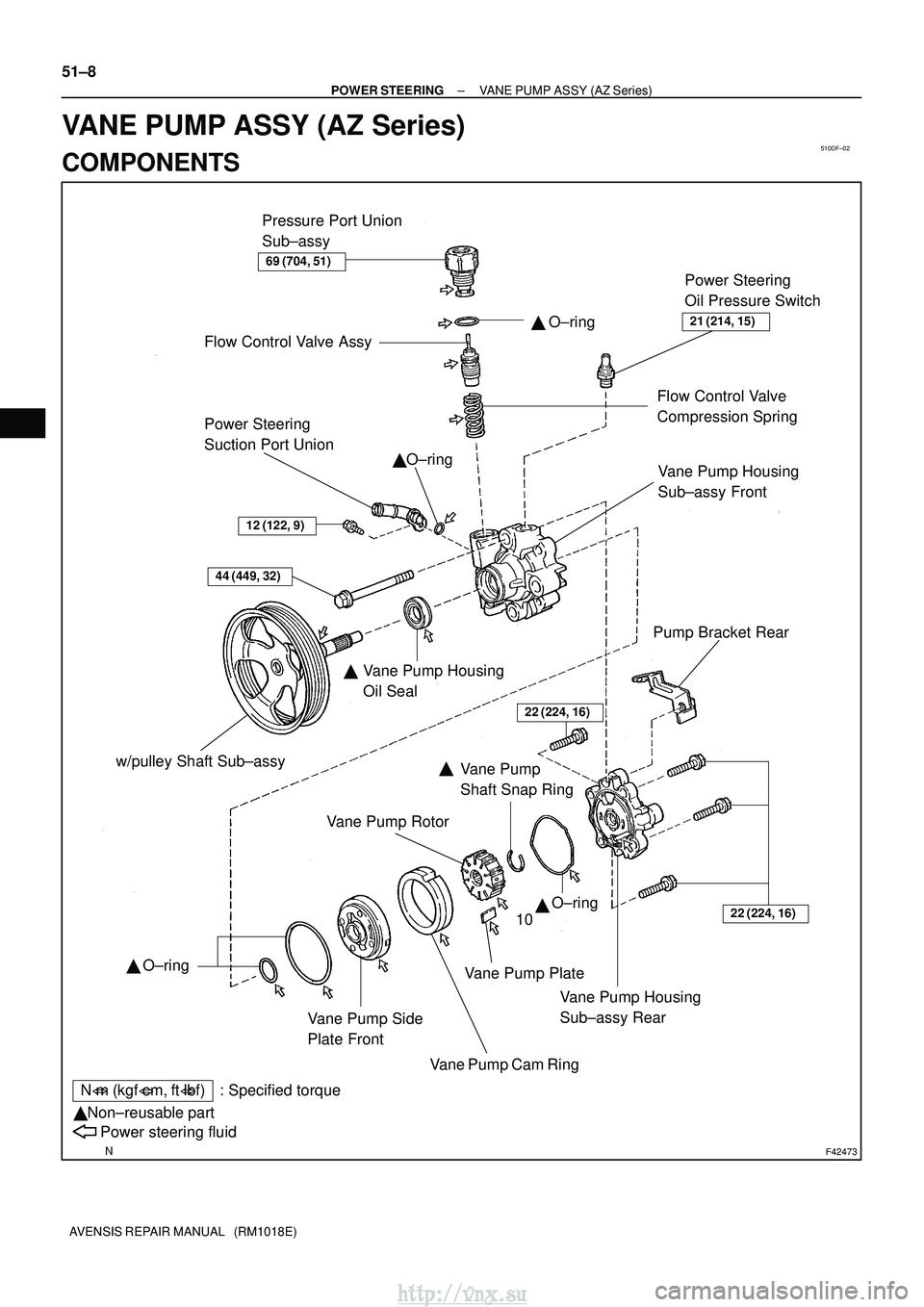

TOYOTA AVENSIS 2003 Service Repair Manual 510DF±02 F42473 Power Steering Suction Port UnionO±ring  w/pulley Shaft Sub±assy Vane Pump Side Plate FrontVane Pump Cam Ring 10  Nm (kgf cm, ftlbf) : Specified torque Non±reusable part  Po

Page 1277 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 510DG±02 F40529 Turn Hold D30330 SST(s) A B F40247 SST(s) ± POWER STEERING VANE PUMP ASSY (AZ Series) 51±9 AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL NOTICE: When using a vise, do not over tighten

Page 1278 of 2234

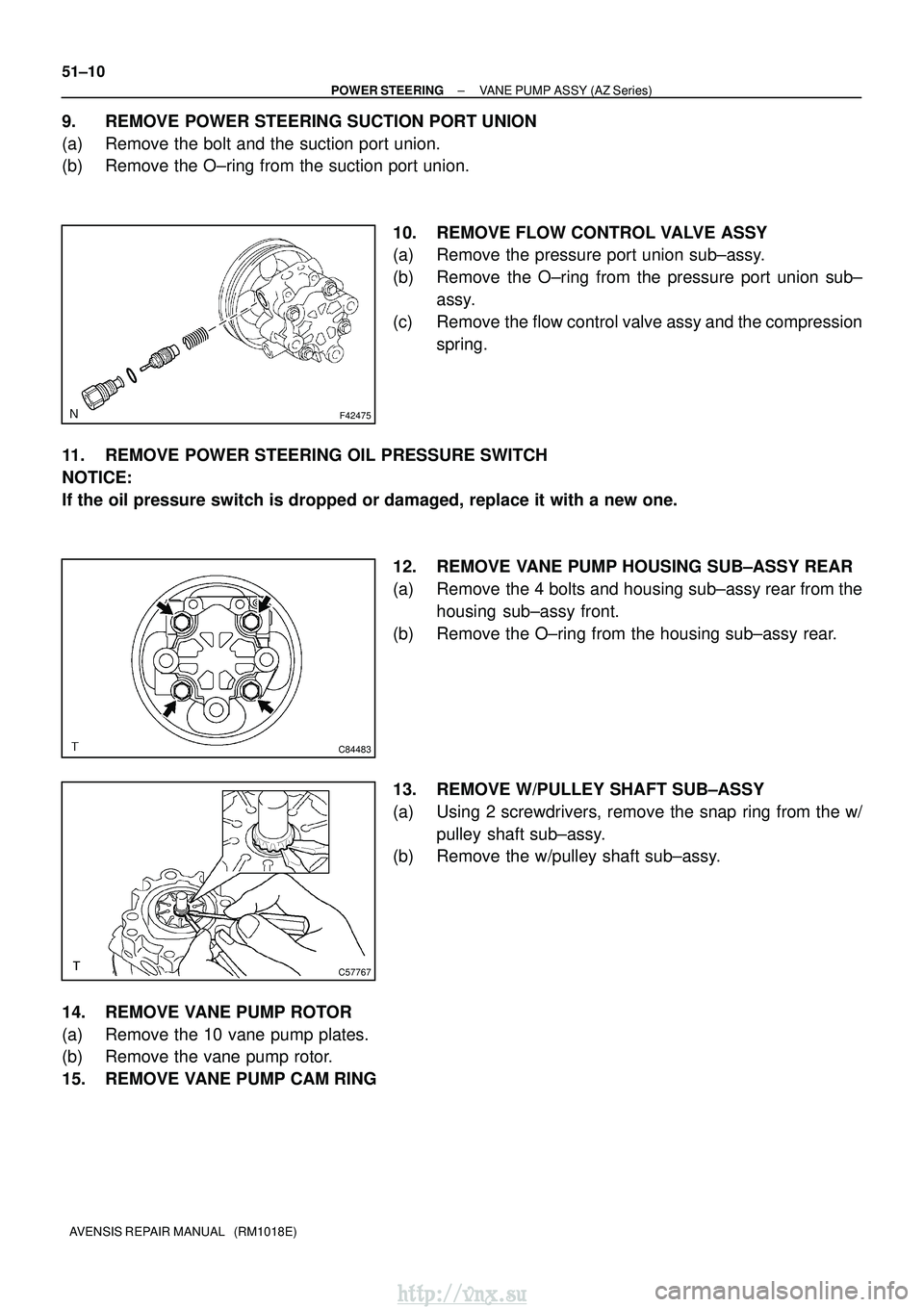

TOYOTA AVENSIS 2003 Service Repair Manual F42475 C84483 C57767 51±10 ± POWER STEERING VANE PUMP ASSY (AZ Series) AVENSIS REPAIR MANUAL (RM1018E) 9. REMOVE POWER STEERING SUCTION PORT UNION (a) Remove the bolt and the suction port union. (

Page 1279 of 2234

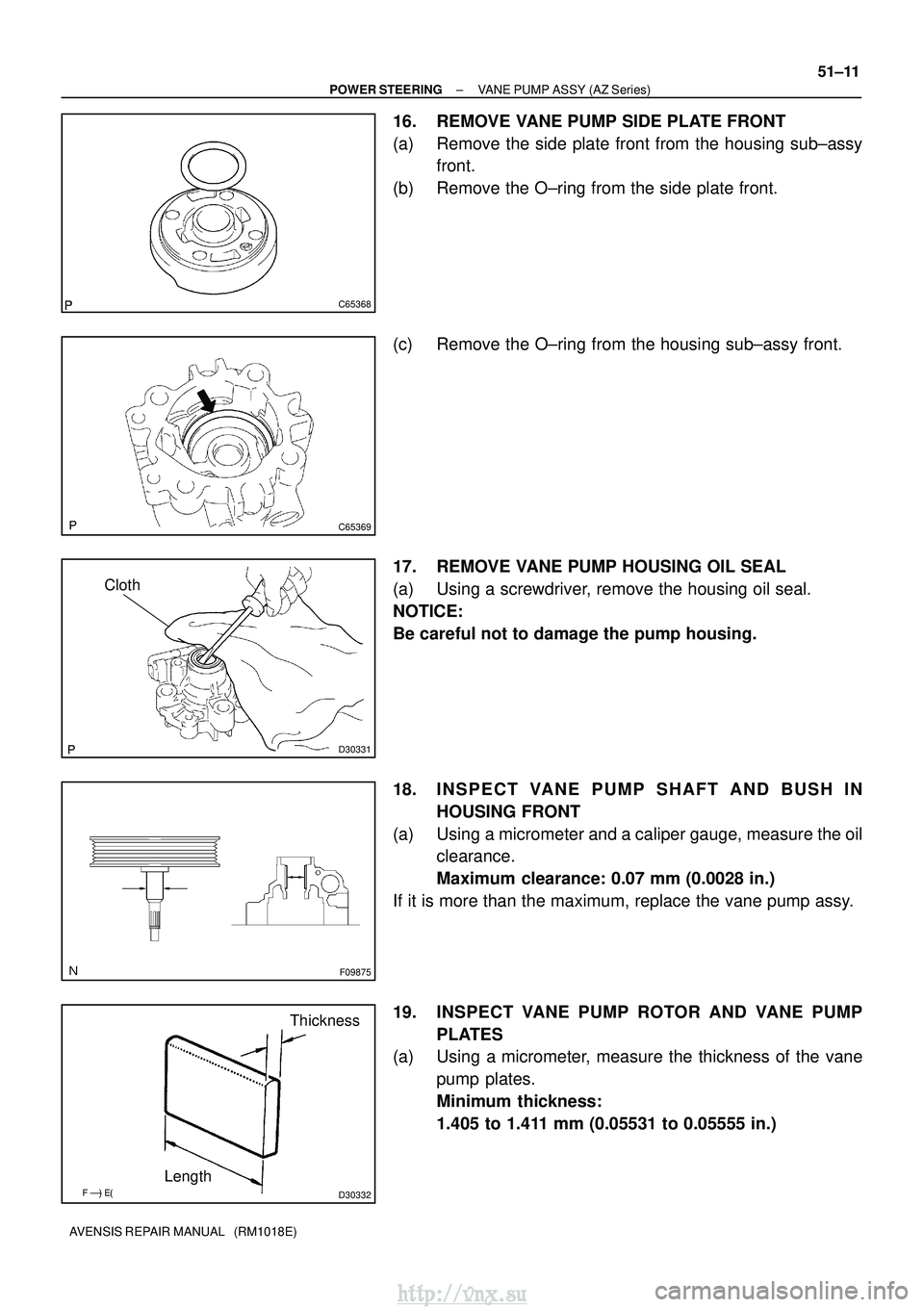

TOYOTA AVENSIS 2003 Service Repair Manual C65368 C65369 D30331 Cloth F09875 D30332 LengthThickness ± POWER STEERING VANE PUMP ASSY (AZ Series) 51±11 AVENSIS REPAIR MANUAL (RM1018E) 16. REMOVE VANE PUMP SIDE PLATE FRONT (a) Remove th

Page 1280 of 2234

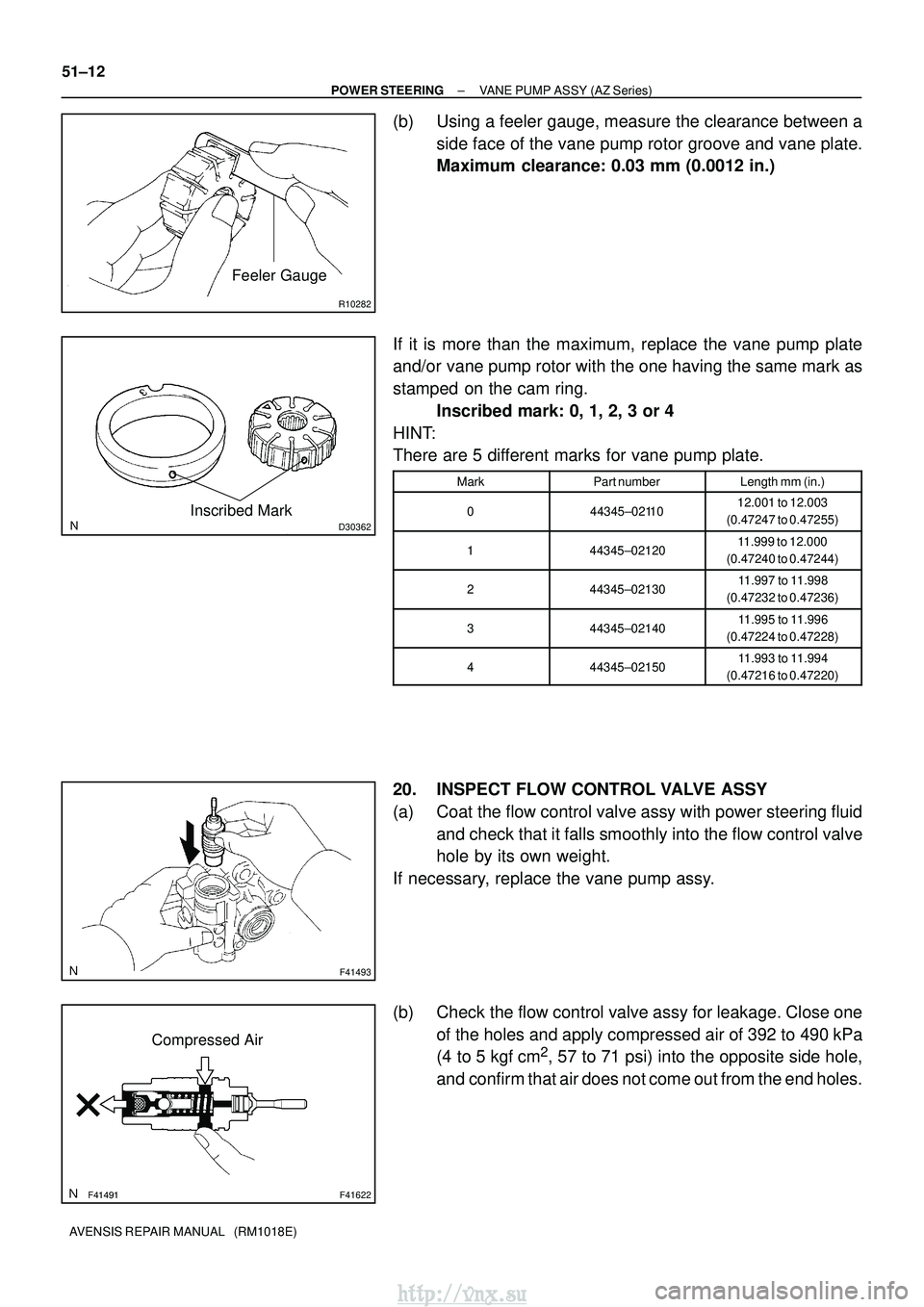

TOYOTA AVENSIS 2003 Service Repair Manual R10282 Feeler Gauge D30362Inscribed Mark F41493 F41622 Compressed Air 51±12 ± POWER STEERING VANE PUMP ASSY (AZ Series) AVENSIS REPAIR MANUAL (RM1018E) (b) Using a feeler gauge, measure the
