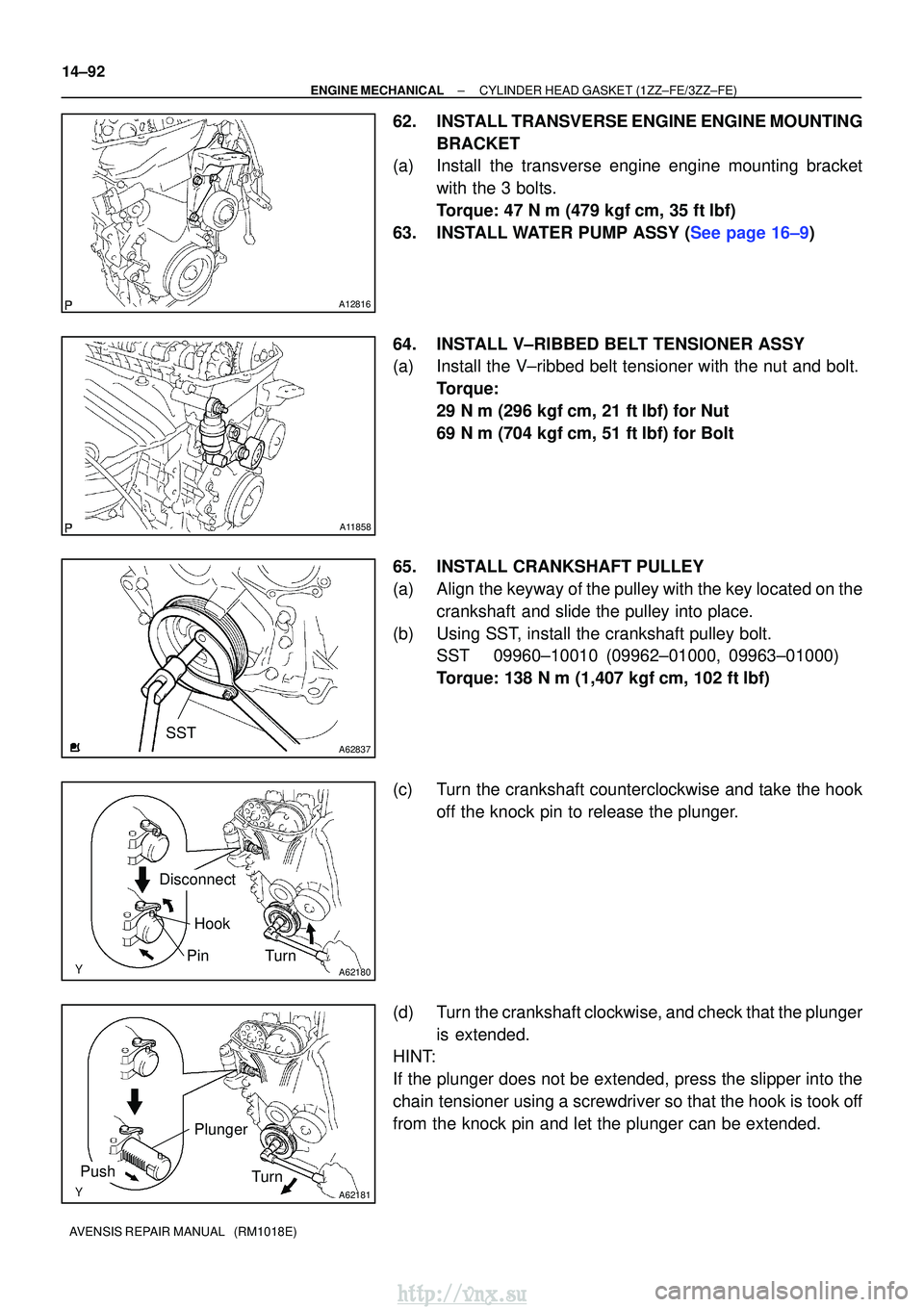

Page 593 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A12816 A11858 A62837SST A62180 DisconnectHook PinTurn A62181 Plunger Turn Push 14±92 ± ENGINE MECHANICALCYLINDER HEAD GASKET(1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 62.INSTALL TRANSVERSE

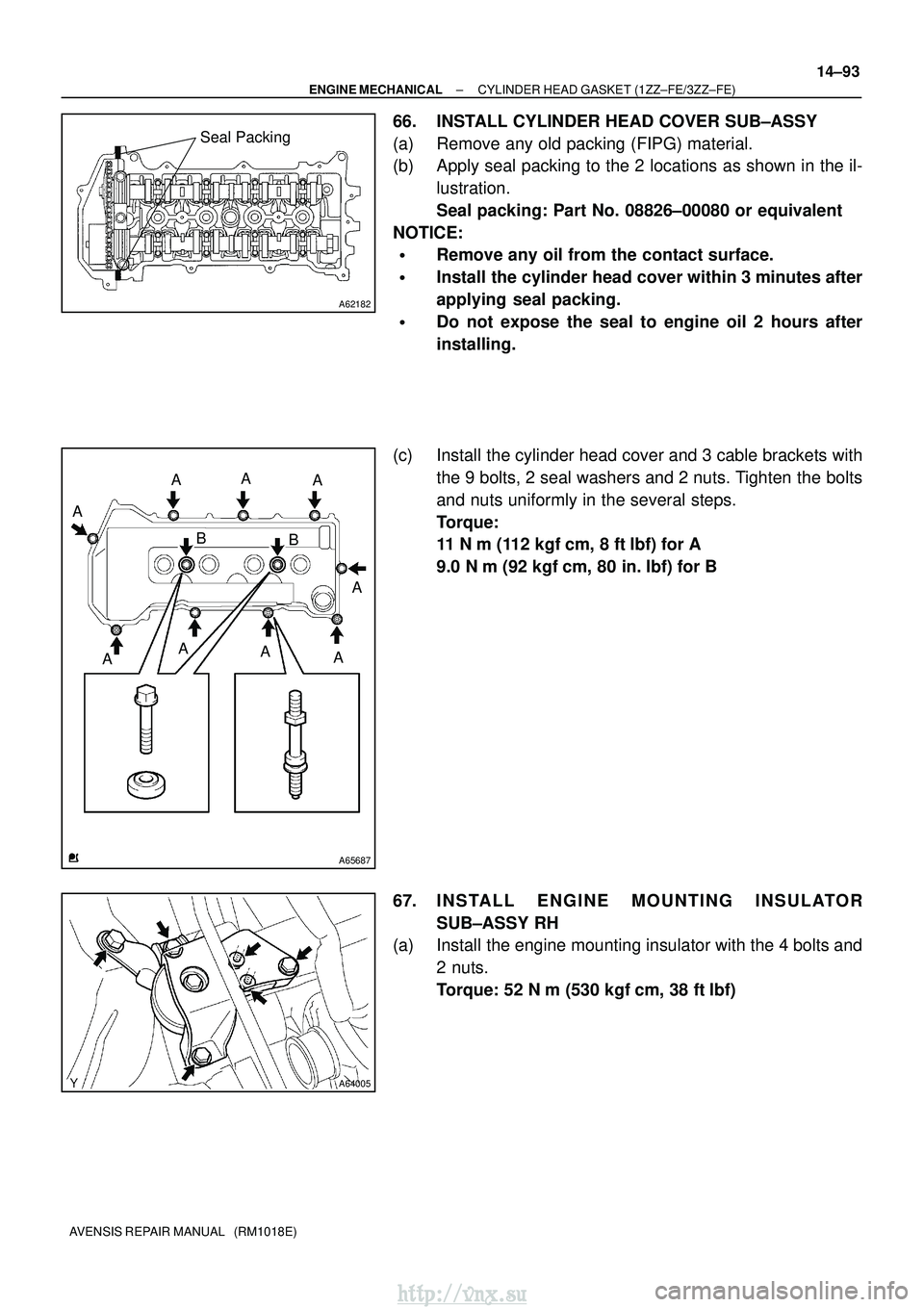

Page 594 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A62182 Seal Packing A65687 AA A A A A A A BB A A64005 ± ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE) 14±93 AVENSIS REPAIR MANUAL (RM1018E) 66. INSTALL CYLINDER HEAD COVER SUB±ASSY (a)

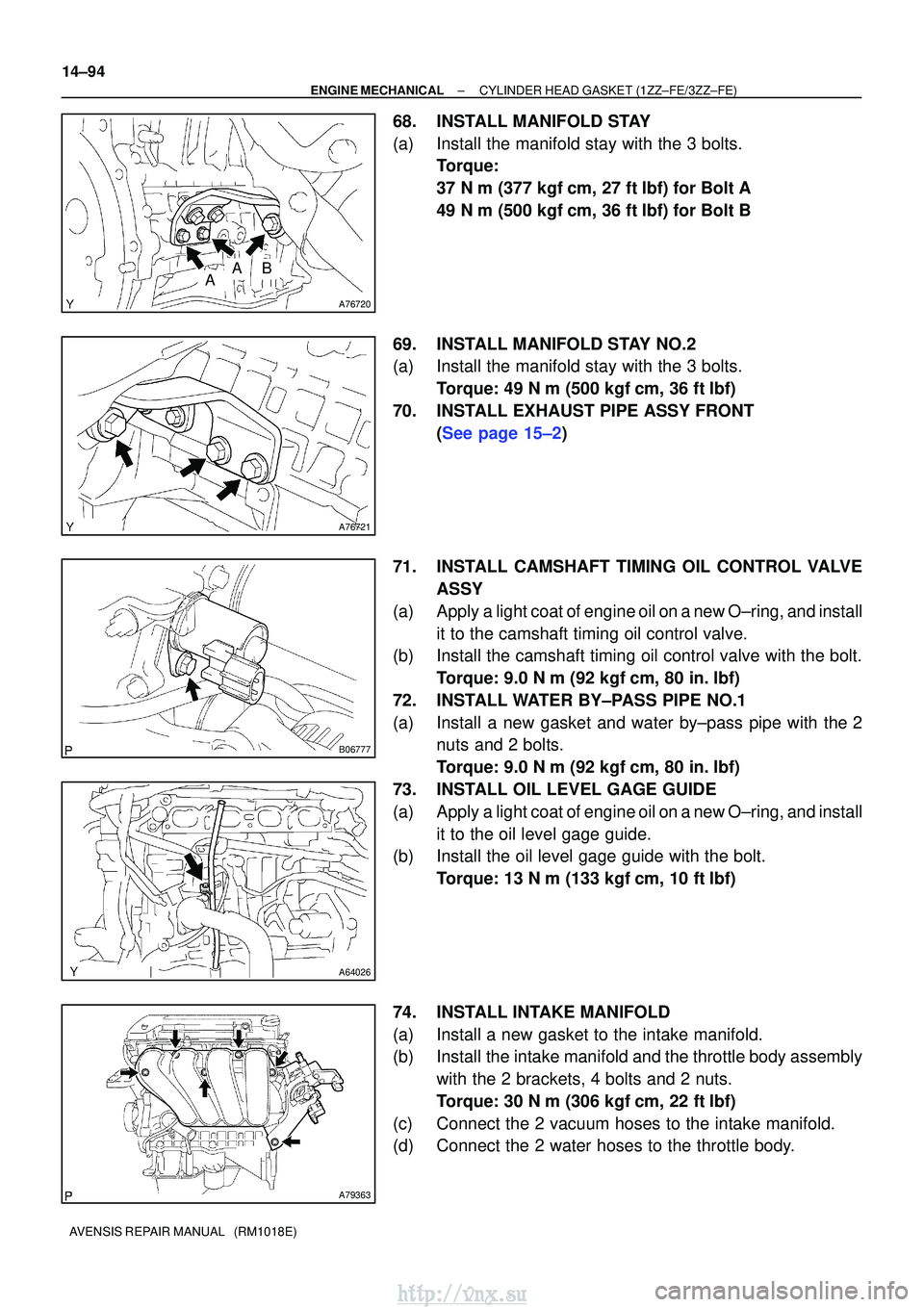

Page 595 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A76720 AAB A76721 B06777 A64026 A79363 14±94 ± ENGINE MECHANICALCYLINDER HEAD GASKET(1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 68.INSTALL MANIFOLD STAY (a)Install the manifold stay with the

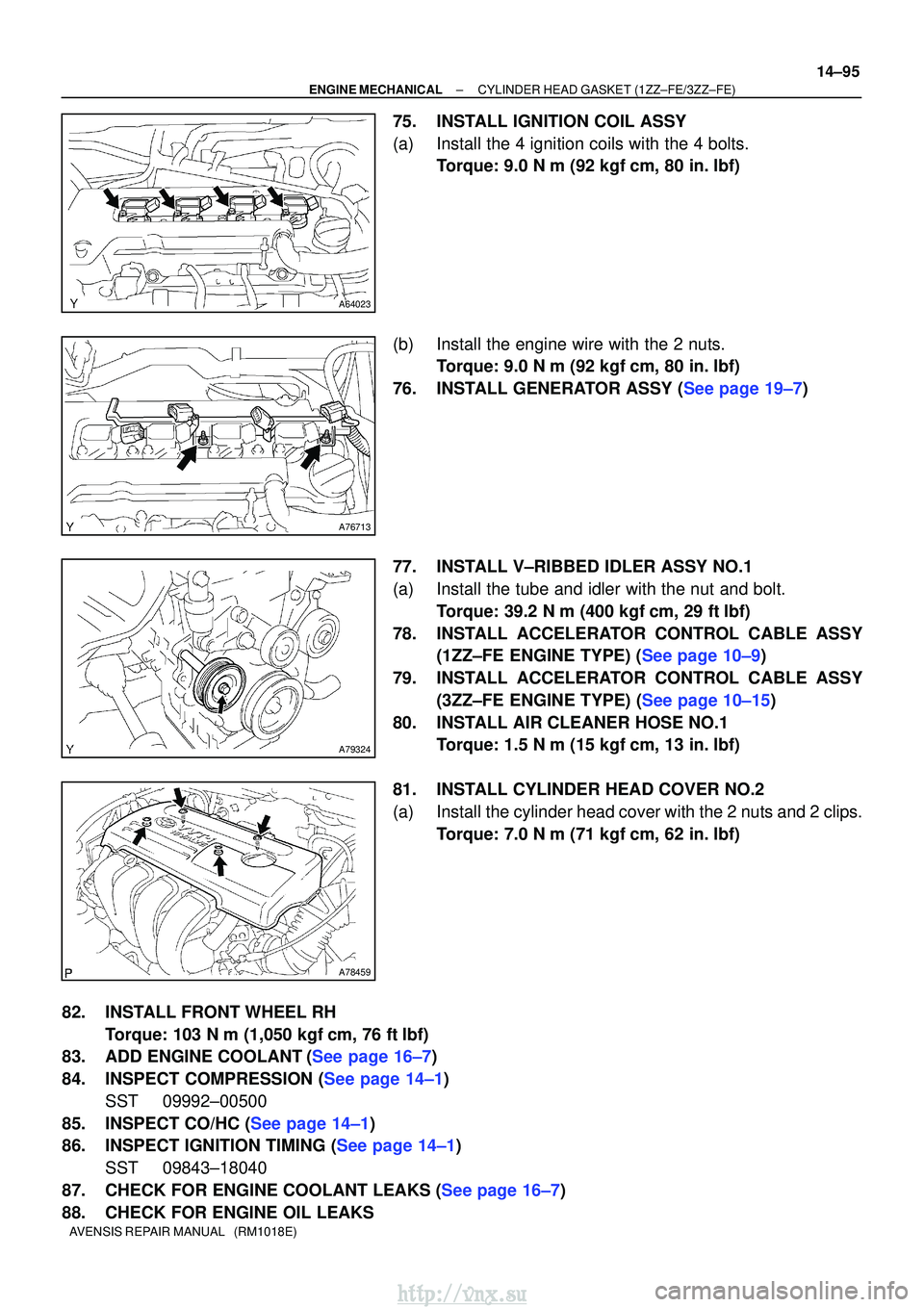

Page 596 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A64023 A76713 A79324 A78459 ± ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE) 14±95 AVENSIS REPAIR MANUAL (RM1018E) 75. INSTALL IGNITION COIL ASSY (a) Install the 4 ignition coils with th

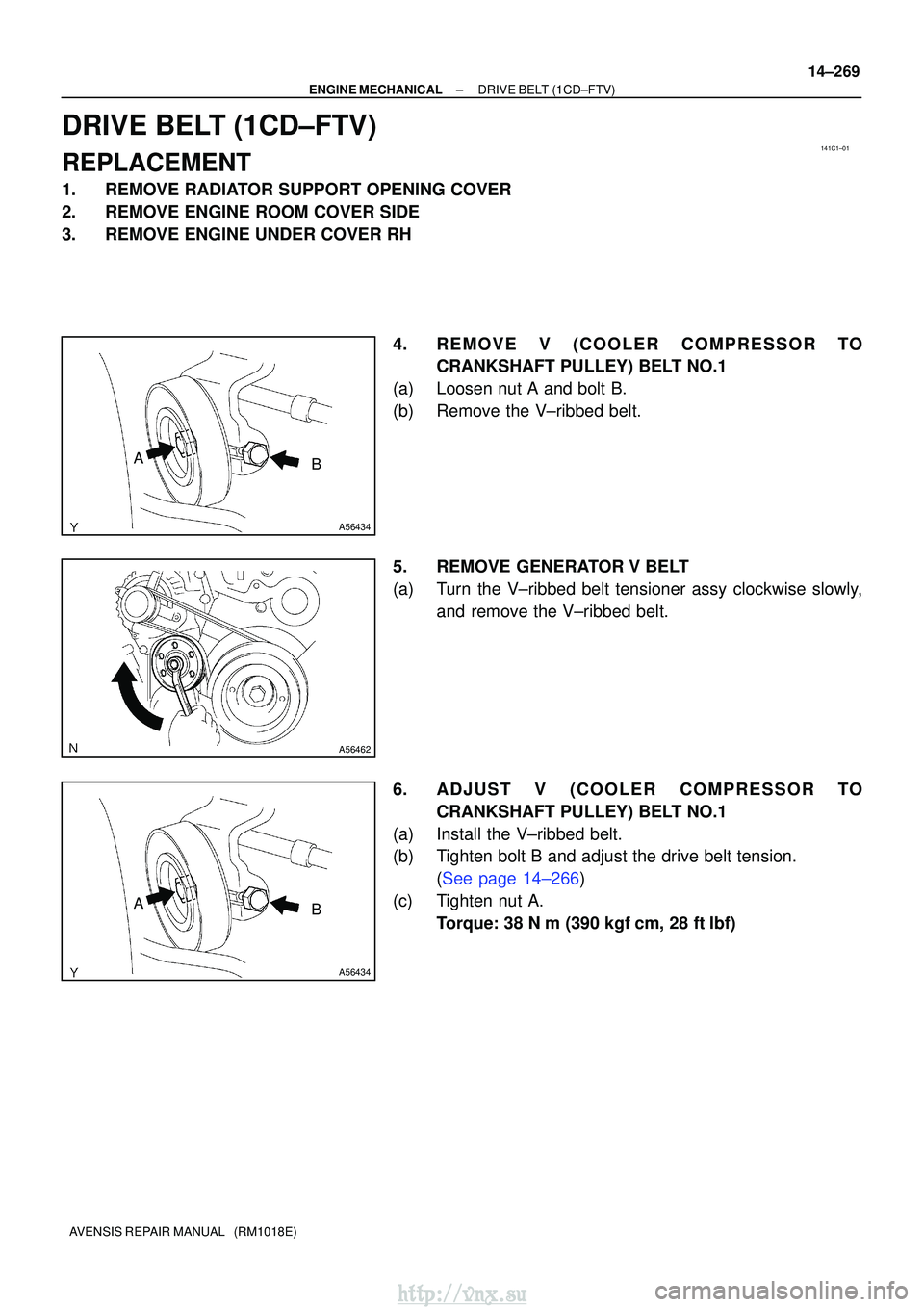

Page 597 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 141C1±01 A56434 AB A56462 A56434 AB ± ENGINE MECHANICALDRIVE BELT(1CD±FTV) 14±269 AVENSIS REPAIR MANUAL (RM1018E) DRIVE BELT(1CD±FTV) REPLACEMENT 1.REMOVE RADIATOR SUPPORT OPENING COVER 2.REMOV

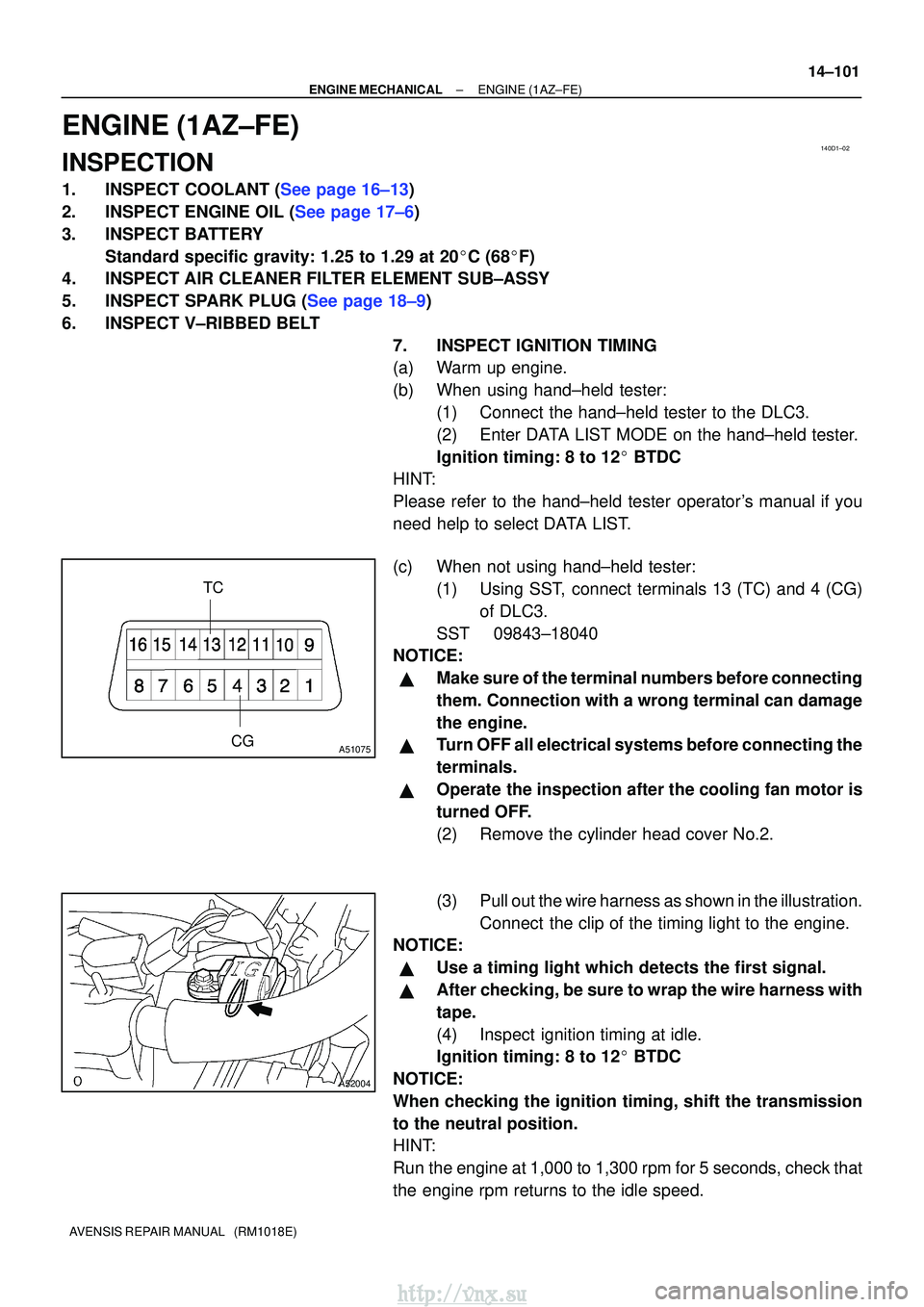

Page 598 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 140D1±02 CG TCA51075 A52004 ± ENGINE MECHANICALENGINE(1AZ±FE) 14±101 AVENSIS REPAIR MANUAL (RM1018E) ENGINE(1AZ±FE) INSPECTION 1.INSPECT COOLANT (See page 16±13) 2.INSPECT ENGINE OIL (See page

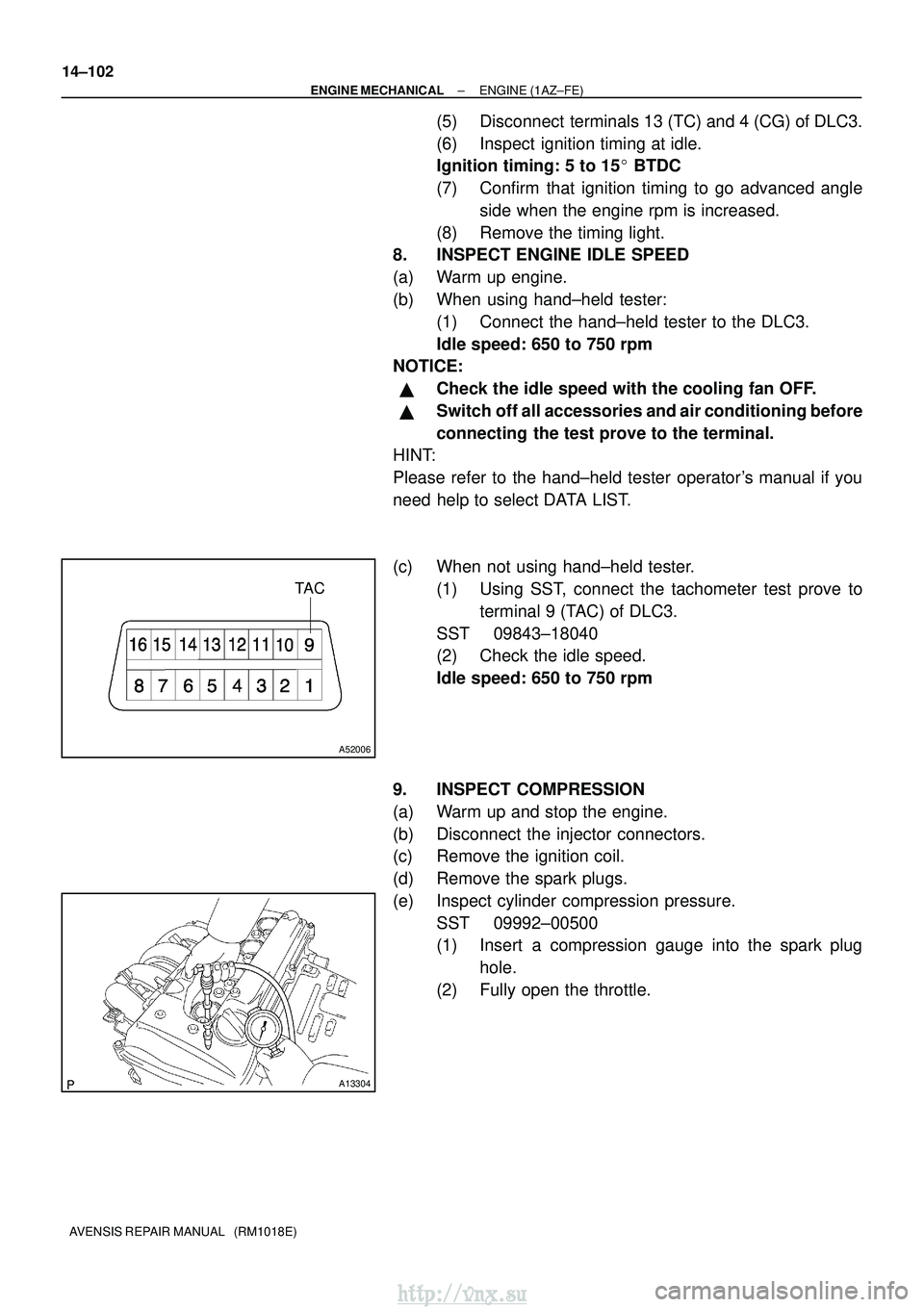

Page 599 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual TA C A52006 A13304 14±102 ± ENGINE MECHANICAL ENGINE (1AZ±FE) AVENSIS REPAIR MANUAL (RM1018E) (5) Disconnect terminals 13 (TC) and 4 (CG) of DLC3. (6) Inspect ignition timing at idle. Ignition t

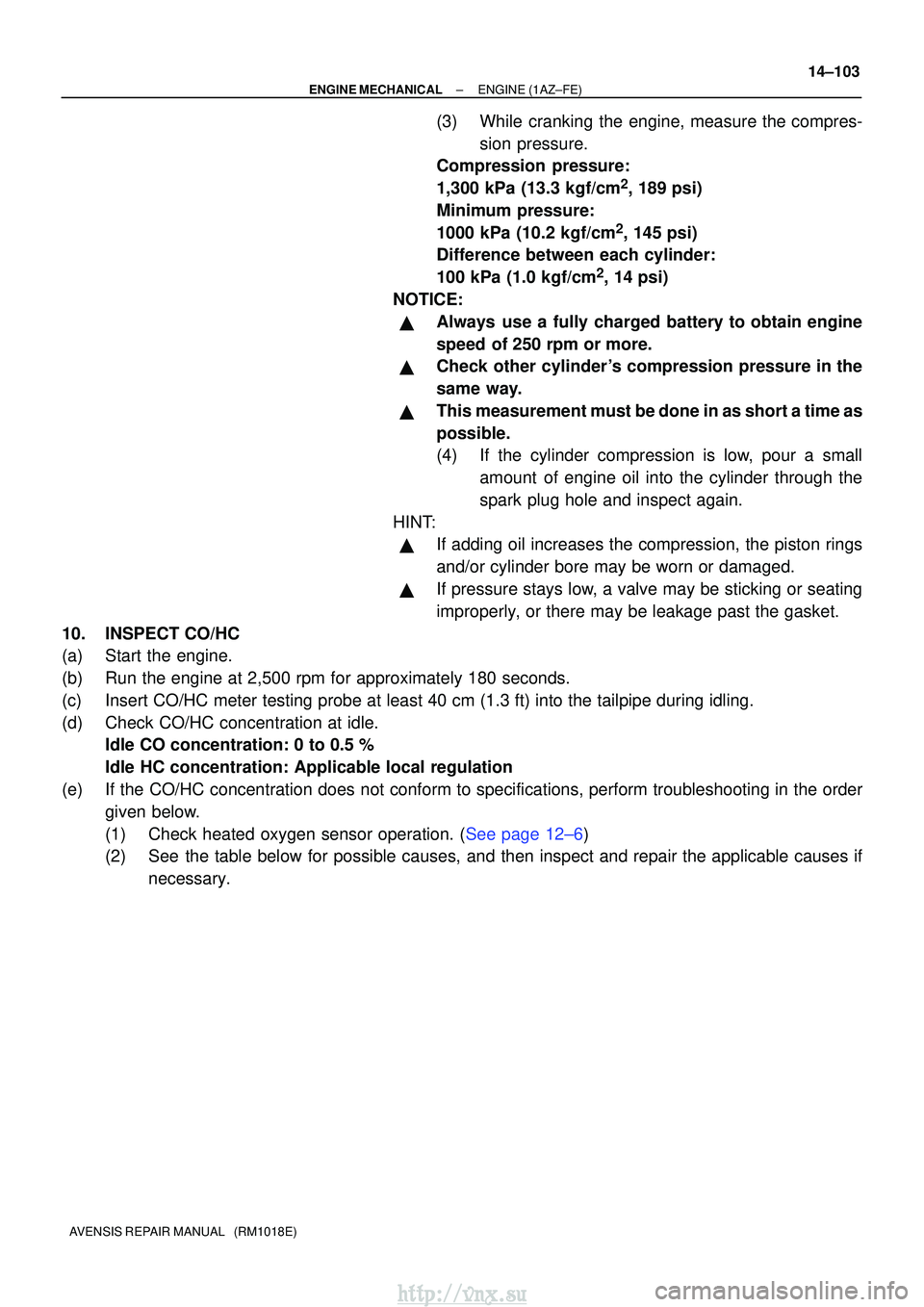

Page 600 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual ± ENGINE MECHANICALENGINE(1AZ±FE) 14±103 AVENSIS REPAIR MANUAL (RM1018E) (3)While cranking the engine, measure the compres- sion pressure. Compression pressure: 1,300 kPa (13.3 kgf/cm 2, 189 psi)
