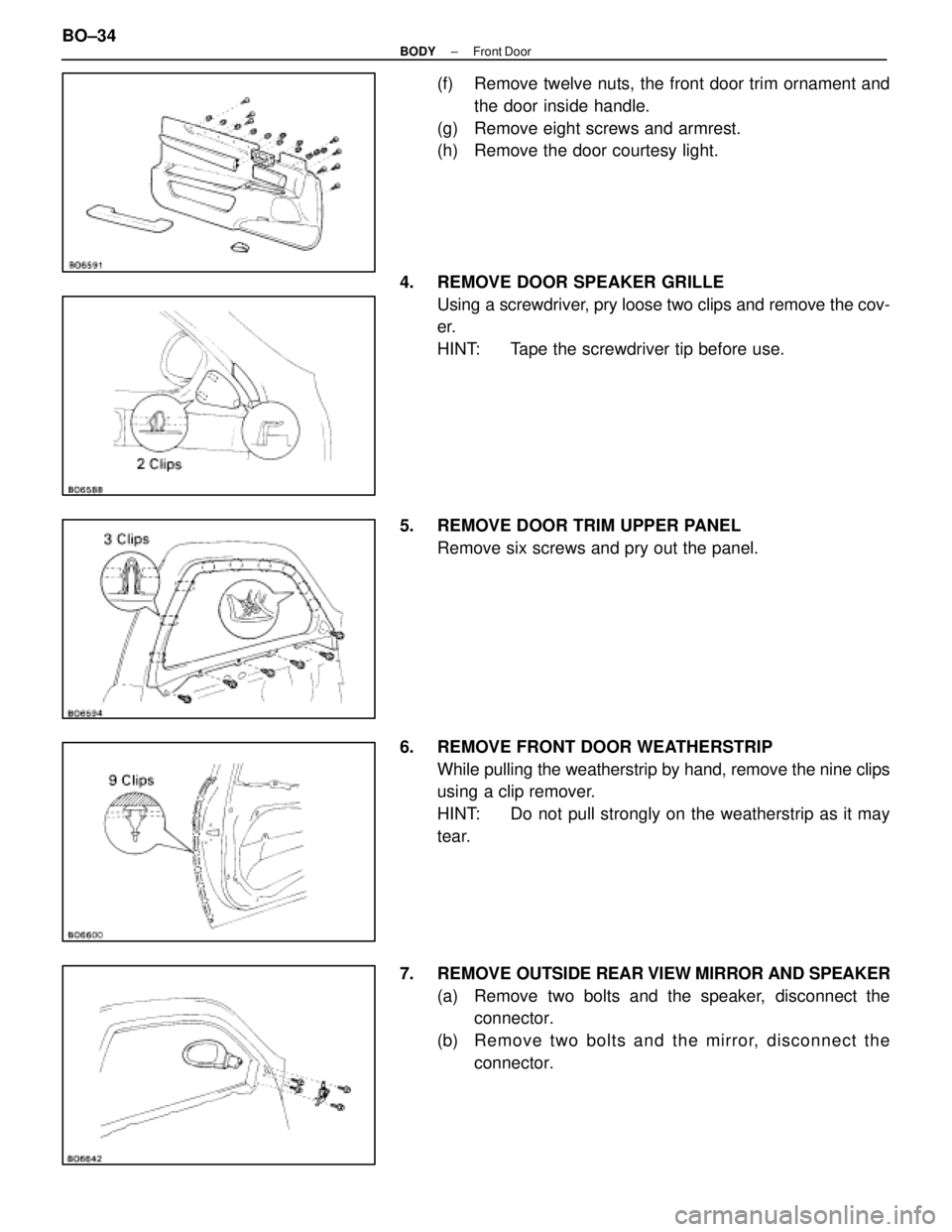

LEXUS SC400 1991 Service Repair Manual (f) Remove twelve nuts, the front door trim ornament andthe door inside handle. (g) Remove eight screws and armrest. (h) Remove the door courtesy light. 4. REMOVE DOOR SPEAKER GRILLE Using a scre

Page 530 of 4087

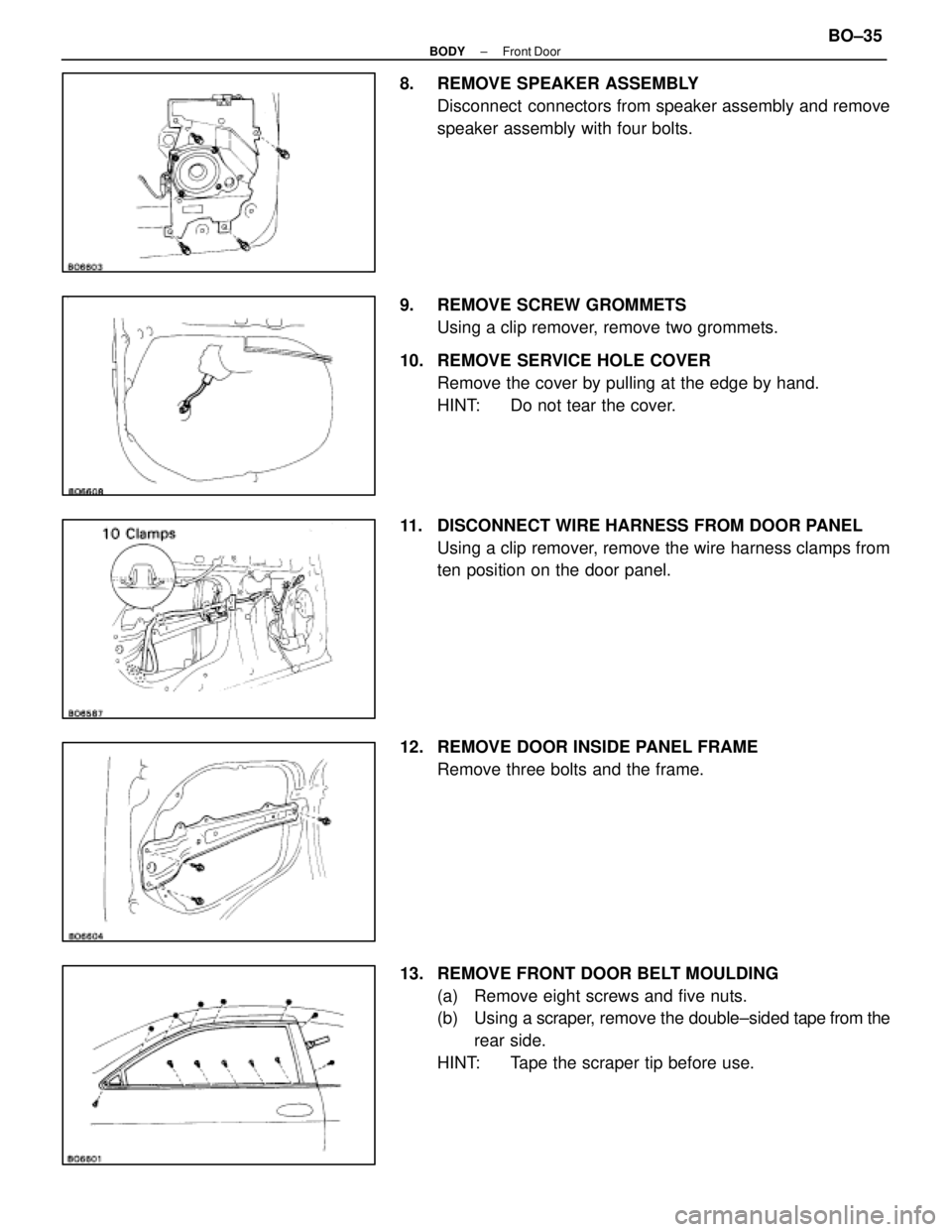

LEXUS SC400 1991 Service Repair Manual 8. REMOVE SPEAKER ASSEMBLYDisconnect connectors from speaker assembly and remove speaker assembly with four bolts. 9. REMOVE SCREW GROMMETS Using a clip remover, remove two grommets. 10. REMOVE S

Page 531 of 4087

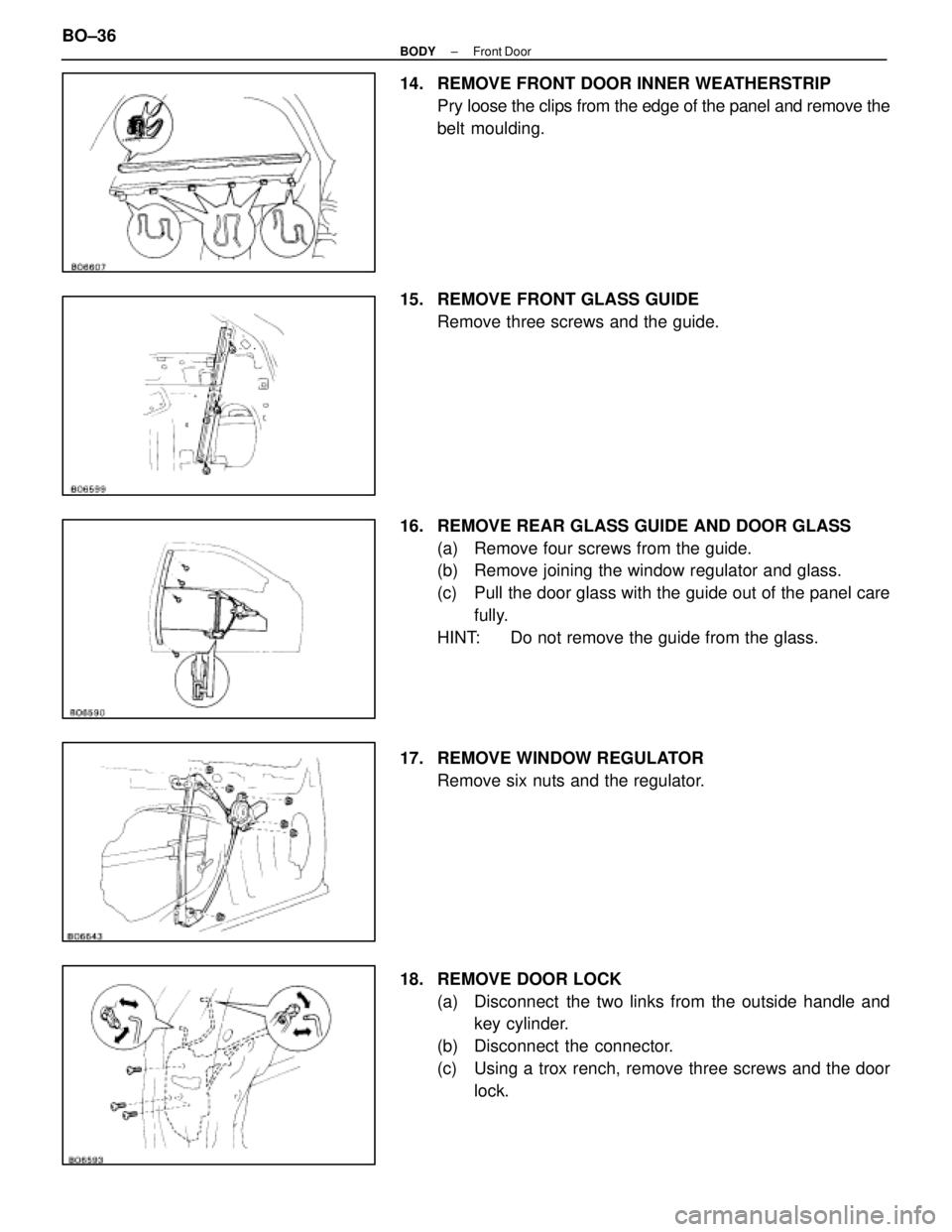

LEXUS SC400 1991 Service Repair Manual 14. REMOVE FRONT DOOR INNER WEATHERSTRIPPry loose the clips from the edge of the panel and remove the belt moulding. 15. REMOVE FRONT GLASS GUIDE Remove three screws and the guide. 16. REMOVE REAR

Page 532 of 4087

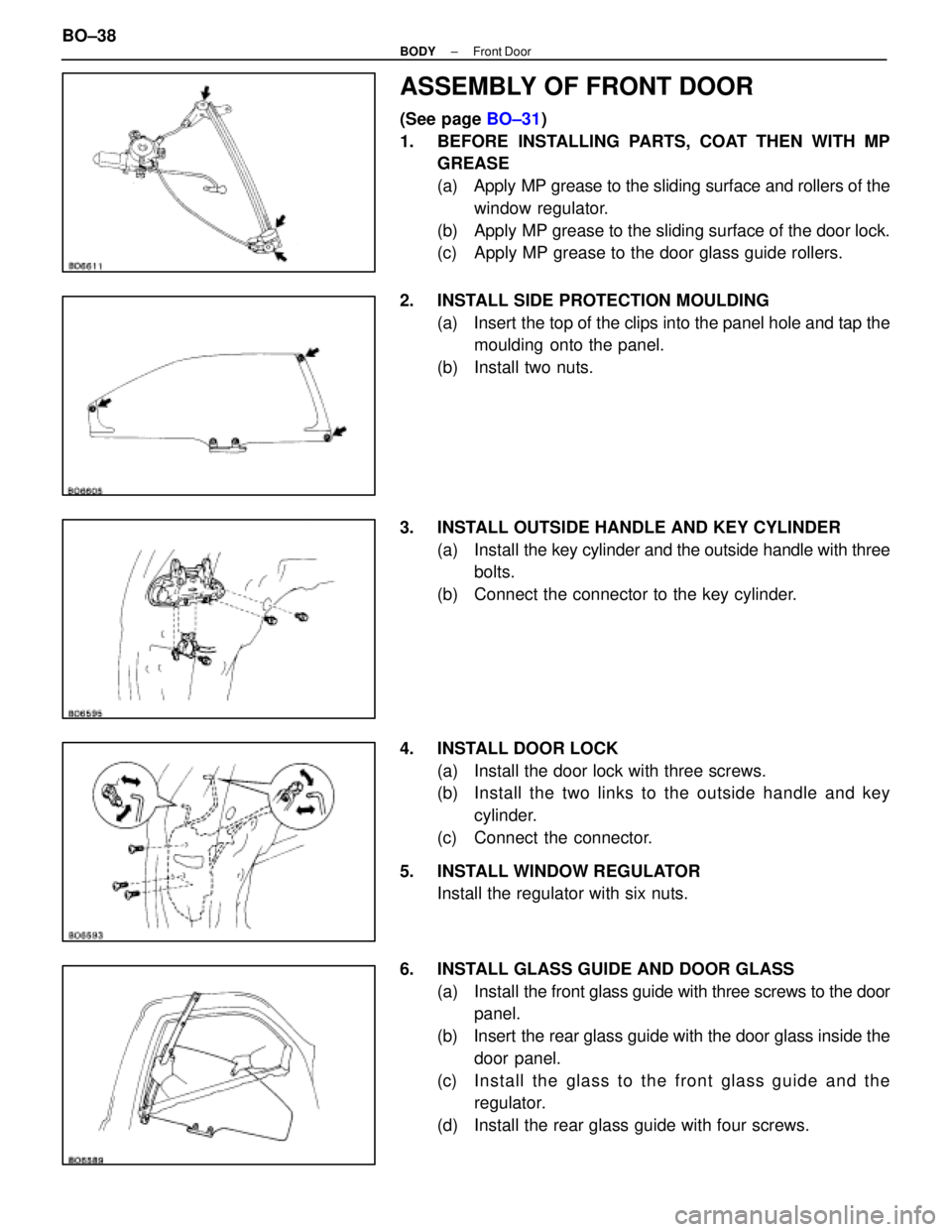

LEXUS SC400 1991 Service Repair Manual 19. REMOVE OUTSIDE HANDLE AND KEY CYLINDER(a) Disconnect the connector from key cylinder. (b) Remove three bolts, key cylinder and outside handle. 20. REMOVE SIDE PROTECTION MOULDING (a) Remove

Page 533 of 4087

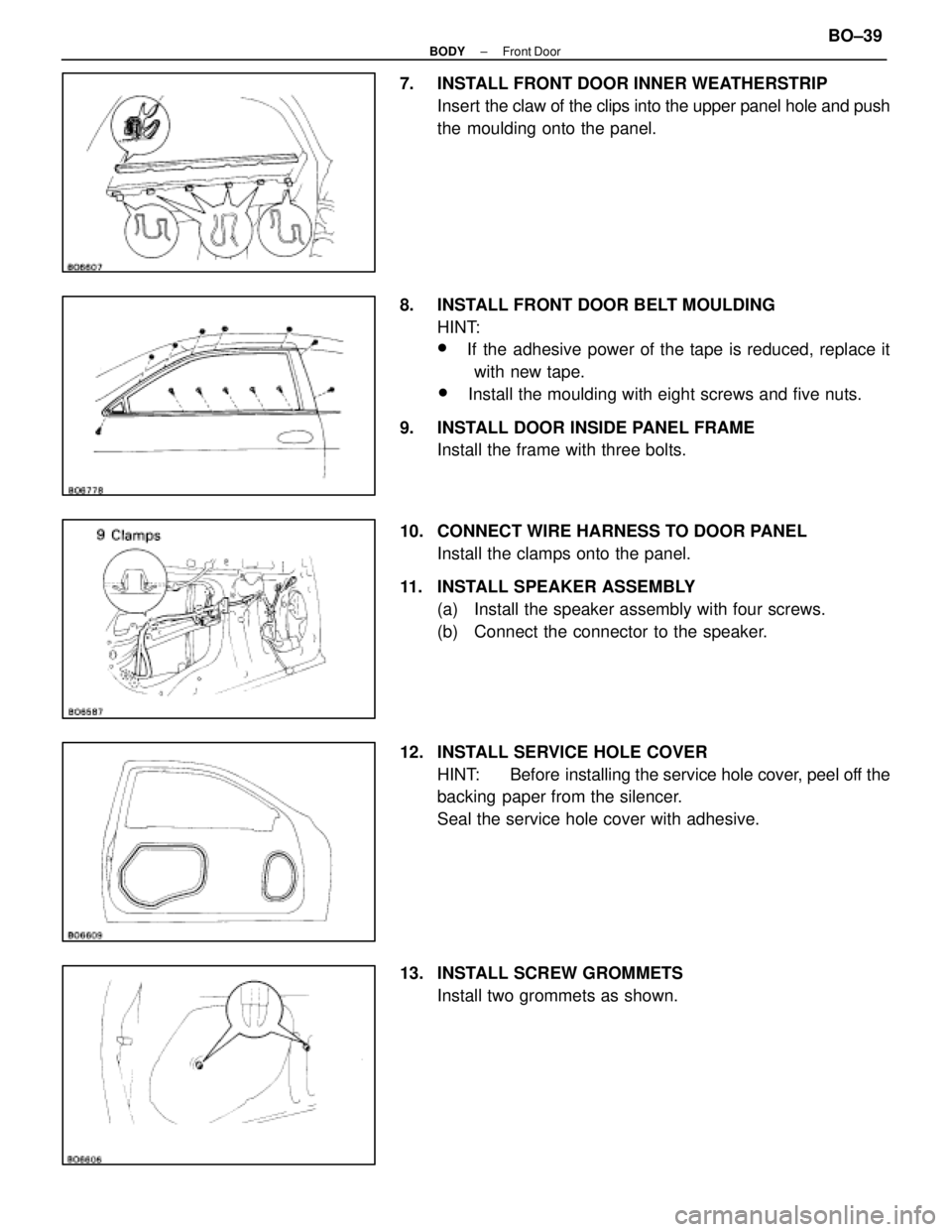

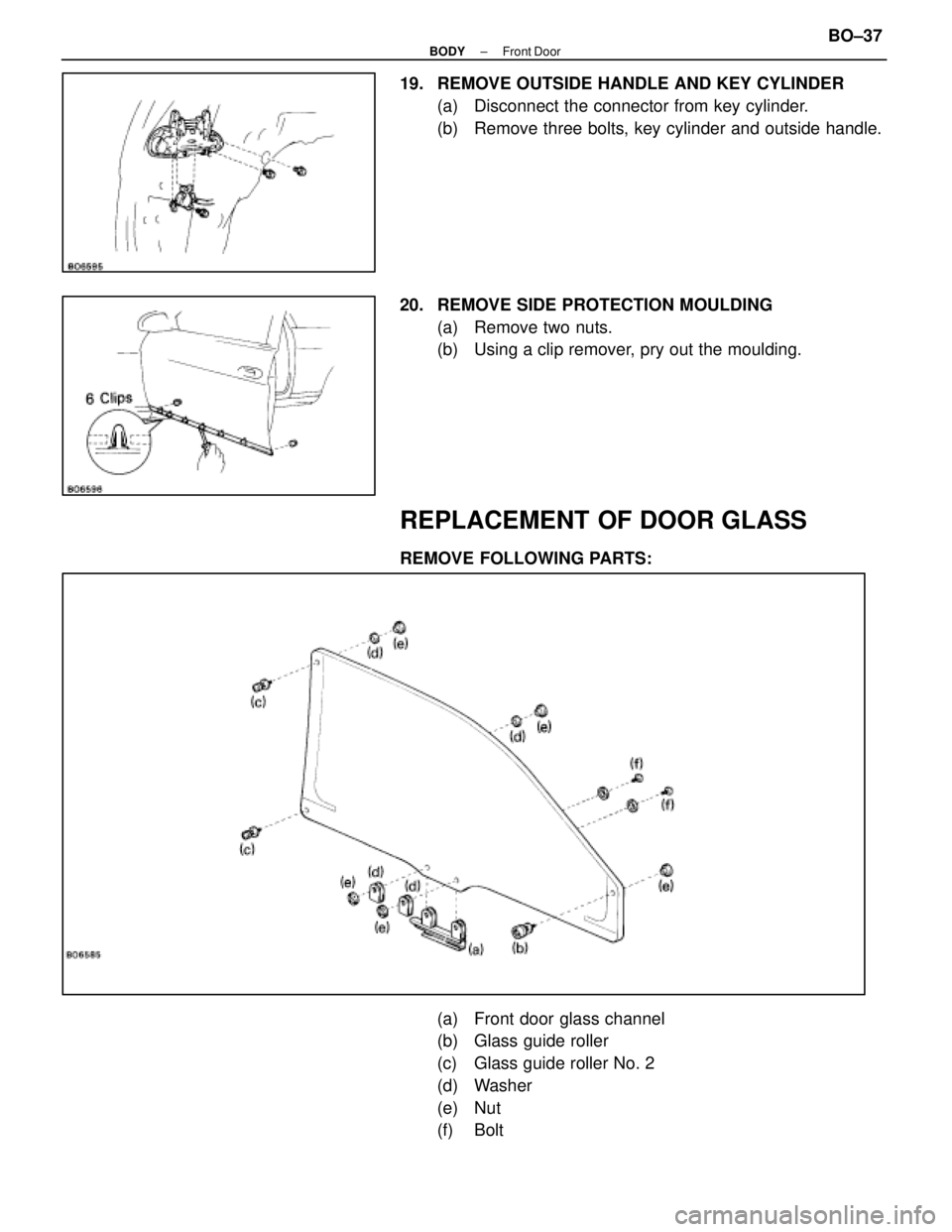

LEXUS SC400 1991 Service Repair Manual ASSEMBLY OF FRONT DOOR (See page BO±31) 1. BEFORE INSTALLING PARTS, COAT THEN WITH MP GREASE (a) Apply MP grease to the sliding surface and rollers of the window regulator. (b) Apply MP grease to

Page 534 of 4087

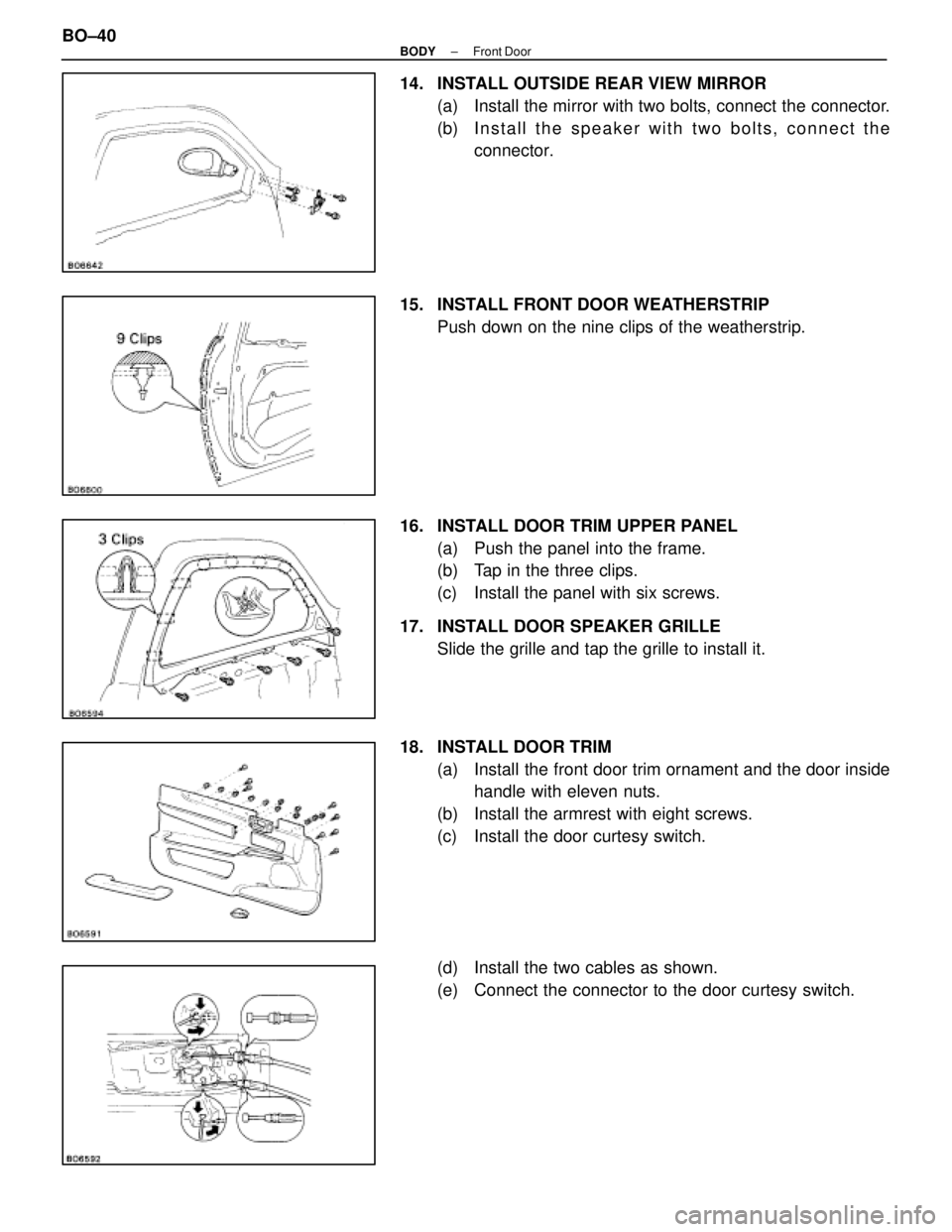

LEXUS SC400 1991 Service Repair Manual 7. INSTALL FRONT DOOR INNER WEATHERSTRIPInsert the claw of the clips into the upper panel hole and push the moulding onto the panel. 8. INSTALL FRONT DOOR BELT MOULDING HINT: wIf the adhesive powe

Page 535 of 4087

LEXUS SC400 1991 Service Repair Manual 14. INSTALL OUTSIDE REAR VIEW MIRROR(a) Install the mirror with two bolts, connect the connector. (b) I n s t a l l t h e s peaker with two bolts, connect the connector. 15. INSTALL FRONT DOOR WEA

Page 536 of 4087

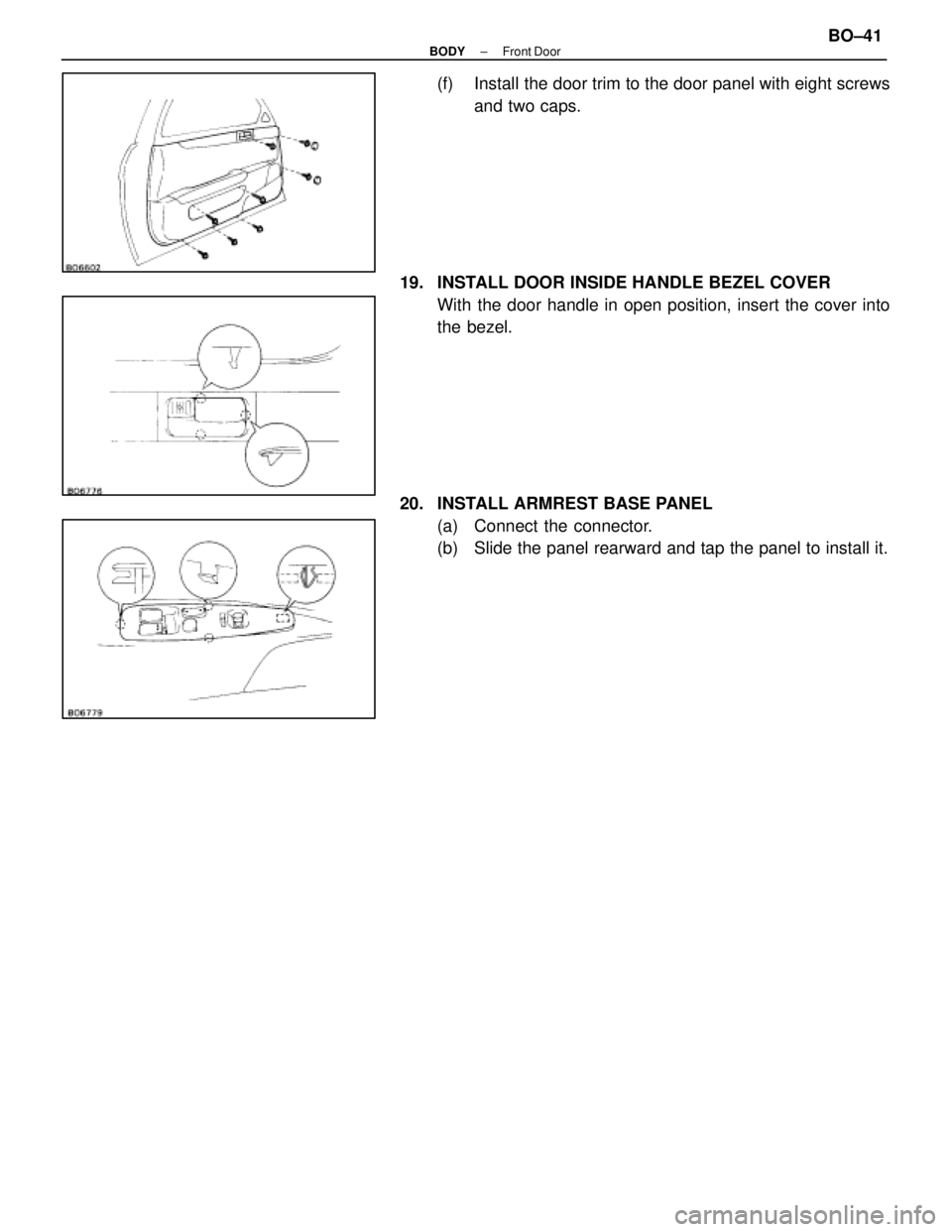

LEXUS SC400 1991 Service Repair Manual (f) Install the door trim to the door panel with eight screwsand two caps. 19. INSTALL DOOR INSIDE HANDLE BEZEL COVER With the door handle in open position, insert the cover into the bezel. 20. IN
