5. INSPECT WATER TEMPERATURE SENSORUsing an ohmmeter, measure the resistance between the ter-
minals.
Resistance: 1.48±1.58 k at 80 5C (176 5F)
If the resistance is not as specified, replace the sensor.
6. REINSTALL WATER TEMPERATURE SENSOR (a) Install a new O±ring to the water temperature sensor.
(b) Apply soapy water to the O±ring.
(c) Install the water temperature sensor to the radiator.
Torque: 7.4 N Vm (75 kgf Vcm, 65 in. Vlbf)
(d) Connect the water temperature sensor connector.
7. REFILL WITH ENGINE COOLANT (See page CO±7)
8. REINSTALL ENGINE UNDER COVER
9. RECONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY
(A/C High±Pressure Switch)
INSPECTION OF A/C HIGH±PRESSURE
SWITCH
1. DISCONNECT HIGH±PRESSURE SWITCH CONNECTOR
2. INSTALL MANIFOLD GAUGE SET (See AC section)
3. INSPECT HIGH±PRESSURE SWITCH(a) Wh e n th e A/C switch is OFF, ch e ck th a t th e re iscontinuity between terminals 2 and 3. (When the
pressure is 1,226 kPa (12.5 kgf/cm
2, 178 psi) or lower.)
(b) When the A/C switch and blower switch are ON, check
that there is no continuity between terminals 2 and 3.
(When the pressure is 1,520 kPa (15.5 kgf/cm
2, 220 psi)
or higher.)
If continuity is not as specified, replace the switch.
4. REMOVE MANIFOLD GAUGE SET
5. RECONNECT HIGH±PRESSURE SWITCH CONNECTOR
(Solenoid Valve)
(See page CO±36)
±
COOLIING SYSTEM Electronically Controlled Hydraulic
Cooling Fan (Electronic Control Parts)CO±63
WhereEverybodyKnowsYourName
Page 2850 of 4087

SERVICE SPECIFICATIONS
SERVICE DATA
ThermostatValve opening temperature80±845C176±183 5F
Valve liftat 95 5C (203 5F) 10 mm0.39 in.
Radiator capRelief valve opening pressureSTD74±103 kPa
(0.75±1.05 kgf/cm, 10.7±14.9 psi)
Limit 59 kPa 0.6 kgf/cm 8.5 psi
On±vehicle
itifh
Oil pressure1,177±2,452 kPa
inspection for hy-
draulic cooling(12±25 kgf/cm, 171±356 psi)draulic cooling
fan
fan
Hydraulic pumpSpool valve45.8 mm1.803 in.
Rotor side clearanceSTD Drive rotor 0.02 mm0.0008 in.
Driven rotor 0.03 mm0.0012 in.
Limit Drive rotor 0.03 mm0.0012 in.
Driven rotor 0.04 mm0.0016 in.
Rotor body clearanceSTD 0.05±0.09 mm0.0020±0.0035 in.
Limit 0.10 mm0.0039 in.
Rotor tip clearanceSTD 0.02 mm0.0008 in.
Limit 0.03 mm0.0012 in.
Drive shaft bushing inside diameter17.00±17.05 mm0.6693±0.6713 in.
Drive shaft diameter16.97±16.98 mm0.6681±0.6685 in.
Drive shaft oil clearanceSTD 0.02±0.08 mm0.0008±0.0031 in.
Limit 0.08 mm0.0031 in.
Drive shaft preload (rotating torque)0.3 N Vm 3.0 kgf Vcm 2.6 in. Vlbf
Solenoid valve resistanceat cold 7.5±8.5
Hydraulic motorRotor side clearanceSTD0.01±0.04 mm0.0004±0.0016 in.
Limit 0.05 mm0.0020 mm
Drive shaft hole inside diameter14.000±14.011 mm0.5512±0.5516 in.
Drive shaft diameter13.973±13.984 mm0.5501±0.5506 in.
Drive shaft oil clearanceSTD 0.016±0.038 mm0.0006±0.0015 in.
Limit 0.04 mm0.0031 in.
Drive shaft preload (rotating torque)0.3 NVm 3.0 kgf Vcm 2.6 in. Vlbf
Water temp. Resistanceat 80 5C (176 5F)1.48±1.58 k
sensor
CO±64±
COOLIING SYSTEM Service Specifications
WhereEverybodyKnowsYourName
Page 2851 of 4087

TORQUE SPECIFICATIONS
Part tightenedNVmkgf Vcmft Vlbf
Engine drain plug X Cylinder block1818013
Coolant filler plug X Water inlet housing44450 33
Water pump X Cylinder block18185 13
Water inlet housing X Water pump18185 13
Water inlet X Water inlet housing18185 13
Radiator fan shroud X Radiator4.950 43 in. Vlbf
Radiator X Body12120 9
Cooling fan reservoir tank X Radiator fan shroud4.950 43 in. Vlbf
Cooling fan inlet pipe X Radiator fan shroud4.950 43 in. Vlbf
Cooling fan pressure hose X Hydraulic motor64650 47
Radiator reservoir tank X Upper radiator support4.950 43 in. Vlbf
Radiator reservoir tank X Radiator reservoir tank support4.950 43 in. Vlbf
Hydraulic pump rear housing X End plug (for spool valve)19200 14
Hydraulic pump front housing X Rear housing21210 15
Hydraulic pump pulley X Drive shaft59600 43
Solenoid valve X Hydraulic pump rear housing39400 28
Hydraulic pump suction port union X Rear housing13135 10
Hydraulic pump X Cylinder block 12 mm head 16 160 12
14 mm head 20 310 22
\
\
Cooling fan pressure hose X Hydraulic pump 64 650 47
\
\
RH No.2 timing belt cover X Cylinder block 16 160 12
\
\
Drive belt idler pulley X Hydraulic pump 37 380 27
\
\
A/C compressor X Hydraulic pump 49 500 36
\
\
A/C compressor X Cylinder block 49 500 36\
\
A/C compressor stay X Oil filter bracket 29 300 22\
\
Hydraulic motor cover X Motor housing 28 290 21\
\
\
Hydraulic motor X Radiator fan shroud
4.9
50
43 in.
Vlbf
\
\
Cooling fan X Hydraulic motor 15 150 11
\
\
Cooling fan oil cooler X Body 18 180 13
\
\
Water temperature sensor X Radiator 7.4 75 65 in. Vlbf
±
COOLIING SYSTEM Service SpecificationsCO±65
WhereEverybodyKnowsYourName
Page 2852 of 4087
EMISSION CONTROL SYSTEM
NOTE: The specification descriptions ºUSA Spec.º and
º Exc. USA Spec. º used in this section indicate the following
specifications.
USA Spec .: USA (50 States) Specifications
Exc. USA Spec .: USA (except California) and Canadian
Specifications.
EC±1
WhereEverybodyKnowsYourName
Page 2853 of 4087
DESCRIPTION
The emission control systems are installed to reduce the amount of HC, CO, \
and NOx emitted from the en-
gine, and to also prevent the release of evaporated fuel from the gasoline ta\
nk and prevent atmospheric release
of blow±by gas. The system consists of the PCV, EVAP, EGR and TWC.
The function of each system is shown in the following table.
System
Abbreviation
Purpose
Positive crankcase ventilation
PCV
Reduces blow±by gas (HC)
Fuel evaporative emission control
EVAP
Reduces evaporative HC
Exhaust gas recirculation
EGR
Reduces NOx
Three±way catalyst
TWC
Reduces HC, CO, and NOx
Electronic fuel injection*
EFI
Regulates all engine conditions for
reduction of exhaust emissions.
Remarks: * For inspection and repair of the EFI system, refer to EFI sec\
tion.

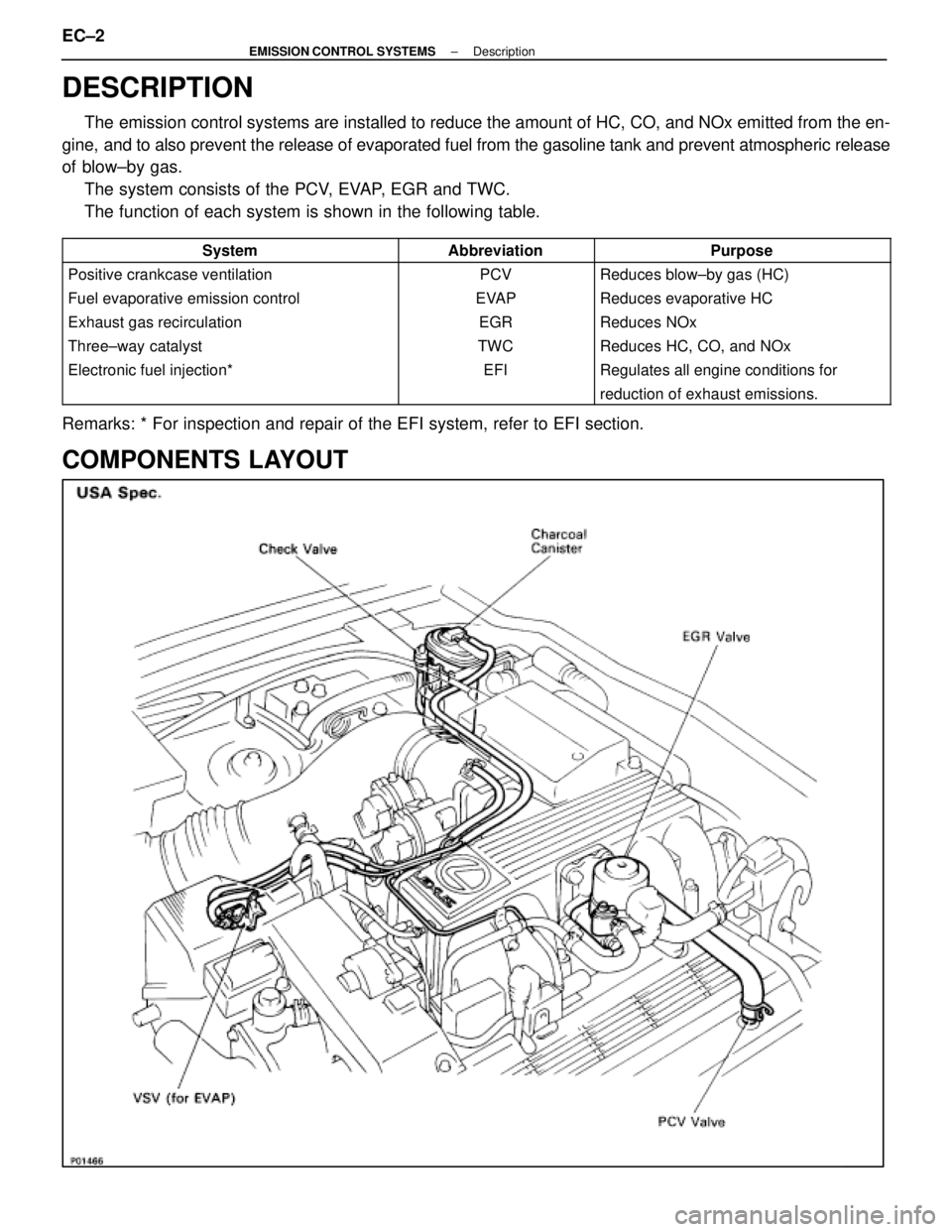

COMPONENTS LAYOUT
EC±2±
EMISSION CONTROL SYSTEMS Description
WhereEverybodyKnowsYourName
Page 2854 of 4087
COMPONENTS LAYOUT (Cont'd)
±
EMISSION CONTROL SYSTEMS DescriptionEC±3
WhereEverybodyKnowsYourName
Page 2855 of 4087

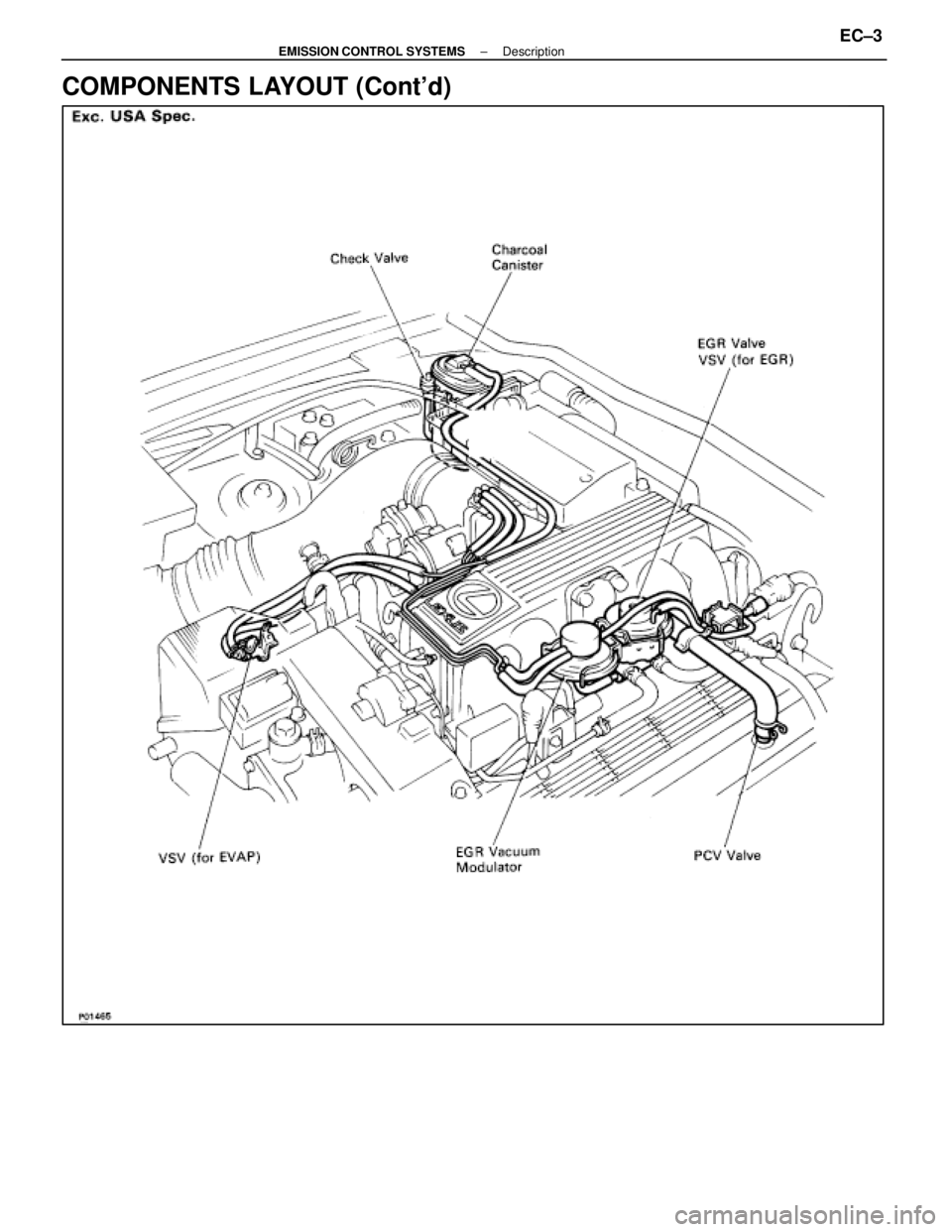

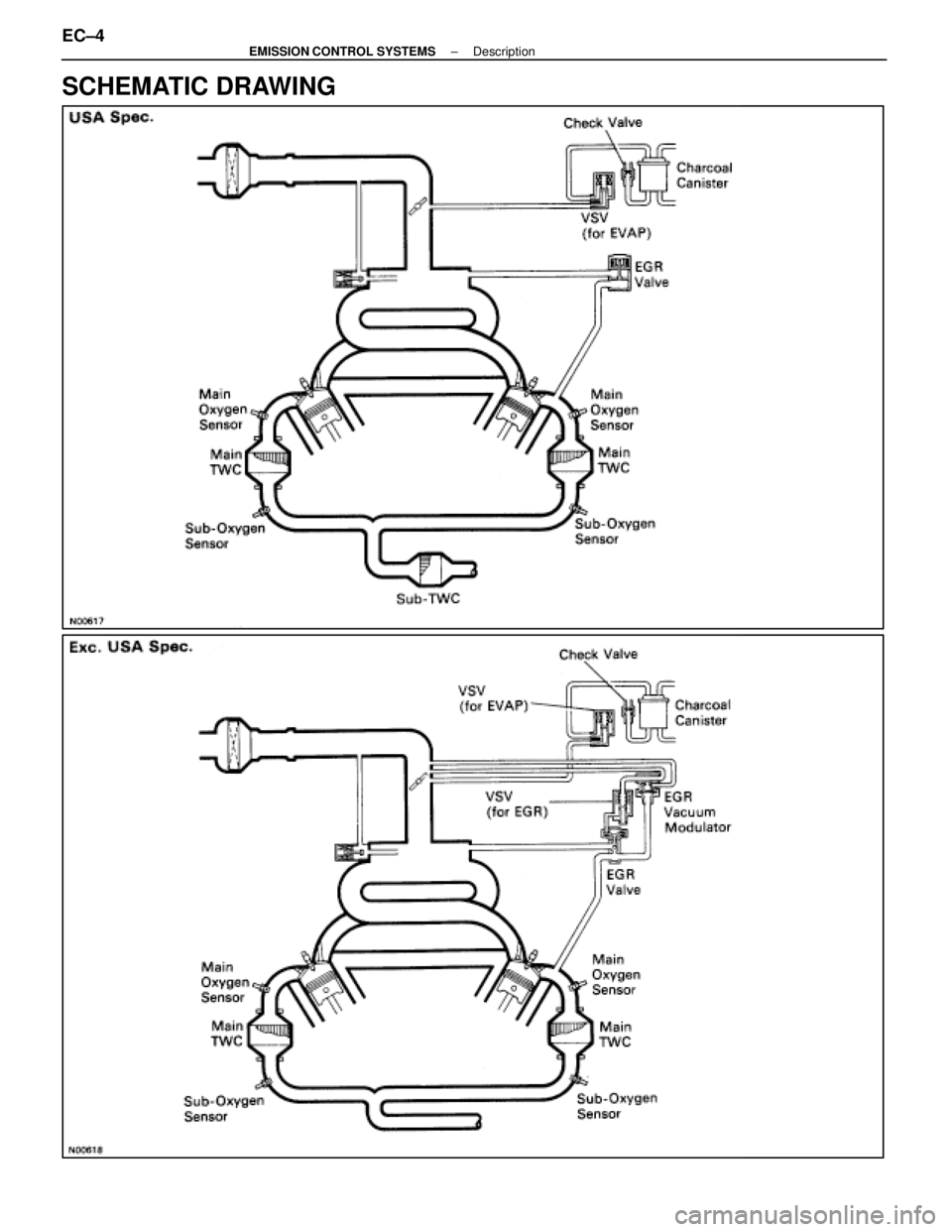

SCHEMATIC DRAWING
EC±4±
EMISSION CONTROL SYSTEMS Description
WhereEverybodyKnowsYourName
Page 2856 of 4087
PREPARATION

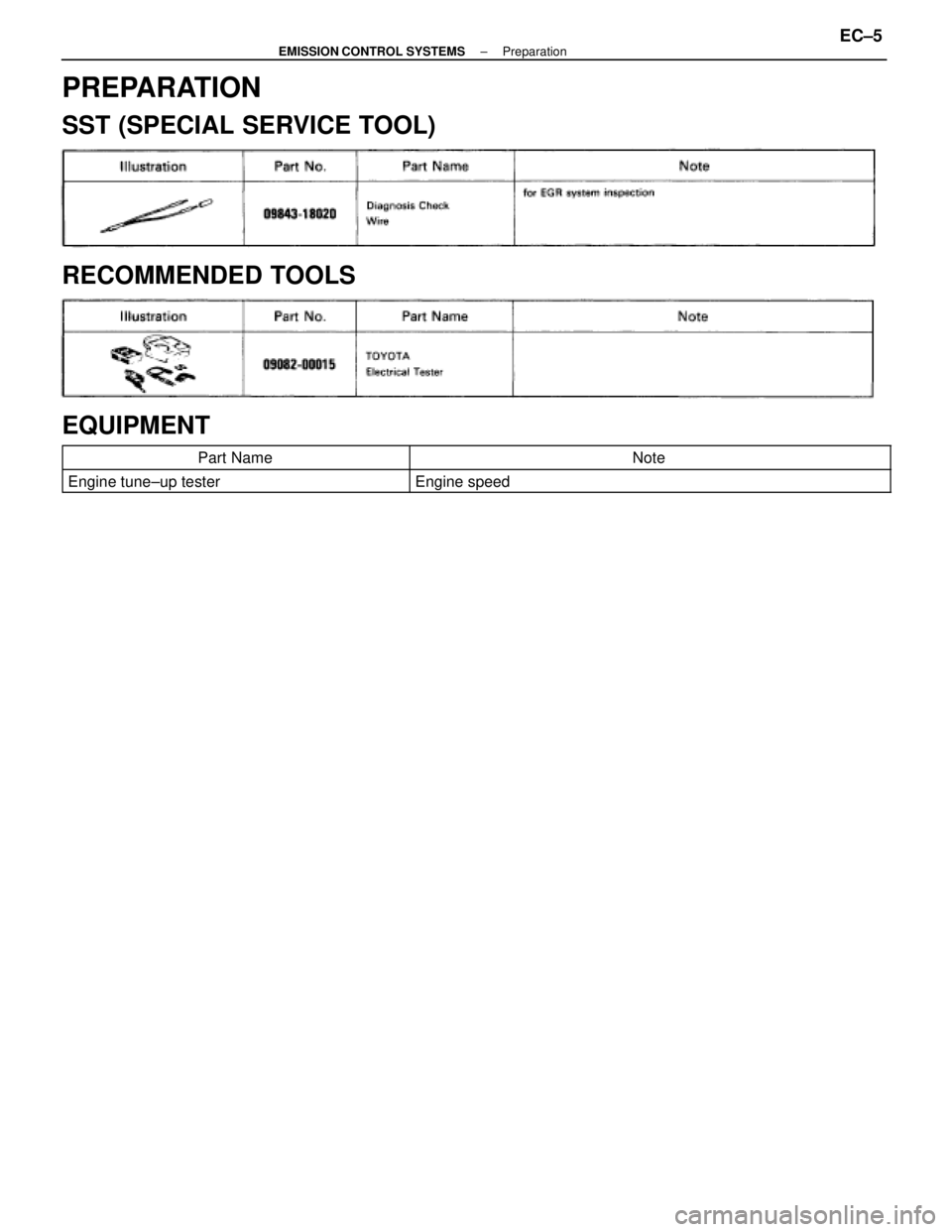

SST (SPECIAL SERVICE TOOL)
RECOMMENDED TOOLS
EQUIPMENT
Part NameNote
Engine tune±up testerEngine speed
±
EMISSION CONTROL SYSTEMS PreparationEC±5
