DIAGNOSIS SYSTEM
Warning for A/C compressor lock
If compressor lock occurs during air conditioner operation, the
( A/C ) switch indicator on the air conditioner control assembly
starts blinking to warn the driver.
When this occurs, check for compressor lock (code 22) using diag-
nostic code check then proceed to inspect the circuit or the com-
ponent.
Compressor lock sensor circuit page AC±54.
LIST OF OPERATION METHODS
By operating each of the air conditioner control switches as shown in the \
diagram below, it is possible to enter
the diagnosis check mode. AC±26
±
AIR CONDITIONING SYSTEM Troubleshooting
WhereEverybodyKnowsYourName
Page 66 of 4087

INDICATOR
1. Turn the ignition switch on while pressing the ari conditioner control
switch and REC swich
simultaneously.
2. Check that all the indicators light up and go off at 1 second intervals 4 times in succession.
3. Check that the buzzer sounds when the indicators light up in 2.
HINT:
wAfter the indicator check is ended, the diagnostic code
check begins automatically.
w Press the OFF switch when desiring to cancel the check
mode.
DIAGNOSTIC CODE CHECK (SENSOR
CHECK)
1. Perform an indicator check. After the indicator check is completed, the system enters the diagnostic code check
mode automatically.
2. Read the code displayed on the panel. Refer to the list of
codes on page AC±28 when reading the codes. (Codes are
output at the temperature display.)
If the slower display ped is desired, press the FRS
switch and change it to stepped operation. Each time the
FRS
switch is pressed, the display changes by 1 step.
HINT:
w If the buzzer sounds when a code is being read, it means
the trouble indicated by that code continues to occur.
w If the buzzer does not sound when a code is being read,
it means the trouble indicated by that code occurred ear-
lier (such as poor connector contacts, etc.)
CLEARING DIAGNOSTIC CODES
1. Pull out the DOME fuse in Relay Block No. 2 for 10 sec. or
longer to clear the memory of diagnostic codes.
2. After reinserting the fuse, check that the normal code is output.
±
AIR CONDITIONING SYSTEM TroubleshootingAC±27
WhereEverybodyKnowsYourName
Page 67 of 4087

DIAGNOSTIC CODE CHART
If a malfunction code is displayed during the diagnostic code check (sens\
or check), check the circuit listed for
that code in the table below (Proceed to the page given for that circuit.)\
Code No.Diag. Code Detecting Condition
00 Normal
11 *1 Open or short in room temperature sensor circuit.
12 Open or short in ambient temperature sensor circuit.
13 Open or short in evaporator temperature sensor circuit.
14*2 Open or short in water temperature sensor circuit.
21*3 Open in solar sensor circuit.
21*3
Short in solar sensor circuit.
22*4
All conditions below are detected for 3 secs. or more.
(a) Engine rpm : 450 rpm or more.
(b) Ratio between engine and compressor rpm deviates 20% or more in c\
omparison to normal
operation.
23
Open in pressure sensor circuit.
Abnormal refrigerant pressure below 206 kPa (2.1 kgf/cm, 30 psi)
over 2,650 kPa (27 kgf/cm, 385 ps\
i)
31 Short to ground or power source circuit in Air Mix Damper position sens\
or circuit.
32 Short to ground or power source circuit in Air Inlet Damper position se\
nsor circuit.
33 Short to ground or power source circuit in Air Outlet Damper position s\
ensor circuit.
41 Air mix damper position sensor value does not change even if ECU operat\
es air mix servomotor.
42 Air inlet damper position sensor value does not change even if ECU oper\
ates air inlet servomotor.
43 Air outlet damper position sensor value does not change even if ECU ope\
rates air outlet
servomotor.
HINT: *1 If the room temp. is approx. ±20 °C (±4 °F) or lower, code 11 may be output even though the system
is normal.
*2 If the ambient temperature is approx. ±50 °C (±58 °F) or lower, a malfunction code may be output
even though the system is normal.
*3 If the check is being performed in a dark place, diagnostic code 21 (so\
lar sensor circuit abnormal) could be displayed.
In this case, perform diagnostic code check again while shining a light,\
such as an inspection light,
on the solar sensor.
If code 21 is still displayed, there could be trouble in the solar senso\
r circuit
AC±28
±
AIR CONDITIONING SYSTEM Troubleshooting
WhereEverybodyKnowsYourName
Page 68 of 4087

Trouble AreaMemory*5See page
±±±
Room temp. Sensor
Harness or connector between room temp. sensor and A/C control assembly\
A/C control assemblyO
(8.5 min. or more)AC±44
Ambient temp. sensor
Harness or connector between ambient temp. sensor and A/C control assem\
bly
A/C control assemblyO
(8.5 min. or more)AC±46
Evaporator temp. sensor
Harness or connector between evaporator temp. sensor and A/C control
assembly A/C control assemblyO
(8.5 min. or more)AC±48
Water temp. sensor
Harness or connector between water temp. sensor and A/C control assembl\
y
A/C control assemblyO
(8.5 min. or more)AC±50
Solar sensor
H b d A/C l bl
±
AC 52 Solar sensor
Harness or connector between sensor and A/C control assembly
A/C control assemblyOAC±52
A/C control assemblyO
(8.5 min. or more)
Compressor drive belt Compressor lock sensor Compressor
Harness and connector between A/C control assembly and compressor,
compressor lock sensor
A/C control assembly
±AC±54
Pressure switch
Harness or connector between pressure switch and A/C control assembly
Refrigerant pipe line
A/C control assembly
±AC±56
Air mix damper position sensor A/C control assembly
Harness or connector between air mix damper position sensor and
A/C control assemblyO
(1 min. or more)AC±58
Air inlet damper position sensor A/C control assembly
Harness or connector between air inlet damper position sensor and
A/C control assemblyO
(1 min. or more)AC±62
Air outlet damper position sensor A/C control assembly
Harness or connector between air outlet damper position sensor and
A/C control assemblyO
(1 min. or more)AC±66
Air mix servomotor Air mix damper position sensor
Harness and connector between A/C control assembly and air mix position\
sensor
Harness and connector between A/C control assembly and air mix servomot\
or.O
(15 secs. or more)AC±58
AC±60
Air inlet servomotor Air inlet damper position sensor
Harness and connector between A/C control assembly and air inlet positi\
on sensor.
Harness and connector between A/C control assembly and air inlet servom\
otor.O
(15 secs. or more)AC±62
AC±64
Air outlet servomotor Air outlet damper position sensor
Harness and connector between A/C control assembly and air outlet posit\
ion
sensor.
Harness and connector between A/C control assembly and air outlet servo\
motor.
A/C control assembly
O
(15 secs. or more)AC±66
AC±68
±
AIR CONDITIONING SYSTEM TroubleshootingAC±29
WhereEverybodyKnowsYourName
Page 69 of 4087

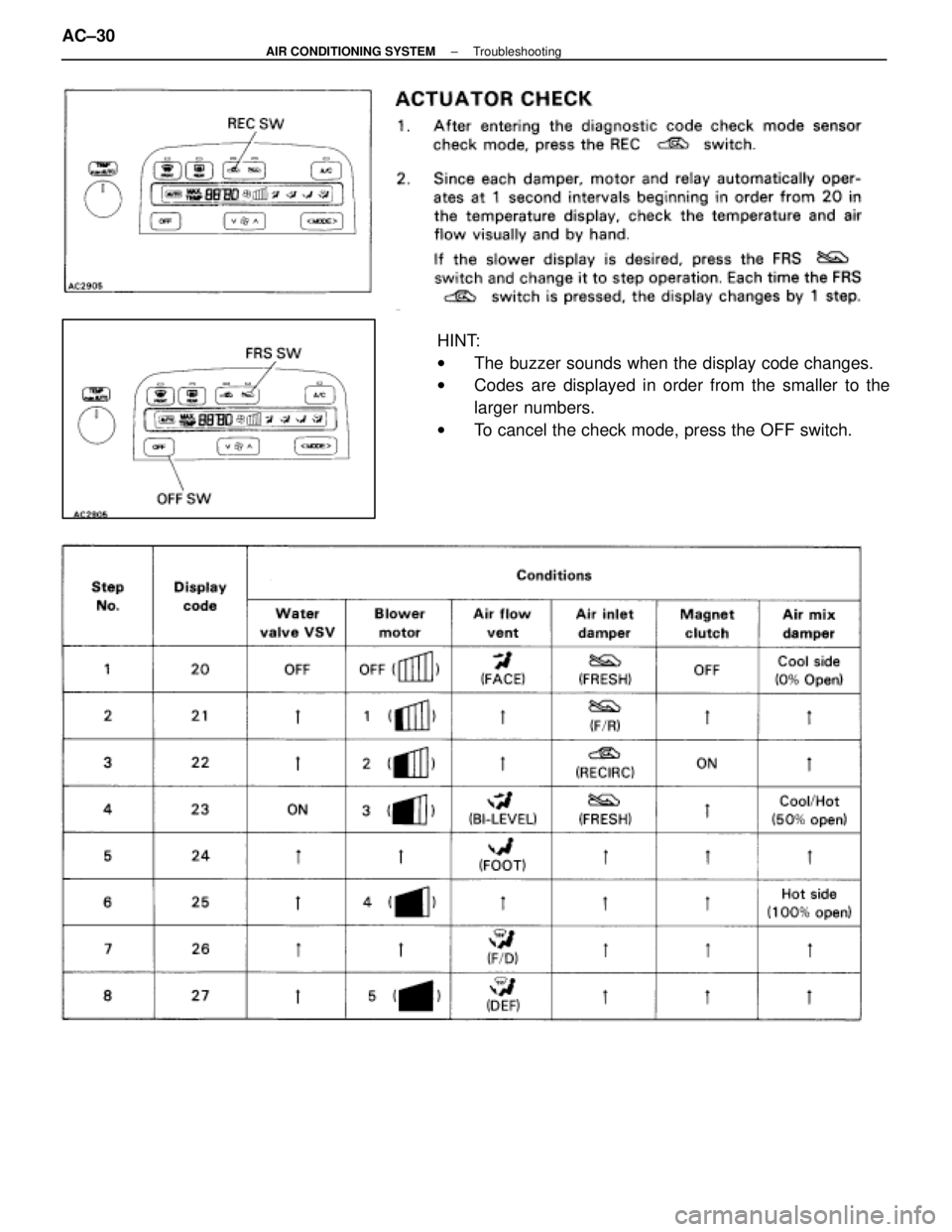

HINT:
wThe buzzer sounds when the display code changes.
w Codes are displayed in order from the smaller to the
larger numbers.
w To cancel the check mode, press the OFF switch.
AC±30±
AIR CONDITIONING SYSTEM Troubleshooting
WhereEverybodyKnowsYourName
Page 70 of 4087
A14±1
A14±2
A14±3
A14±4
A14±5
A14±6
A14±7
A14±8
A14±9
A14±10
A14±11
A14±12
A14±13
A14±14
A12±1
A14±15
A12±2
A12±3
A12±4
A12±5
A12±6
A12±7
A12±8
A12±9
A12±10A13±25
A13±24
A13±23
A13±22
A13±21
A13±20
A13±19
A13±18
A13±17
A13±16
A13±15
A13±14
A13±13
A13±12
A13±11
A13±10
A13±9
A13±8
A13±7
A13±6
A13±5
A13±A13±4
A13±3
A13±2
A13±1

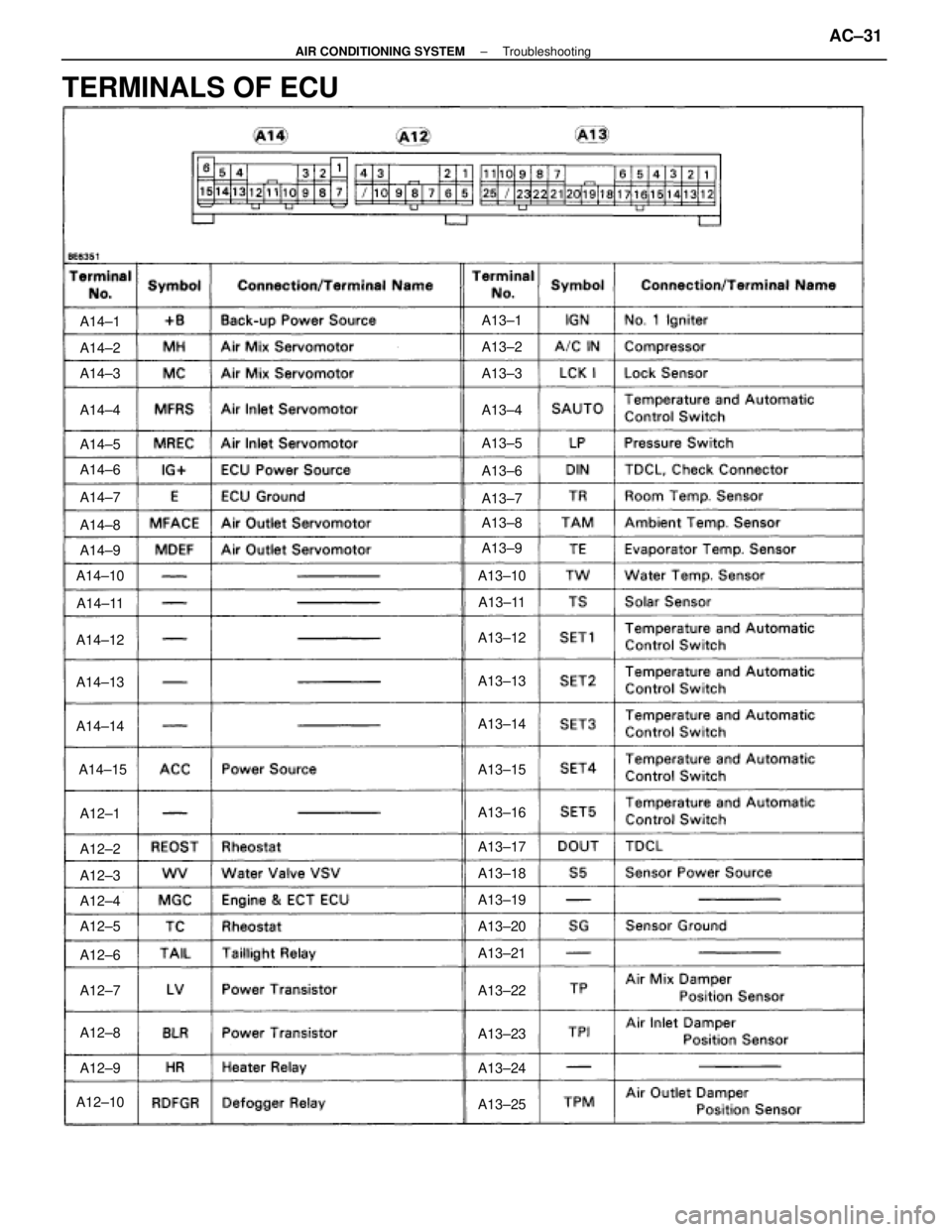

TERMINALS OF ECU
±
AIR CONDITIONING SYSTEM TroubleshootingAC±31
WhereEverybodyKnowsYourName
Page 71 of 4087

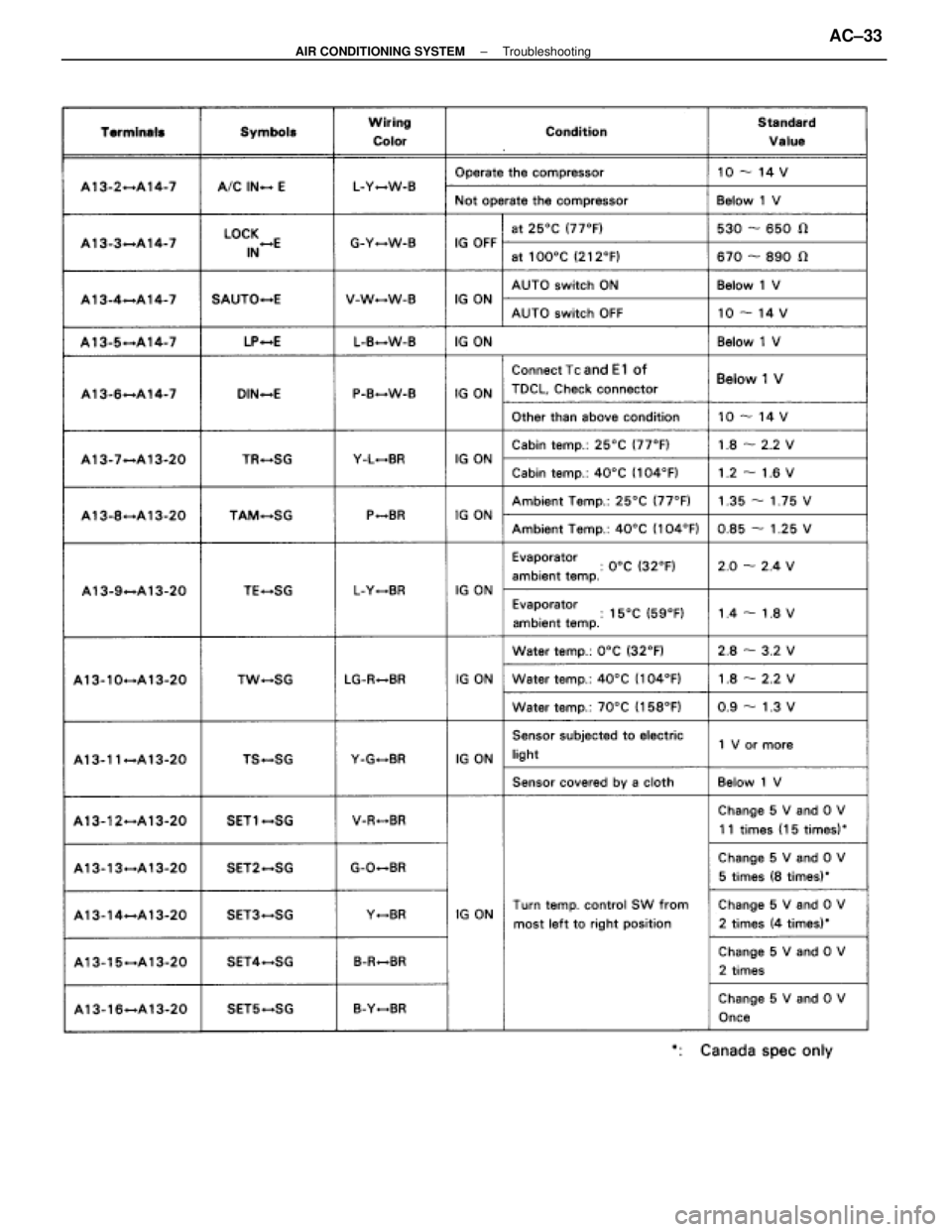

STANDARD VALUE OF ECU TERMINAL
TerminalsSymbolsWiringColorConditionStandardValue
A14±1A14±7B ER W±BIG OFF10 ~ 14 V
A14±2 A14±3MH MCV R±YIG OFF13 ~ 19
A14±4A14±5MFRSMRECG G±RIG OFF13 ~ 19
A14±6A14±7IG+ ER±L W±BIG ON10 ~ 14 V
Body
A14±7
Ground Body
E
Ground Body
W±B
GroundAlwaysBelow 1
A14±8A14±9FACE DEFW Y±LIG OFF13 ~ 19
A14±15A14±7ACC EL±R W±BTurn ignition switch ACC10 ~ 14 V
A12±2 A14±7REOST EW±G W±B
IG ON and turn headlight control SW
to TAIL position.
Turn Rheostat volume from most
right to left position.
Most
: 0 ~ 14 V
Right
Most
: 10 ~ 14 V
Left
A12 3 A14 7WV EBY WB
Start
the
MAX
Temp. Control Switch:
COLDBelow 1 V
A12±3 A14±7WV EB±Y W±Btheen-
gine MAX
Temp. Control Switch:
HOT10 ~ 14 V
A12 4 A14 7MGC ELR WB
Start the
engine andA/C switch ONBelow 1 V
A12±4 A14±7MGCEL±R W±Bengine andpush AUTO
SWA/C switch OFF10 ~ 14 V
A12 5 A14 7TC EL WBIG ONHLC SW
Rheostat Most
:
Volume RightBelow 1 V
A12±5 A14±7TCEL W±BH.L.C. SW
: TAIL positionRheostat Turn
:
Volume Left10 ~ 14 V
A12±6 A14±7TAIL EG W±BTurn the light control switch to TAILposition10 ~ 14 V
A12±7A14±7LV EYW±BIG ONPush blower SW to change
the blower speed from 1 to
10.Speed 1: 10 ~ 14 V
Speed 10: Below 2 V
A12±8 A14±7BLR EB±R W±BIG ONTurn the blower motorBelow 1.5 V
A12±9 A14±7HR EL±W W±B
IG ON
Turn the blower motorBelow 1 V
IG ONDon't turn the blower motor10 ~ 14 V
A12 10 A14 7RDFGR ERY WBIG ON
Rear defogger switch ONBelow 1 V
A12±10 A14±7RDFGR ER±Y W±BIG ONRear defogger switch OFF10 ~ 14 V
A13±1 A14±7IGN EBW±BStart the engine10 ~ 14 V
AC±32±
