Page 425 of 4087

LEXUS SC400 1991 Service Repair Manual ASSEMBLY OF REAR SEAT (See page BO±68) ASSEMBLE THE REAR SEAT PARTS BY FOLLOWING DIS- ASSEMBLY SEQUENCE IN REVERSE HINT: wUsing a hog ring pliers install the new hog ring. wIf creases occur in the f

Page 426 of 4087

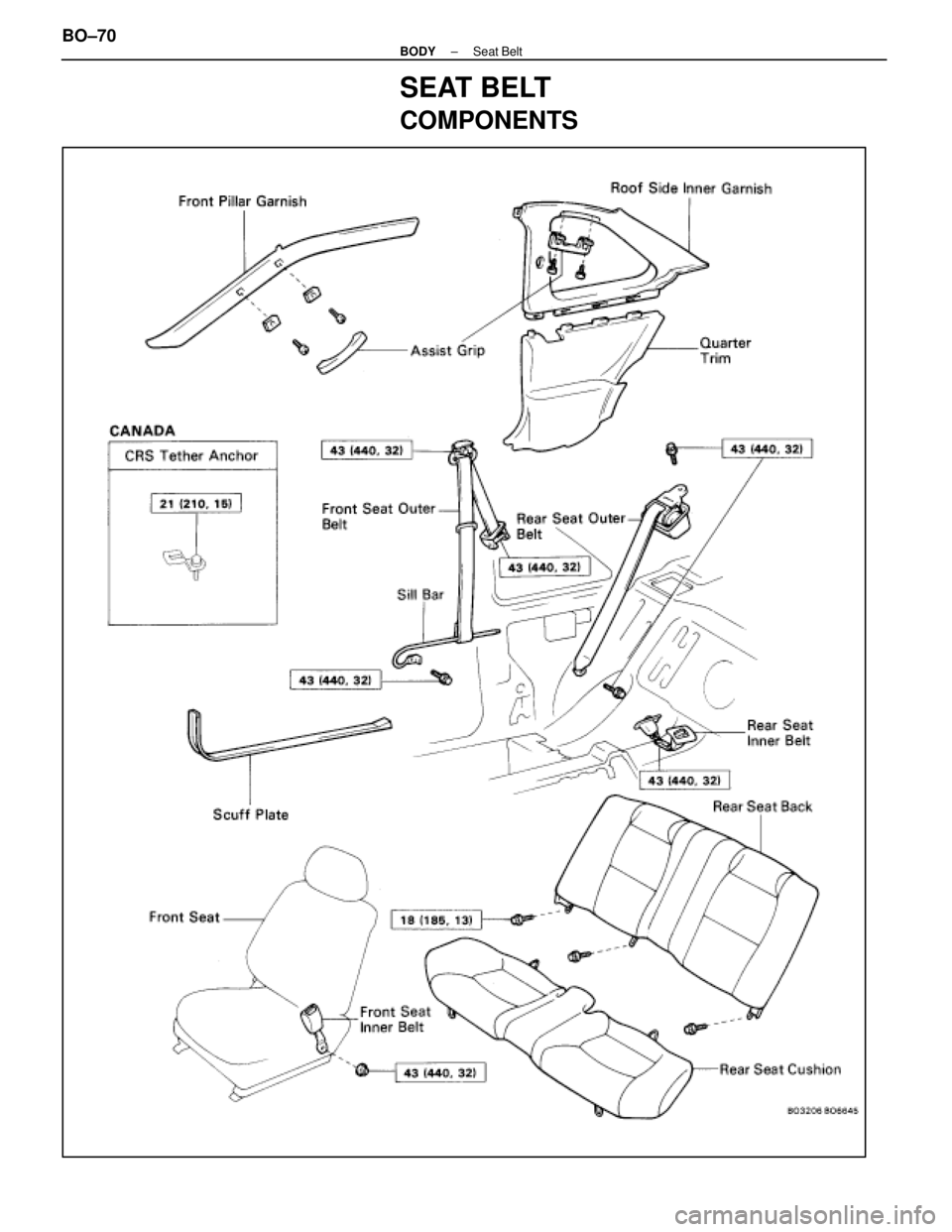

LEXUS SC400 1991 Service Repair Manual SEAT BELT COMPONENTS BO±70± BODY Seat Belt WhereEverybodyKnowsYourName

Page 427 of 4087

LEXUS SC400 1991 Service Repair Manual Front Seat Belt REMOVAL OF FRONT SEAT BELT (See page BO±70) 1. REMOVE FOLLOWING PARTS: (a) Front seat (b) Rear seat cushion and seat back (c) Front pillar garnish (d) Quater trim and roof side i

Page 428 of 4087

LEXUS SC400 1991 Service Repair Manual INSTALLATION OF FRONT SEAT BELT (See page BO±70) 1. INSTALL FRONT SEAT INNER BELT Torque: 43 N Vm (440 kgf Vcm, 32 ft Vlbf) 2. INSTALL FRONT SEAT OUTER BELT Torque: Retractor bolt 43 N Vm (440 kg

Page 429 of 4087

LEXUS SC400 1991 Service Repair Manual Rear Seat Belt REMOVAL OF REAR SEAT BELT (See page BO±70) 1. REMOVE REAR SEAT BACK AND CUSHION 2. REMOVE PACKAGE TRAY TRIM (a) Using a clip remover, remove two clips. (b) Pull the belt guide forw

Page 430 of 4087

LEXUS SC400 1991 Service Repair Manual LUGGAGE COMPARTMENT Fitting Adjustments HINT: Adjust the door panel according to the following method. 1. ADJUST LUGGAGE COMPARTMENT (a) For forward/rearward and vertical direction adjustments loo

Page 431 of 4087

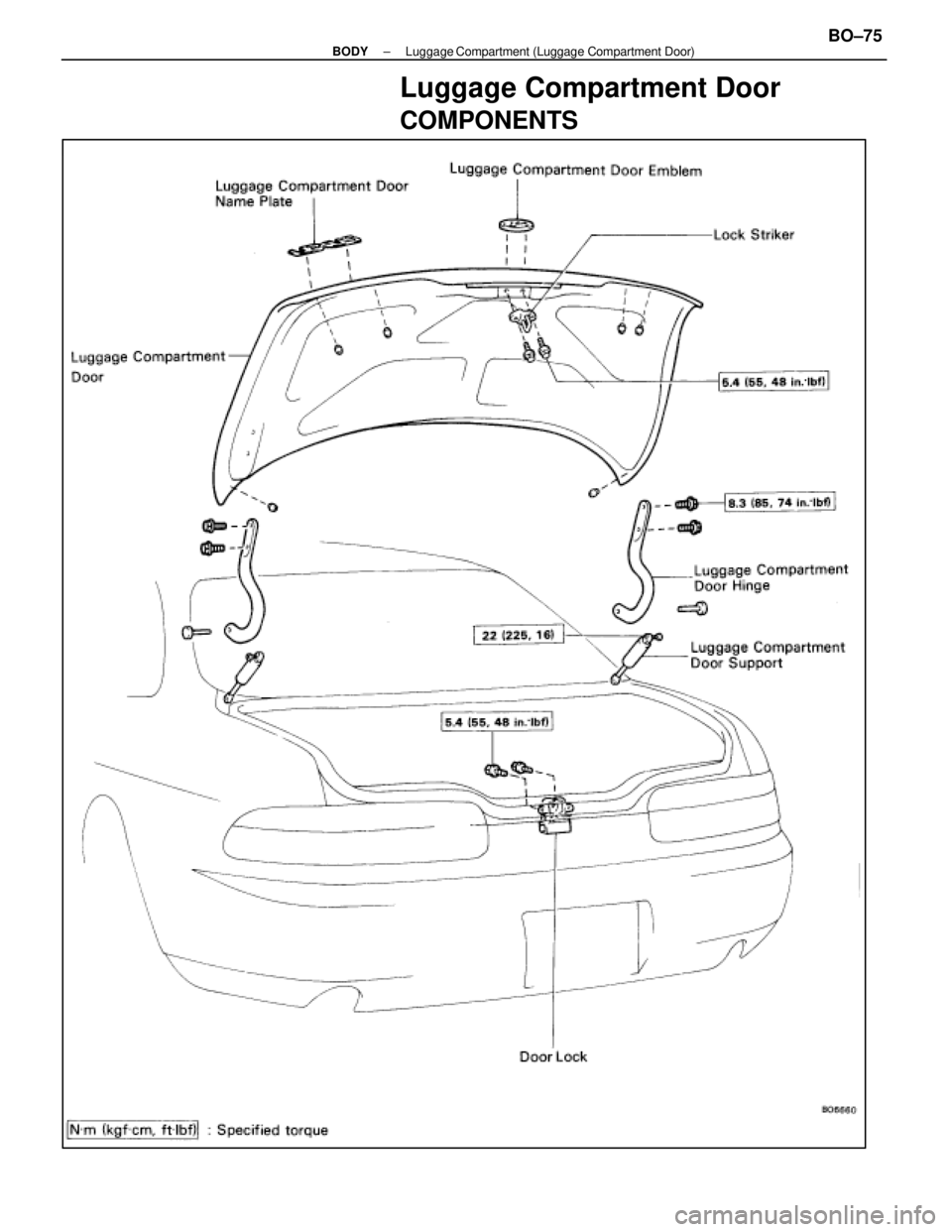

LEXUS SC400 1991 Service Repair Manual Luggage Compartment Door COMPONENTS ± BODY Luggage Compartment (Luggage Compartment Door)BO±75 WhereEverybodyKnowsYourName

Page 432 of 4087

LEXUS SC400 1991 Service Repair Manual COMPONENTS (Contd) REMOVAL OF LUGGAGE COMPARTMENT DOOR 1. REMOVE FOLLOWING PARTS:(See steps 1 to 7 on pages BO±78 to 79) (a) Floor mat (b) Door striker cover (c) Trim rear cover (d) RH and LH
