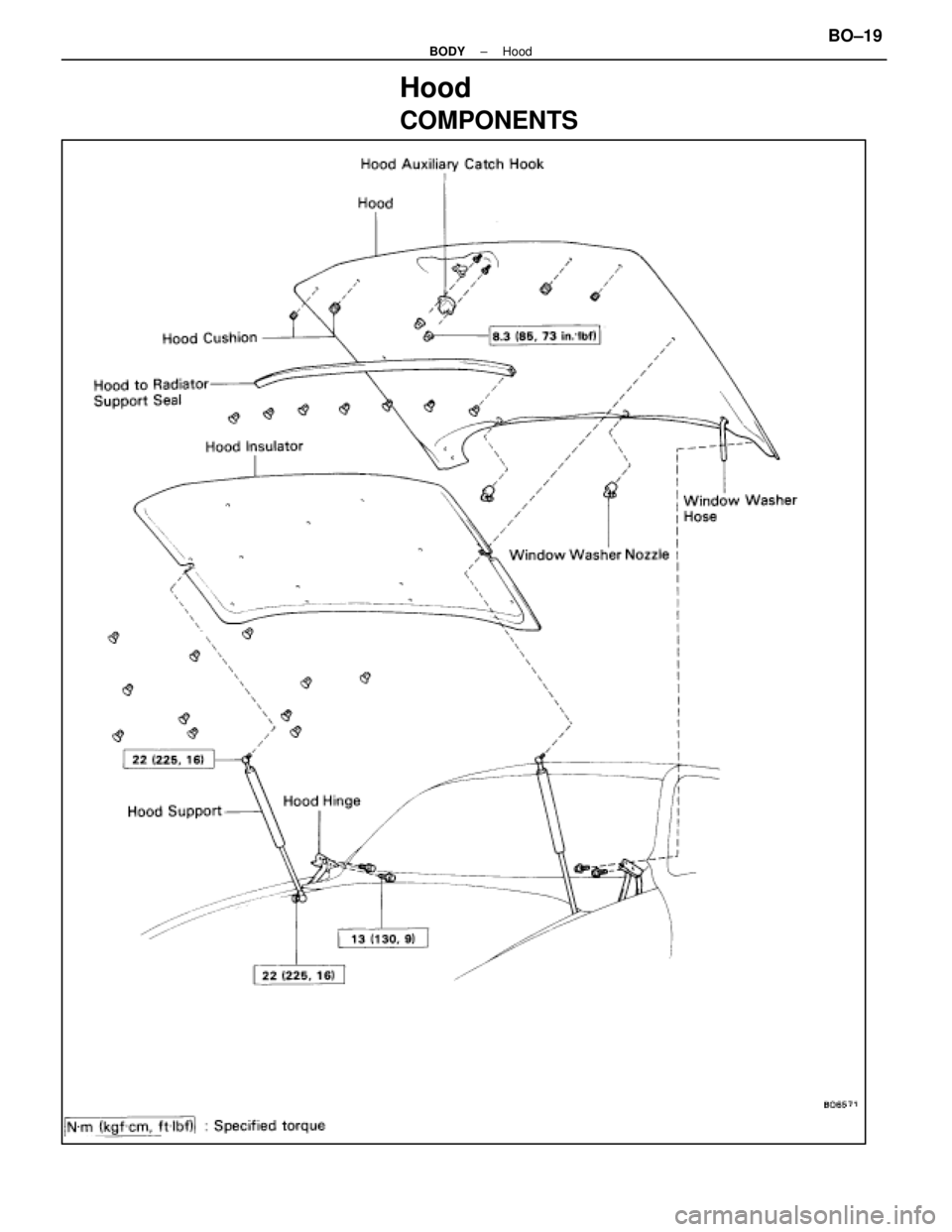

LEXUS SC400 1991 Service Repair Manual Hood COMPONENTS ± BODY HoodBO±19 WhereEverybodyKnowsYourName

Page 514 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF HOOD (See page BO±19) 1. REMOVE HOOD SUPPORT FROM HOOD Remove the bolt and disconnect the support from hood. 2. REMOVE HOOD (a) Disconnect the windshield washer hose from the bodyside.

Page 515 of 4087

LEXUS SC400 1991 Service Repair Manual DISASSEMBLY OF HOOD (See page BO±19) 1. REMOVE HOOD AUXILIARY CATCH HOOK 2. REMOVE HOOD TO RADIATOR SUPPORT SEAL Using a clip remover, remove clips and the seal. 3. REMOVE HOOD INSULATOR Using a

Page 516 of 4087

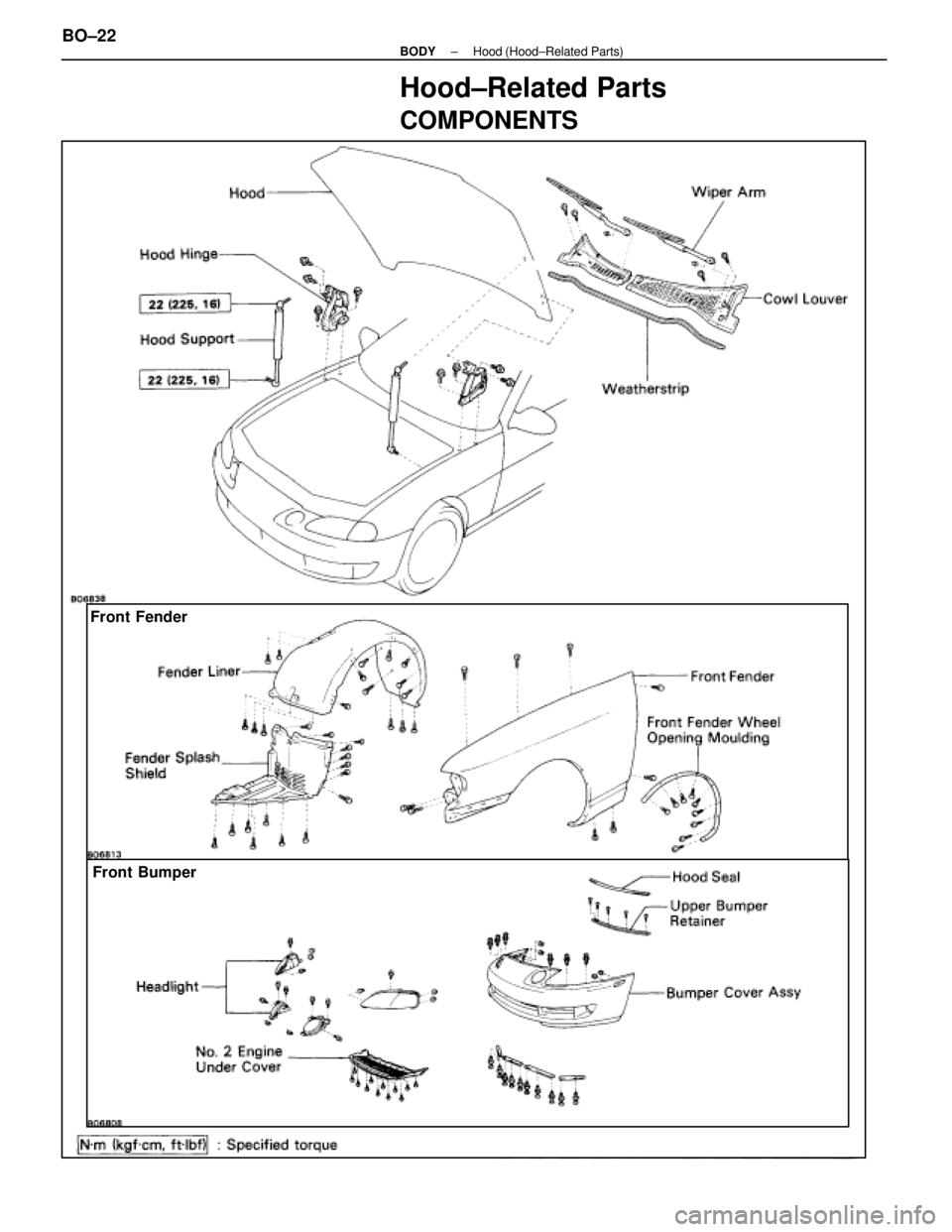

LEXUS SC400 1991 Service Repair Manual Hood±Related Parts COMPONENTS Front FenderFront Bumper BO±22± BODY Hood (Hood±Related Parts) WhereEverybodyKnowsYourName

Page 517 of 4087

LEXUS SC400 1991 Service Repair Manual Hood Hinge REMOVAL AND INSTALLATION (See page BO±22) HINT: Install the hinge by following removal sequence in reverse. 1. REMOVE HOOD Removal: (See steps 1 to 2 on page BO±20) Installation: (See

Page 518 of 4087

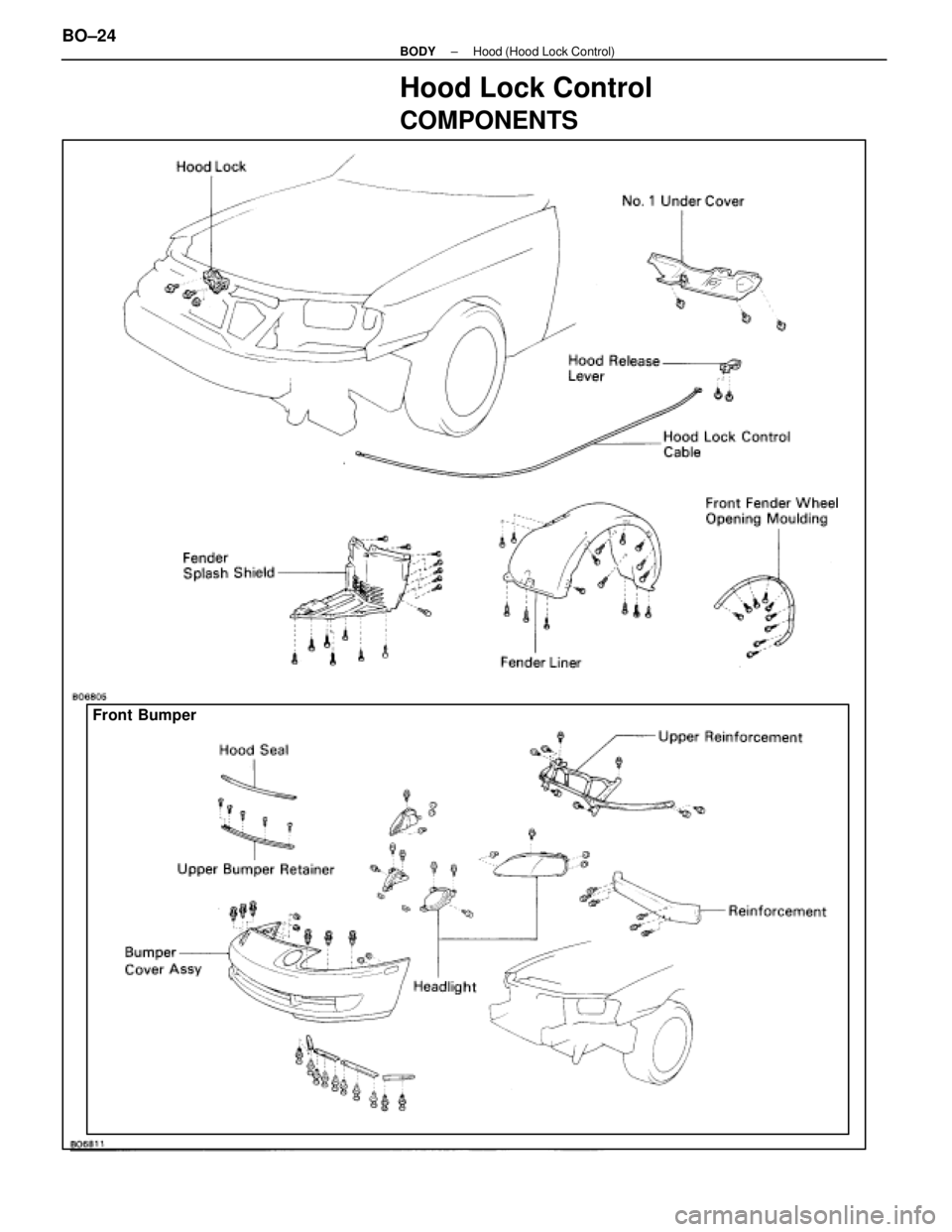

LEXUS SC400 1991 Service Repair Manual Hood Lock Control COMPONENTS Front Bumper BO±24± BODY Hood (Hood Lock Control) WhereEverybodyKnowsYourName

Page 519 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF HOOD LOCK CONTROL (See page BO±24) 1. REMOVE FOLLOWING PARTS: (a) Front bumper (b) LH front fender wheel opening moulding (c) LH fender liner (d) Fender splash shield (e) Hood releas

Page 520 of 4087

LEXUS SC400 1991 Service Repair Manual (c) Pull the cable from front wheel housing to remove it. INSTALLATION OF HOOD LOCK CONTROL (See page BO±24) 1. BEFORE INSTALLING PARTS, COAT LOCK WITH MP GREASE Apply MP grease to the sliding sur
