Page 441 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF SLIDING ROOF (See page BO±84) 1. DISCONNECT BATTERY CABLE FROM NEGATIVE TERMINAL CAUTION: Work must be started after approx. 20 se- conds or longer from the time the ignition switch is t

Page 442 of 4087

LEXUS SC400 1991 Service Repair Manual 7. REMOVE WIND DEFLECTOR(a) Slide the drive cable backward. (b) Remove four screws and the deflector. 8. REMOVE CABLE GUIDE CASING (a) Remove two screws and the guide rail cover. (b) Remove two

Page 443 of 4087

LEXUS SC400 1991 Service Repair Manual 11. REMOVE DRIVE RAIL(a) Slide the drive cable forward. (b) Slide the rail forward and disconnect the clamp, thenremove it. INSTALLATION OF SLIDING ROOF (See pages BO±83 to 84) 1. INSTALL FOLLO

Page 444 of 4087

LEXUS SC400 1991 Service Repair Manual 6. ADJUST AND INSTALL DRIVE GEAR ASSEMBLY(a) Remove the screw and cam plate cover. (b) Remove the large screw, washers and shims. (c) Turn the drive shaft by screwdriver to align the housingand g

Page 445 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF SLIDING ROOF HOUSING (See pages BO±85 to 87) 1. REMOVE FOLLOWING PARTS: (a) Interior light (See step 2 on page BO±85) (b) Front pillar garnish (See step 2 on page BO±122) (c) Rear

Page 446 of 4087

LEXUS SC400 1991 Service Repair Manual INSTALLATION OF SLIDING ROOF HOUSING (See pages BO±85 to 87) 1. INSTALL SLIDING ROOF PARTS BY FOLLOWING REMOVAL SEQUENCE IN REVERSE HINT: When installing the sliding roof housing weather- strip, m

Page 447 of 4087

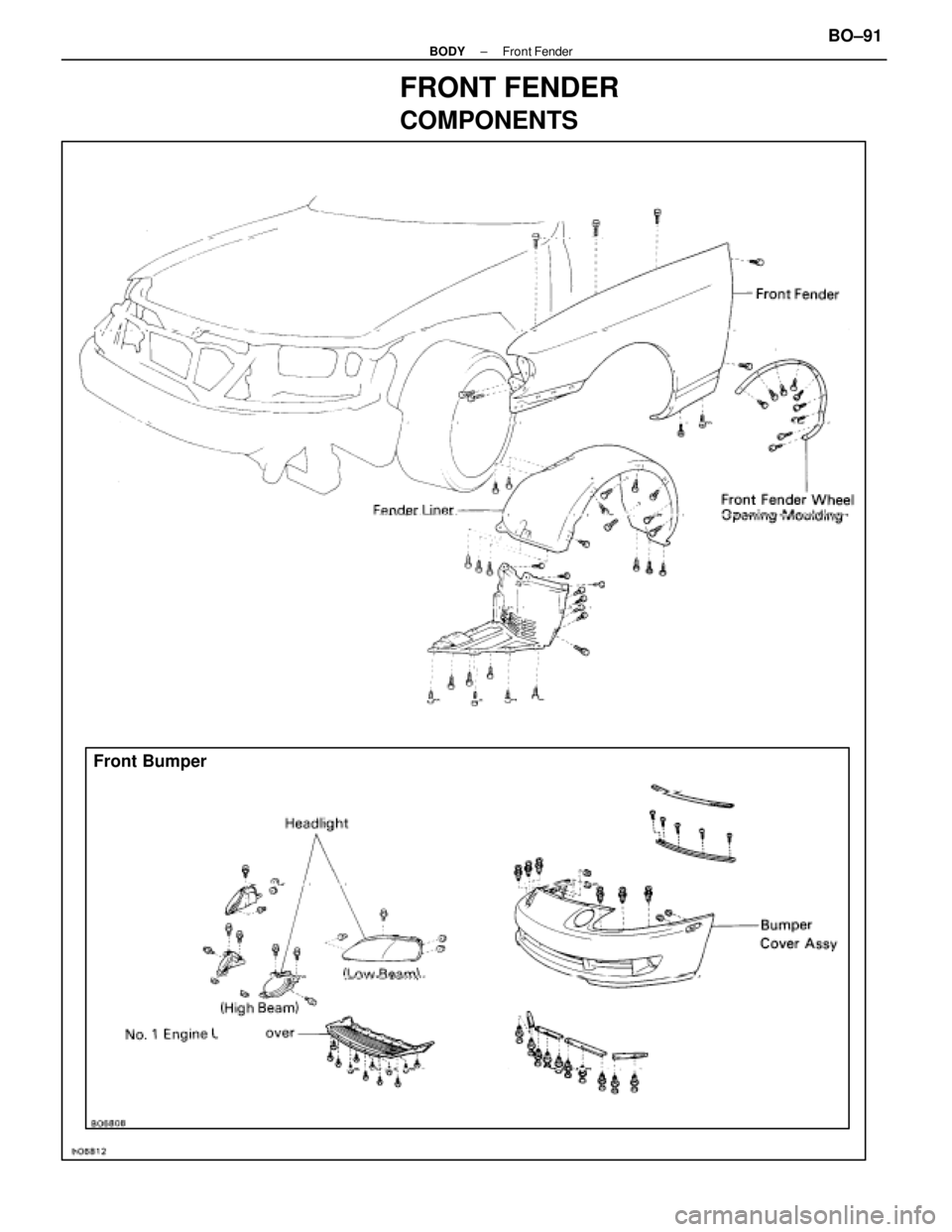

LEXUS SC400 1991 Service Repair Manual FRONT FENDER COMPONENTS Front Bumper ± BODY Front FenderBO±91 WhereEverybodyKnowsYourName

Page 448 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF FRONT FENDER (See page BO±92) 1. REMOVE FRONT BUMPER (See page BO±91) 2. REMOVE FRONT FENDER WHEEL OPENING MOULDING (See page BO±102) 3. REMOVE FENDER LINER (a) Remove eight screw
