Page 1169 of 4087

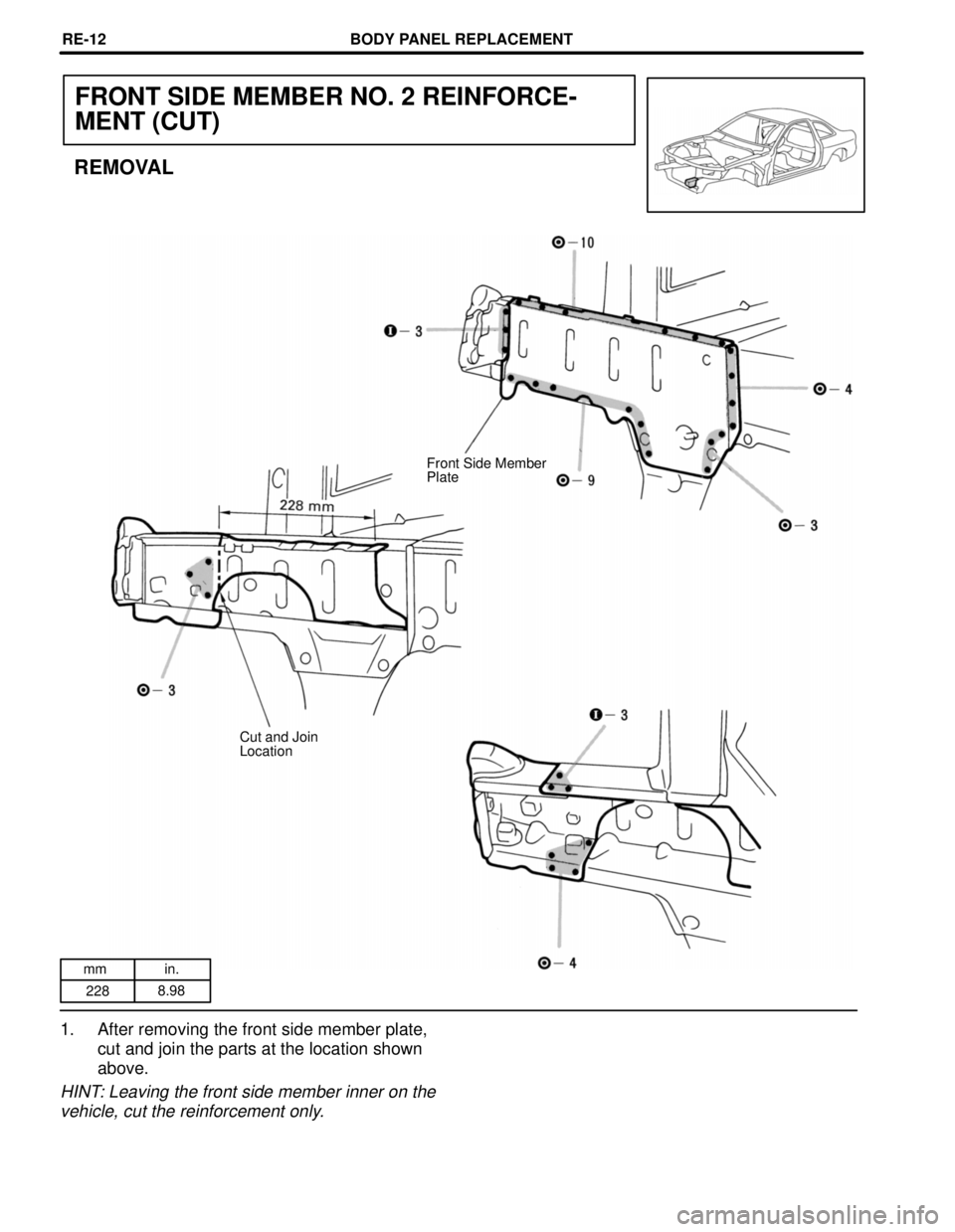

LEXUS SC400 1991 Service Repair Manual mm in.228 8.98 FRONT SIDE MEMBER NO. 2 REINFORCE- MENT (CUT) REMOVAL Front Side Member Plate Cut and Join Location 1. After removing the front side member plate, cut and join the parts at the locatio

Page 1170 of 4087

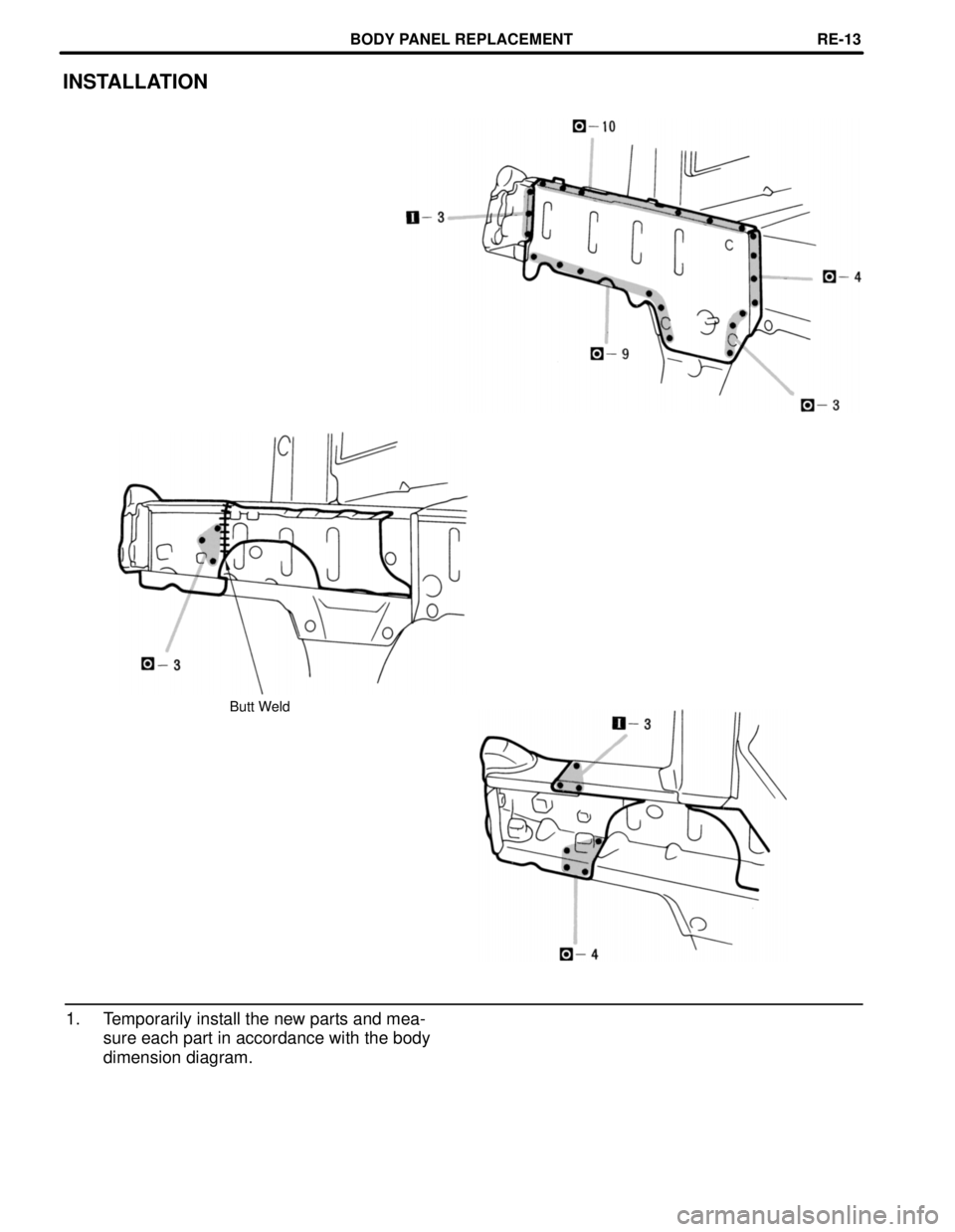

LEXUS SC400 1991 Service Repair Manual INSTALLATION Butt Weld 1. Temporarily install the new parts and mea-sure each part in accordance with the body dimension diagram. BODY PANEL REPLACEMENTRE-13 WhereEverybodyKnowsYourName

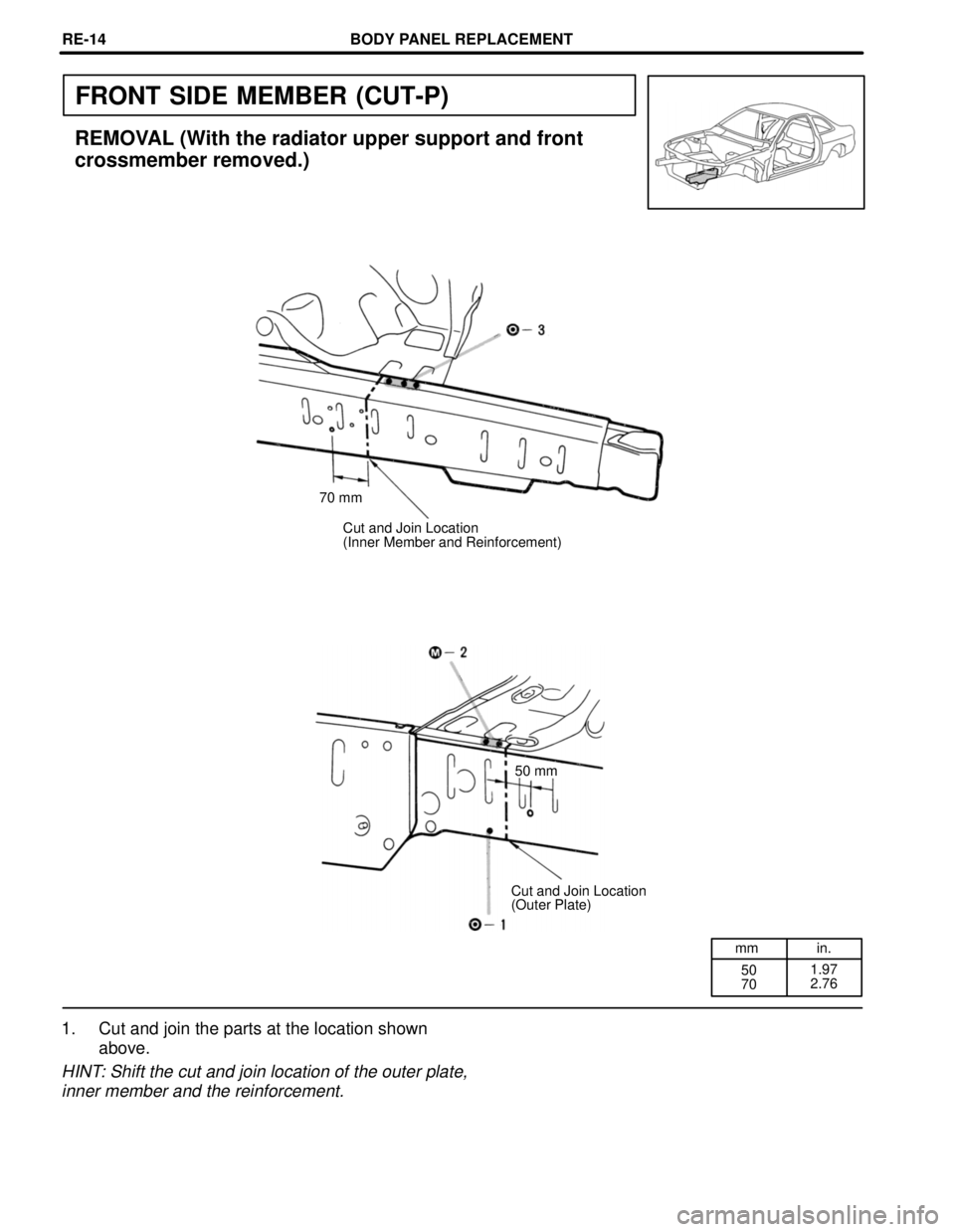

Page 1171 of 4087

LEXUS SC400 1991 Service Repair Manual mm in.50 70 1.97 2.76 FRONT SIDE MEMBER (CUT-P) REMOVAL (With the radiator upper support and front crossmember removed.) 70 mm Cut and Join Location (Inner Member and Reinforcement) 50 mm Cut and Joi

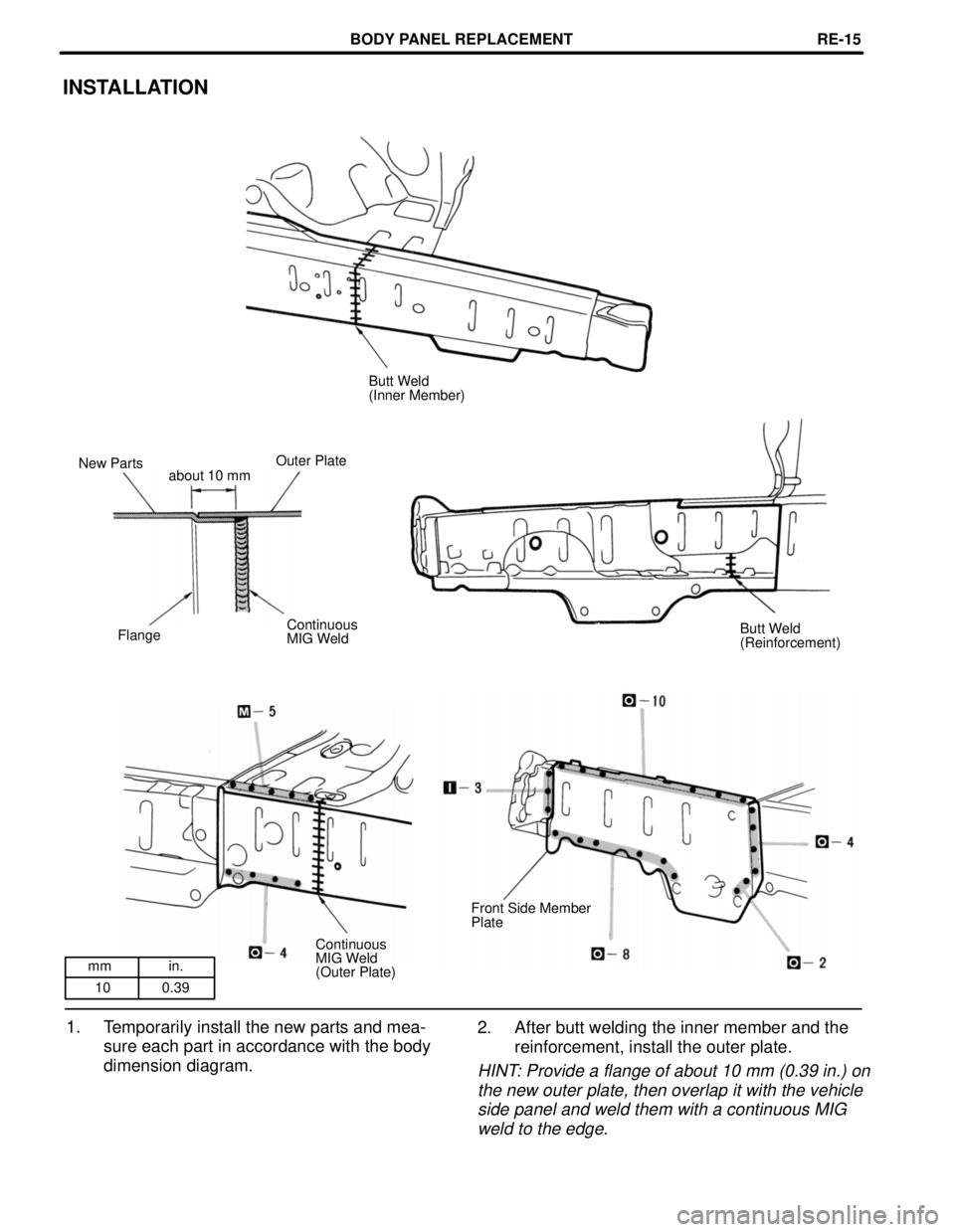

Page 1172 of 4087

LEXUS SC400 1991 Service Repair Manual mm in.10 0.39 INSTALLATION Butt Weld (Inner Member) Outer Plate New Parts about 10 mm Flange Butt Weld (Reinforcement) Continuous MIG Weld Front Side Member Plate Continuous MIG Weld (Outer Plate) 1.

Page 1173 of 4087

LEXUS SC400 1991 Service Repair Manual MEMORE-16 WhereEverybodyKnowsYourName

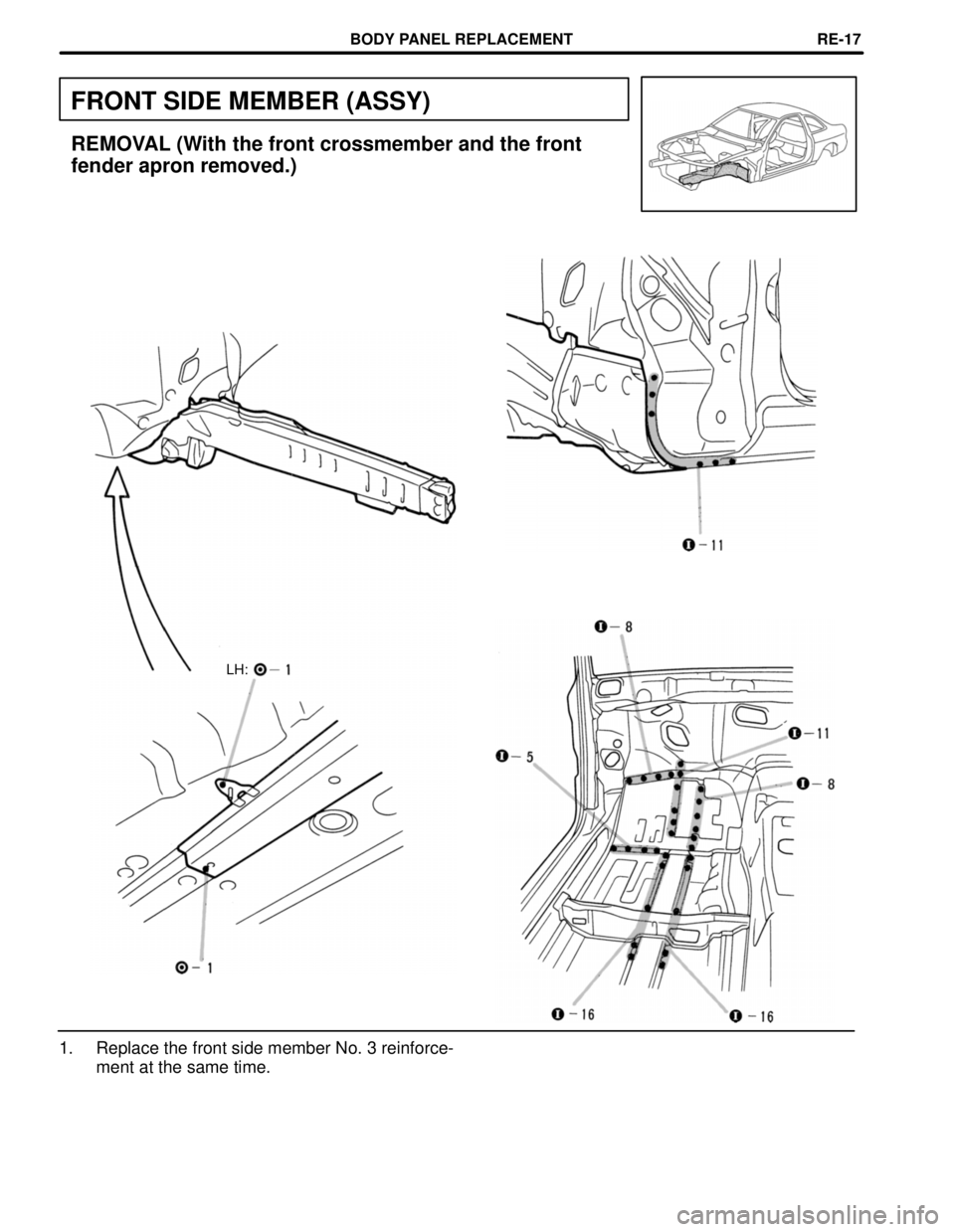

Page 1174 of 4087

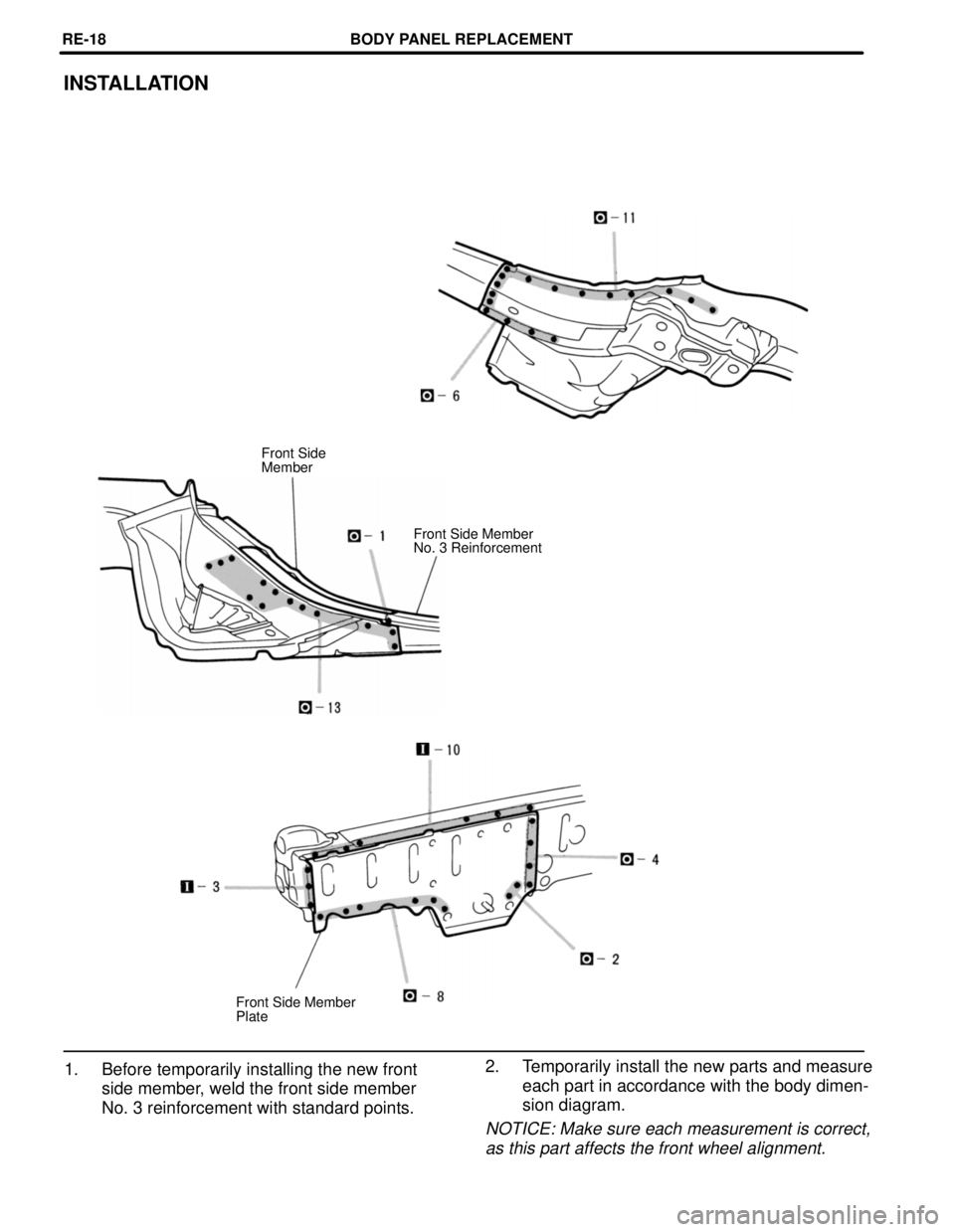

LEXUS SC400 1991 Service Repair Manual FRONT SIDE MEMBER (ASSY) REMOVAL (With the front crossmember and the front fender apron removed.) LH: 1. Replace the front side member No. 3 reinforce-ment at the same time. BODY PANEL REPLACEMENTRE-

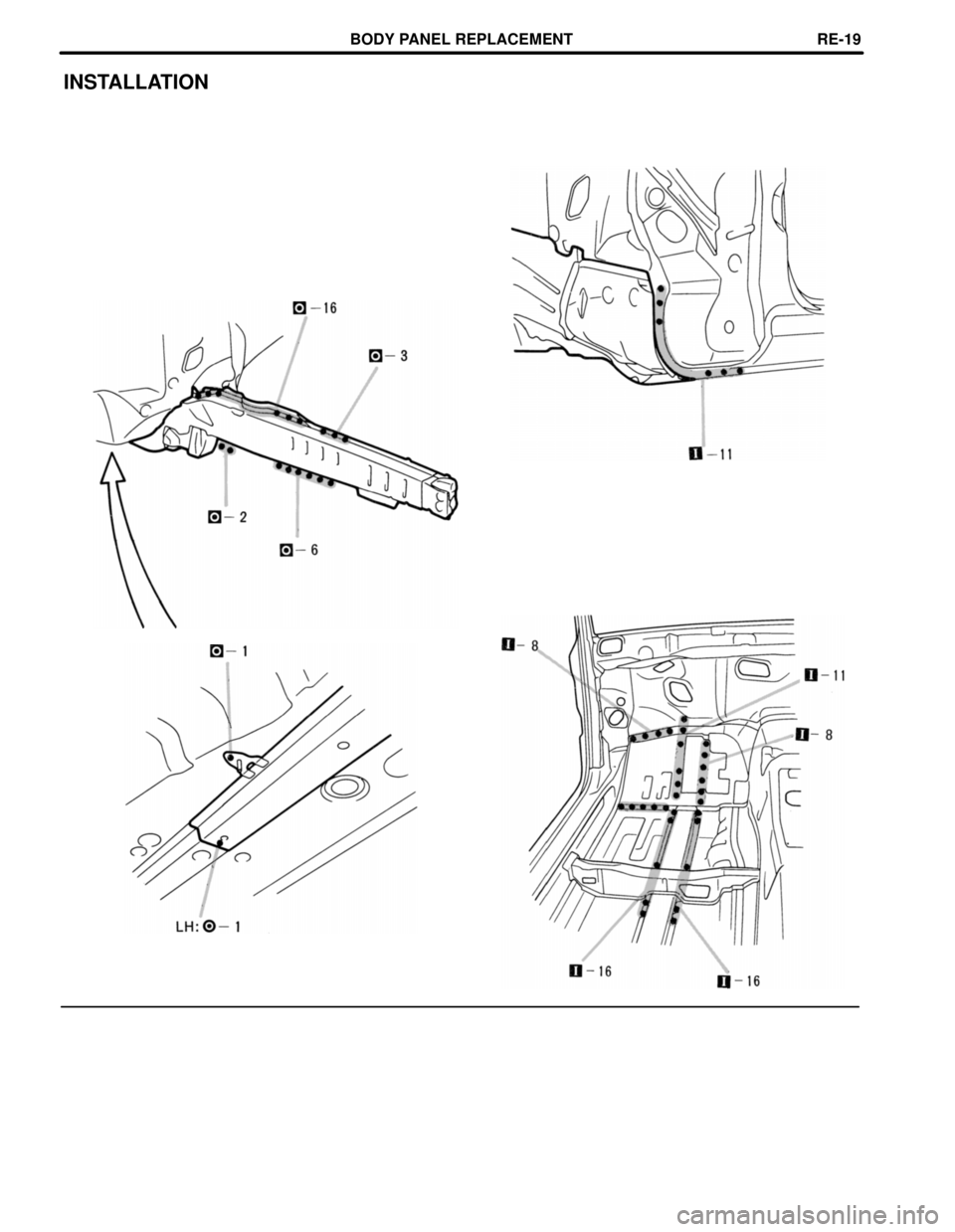

Page 1175 of 4087

LEXUS SC400 1991 Service Repair Manual INSTALLATION Front Side MemberFront Side Member No. 3 Reinforcement Front Side Member Plate 1. Before temporarily installing the new front side member, weld the front side member No. 3 reinforcement

Page 1176 of 4087

LEXUS SC400 1991 Service Repair Manual INSTALLATION BODY PANEL REPLACEMENTRE-19 WhereEverybodyKnowsYourName
