Page 609 of 4087

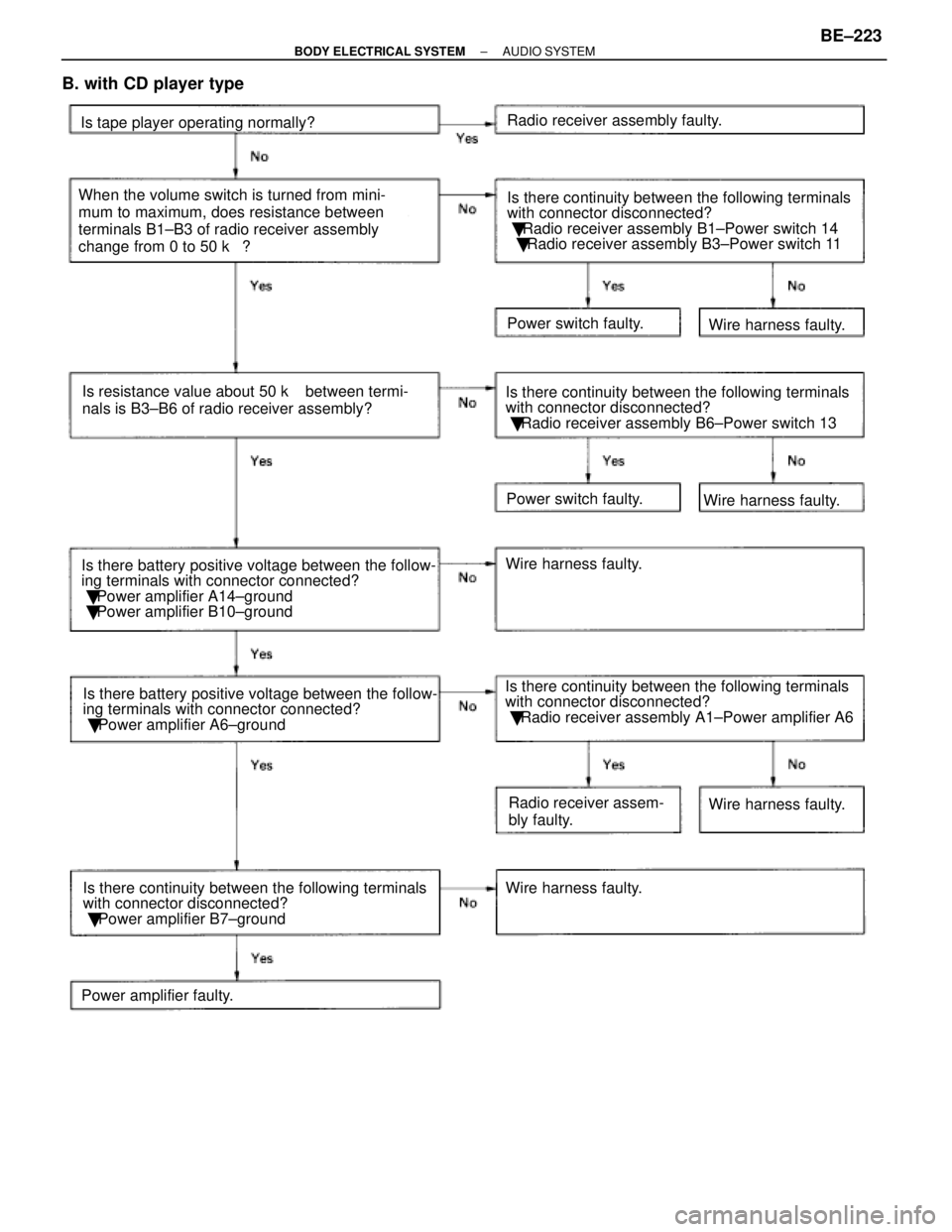

LEXUS SC400 1991 Service Repair Manual B. with CD player type Is there continuity between the following terminals with connector disconnected?  Radio receiver assembly B1±Power switch 14  Radio receiver assembly B3±Power switch 1

Page 610 of 4087

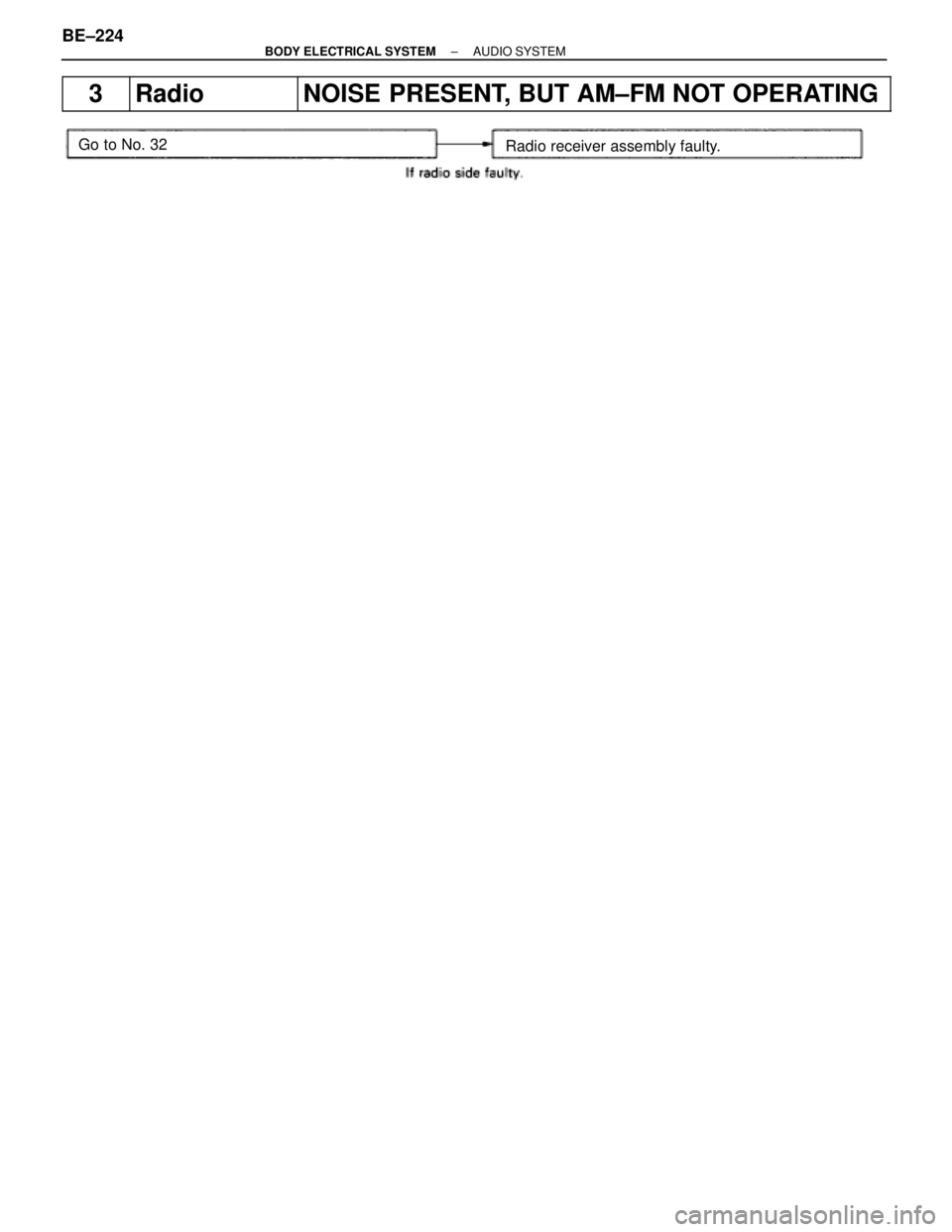

LEXUS SC400 1991 Service Repair Manual 3RadioNOISE PRESENT, BUT AM±FM NOT OPERATING Go to No. 32Radio receiver assembly faulty. BE±224± BODY ELECTRICAL SYSTEM AUDIO SYSTEM WhereEverybodyKnowsYourName

Page 611 of 4087

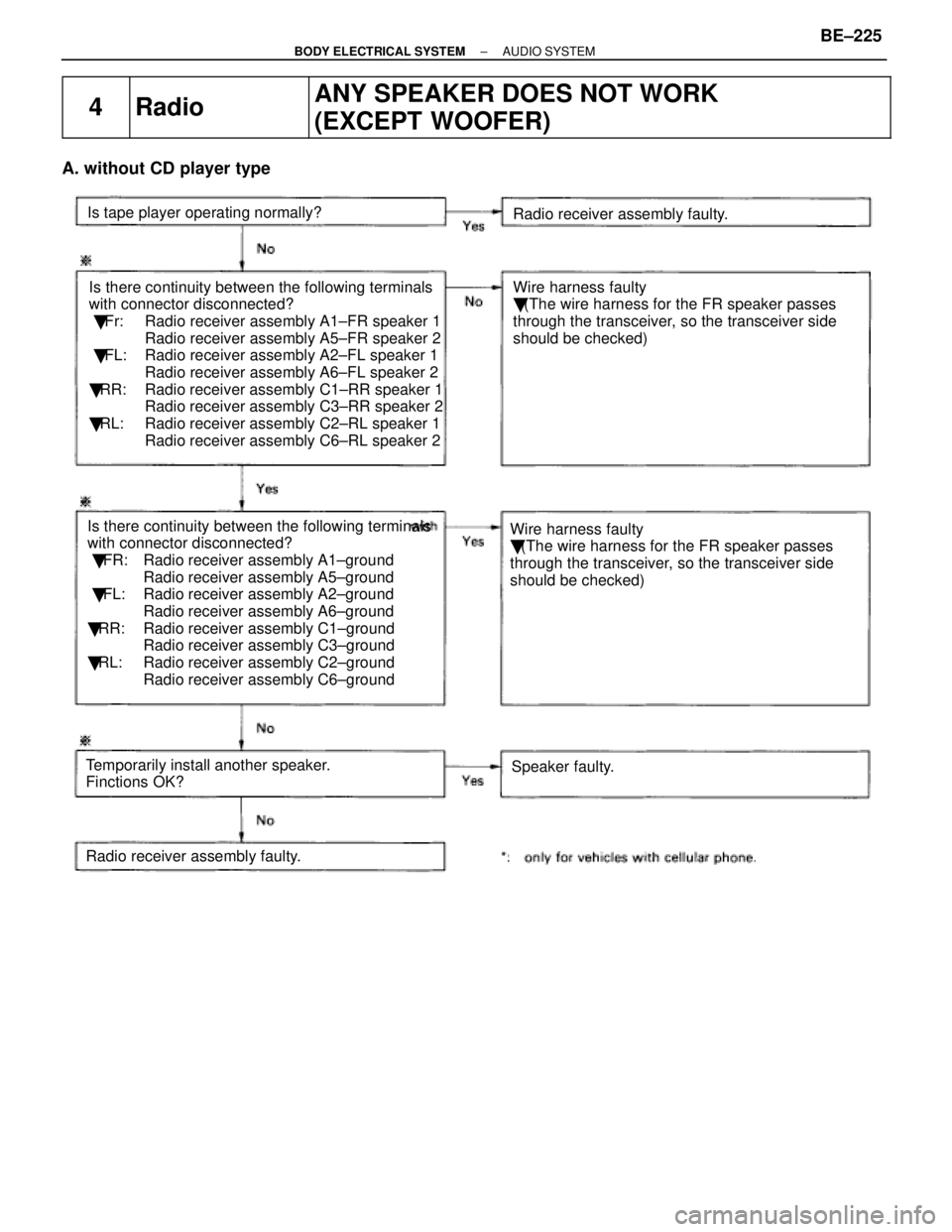

LEXUS SC400 1991 Service Repair Manual 4RadioANY SPEAKER DOES NOT WORK (EXCEPT WOOFER) A. without CD player type Is there continuity between the following terminals with connector disconnected?  Fr: Radio receiver assembly A1±FR spea

Page 612 of 4087

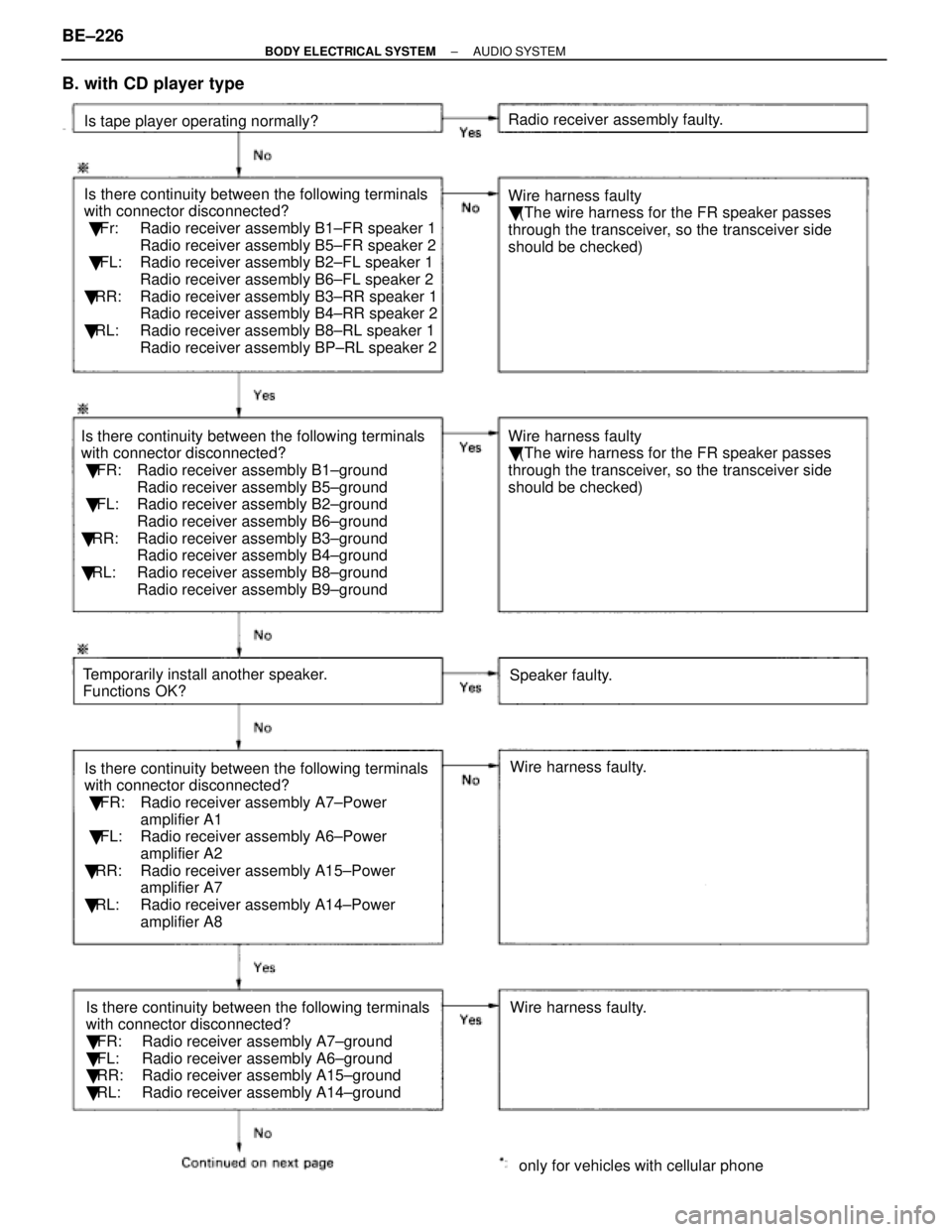

LEXUS SC400 1991 Service Repair Manual Is there continuity between the following terminals with connector disconnected?  Fr: Radio receiver assembly B1±FR speaker 1 Radio receiver assembly B5±FR speaker 2  FL: Radio receiver asse

Page 613 of 4087

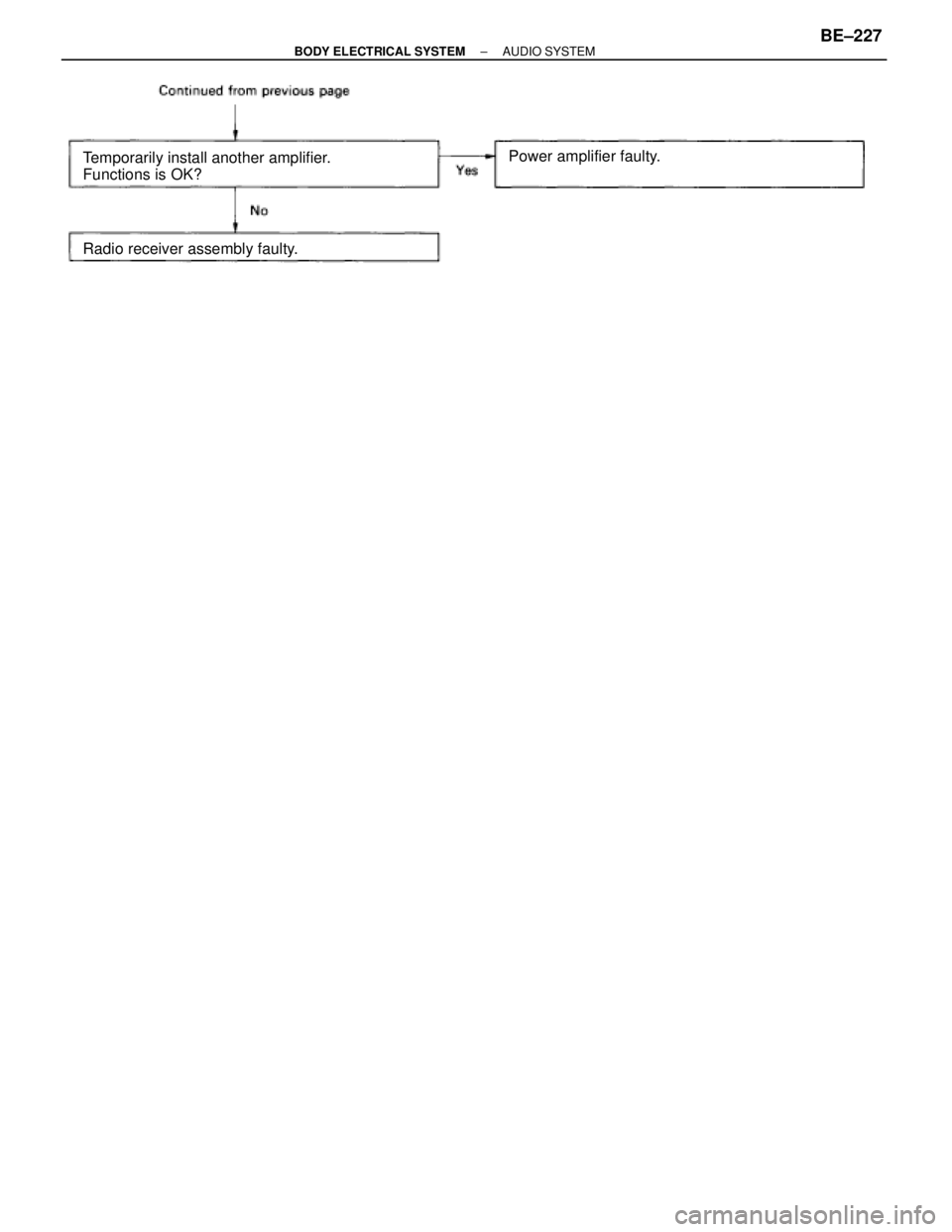

LEXUS SC400 1991 Service Repair Manual Temporarily install another amplifier. Functions is OK?Power amplifier faulty. Radio receiver assembly faulty. ± BODY ELECTRICAL SYSTEM AUDIO SYSTEMBE±227 WhereEverybodyKnowsYourName

Page 614 of 4087

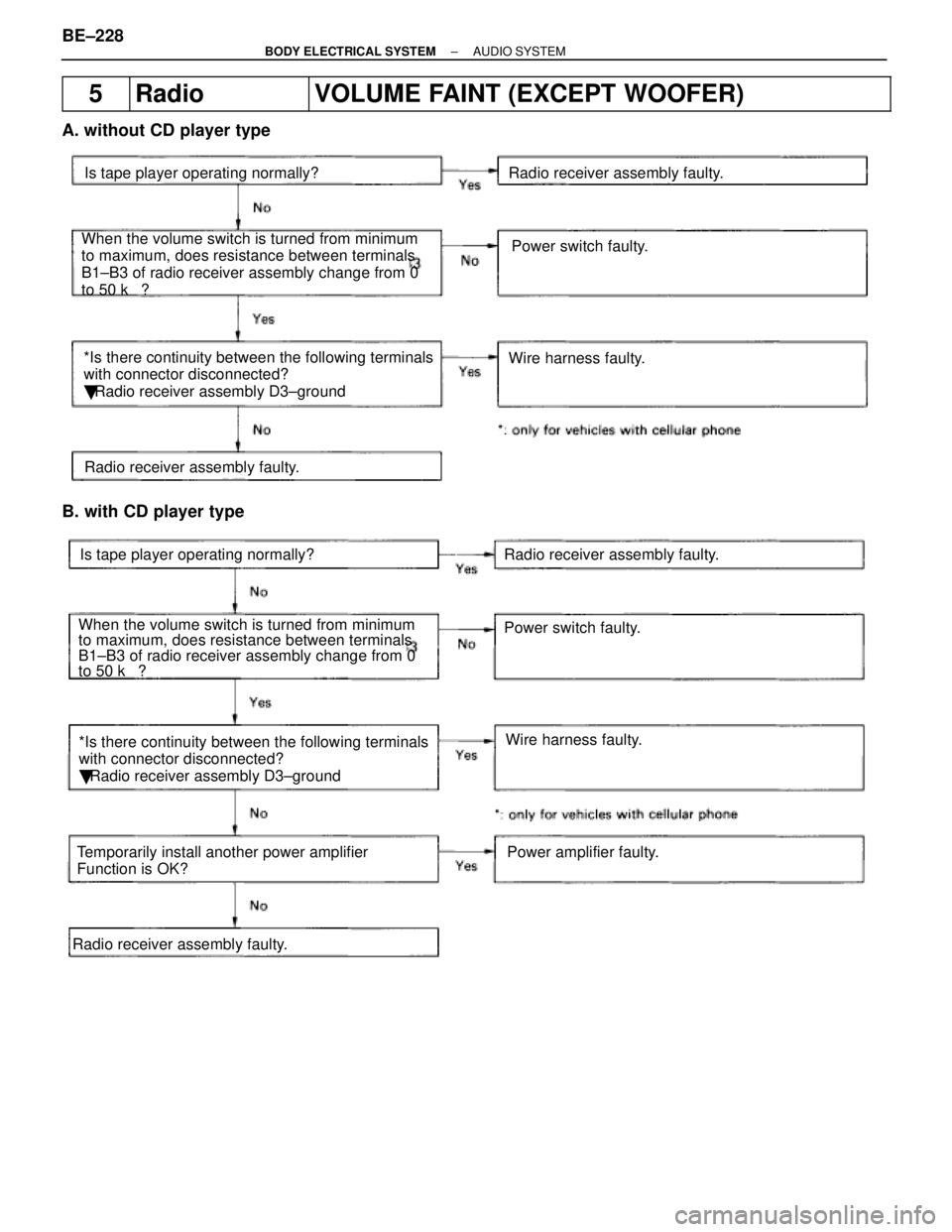

LEXUS SC400 1991 Service Repair Manual 5RadioVOLUME FAINT (EXCEPT WOOFER) A. without CD player type *Is there continuity between the following terminals with connector disconnected?  Radio receiver assembly D3±ground Is tape player oper

Page 615 of 4087

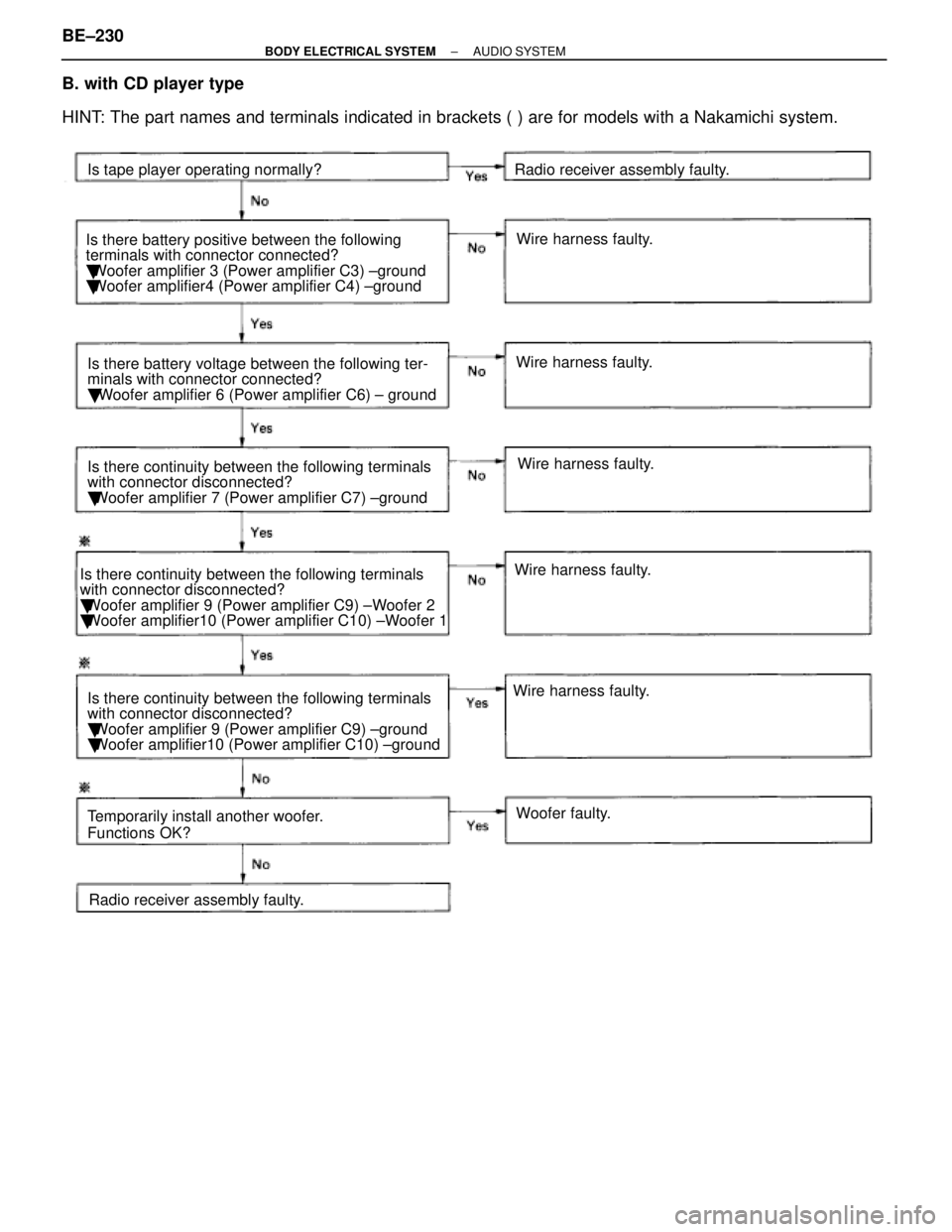

LEXUS SC400 1991 Service Repair Manual 6RadioWOOFER DOES NOT WORK A. without CD player type Is there battery voltage between the following termi- nals with connector connected?  Woofer amplifier 3 ± ground  Woofer amplifier 4 ± groun

Page 616 of 4087

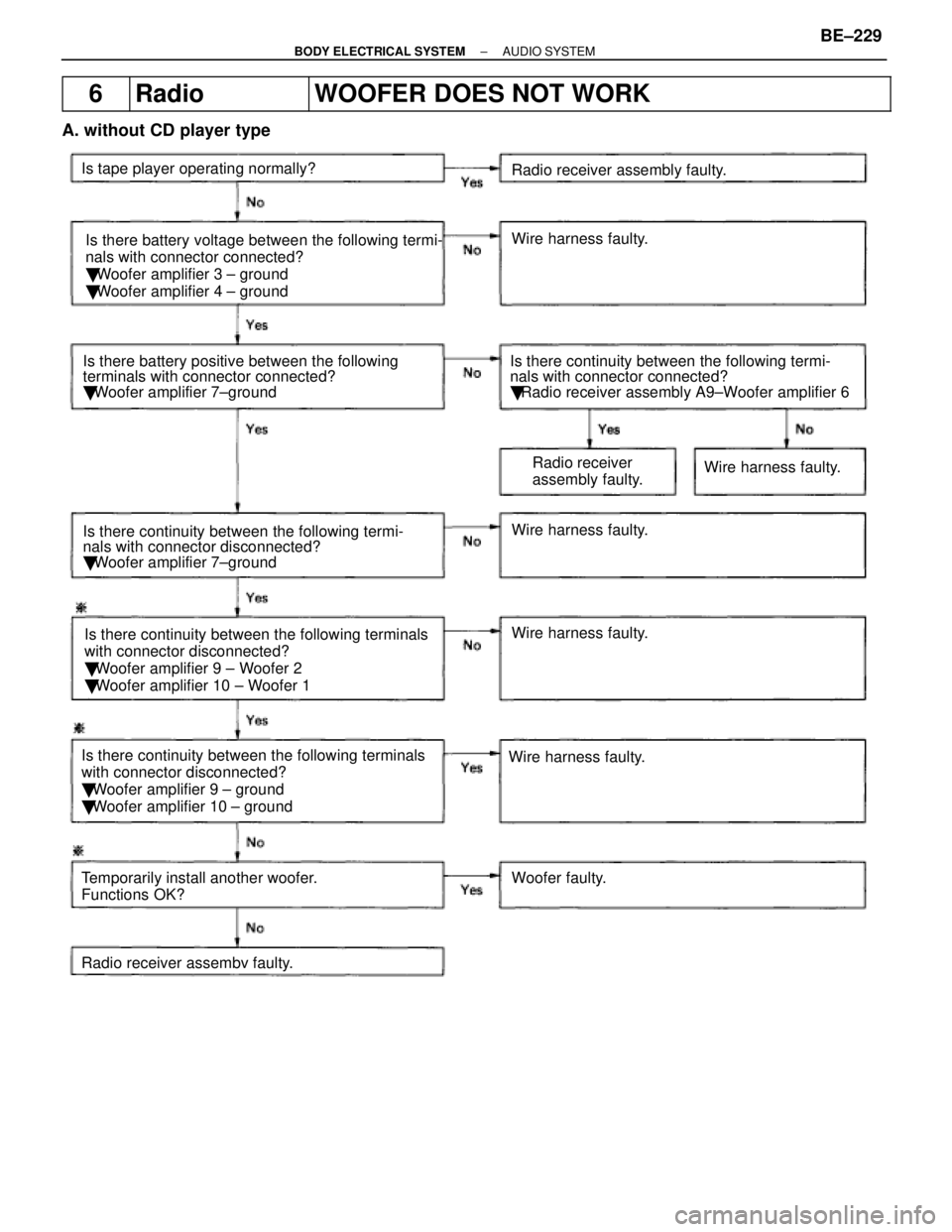

LEXUS SC400 1991 Service Repair Manual B. with CD player type HINT: The part names and terminals indicated in brackets ( ) are for model\ s with a Nakamichi system. Wire harness faulty. Wire harness faulty. Wire harness faulty. Wire harne
