Page 3929 of 4087

LEXUS SC400 1991 Service Repair Manual

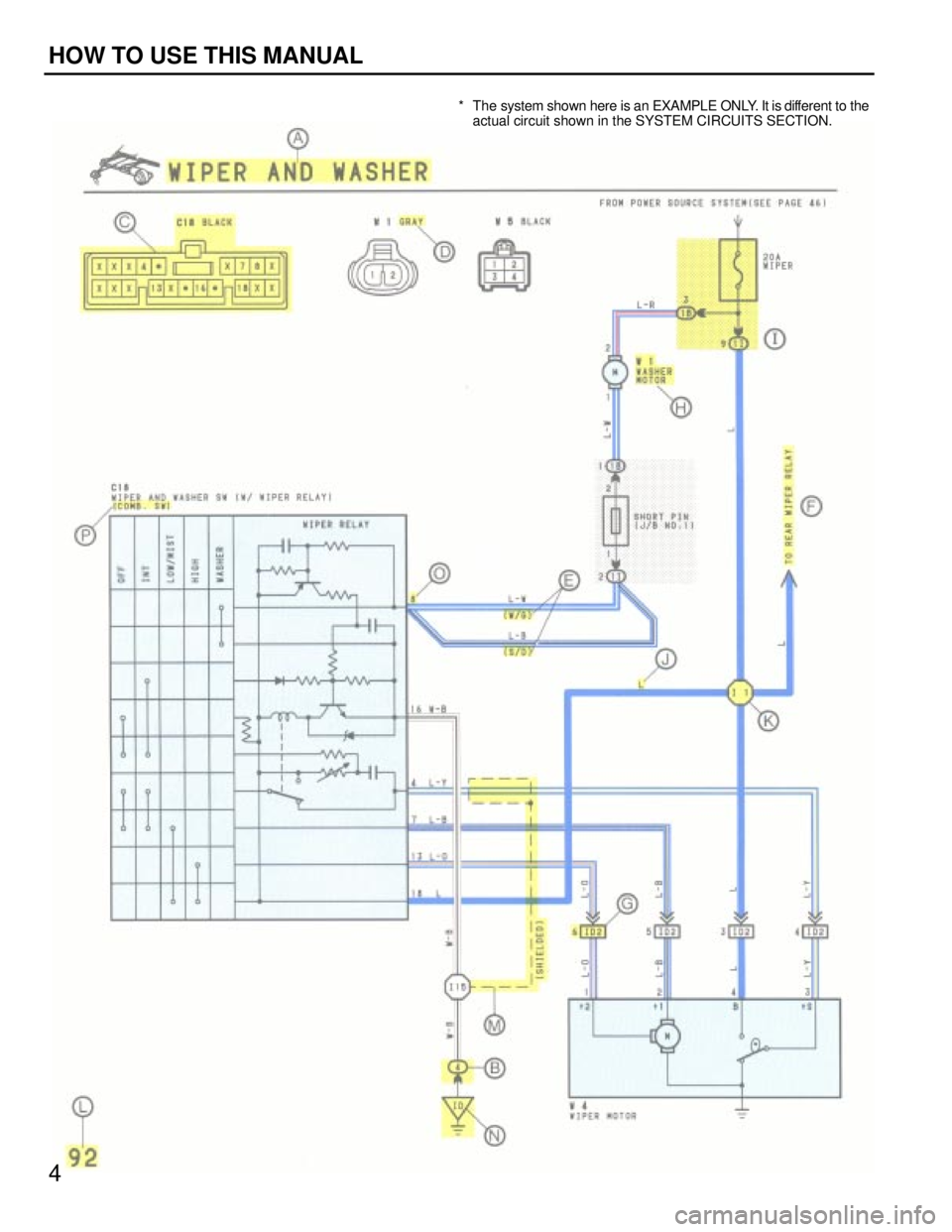

* The system shown here is an EXAMPLE ONLY. It is different to theactual circuit shown in the SYSTEM CIRCUITS SECTION.
4
HOW TO USE THIS MANUAL
WhereEverybodyKnowsYourName

Page 3930 of 4087

LEXUS SC400 1991 Service Repair Manual
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
5
:System Title
: Indicates a Relay Block. No shading is used and only
the Relay Block No. is shown to distinguish it from the
J/B.
Example: Indicates Relay Block No.

A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
5
:System Title
: Indicates a Relay Block. No shading is used and only
the Relay Block No. is shown to distinguish it from the
J/B.
Example: Indicates Relay Block No. 1.
: Indicates the connector to be connected to a part (the
numeral indicates the pin No.)
Explanation of pin use.
The pins shown are only for the highest grade, or only
include those in the specification.
: Connector Color
Connectors not indicated are milky white in color.
: ( ) is used to indicate different wiring and connector,
etc. when the vehicle model, engine type, or
specification is different.
: Indicates related system.
: Indicates the wiring harness and wiring harness
connector. The wiring harness with male terminal is
shown with arrows ( ).
Outside numerals are pin numbers.
The first letter of the code for each wiring harness and
wiring harness connector(s) indicates the component's
location, e.g., ªEº for the Engine Compartment, ªIº for the
Instrument Panel and Surrounding area, and ªBº for the
Body and Surrounding area.
When more than one code has the first and second
letters in comm on, followed by numbers (e.g., IH1, IH2),
this indicates the same type of wiring harness and
wiring harness connector.
: Represents a part (all parts are shown in sky blue). The
code is the same as the code used in parts position.
: Junction Block (The number in the circle is the J/B No.
and the connector code is shown beside it). Junction
Blocks are shaded to clearly separate them from other
parts (different j unction blocks are shaded differently for
further clarification).
3B indicates
that it is inside
Junction Block
No. 3.
Example: :
Indicates the wiring color.
Wire colors are indicated by an alphabetical code.
B = Black L = Blue R = Red
BR = Brown LG = Light Green V = Violet
G = Green O = Orange W = White
GR = Gray P = Pink Y = Yellow
The first letter indicates the basic wire color and the
second letter indicates the color of the stripe.
Example: L ± Y
(Blue) (Yellow)
:Indicates a wiring Splice Point (Codes are ªEº for the
Engine Room, ªIº for the Instrument Panel, and ªBº for
the Body).
Example:
The Location of Splice Point I 5 is indicated by the
shaded section.
: Page No.
: Indicates a shielded cable.
:Indicates a ground point.
The first letter of the code for each ground point(s)
indicates the component's location, e.g., ªEº for the
Engine Compartment, ªIº for the Instrument Panel and
Surrounding area, and ªBº for the Body and
Surrounding area.
: Indicates the pin number of the connector.
The numbering system is different for female and male
connectors.
Example: Numbered in order from upper left to
lower right Numbered in order
from upper right to
lower left
:
When 2 parts both use one connector in common, the
parts connector name used in the wire routing section
is shown in square brackets [ ].
WhereEverybodyKnowsYourName

Page 3931 of 4087

$LEXUS SC400 1991 Service Repair Manual Q R S T U V W X 6 HOW TO USE THIS MANUAL WITH THE IGNITION SW TURNED ON, THE CURRENT FLOWS TO TERMINAL 3 OF THE POWER\ WINDOW MASTER SW, TERMINAL 2 OF THE POWER WINDOW CONTROL RELAY AND TERMINAL 8 O$

Q
R
S
T
U
V
W
X
6
HOW TO USE THIS MANUAL
WITH THE IGNITION SW TURNED ON, THE CURRENT FLOWS TO TERMINAL 3 OF THE POWER\
WINDOW MASTER SW, TERMINAL 2 OF THE POWER WINDOW CONTROL RELAY
AND TERMINAL 8 OF THE POWER WINDOW SW THROUGH THE DOOR FUSE.
1.DRIVER'S WINDOW ªMANUAL UPº OPERATION BY MASTER SW
HOLDING MANUAL SW (DRIVER'S) ON ªUPº POSITION LOCATED IN POWER WINDOW MASTER SW, THE CURRENT FLOWS TO TERMINAL 5 OF THE POWER W INDOW
CONTROL RELAY THROUGH TERMINAL 3 OF THE MASTER SW TERMINAL 2 TO OPERATE A POWER WINDOW CONTROL RELAY. THUS THE CURRENT INSIDE THE RELAY
FLOWS FROM TERMINAL 2 OF THE RELAY TERMINAL 1 TERMINAL 2 OF THE POWER WINDOW MOTOR TERMINAL 1 TERMINAL 4 OF THE RELAY TERMINAL
3 TO GROUND. THE MOTOR TURNS TO ASCENT THE WINDOW. RELEASING THIS SW, THE ROTATION OF MOTOR IS STOPPED AND THE WINDOWS CAN STOP AT WILL
POINT.
(FOR THE ªMANUAL DOWNº OPERATION, CURRENT FLOWS IN THE REVERSE DIRECTION BECAUSE THE TERMINALS WHERE\
IT FLOWS ARE CHANGED).
2.DRIVER'S WINDOW ªAUTO DOWNº OPERATION BY MASTER SW
ONCE THE ªAUTO DOWNº BUTTON OF THE MASTER SW IS PUSHED, THE CURRENT FLO\
WS TERMINAL 9 OF THE POWER WINDOW CONTROL RELAY THROUGH TERMINAL
3 OF THE MASTER SW TERMINALS 8 AND 9 TO OPERATE THE RELAY. THUS THE CURRENT INSIDE THE POWER WINDOW CONTROL RELAY FLOWS FROM TERMINAL
2 OF THE RELAY TERMINAL 4 TERMINAL 1 OF THE POWER WINDOW MOTOR TERMINAL 2 TERMINAL 1 OF THE RELAY TERMINAL 3 TO GROUND.
THE MOTOR CONTINUES THE ROTATION ENABLING TO DESCENT THE WINDOW.
THE WINDOW DESCENDS TO THE END POSITION. THE CURRENT WILL BE CUT OFF TO\
RELEASE THE AUTO DOWN FUNCTION BASED ON THE INCREASING CURRENT
BETWEEN TERMINAL 2 OF THE RELAY AND TERMINAL 1 IN RELAY.
3.DRIVER'S WINDOW AUTO DOWN RELEASE OPERATION BY MASTER SW
HOLDING THE MANUAL SW (DRIVER'S) ON ªUPº POSITION IN OPERATING AUTO DOWN. THE CURRENT FROM TERMINAL 3 OF THE MASTER SW PASSING TERMINAL 2
FLOWS TERMINAL 5 OF THE RELAY AND RELEASES THE AUTO DOWN FUNCTION IN THE POWER WINDOW CONTROL RELAY. RELEASING THE HAND FROM SW, WINDOW
STOPS AND CONTINUING ON TOUCHING SW, THE FUNCTION SWITCHES TO MANUAL UP OPERATION.
4.PASSENGER'S WINDOW UP OPERATION (MASTER SW) AND WINDOW LOCK SW OPERATION
HOLDING PASSENGER'S WINDOW SW (MASTER SW) ON ªUPº, THE CURRENT FLOWS FROM TERMINAL 3 OF THE MASTER SW PASSING TERMINAL 6 TO TERMINAL 3 OF
THE POWER WINDOW SW (PASSENGER'S) TERMINAL 4 TERMINAL 2 OF THE MOTOR TERMINAL 1 TERMINAL 9 OF THE POWER WINDOW SW TERMINAL
7 TERMINAL 1 OF THE MASTER SW TERMINAL 4 TO GROUND. THE MOTOR RUNS TO ASCENT THE WINDOW. RELEASING THIS SW, THE ROTATION OF MOTOR IS
STOPPED AND WINDOW CAN STOP AT WILL PLACE.
SWITCHING THE WINDOW LOCK SW IN ªLOCKº POSITION, THE CIRCUIT IS OP\
ENED AND STOPPED THE MOTOR ROTATION.
(FOR THE DOWN OPERATION, CURRENT FLOWS IN THE REVERSE DIRECTION BECAUSE THE TERMINALS WHERE\
IT FLOWS ARE CHANGED).
P 2 POWER WINDOW CONTROL RELAY
3±GROUND: ALWAYS CONTINUITY
2±GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION
5±GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION AND MASTER SW AT UP POSITION
8±GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION AND MASTER SW AT AUTO DOWN POSITION
9±GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION AND MASTER SW AT DOWN OR AUTO DOWN POSITION
P 4 POWER WINDOW MASTER SW
4±GROUND: ALWAYS CONTINUITY
3±GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION
WINDOW LOCK SW
OPEN WITH WINDOW LOCK SW AT LOCK POSITION
: PARTS LOCATION
CODESEE PAGECODESEE PAGECODESEE PAGE
P 221P 421P 621
P 321P 52121
: RELAY BLOCKS
CODESEE PAGERELAY BLOCK (RELAY BLOCK LOCATION)
116R/B NO. 1 (INSTRUMENT PANEL LEFT SIDE)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CODESEE PAGEJUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
3B14J/B NO. 3 AND COWL WIRE (INSTRUMENT PANEL LEFT SIDE)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CODESEE PAGEJOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
ID126FRONT DOOR RH WIRE AND COWL WIRE (RIGHT KICK PANEL)
IH126FRONT DOOR LH WIRE AND COWL WIRE (LEFT KICK PANEL)
: GROUND POINTS
CODESEE PAGEGROUND POINT LOCATION
IC24COWL LEFT
: SPLICE POINTS
CODESEE PAGEWIRE HARNESS WITH SPLICE POINTS
I 524COWL WIRE
SYSTEM OUTLINE
SERVICE HINTS
WhereEverybodyKnowsYourName

Page 3932 of 4087

$LEXUS SC400 1991 Service Repair Manual Q R S T U V W X 7 :Explains the system outline. : Indicates values or explains the function for reference during troublesh\ ooting. : Indicates the reference page showing the position on the vehicle$

Page 3933 of 4087

Page 3934 of 4087

Page 3935 of 4087

LEXUS SC400 1991 Service Repair Manual
90
ILLUMINATION
1B
2
1K
5 3G
83A 12
3A
2
3A
93G 13A10
1I
3
1K
11
1J
1 3A
1
OFF
TAIL
HEAD 2 1 1 2
1G1
5
IF 1E
18 RL RV RE TC
RL RE
826 RV
7 314
4
3
4
6
G±O
G±O
G±O
G±O
L±B
Y±V
BR L G±O
W±B
W±

Page 3936 of 4087

LEXUS SC400 1991 Service Repair Manual
91
IQ1
4 I29 I29
3 2 2 15
11
32
111
10 1
2
3G
2 3H
53F 13H13H 63H2
3H
10 3C
33F 33E63H 93E5
IQ1
2
B
10 A
2
A
9
C
5
G
G
G
G
G
G±O
G±O
G±O
G±O
G±O
W±G
W±G
W±G
W±G
W±G
W±G
W±G
W±G
W±G
W±G
