Page 2257 of 4087
37. INSTALL A/C COMPRESSOR(a) In sta ll th e A/C co mp re sso r, co mp re sso r sta y an dground cable with the three bolts and nut.
Torque: Bolt 49 N Vm (500 kgf Vcm, 36 ft Vlbf)
Nut 29 N Vm (300 kgf Vcm, 22 ft Vlbf)
(b) Connect the A/C compressor connector.
38. INSTALL RADIATOR AND RESERVOIR TANK (See steps 25 and 26 on pages EM±174 to 175)
39. INSTALL DRIVE BELT Install the drive belt by turning the drive belt tensioner coun-
terclockwise.
HINT: The pully bolt for the belt tensioner has a lefthand
thread.
40. INSTALL BATTERY
41. FILL WITH ENGINE COOLANT (See page CO±7)
42. CHECK IGNITION TIMING (See page IG±28)
Ignition timing:
8±125 BTDC @ idle
(w/ Terminals TE1 and E1 connected)
43. INSTALL ENGINE UNDER COVER
±
ENGINE MECHANICAL Timing BeltEM±57
WhereEverybodyKnowsYourName
Page 2258 of 4087

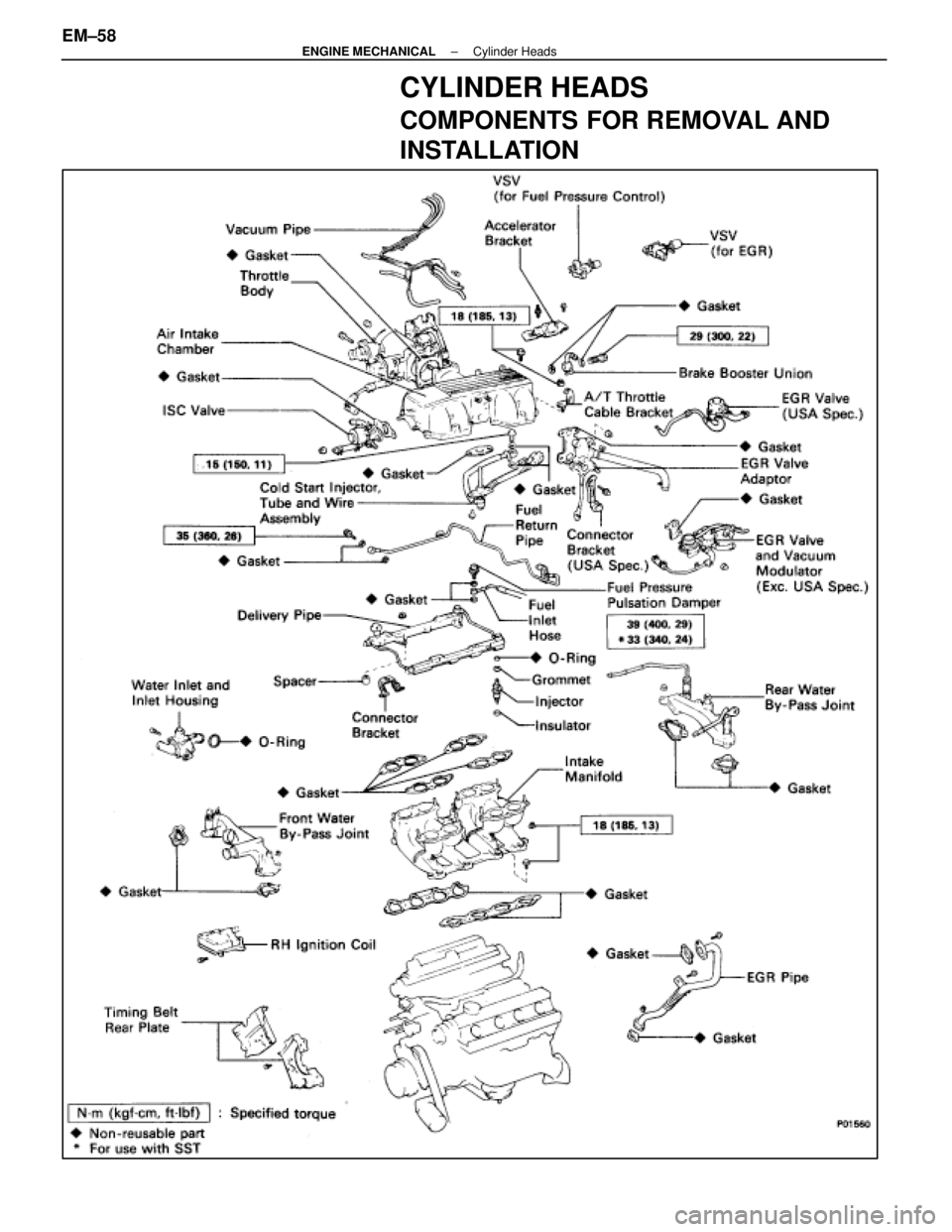

CYLINDER HEADS
COMPONENTS FOR REMOVAL AND
INSTALLATION
EM±58±
ENGINE MECHANICAL Cylinder Heads
WhereEverybodyKnowsYourName
Page 2259 of 4087

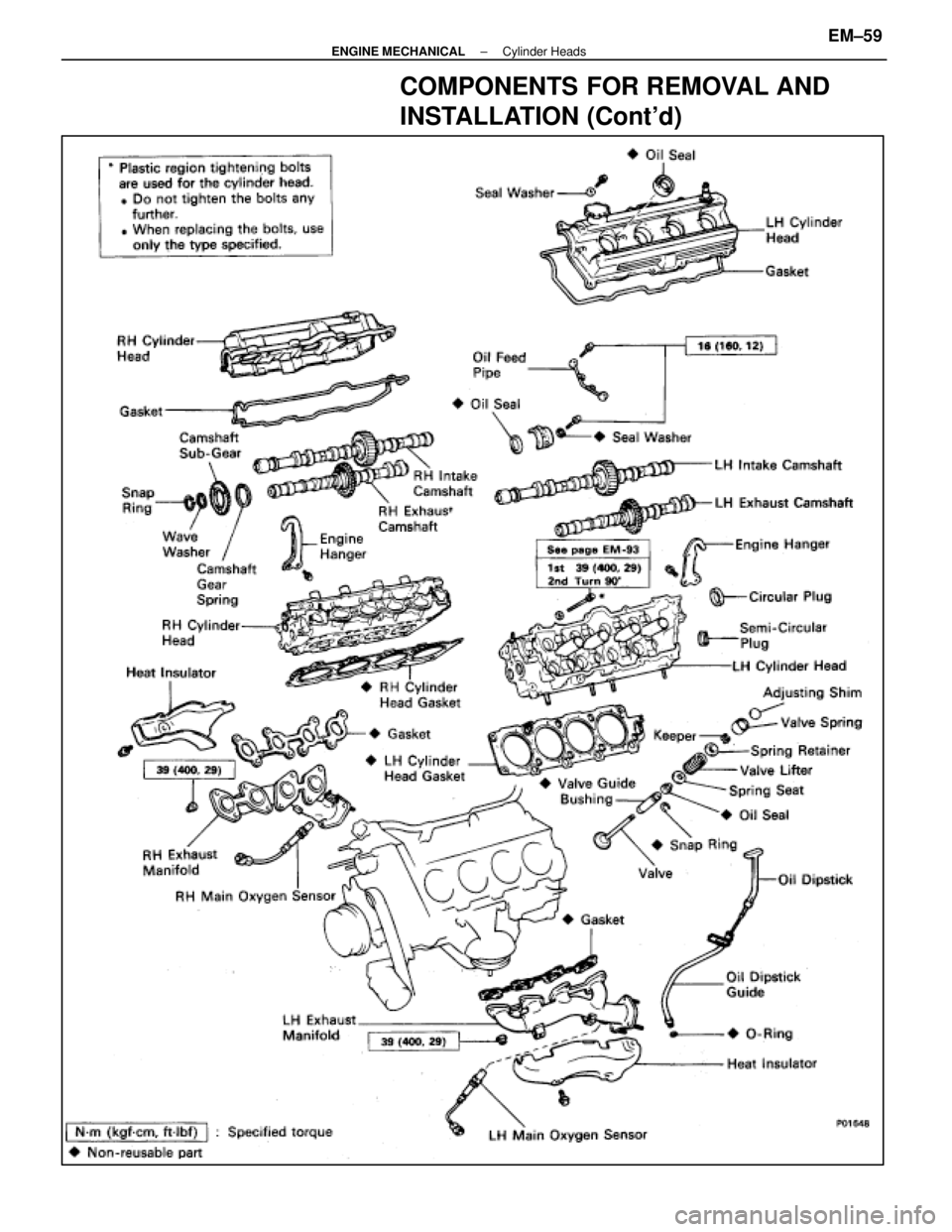

COMPONENTS FOR REMOVAL AND
INSTALLATION (Cont'd)
±
ENGINE MECHANICAL Cylinder HeadsEM±59
WhereEverybodyKnowsYourName
Page 2260 of 4087

REMOVAL OF CYLINDER HEADS
(See Components on pages EM±58 and 59)
1. DISCONNECT TIMING BELT FROM CAMSHAFT TIMING PULLEYS
(See steps 1 to 28 on pages EM±35 to 42)
2. REMOVE CAMSHAFT TIMING PULLEYS AND HYDRAULIC PUMP
(See steps 29 and 31 on pages EM±42 and 43)
HINT:
w Be careful not to drop anything inside the timing belt
cover.
w Do not allow the timing belt to come into contact with oil,
water or dust.
3. DISCONNECT PS PUMP FROM LH CYLINDER HEAD (a) Disc onnect the vacuum hose from the air intake
chamber.
(b) Remove the three bolts and nut, and disconnect the PS pump.
HINT: Put aside the PS pump, and suspend it.
4. REMOVE CATALYTIC CONVERTERS (MAIN) (a) Remove the four bolts holding the pipe support bracketto the transmission.
(b) Remove the four bolts and nuts holding the catalytic converters to the front exhaust pipe. Remove the pipe
support bracket.
(c) Disconnect the front exhaust pipe from the catalytic
converter, and remove the two gaskets.
(d) Remove the three nuts, catalytic converter and gasket. Remove the two catalytic converters.
EM±60
±
ENGINE MECHANICAL Cylinder Heads
WhereEverybodyKnowsYourName
Page 2261 of 4087
5. REMOVE THROTTLE BODY COVER(a) Remove the mounting cap nut.
(b) Loosen the two bolts, and remove the throttle bodycover.
6. DISCONNECT CONTROL CABLES FROM THROTTLE BODY
Disconnect the following cables:(1) Accelerator cable
(2) A/T throttle control cable
(3) (w/ Cruise Control System) Cruise control actuator cable
7. REMOVE RH IGNITION COIL Remove the two bolts and ignition coil.
8. REMOVE WATER INLET AND INLET HOUSING (a) Disconnect the water by±pass hose from the ISC valve.
(b) Remove the two bolts holding the water inlet housing to the water pump.
(c) Pull out the water inlet and inlet housing assembly.
(d) Remove the O±ring from the water inlet housing.
±
ENGINE MECHANICAL Cylinder HeadsEM±61
WhereEverybodyKnowsYourName
Page 2262 of 4087
9. REMOVE TIMING BELT REAR PLATESRemove the two bolts and rear plate. Remove the two rear
plates.
10. REMOVE VACUUM PIPE (a) Disconnect the following hoses:(1) (USA Spec.)
Vacuum hose from throttle body
(2) (Exc. USA Spec.) Three vacuum hoses from throttle body
(3) Vacuum hose from fuel pressure regulator
(4) Two vacuum hoses from VSV for fuel pressure con-
trol system
(5) (Exc. USA Spec.) Two vacuum hoses from EGR vacuum modulator
(6) Two vacuum hoses (from VSV for EVAP system)
from vacuum pipe
(7) Vacuum hose (from VSV for fuel pressure control system) from air intake chamber
(8) Vacuum hose (from charcoal canister) from vacu-
um pipe.
(b) Remove the two bolts, the vacuum pipe and vacuum hoses assembly.
EM±62
±
ENGINE MECHANICAL Cylinder Heads
WhereEverybodyKnowsYourName
Page 2263 of 4087
11. (USA Spec.)REMOVE EGR VALVE
(a) Disconnect the EGR valve connector.
(b) Disconnect the following hoses:(1) Water by±pass pipe hose from ISC valve
(2) Water by±pass hose from water by±pass pipe (from rear water by±pass joint)
(c) Remove the two nuts, EGR valve and gasket.
12. (Exc. USA Spec.) REMOVE EGR VALVE AND VACUUM MODULATOR
(a) Disconnect the hose clamp (A) from the PCV hose.
(b) Disconnect the following hoses:(1) Water by±pass pipe hose from ISC valve
(2) Water by±pass hose from water by±pass pipe (from rear water by±pass joint)
(3) Two vacuum hoses from VSV for EGR system
(c) Remove the bolt, two nuts, the EGR valve, vacuum modulator assembly and gasket.
13. REMOVE EGR VALVE ADAPTOR (a) Disconnect the PCV hose from the cylinder head.
±
ENGINE MECHANICAL Cylinder HeadsEM±63
WhereEverybodyKnowsYourName
Page 2264 of 4087
(b) Remove the two bolts, two nuts, adaptor and gasket.
(c) (USA Spec. only)Disconnect the EGR gas temperature sensor connec-
tor.
14. REMOVE ISC VALVE (a) Disconnect the ISC valve connector.
(b) Disconnect the water by±pass hose from the ISC valve.
(c) Remove the two nuts, ISC valve and gasket.
15. DISCONNECT HEATER WATER VALVE FROM BODY (a) Disconnect the VSV connector.
(b) Remove the bolt holding the engine wire clamp to thewater valve bracket.
(c) Remove the two bolts, and disconnect the water valve and bracket assembly.
16. REMOVE THROTTLE BODY (a) Disconnect the following connectors:(1) Throttle position sensor connector
(2) (w/ TRAC)
Sub±throttle position sensor connector
(3) (w/ TRAC) Sub±throttle actuator connector
EM±64
±
