FUEL LID OPENER SYSTEM

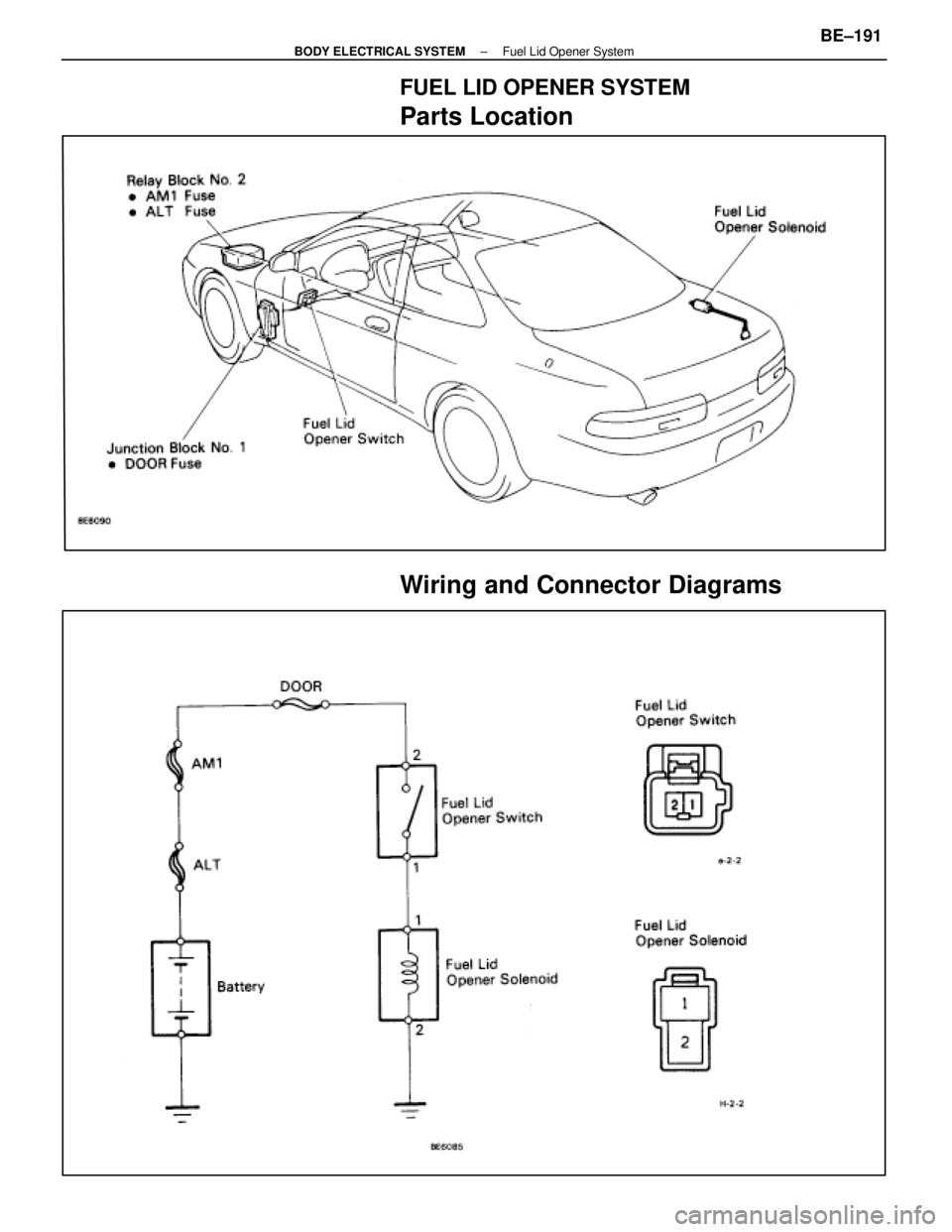

Parts Location
Wiring and Connector Diagrams
±
BODY ELECTRICAL SYSTEM Fuel Lid Opener SystemBE±191
WhereEverybodyKnowsYourName
Page 578 of 4087

Parts Inspection
(Fuel Lid Opener Switch)
REMOVAL AND INSTALLATION OF FUEL
LID OPENER SWITCH

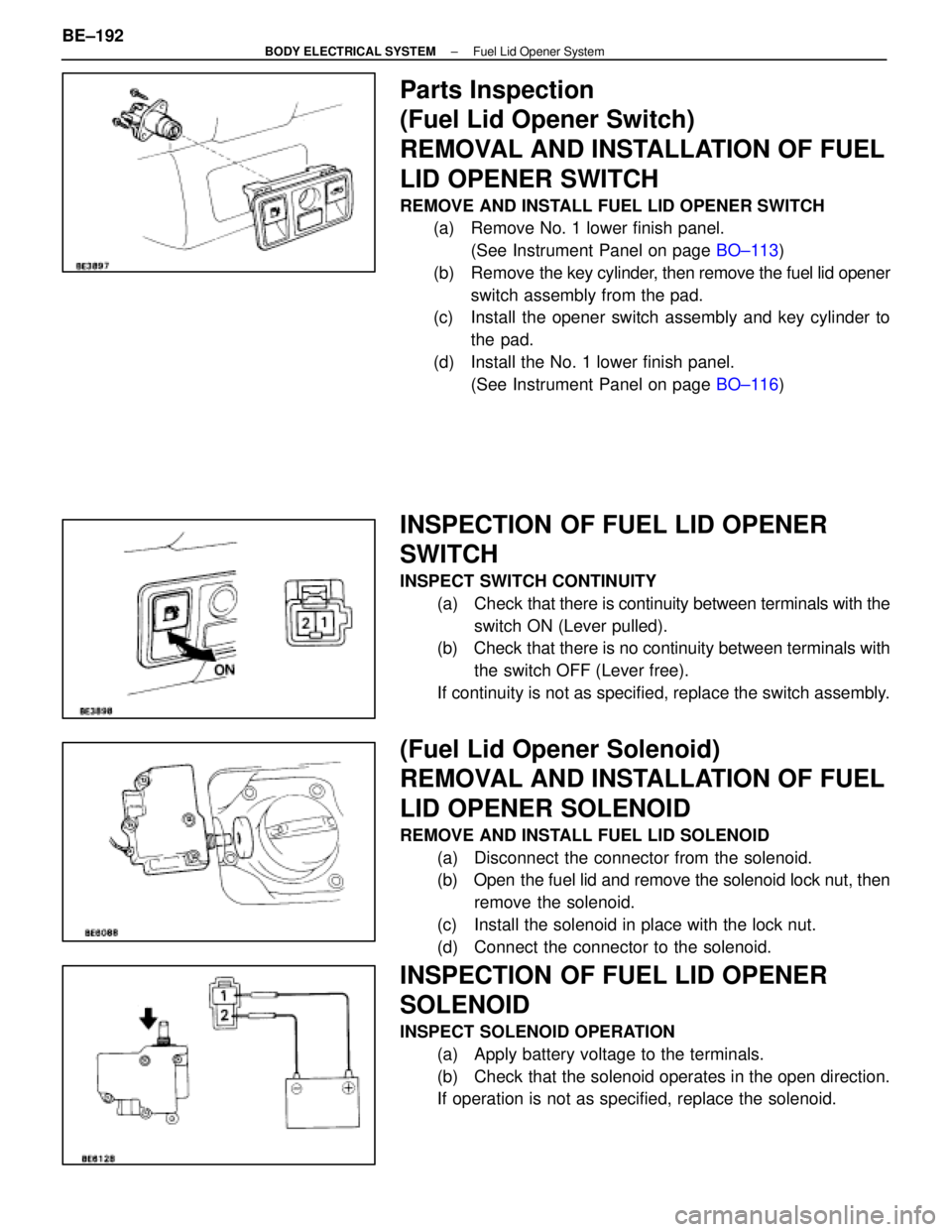

REMOVE AND INSTALL FUEL LID OPENER SWITCH(a) Remove No. 1 lower finish panel.
(See Instrument Panel on page BO±113)
(b) Remove the key cylinder, then remove the fuel lid opener
switch assembly from the pad.
(c) Install the opener switch assembly and key cylinder to
the pad.
(d) Install the No. 1 lower finish panel. (See Instrument Panel on page BO±116)
INSPECTION OF FUEL LID OPENER
SWITCH
INSPECT SWITCH CONTINUITY
(a) Check that there is continuity between terminals with the
switch ON (Lever pulled).
(b) Check that there is no continuity between terminals with
the switch OFF (Lever free).
If continuity is not as specified, replace the switch assembly.
(Fuel Lid Opener Solenoid)
REMOVAL AND INSTALLATION OF FUEL
LID OPENER SOLENOID
REMOVE AND INSTALL FUEL LID SOLENOID (a) Disconnect the connector from the solenoid.
(b) Open the fuel lid and remove the solenoid lock nut, thenremove the solenoid.
(c) Install the solenoid in place with the lock nut.
(d) Connect the connector to the solenoid.
INSPECTION OF FUEL LID OPENER
SOLENOID
INSPECT SOLENOID OPERATION (a) Apply battery voltage to the terminals.
(b) Check that the solenoid operates in the open direction.
If operation is not as specified, replace the solenoid.
BE±192
±
BODY ELECTRICAL SYSTEM Fuel Lid Opener System
WhereEverybodyKnowsYourName
Page 579 of 4087
Troubleshooting
You will find the cause of trouble more easily by properly using the tabl\
e shown below. In this table, the numbers
indicate the order or priority of the causes of trouble. Check each part\
in the order shown. If necessary, replace
the part.
See page
BE ± 4, 20BE ± 192BE ± 192
±
Trouble
Part Name
DOOR FuseFuel Lid Opener Switch
Mirror SwitchFuel Lid Opener SolenoidWire Harness
Fuel lid opener system does not operate1234
±
BODY ELECTRICAL SYSTEM Fuel Lid Opener SystemBE±193
WhereEverybodyKnowsYourName
Page 580 of 4087
CLOCK
Troubleshooting
HINT: Troubleshoot the clock according to the table below.
Clock will not operate1
Clock loses or gains time2
1CLOCK WILL NOT OPERATE
(a) Check that the battery voltage is 10±16 V.
If voltage is not as specified, replace the battery.
(b) Check that the DOME fuse is not blown.
If the fuse is blown, replace the fuse and check for short.
(c) Troubleshoot the clock as follows.
HINT: Inspect the connector on the wire harness side.
BE±194
±
BODY ELECTRICAL SYSTEM Clock
Is there battery voltage between terminal
+B and body ground?
Is there continuity between terminal GND
and body ground?
Replace clock. Open or
short circuit in wire harness between
terminal +B and DOME fuse.
Open circuit in wire harness between
terminal GND and body ground.
WhereEverybodyKnowsYourName
Page 581 of 4087
2CLOCK LOSES OR GAINS TIME
(a) Check that the battery voltage is 10±16 V.
If voltage is not as specified, replace the battery.
(b) Inspect the error of the clock.
Allowable error (par day): + 2.0 seconds
If the error exceeds the allowable error, replace the clock.
(c) Check if the clock adjusting button is sticking in position
and has failed to return.
If the button has not returned, repair or replace the clock.
(d) troubleshoot the clock as follows.
HINT: Inspect the connector on the wire harness side.
±
BODY ELECTRICAL SYSTEM ClockBE±195

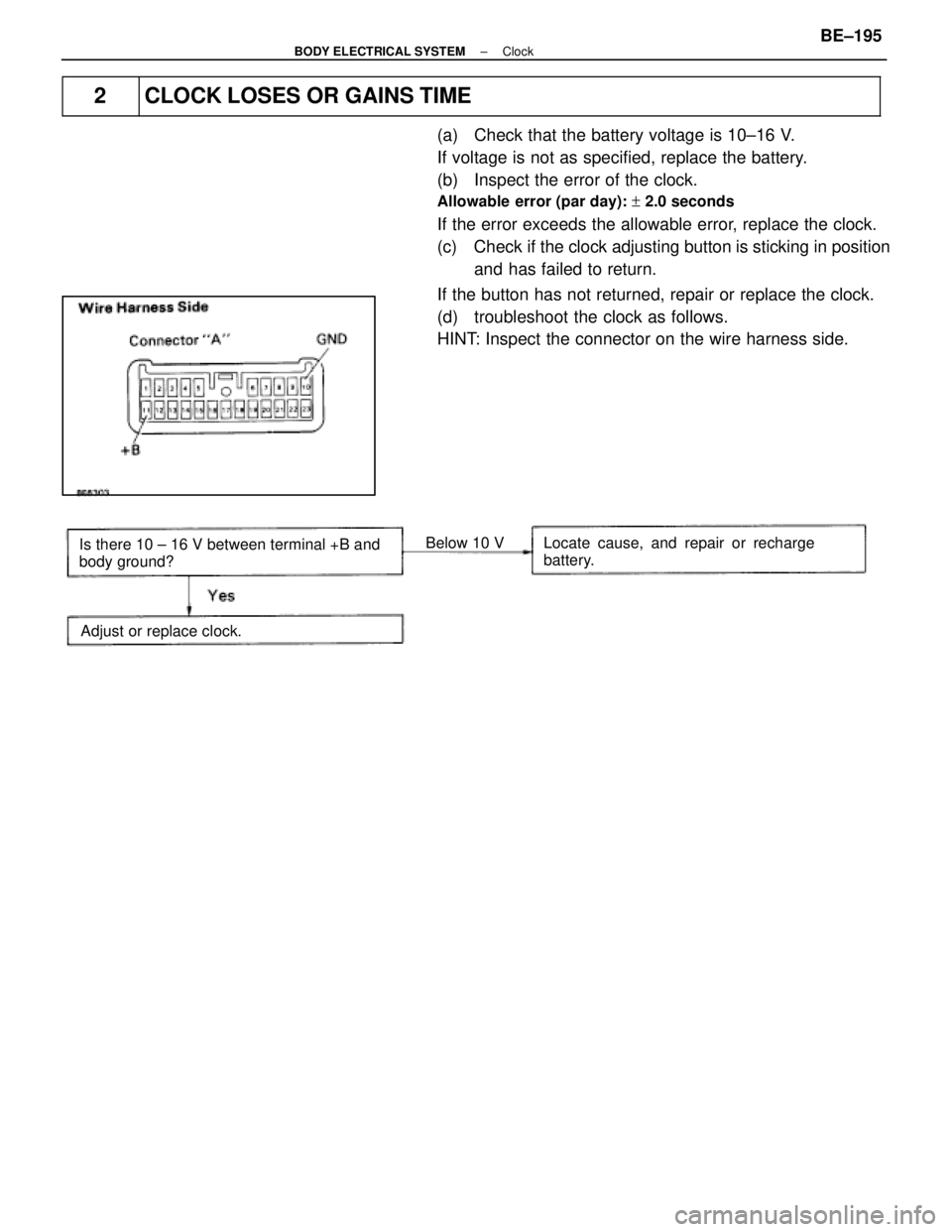

Is there 10 ± 16 V between terminal +B and
body ground?
Adjust or replace clock. Locate cause, and repair or recharge
battery.
Below 10 V
WhereEverybodyKnowsYourName
Page 582 of 4087

AUDIO SYSTEM
System Description
RADIO WAVE BAND
The radio wave bands used in radio broadcasting are as follows:
Frequency 30 kHz300 kHz 3 MHz30 MHz300 MHz
DesignationLFMFHFVHF
Radio waveAM
eFM
e
Modulation methodAmplitude modulationFrequency modulation
LF: Low Frequency MF: Medium Frequency HF: High Frequency VH\
F: Very High Frequency
SERVICE AREA

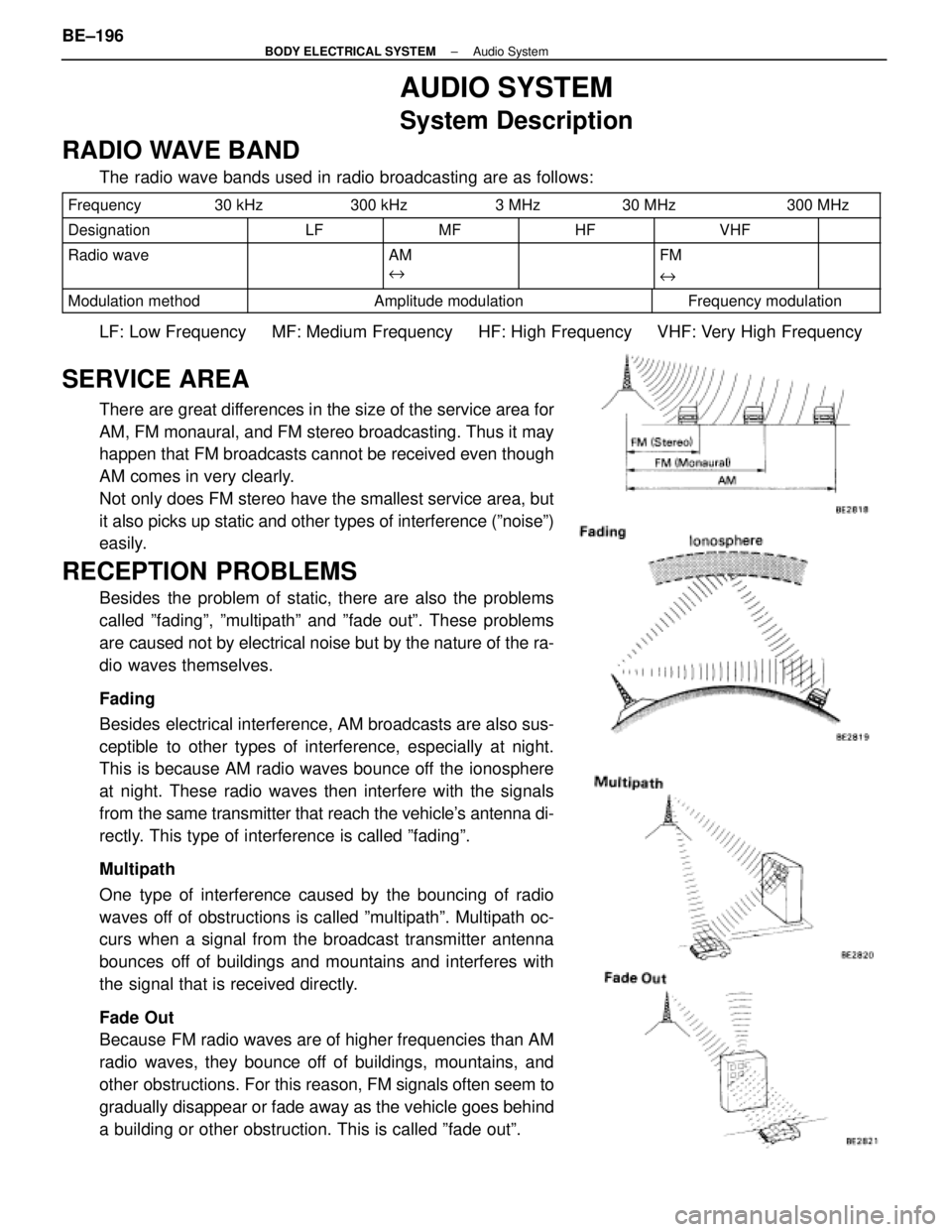

There are great differences in the size of the service area for
AM, FM monaural, and FM stereo broadcasting. Thus it may
happen that FM broadcasts cannot be received even though
AM comes in very clearly.
Not only does FM stereo have the smallest service area, but
it also picks up static and other types of interference (ºnoiseº)
easily.
RECEPTION PROBLEMS
Besides the problem of static, there are also the problems
called ºfadingº, ºmultipathº and ºfade outº. These pro\
blems
are caused not by electrical noise but by the nature of the ra-
dio waves themselves.
Fading
Besides electrical interference, AM broadcasts are also sus-
ceptible to other types of interference, especially at night.
This is because AM radio waves bounce off the ionosphere
at night. These radio waves then interfere with the signals
from the same transmitter that reach the vehicle's antenna di-
rectly. This type of interference is called ºfadingº.
Multipath
One type of interference caused by the bouncing of radio
waves off of obstructions is called ºmultipathº. Multipath oc-
curs when a signal from the broadcast transmitter antenna
bounces off of buildings and mountains and interferes with
the signal that is received directly.
Fade Out
Because FM radio waves are of higher frequencies than AM
radio waves, they bounce off of buildings, mountains, and
other obstructions. For this reason, FM si gnals often seem to
gradually disappear or fade away as the vehicle goes behind
a building or other obstruction. This is called ºfade outº.
BE±196
±
BODY ELECTRICAL SYSTEM Audio System
WhereEverybodyKnowsYourName
Page 583 of 4087
MAINTENANCE OF TAPE PLAYER
Head Cleaning
Using a moist±type cleaning tape, clean the head surface, pinch rolle\
rs and capstans.
COMPACT DISC PLAYER
Compact Disc (hereafter called ºCDº) players use a laser beam pick±up\
to read the digital signals recorded
on the CD and reproduce analog signals of the music, etc. There are 4.7 in\
. (12 cm) and 3.2 in. (8 cm) CD
available, but it is recommended that you do not use 3.2 in. (8 cm) discs in the\
CD auto changer.
HINT: Never attempt to disassemble or oil any part of the player unit. Do not\
insert any object other than
a disc into the magagine.
NOTICE: CD players use on invisible laser laser beam which could cause hazardou\
s radiation expo-
sure. Be sure to operate the player correctly as instructed.
±
BODY ELECTRICAL SYSTEM Audio SystemBE±197
WhereEverybodyKnowsYourName
Page 584 of 4087

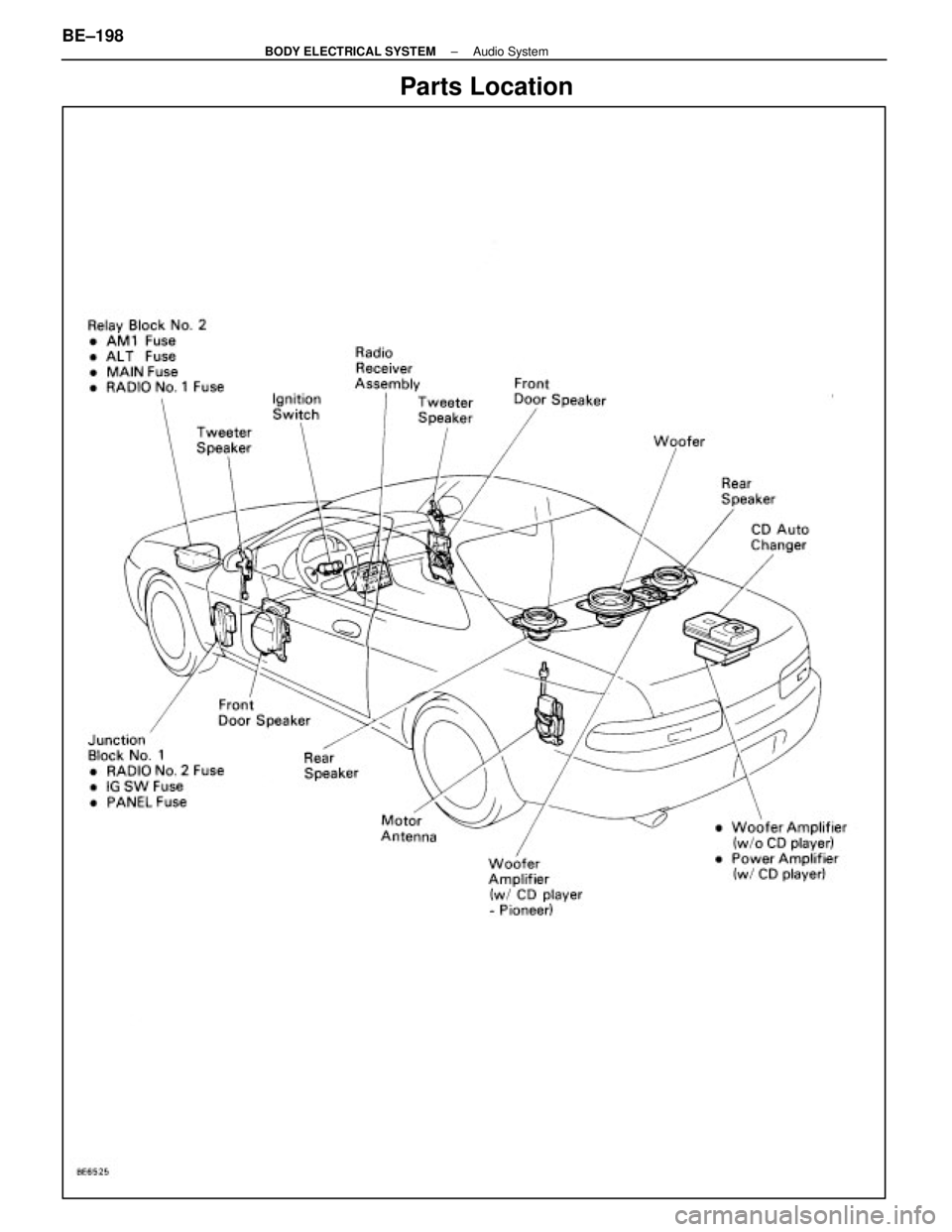

Parts Location
BE±198±
BODY ELECTRICAL SYSTEM Audio System
WhereEverybodyKnowsYourName
