REPLACEMENT REQUIREMENTS
In the following cases, replace the front airbag sensor.
NOTICE: For replacement of the front airbag sensor, see page AB±16, ªREMOVAL AND
INSTALLATIONº.
w If the airbag has been deployed in a collision.
(Replace both the left and right airbag sensors.)
w If the front airbag sensor has been found to be faulty in troubleshootin\
g.
w If the front airbag sensor has been found to be faulty during the check \
in item 2±(b).
w If the front airbag sensor has been dropped.
Center Airbag Sensor Assembly
INSPECTION ITEMS
1. VEHICLES NOT INVOLVED IN A COLLISION
w Perform a diagnostic system check (See page AB±30).
VEHICLES INVOLVED IN A COLLISION
IF THE AIRBAG IS NOT DEPLOYED
w Perform a diagnostic system check (See page AB±30).
IF THE AIRBAG IS DEPLOYED
w Replace the airbag sensor assembly certainly.
AB±11SRS AIRBAG ± Inspection Items and Replacement Requirements
WhereEverybodyKnowsYourName
Page 226 of 4087

Wire Harness and Connector
HINT: The wires for the airbag wire harness are encased in a yellow corrugate\
d tube and all the connectors in
the system are a standard yellow color.
INSPECTION ITEMS
1. VEHICLES NOT INVOLVED IN A COLLISIONw Perform a diagnostic system check (See page AB±30).
2. VEHICLES INVOLVED IN A COLLISION (a) Perform a diagnostic system check (See page AB±30).
(b) If there is a break in any of the wires in the airbag system wire harness,\
or if conductors are exposed.
(c) If the airbag system wire harness connectors are cracked or chipped.
REPLACEMENT REQUIREMENTS
In the following cases, replace the wire harness or connector.
w If any part of the airbag system wire harness or any connector has been fo\
und to be faulty in trouble-
shooting.
w If any part of the airbag system wire harness or any connector has been \
found to be faulty during the
check in item 2±(b) or (c).
NOTICE: If the wire harness used in the airbag system is damaged, replace the w\
hole wire harness
assembly.
When the connector to the airbag front sensors can be repaired alone (when \
there is no damage
to the wire harness), use the repair wire specially designed for the pu\
rpose (See page AB±20).
AB±12
SRS AIRBAG
± Inspection Items and Replacement Requirements
WhereEverybodyKnowsYourName
Page 227 of 4087
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09082±00700SRS Airbag
Deployment Tool
09213±31021Crankshaft Pulley
Puller
09843±18020Diagnosis Check
Wiring
Steering wheel
RECOMMENDED TOOLS
09042±00010Torx Socket
T30
09042±00020Torx Socket
T30
09082±00015TOYOTA
Electrical Tester
Center airbag sensor assembly
Steering wheel pad
EQUIPMENT
Part NameNote
Torque wrench
AB±13SRS AIRBAG ± Preparation
WhereEverybodyKnowsYourName
Page 228 of 4087

REMOVAL AND INSTALLATION OF
COMPONENT PARTS

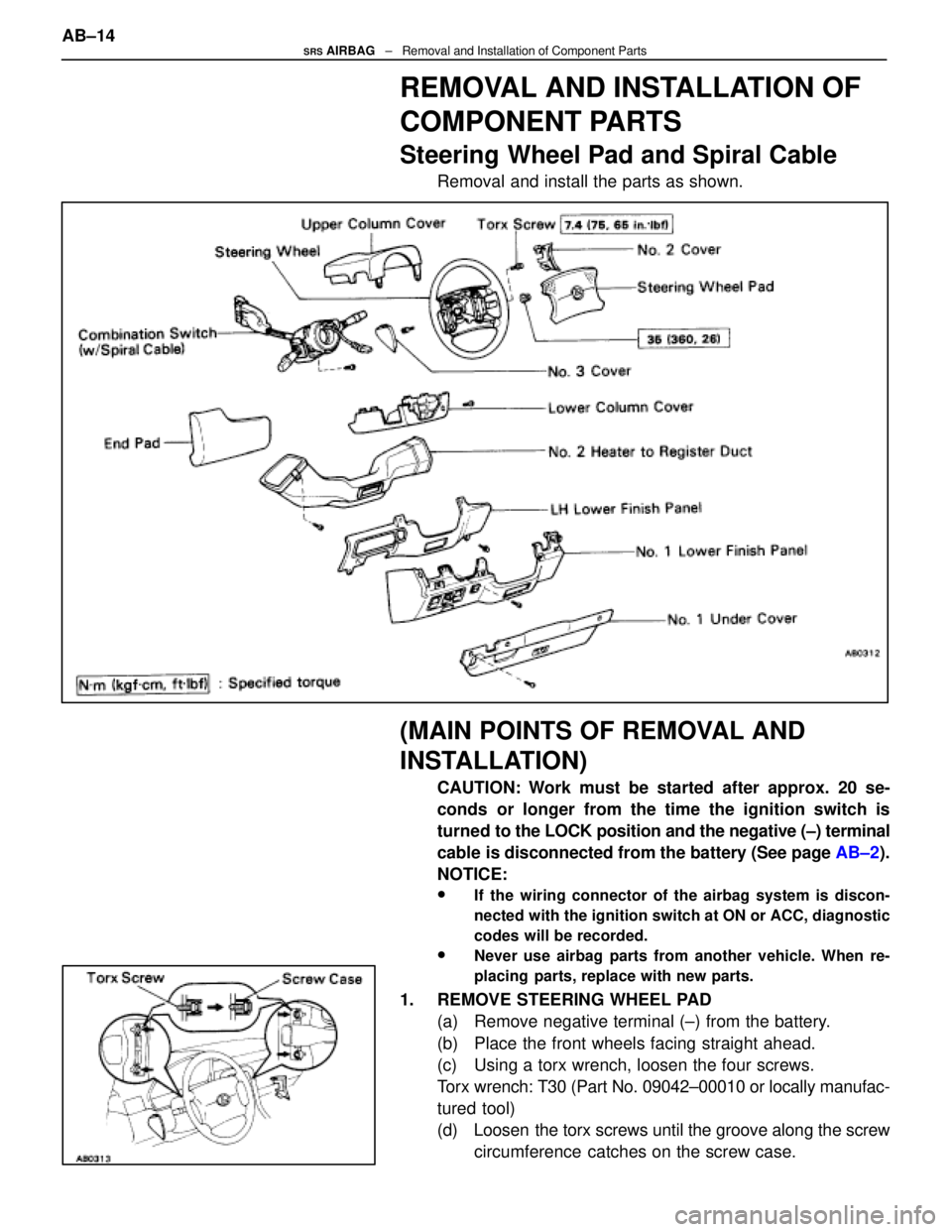

Steering Wheel Pad and Spiral Cable
