Page 2545 of 4087

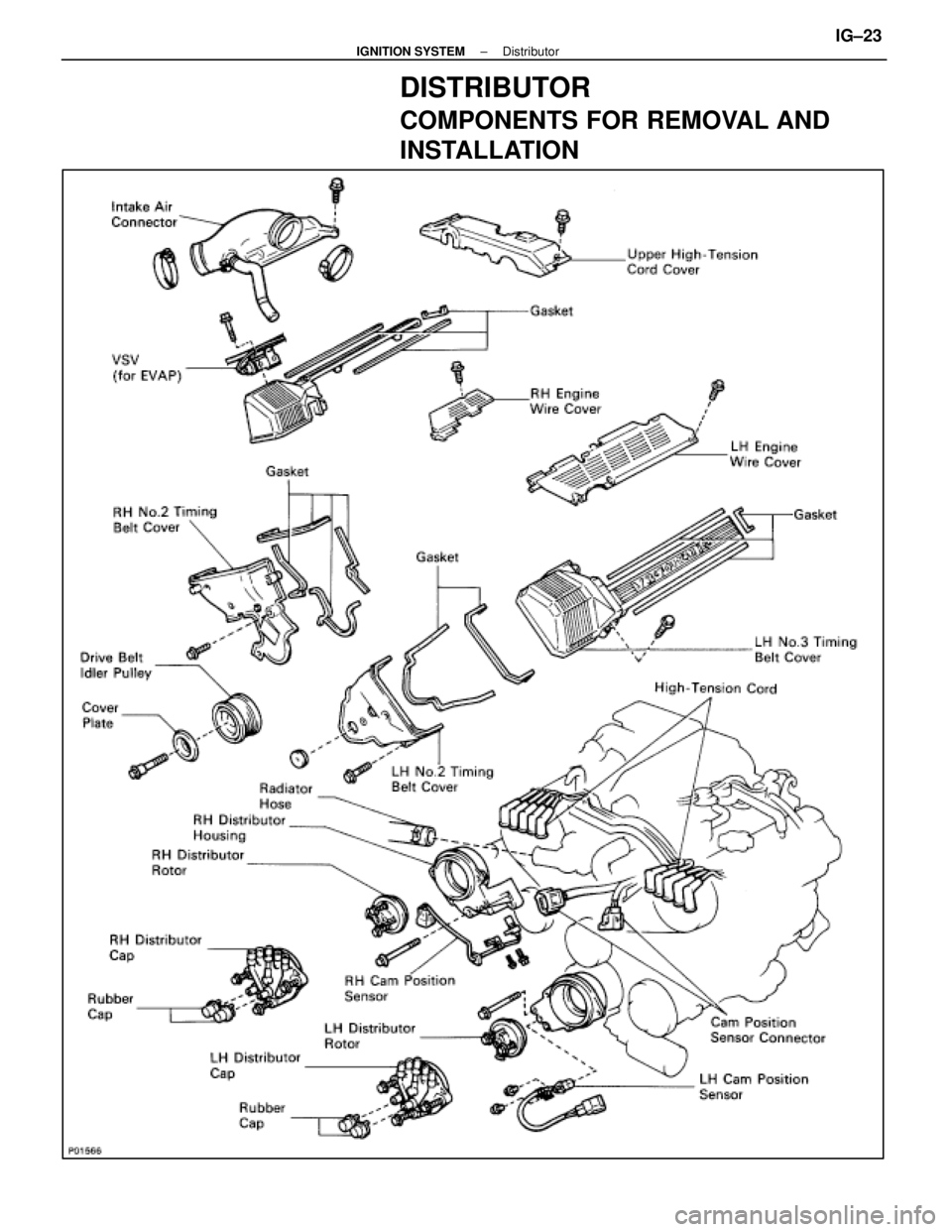

LEXUS SC400 1991 Service Repair Manual DISTRIBUTOR COMPONENTS FOR REMOVAL AND INSTALLATION ± IGNITION SYSTEM DistributorIG±23 WhereEverybodyKnowsYourName

Page 2546 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF DISTRIBUTOR (See Components on page IG±23) 1. DRAIN ENGINE COOLANT (See page CO±6) 2. DISCONNECT RADIATOR HOSE FROM WATER INLET 3. REMOVE NO.3 TIMING BELT COVERS (See steps 1 to 8 on

Page 2547 of 4087

LEXUS SC400 1991 Service Repair Manual 7. DISCONNECT HIGH±TENSION CORDS FROMDISTRIBUTOR CAPS Disconnect the high±tension cords at the rubber boot. Do not pull on the cord. NOTICE: Pulling or bending the cords may damage the conductor

Page 2548 of 4087

LEXUS SC400 1991 Service Repair Manual INSTALLATION OF DISTRIBUTOR (See Components on page IG±23) 1. INSTALL CAM POSITION SENSORS TO DISTRIBUTOR HOUSINGS Install the cam position sensor with the bolt and screw. Install the two cam posi

Page 2549 of 4087

LEXUS SC400 1991 Service Repair Manual 5. INSTALL DISTRIBUTOR CAPSInstall the distributor cap with the three bolts. Install the two distributor caps. Torque: 3.8 N Vm (39 kgf Vcm, 34 in. Vlbf) 6. CONNECT HIGH±TENSION CORDS TO DISTRIBUT

Page 2550 of 4087

LEXUS SC400 1991 Service Repair Manual 9. INSTALL DRIVE BELT IDLER PULLEYInstall the idler pulley and cover plate with the pulley bolt. Torque: 37 N Vm (380 kgf Vcm, 27 ft Vlbf) 10. INSTALL NO.3 TIMING BELT COVERS (See steps 5 to 9 and

Page 2551 of 4087

LEXUS SC400 1991 Service Repair Manual (c) Check the ignition timing. Ignition timing: 8±125 BTDC @ idle (Transmission in neutral range) If the ignition timing is not as specified, check that following conditions are normal: w Throttle

Page 2552 of 4087

LEXUS SC400 1991 Service Repair Manual ENGINE SPEED SENSOR COMPONENTS FOR REMOVAL AND INSTALLATION REMOVAL OF ENGINE SPEED SENSOR 1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OFBATTERY CAUTION: Work must be started after approx. 20 se- con
