Page 1177 of 4087

LEXUS SC400 1991 Service Repair Manual mm in.10 0.39 COWL SIDE OUTER PANEL UPPER (ASSY) REMOVAL Cut with disc sander etc. INSTALLATIONTack Weld (10 mm each) 1. Temporarily install the new parts and mea- sure each part in accordance with t

Page 1178 of 4087

LEXUS SC400 1991 Service Repair Manual mm in.10 0.39 COWL TOP TO APRON BRACE (ASSY): Right Side REMOVAL (With the cowl side outer panel upper removed.) Cut with disc sander etc. Cut with disc Sander etc. INSTALLATIONTack Weld (10 mm each)

Page 1179 of 4087

LEXUS SC400 1991 Service Repair Manual mm in.10 0.39 COWL TOP TO APRON BRACE (ASSY): Left Side REMOVAL (With the cowl side outer panel upper removed.) Cut with disc sander etc. Cut with disc sander etc. INSTALLATIONTack Weld (10 mm)Tack W

Page 1180 of 4087

LEXUS SC400 1991 Service Repair Manual mm in.10 0.39 COWL TOP SIDE PANEL (ASSY) REMOVAL (With the cowl top to apron brace removed.) Cut with disc sander etc. INSTALLATIONTack Weld (10 mm) BODY PANEL REPLACEMENTRE-23 WhereEverybodyKnowsYo

Page 1181 of 4087

LEXUS SC400 1991 Service Repair Manual MEMORE-24 WhereEverybodyKnowsYourName

Page 1182 of 4087

LEXUS SC400 1991 Service Repair Manual mm in.30 40 60 1.18 1.57 2.36 FRONT BODY PILLAR (CUT): w/o Moon Roof REMOVAL (With the cowl top side panel removed.) Cut and Join Location 40 mm 60 mm 30 mm 30 mm Cut and Join Location (Cut Location

Page 1183 of 4087

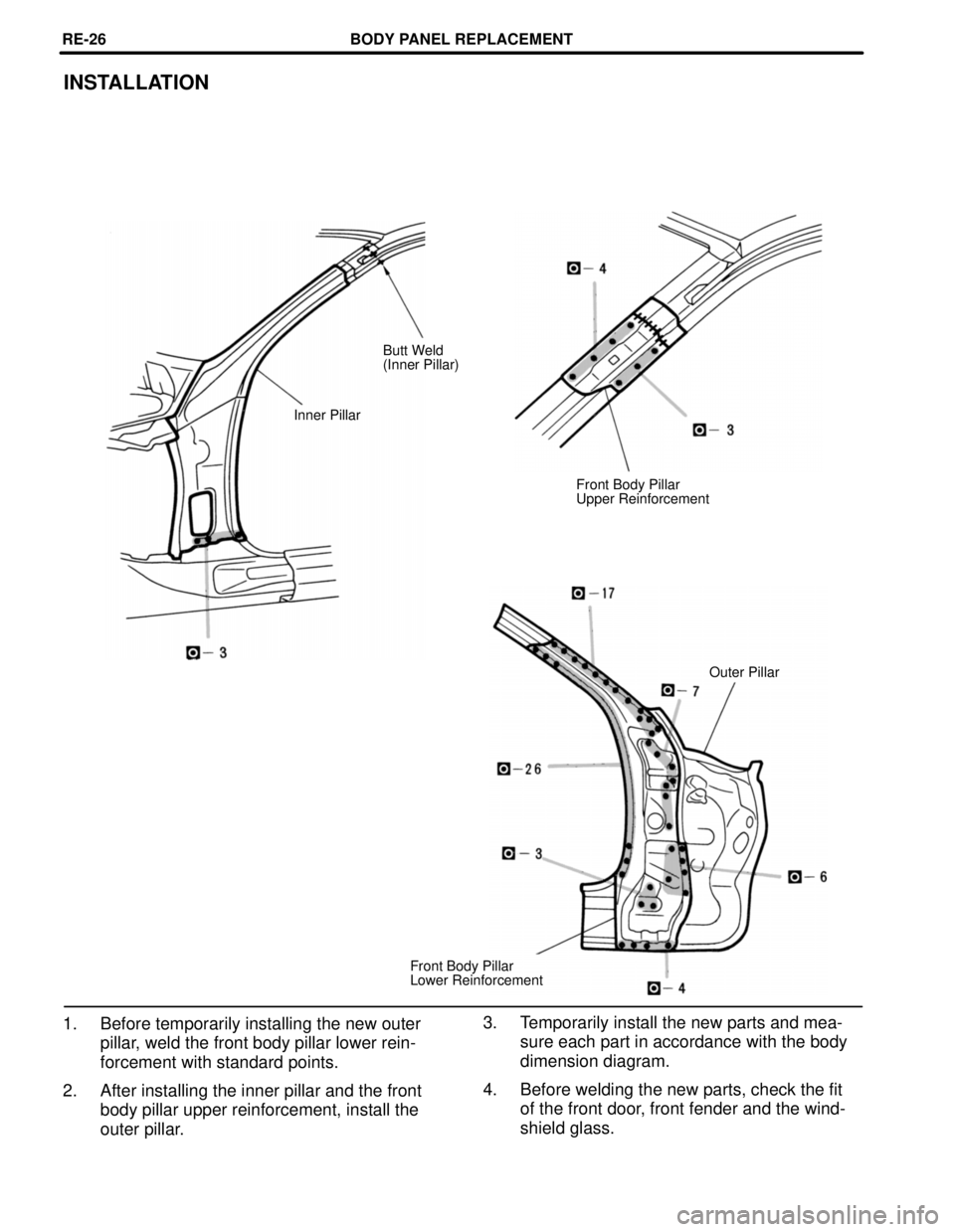

LEXUS SC400 1991 Service Repair Manual INSTALLATION Butt Weld (Inner Pillar) Inner Pillar Front Body Pillar Upper Reinforcement Outer Pillar Front Body Pillar Lower Reinforcement 1. Before temporarily installing the new outer pillar, weld

Page 1184 of 4087

LEXUS SC400 1991 Service Repair Manual INSTALLATION Cut and Join LocationButt Weld Roof Drip Channel Butt Weld 1. After installing the new parts, apply foamed material. HINT: For the foamed material application areas, refer to page AP-4.
